V-shaped nail gun V1015 photo frame frame back nail angle studio photo frame 45 degrees pneumatic gun angle nail gun

Specification:

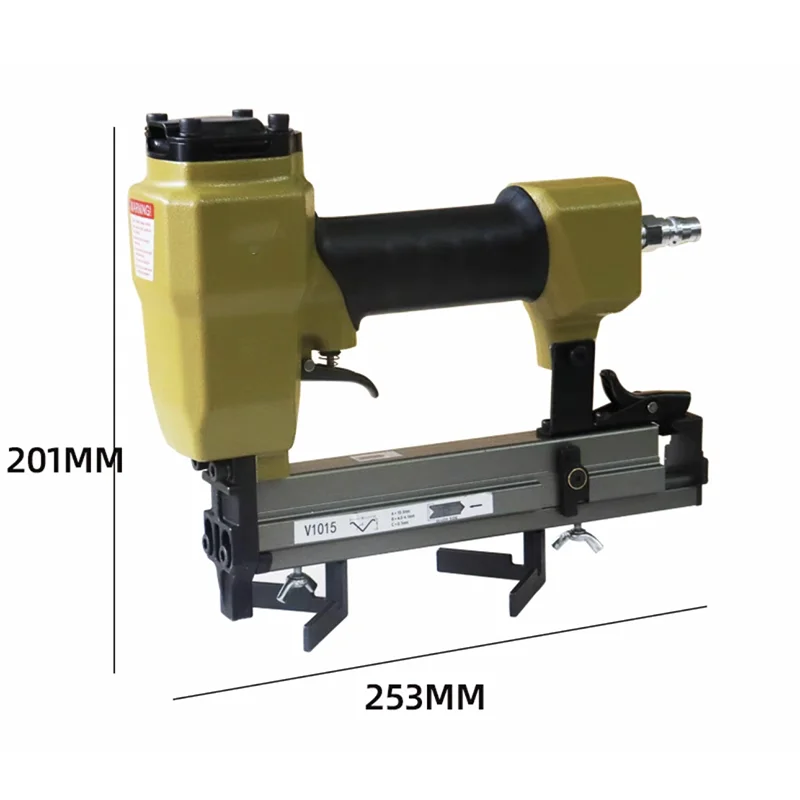

Size 50*170*205(mm) Capacity 200 pcs Air pressure 4-7kg/cm⊃2; Fitting tube 6mm Weight: 2.5kg

Features and advantages

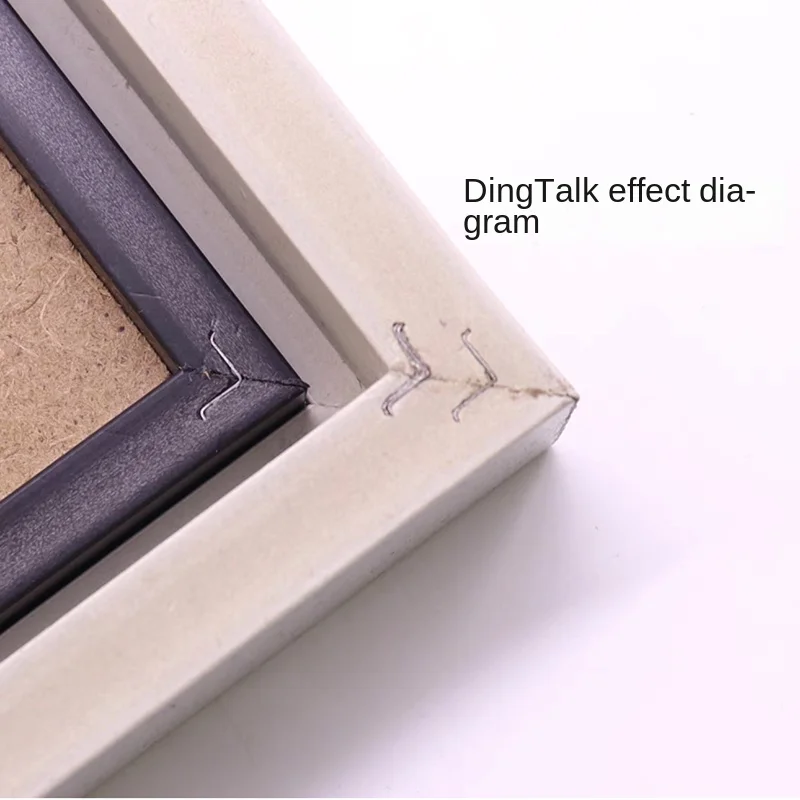

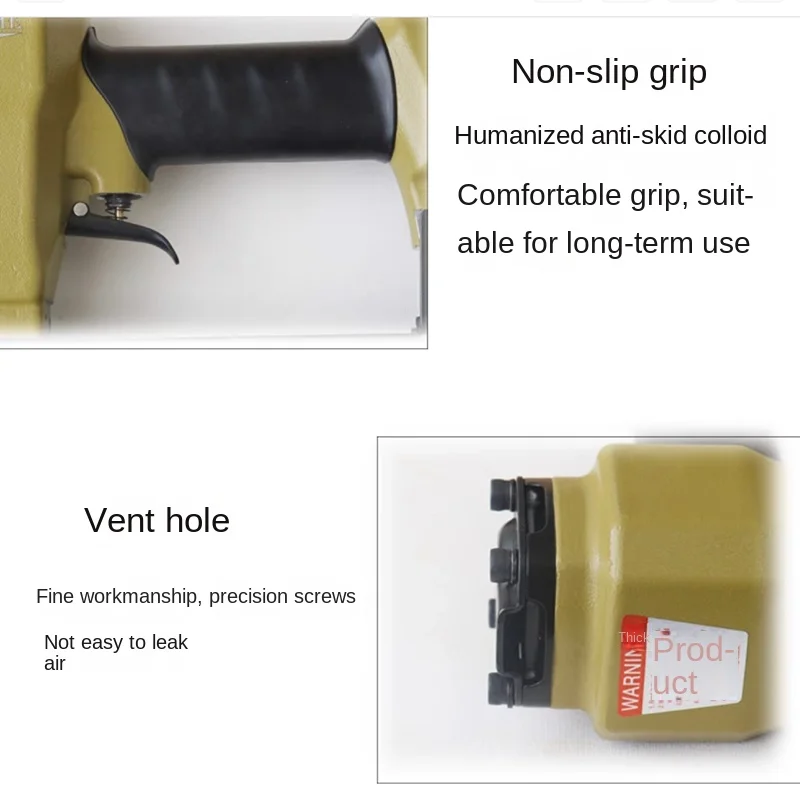

1, Ideal tool for picture frame and door assembly.2, Can drive 7.10.12.15mm size V-nails with 0.3mm diameter.3, Well balanced and low maintenance.4, Comfortable rubberized grip reduces operator fatigue.

Bundling

1. make note of air fittings and proceed without power to avoid damage 2. select desired nail size 3. push and pull nails nails into grooves 4. return to push nails

Nail punching work:

1. air link 2. align and hold the muzzle to the workpiece and activate the trigger 3. don't lose control

Maintenance:

1-2 drops of lubricant before use to maintain internal lubrication.
