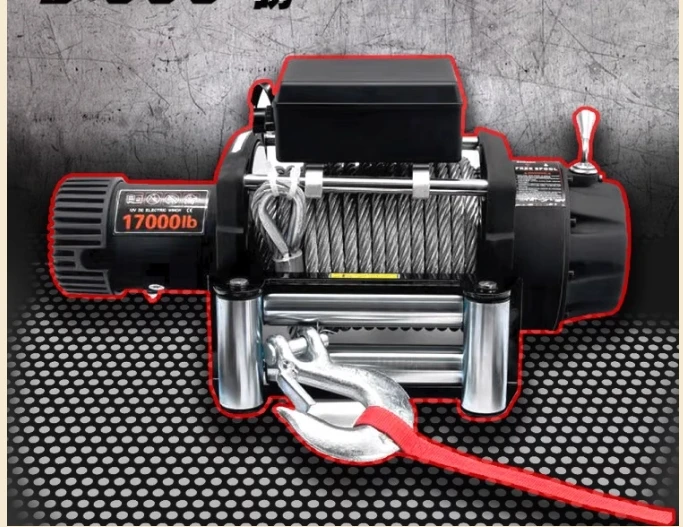

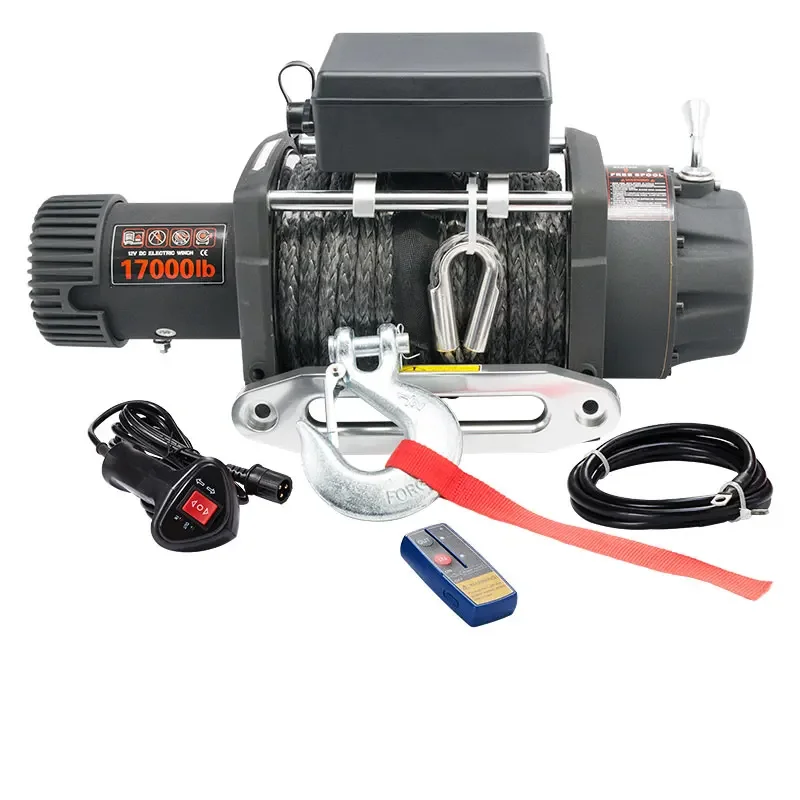

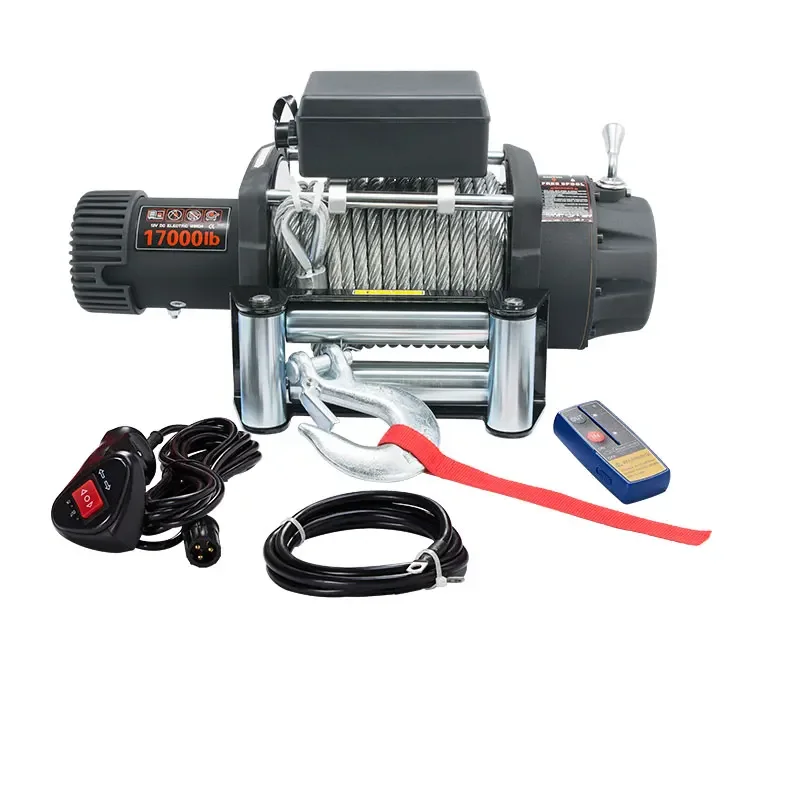

Electric winch 17000 pounds 8 tons 12V24V automobile self-rescue traction winch heavy duty winch machine

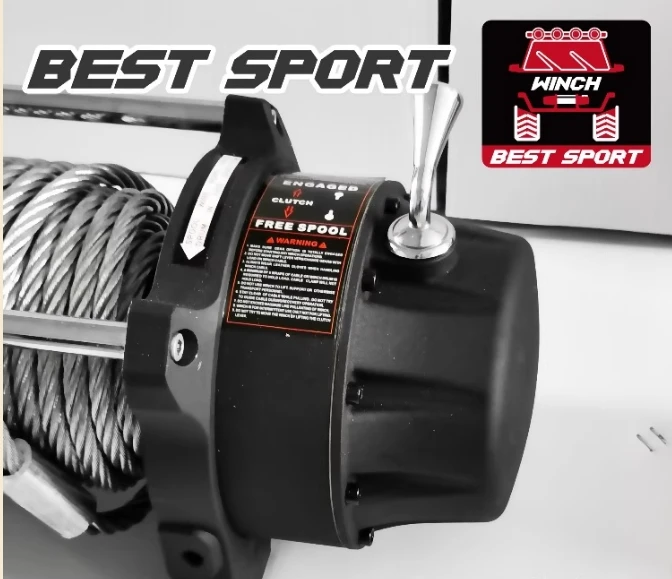

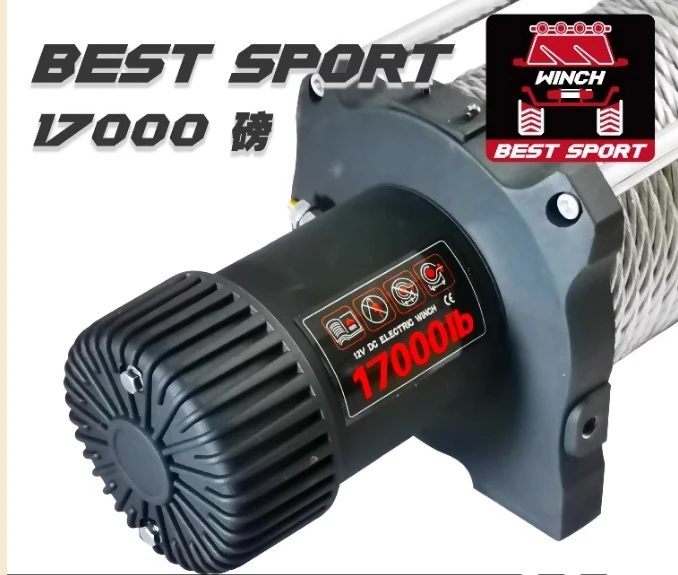

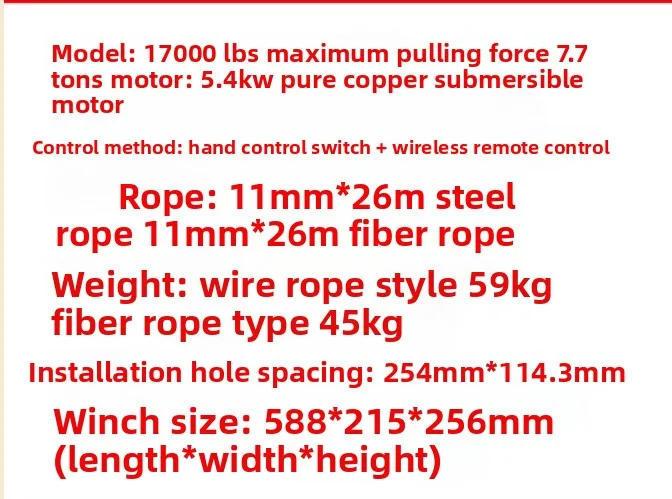

Rated tensile strength: 17000LB (7711kg) Single line motor: 7.2hp/5.4kw12V, series motor gear system 3-stage planetary gear ratio: 364:1 Clutch rotation 180 ° Wire rope specification: 11mm × 26m
Specification of winch: 89mm × 224mm Size of winch (length × width × height): (588 × 215 × 256mm) Gross weight: 130lbs (59kg)
Work cycle: intermittent work cycle
4-way roller cable guide
Packaging size: 660x270x420mm

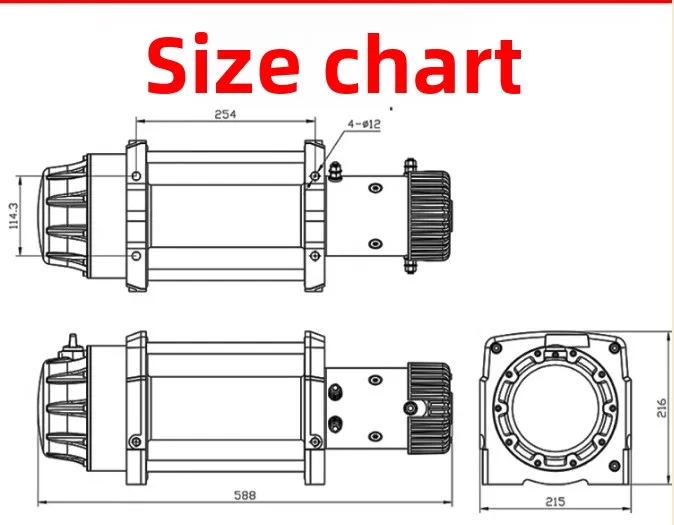

Installation hole position: 254 × 114.3mm
Rated tensile strength: 17000LB (7711kg) Single line motor: 7.2hp/5.4kw12V, series motor gear system 3-stage planetary gear ratio: 364:1 Clutch rotation 180 ° Wire rope specification: 11mm × 26m
Specification of winch: 89mm × 224mm Size of winch (length × width × height): (588 × 215 × 256mm) Gross weight: 130lbs (59kg)
Work cycle: intermittent work cycle
4-way roller cable guide
Packaging size: 660x270x420mm
Installation hole position: 254 × 114.3mm
