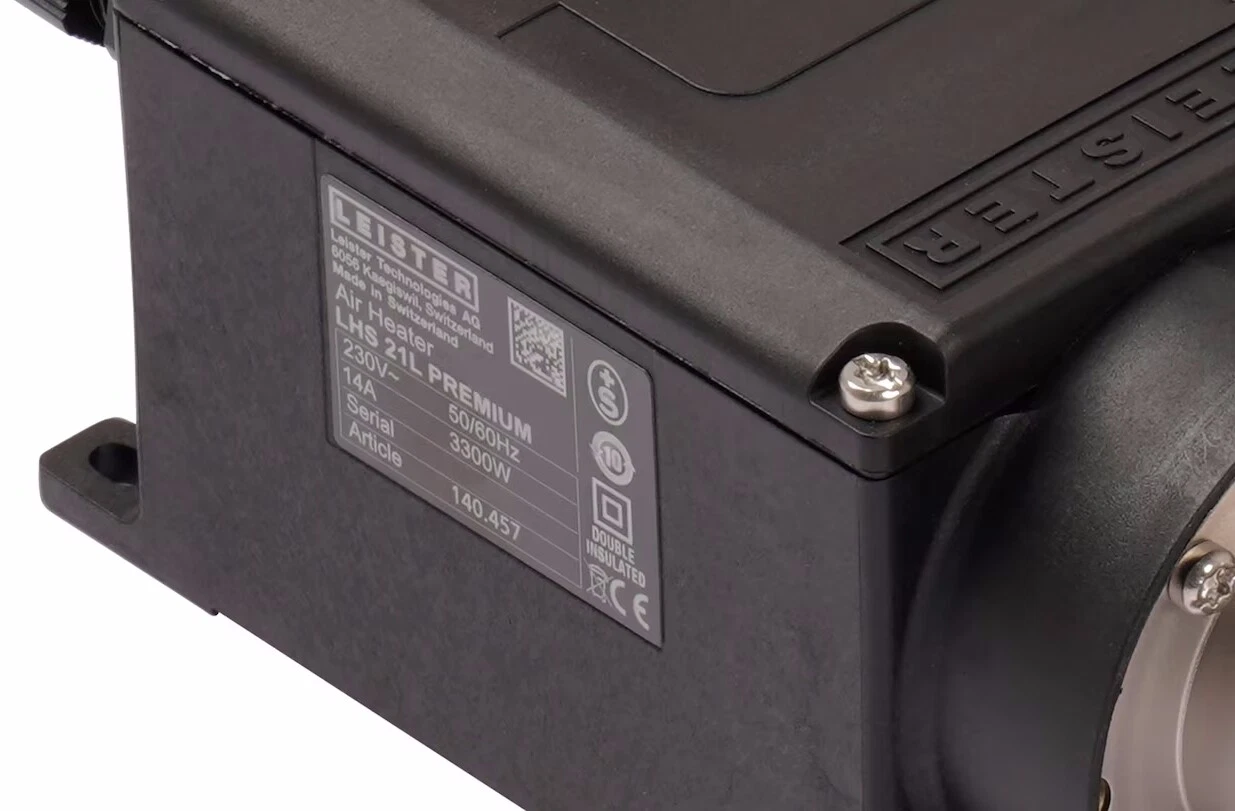

Leister 230V 3300W LHS 21L PREMIUM Air Heater - 140.457
Details Reliable and safe
The LHS 21L PREMIUM air heater features an integrated, active device and heating element cover. An additional implemented alarm contact ensures high process safety warns of excess temperatures and the resulting failures. The heating power can be continuously adjusted via a rotary potentiometer. The air heater is perfectly suited for continuous operation and delivers continuously high output in industrial production processes with its associated external blower.
The LHS 21L PREMIUM is designed for special assembly in machine systems. Thanks to its quick and easy to change heating element, maintenance downtimes are kept to a minimum, thereby keeping profits up. The innovative hot air technology also provides outstanding results for very specific industrial applications: Continuously heating furnaces and containers, activating and dissolving solvent-free adhesives and hot melt adhesives, as well as removing plastic flash and polishing plastic surfaces.
Technical Data
Article：140.457
Phases：1x
Voltage：230 V
Current：14 A
Power：3300 W
Max. air outlet temperature：650 °C / 1202 °F
Min. airflow：260 l/min / 9.18 cfm
Max. air inlet temperature：65 °C / 149 °F
Max. ambient temperature：65 °C / 149 °F
Air temperature control：Open loop
Overheating protection：Yes
Alarm output：Normally open contact
Max. inlet pressure：100 kPa / 14.5 psi
Nozzle connection ø：36.5 mm / 1.45 in
Display：No
Length：266 mm / 10.47 in
Width：67 mm / 2.63 in
Height：71 mm / 2.79 in
Weight：0.65 kg / 1.43 lb
Approvals：CE; EAC; S+; UKCA
Protection class：II
Country of origin：Switzerland
Feature:
- Easy to assemble from above
- Suitable for a range of nozzles and accessories
- Potentiometer for heating output setting
- Device overheating protection with alarm output
- Integrated heating element overheating protection
Highlights Specific industrial process heat
√ Designed for production lines
Thanks to the small housing and powerful air heater with a 3.3 kW heating output, the LHS 21L PREMIUM is designed for industrial plant engineering.

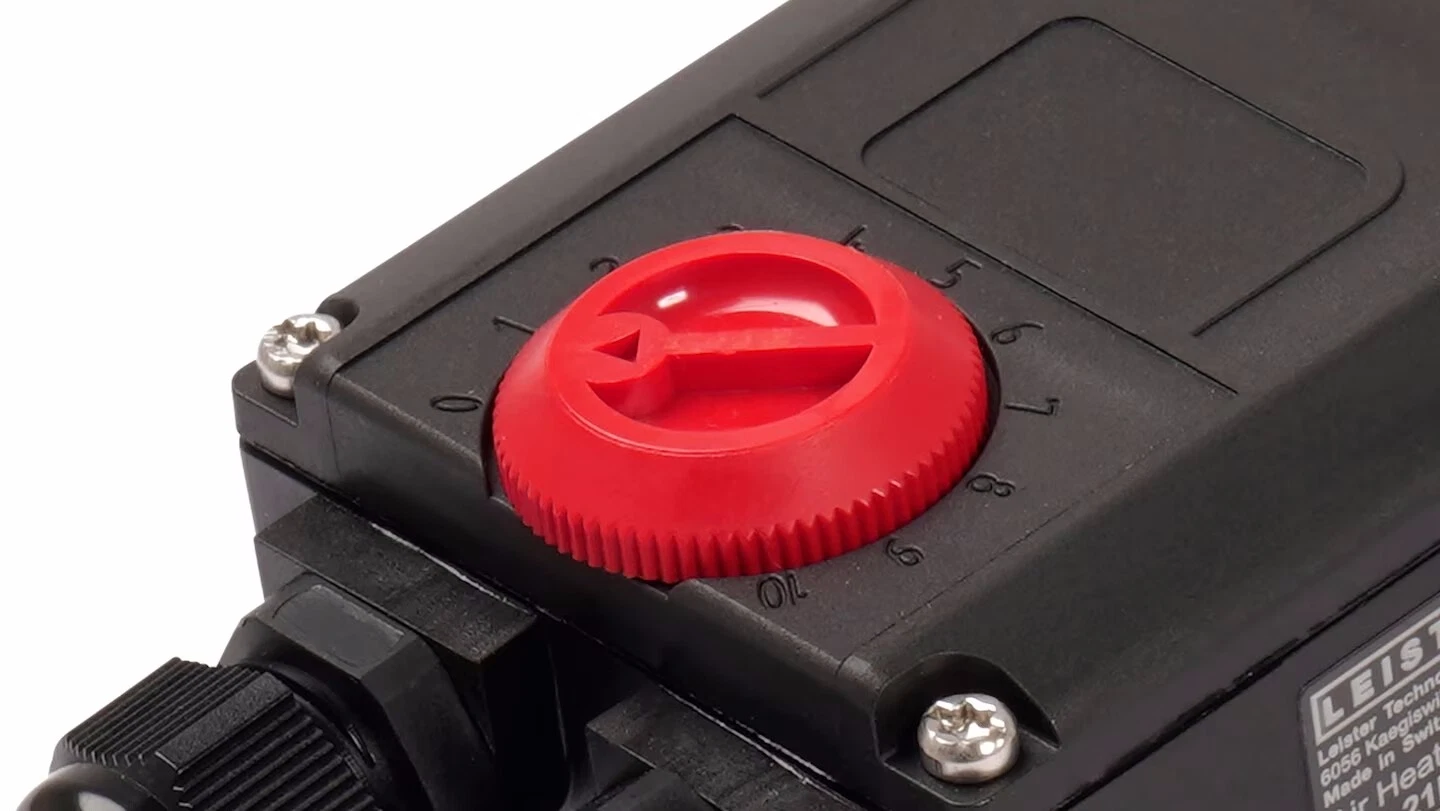

√ Easy-to-use rotary potentiometer
The conspicuous, red rotary potentiometer fitted to the top of the housing makes it easy to control heating output nominal values.
√ Quality certified by external test centers
All LEISTER air heaters, including the LHS 21L PREMIUM, are certified by the independent ‘Electrosuisse’ test center. Another attribute for top quality and safety.
APPLICATIONS Virtually unlimited
Laminate process
Drying process
Foil shrinking
Sterilization process
Coating process
