Product Description
Product Description

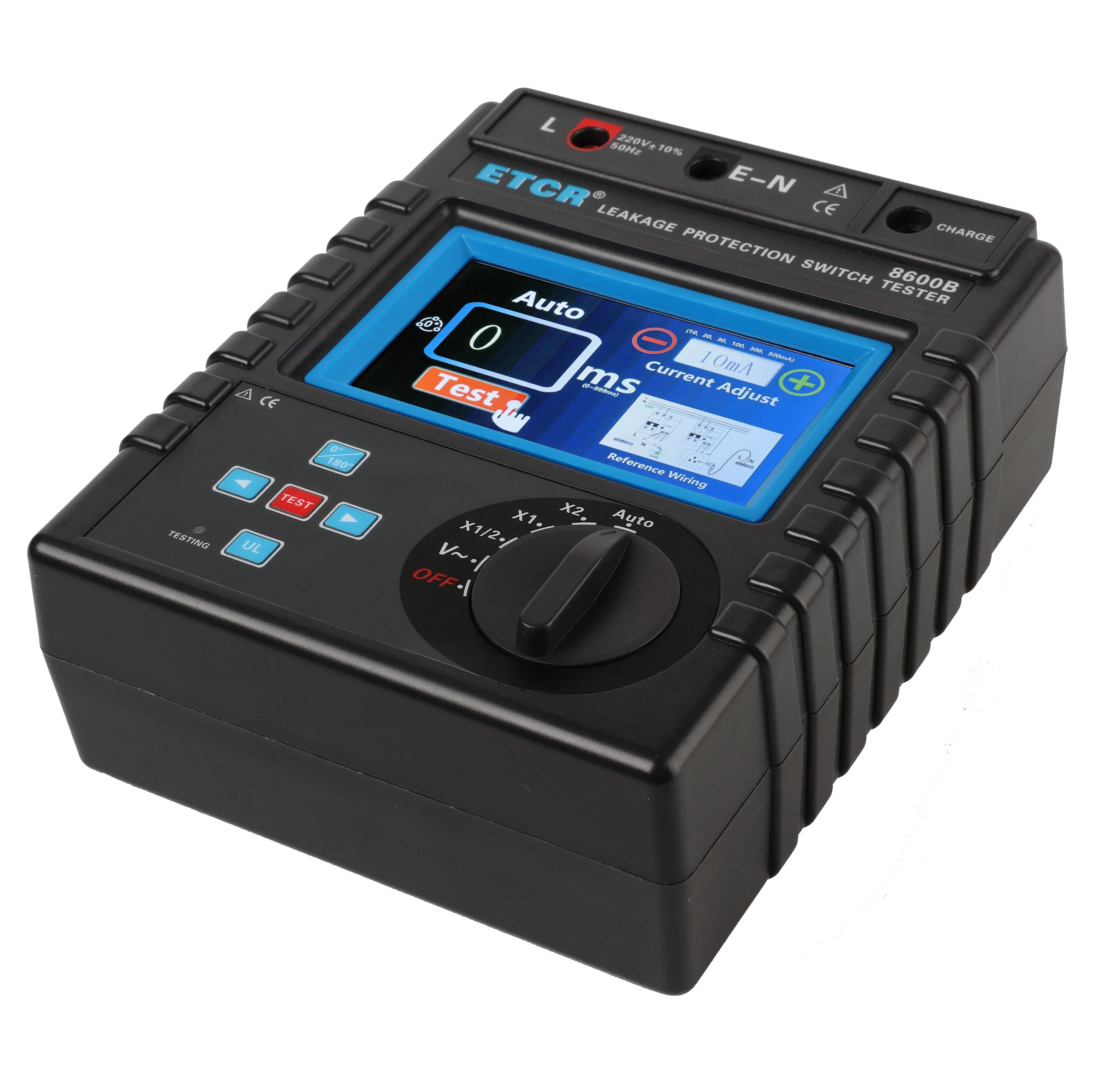

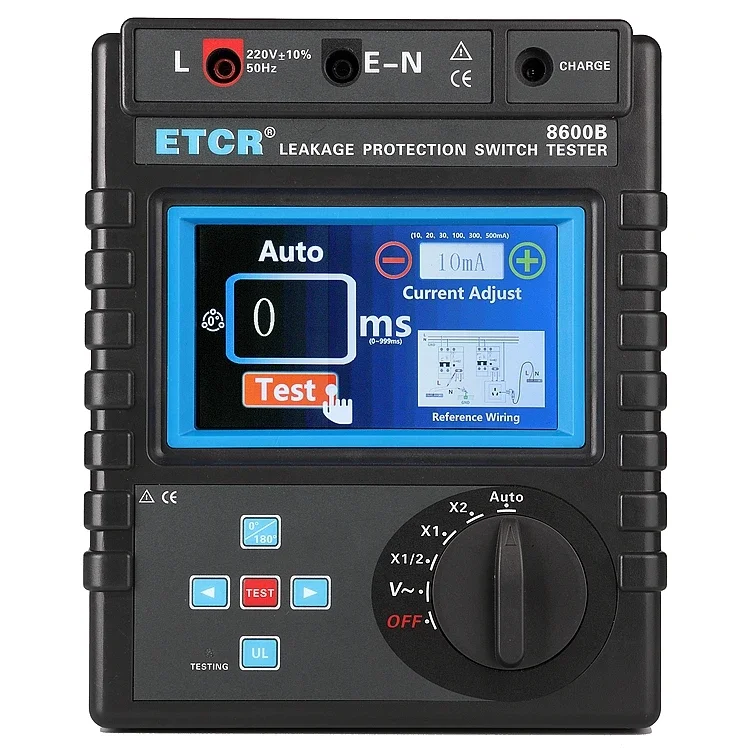

ETCR8600B Leakage Protector Tester (5,10,15,20,30,40,50,60,100,150,200,250,300,500,600,1000)mA
Product Function

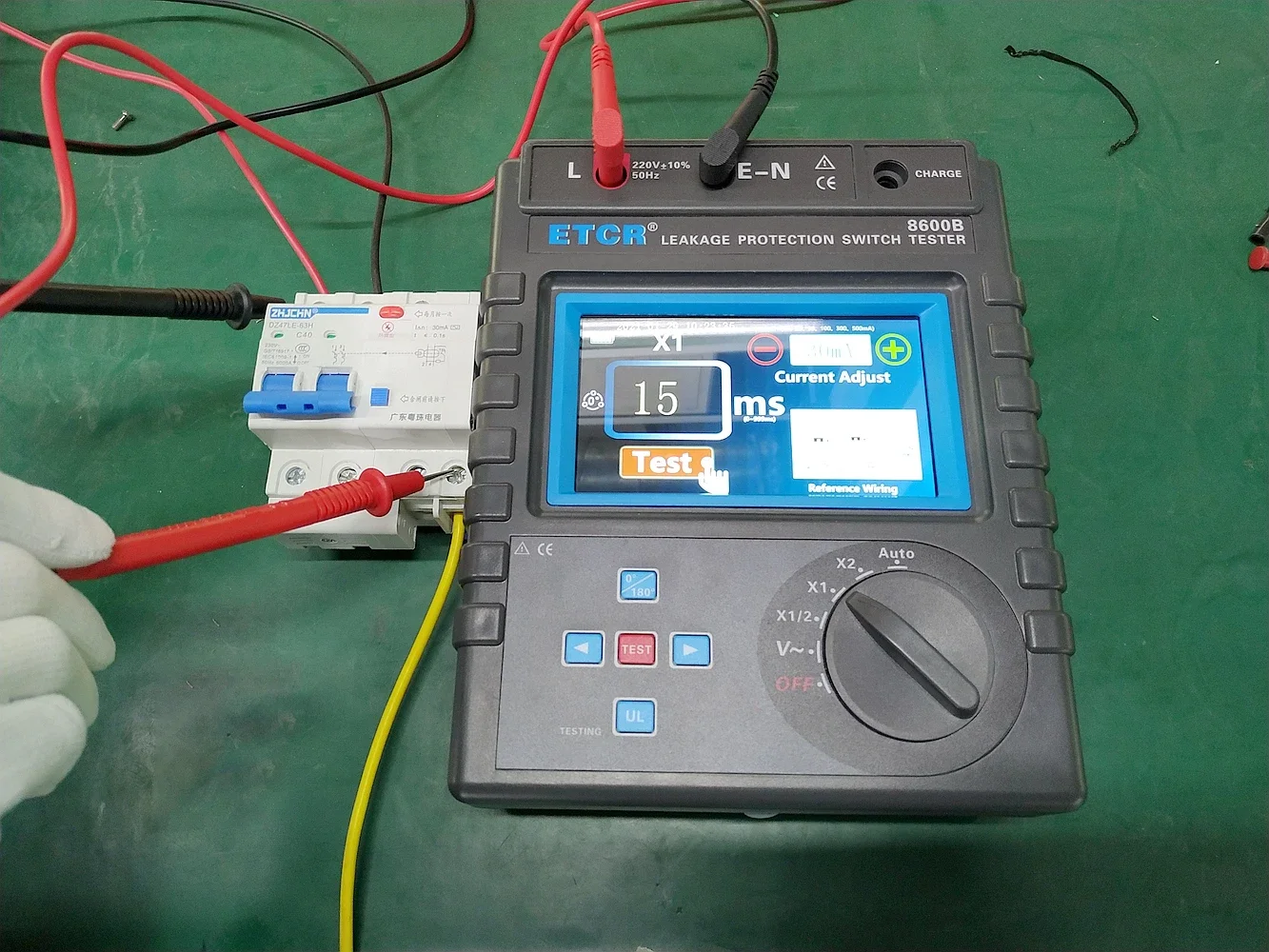

On-line testing the leakage initiating time and circuit AC voltage of various leakage protector on site.
Product Features

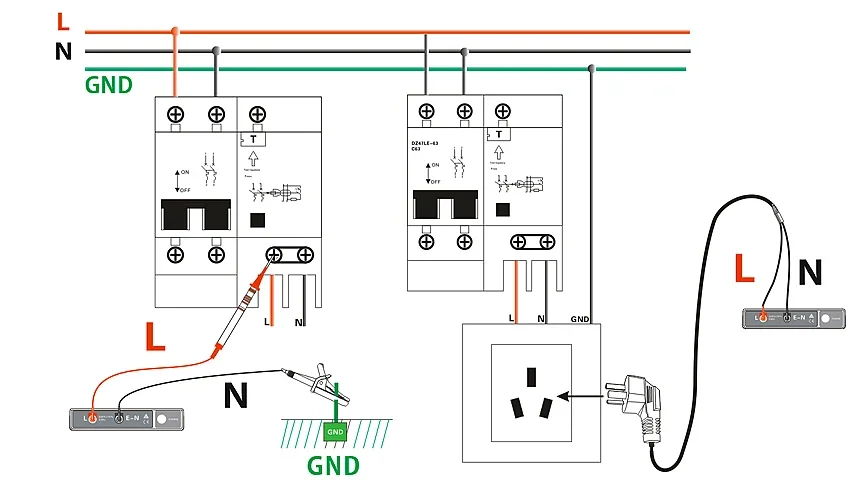

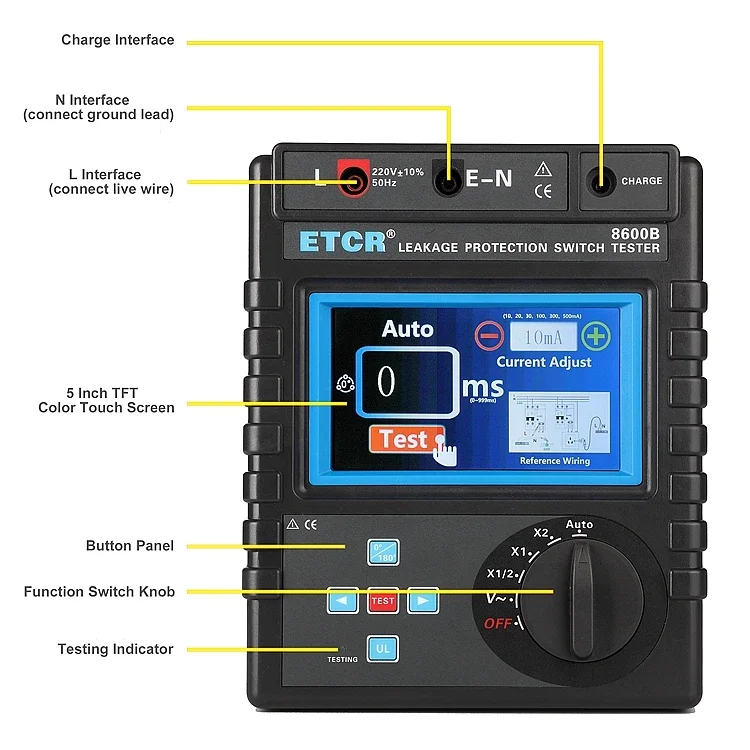

1.Adopts 5 inch touch color screen, with testing current gears selection, setting fault voltage indication, backlight brightness adjustment, battery power display, automatic shutdown and other functions. 2.The color screen is equipped with the wiring guide diagram, which is clear and clear and obvious. 3.Optional 5 ~ 1000mA of 16 ears test current to meet various require for usage. 4.Adopt rechargeable large capacity lithium battery.
Specification
Specification
|
Power Supply
|
7.4V, rechargeable lithium battery (full about 8.4V)
|
|
Rated Voltage
|
AC 220V
|
|
Leakage Current Gears
|
(5,10,15,20,30,40,50,60,100,150,200,250,300,500,600,1000)mA
|
|
Current Accuracy
|
±10%rgt±5dgt
|
|
Leakage Current Operating Time Range
|
0~999ms
|
|
AC Voltage Range
|
0~600V
|
|
AC Voltage Accuracy
|
±2%rdg±3dgt
|
|
Failure Information Indication
|
LCD display “999” over time indication, it is possible that the rated initiating current grade of tested is too small or the
leakage protector is faulty |
|
Test Mode
|
Manual or automatic
|
|
Display Mode
|
LCD: 5 inch TFT color touch screen
|
|
Tester Dimension
|
215mm×178mm×83mm
|
|
Tester Weight
|
1050g
|
|
Battery Voltage
|
When the battery voltage lower than 7.0V, low battery voltage symbol display, and remind to replace the battery. The measurement
value is also accurate at this time. |
|
Working Current
|
365mA Max
|
|
Working Temperature
|
-10℃~40℃;below 80%rh
|
|
Store Temperature
|
-10℃~60℃;below 70%rh
|
|
Insulation Withstand Voltage
|
100MΩ or larger, AC 2KV/rms ( between shell and the screw)
|
|
Suitable Safety Standard
|
IEC1010-1, IEC1010-2-032, Pollution Level2, CAT Ⅲ(600V), IEC61326(EMC standard)
|
|

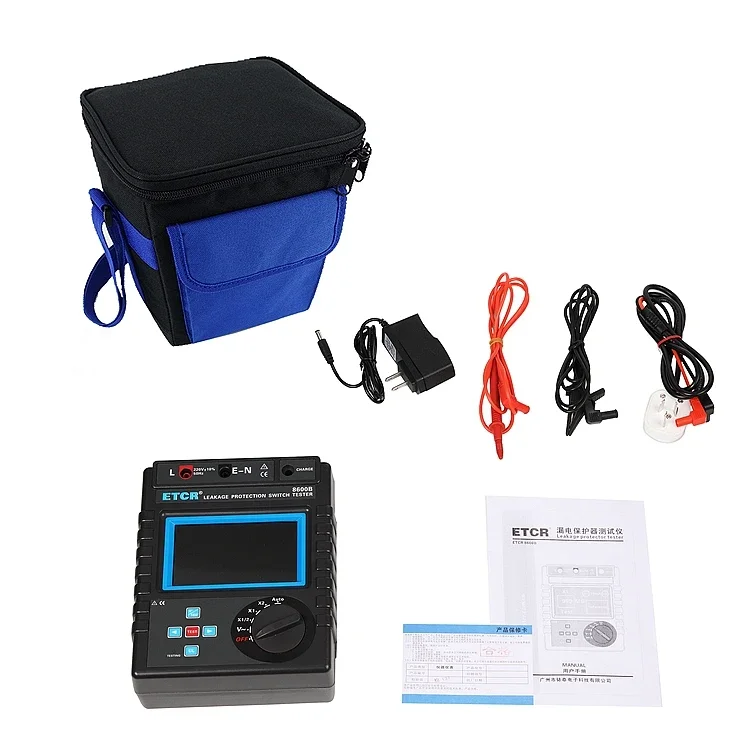

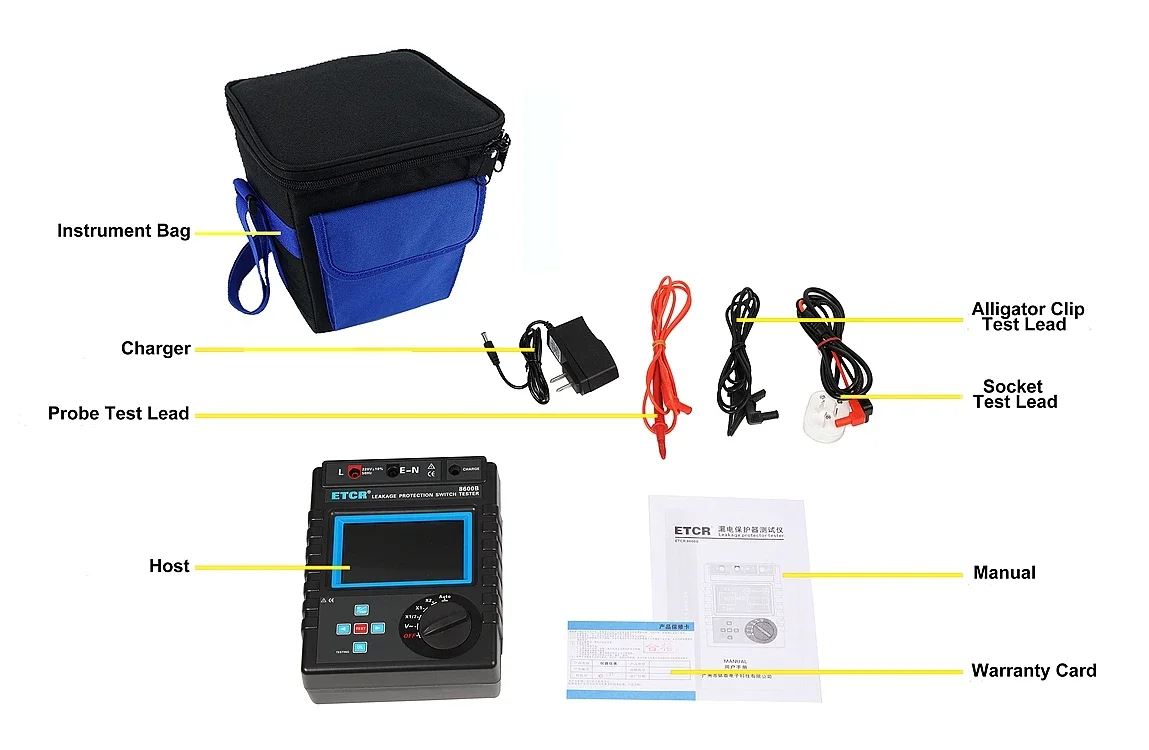

Accessories
|

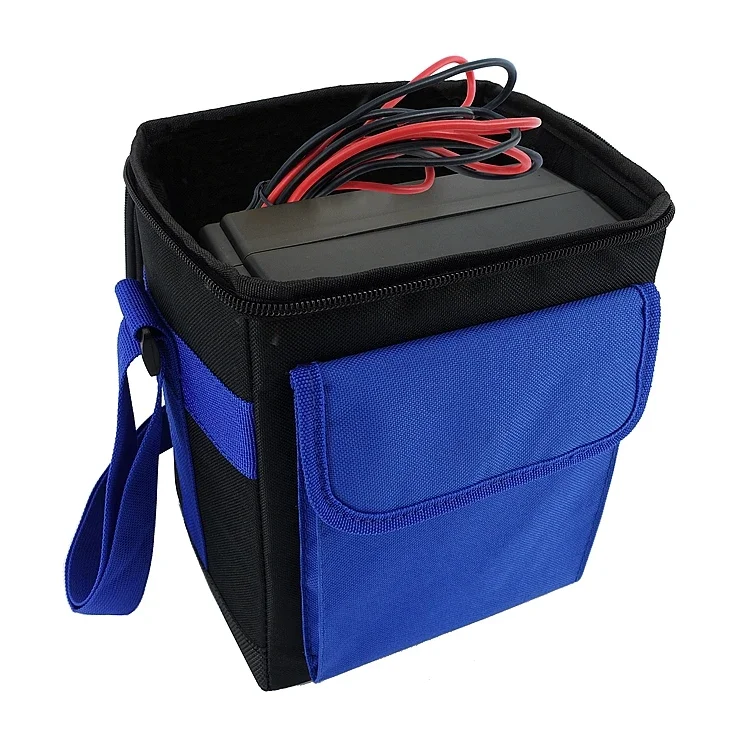

Host: 1PCS; Probe test wire: 1PCS; Alligator clip test wire: 1PCS; Socket test wire: 1PCS; Instrument bag: 1PCS
|
Application Scenarios & Product
Application Scenarios & Product
