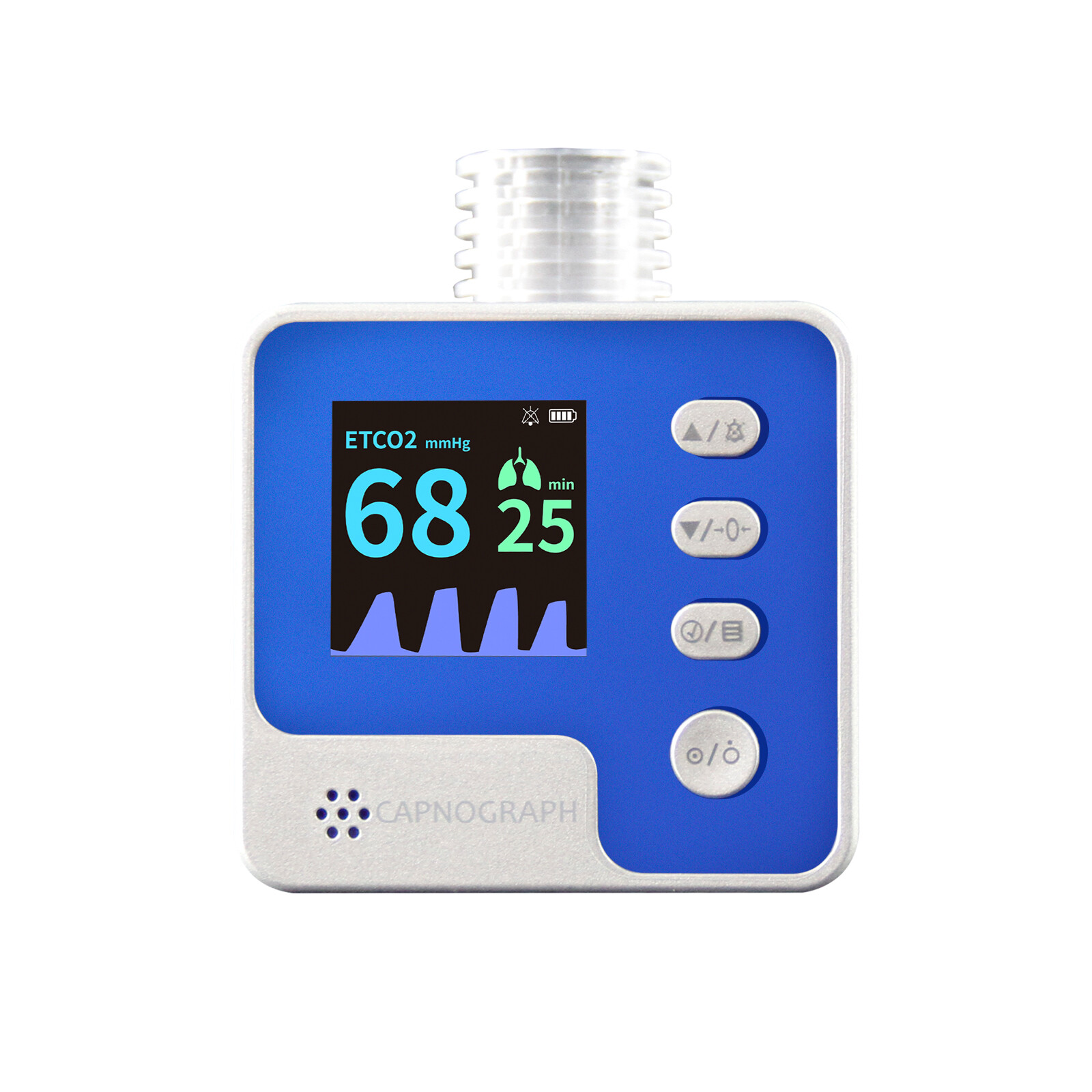

CA10M-VET Capnograph
Introduction
Capnograph adopts mainstream method to measure the end-tidal carbon dioxide (EtCO2) and airway respiration rate (AwRR). It can detect pulmonary ventilation function and reflect the circulation and pulmonary blood flow condition, as well as indirectly reflect the alveolar ventilation, which is applicable for use in emergency department, ICU, operating room, respiratory department and other occasions.
Features
1)End-tidal CO2 measurement function
2)Respiration rate measurement function
3)Over-limit alarm function for End-tidal CO2 and respiration rate
4)Low battery alarm function
Performance
End-tidal CO2 measurement:
1）Measurement range: 0 ~150mmHg
2）Resolution: 1mmHg
3）Accuracy:
0～40 mmHg：±2 mmHg
41～70 mmHg：±5% of readings
71～100 mmHg：±8% of readings
101～150 mmHg：±10% of readings
Respiration rate measurement:
1）Measurement range: 2rpm～150rpm
2）Resolution: 1rpm
3）Accuracy: ±1rpm
Safety characteristic:
1）Device type: internally powered equipment
2）Degree of protection against electric shock: type BF applied part
3）Protection grade: IP22
Accessories
A User Manual
An Adult/Pediatric adapter
An Infant adapter（Optional）
Physical Characteristic
Dimension: 59×56×59.5mm
Weight: 92g (with batteries)
