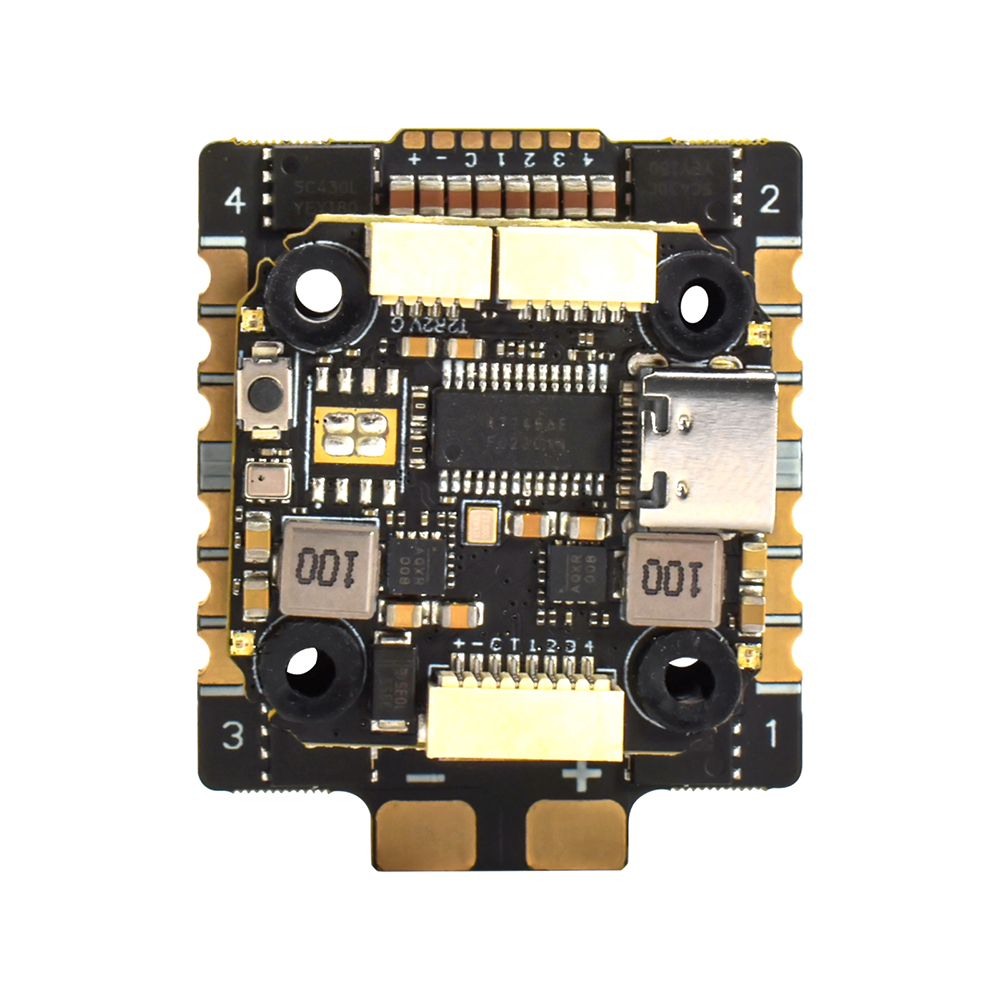

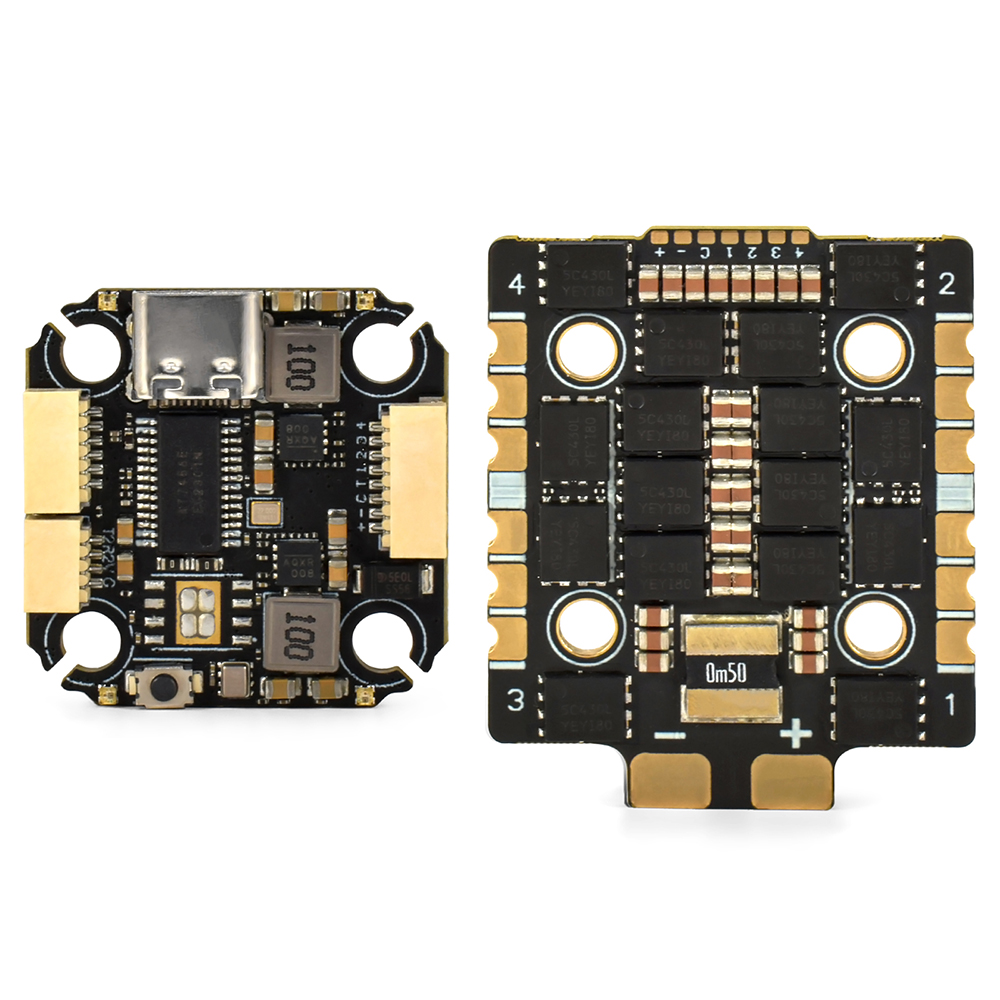

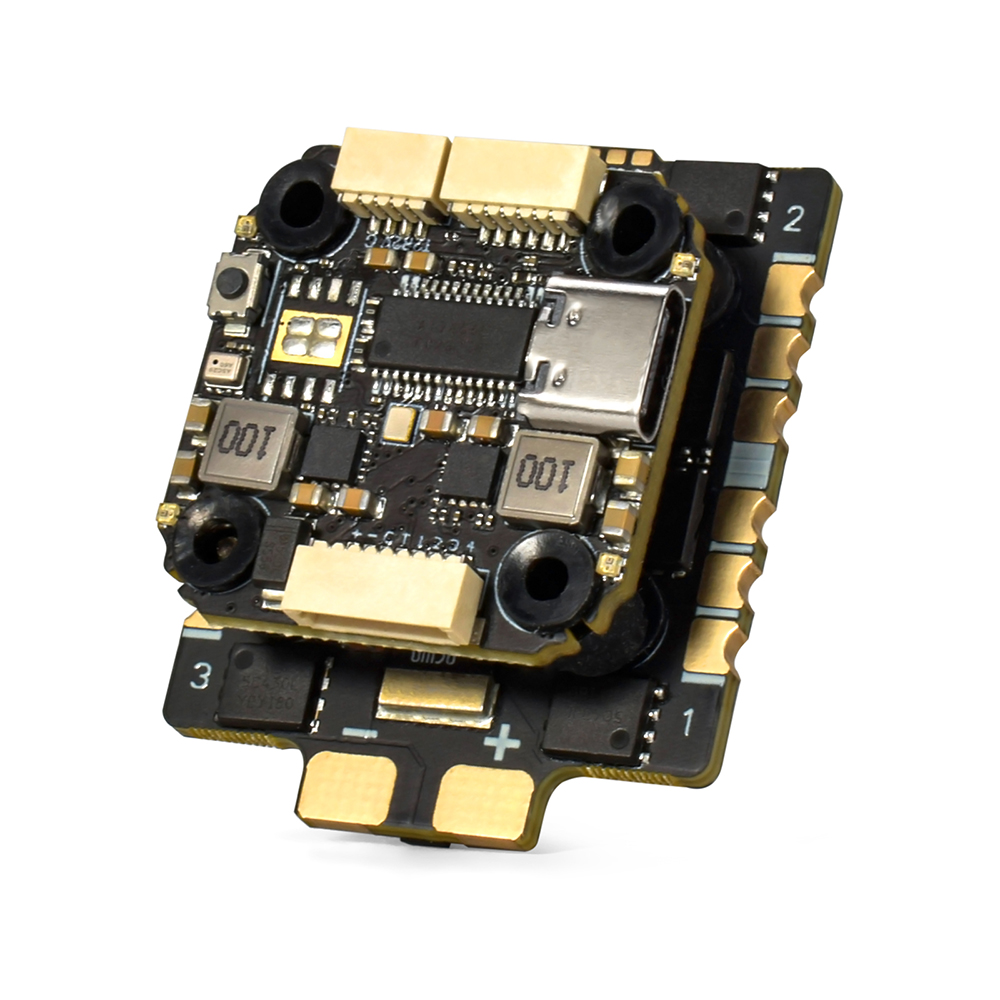

9IMOD MINI F405 Flight Stack F405 Flight Control 60A ESC 3-8S Lipo 20x20mm ICM42688 Gyro For Remote Control 7-10inch FPV Racing Drone
Features:
1. Open-source Betafight Flight Controller.

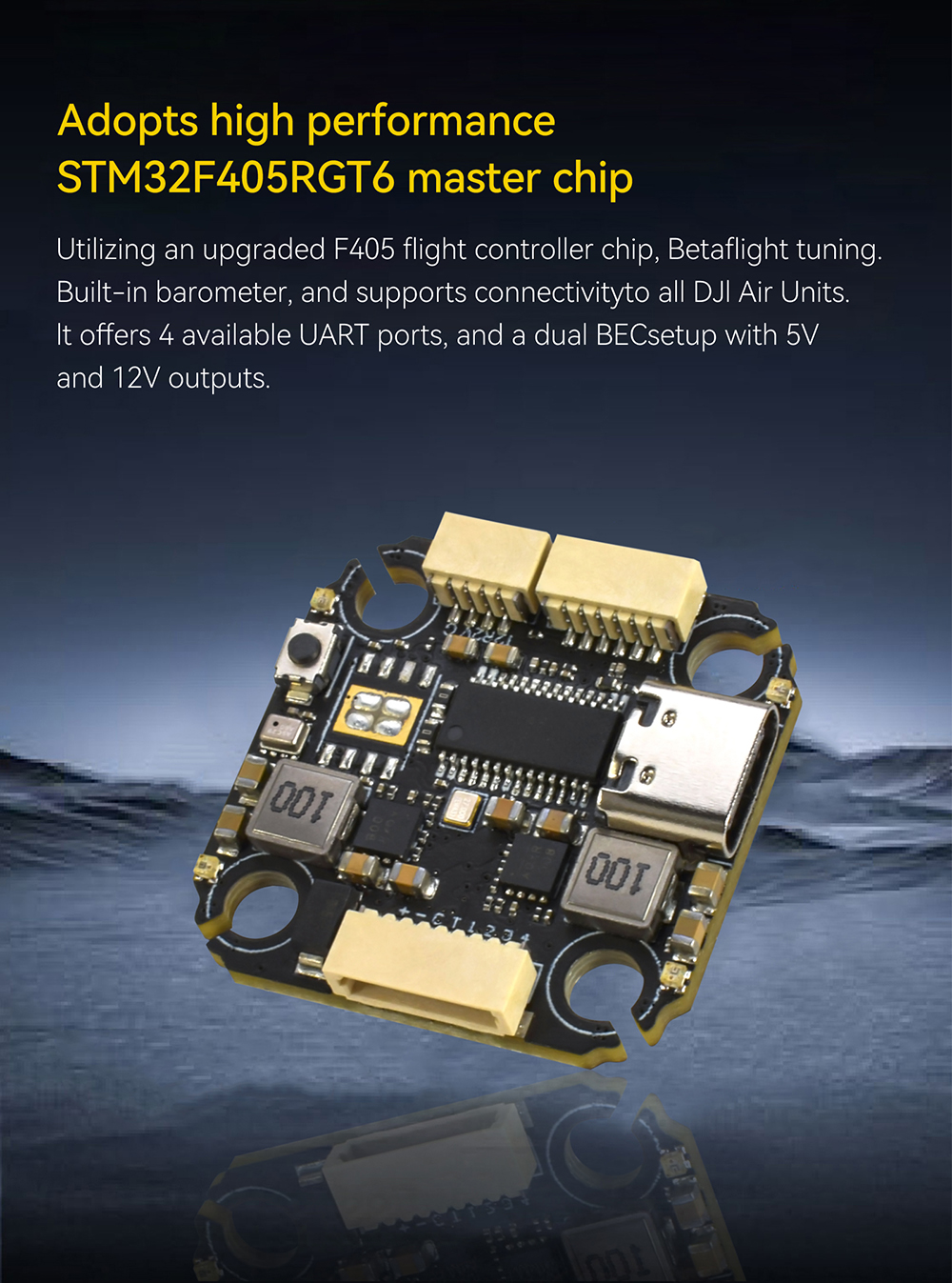

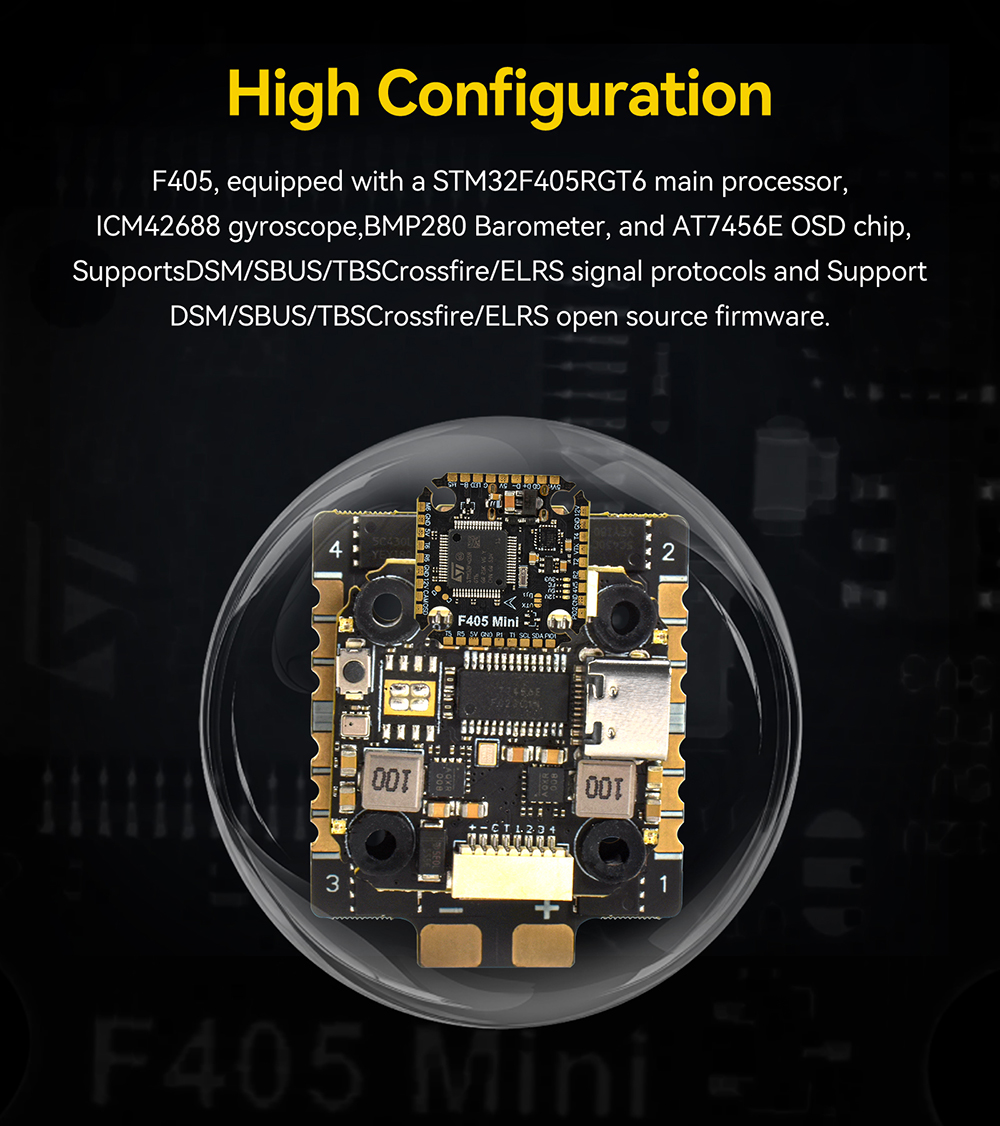

2. High Configuration: STM32F405RGT6 master, ICM42688 gyroscope, BMP280 barometer.
3. Supports connectivityto all DJl Air Units.
4. lt offers 4 available UART ports, and a dual BECsetup with 5Vand 12V outputs.
5. Built-in OSD module, one-step parameterization.
6. Standard sockets and pads all lead out, convenient for users with different needs.
7. ESC Equipped with a TVS transient suppression diode onboard, it better absorbs surge voltage, providing enhanced protection for the ESC.
8. ESC adopts MOS with high cost performance, which hasgood current resistance and long durability, good stability.
9. High-performance processor can support DSHOT600 protocolat most, and the accelerator is smooth and powerful.
10. F405 FC Support Beataflight firmware, ESC Support BlueJay,bidirectional DSHOT.
11. Supports multiple signal protocols (DSM/SBUS/TBSCrossfire/ELRS).
12. Support multiple open source firmware (ArduPilot, Betaflight. INAV).
Description:
F405 Flight Stack Support Bluejay firmware, bidirectional DSHOT,,Using large solder pads, the pads are kept away from the components to ensure perfect soldering for beginners.Supports connectivity to all DJl Air Units,offers 4 available UART ports.F405 main control chip, onboard OSD chip, barometer are also available even in complex flight environments.

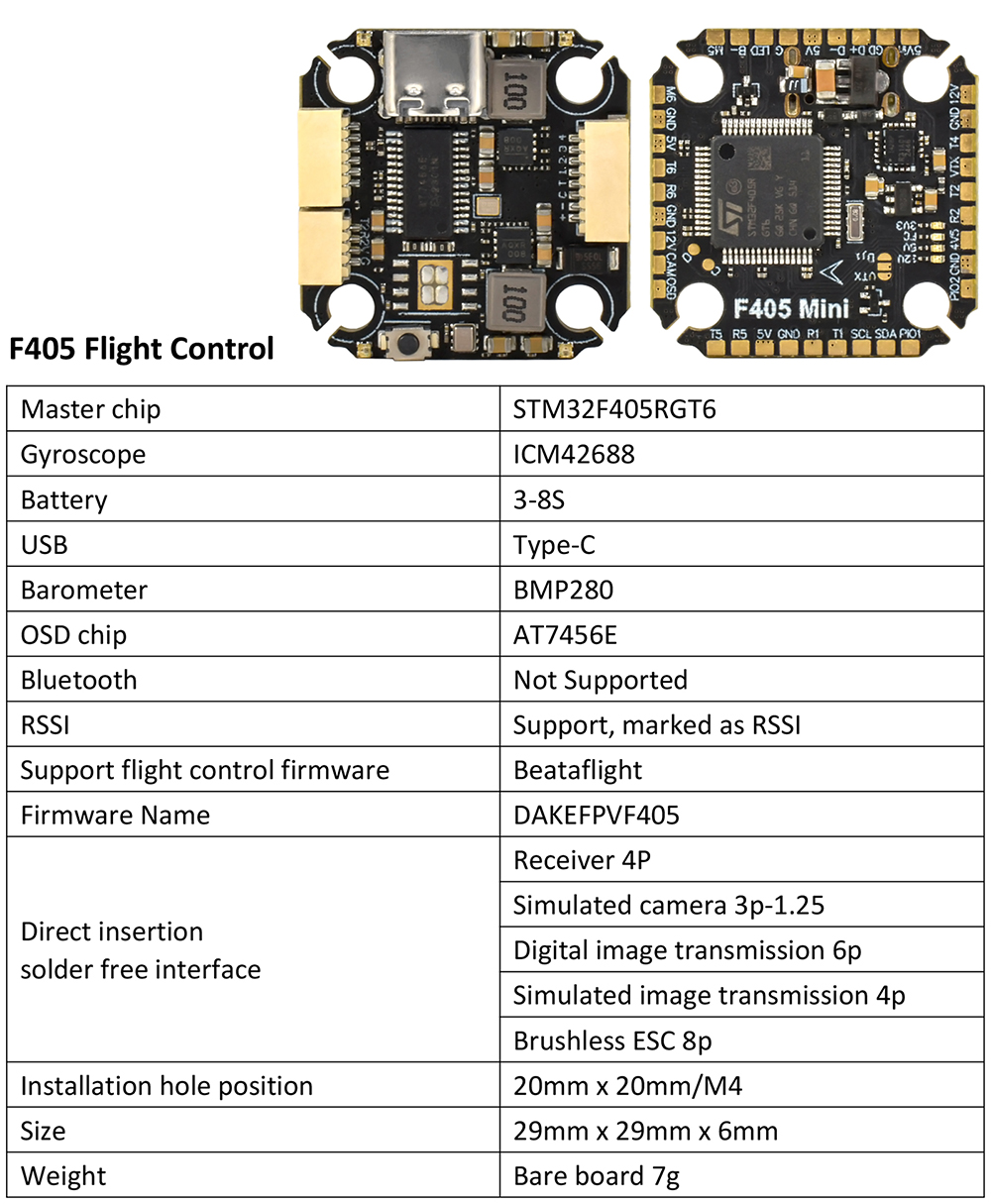

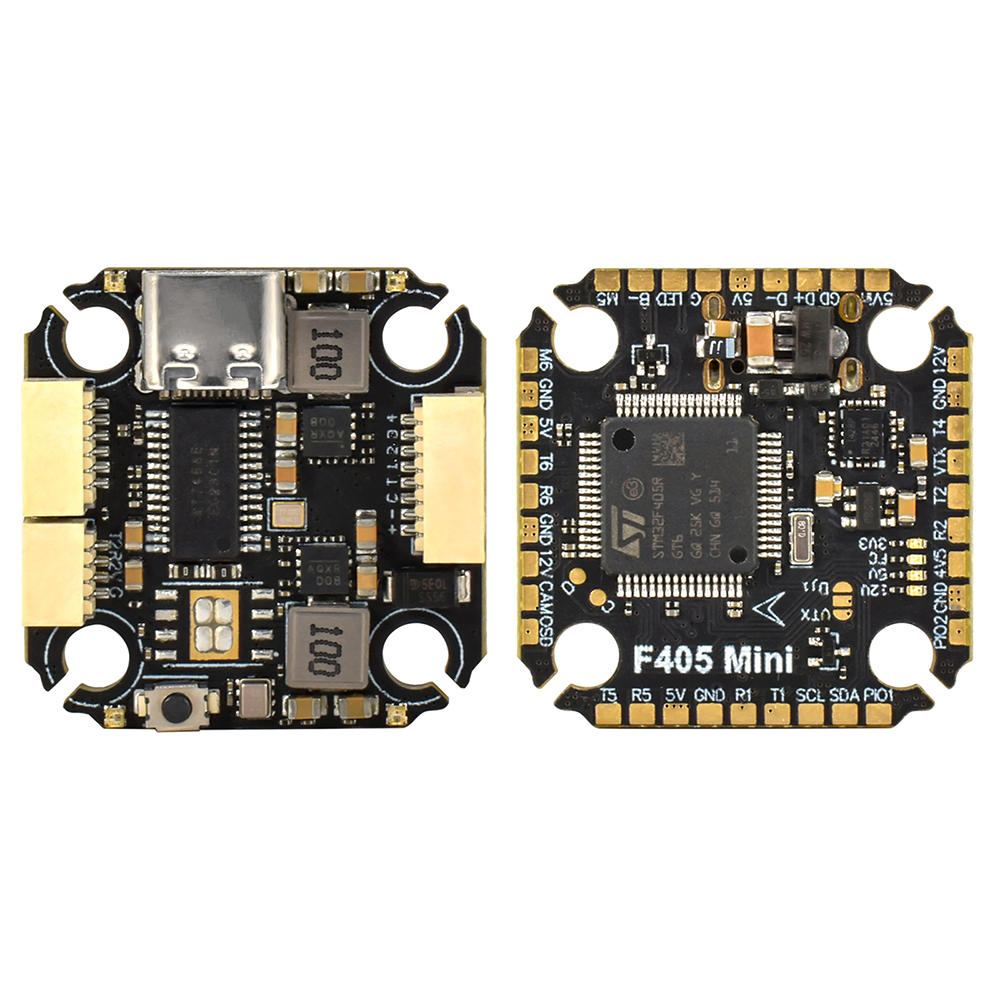

F405 Flight Control Specifications:
Master chip: STM32F405RGT6
Gyroscope: ICM42688
Battery: 3-8S
USB: Type-C
Barometer: BMP280
OSD chip: AT7456E
Bluetooth: Not Supported
RSSI: Support,marked as RSSI
Support flight control firmware: Beataflight
Firmware Name: DAKEFPVF405
Installation hole position: 20X20mm/M4
Size: 36mm x36mx8m
Weight: Bare board 8g

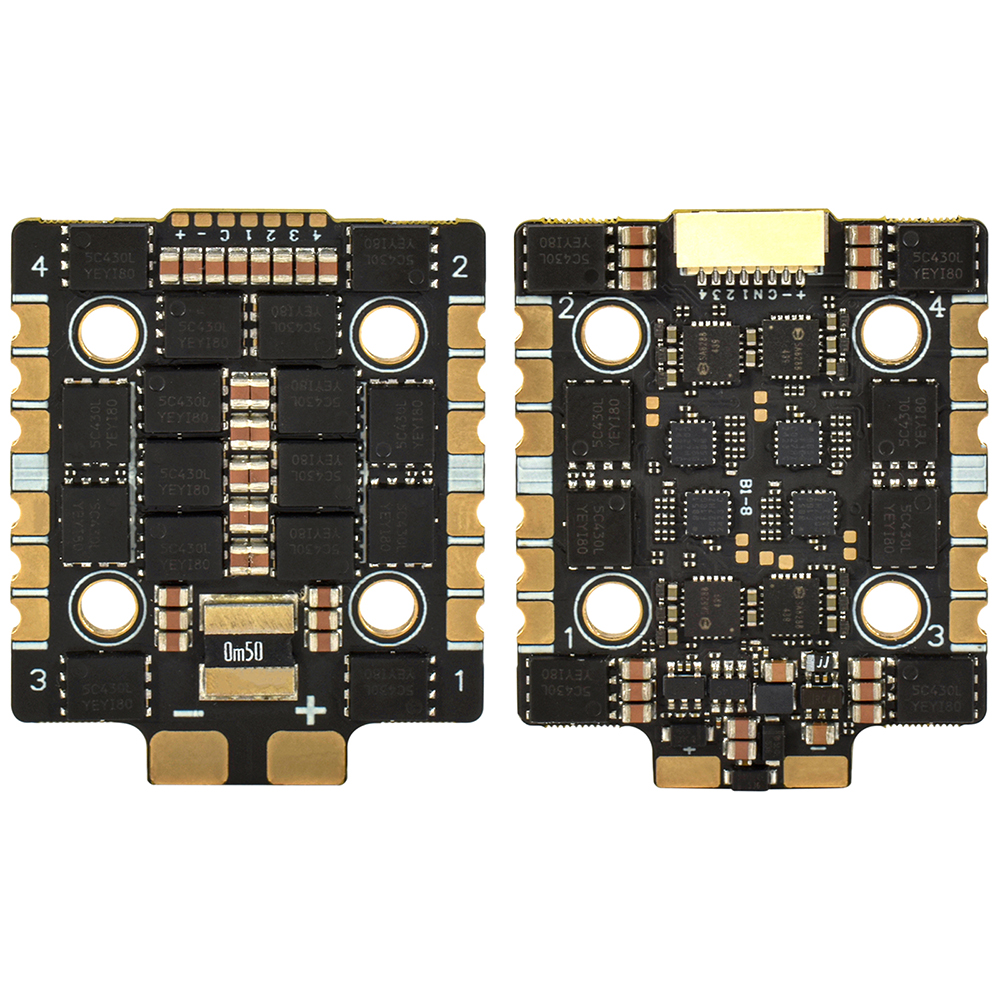

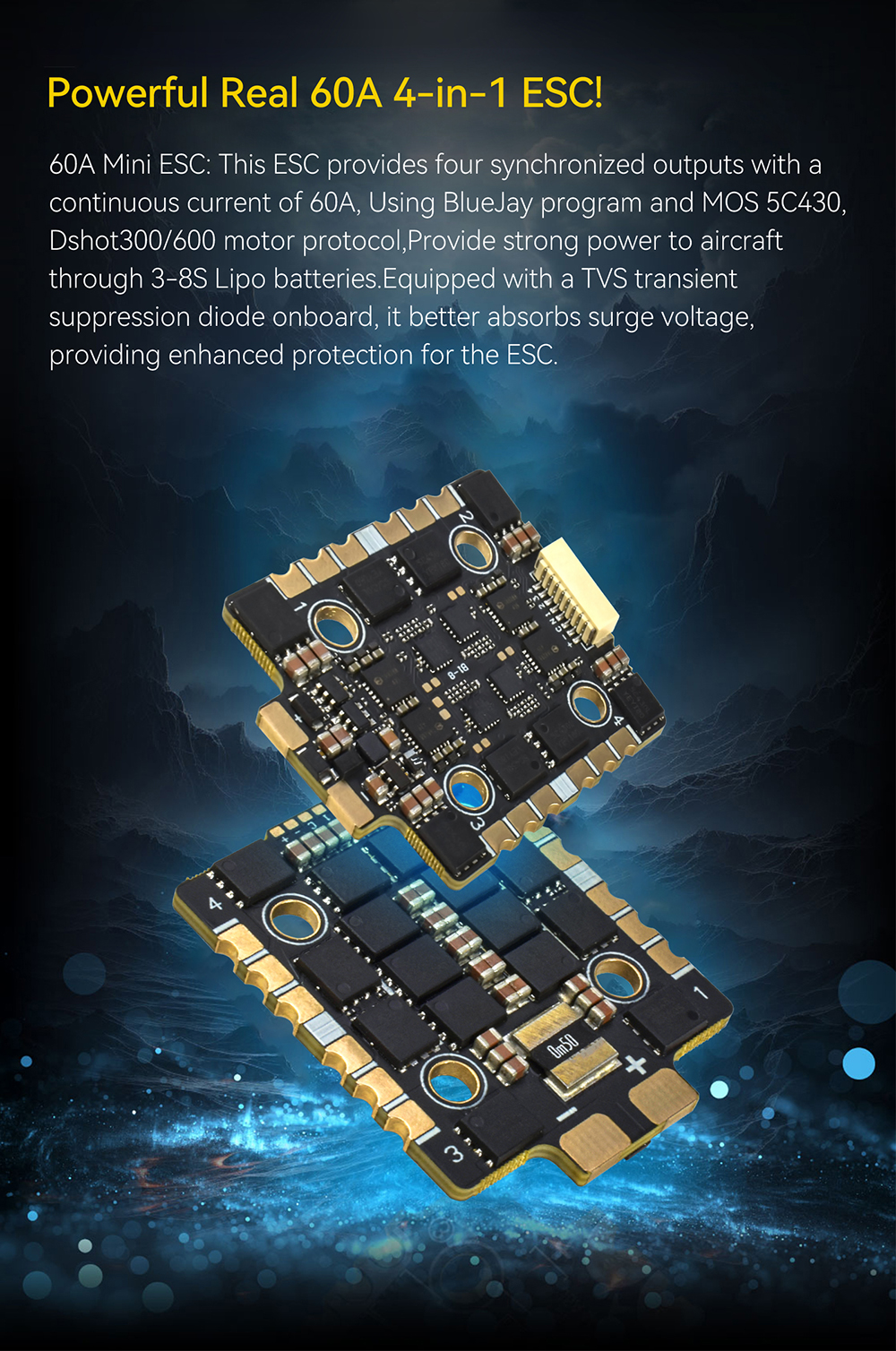

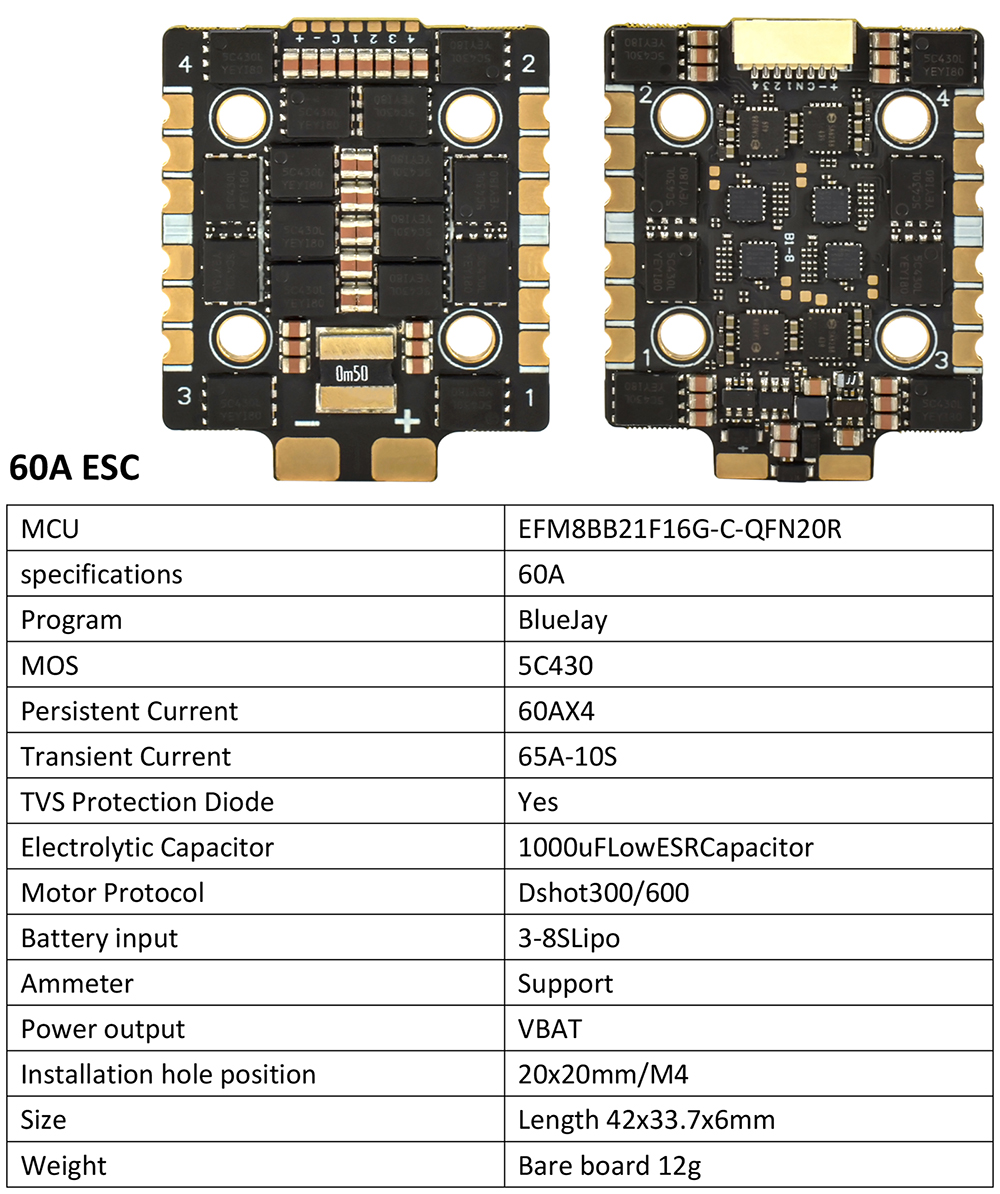

60A ESC Specifications:
MCU: EFM8BB21F16G-C-QFN20R
Specifi cations: 60A
Program: BlueJay
MOS: 5C430
Continlous crent: 60AX4
Transient curent: 65A-10S
TVS protection diode: have
Electrolytic capacitor: 1000uF Low ESR Capacitor
Motor protocol: Dshot300/600
Battery imput: 3-8S Lipo
Ameter: support
Power Output: VBAT
Installation hole position: 30.5x30.5mm/M4
Size: Length 43x37x7mm
Weight: Bare board 12g

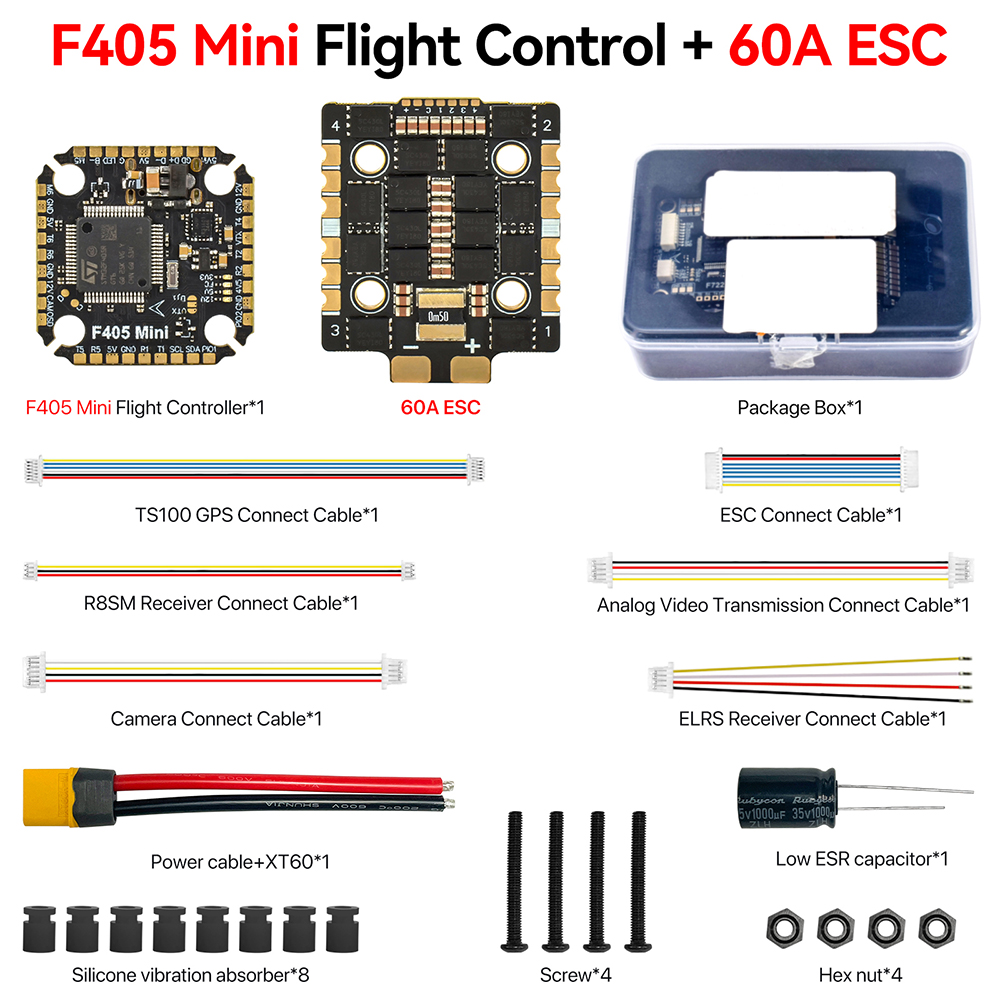

Package contents:
1* F405 Flight Stack
Only the above package content, other products are not included.
1.Due to the difference between different monitors,the picture may not reflect the actual color of the item. We guarantee the style is the same as shown in the pictures.
2.Due to the manual measurement and different measurement methods, please allow 1-3mm deviation.Thanks!
Before purchase:
1.All the goods are ready stock, we will arrange the shipment at once if we receive the order.
2.Please read the item description, if you have any question, do not hesitate to contact us.
3.No warranty,if you receive a defect item,please contact us at once with item picture.
4.Use the vouchers for more saving.
After purchase:
1.If you are satisfied,please express your use feeling.
2.Please contact us before you are going to give us bad review. We are helpful and will solve the problems. If you receive a defect item,please contact us at once with item picture or video.
