Product View
Product Details

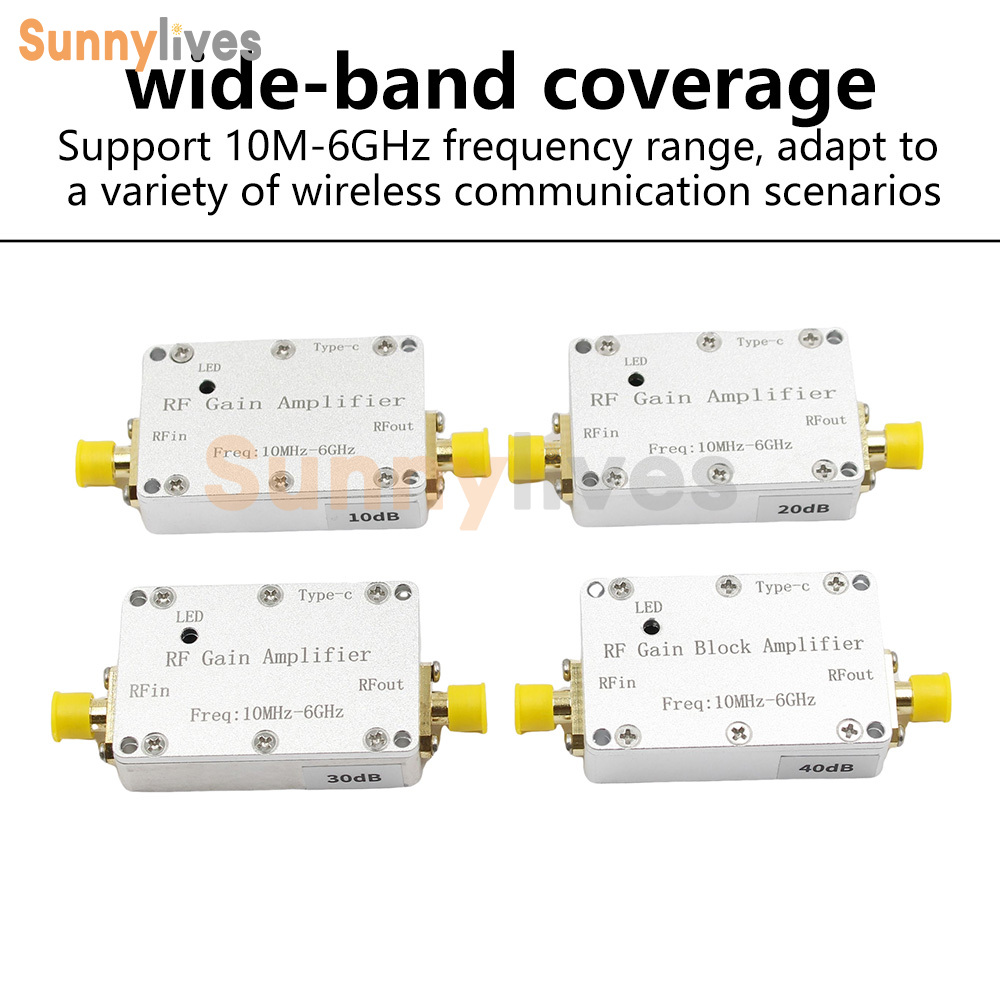

1. Broadband coverage: Supports a frequency range of 10M-6GHz, suitable for various wireless communication scenarios.

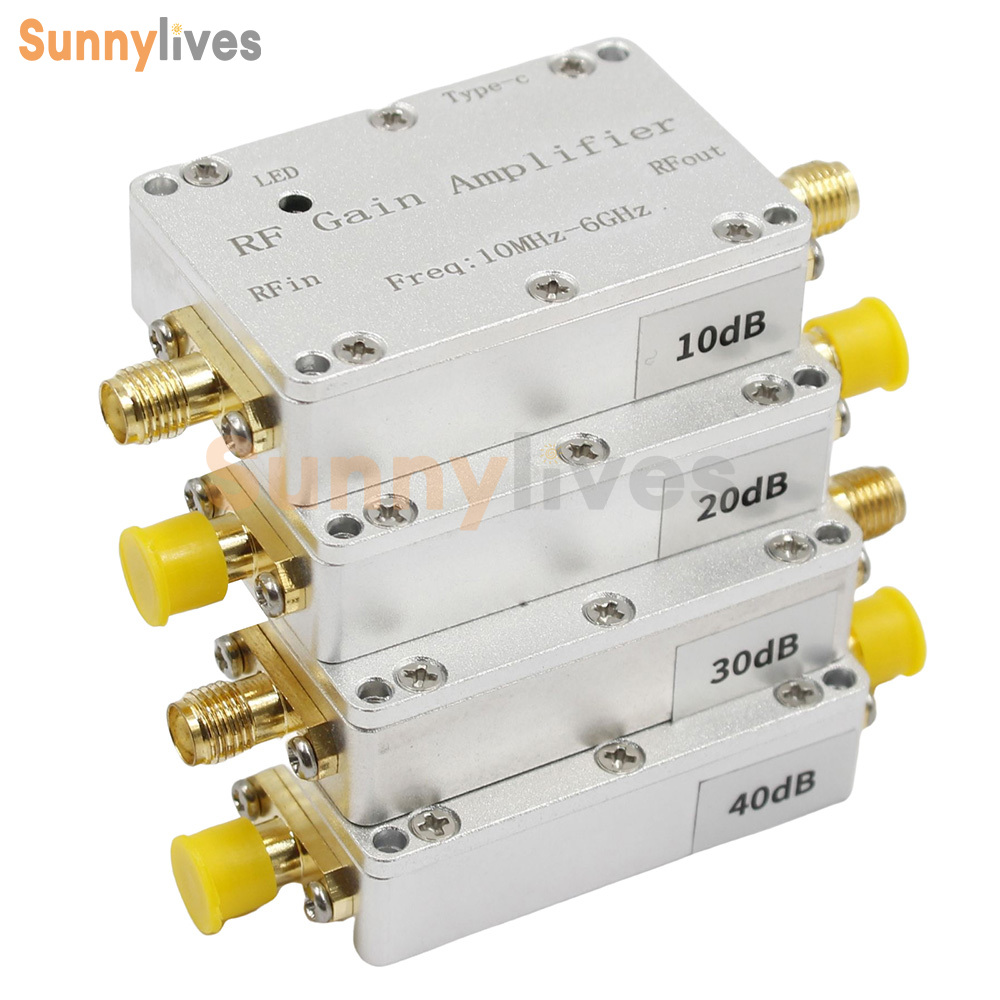

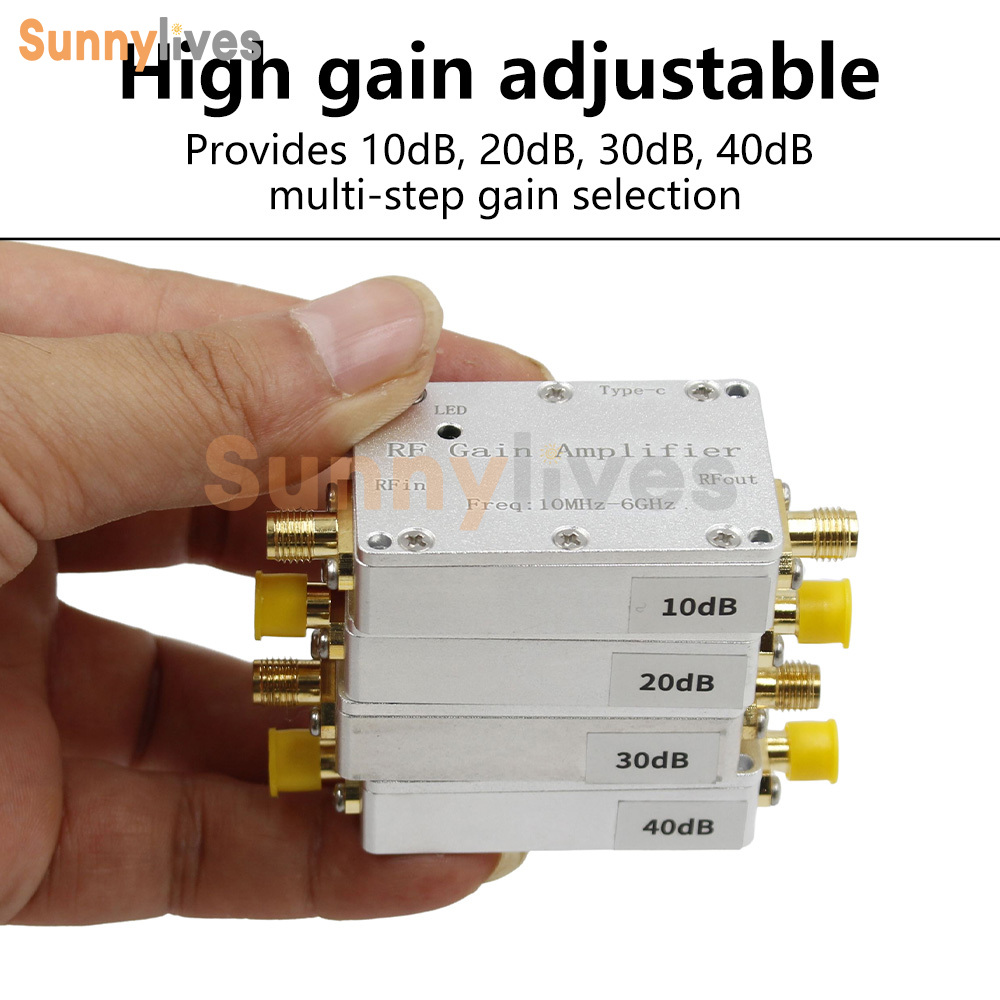

2. High gain adjustable: Provides multiple gain options of 10dB, 20dB, 30dB, and 40dB.

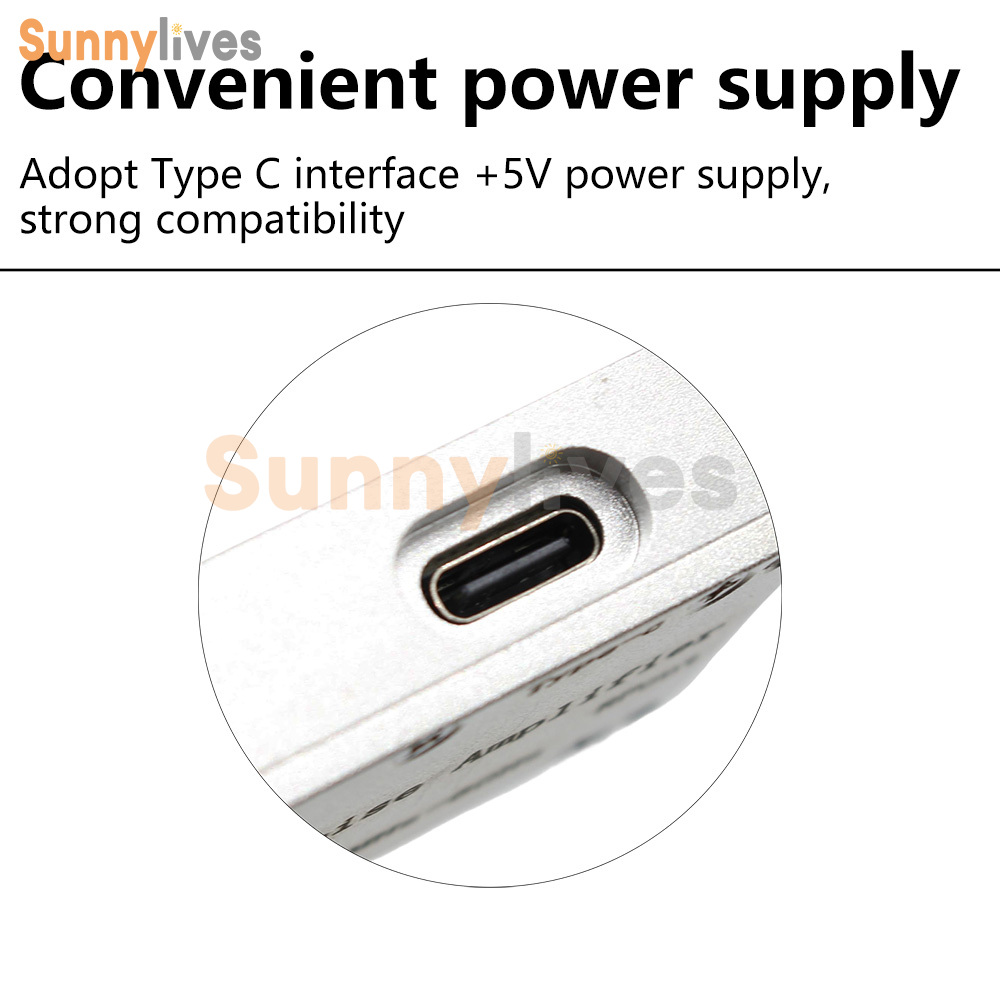

3. Convenient power supply: using Type C interface+5V power supply, with strong compatibility.

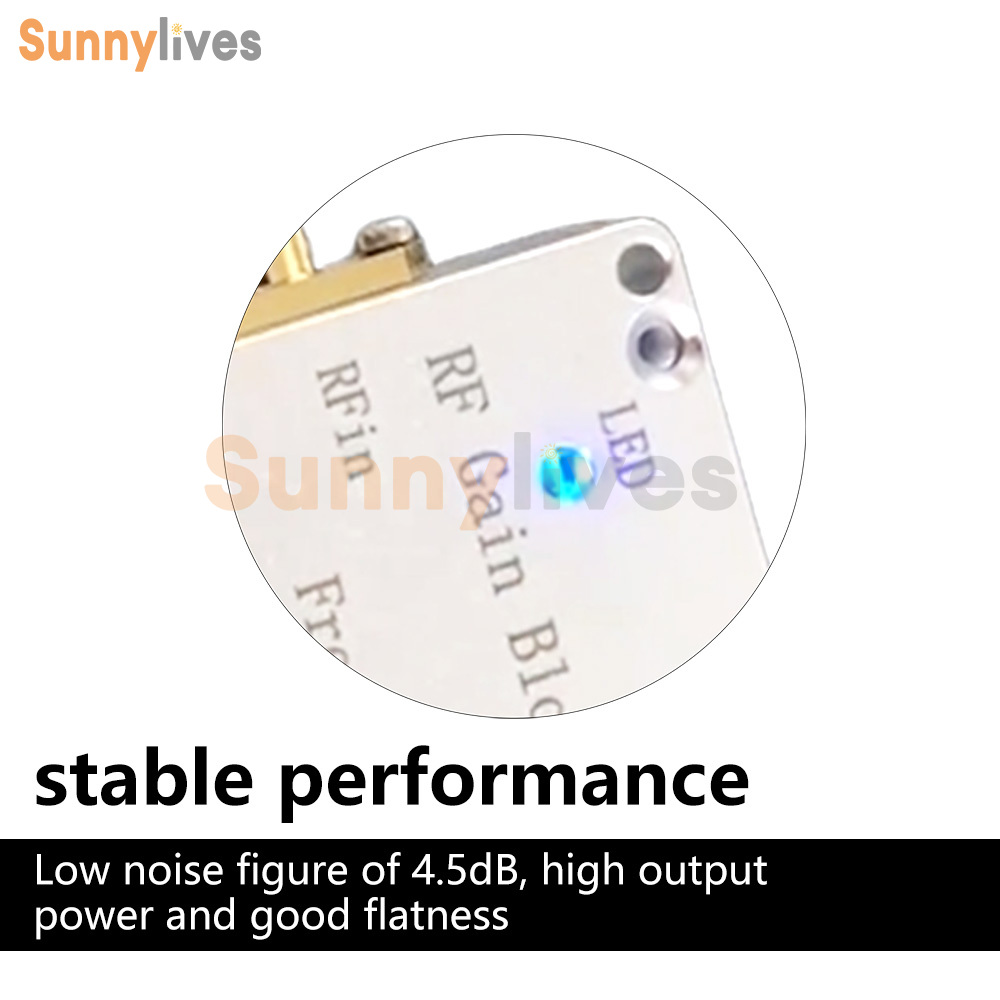

4. Stable performance: Low noise figure of 4.5dB, high output power and good flatness.

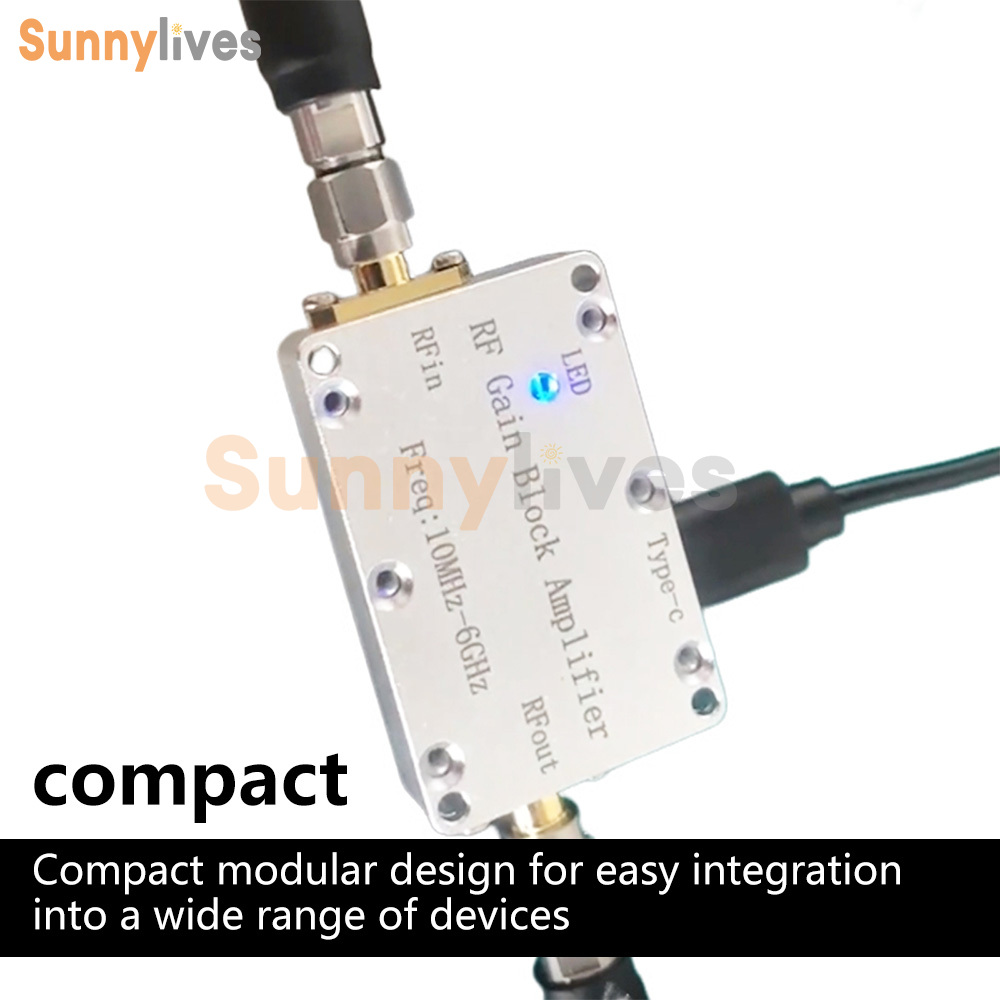

5. Compact structure: With a compact modular design, it is easy to integrate into various devices.

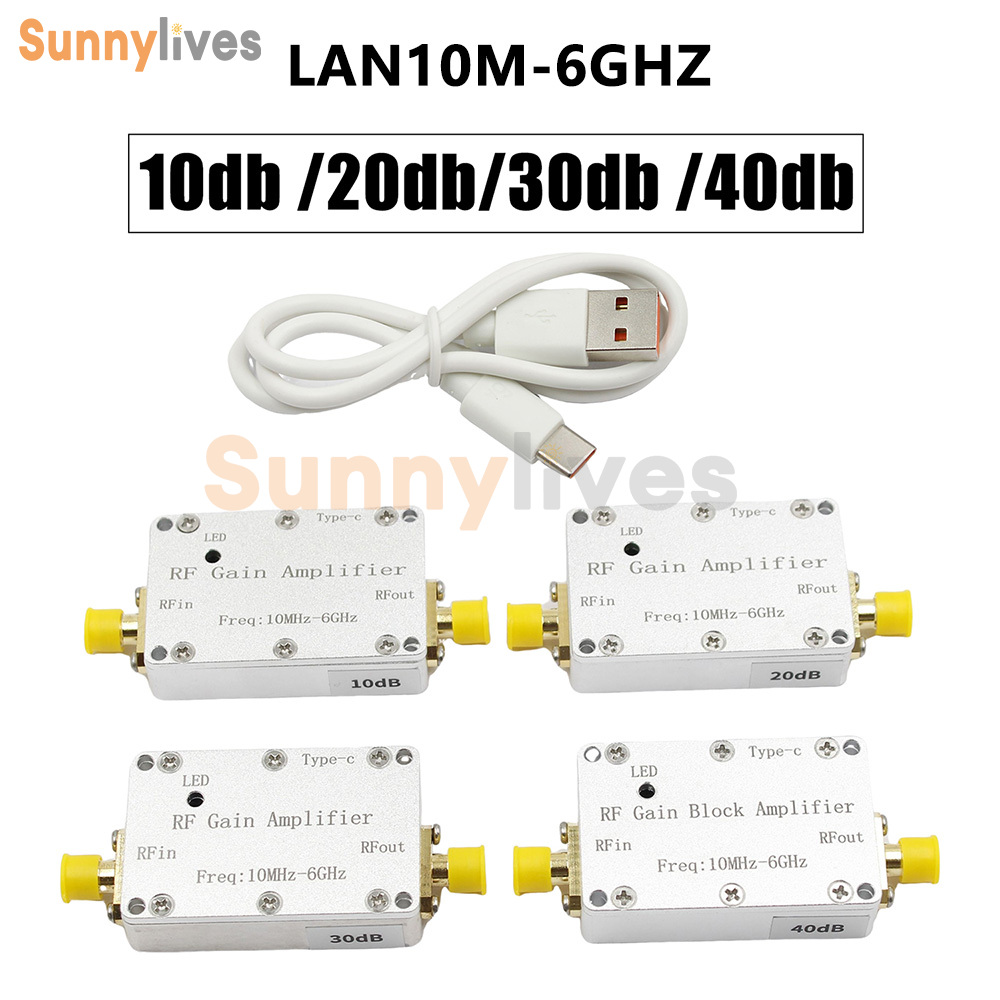

This amplifier module is used for signal gain promotion and small signal amplification in various radio transmitters and receivers. The module covers a broadband frequency range of 10M-6GHz, typical application frequency points such as 433M, 1.2G, 1.5G, 2.4G, 5.8G, etc. It has a high flatness gain characteristic of 10dB, 20dB, 30dB, and 40dB, and is applied in transmitter signal gain promotion and receiver systems. The module adopts Type-C interface+5V power supply, with power indicator light for operation.
Specifications:
Working voltage:+5V single power supply
Power interface: Type C interface
Working current: 10dB-50mA; 20dB-75mA ；30dB-80mA； 40dB-80mA
Operating frequency: 10M-6GHz
P1dB output power:+ 10dBm@2GHz ; + 12dBm@2GHz ; + 18dBm@2GHz ; + 18dBm@2GHz
Noise factor: 4.5dB

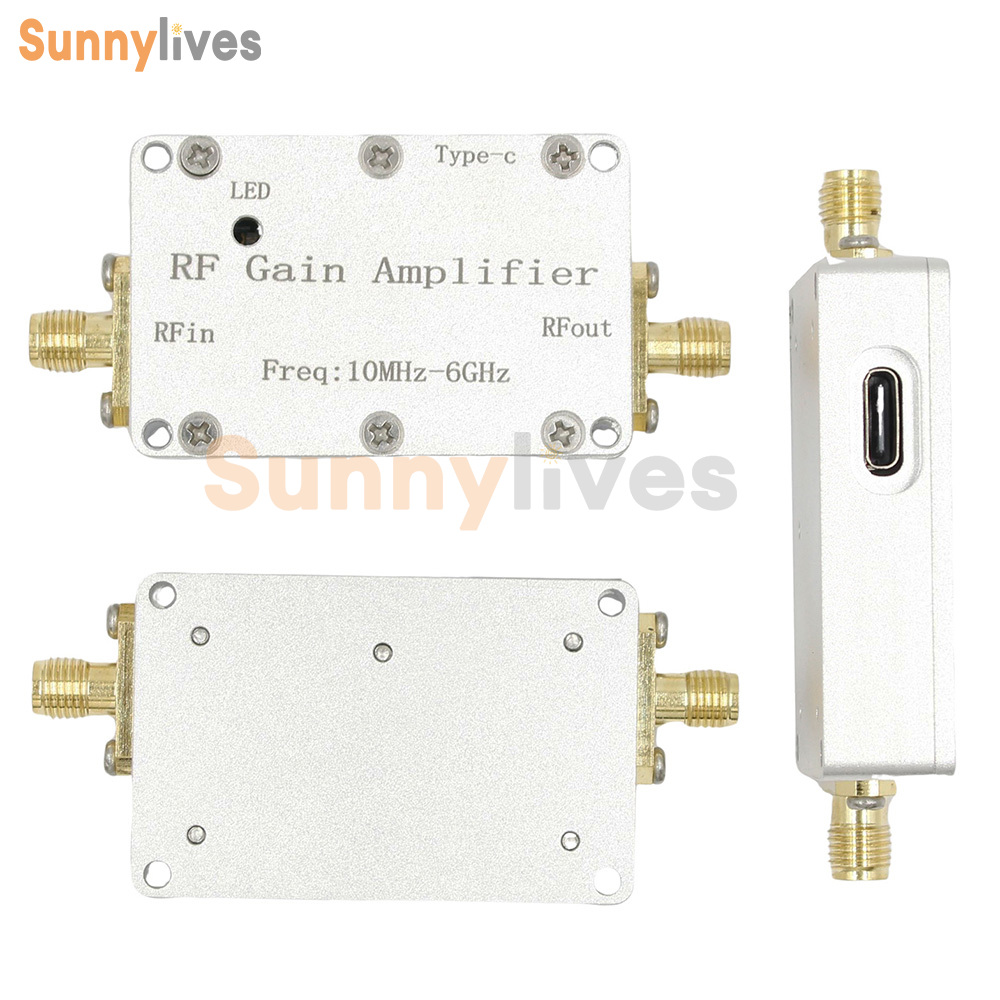

Input/output interface: SMA (outer screw inner hole)
Module size: 46 * 30 * 12mm (excluding connectors);

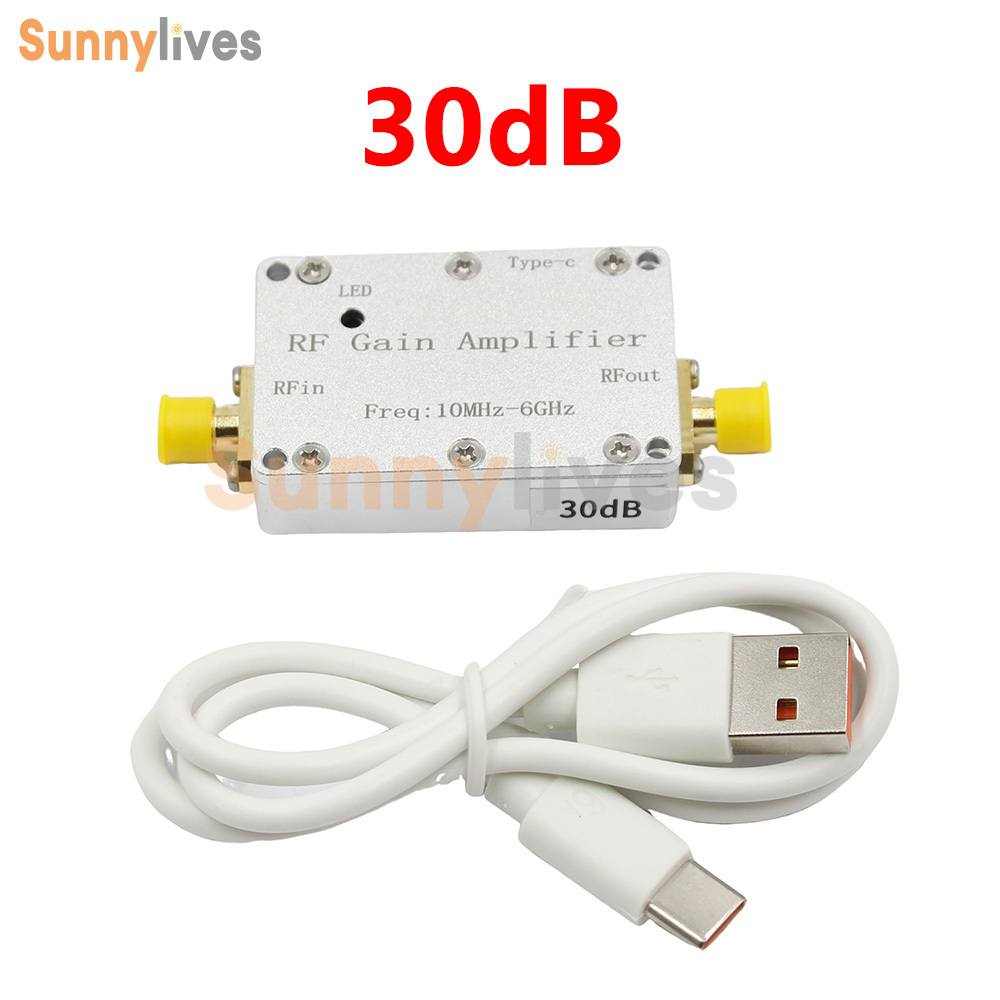

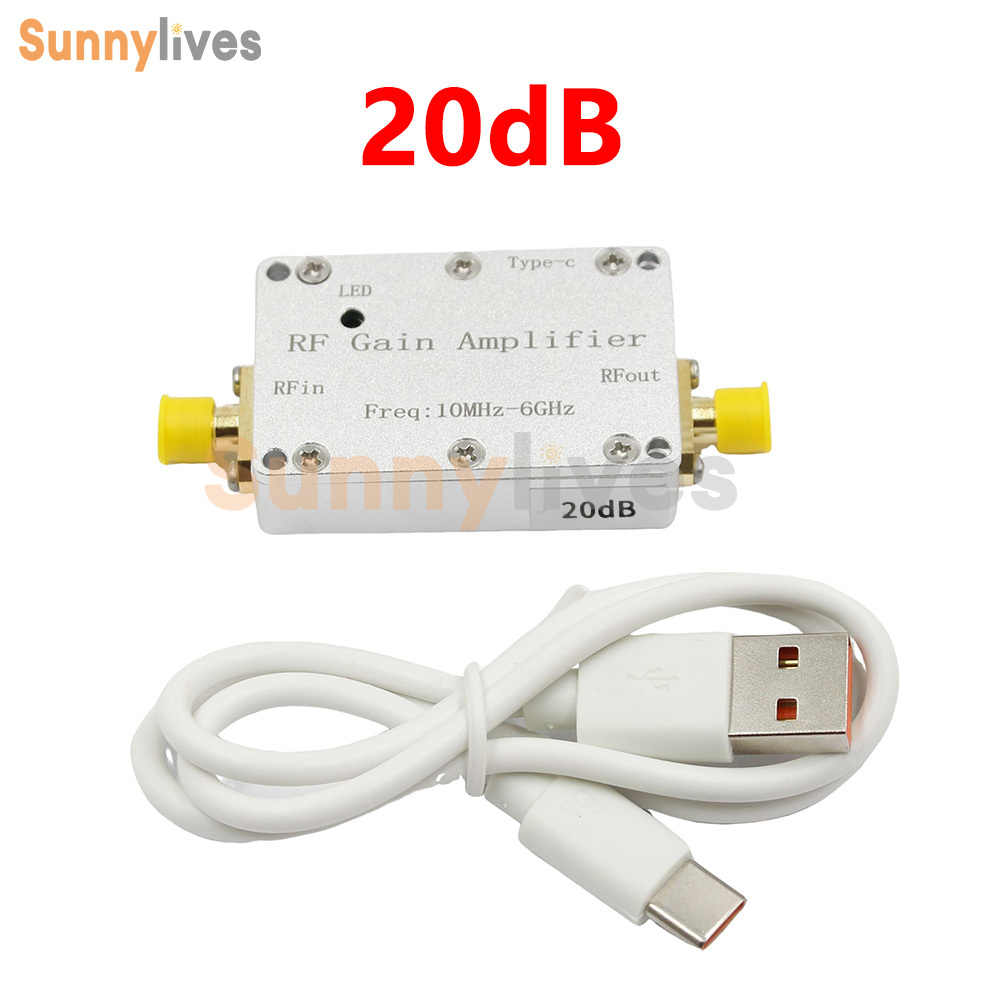

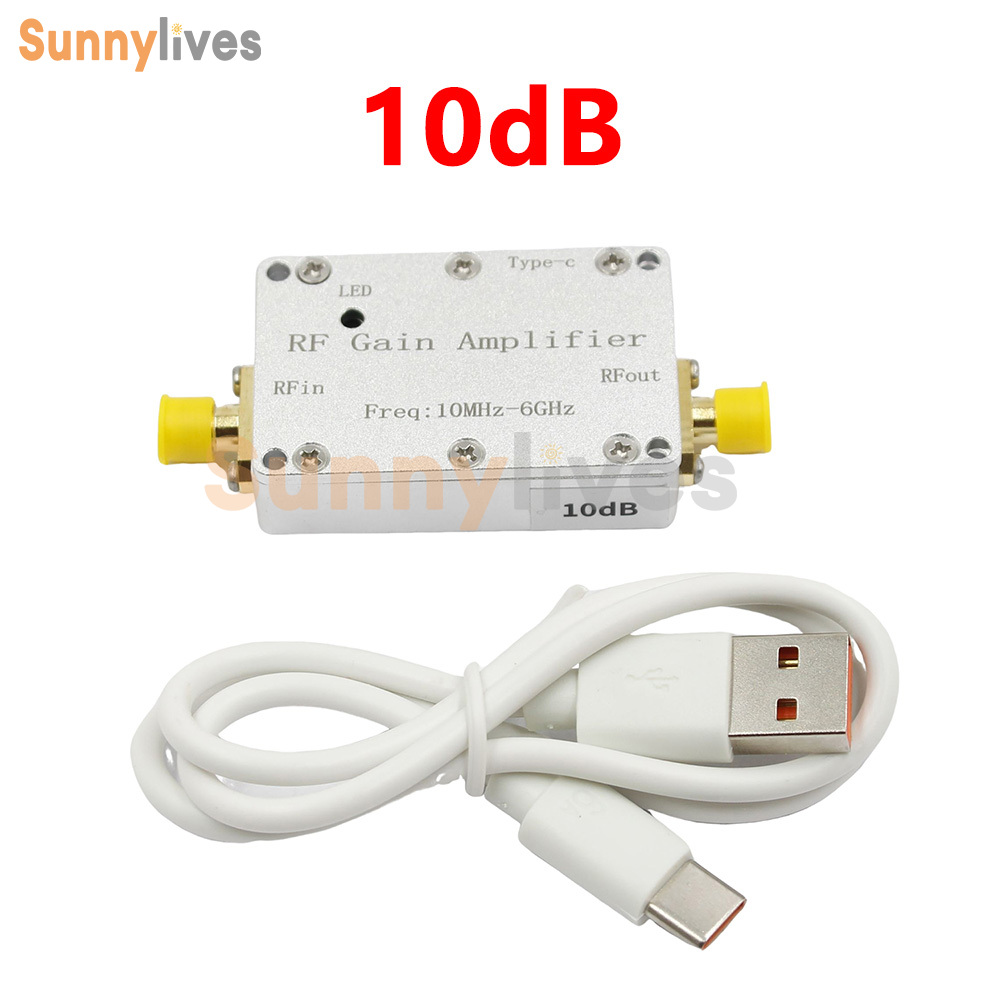

Package List:
1x RF amplifier
1x power cord
