Laser Tree K30 is a real 30W output laser module designed for powerful cutting.It uses beam compression technology, built-in 6pcs 5.5W laser diodes.

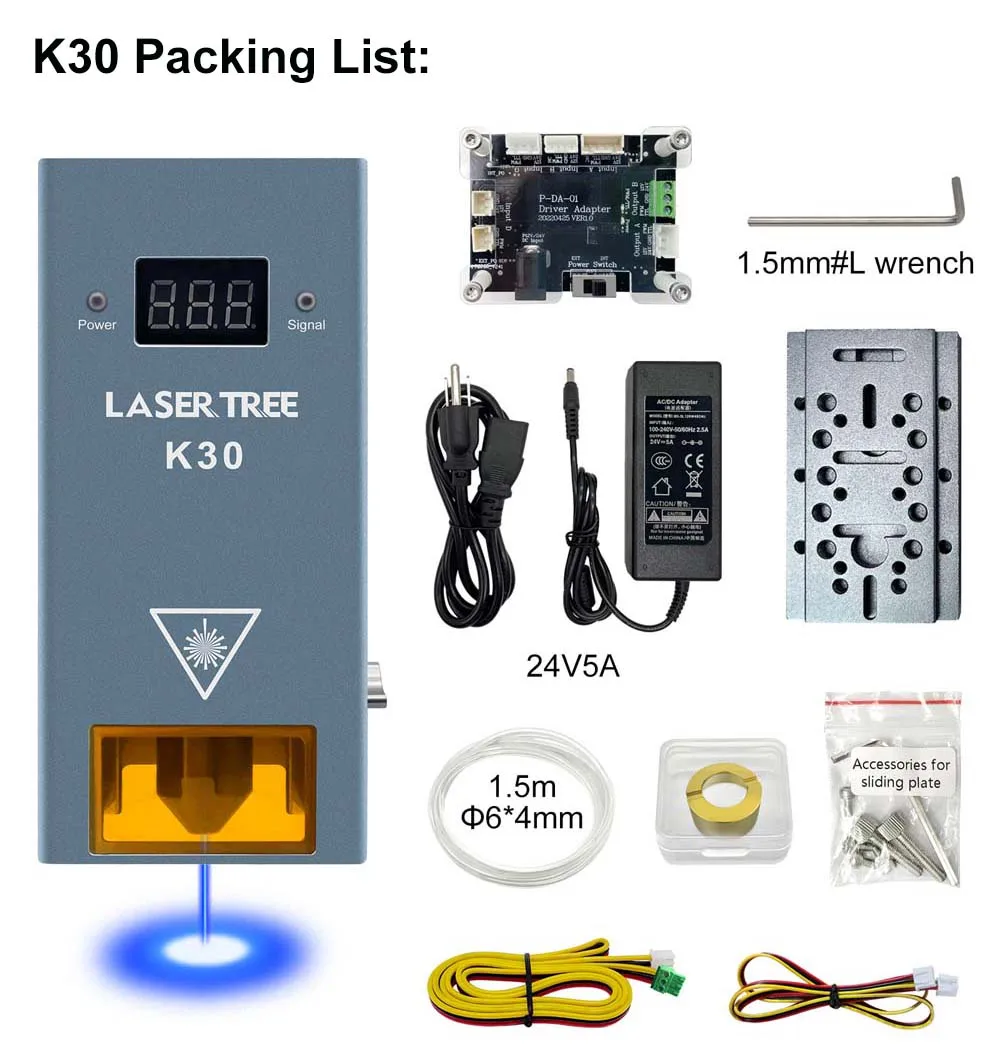

The comprehensive product configuration realizes compatibility with various laser engraving machines.
The adapter board is used for electrical compatibility (suitable for Z*aitu,O*tur,Tw* Trees,S*ulpful9, Xtool, A*omstack and other models of DIY laser engraving machines).
The sliding plate has multiple holes for installation compatibility.
Built-in air assist improves cutting performance, and excellent heat dissipation improves product stability and service life.
If you need to cut a lot of thick materials and speed up production, the powerful Laser Tree K30 is a good choice.

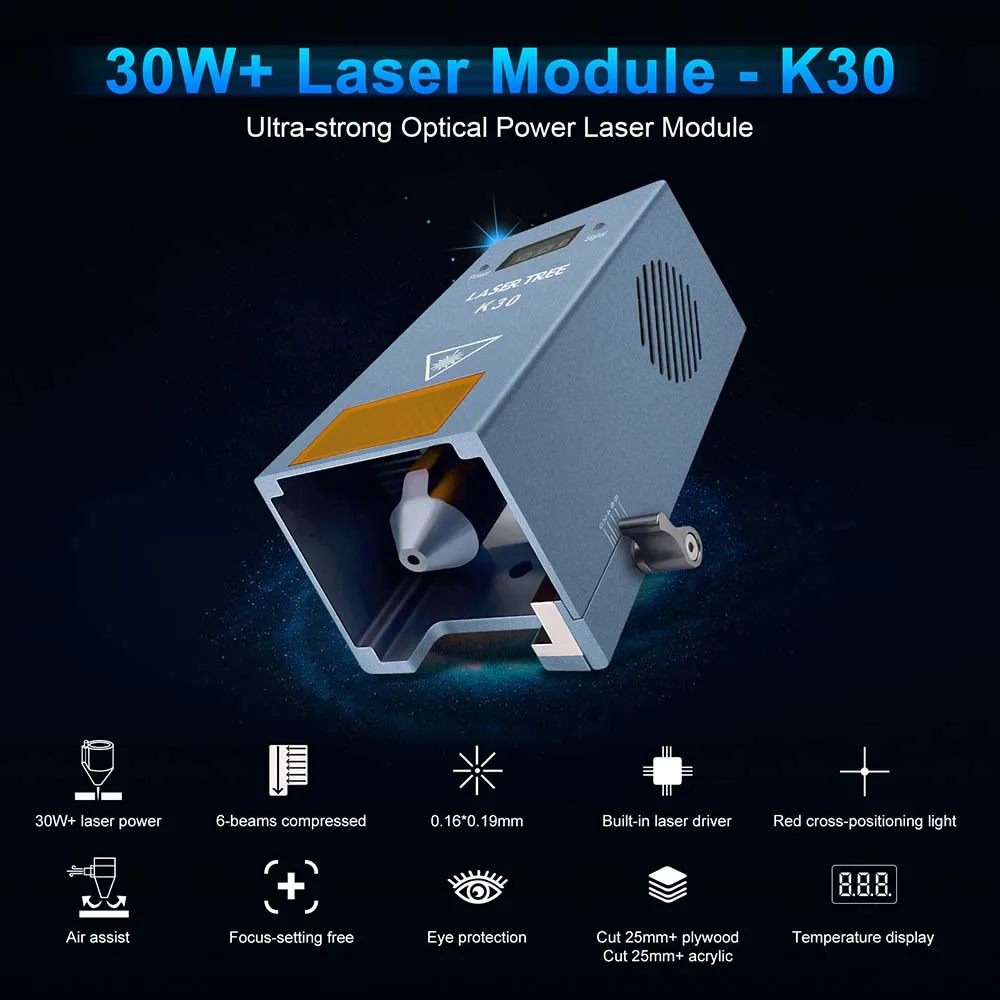

Ultrahigh Power Laser Module

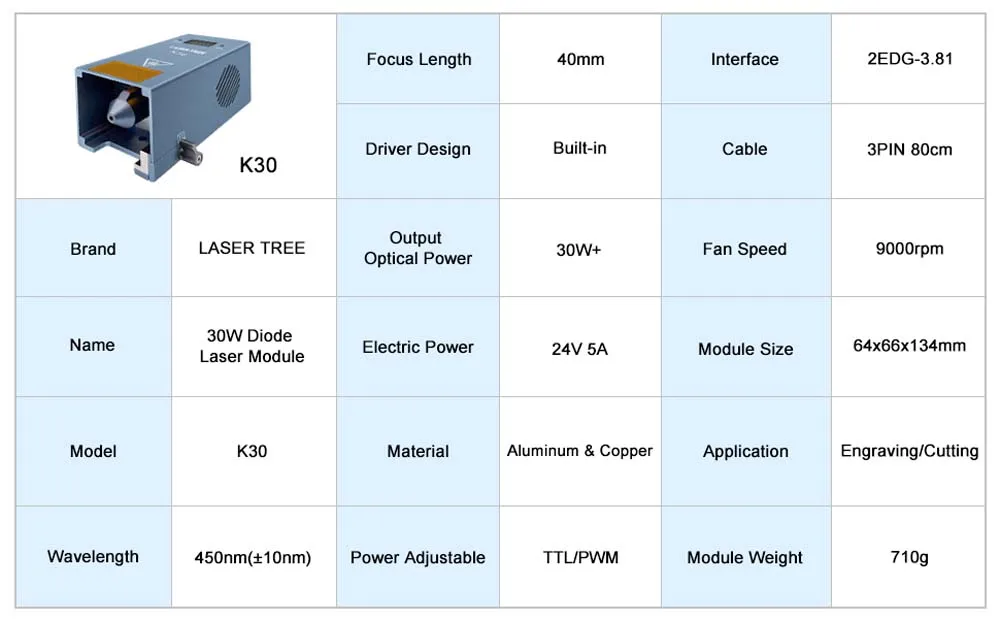

K30 is a high power 30W optical power laser module, built-in 6pcs 5.5W beam compressed laser diodes
Cut 15mm bass plywood: 180mm/min, 100% power, by one pass
Cut 15mm black acrylic: 35mm/min, 100% power, by one pass
Cut 30mm pine wood: 120mm/min, 100% power, by one pass

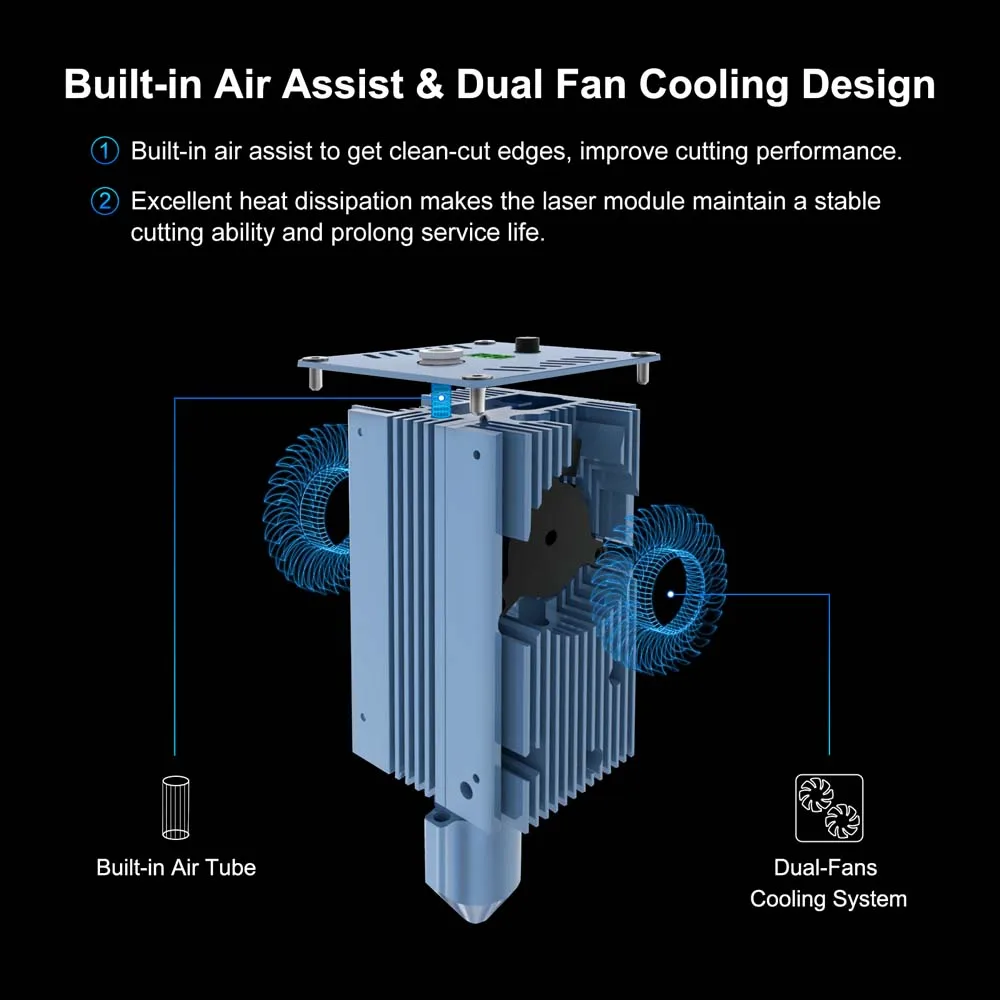

Built-in Air Assist & Dual-Fans Cooling Systerm

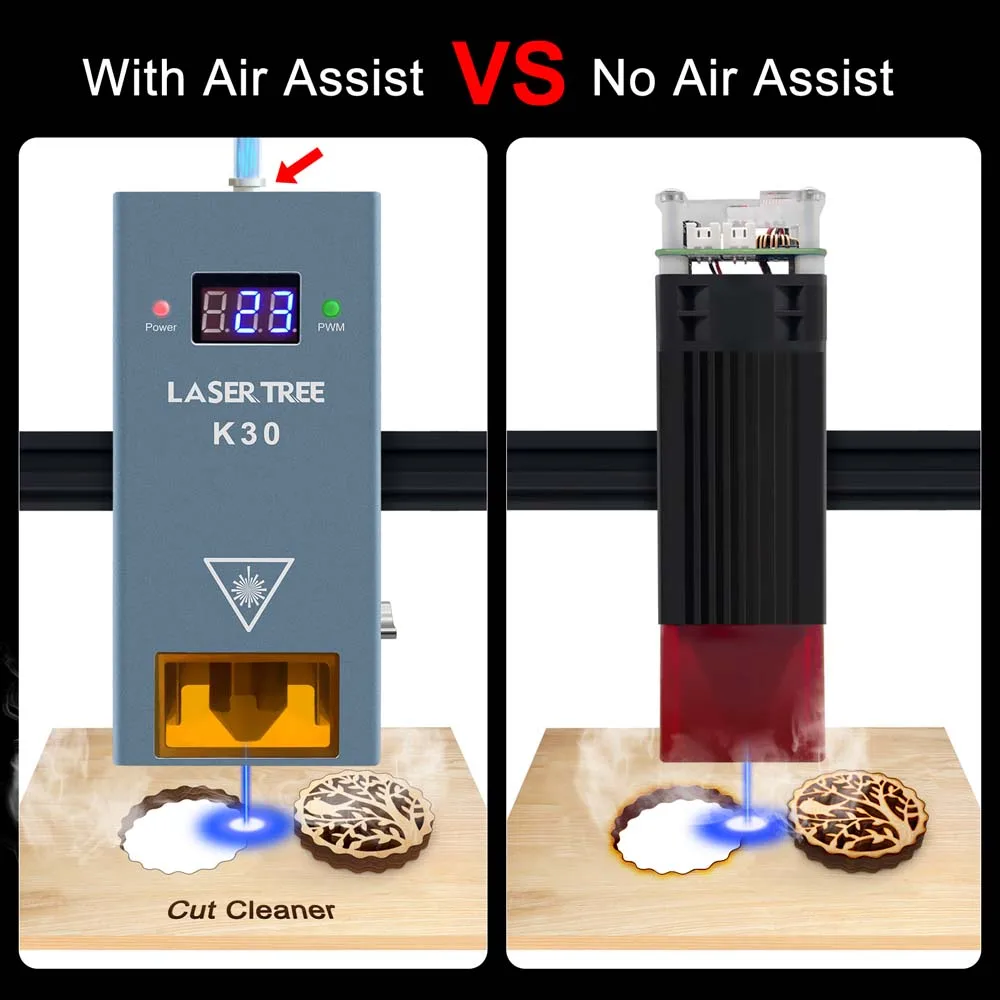

a. Built-in air assist to get clean-cut edges, improve cutting performance
b. Excellent heat dissipation makes the laser module maintain a stable cutting ability and prolong service life

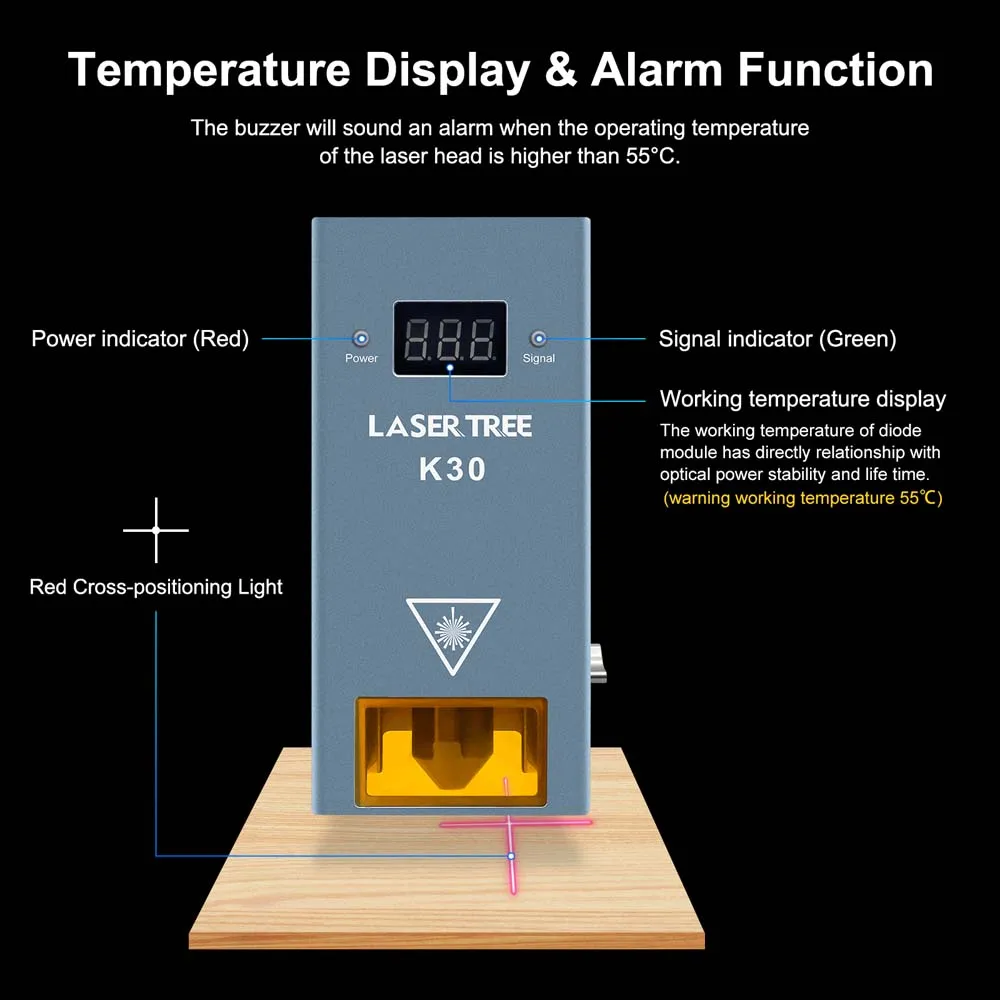

Temperature Display & Alarm Function & Red Cross-positioning Light Design
a. Use in high working temperature will affect the life of the laser module.
b. The buzzer will sound an alarm when the temperature of the laser head is higher than 55℃ ( Suggested working temperature <35℃.)
c. Red cross-positioning light design, It helps laser engraving or cutting precise positioning

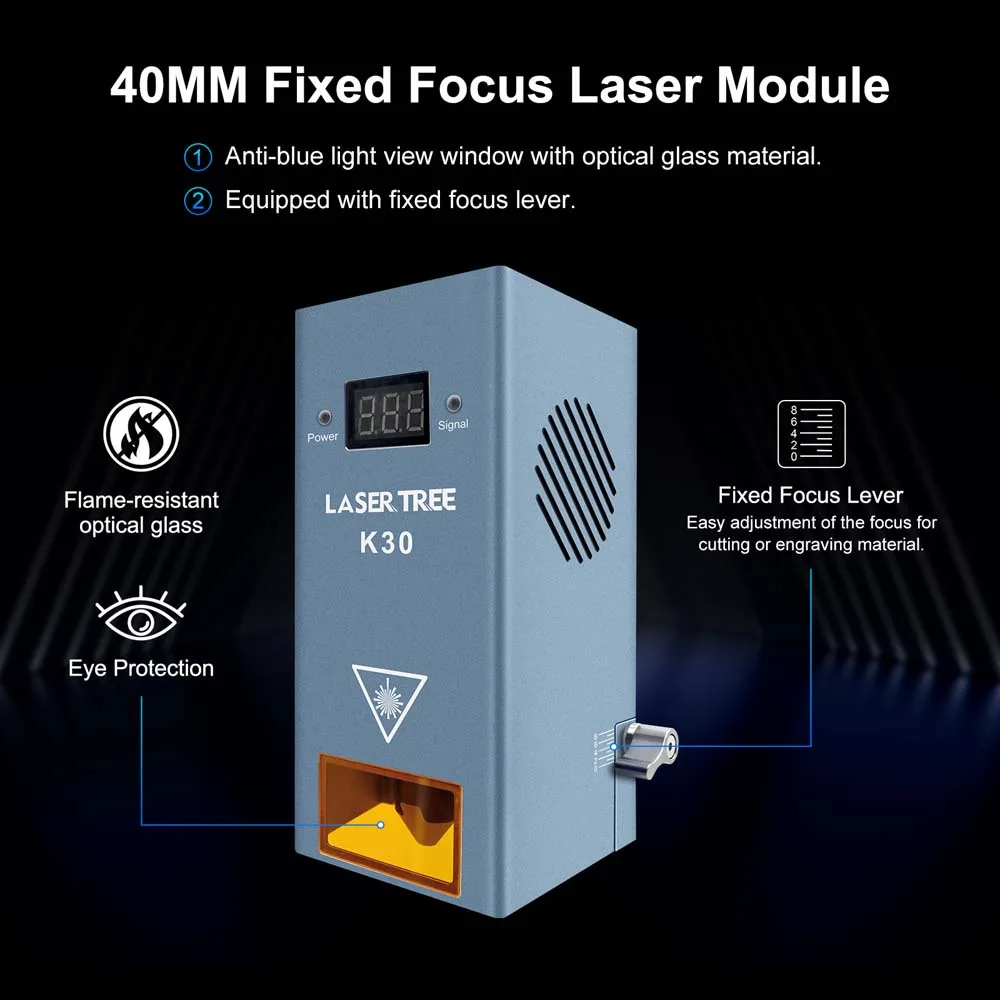

Easy to Set Focus & Fireproof and Anti-blue Light Design

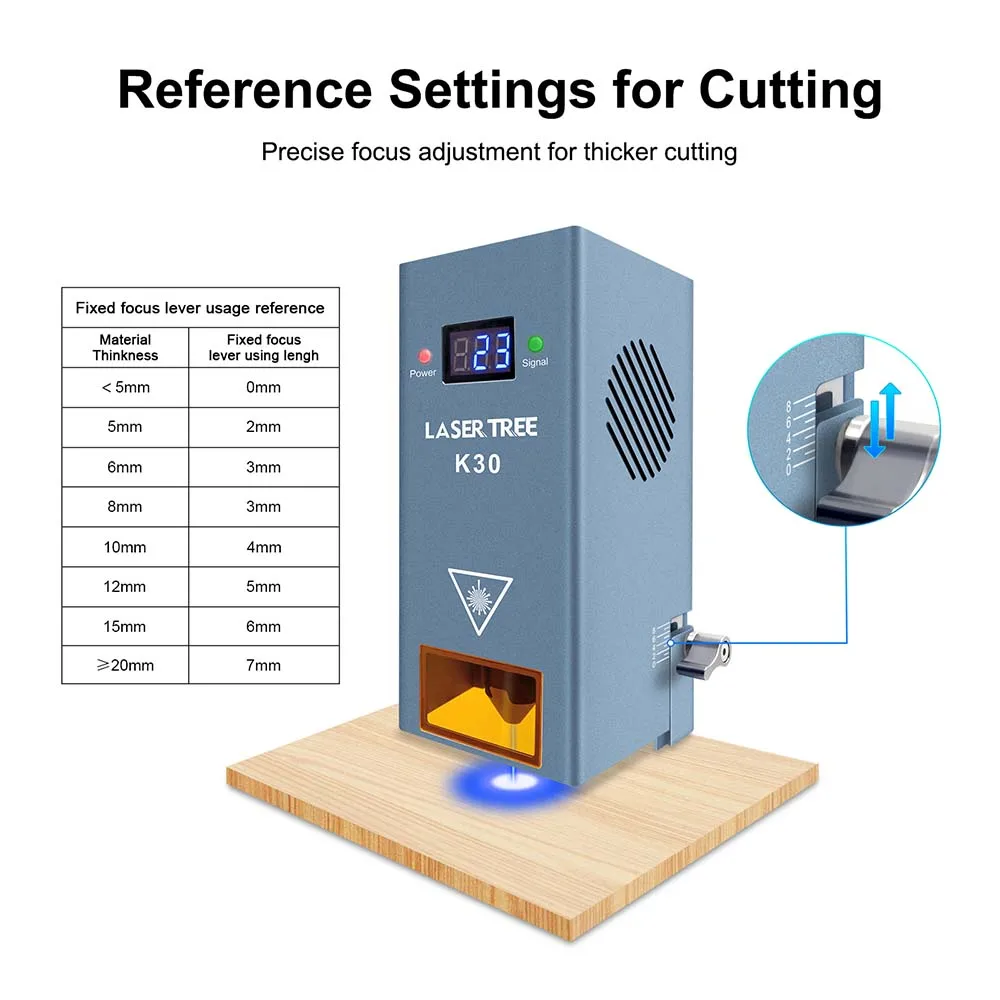

a. 40mm fixed focus laser module, with fixed focus lever, focusing is more convenient
b. Glass eye protection window, It can effectively prevent blue light and fire resistance

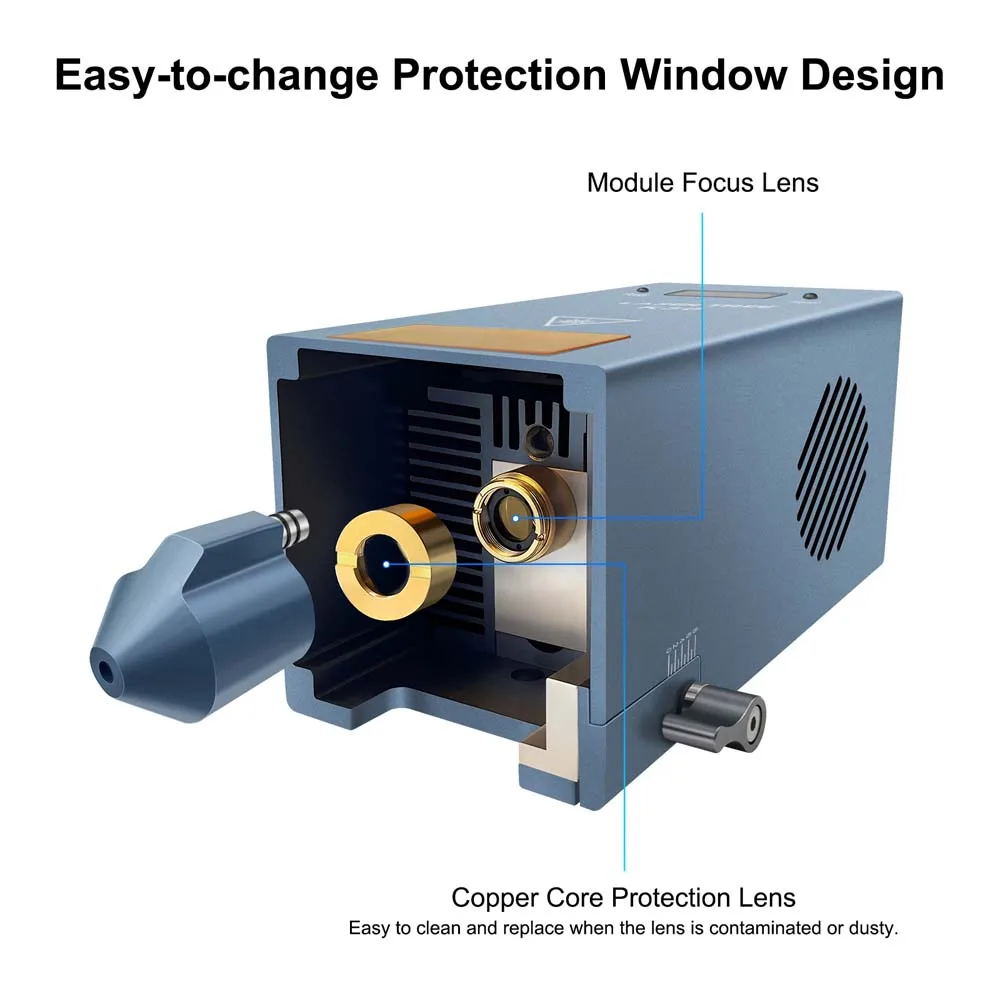

Copper core protection lens, easy to clean and replace when the lens is contaminated or dusty.

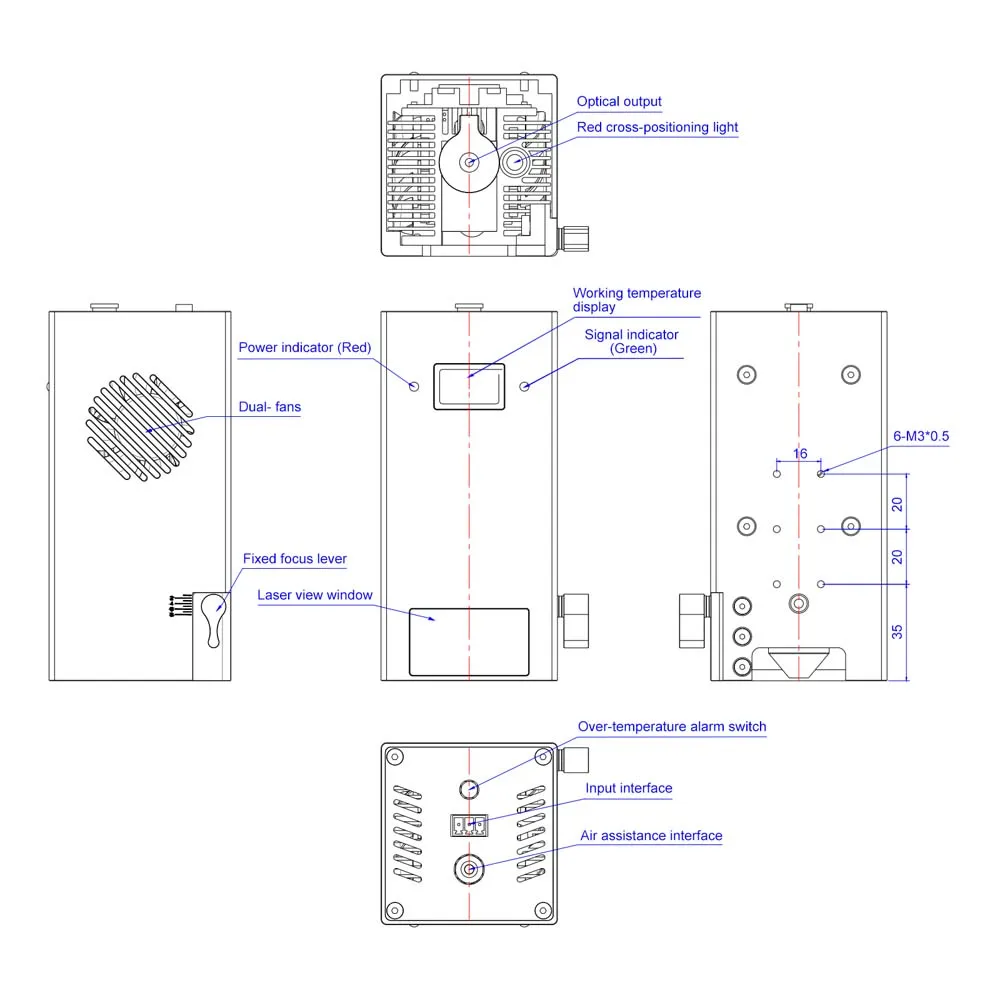

Details

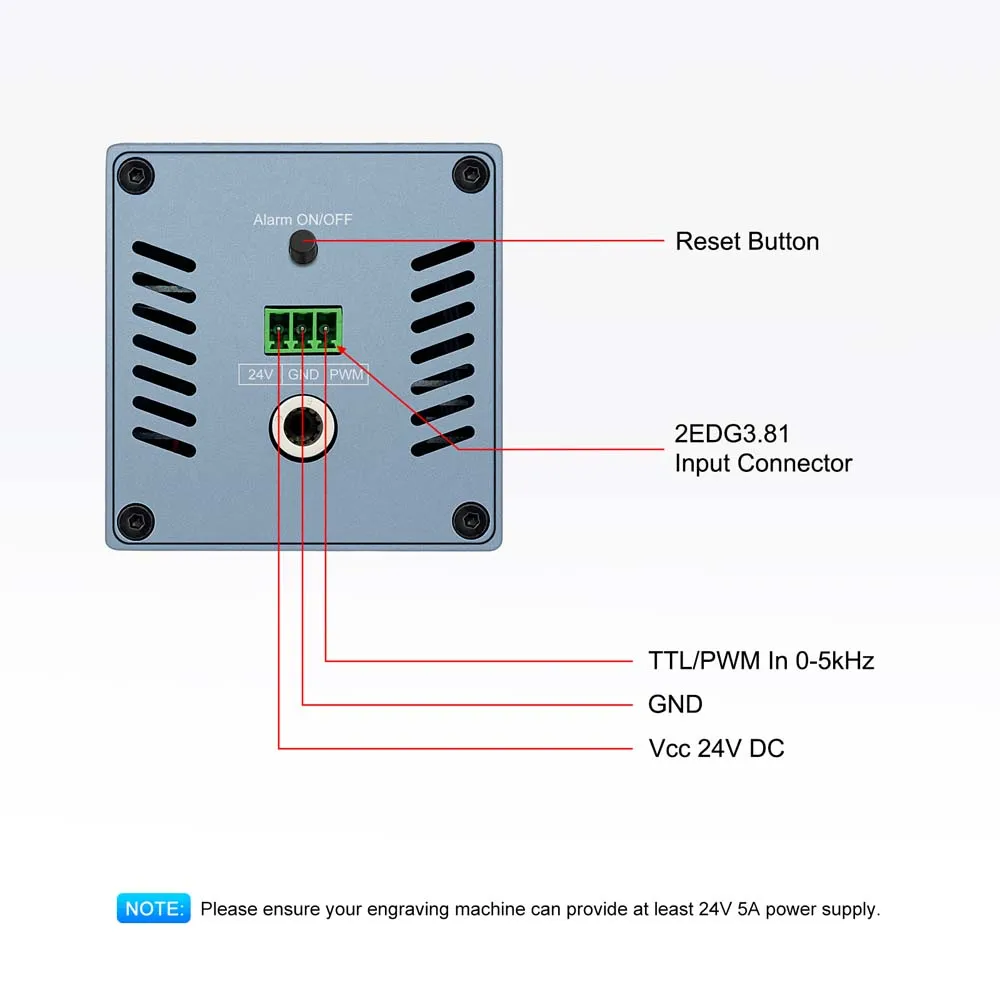

Reset Button: When the buzzer sound an alarm, close by reset button.
TTL/PWM: 0/3-12V, 0-5kHz. 0 off and 3-12V on.
Applicable Materials
Plywood, Pine board, wood, solid wood, black acrylic, MDF, stone, bamboo, coated glass, Mirror stainless steel, Brushed stainless steel, plastic, leather, aluminum oxide, non-reflective electroplating layer, and lacquered metal, after blackening Utility knife.
Note: Unable to engrave blue/purple/white/transparent material and aluminum without oxide layer
Notes:
1. Ensure you are clear about the product specification, datasheet, and operating instructions before usage.
2. Protect your yourself from the laser when you operate on it.
3. Ensure your safety during operating when power connected.
Warmly welcome you, my dear friend！
Tip:
Cutting Material Types：
all kinds of wood (including walnut, cherry wood and other high-density wood), MDF, black acrylic board, cardboard, bamboo chips, leather, some plastic boards, fiberglass board.
Engraving Material Types：
all kinds of wood (including walnut, cherry wood and other high-density wood), MDF, bamboo, cardboard, plastic, leather, fiberglass board, aluminum oxide, stainless steel(non-specular surface), ceramics, dark stone.
Additional Notes：
1. Materials that are not easily oxidized/decomposed/melted at high temperatures cannot be engraved/cut;
2. All transparent materials cannot be engraved/cut, and white/blue/purple materials cannot be directly carved/cut except for materials such as wood, cloth, paper, and leather;
3. Unoxidized aluminum, silver color alumina, copper, silver and gold cannot be engraved;
4. The electroplating material needs to determine the coating composition first;
5. All metals cannot be cut.
