All modifications must be installed by licensed mechanics and in compliance with your local modification regulations

​​​​​​​

Notice: No Top Mount Included. Modification Required If You Use OE Top Mount. Shorter anti roll bar required.

Applications

For VW

For VW Polo MK4 (9N_) 10/2001-10/2014 hatchback
For VW Polo MK4 (9N, 9A4) 09/2002-11/2009 Saloon

For Seat

For Seat Cordoba 6L2 09/2002-11/2009 Saloon

For Skoda

For Skoda Fabia MK1 6Y2 08/1999-03/2008 hatchback

For Skoda Fabia MK1 6Y5 04/2000-12/2007 Estate

For Skoda Fabia MK1 6Y3 10/1999-12/2007 Saloon

Specifications

Height adjustable: Yes, lowering 0-25mm depending on the vehicle models

Damping : fixed damping

Spring rate Front: 3.5 kg/mm (196 lbs/in)

Spring rate Rear: 2 kg/mm (112 lbs/in)

Front spring inner diameter: 64-83 mm

Rear spring inner diameter: 58-63 mm

Spring length Front: 239 mm

Spring length Rear: 230 mm

Helper spring rate Front: 1 kg/mm (56 lbs/in)

Helper spring length Front: 102 mm

Spring Preload advised: 7-10 mm

Shock type: twin tube

Package included

2x Front coil-overs
2x Rear coil-overs
2x C spanners

Package size : 70*50*20 cm
Weight: 21300 g

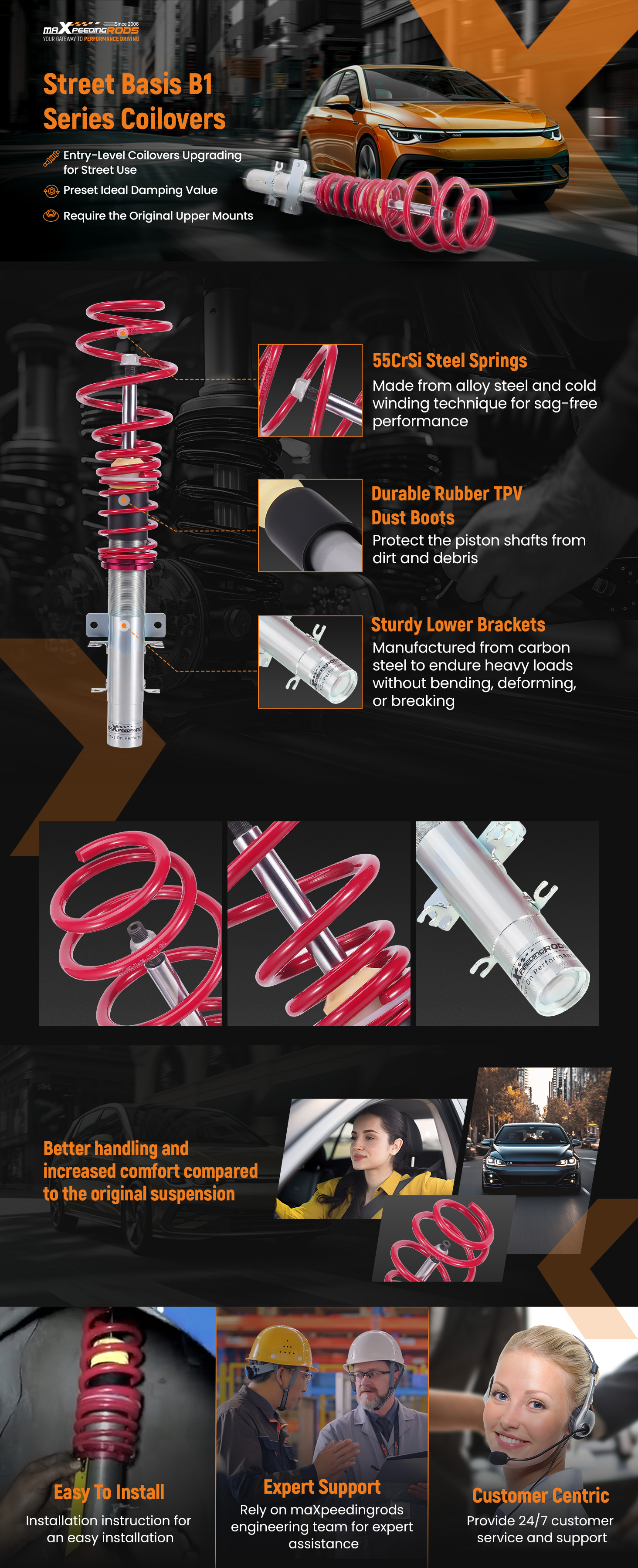

Feature

1.  0-25mm(depends on vehicle models) lower height adjustable
2. Dust boot, solid rubber bump stops
3. Weight Saving Aluminum Components And heavy duty Steel Lower Mount Brackets
4. Simple install,  Easy to adjust.
5. Use the vehicle's original upper mounts (not included in our product kit).

Note:

1. All modifications must be installed by licensed mechanics and in compliance with your local modification regulations.
2. Please ensure all components are tightened with correct torque specifications (which can be found in the vehicle service manual)before and after installation. Any loose nuts, bolts, or locks will cause noise. Do check and tighten before serious problems happen.
3. Impact wrench is prohibited during the installation, it will loosen or damage the product.
4. Examine the clearance between tires and suspension. ( The minimum clearance should be 4mm, otherwise, you need to add wheel spacers. Caution: It is not sufficient with torsion beam trailing arm axles)
5. We suggest regular maintenance for the coil-over, spray with some WD40 every 3-4 months will keep it smooth and clean, which helps to extend the lifetime.
