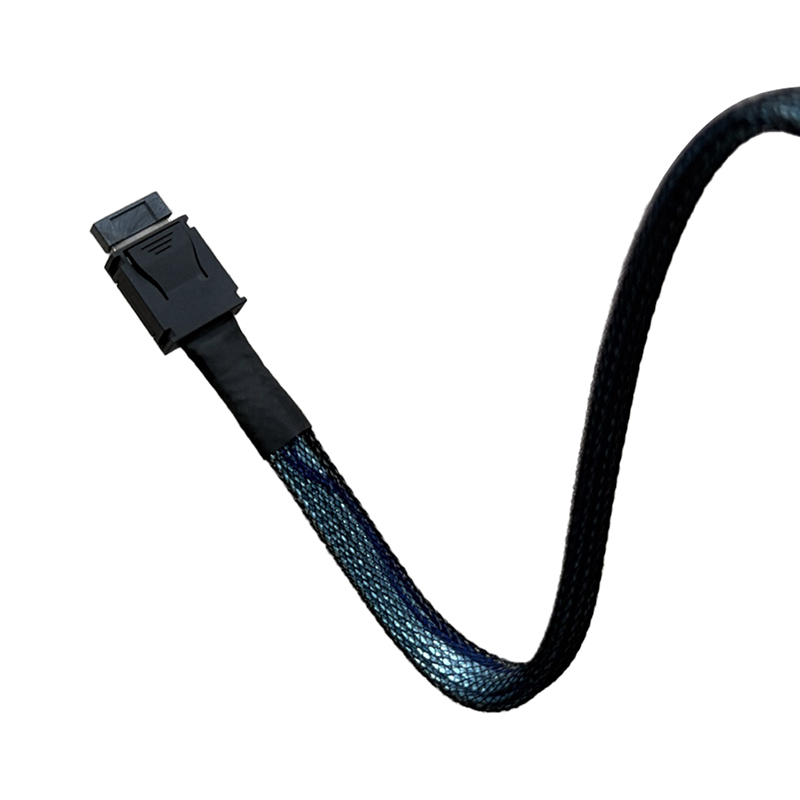

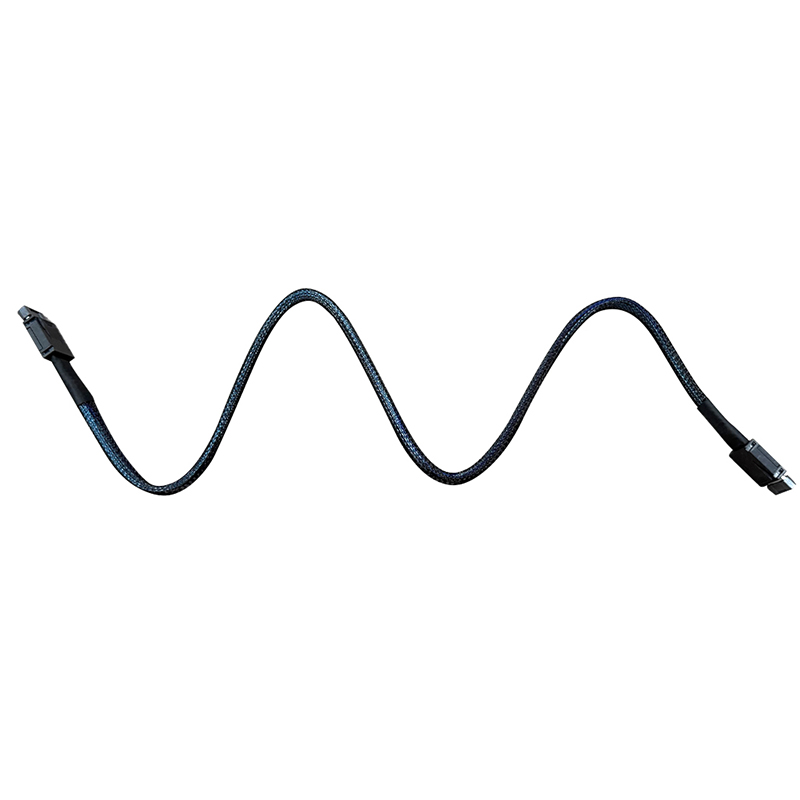

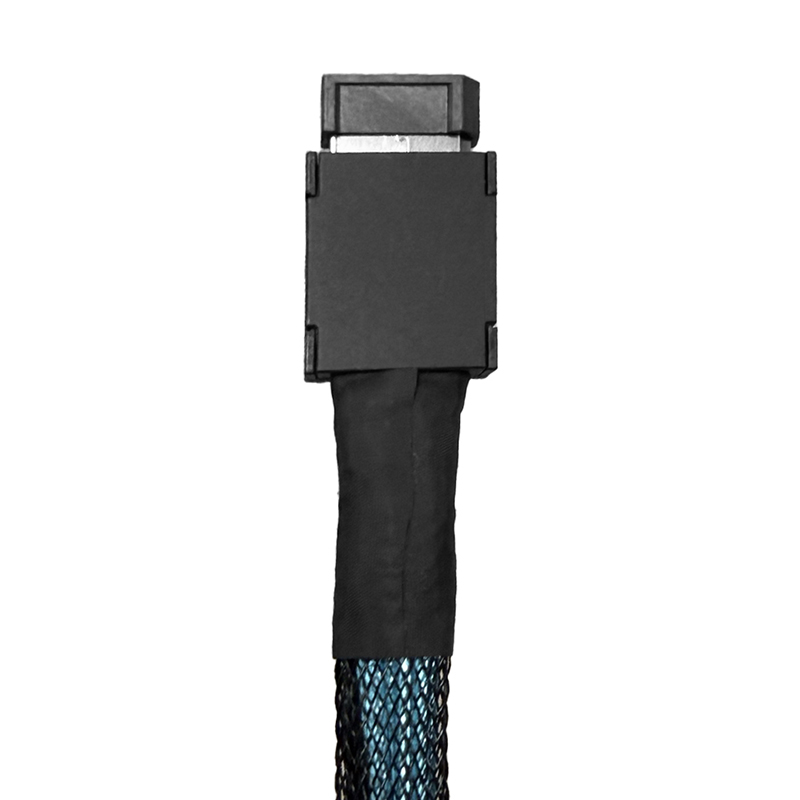

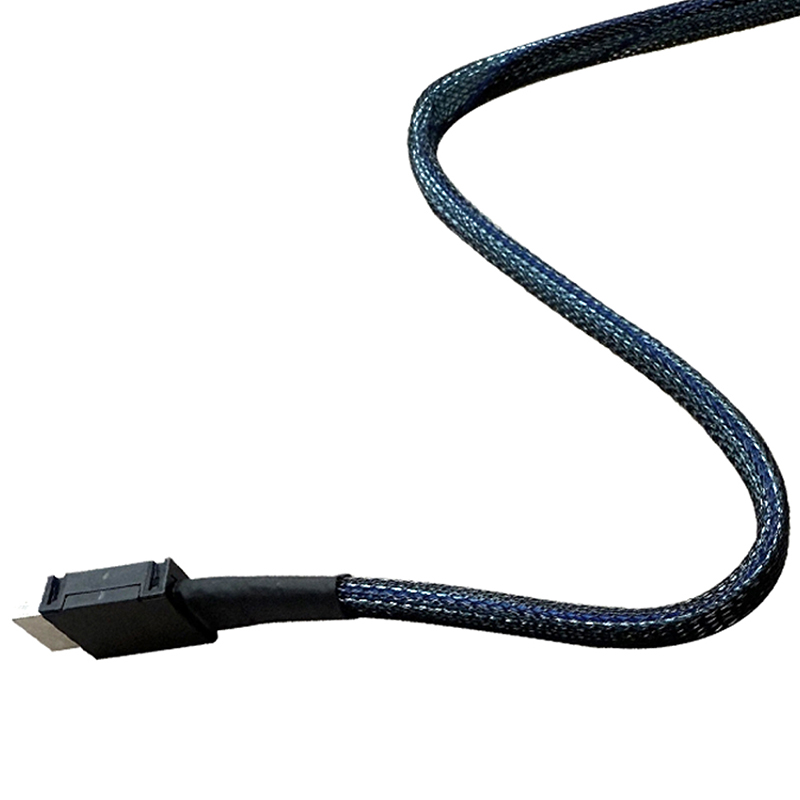

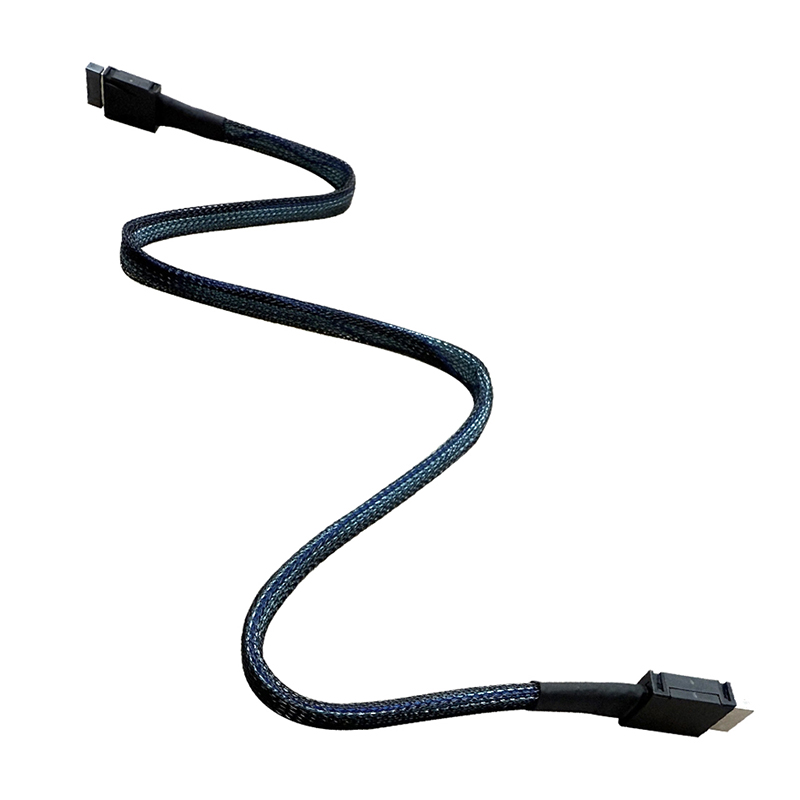

PCIE4.0x4 full-featured SFF8611 to SFF-8611 extension cable ouclink4i silver plated cable

Product Description:

1. OCuLink is a high-speed internal and external I/O connector for the next generation of servers, compatible with T10/SAS-4, SFF-8611, SFF-8612, PCIe Gen 3,

and Gen 4

2. Ouclink 4i SFF8611 silver plated extension cable, supporting PCIE 4.0 X4 GEN4, GEN3, and SAS-4. 64Gbps transmission speed

3. Supports Oculink 4i full functionality, including power lines, differential high-speed lines, signal lines, GND lines, etc.

4. Cable length can be selected and customized. The length represents the cable section, excluding both ends.

5. Adopting silver plated cables, aluminum foil shielding, high-speed and non-destructive.

6. Supports PCIE 4.0 data transfer, supports connecting GPU graphics cards, solid-state drives, expansion cards, etc., and is backward compatible with

PCIE 3.0.

7. Adopting a 4-layer PCB board bridge connection and gold-plated OCuLink 4i 42p connector.

8. Adopting a woven mesh outer layer, the cables can be bent.

9. A1, B1, A21, and B21 use thickened 28AWG electronic wires to increase current transmission.

10. The signal line adopts fully high-speed silver plated cable.
