DS457 SERIES

Next-Generation Fixed Mount Imager



Get Hands-Free Convenience and Extraordinary Scanning Speed on any Bar Code & On any Surface

Enable high-volume hands-free scanning from the retail POS and airport boarding gate to the manufacturing production line with the Motorola DS457. With comprehensive data capture, your workers can scan virtually any bar code – including 1D, 2D and direct part marks. No matter what type of bar code is presented, or whether it is printed on a paper label, etched into a product or displayed on a mobile phone screen, breakthrough digital imaging technology delivers extraordinary scanning speed. The tiny footprint fits in the most space constrained areas. Workers can choose presentation or trigger-activated mode, providing the flexibility for a wide variety of applications. And while the DS457 can be integrated into a wide variety of products, its sleek design is just as at home in customerfacing areas, such as a retail counter.

True Best-in-Class Performance on All Bar Codes

With stunning performance on virtually every bar code – 1D and 2D plus direct part marks – your workers can capture bar codes as fast as they can present items for scanning. There is never a need to pause between scans, protecting productivity.

Fits in the Smallest Spaces

The tiny DS457 is ideal where a zero or minimal footprint is required. At just 1.15in. H x 2.3in. L x 2.44in. W (2.92 x 5.84 x 6.2cm), this device can be mounted just about anywhere – attached to the register or under the counter for a true zero footprint on the retail cashwrap to a space-constrained manufacturing cell or airport gate.

Scan Bar Codes on Practically Any Surface – Including Mobile Phone Displays

Your customers are rapidly adopting mobile bar codes – electronic versions of tickets, boarding passes and loyalty cards that can be carried right in the mobile phone. Since the DS457 can read bar codes on mobile phone and computer displays, you're ready for this next generation bar code, protecting customer convenience, customer service quality and employee productivity.

Flexible and Easy to Integrate

The DS457 can be used as a standalone scanner or integrated into the most space-constrained products to bring world-class scanning performance to mobile computers, handheld scanners, self-service kiosks, medical and diagnostic instruments, lottery terminals and more. Integration into your product designs is easy – there is no optical, mechanical or electrical engineering required. And in the event you already have a Motorola Miniscan deployed today, the common interface allows you to simply swap scanners to cost-effectively boost scanning performance and quality – no re-tooling or redesign of the installation area are required.

Users are Up and Running in Minutes

Full omni-directional scanning eliminates the need to precisely align bar code and imager. A unique aiming pattern with a bright central dot ensures quick, accurate scanning – even in the brightest lighting. The result is a highly intuitive scanning function that increases worker productivity, virtually eliminating the need and cost associated with training.

Four Models to Meet Any Application Need

No matter what type of bar codes you need to capture, there is a model that will meet your needs.

DS457-SR: Combination 1D and 2D Bar Code Scanning

This standard range model is designed to meet the needs of a wide variety of applications, offering the largest working range possible on the largest variety of bar codes.

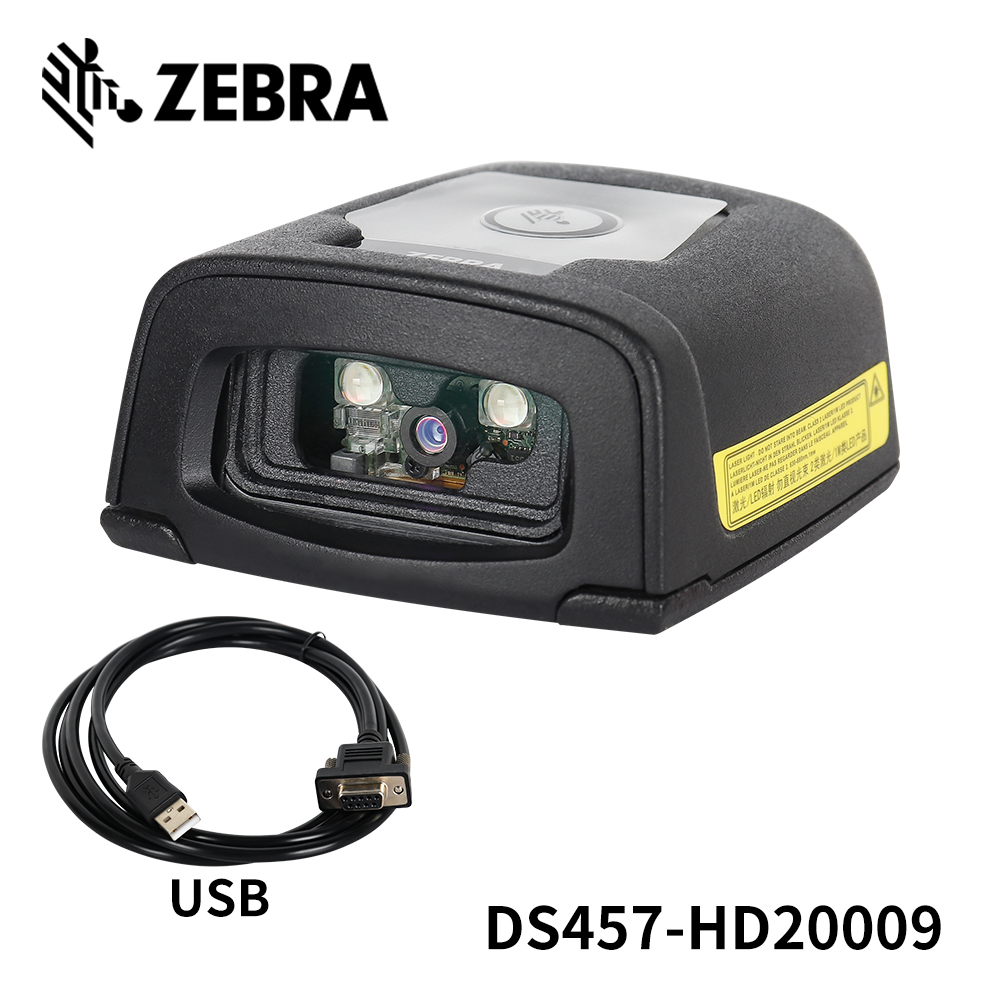

DS457-HD: Optimized for Comprehensive 2D Bar Code Capture

We took the DS457-SR Standard Range model and optimized the focus functionality to accommodate the very tiny and dense 2D bar codes frequently found in manufacturing. Electronic manufacturers can ensure the right part is used at the right time on the production line. And pharmaceutical manufacturers can track product as it is produced and packaged to meet track and trace regulations.

DS457-DL: Combination 1D and 2D Bar Code Scanning Plus Driver's License Parsing

We added driver's license parsing to the DS457-SR Standard Range model to enable the instant decoding of the bar coded information on any state driver's license in the U.S. as well as other national ID documents to support a wide variety of value-added applications. At the retail POS, the DS457-DL allows effortless auto-population of credit and loyalty cards, as well as easy and error-proof age verification.

DS457-DP: Comprehensive Support for 1D and 2D Bar Codes Plus Direct Part Marks

This powerful model starts with the high-density scanning capability of the DS457-HD, and adds new algorithms that ensure easy reading of anydirect part marks. Workers can easily capture even the most challenging direct part marks, including low-contrast marks printed on black plastic, black rubber, steel and cast-iron.

World Class Support for Maximum Uptime

For true service peace of mind, our Service from the Start Advance Exchange Support program offers next-business-day device replacement to keep your DS457 imagers up and running. And since built-in Comprehensive Coverage includes normal wear and tear as well as accidental damage to internal and external components, unforeseen repair expenses are practically eliminated. The result is an extraordinary lifecycle, extraordinary uptime – and a truly outstanding ROI.

• Four Models to Meet Any Data Capture Need
  SR (Standard Range) designed for 1D/2D intensive applications with medium to large bar codes

  HD (High Density) for the tiny and dense codes common in manufacturing

  DL (Driver's License parsing) ideal for 1D/2D applications that require the capture of U.S. driver's license ID information

  DP (Direct Part Marks) for rapid capture of every type of direct part mark, including dot peen, laser etch, chemical etch, inkjet, mold, cast and thermal spray; capture marks on virtually any surface, including metal, rubber, plastic and glass
• Scans Any Bar Code on Paper, Mobile Phones and Computer Displays
  Scan virtually any bar code on any medium; supports the mobile bar codes your customers are embracing
• Comprehensive Data Capture – 1D, 2D, and DPM Codes, Driver's License Parsing, Still Images, Video and OCR
  Diverse series that can meet any fixed mount hands-free scanning need
• Powerful 624MHz Processor, Fast Sensor Shutter Speed and Patent Pending Fastpulse Illumination
  Delivers extraordinary scanning speed on all bar codes; increases throughput and productivity
• Tiny Footprint
  Fits almost anywhere; enables "invisible" under the counter installation
• Sleek Design
  Suitable for design conscious retail stores and other customer-facing areas
• Mounting Accessories
  Easily mount wherever needed – on cash registers, under counters and more
• Omni-Directional Scanning
  No need to align bar code and scanner; improves ergonimics and user comfort
• Unique Aiming Pattern
  Bright central dot ensures quick, accurate scanning – even in bright sunlight
• Scan Trigger
  Can be used in either presentation mode for hands-free scanning or on-demand scanning via integrated scan trigger
• Supports 123Scan Configuration Tool
  Enables rapid and easy customized set-up through a free, wizard-based PC software tool
• Compatible with SSI and SNAPI Command Interfaces
  Expands application flexibility with fast, simple communication plus support for advanced features between imager and host
• Optional Software Developer Kit (SDK)
  Provides familiar Microsoft® Windows 2000 and XP platform support for rapid development of applications that integrate easily into the customer environment
