48V 2000W Ebike Front Motor Conversion Kit 20 22 24 26 27.5 28 29 Inch 700c Wheel with Fork Size 100mm for Electric Scooter

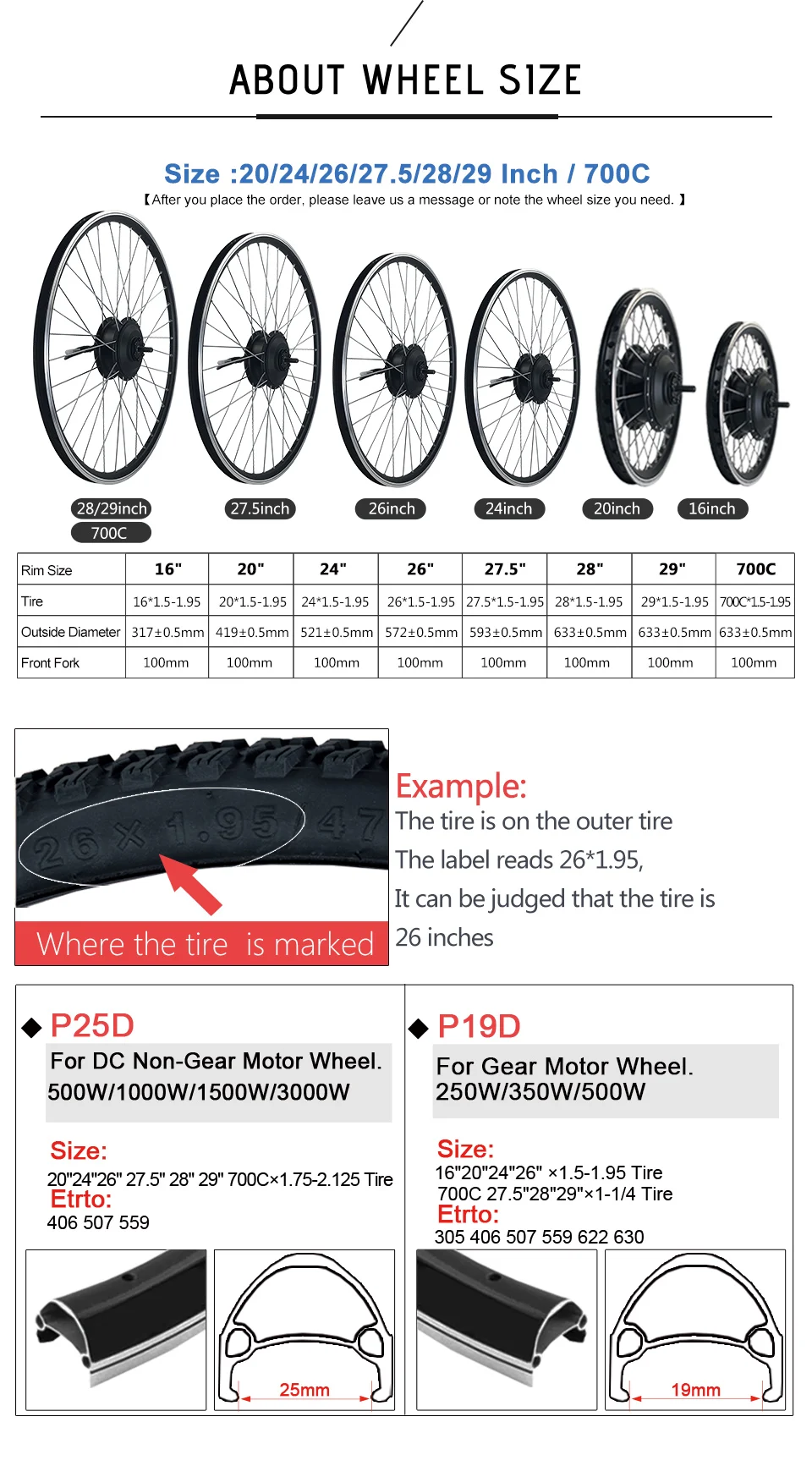

Available rim sizes are: 20inch/24inch/26inch/27.5inch/28 29inch 700C

You can contact the seller to select the corresponding wheel, or write the demand in the order note when placing the order.

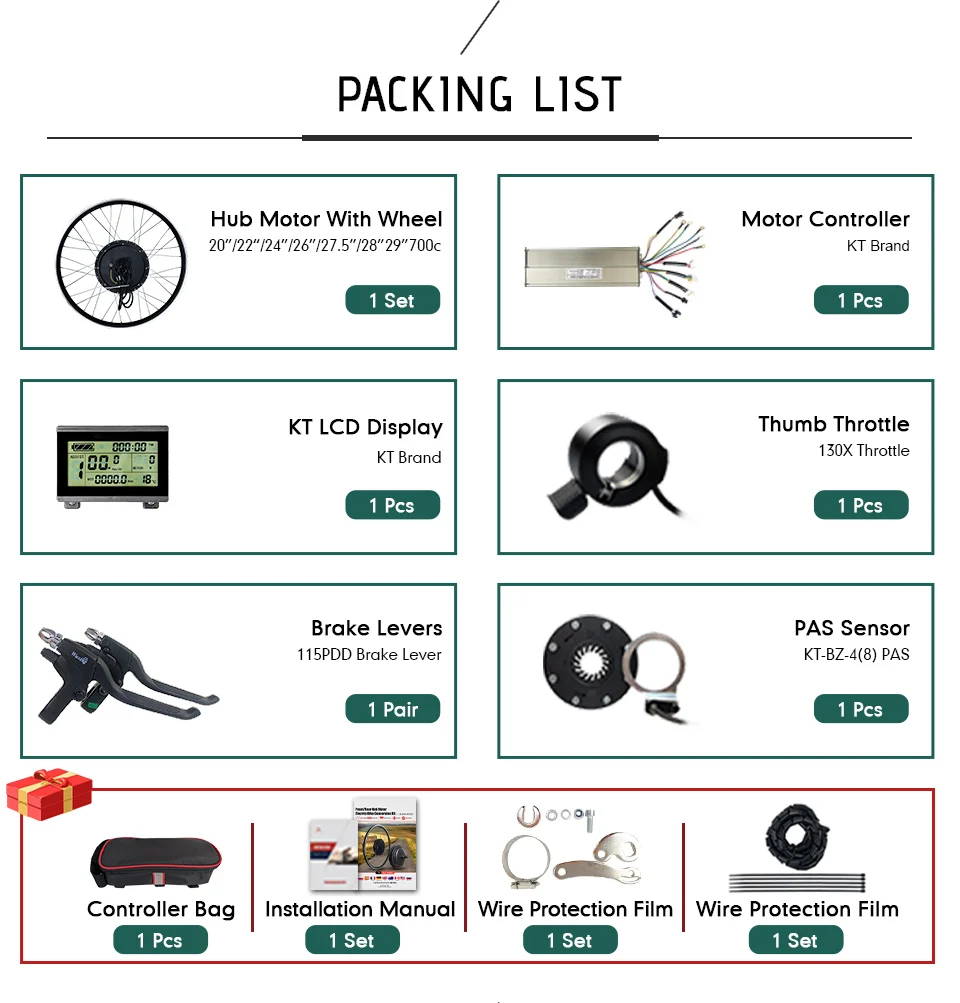

Packing List:

1. 2000W Front Motor

2. 20/24/26/27.5/28/29inch 700c Wheel

3. KT 48V 50A Square Wave Controller

4. KT LED880 LCD3 Display

5. 130X Thumb Throttle

6. KT-BZ-8 PAS

7. 115 Pdd E-brake

8. Wire Protection Film

9. Controller Bag

10.Torque Arm

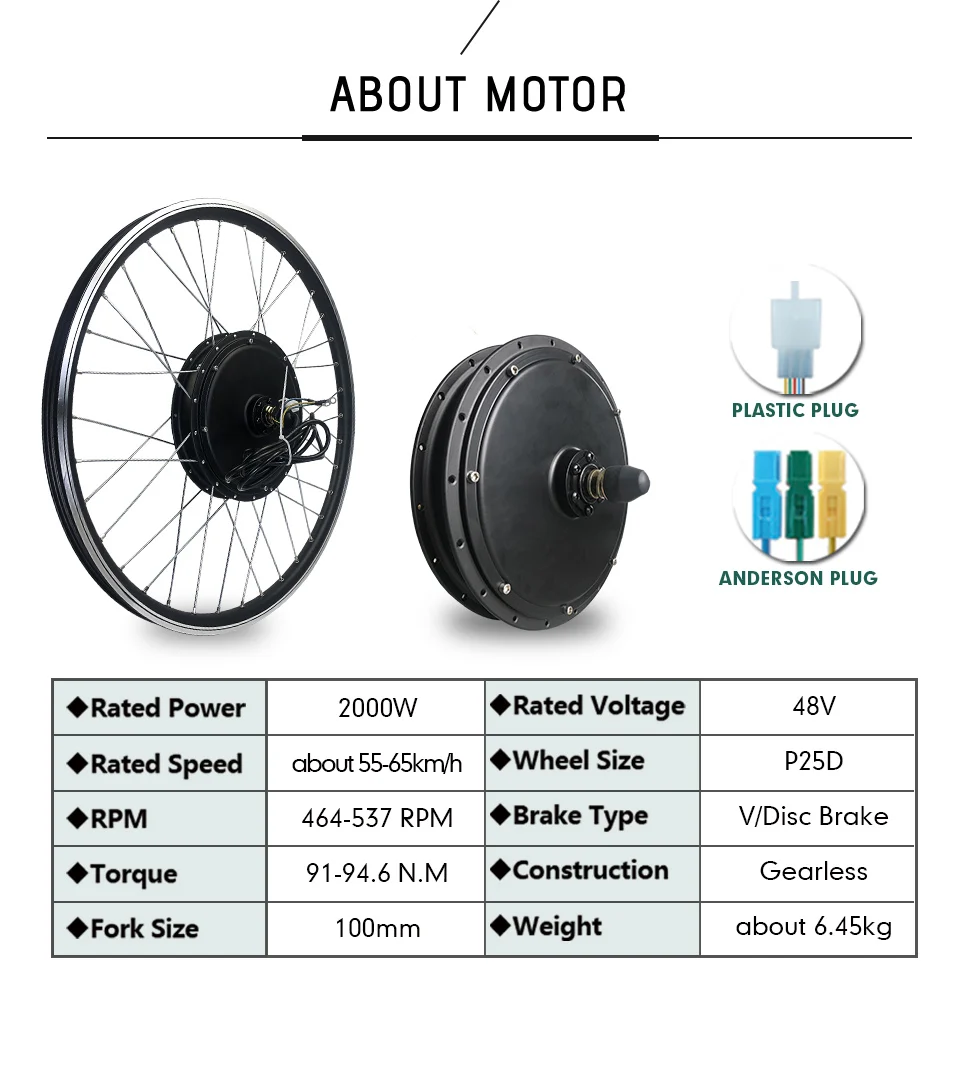

Motor Detail

Rated Power: 2000W

Rated Voltage: 48V

Rated Speed: about 55-65 Km/h

Wheel Size: P25D

RPM: 464-537 PRM

Brake Type: V/Disc Brake

Torque: 91-94.6 N.M

Construction: Gearless

Fork Size: 100mm

Weight: about 6.45kg

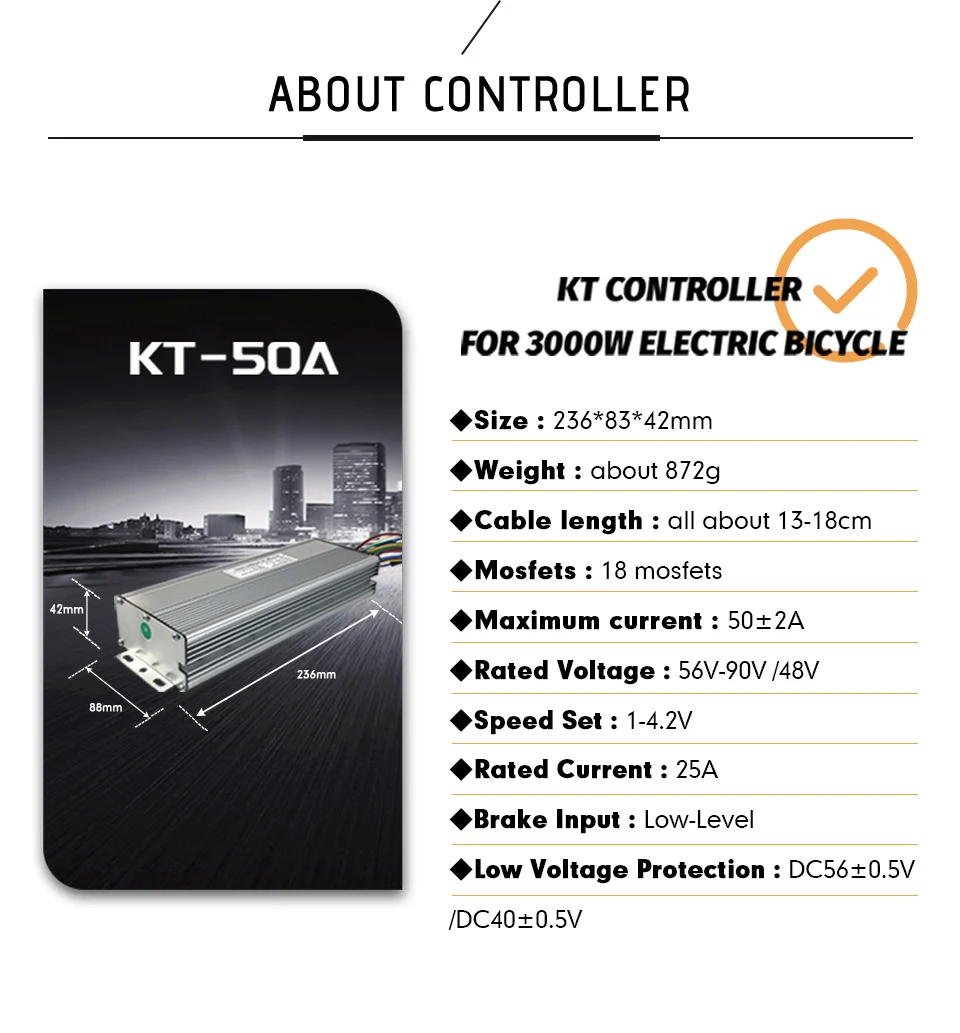

Controller Detail

Type:KT 50A Controller(Square wave)

Brand :KT（KUNTENG）

Color :Silver

Dimension :about about 236 * 88 * 42 mm mm

Mosfet :18 Mosfets

Maximum current :50±2A

Rated current :25A

Rated voltage :DC36V/48V

Speed set :1-4.2V

Brake input :Low-Level

Low voltage protection :DC24±0.5V

Cable Length :all about 13-18cm

Weight:about 872g

Wave:Square wave

KT Display:

Voltage:24V/36V/48V

Color:Black

Weight:◆Weight:about 250g

Handlebar size for holding:Φ22.2mm/25.4mm/31.8mm

Display Cable Length:SM connector ,about 180cm ,Switch button length about 27cm

115PDD E-break:

Type:115PDD E-brake Cut Off Power

Voltage:12V 24V 36V 48V 60V 72V

Cable Length: 180cm (SM)

Weight :300g

Waterproof :IP76

Material:Aluminum Alloy

Installation:Left/Right

Size:L156mm W105mm H34mm

Plug :2 pin SM plug

130X Thumb Throttle:

Type: 130X Thumb Throttle

Voltage :12V,24V,36V,48V,52V,60V,72V

Wire length :180cm/70.87in (SM)

Plug :3 Pin ConnectorPlug :3 Pin Connector

Installation :Left/Right

Weight :100g

KT-BZ-4（8）PAS:

Type: KT-BZ-4(8) Pedal Assistant Sensor

Material: Plastic

Color: Black

Weight: 60g

Installation: Left

Cable Length: 80cm SM Plug

Voltage: 12V/24V/36V/48V/60V/72V
