High Power 20W Optical Power Laser Head
Enjoy the Fun of DIY
1. 4-Beam compression technology, real 20W optical power laser module.
2.Cut 10mm bass plywood: 3mm/s, 100% power, by one pass
Cut 8mm black acrylic: 3mm/s, 100% power, by one pass
Cut 5mm MDF: 3mm/s, 100% power, by one pass
3. With professional air assist to get clean-cut edges, improve cutting performance
4. Excellent heat dissipation design, keep stable cutting ability and extend service life
5. Only 300~400mw power decrease with 100% power output in 30mins
6. New eye protective cover design, can effectively filter blue light
7. Upgrade 40mm fixed focus , cutting ability is stronger
8. Support digital（TTL/PWM）and analog modulation
9. Compatible with Z*aitu,O*tur,Tw* Trees,S*ulpful9, Xtool, A*omstack and other models of DIY laser engraving machines.
4-Beam Compressed Technology
Built-in 4pcs 5W beam compressed laser diodes, 20W optical power laser module
Professional Air Assist
With air assist to get clean-cut edges, and improve cutting performance
Note:
Please ensure that the air pump is turned on before you start cutting.
If not, the smoke will contaminate the lens.
Air Pump Link:
Reference Settings for Cutting
For cutting work: the ideal position of the focal point is in the middle of the material, the cutting focal point of LT-4LDS-V2 is 40mm, the length of the air nozzle is 32mm, so the focal point position is 8mm below the air nozzle.
For example, if you want to cut 10mm plywood, the distance from the air nozzle to the surface of the material should be 8mm-10mm/2=3mm
(4mm is given in the illustration as the spacers we supply are not available in 3mm).
Cutting Reference Data
High Precision Engraved Resolution 0.08mm
Use innovative compression technology to make the spot smaller and powerful
Stainless Steel Cutting
New Protective Cover Design
With a laser protective cover, it can effectively filter blue light when engraving or cutting
Excellent Heat Dissipation Design
Stable optical output power to keep stable cutting ability
Effectively cool down to extend service life
Note:

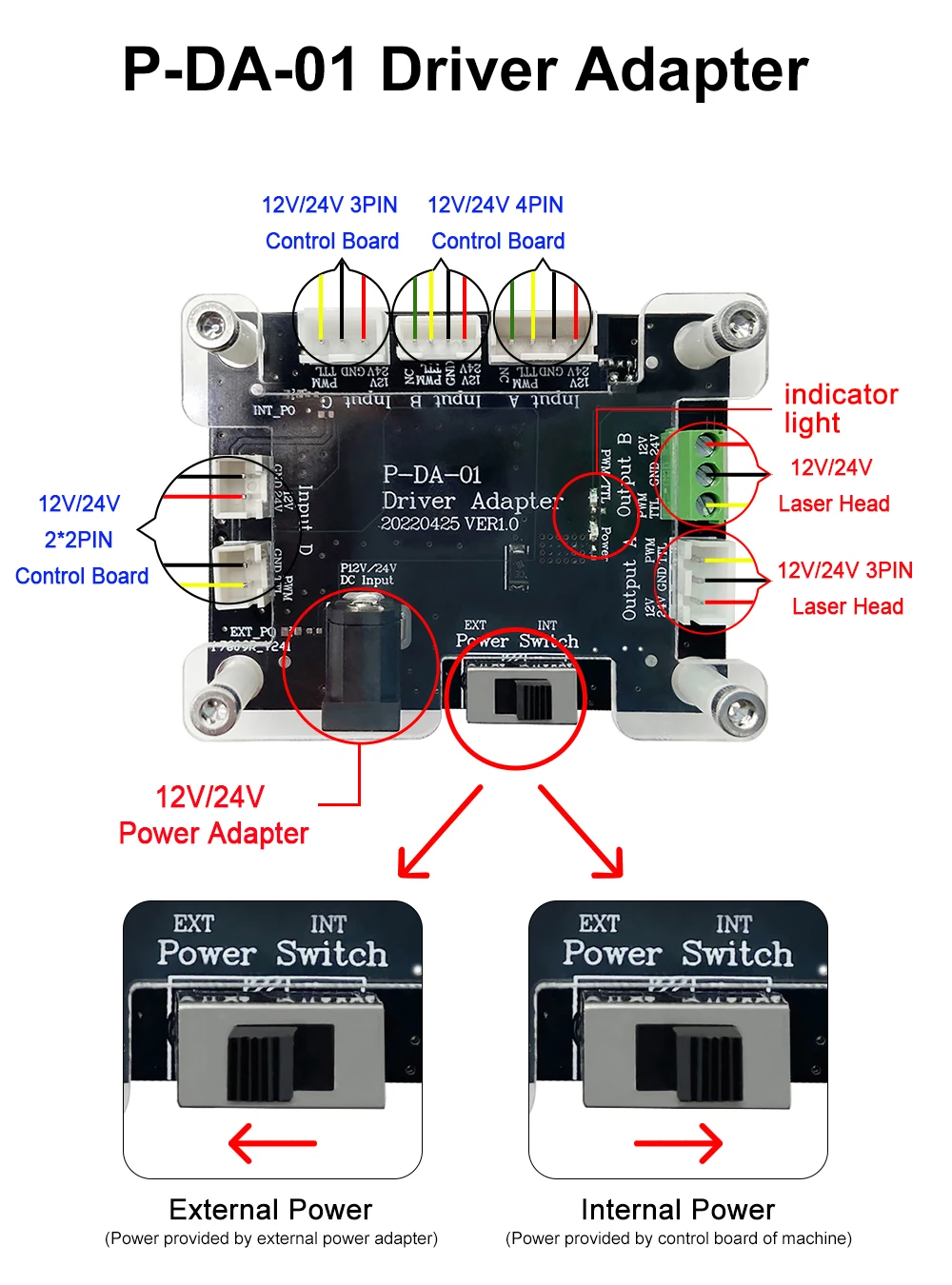

With driver adapter and power adapter, compatible with various 12V or 24V DIY cutting engraving machines.
