Product Specifications:
Product Name: Diamond Grinding Bits
Tip Shape: T Head Flat Tip
Material: Steel, Diamond
Grit: 150 Medium
Color: Silver Tone
|
Head Diameter |
Head Thickness |
Shank Diameter |
Total Length |
Quantity |
| 1mm (0.039'') |
0.5mm (Very Thin) |
2.35mm (close to 3/32'') |
42mm (1-21/32") |
30 Pieces |
|
2mm (0.079'') |
0.5mm (Very Thin) |
2.35mm (close to 3/32'') |
42mm (1-21/32") |
30 Pieces |
|
3mm (close to 1/8") |
0.5mm (Very Thin) |
2.35mm (close to 3/32'') |
42mm (1-21/32") |
30 Pieces |
|
5mm (3/16'') |
0.5mm (Very Thin) |
2.35mm (close to 3/32'') |
42mm (1-21/32") |
30 Pieces |
|
6mm (1/4'') |
0.55mm (Very Thin) |
2.35mm (close to 3/32") |
42mm (1-21/32") |
30 Pieces |
|
8mm (close to 5/16'') |
0.7mm (Very Thin) |
2.35mm (close to 3/32") |
45mm (close to 1-3/4'') |
30 Pieces |
Recommended Speed: 5000-50000 RPM
Shank Diameter: 2.35mm(3/32"); Suitable for electric nail drill, carving machine with a 3/32" collet.
The diamond mounted point can be installed on thte electric grinder, hanging mill and hand electric drill (not included here). Never use drills while machine is in hammer action.

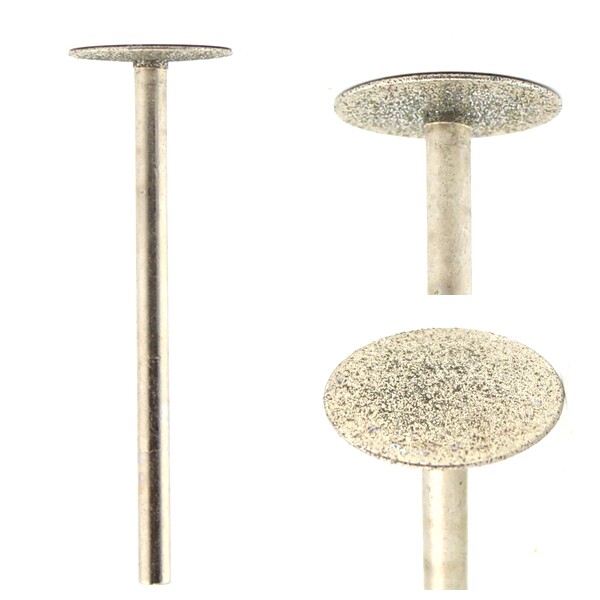

Description: Thin T head shape, electroplated diamond grinding bits.
Product use: apply to stone carving, jade carving, bone carving, egg decorating, glass carving etc.
Used for sculpturing, dressing, precision grinding and internal grinding carbide in ceramic, glass, precious stone, alloy and many the abrasive materials.
Use with water as a lubricant
Note: Carving must use cold water to cool the workpiece and the grinding head polishing, moment also can't do without water.
We Can List Any Size (Hole Diameter from 1mm - 30mm) & Amount Of This Product
Just a friendly reminder: The Shank diameter of grinding bit is 2.35mm (3/32" inch)
There are two different collet sizes for Dremel: 3mm (1/8") or Universal 3-jaw chuck.
If your chuck of Dremel (models 4300-8050) has an Universal 3-jaw chuck, then the grinding bit can be installed directly.
However, it is NOT suitable for dremel with 3mm 1/8" chuck (such as:models 3000,4000).
If your chuck of Dremel is 3mm (1/8"), maybe you need add the Universal 3-jaw chuck for Dremel.
Regular Air postage from China to Worldwide and takes 15-30 days delivery to your home.
We will send out your order within 1-2 days after payment has been received and cleared.
Please let us know if you are looking for other accessories or hardware.
