Features
1.ESP32-S3FN8+SX1262+UC6580 chipset, supports Wi-Fi, LoRa, Bluetooth, GNSS
2.Dual-frequency multi-system low-power design based on 22nm technology, realizing both high performance and energy-saving positioning function.
3.Support L1+ L5/L2, support GPS, GLONASS, BDS, Galileo, NAVIC, QZSS multi-system joint positioning.
4.Type C USB interface with complete voltage regulator, ESD protection, short circuit protection, RF shielding and other protective measures.
5. Onboard SH1.25-2 battery interface, integrated lithium battery management system (charge/discharge management, overcharge protection, battery power detection, USB/battery power automatic switching)
6. On-board Wi-Fi, Bluetooth dedicated 2.4GHz metal spring antenna, reserved IPEX (U.FL) interface, for LoRa and GNSS use
7. 0.96-inch 160*80 dot-matrix TFT-LCD display on board, which can be used to display debugging information, battery level and other information.
1.ESP32-S3FN8+SX1262+UC6580 chipset, supports Wi-Fi, LoRa, Bluetooth, GNSS
2.Dual-frequency multi-system low-power design based on 22nm technology, realizing both high performance and energy-saving positioning function.
3.Support L1+ L5/L2, support GPS, GLONASS, BDS, Galileo, NAVIC, QZSS multi-system joint positioning.
4.Type C USB interface with complete voltage regulator, ESD protection, short circuit protection, RF shielding and other protective measures.
5. Onboard SH1.25-2 battery interface, integrated lithium battery management system (charge/discharge management, overcharge protection, battery power detection, USB/battery power automatic switching)
6. On-board Wi-Fi, Bluetooth dedicated 2.4GHz metal spring antenna, reserved IPEX (U.FL) interface, for LoRa and GNSS use
7. 0.96-inch 160*80 dot-matrix TFT-LCD display on board, which can be used to display debugging information, battery level and other information.

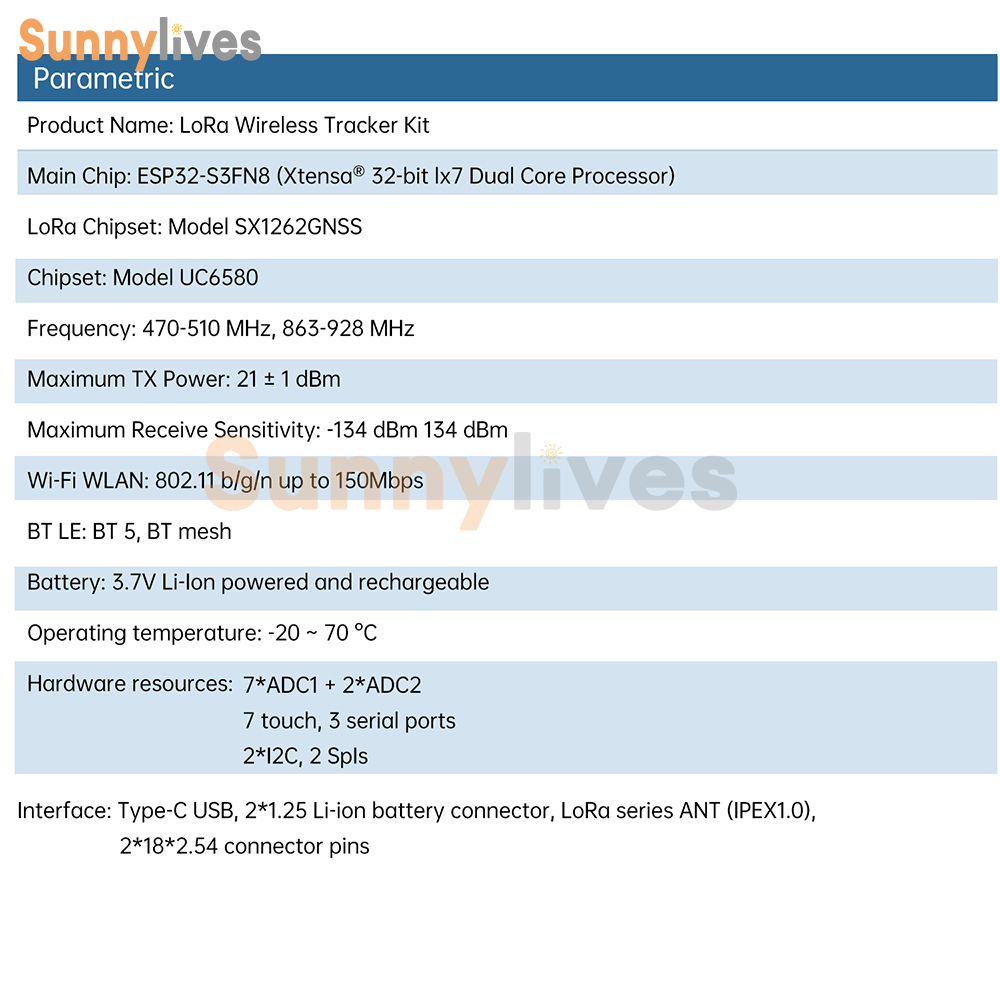

Specifications
Product Name: LoRa Wireless Tracker Kit
Main Chip: ESP32-S3FN8 (Xtensa® 32-bit lx7 Dual-Core Processor)
LoRa Chipset: model SX1262
GNSS Chipset: model UC6580
Frequency: 470-510 MHz, 863-928 MHz
Maximum TX Power: 21±1 dBm
Maximum Receive Sensitivity: -134 dBm
Wi-Fi WLAN: 802.11 b/g/n up to 150Mbps
Bluetooth LE: Bluetooth 5, Bluetooth mesh
Battery: 3.7V Li-Ion powered and rechargeable
Operating Temperature: -20 ~ 70 °C

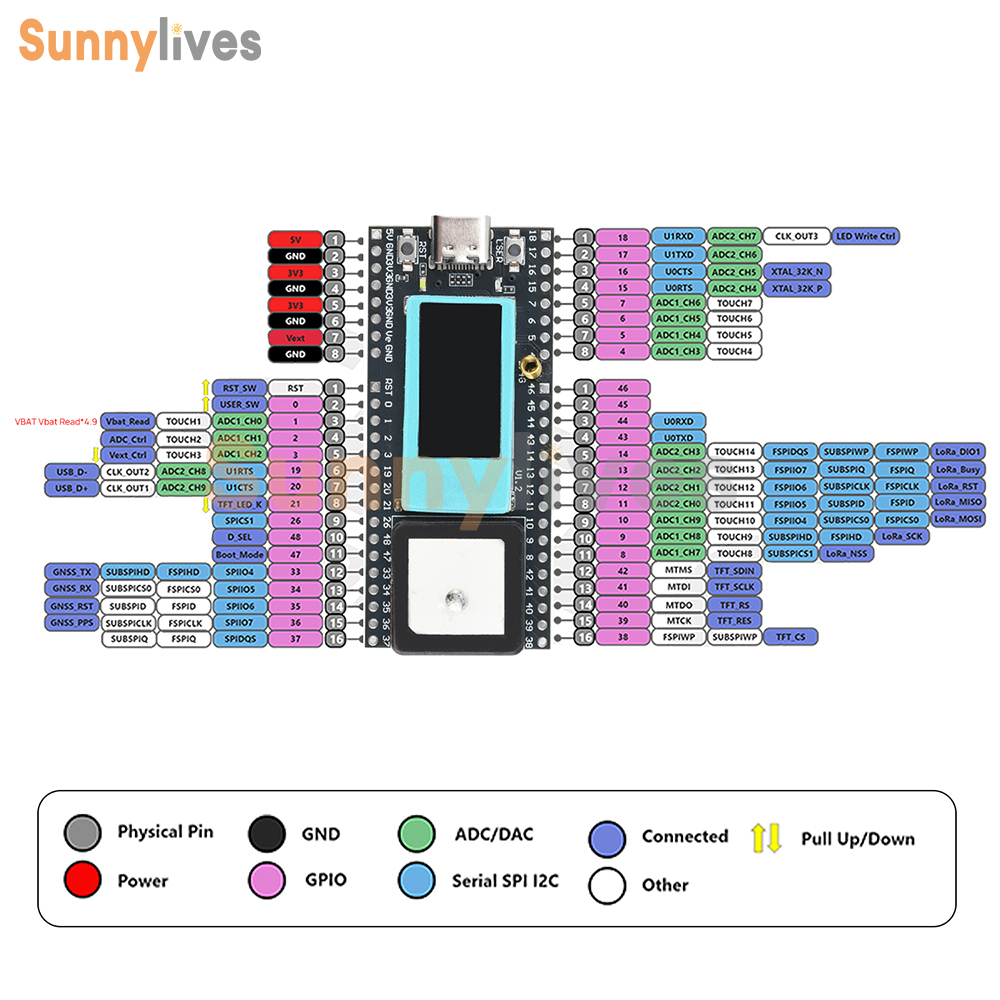

Hardware Resource: 7*ADC1 + 2*ADC2, 7*touch, 3*serial 2*I2C, 2 SPI
Interfaces: Type-C USB, 2*1.25 Li-Ion Battery Interface, LoRa Series ANT (IPEX1.0), 2*18*2.54 Header Pins
Product Name: LoRa Wireless Tracker Kit
Main Chip: ESP32-S3FN8 (Xtensa® 32-bit lx7 Dual-Core Processor)
LoRa Chipset: model SX1262
GNSS Chipset: model UC6580
Frequency: 470-510 MHz, 863-928 MHz
Maximum TX Power: 21±1 dBm
Maximum Receive Sensitivity: -134 dBm
Wi-Fi WLAN: 802.11 b/g/n up to 150Mbps
Bluetooth LE: Bluetooth 5, Bluetooth mesh
Battery: 3.7V Li-Ion powered and rechargeable
Operating Temperature: -20 ~ 70 °C
Hardware Resource: 7*ADC1 + 2*ADC2, 7*touch, 3*serial 2*I2C, 2 SPI
Interfaces: Type-C USB, 2*1.25 Li-Ion Battery Interface, LoRa Series ANT (IPEX1.0), 2*18*2.54 Header Pins

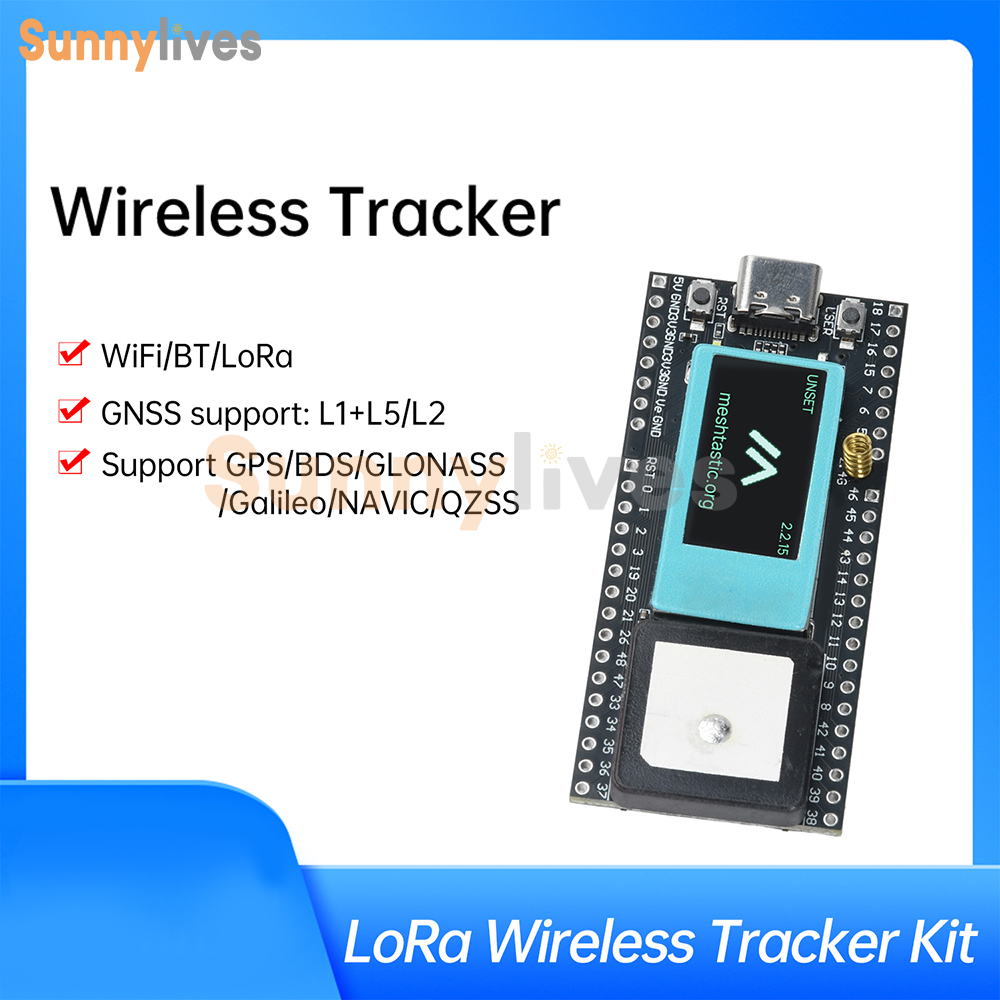

Overview

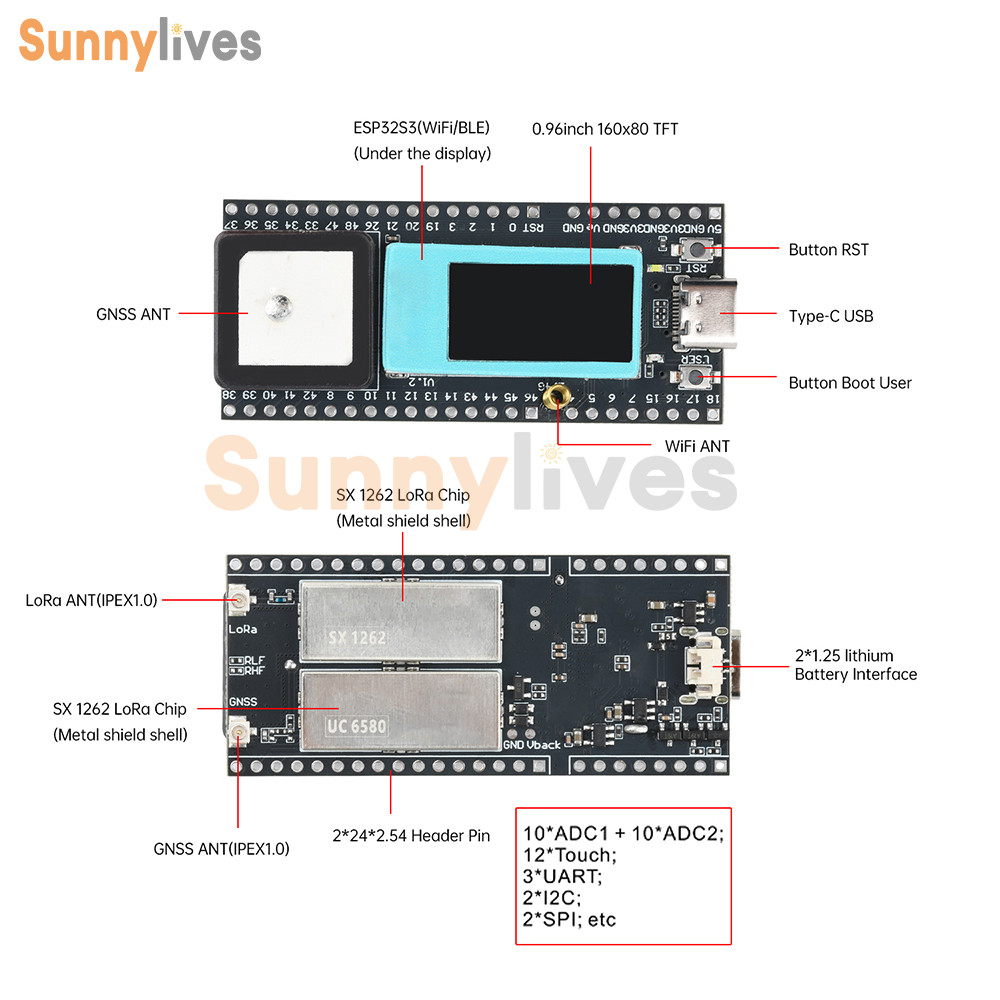

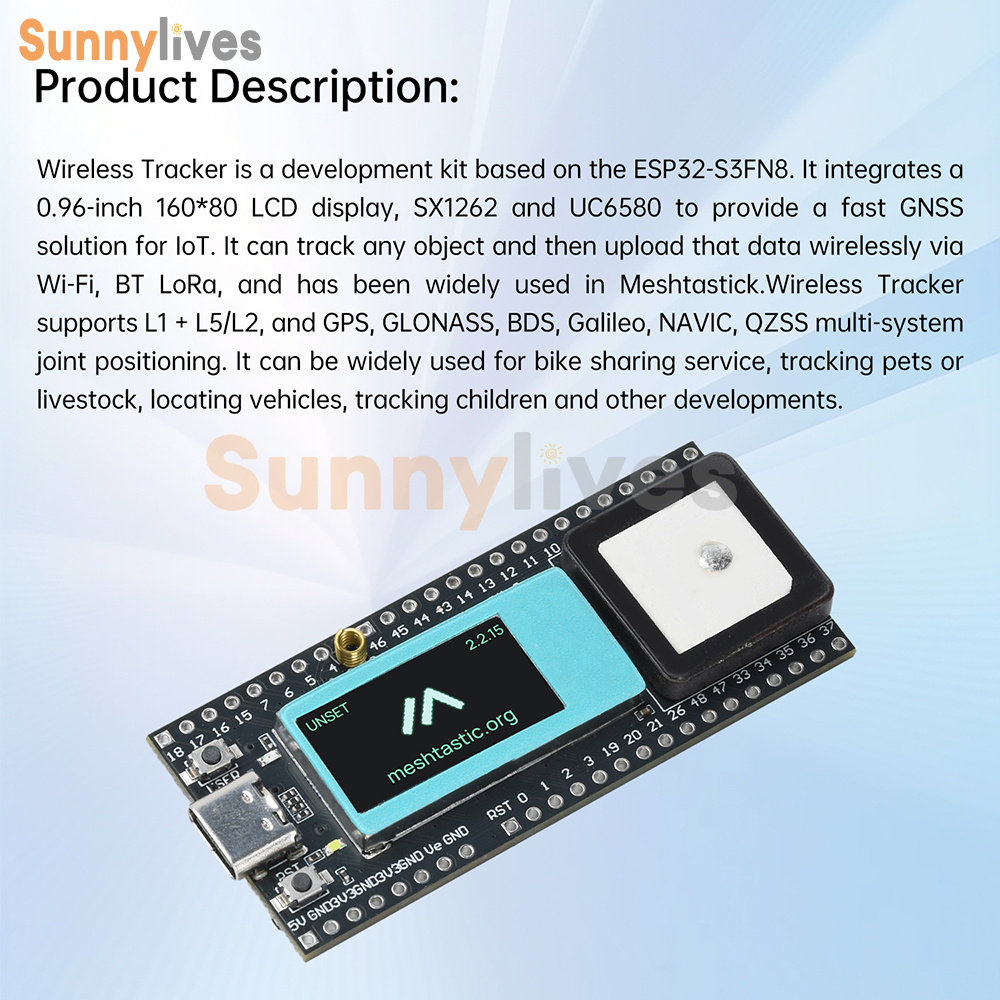

Wireless Tracker is an ESP32-S3FN8 based development kit. It integrates a 0.96-inch 160*80 LCD display, SX1262 and UC6580 to provide a fast GNSS solution for IoT. It can track any object and then upload that data wirelessly via Wi-Fi, Bluetooth, LoRa, and has been widely used in Meshtastick.
Wireless Tracker supports L1 + L5/L2, and GPS, GLONASS, BDS, Galileo, NAVIC, and QZSS multi-system joint positioning. It can be widely used for bike sharing service, tracking pets or livestock, locating vehicles, tracking children and other development.
Wireless Tracker is an ESP32-S3FN8 based development kit. It integrates a 0.96-inch 160*80 LCD display, SX1262 and UC6580 to provide a fast GNSS solution for IoT. It can track any object and then upload that data wirelessly via Wi-Fi, Bluetooth, LoRa, and has been widely used in Meshtastick.
Wireless Tracker supports L1 + L5/L2, and GPS, GLONASS, BDS, Galileo, NAVIC, and QZSS multi-system joint positioning. It can be widely used for bike sharing service, tracking pets or livestock, locating vehicles, tracking children and other development.

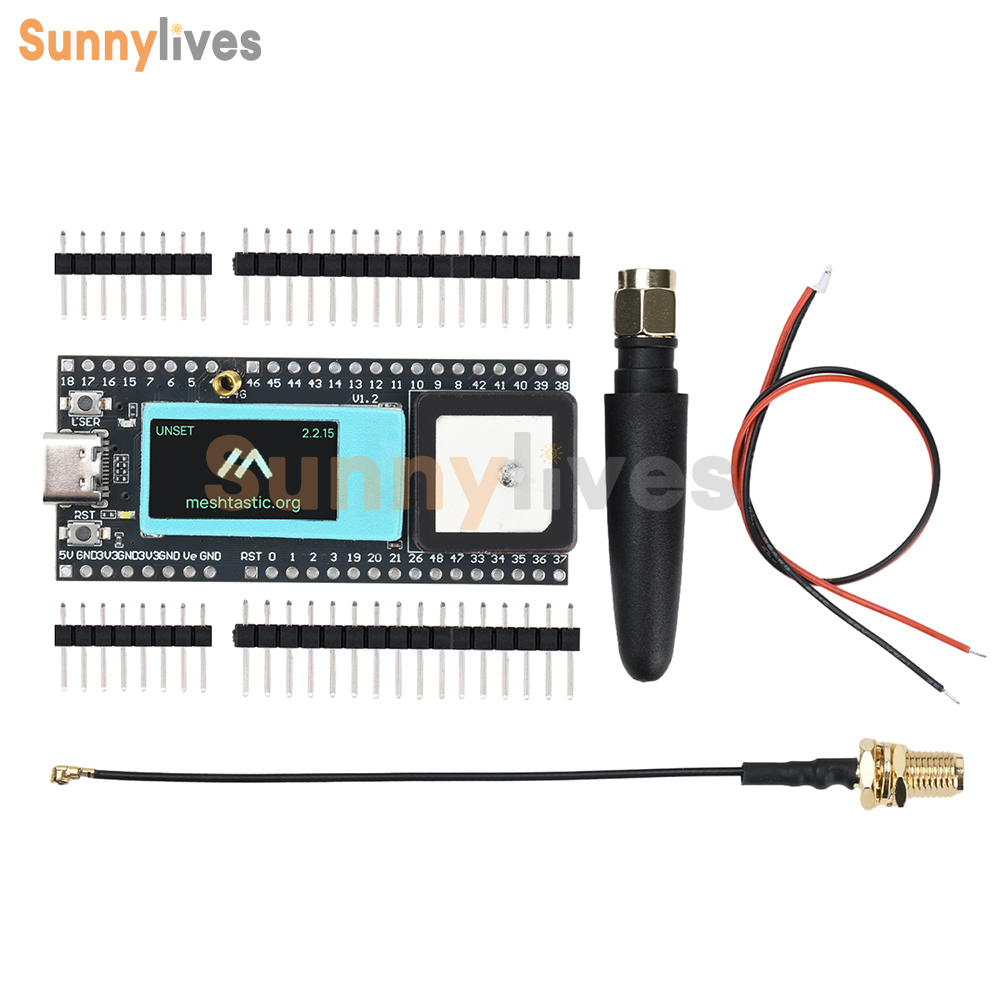

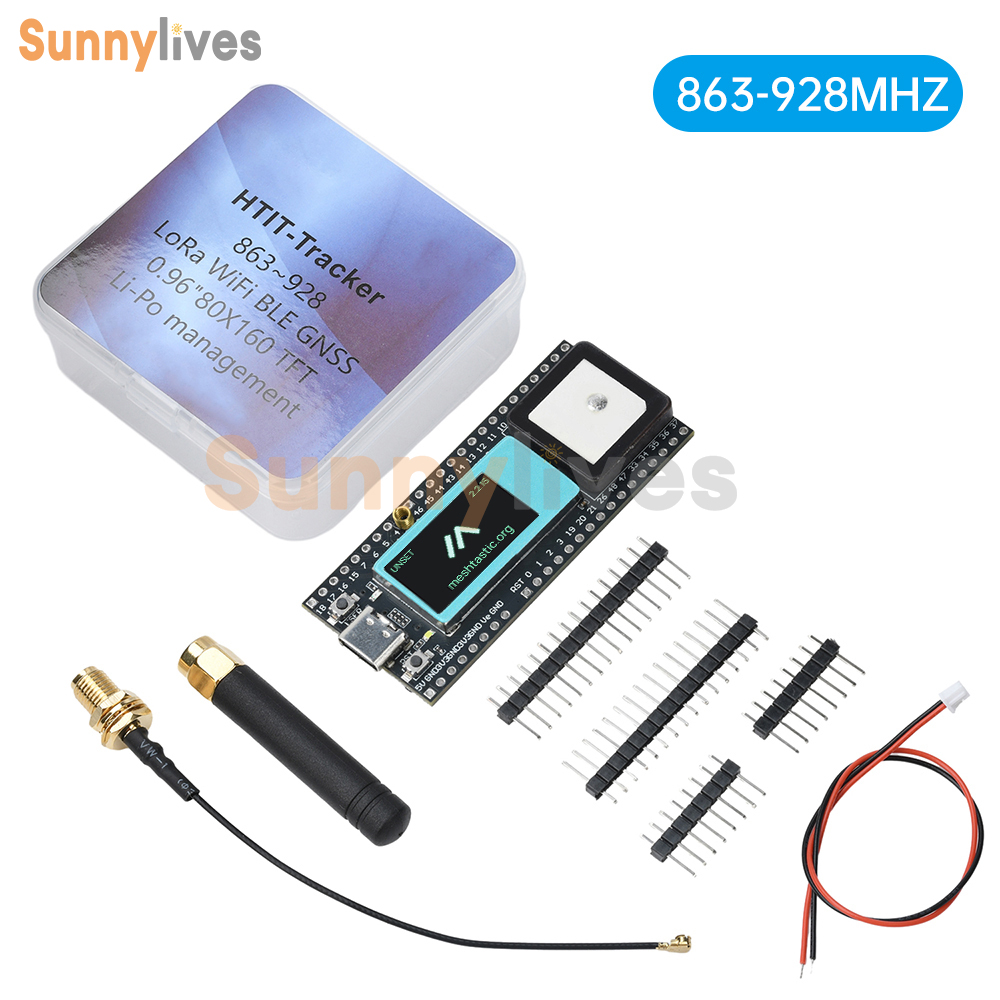

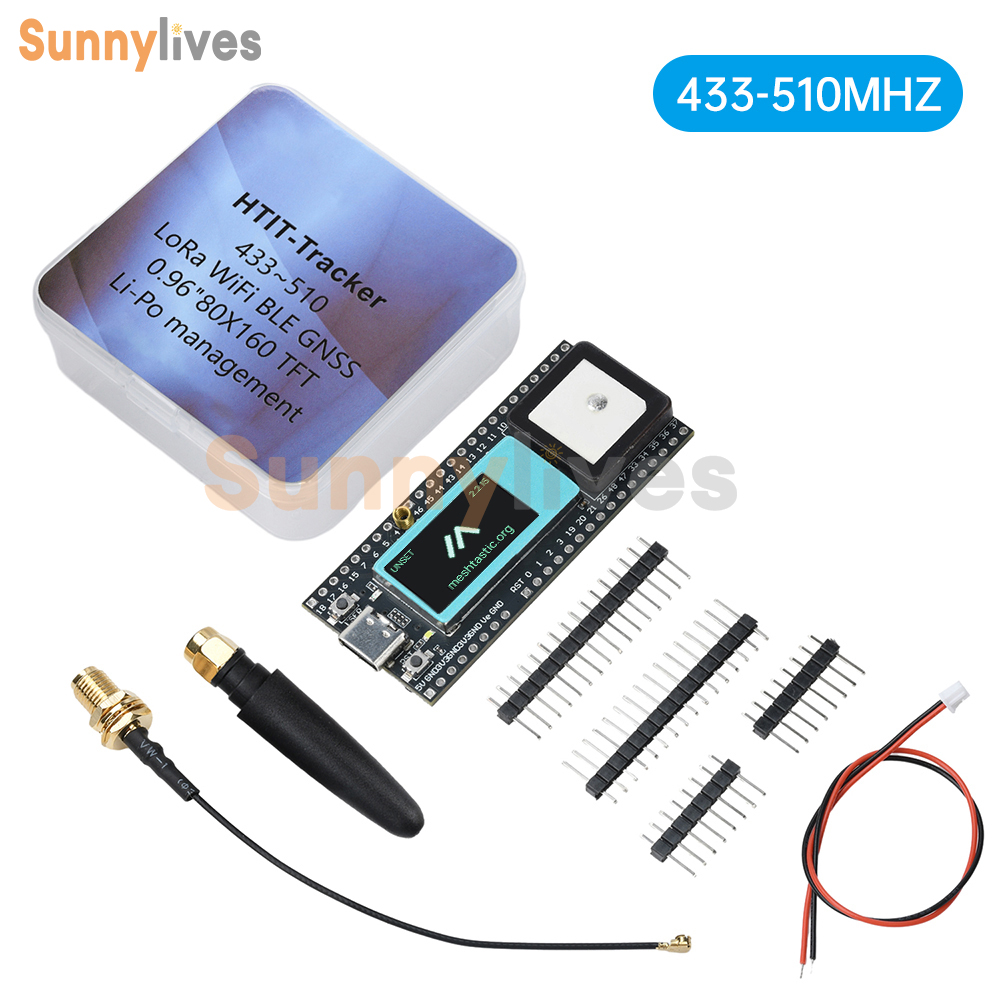

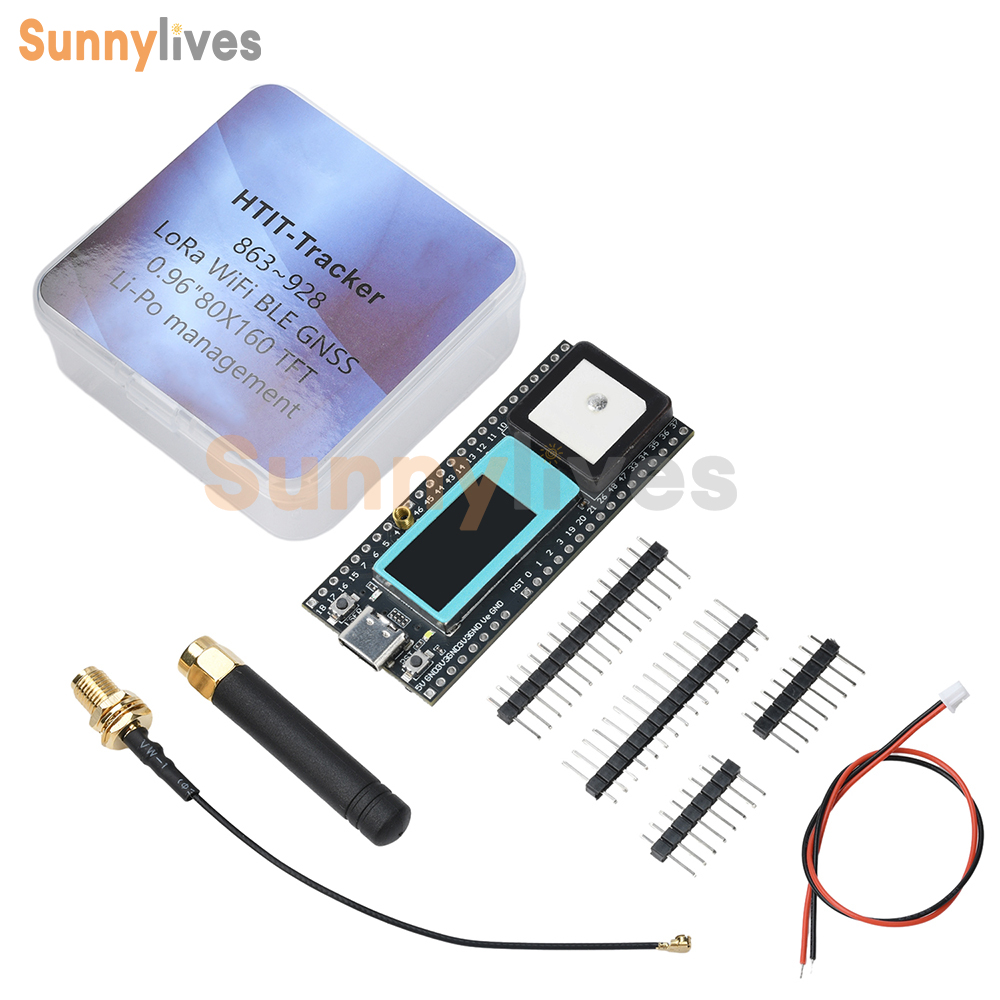

Package Includes
1 x Development Board
1 x Antenna
2 x Adapter Cables
4 x Pin
1 x Development Board
1 x Antenna
2 x Adapter Cables
4 x Pin
