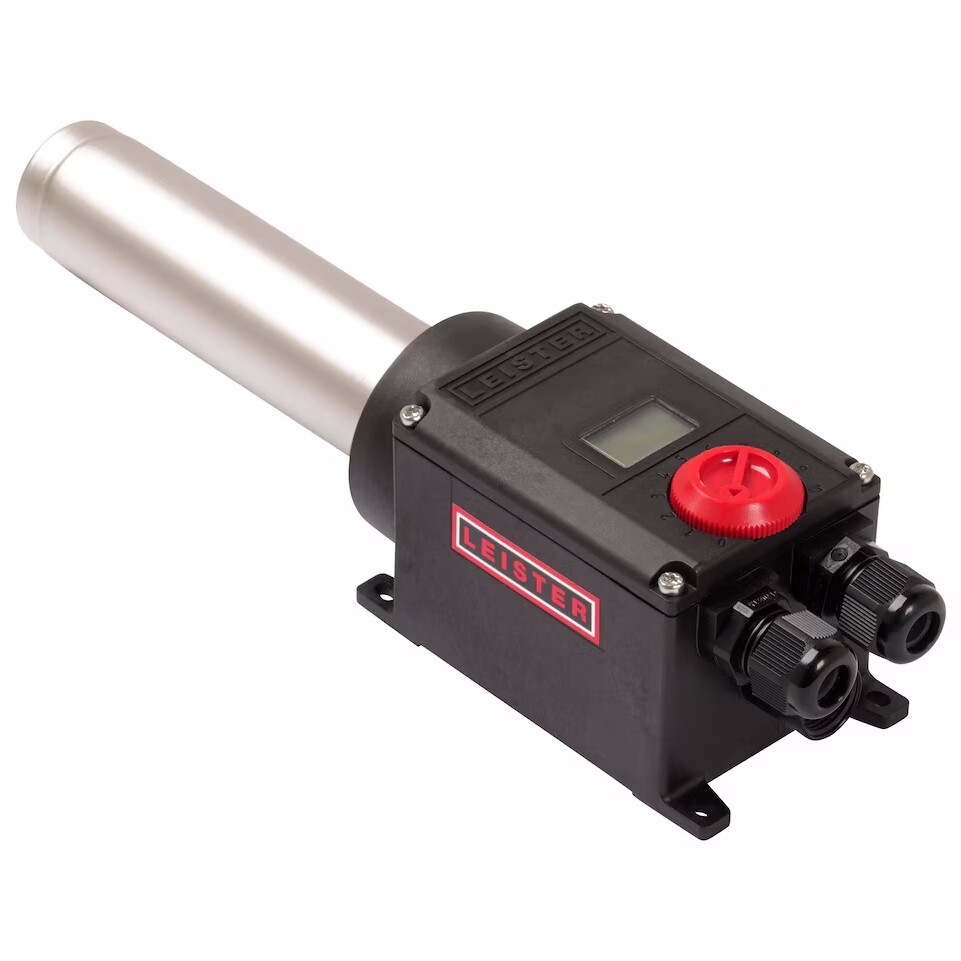

Leister 230V 3300W LHS 21L SYSTEM Air Heater - 140.461
Details Productive air heater
The LHS 21L SYSTEM is a step further in the development of the tested and proven line of Leister air heaters for production processes: As with all SYSTEM process heating devices, the LHS 21L SYSTEM features direct connection to a PLC control system and offers system designers and production managers even better control and functionality. The system works in ambient temperatures up to 65 °C (149 °F) and the heating output adjustment is continuously variable up to 650 °C (1202 °F). This can be controlled by a PLC or stand-alone controller via a 4 - 20-mA signal or 0 - 10 V interface.
Decades of experience in plastics machining and industrial processes have also flowed into the development of the LHS 21L SYSTEM. The compact design has a total width of 67 mm (2.64 in) and facilitates integration into production lines with external control systems. In addition, the SYSTEM line of new industrial heating systems features a digital temperature display on the tool itself, enabling immediate control of the nominal heating temperature on-site or as a stand-alone unit.
Technical Data
Article：140.461
Phases：1x
Voltage：230 V
Current：14 A
Power：3300 W
Max. air outlet temperature：650 °C / 1202 °F
Min. airflow：260 l/min / 9.18 cfm
Max. air inlet temperature：65 °C / 149 °F
Max. ambient temperature：65 °C / 149 °F
Air temperature control：Closed loop
Overheating protection：Yes
Alarm output：Normally open contact
Max. inlet pressure：100 kPa / 14.5 psi
Nozzle connection ø：36.5 mm / 1.45 in
Display：Yes
Interfaces：0–10V; 4–20mA
Length：266 mm / 10.47 in
Width：67 mm / 2.63 in
Height：71 mm / 2.79 in
Weight：0.65 kg / 1.43 lb
Approvals：CE; EAC; S+; UKCA
Protection class：II
Country of origin：Switzerland
Features:
- Accurate readings from integrated temperature probe
- LED display for precise control
- Heating output adjustment with potentiometer
- Remote control via analogue interface
- Integrated heating element and device protection
Highlights Connection option to PLC control systems

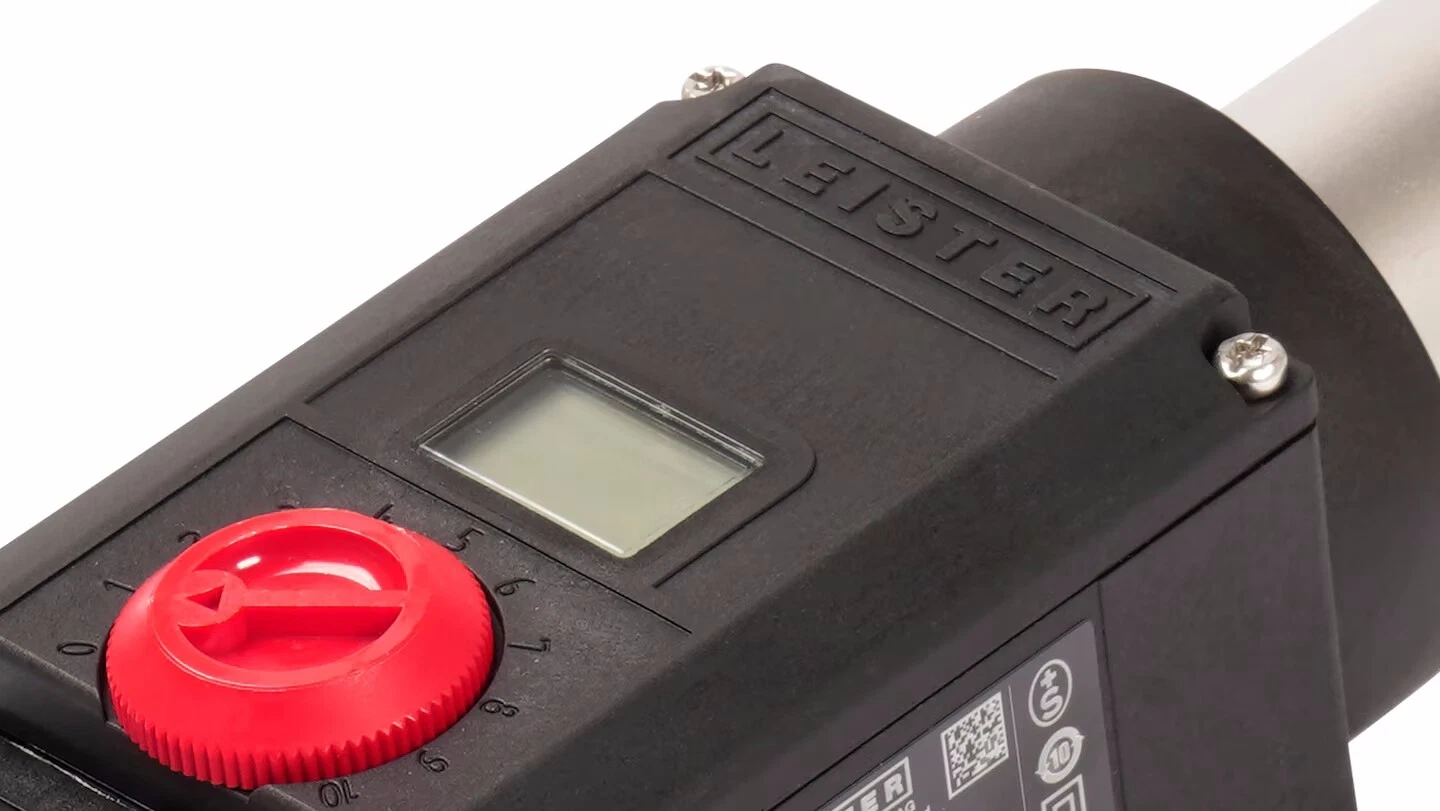

√ Digital display of nominal and current values
The SYSTEM display, including the LHS 21L SYSTEM, offers the user precise, on-demand information on nominal and current temperature values. The integrated thermocouple delivers precise data.

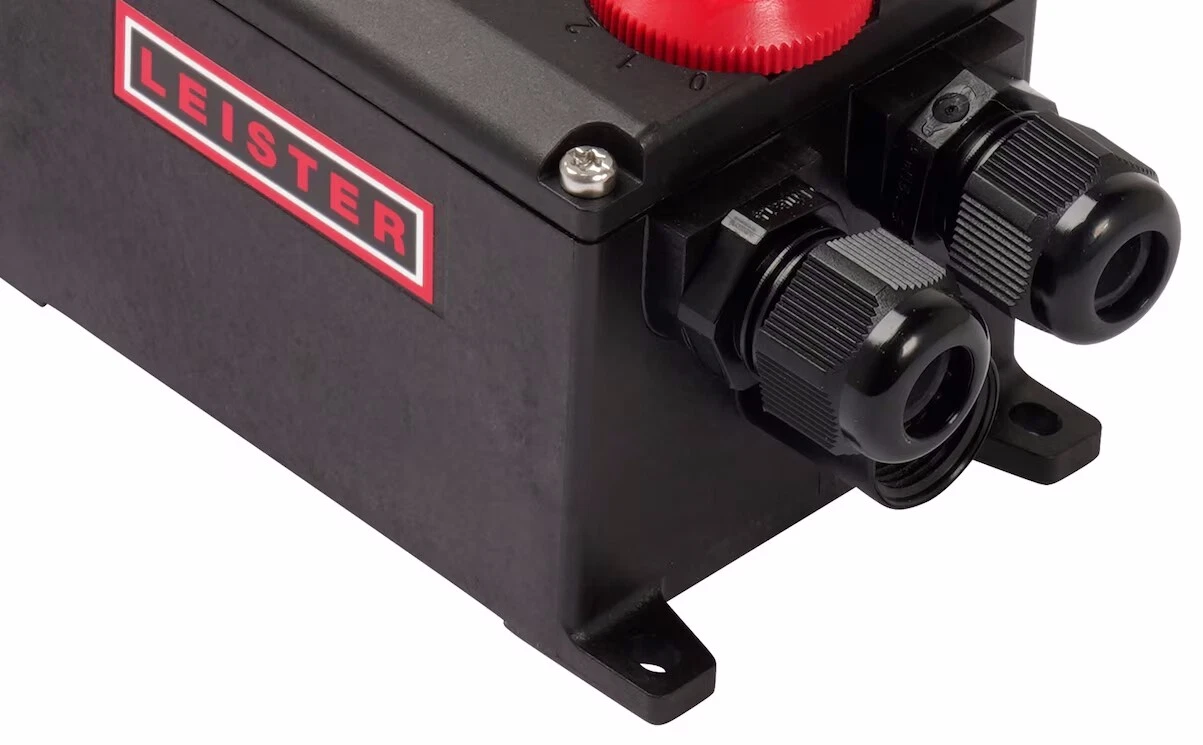

√ Connections and potentiometer for customized operation
The LHS 21L SYSTEM is suitable for both special integration and controlled, isolated operation through control and adjustment modes.
√ Wide range of nozzles and accessories
Thanks to assembly assistance, connections and adapters including a wide range of nozzles and accessories, the LHS 21L SYSTEM is ideal for specific user requirements.
APPLICATIONS Virtually unlimited
Laminate process
Drying process
Foil shrinking
Sterilization process
Coating process
