Leister LHS 15 SYSTEM (120V 550W / 230V 770W) Process Heaters
Details Individual integration
Compared to the PREMIUM and CLASSIC from the same line, the LHS 15 SYSTEM air heater has been expanded digitally: The integrated current and target values display enables precise output control. The hot air tool can also be remote-controlled via an electroplated separate 4 – 20 mA-interface or can be connected to a controller or PLC (Programmable Logic Controller). The air heater is available in 550 W or 770 W options and it reaches the maximum air temperature of 650 °C (1202 °F).
LHS-15 industrial air heater: developed with Swiss quality standards including a durable heating element, reliable protective system with alarm output and the option to easily install the device from above. This means the LHS 15 SYSTEM, like all Leister LHS air heaters, is particularly suited for installation in machines, units and devices, and is designed for continuous operation.
Technical Data
Phases：1x
Max. air outlet temperature：650 °C / 1202 ℉
Min. airflow：60 l/min / 2.11 cfm
Max. air inlet temperature：65 °C / 149 ℉
Max. ambient temperature：65 °C/ 149 ℉
Air temperature control: Closed up
Overheating protection：Yes
Alarm output：Normally open contact
Max. inlet pressure：100 kPa / 14.5 psi
Nozzle connection ø：21.3 mm / 0.85 in
Display：Yes
Interfaces: 0-10V; 4-20mA
Length：201 mm / 7.91 in
Width：67 mm / 2.63 in
Height：51 mm / 2 in
Weight：0.48 kg / 1.05 lb
Approvals：CE; S+; UKCA
Protection class：II
Features:
- Easy to integrate into production systems

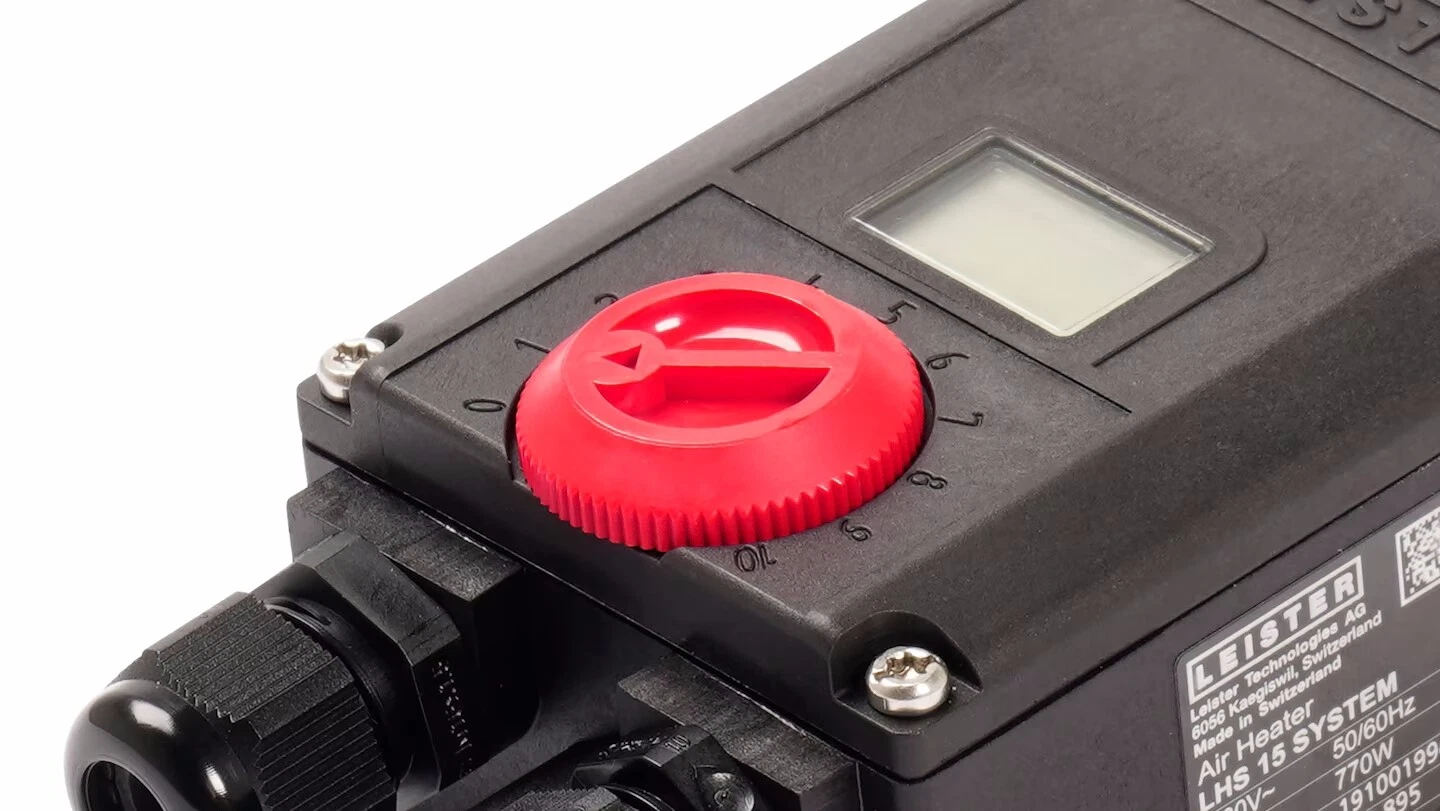

- Stepless temperature adjustment
- Remote control via analogue interface
- Various control mode options
- Current-target value display
Highlights

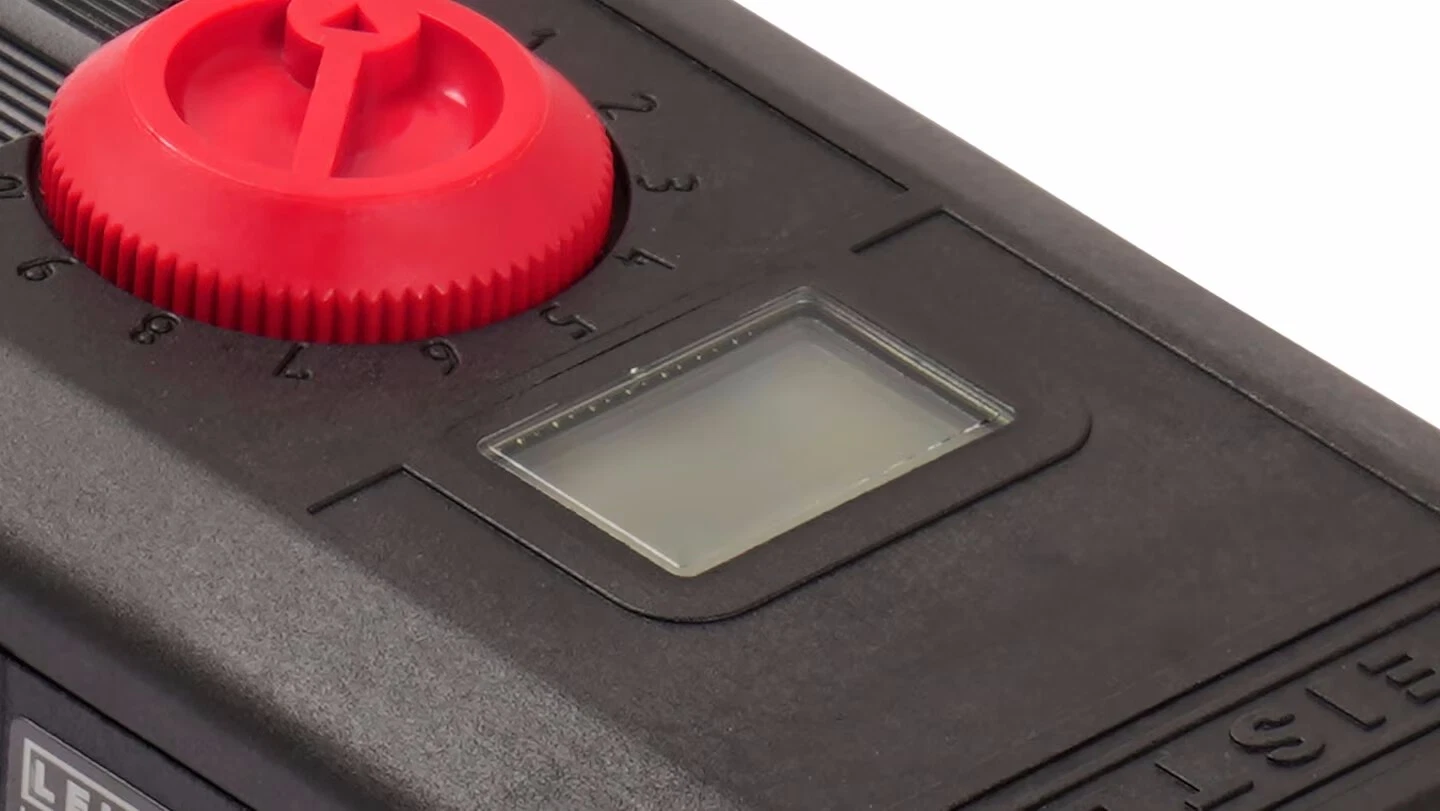

√ Complete control thanks to the digital display
Current and nominal values of the current operation can be accurately controlled and set on the digital display, making results easy to reproduce.
√ Featuring a 4 – 20 mA interface
The LHS 15 SYSTEM features a 4 - 20 mA-interface. This way it can be connected to a PLC system and remote-controlled for easier handling.

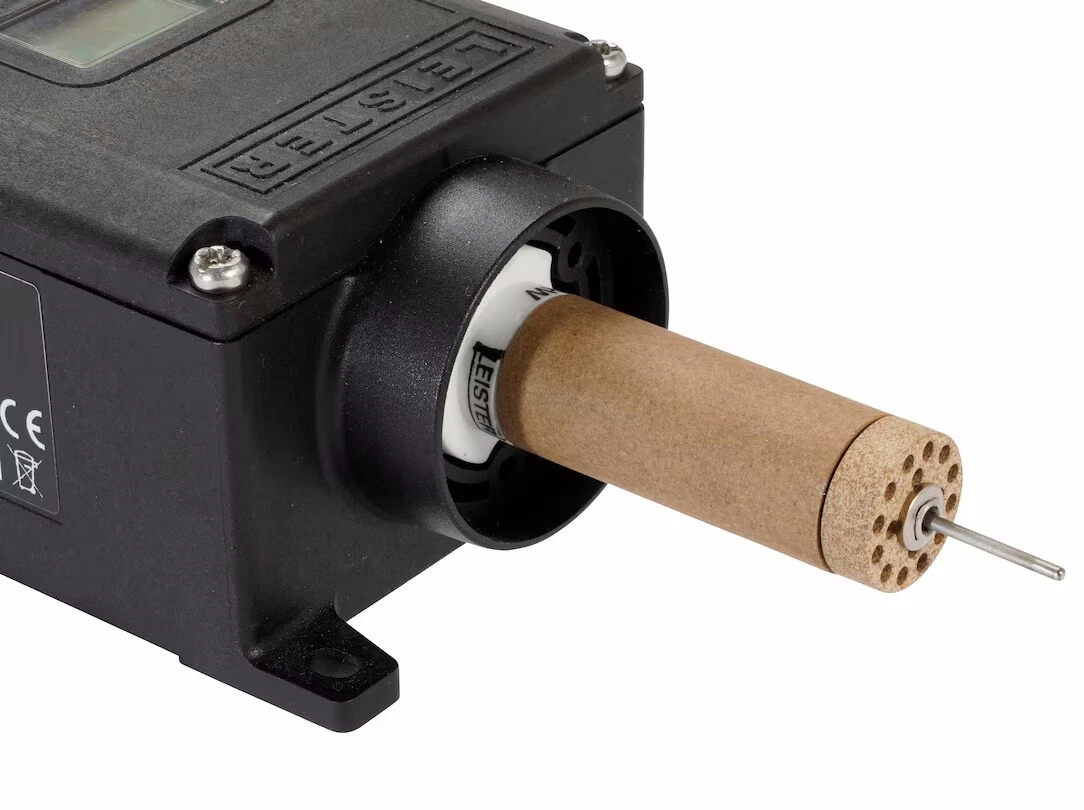

√ Protection from device and heating element overheating
Thanks to the alarm output, the LHS 15 SYSTEM can be left unmonitored in continuous operation with peace of mind. A protective function can be connected to the alarm output in the event of overheating.
Compared to the PREMIUM and CLASSIC from the same line, the LHS 15 SYSTEM air heater has been expanded digitally: The integrated current and target values display enables precise output control. The hot air tool can also be remote-controlled via an electroplated separate 4 – 20 mA-interface or can be connected to a controller or PLC (Programmable Logic Controller). The air heater is available in 550 W or 770 W options and it reaches the maximum air temperature of 650 °C (1202 °F).
LHS-15 industrial air heater: developed with Swiss quality standards including a durable heating element, reliable protective system with alarm output and the option to easily install the device from above. This means the LHS 15 SYSTEM, like all Leister LHS air heaters, is particularly suited for installation in machines, units and devices, and is designed for continuous operation.
Technical Data
|
Article |
139.894 |
139.895 |
|
Voltage |
120 V |
230 V |
|
Current |
4.5 A |
3.5 A |
|
Power |
550 W |
770 W |
Phases：1x
Max. air outlet temperature：650 °C / 1202 ℉
Min. airflow：60 l/min / 2.11 cfm
Max. air inlet temperature：65 °C / 149 ℉
Max. ambient temperature：65 °C/ 149 ℉
Air temperature control: Closed up
Overheating protection：Yes
Alarm output：Normally open contact
Max. inlet pressure：100 kPa / 14.5 psi
Nozzle connection ø：21.3 mm / 0.85 in
Display：Yes
Interfaces: 0-10V; 4-20mA
Length：201 mm / 7.91 in
Width：67 mm / 2.63 in
Height：51 mm / 2 in
Weight：0.48 kg / 1.05 lb
Approvals：CE; S+; UKCA
Protection class：II
Features:
- Easy to integrate into production systems
- Stepless temperature adjustment
- Remote control via analogue interface
- Various control mode options
- Current-target value display
Highlights
√ Complete control thanks to the digital display
Current and nominal values of the current operation can be accurately controlled and set on the digital display, making results easy to reproduce.
√ Featuring a 4 – 20 mA interface
The LHS 15 SYSTEM features a 4 - 20 mA-interface. This way it can be connected to a PLC system and remote-controlled for easier handling.
√ Protection from device and heating element overheating
Thanks to the alarm output, the LHS 15 SYSTEM can be left unmonitored in continuous operation with peace of mind. A protective function can be connected to the alarm output in the event of overheating.
