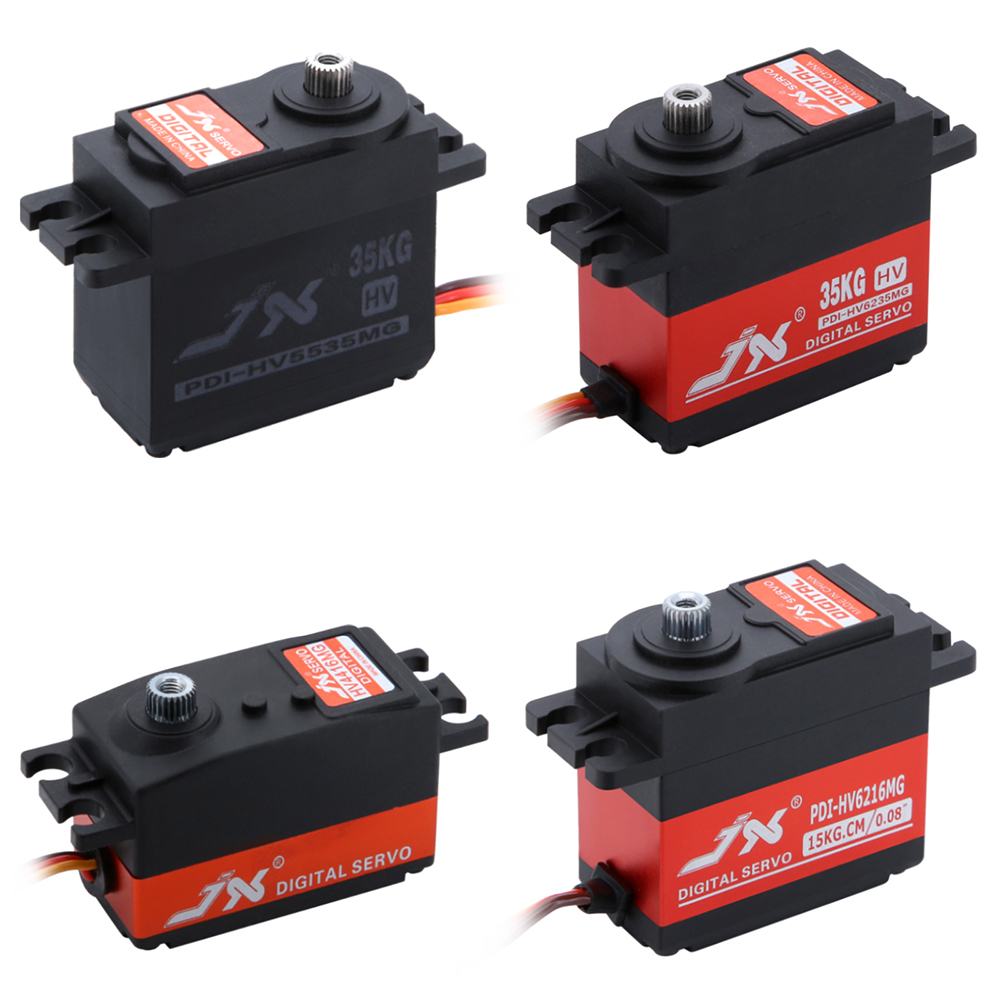

JX RC Servo Digital Core Servo Brushed Servo High Torque Metal Gear Digital Servo PDI-HV5535/6235/4416/6216MG for 1/8 1/10 RC Car Robot Drift Car Buggy Crawler
Features:
1. Dual ball bearings.
2. High performance digital standard servo.
3. High-precision gears with hard anodizing.
4. 4416 /6216 /6235 is an middle aluminum shell.
5.The 4416 servo is an upgraded version of the 4409 servo, with greater torque
6. 6216 servo is more suitable for flat sports cars and drifting cars that pursue fast speed.
Description:
Dual ball bearings Digital Core Servo, for 1/8 1/10 RC Car Robot Drift Car Buggy Crawler,6216 servo is more suitable for flat sports cars and drifting cars that pursue fast speed.

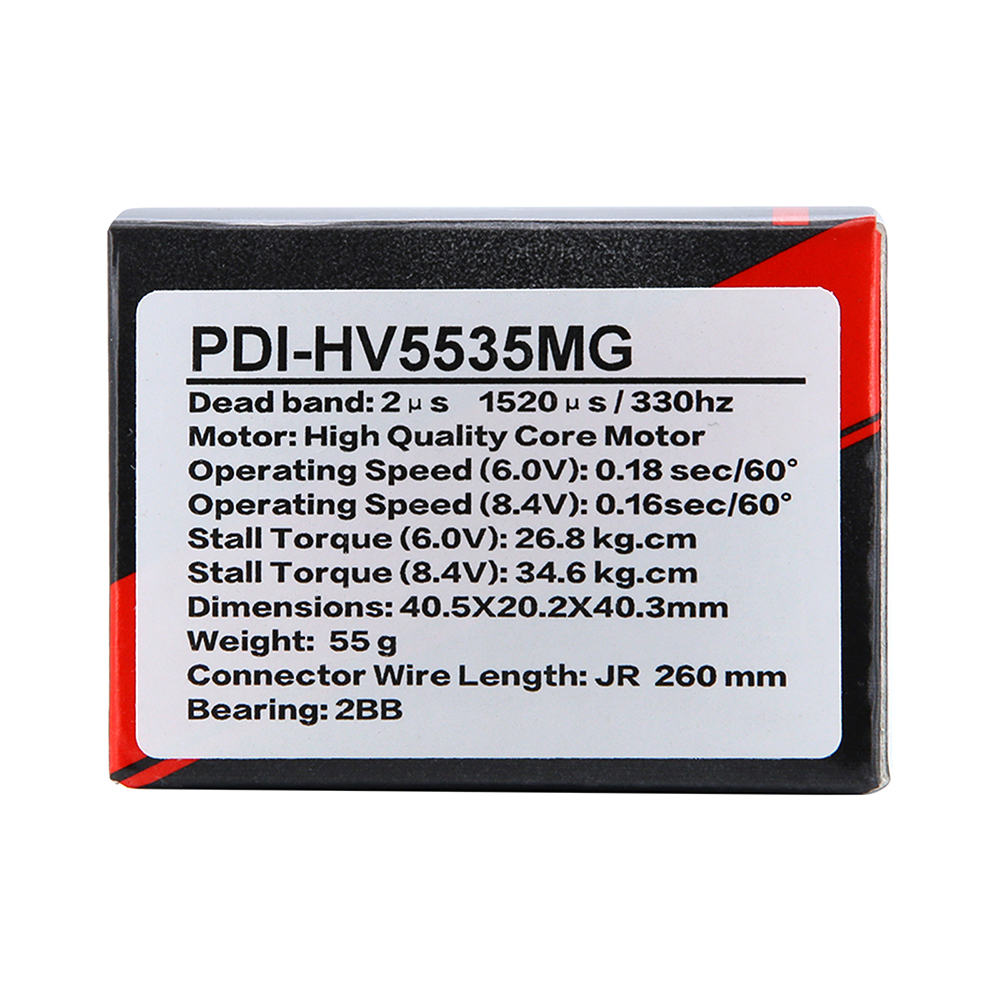

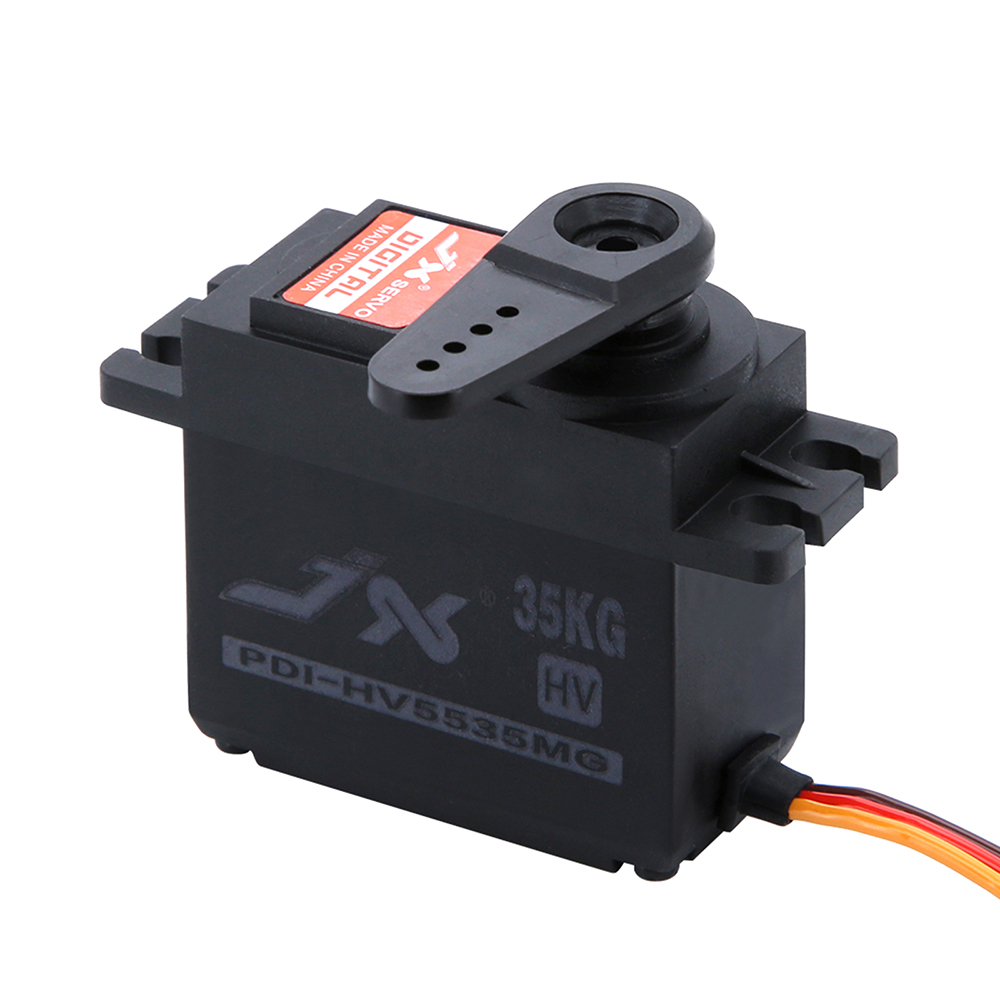

PDI-HV5535MG Specifications:
Dead band: 2μs
Working frequence:1520μs / 330hz
Motor: High Quality Core Motor
Voltage Range:6.0-8.4V
Operating Speed (6.0V): 0.18 sec/60°
Operating Speed (8.4V): 0.16sec/60°
Stall Torque (6.0V): 26.8 kg.cm
Stall Torque (8.4V): 34.6 kg.cm
Dimensions: 40.5X20.2X40.3mm
Weight: 55 g
Connector Wire Length: JR 260 mm
Bearing: 2BB

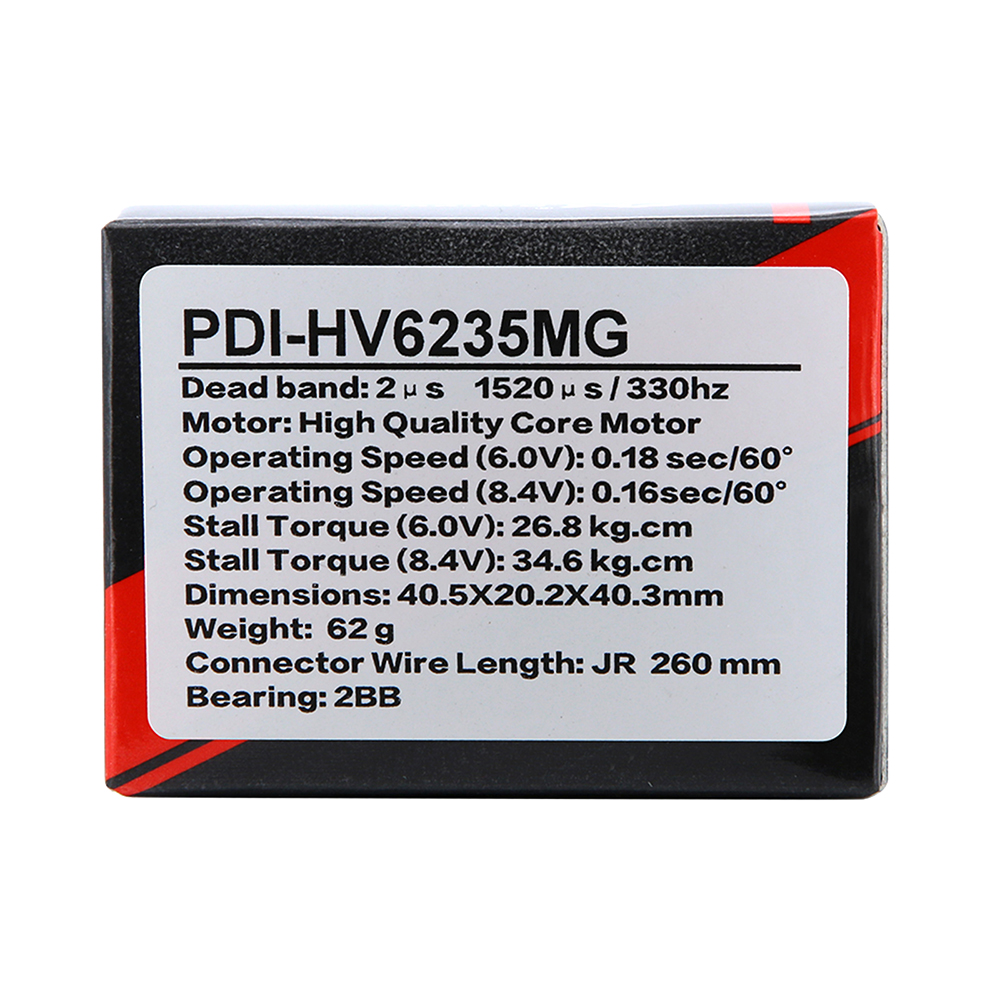

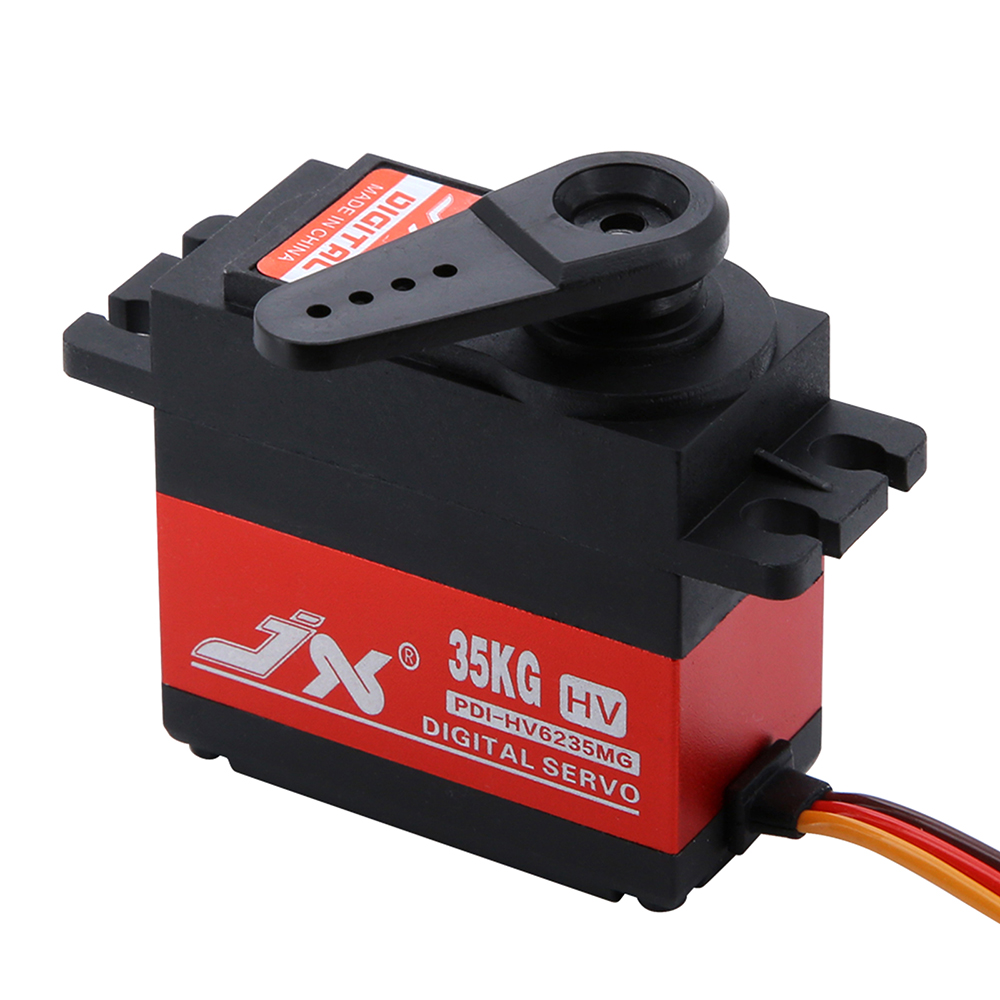

PDI-HV6235MG Specifications:
Dead band: 2μs
Working frequence:1520μs / 330hz
Motor: High Quality Core Motor
Voltage Range:6.0-8.4V
Operating Speed (6.0V): 0.18 sec/60°
Operating Speed (8.4V): 0.16sec/60°
Stall Torque (6.0V): 26.8 kg.cm
Stall Torque (8.4V): 34.6 kg.cm
Dimensions: 40.5X20.2X40.3mm
Weight: 62 g
Connector Wire Length: JR 260 mm
Bearing: 2BB

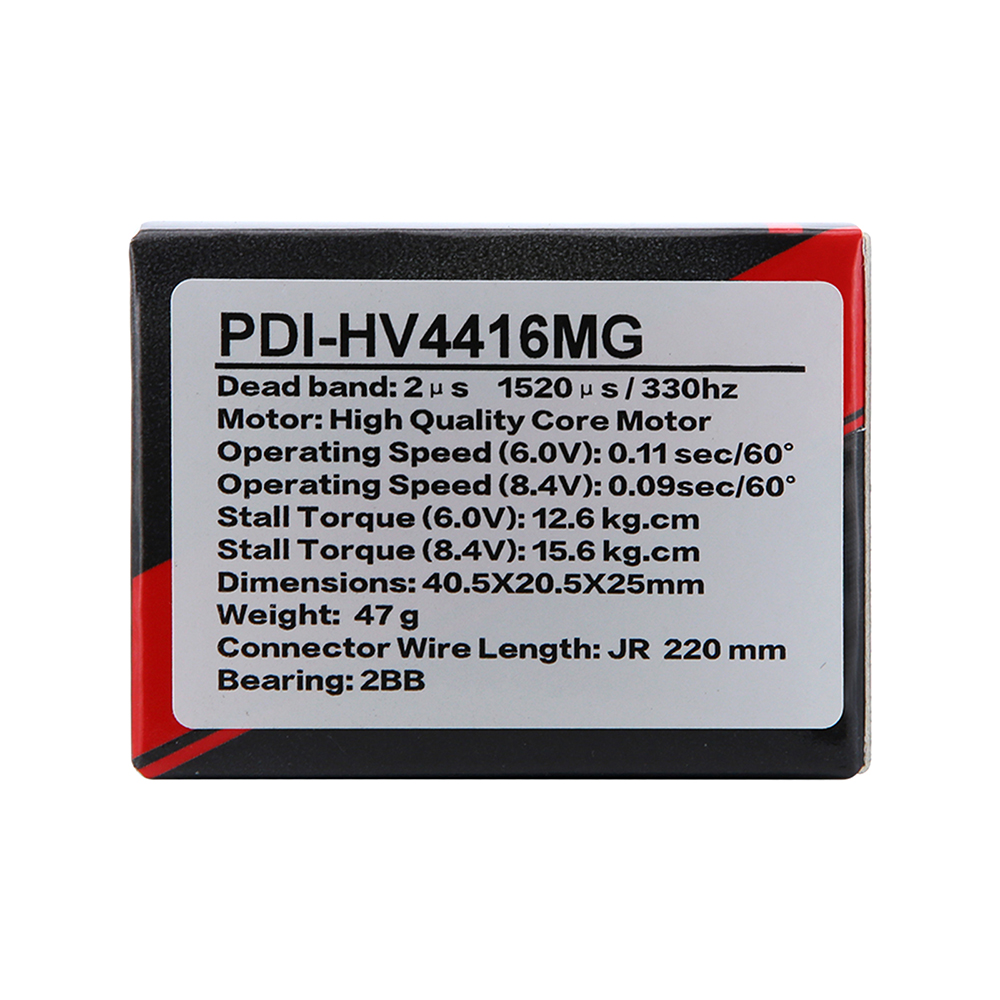

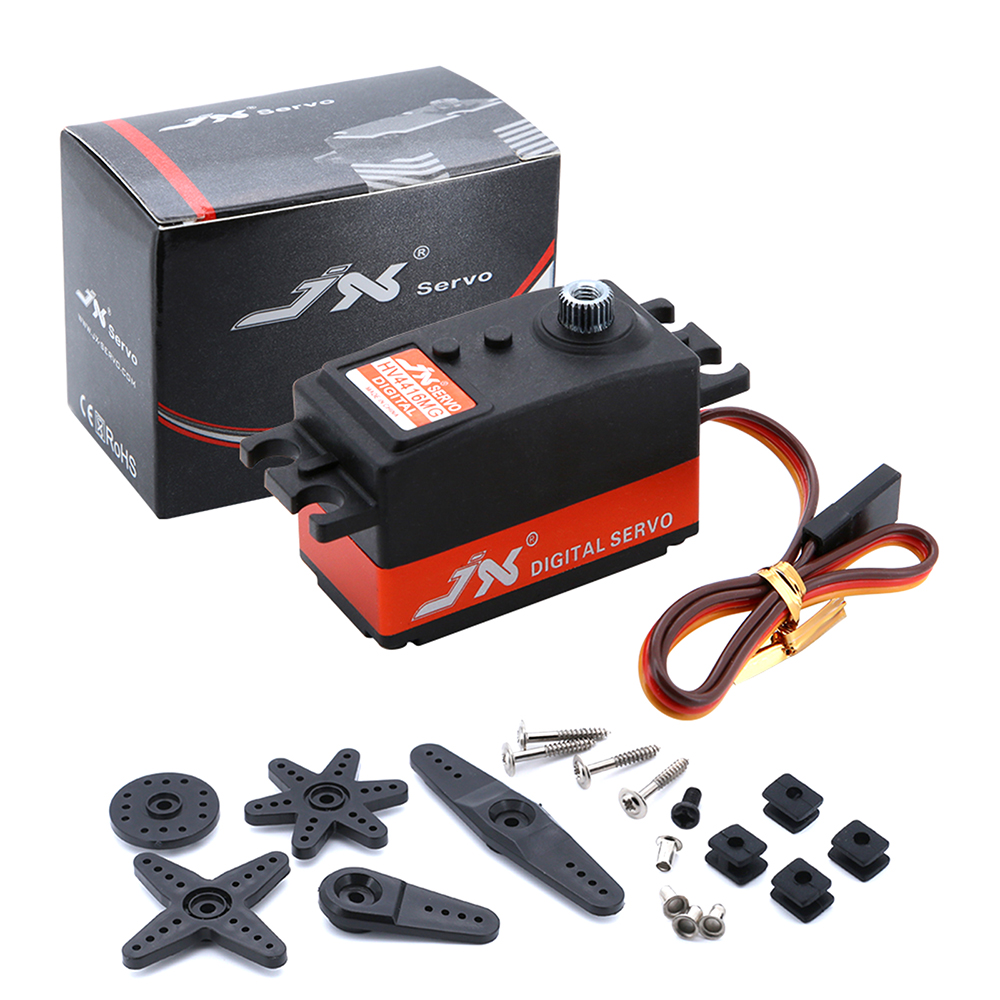

PDI-HV4416MG Specifications:
Dead band: 2μs
Working frequence:1520μs / 330hz
Motor: High Quality Core Motor
Voltage Range:6.0-8.4V
Operating Speed (6.0V): 0.11 sec/60°
Operating Speed (8.4V): 0.09sec/60°
Stall Torque (6.0V): 12.6 kg.cm
Stall Torque (8.4V): 15.6 kg.cm
Dimensions: 40.5X20.5X28mm
Weight: 47 g
Connector Wire Length: JR 220 mm
Bearing: 2BB

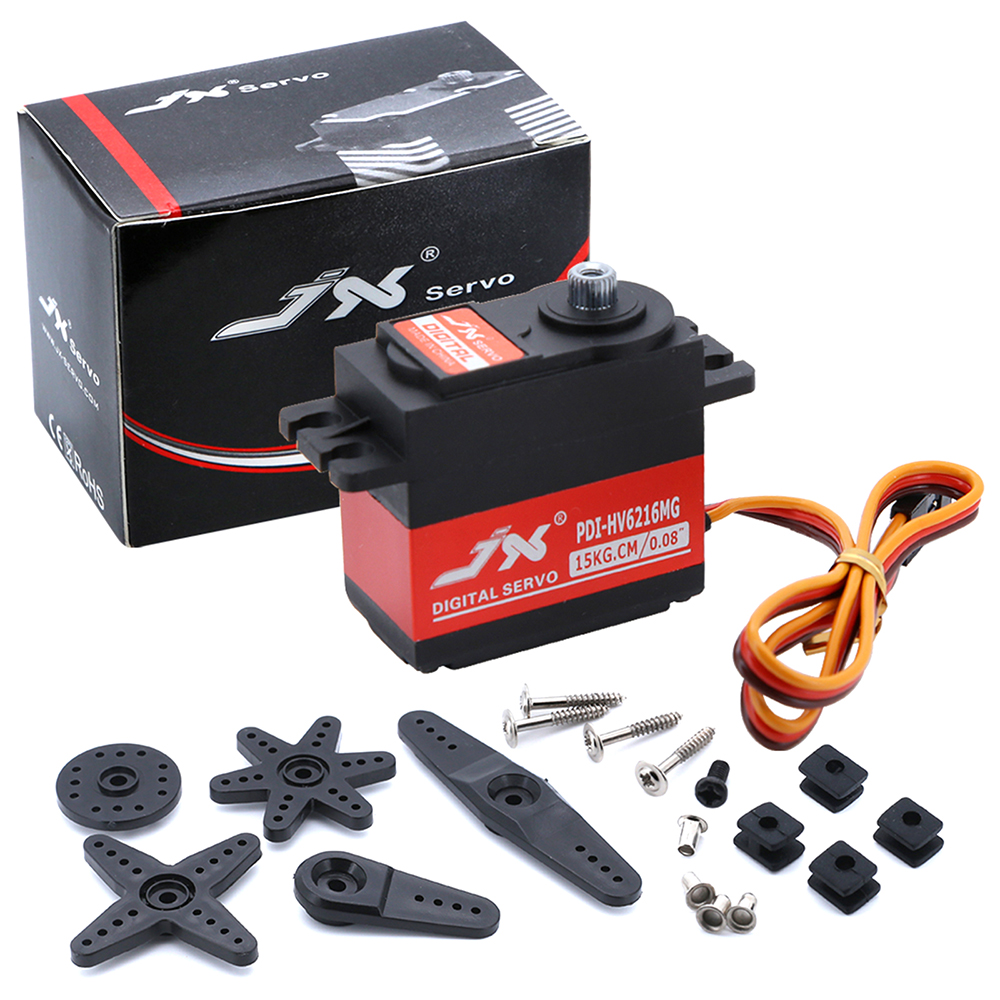

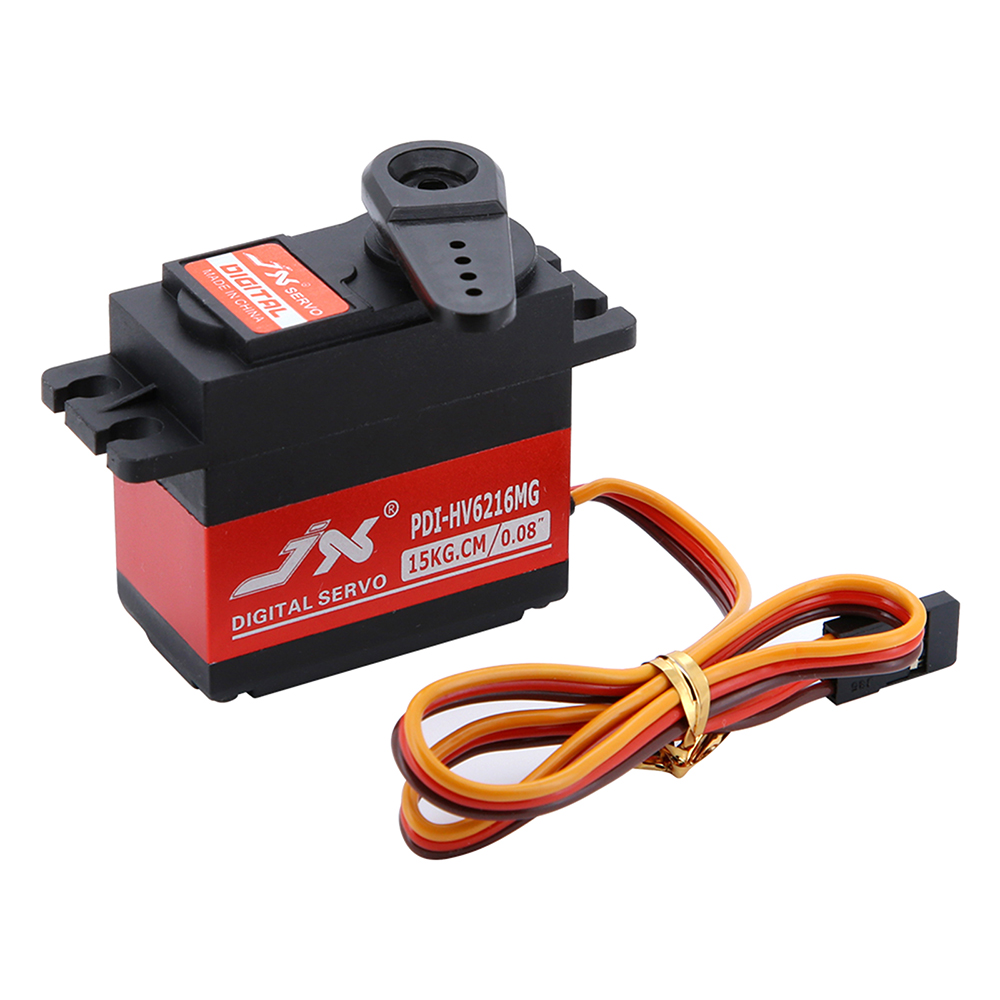

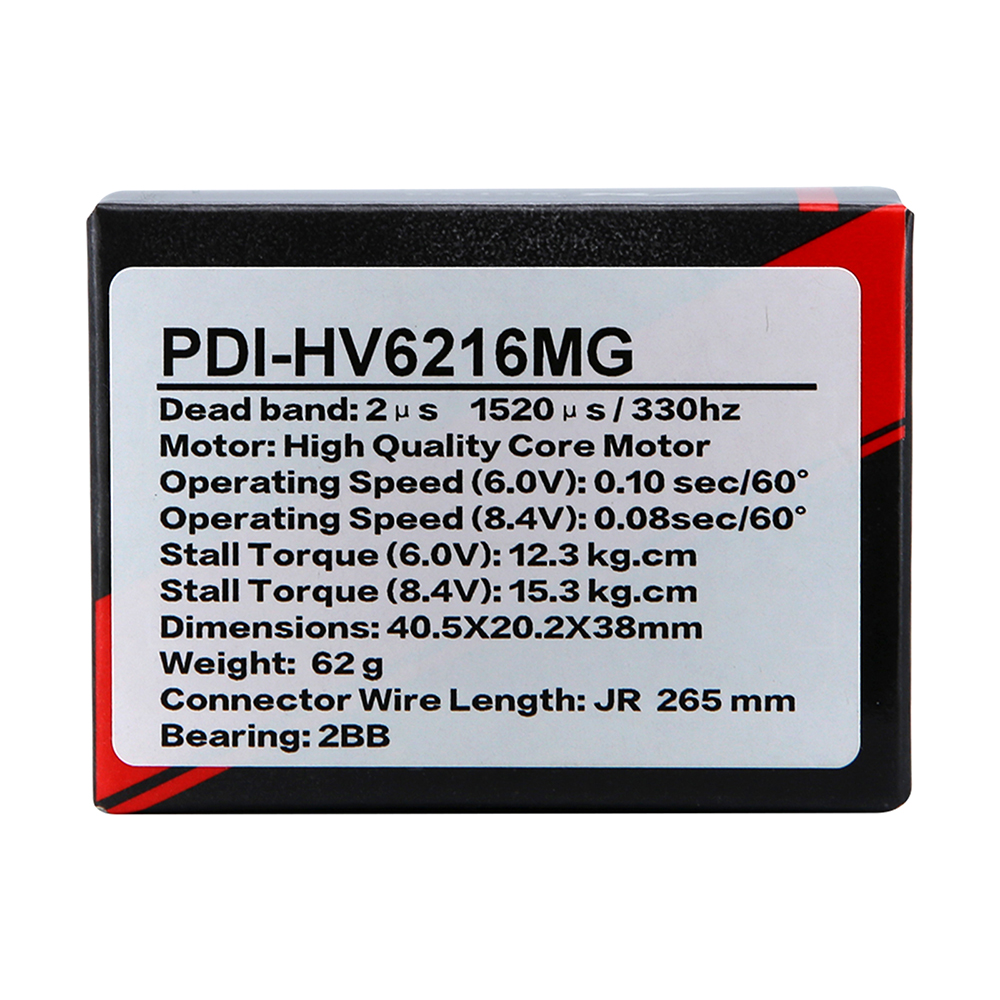

PDI-HV62I6MG Specifications:
Dead band: 2μs 1520μs / 330hz
Motor: High Quality Core Motor
Operating Speed (6.0V): 0.10 sec/60°
Operating Speed (8.4V): 0.08sec/60°
Stall Torque (6.0V): 12.3 kg.cm
Stall Torque (8.4V): 15.3 kg.cm
Dimensions: 40.5X20.2X38mm
Weight: 62 g
Connector Wire Length: JR 265 mm
Bearing: 2BB
Package contents:
1* Servo
Only the above package content, other products are not included.
1.Due to the difference between different monitors,the picture may not reflect the actual color of the item. We guarantee the style is the same as shown in the pictures.
2.Due to the manual measurement and different measurement methods, please allow 1-3mm deviation.Thanks!
