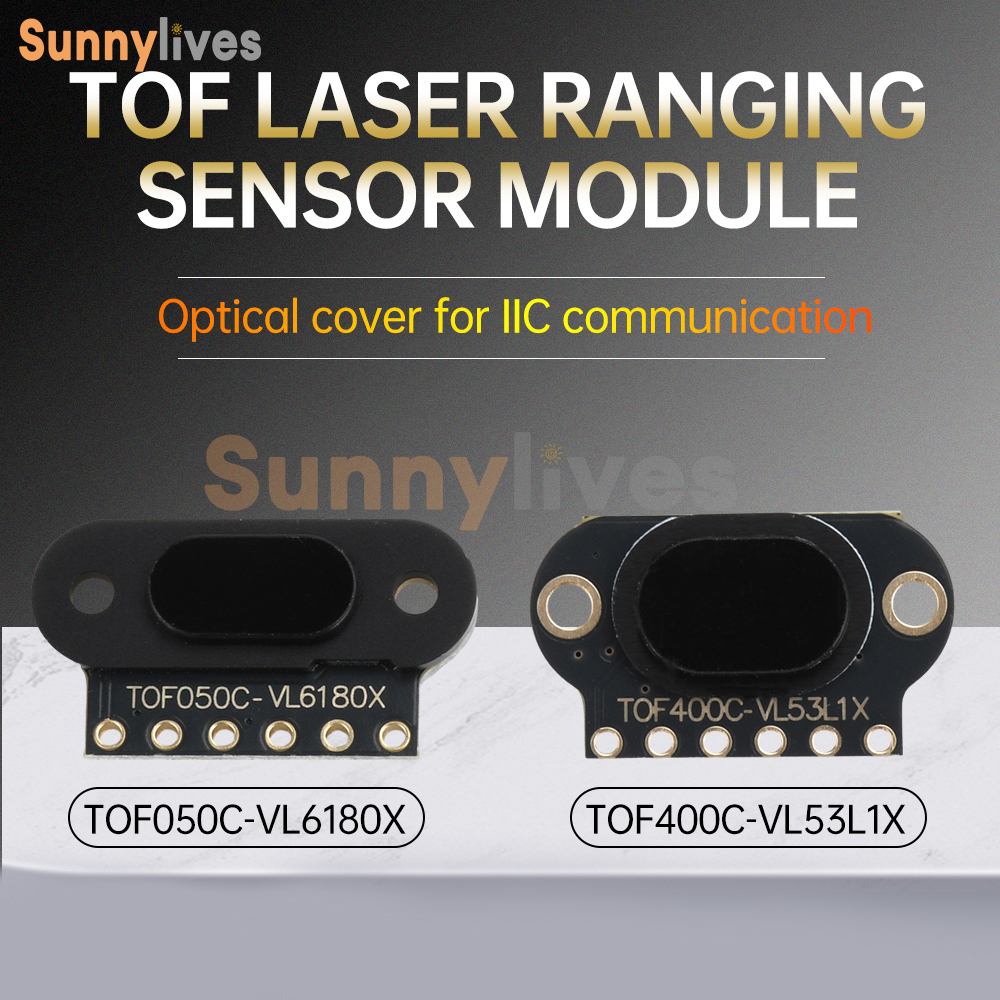

Features:

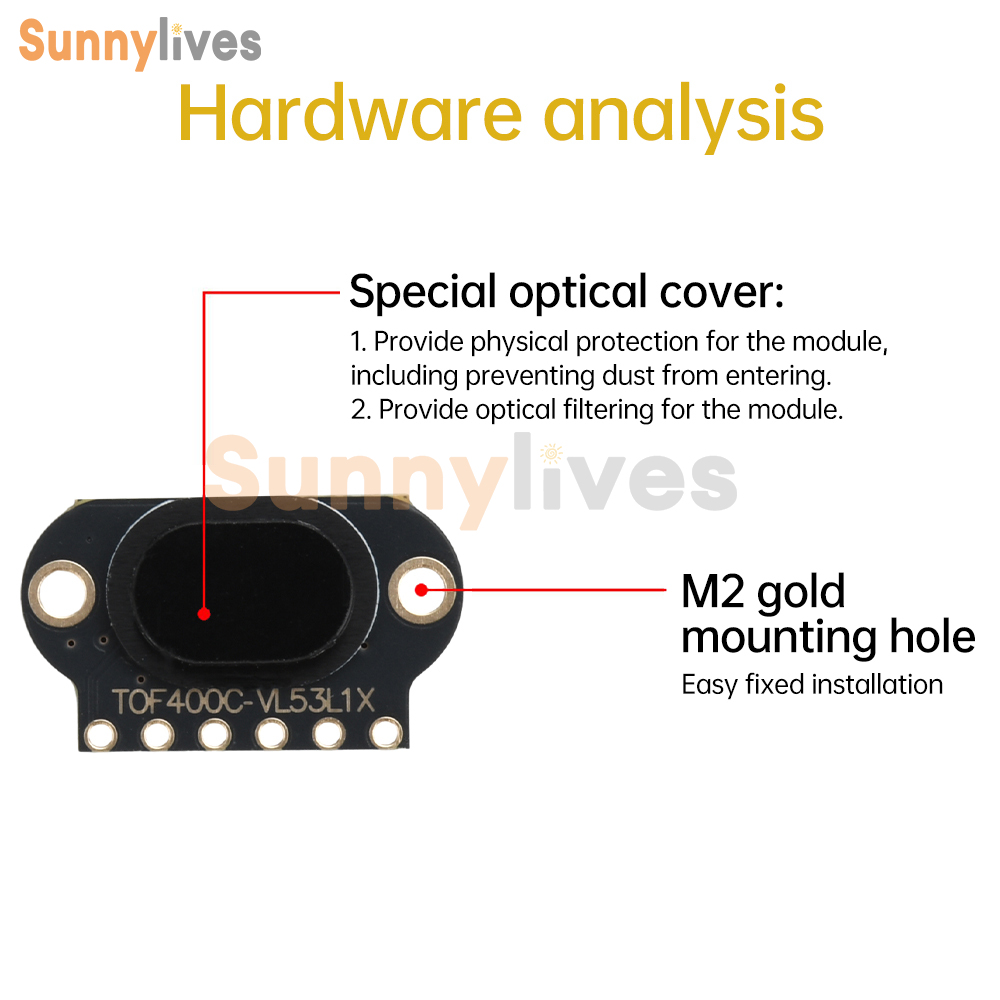

1. Specialized optical cover: Specialized optical cover protects against dust and filtering to ensure accurate measurement
2. Convenient installation: Equipped with M2 countersunk gold mounting holes, easy and fast fixing to ensure stable work
3. Efficient and stable: IIC communication mode, easy to use, STM32 routines are provided for quick start
4. Excellent performance: TOF400C has a maximum measuring distance of 4 meters, low power consumption and wide voltage range
5. Wide range of applications: suitable for drones, robots, vehicle collision avoidance and other scenarios
Parameter:
Product Name: Laser Distance Measuring Sensor Module
Communication mode: IIC mode
Development routine/software: provide STM32 routines
Operating voltage: 3.0~5V (DC)
Operating current: 400mA (Max)
Operating temperature: -20~70°C
Storage temperature: -20~80°C

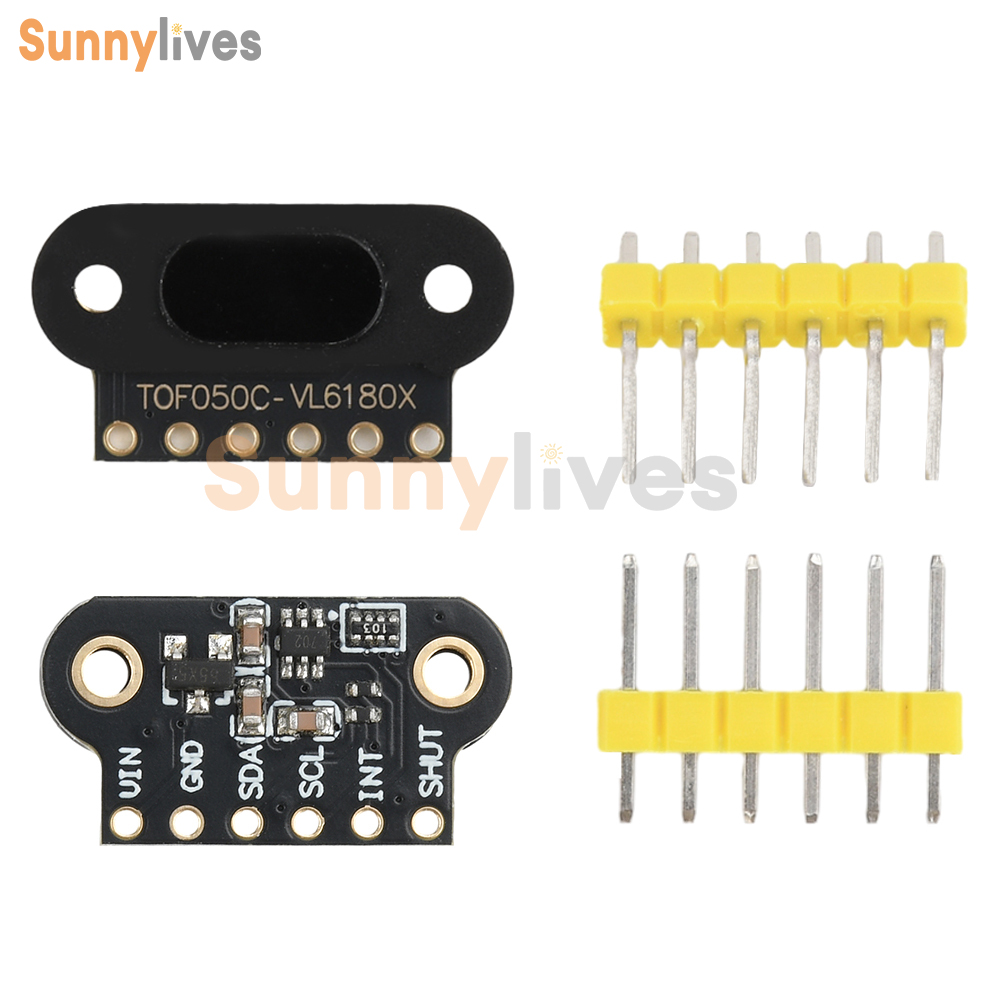

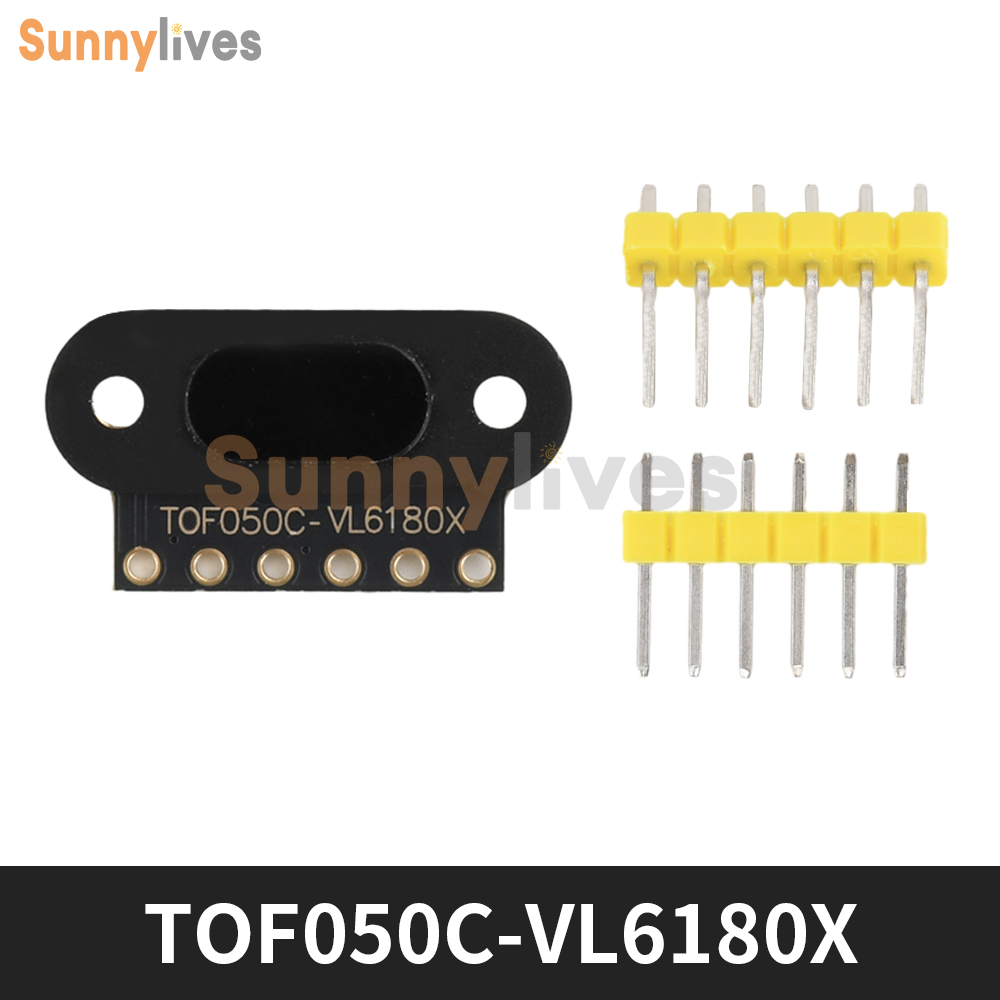

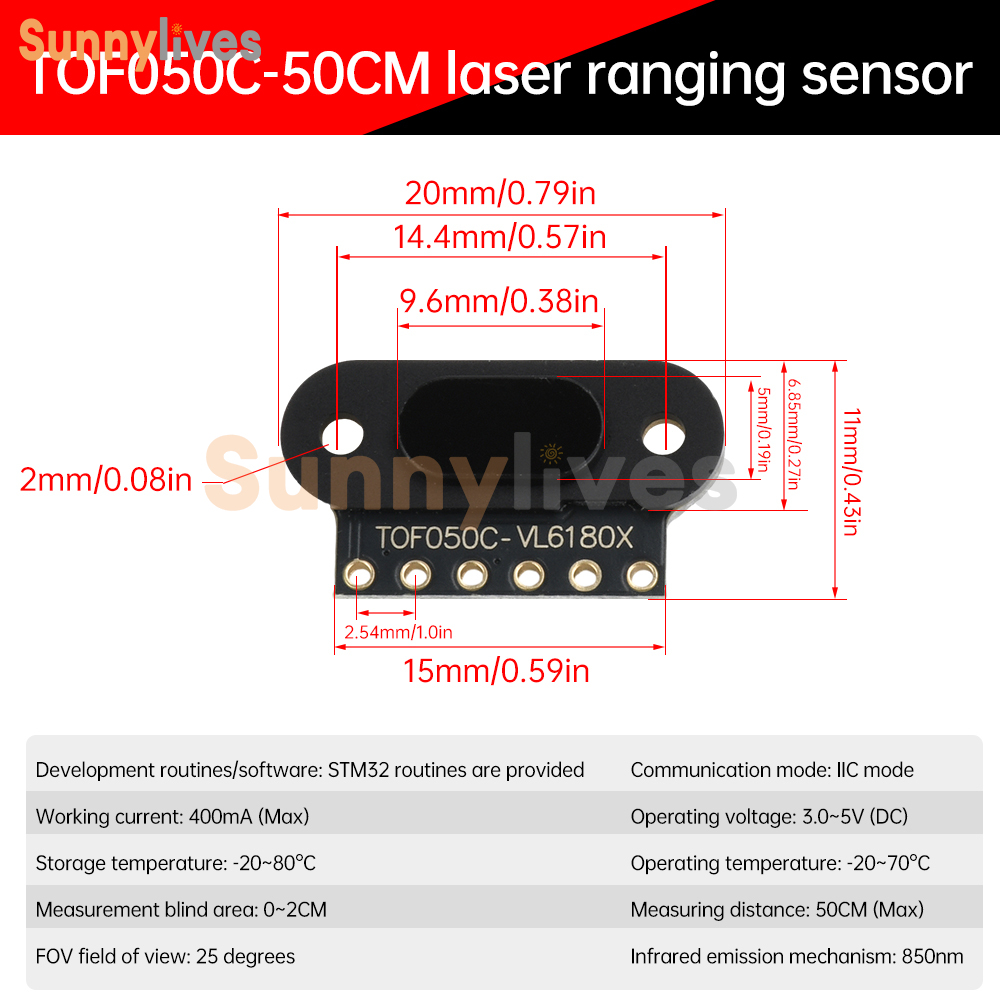

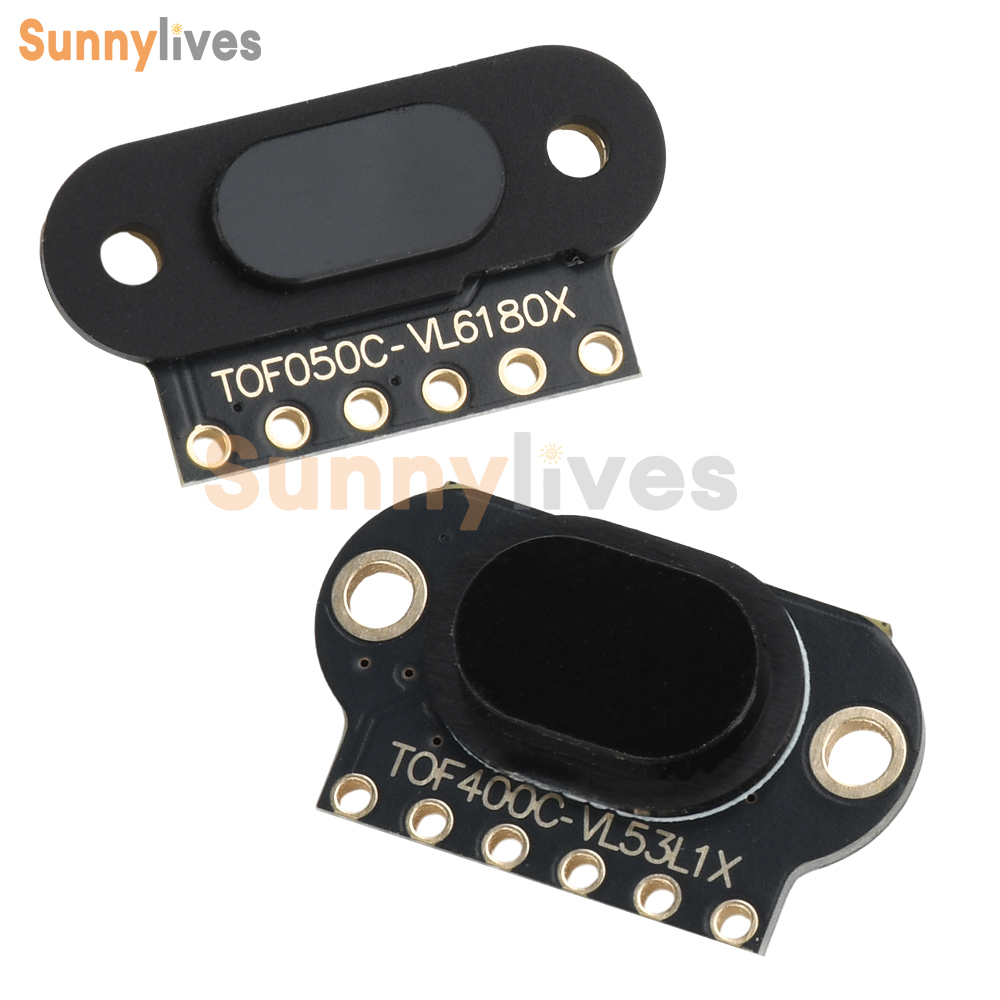

TOF050C-VL6180X:
Measuring distance: 50CM (Max)
Measurement Blind Zone: 0~2CM
Infrared emission mechanism: 850nm
FOV field of view: 25 degrees

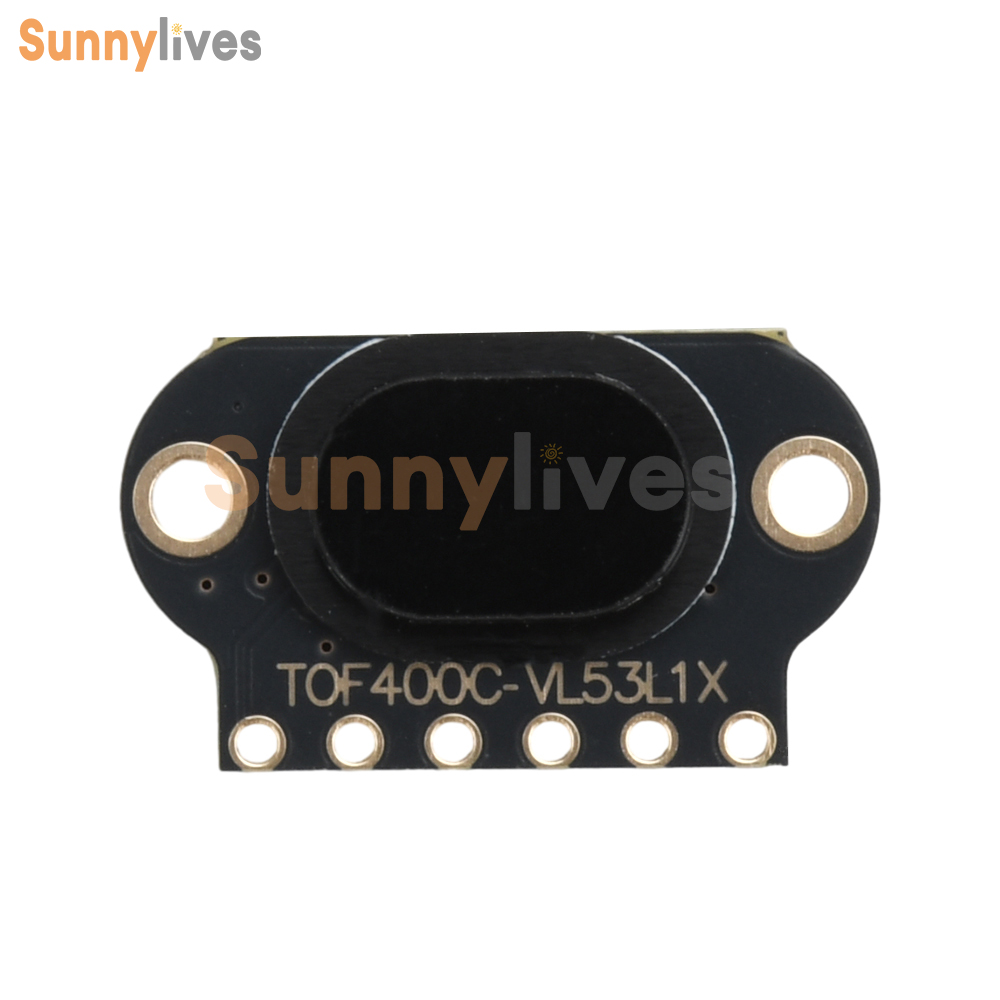

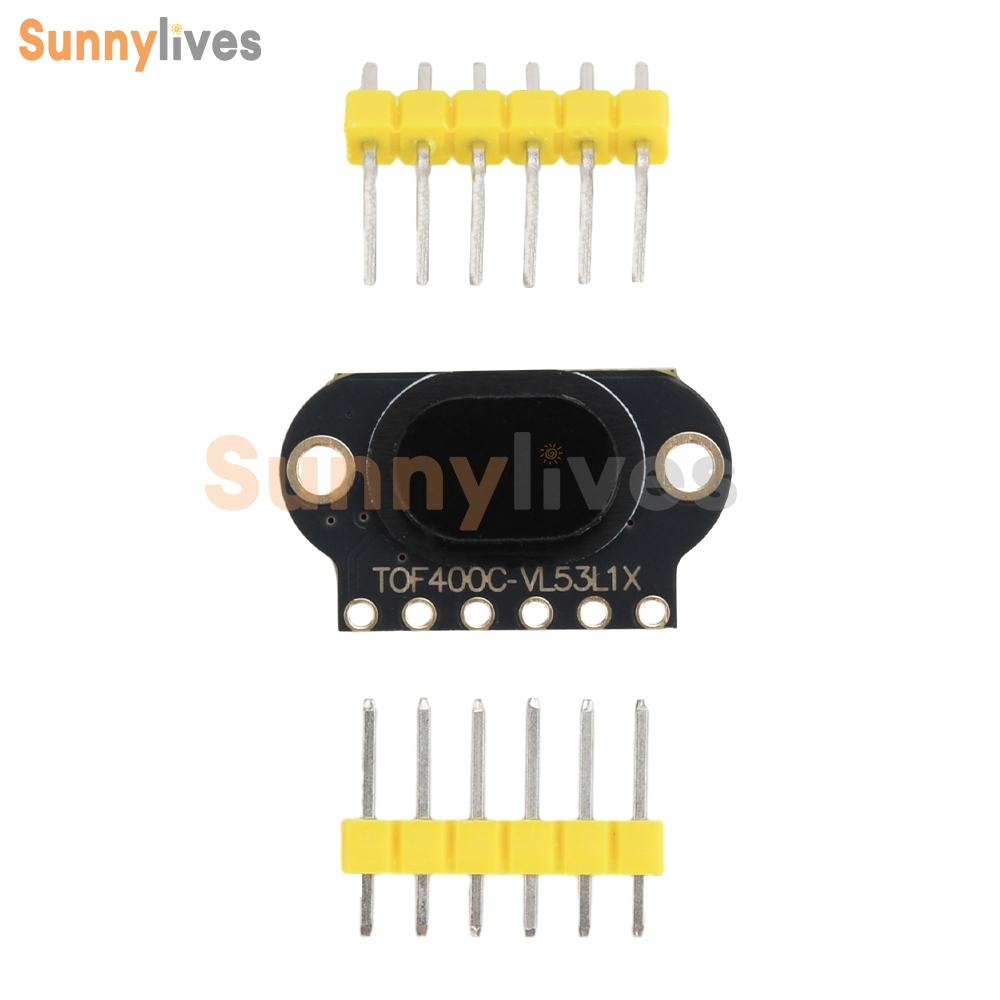

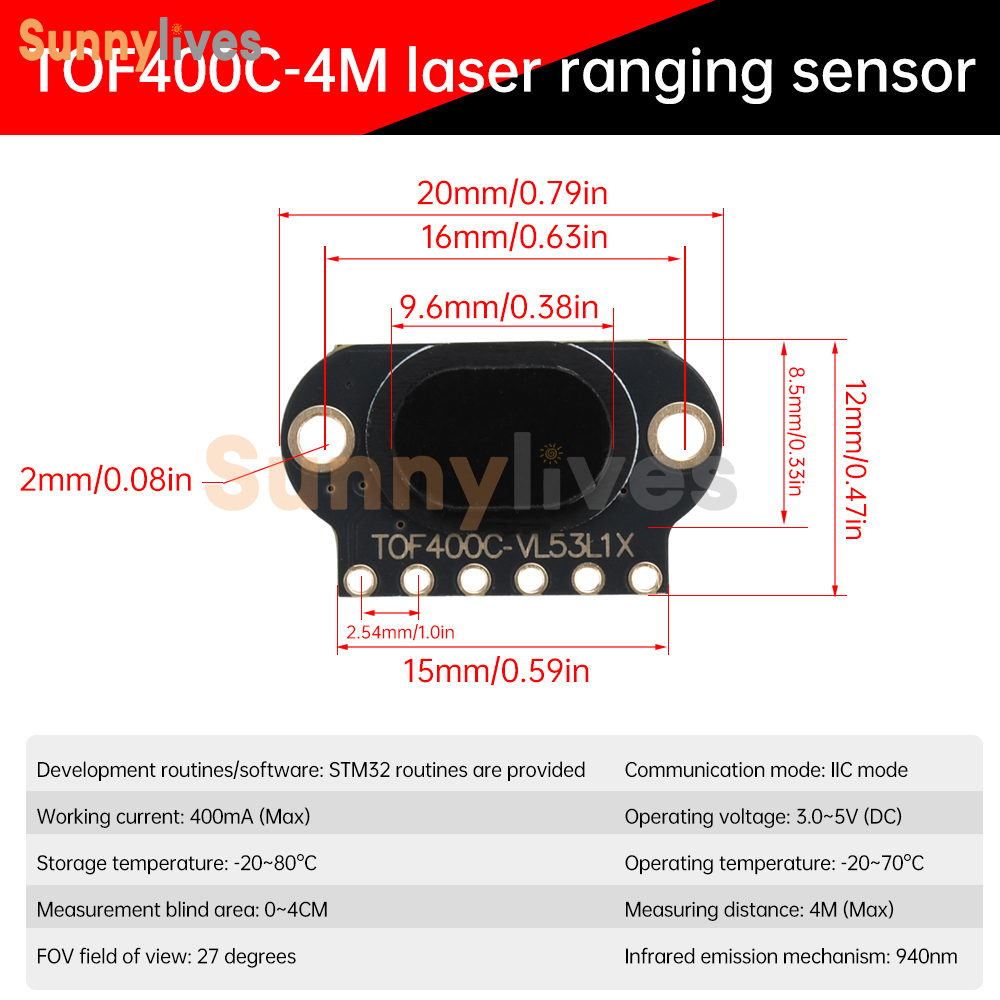

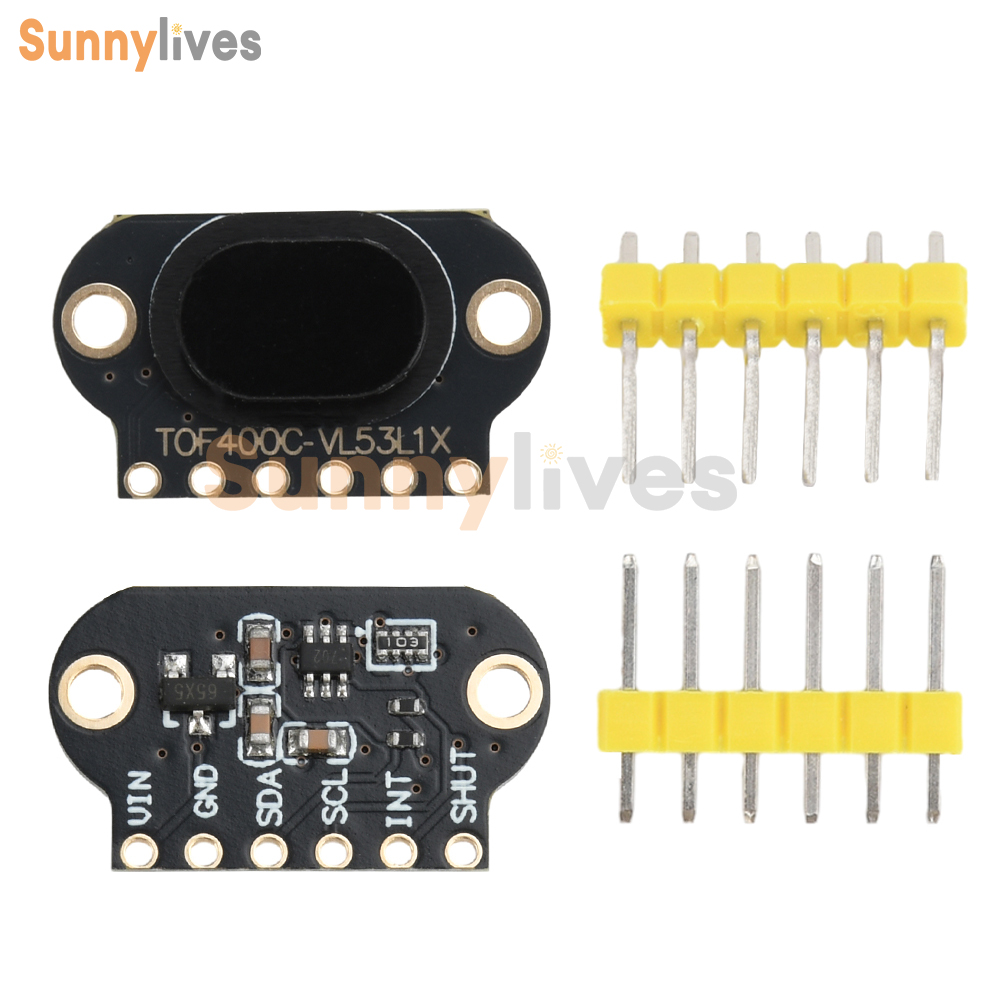

TOF400C-VL53L1X:
Measuring distance: 4M (Max)
Measuring Blind Zone: 0~4CM
Infrared emission mechanism: 940nm
FOV field of view: 27 degrees
TOF200C-VL53L0X:
Measuring distance: 2M (Max)
Measuring blind zone: 0~3CM
Infrared emission mechanism: 940nm
FOV field of view: 25 degrees
Package include:
Module x1/5/10
Pin x2/10/20
