Product Description

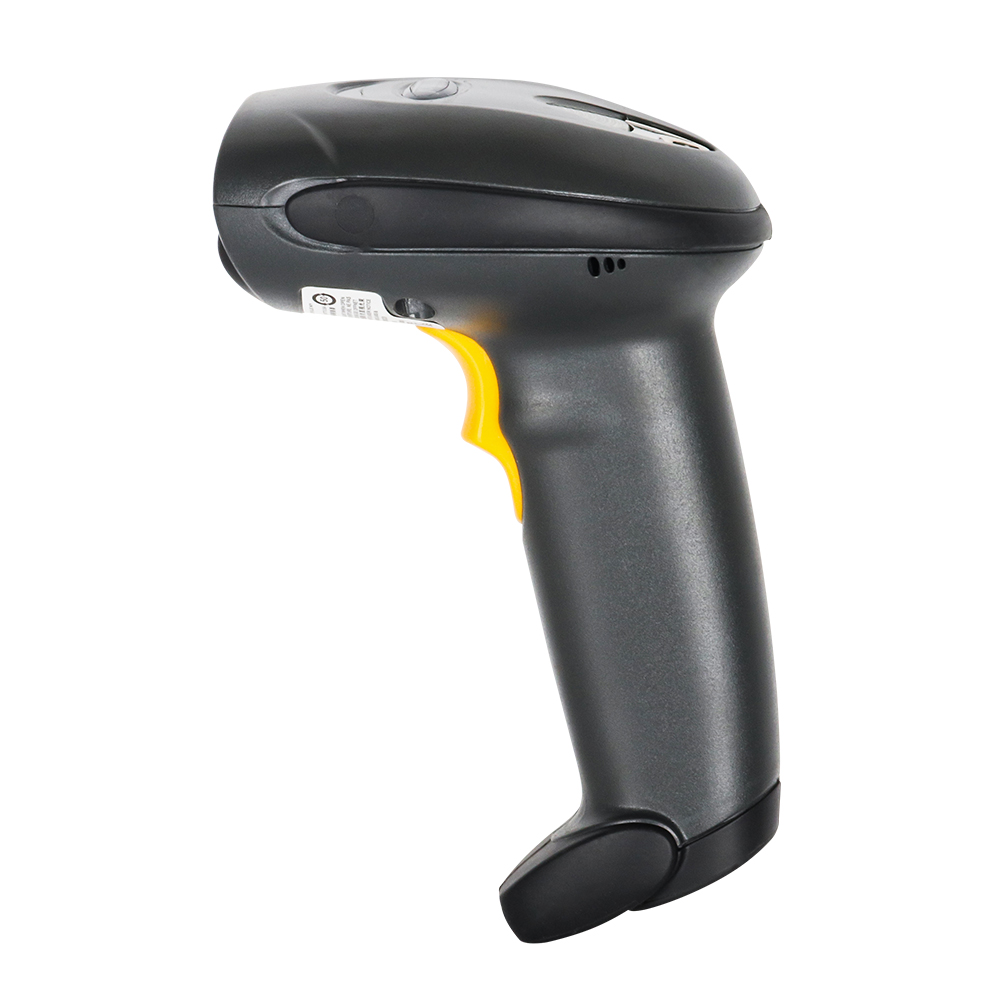

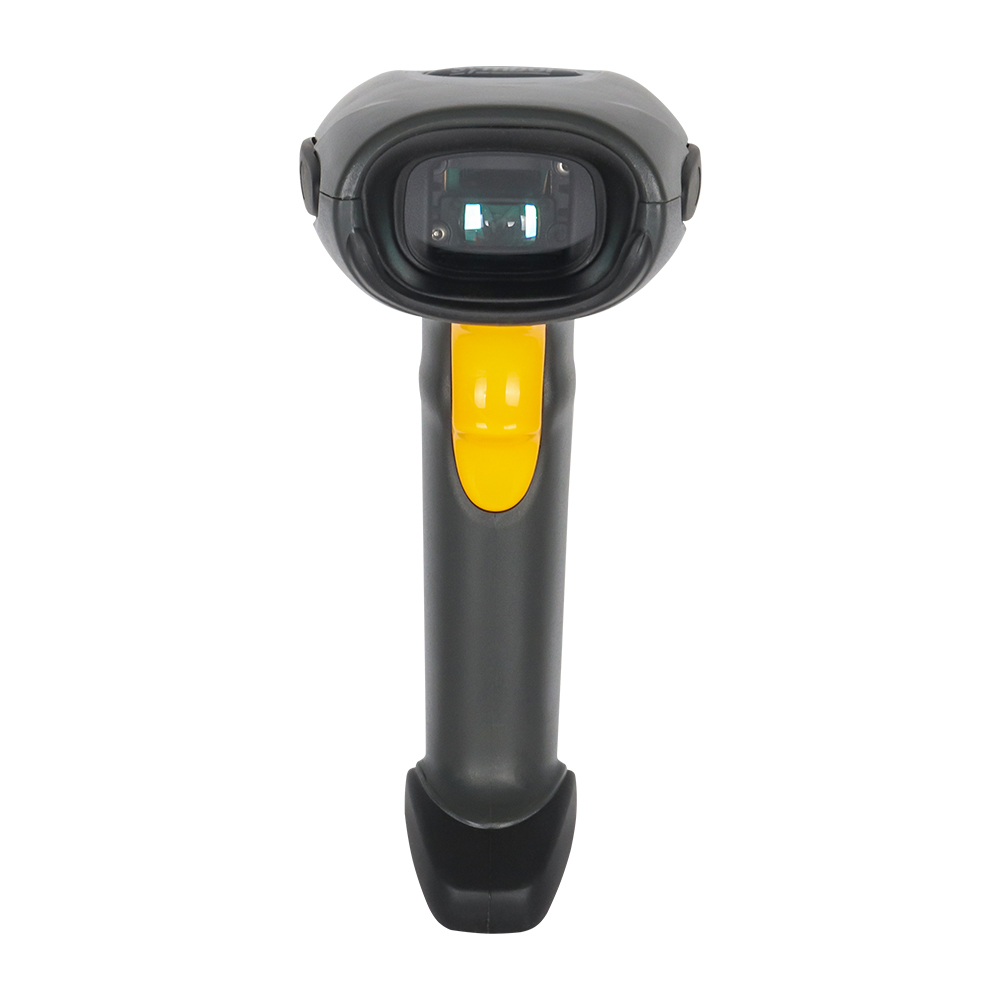

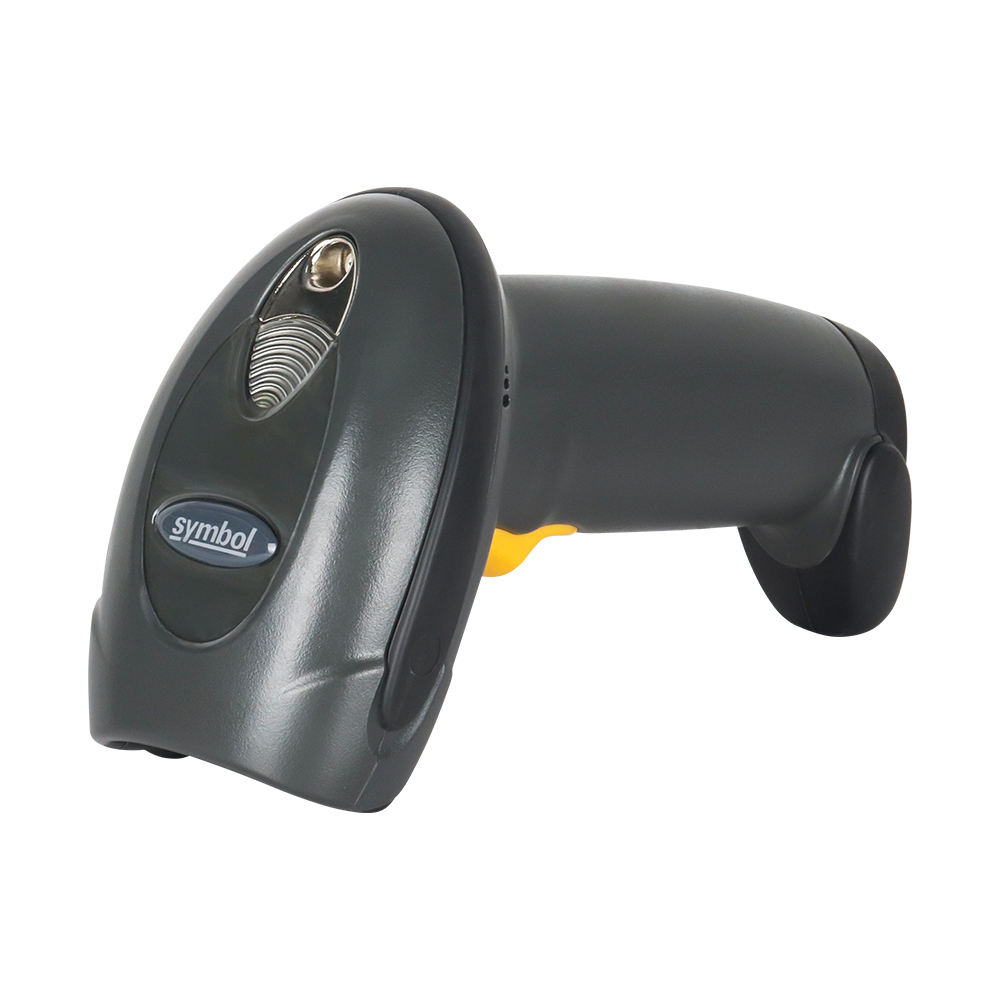

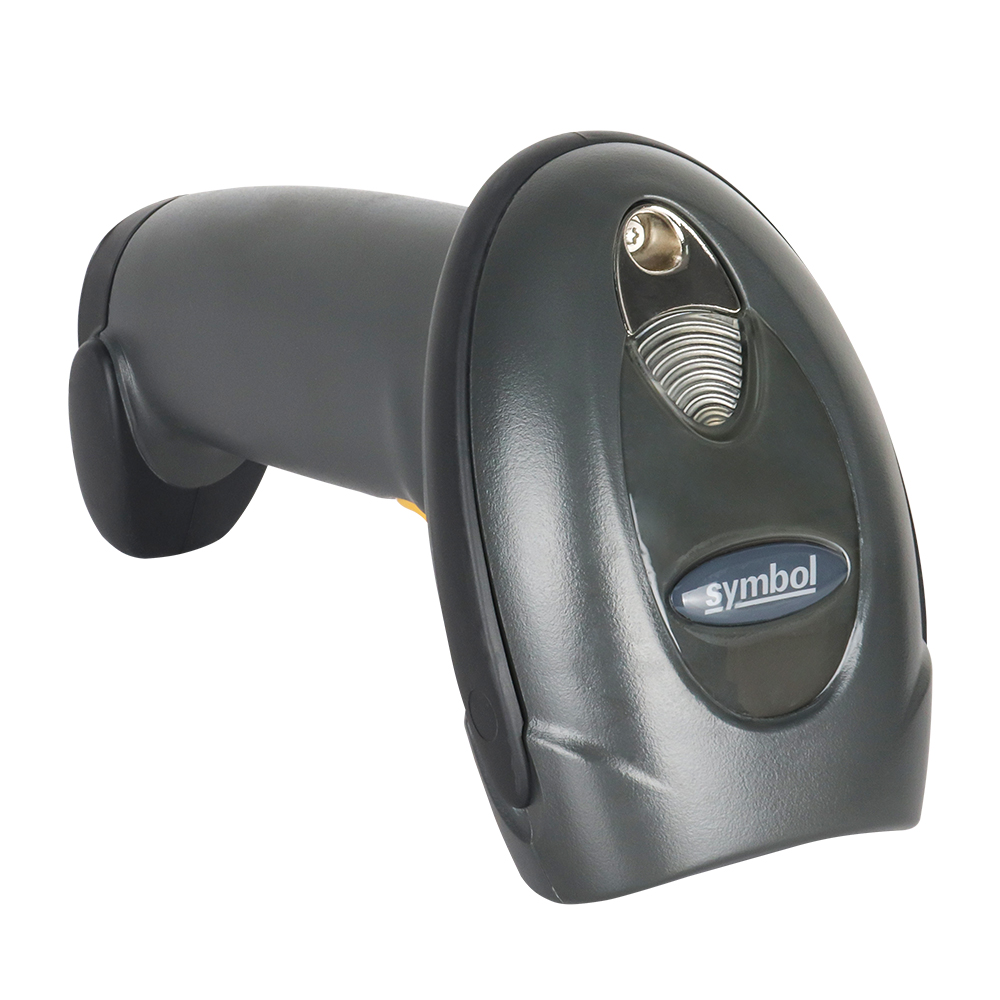

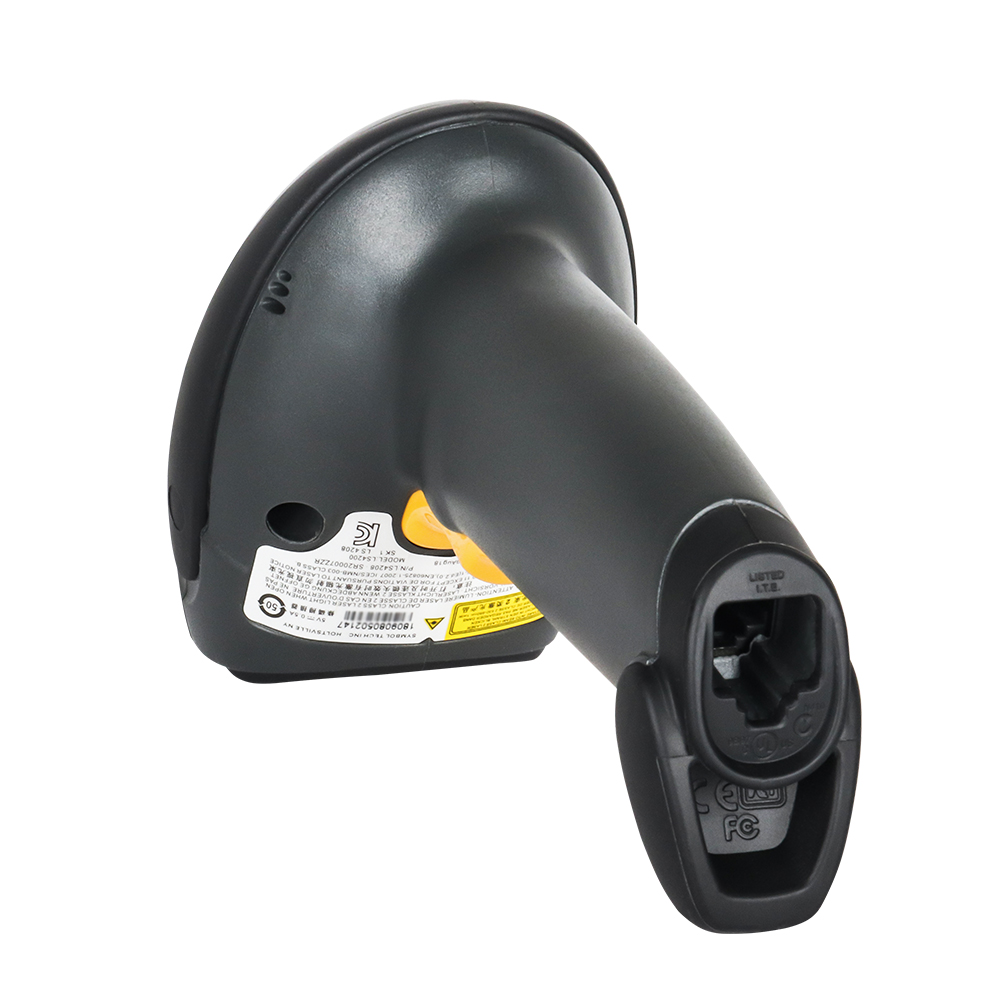

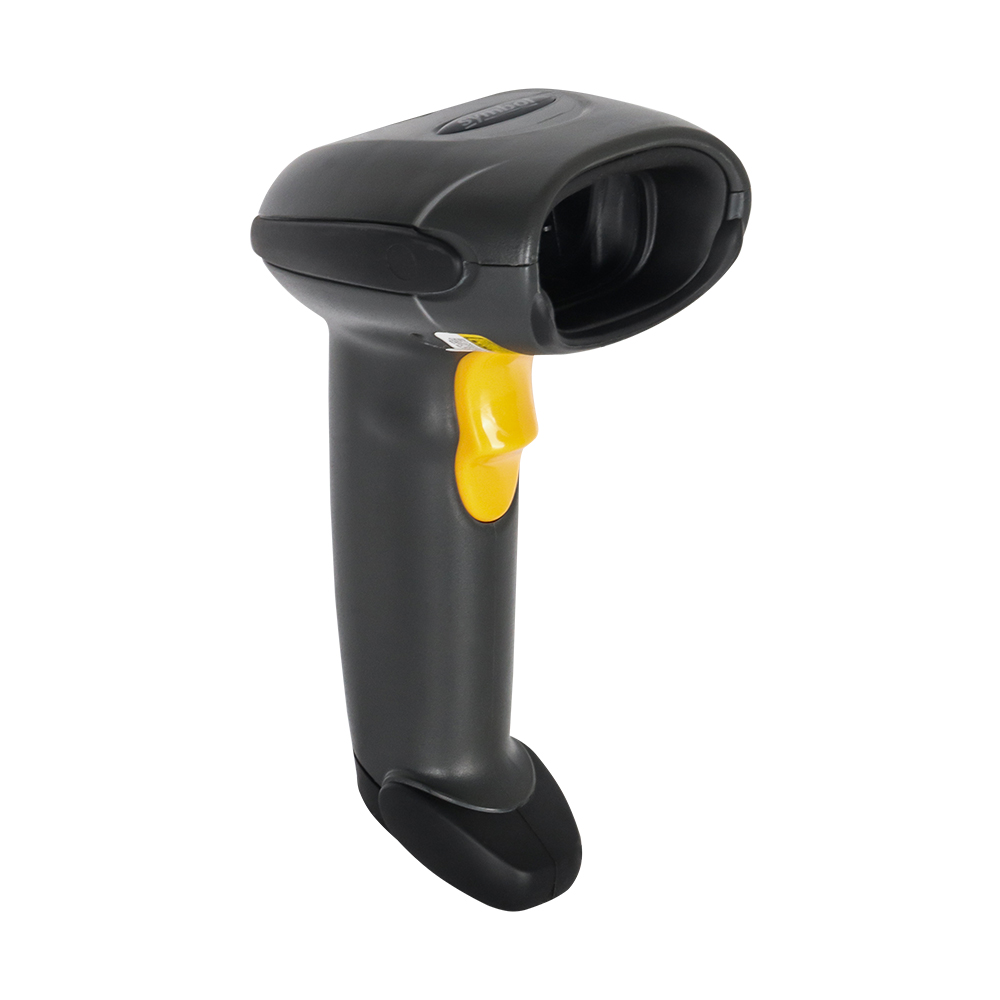

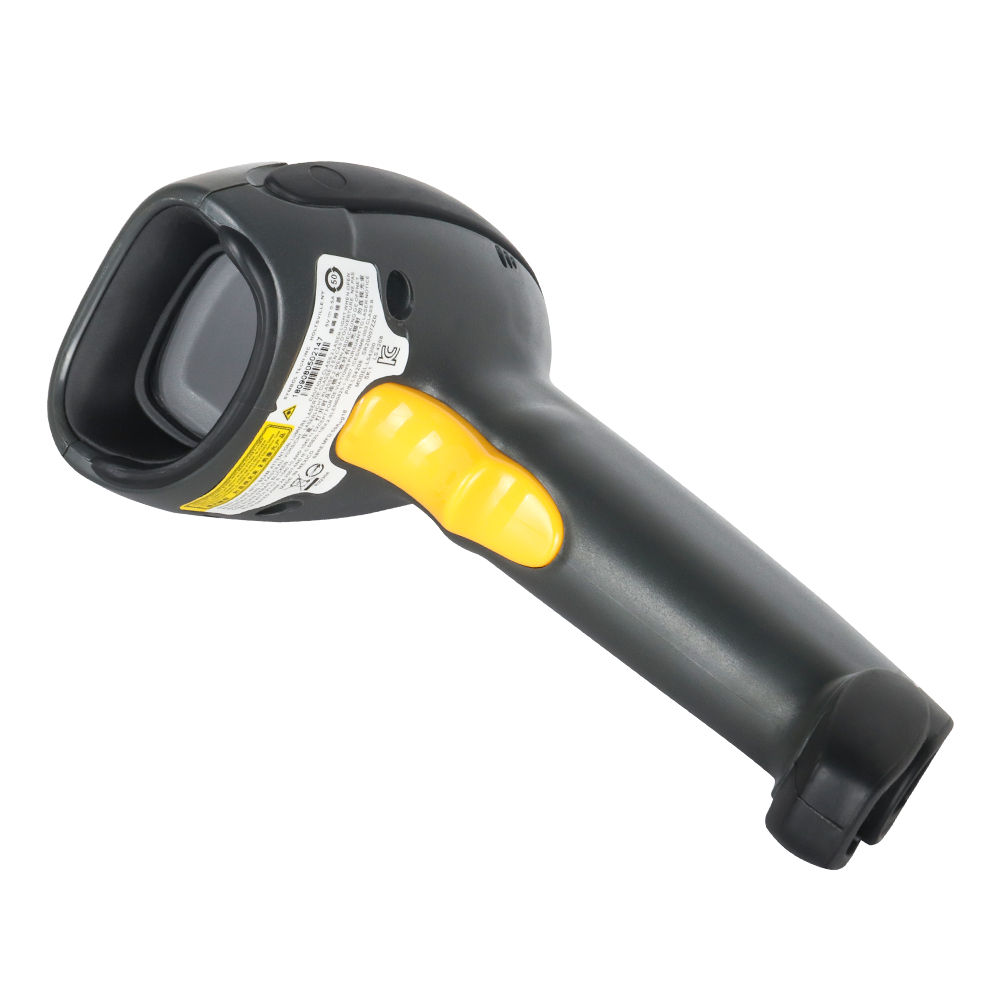

Zebra Symbol LS4208-SR20007ZZR Handheld Barcode Scanner Reader With USB Cable

  • 1D, PDF and Composite Code Scanning
    Available in both 1D only (SR) and PDF/Composite (PR) configurations to support a wide range of productivity-enhancing applications
  • Multi-Line Raftering Scan Pattern
    Improves productivity by reducing the need to rescan bar codes or key in data, resulting in shorter lines at the retail point of sale
  • Superior Motion Tolerance
    Enables end users to quickly move from one bar code to the next without hesitation
  • Wide Working Range
    Reads good quality as well as poor quality codes at similar ranges, reducing the need for the user to move the scanner back and forth
  • Checkpoint Electronic Article Surveillance (EAS)
    Offers dual functionality to improve return on investment and save critical counter space
  • Durable Construction and Patented, Single Circuit board Design Able to Withstand Multiple 6-foot (1.8m) Drops to Concrete
    Lowers the total cost of ownership by protecting against downtime from accidental drops
  • Plug-and-Play Setup, Intuitive Scanning
    Enables rapid deployment and immediate use without formal training, allowing new and experienced employees to immediately help improve operational efficiency
  • Remote Management-Ready
    Reduces total cost of ownership by enabling remote, network-based device management
  • Optional Hands-Free Intellistand
    Enables presentation scanning and automatic switching between hands free and handheld modes
  • GS1 Data Bar (Formerly RSS) Bar Code Support
    Supports the latest symbologies to future-proof your investment



Physical Characteristics

Dimensions (H x L x W):

6.7 x 3.7 x 2.7in. (17 x 9.3 x 6.8cm)

Weight:

Approximately 6.4oz (181g)

Voltage and current:

5VDC ± 10%@ 140mA
(Stand by: <35mA)

Color:

Cash Register White or Twilight Black

Performance Characteristics

Light Source

650nm laser diode

Motor frequency:

50Hz

Decode rate:

200 decodes per second

Roll

± 35°

Pitch

± 60°

Yaw

± 60°

Print Contrast:

25% minimum reflectance

Motion Tolerances:

Horizontal velocity: 200in./second (508cm/s)
Vertical velocity: 200in./second (508cm)
Angular velocity: 200in./second (508cm/s)

Decode Capability:

UPC/EAN and with supplementals, Code
39, Code 39 Full ASCII, Tri-optic Code 39,
GS1 DataBar (formerly RSS) Variants,
UCC/EAN 128, Code 128, Code 128 Full
ASCII, Code 93, Codabar (NW1),
Interleaved 2 of 5, Discrete 2 of 5
MSI, Codell, IATA, Bookland EAN, Code 32

Interfaces Supported:

On-board multiple interface with: RS-232C
(Standard, Nixdorf, ICL, & Fujitsu);
IBM 468x/469x; Keyboard Wedge; USB (Standard, IBM SurePOS, Macintosh); Laser/Wand Emulation. In addition,
Synapse Adaptive Connectivity allows
for connectivity to all of the above, plus many non-standard interfaces

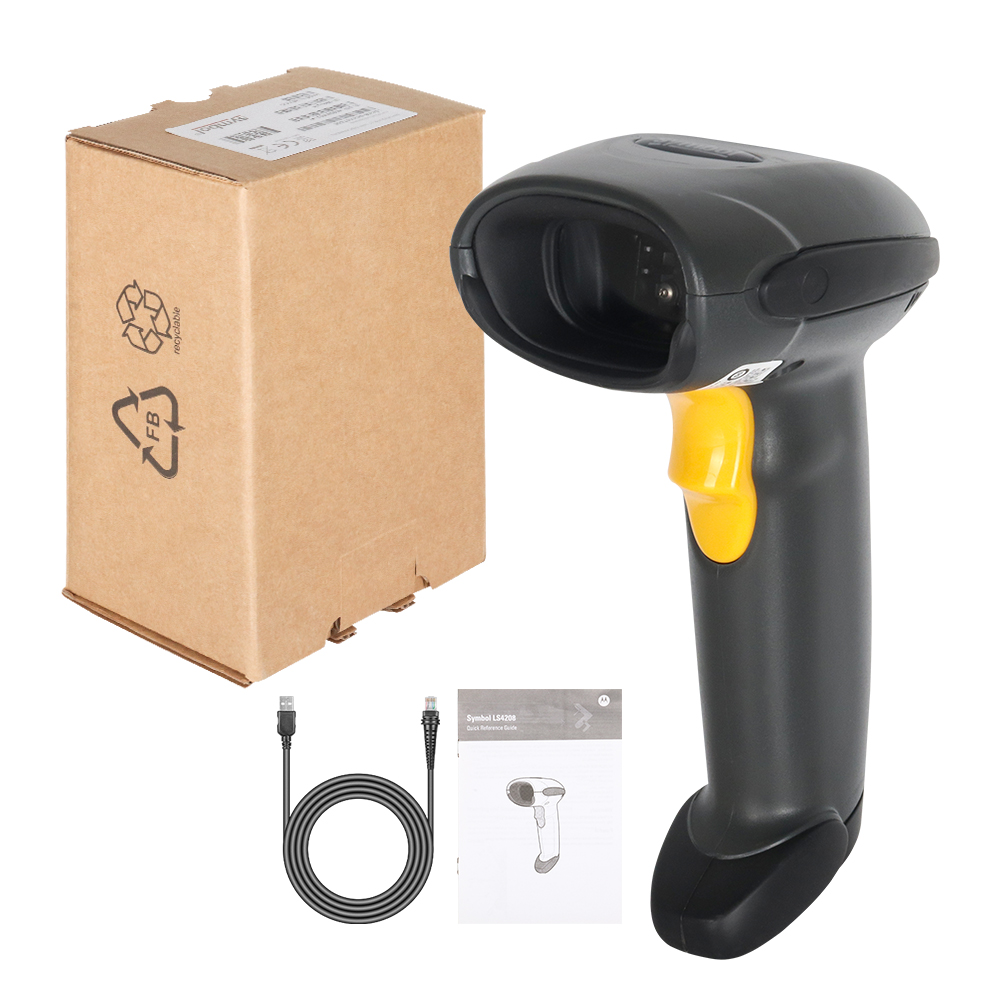

Packaging Content

1* LS4208 Scanner

1* USB Cable
