HOBBYWING Brushless ESC Platinum Series 25A 40A 80A 120A 150A 180A 260A
32-bit Brushless ESC For RC Helicopter, Fixed Wing Aircraft
Features:
1. High-performance 32-bit processor with a running frequency of 72MHzcombined with advanced algorithm optimizes the speed governing.
2. The built-in switch mode BEC with an adjustable voltage,supply enough power for your servos to operate efficiently.
3. With the Reverse Brake mode enabled when landing can effectivelyshorten the sliding distance of the fixed-wing aircraft.

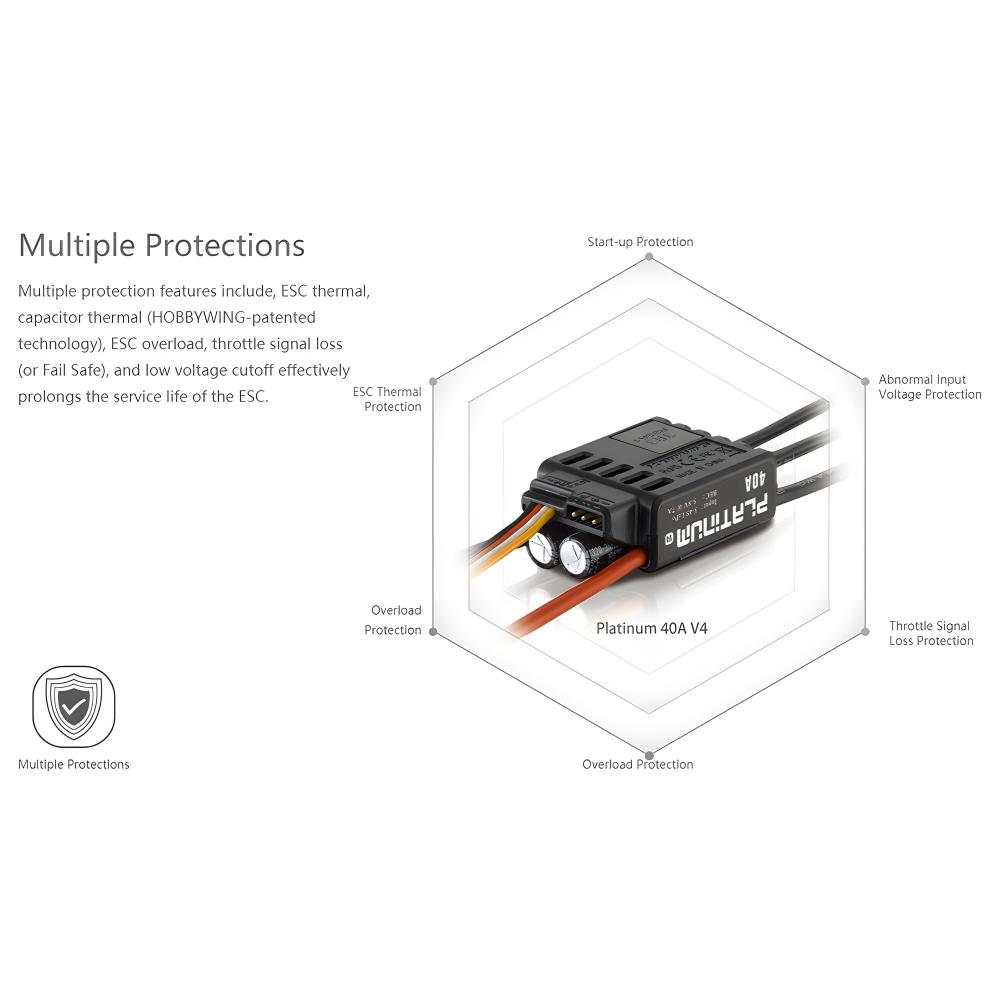

4. Multiple protection features include,Start-up protection,Current protection,Temperature protection,Overload protection,Throttle signal loss protection,Input voltage abnormality protection.

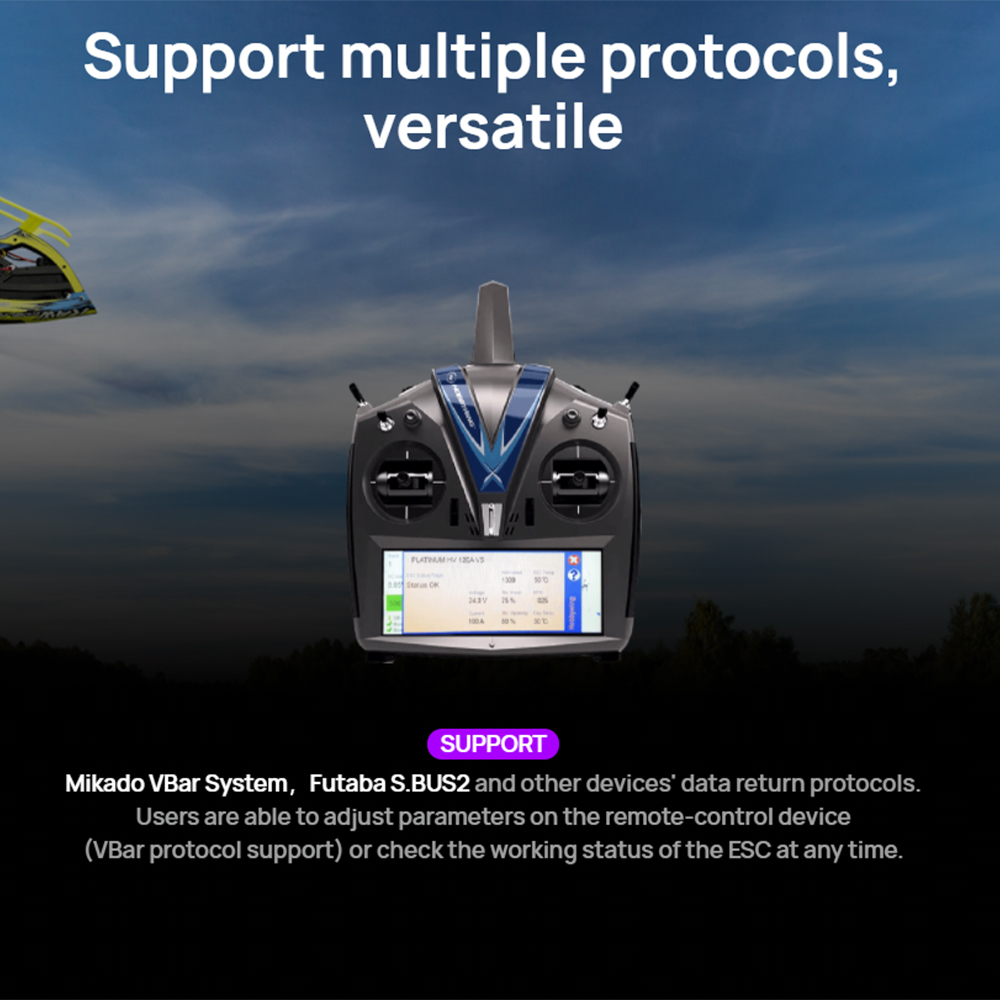

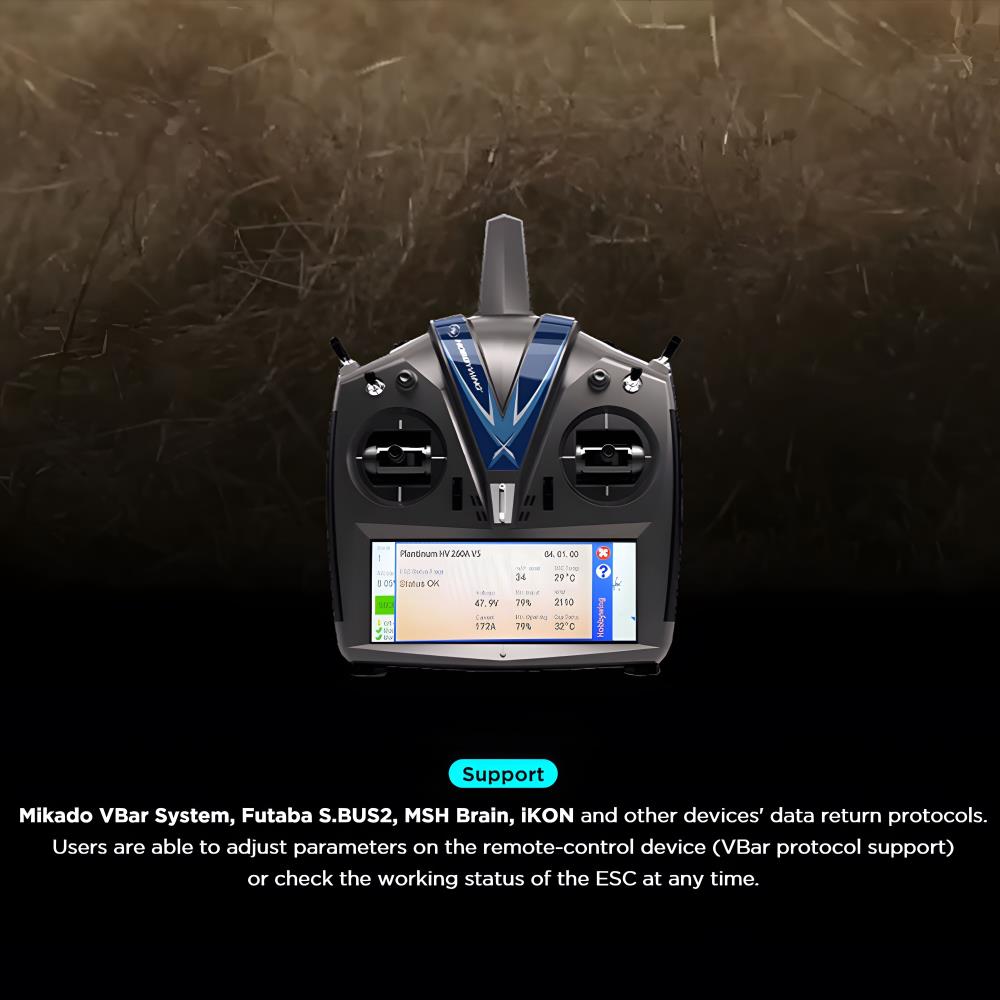

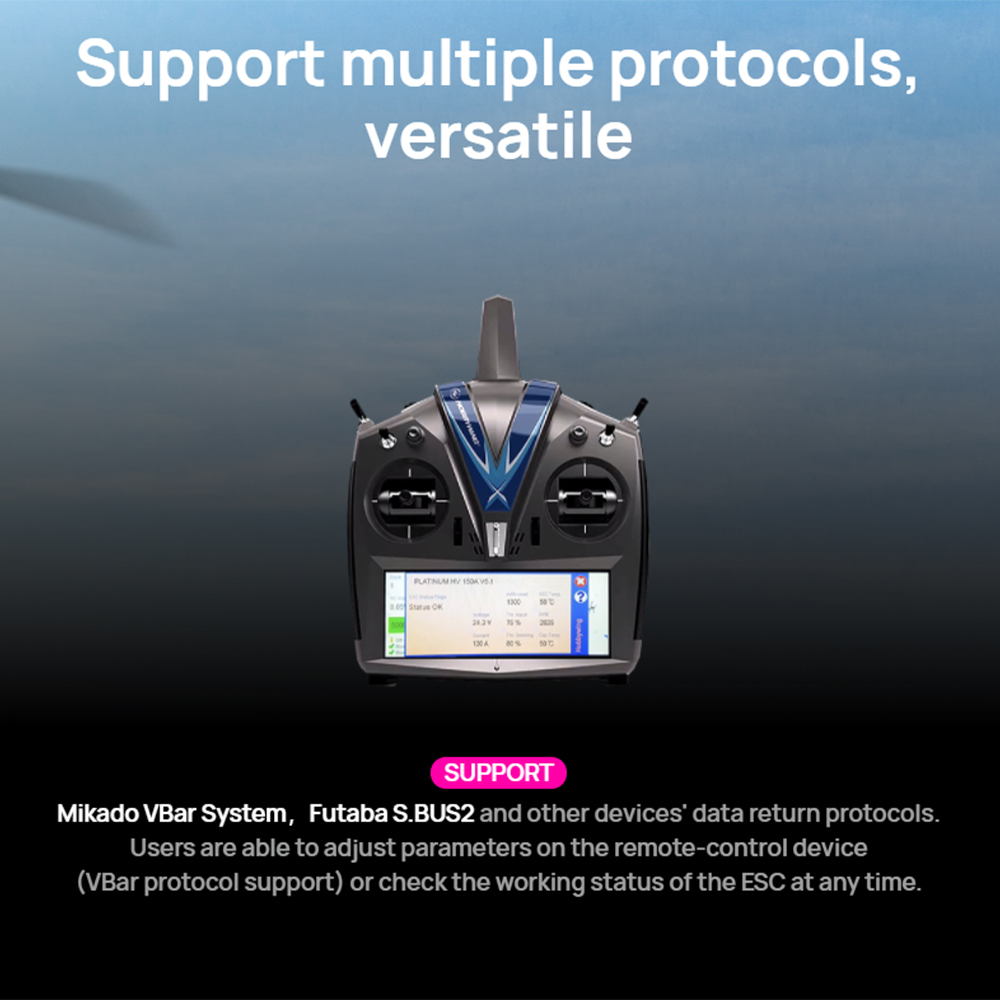

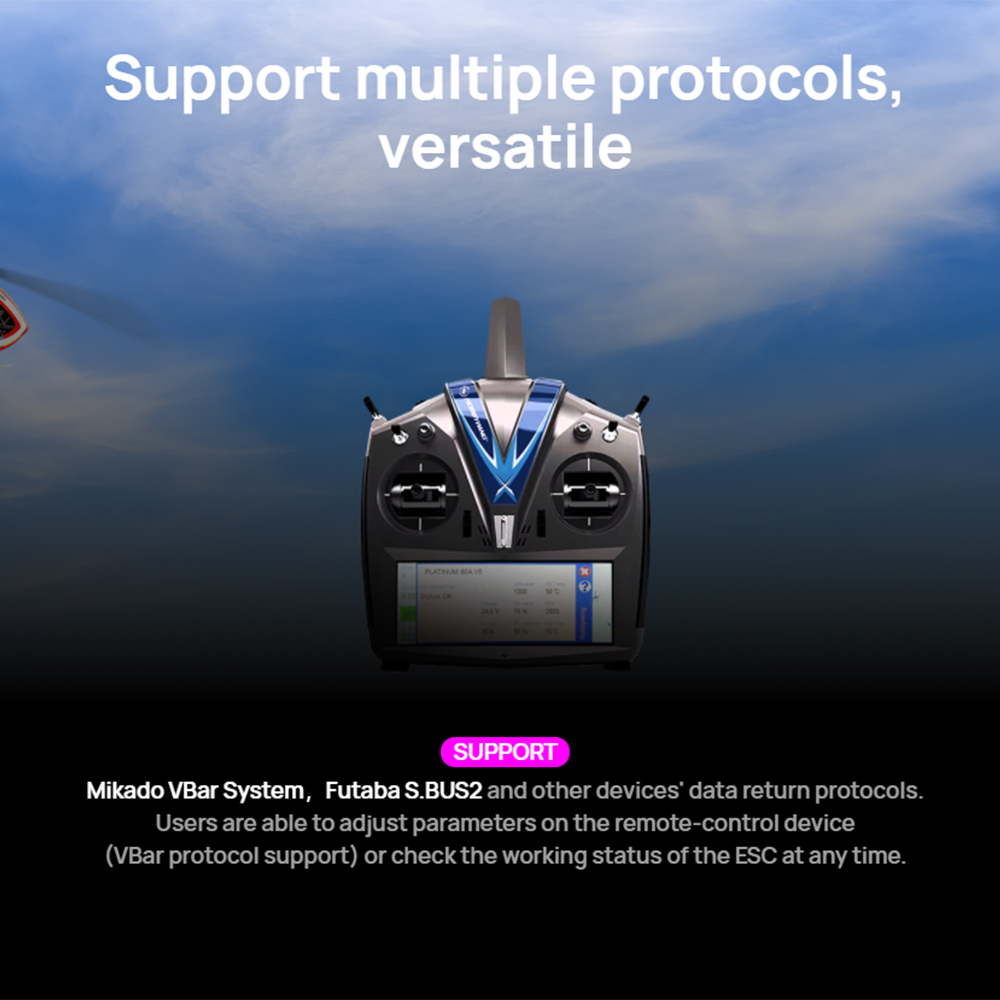

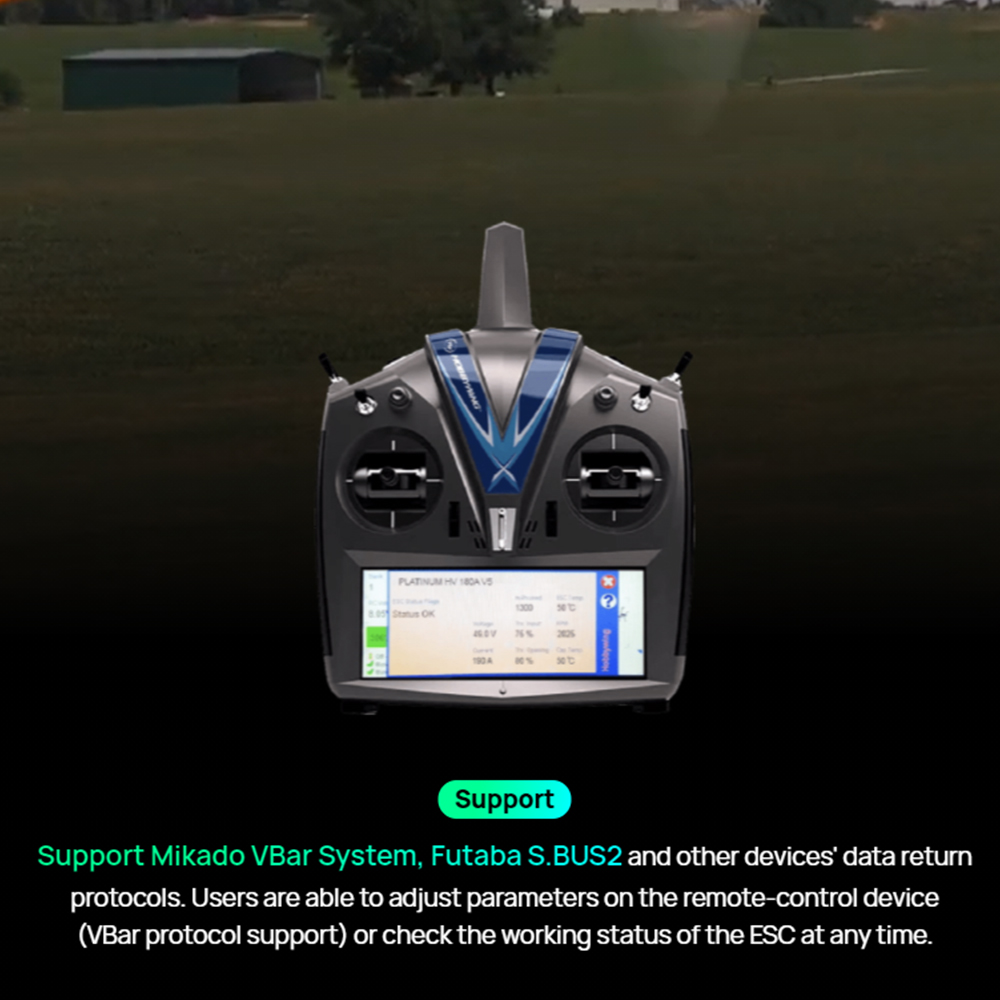

5. Support Mikado VBar System, Futaba S.BUS2 and other devices' data return protocols.

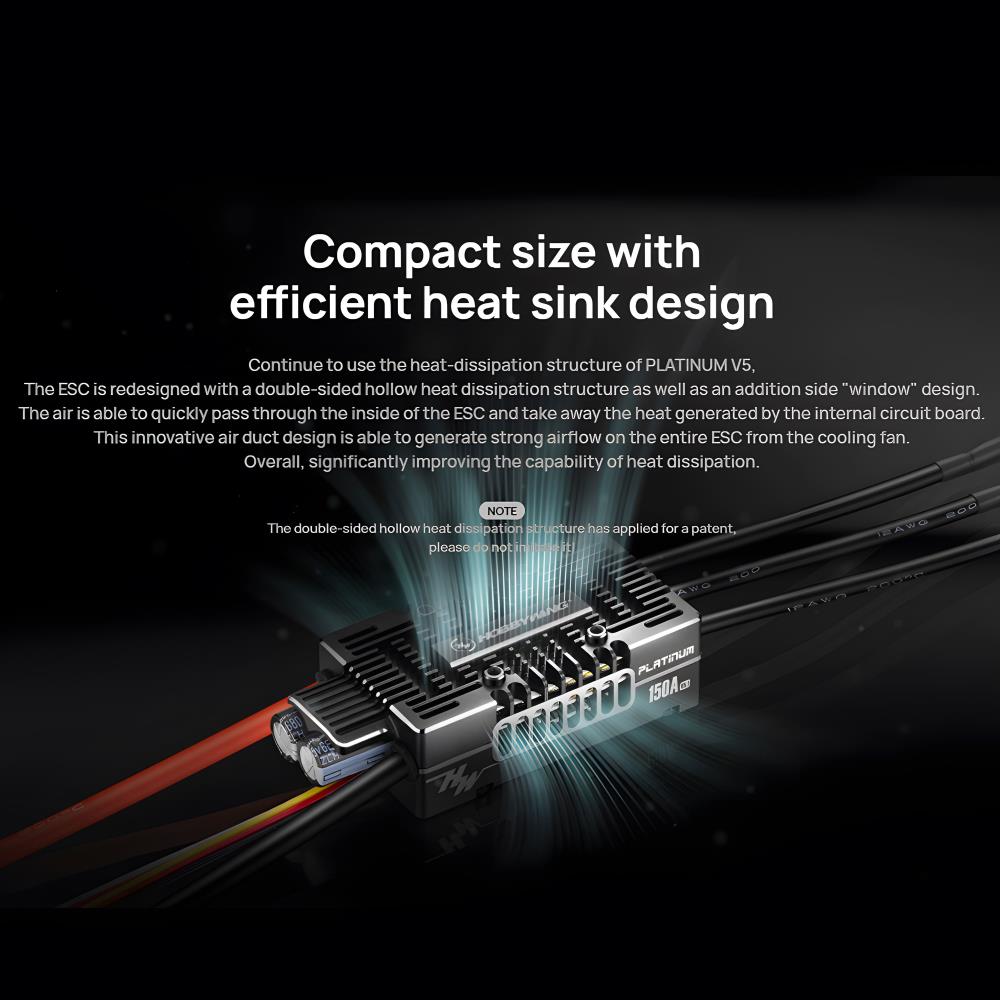

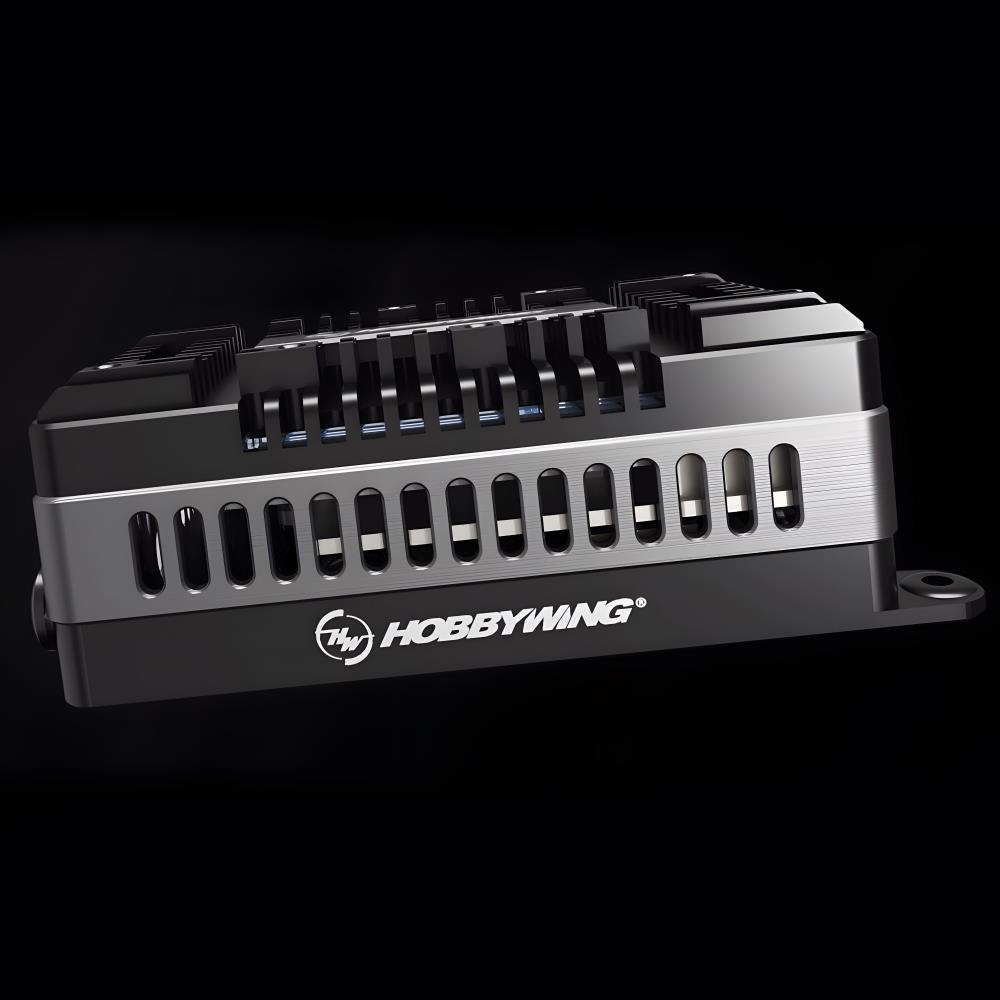

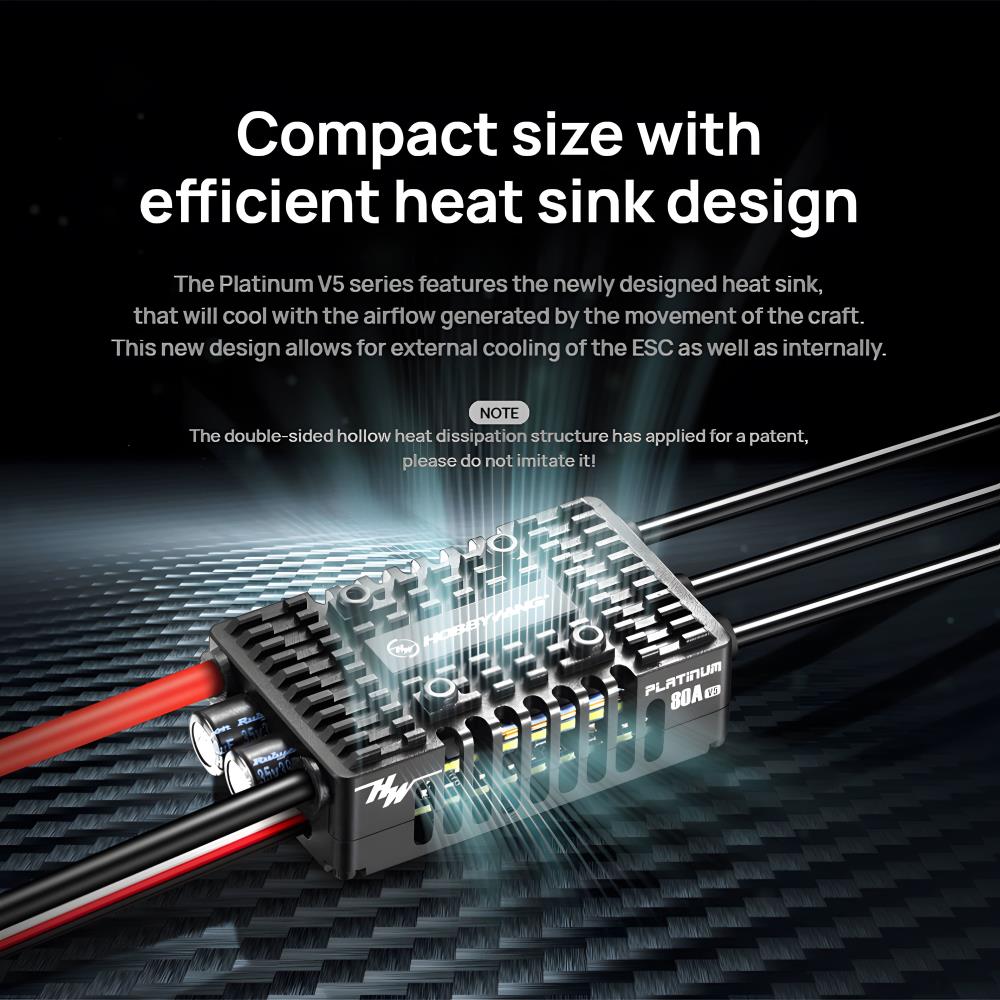

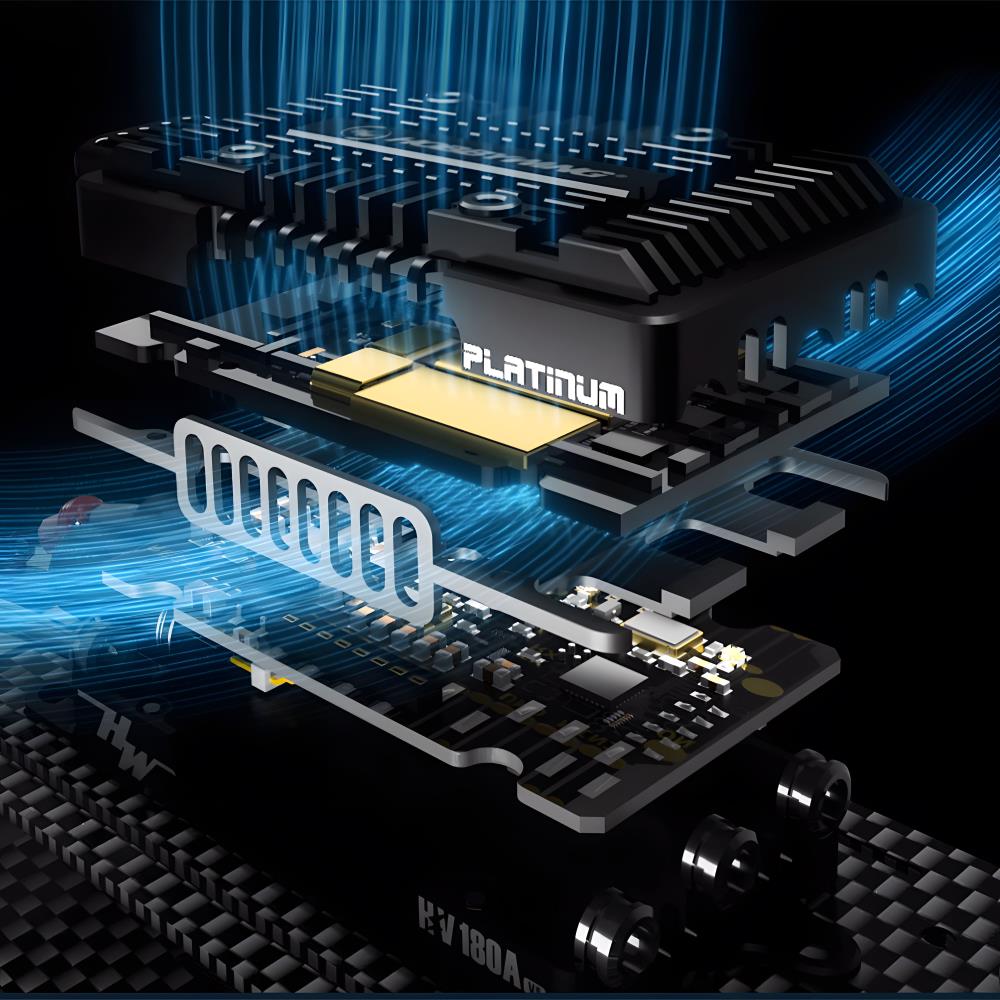

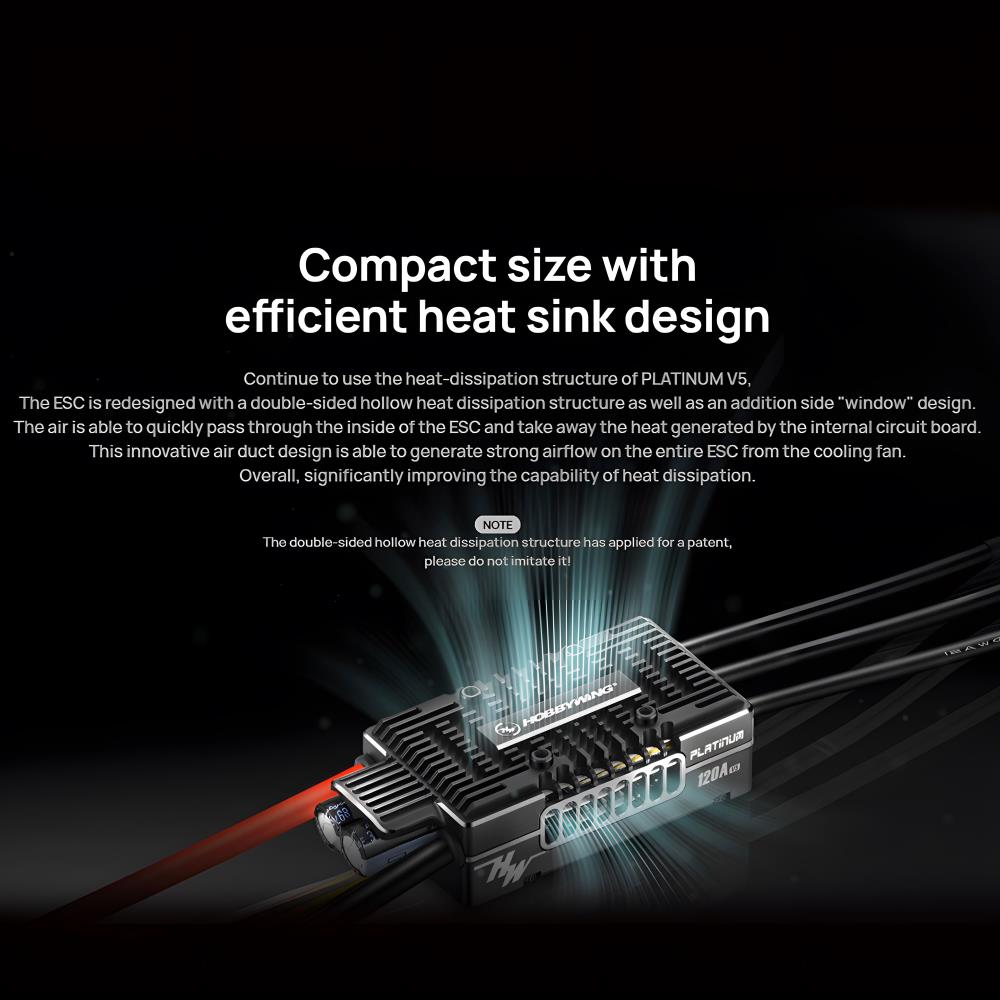

6. The ESC is redesigned with a double-sided hollow heat dissipation structure as well as an addition side "window" design,significantly improving the capability of heat dissipation
Description:
Platinum Series 25A 40A 80A 120A 150A 180A 260A 32-bit Brushless ESC The ESC is redesigned with a double-sided hollow heat dissipation structure,significantly improving the capability of heat dissipation,Support Mikado VBar System, Futaba S.BUS2 and other devices' data return protocols.

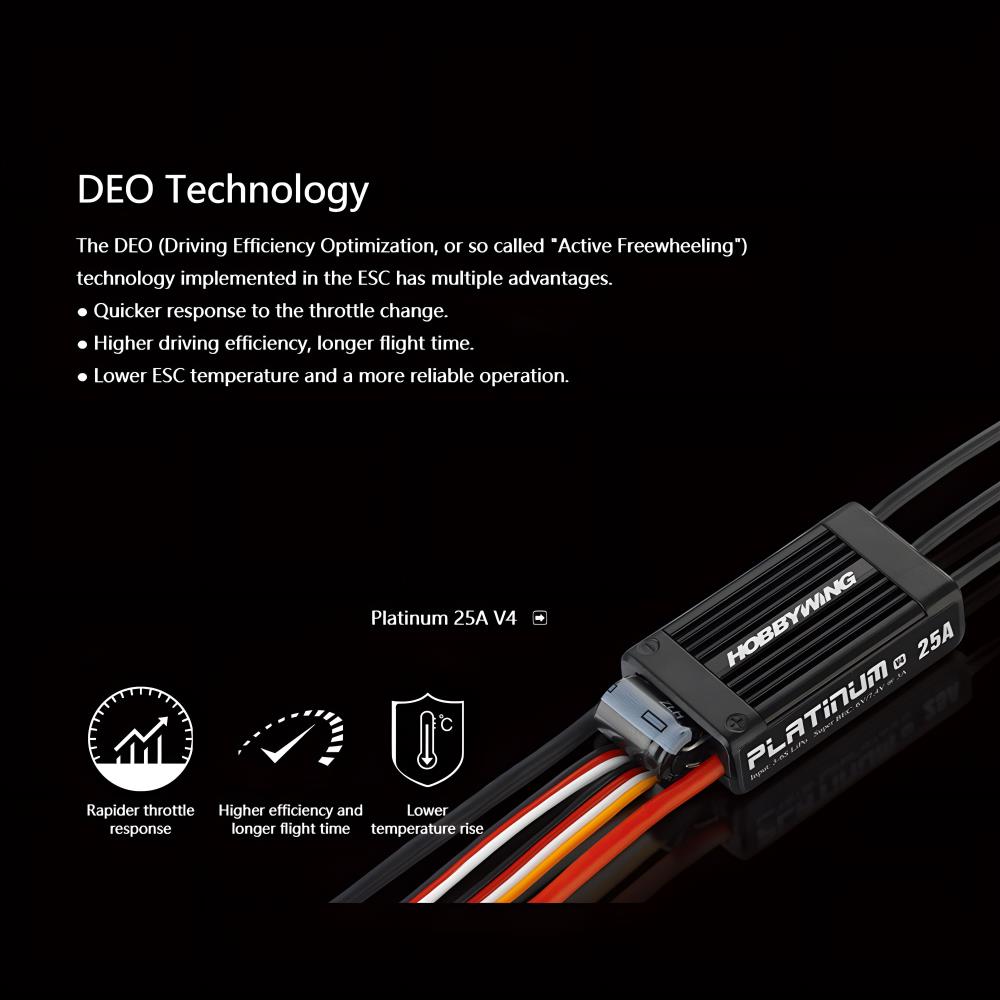

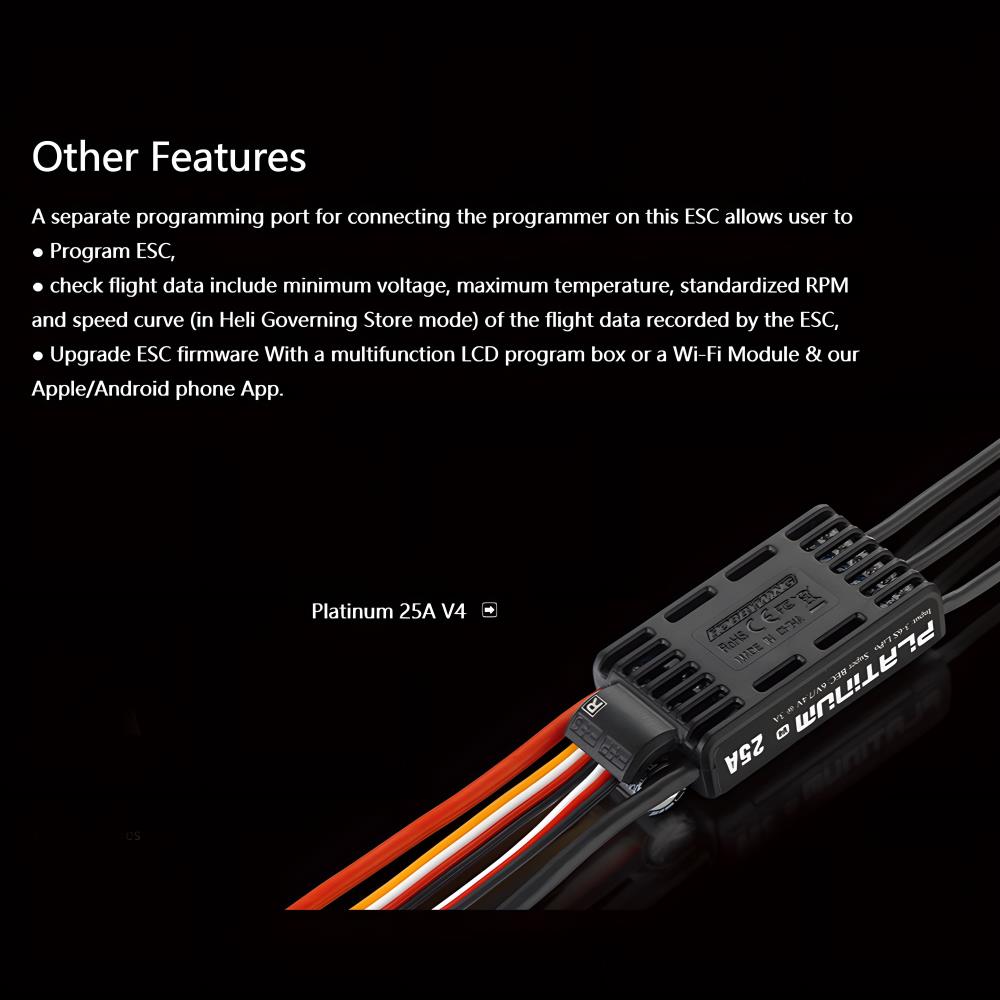

25A V4 Specifications:
Brushed/Brushless: Brushless
Cont Current: 25A
Peak Current: 40A
Input: 3-6S Lipo
BEC Output: Switch Mode:6V/7.4V3A
Input Wires: Red-16AWG-100mm*1/Black-16AWG-100mm*1
Output Wires: Black-18AWG-100mm*3
Output Connecotors: 3.5mmGold Connectors (Female)
Size: 47x22x10mm
Weight:27g
Application: 250Class electric Helicopter(Main Blades:200-300mm)
electric fixed-wing.multi-rotor

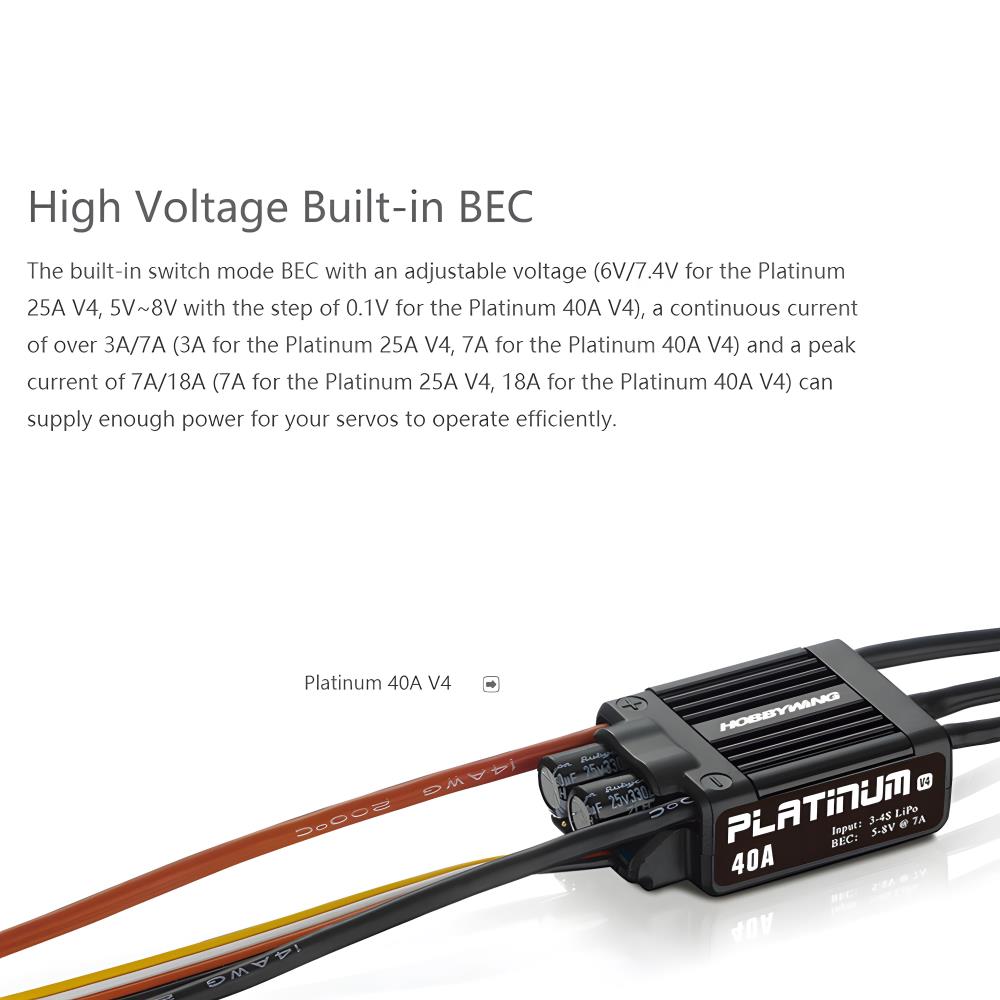

40A V4 Specifications:
Brushed/Brushless: Brushless
Cont Current: 40A
Peak Current: 60A
Input: 3-4S Lipo
BEC Output: 5-8V Adjustable, Cont./Peak :7A/18A
Input Wires: Black & Red 14AWG input wires / Black 14AWG output wires
Size: 48x30x15mm
Weight: 47g
Application: 300 Class electric Helicopter (Main Blades: 280-325mm), electric fixed-wing, multi-rotor

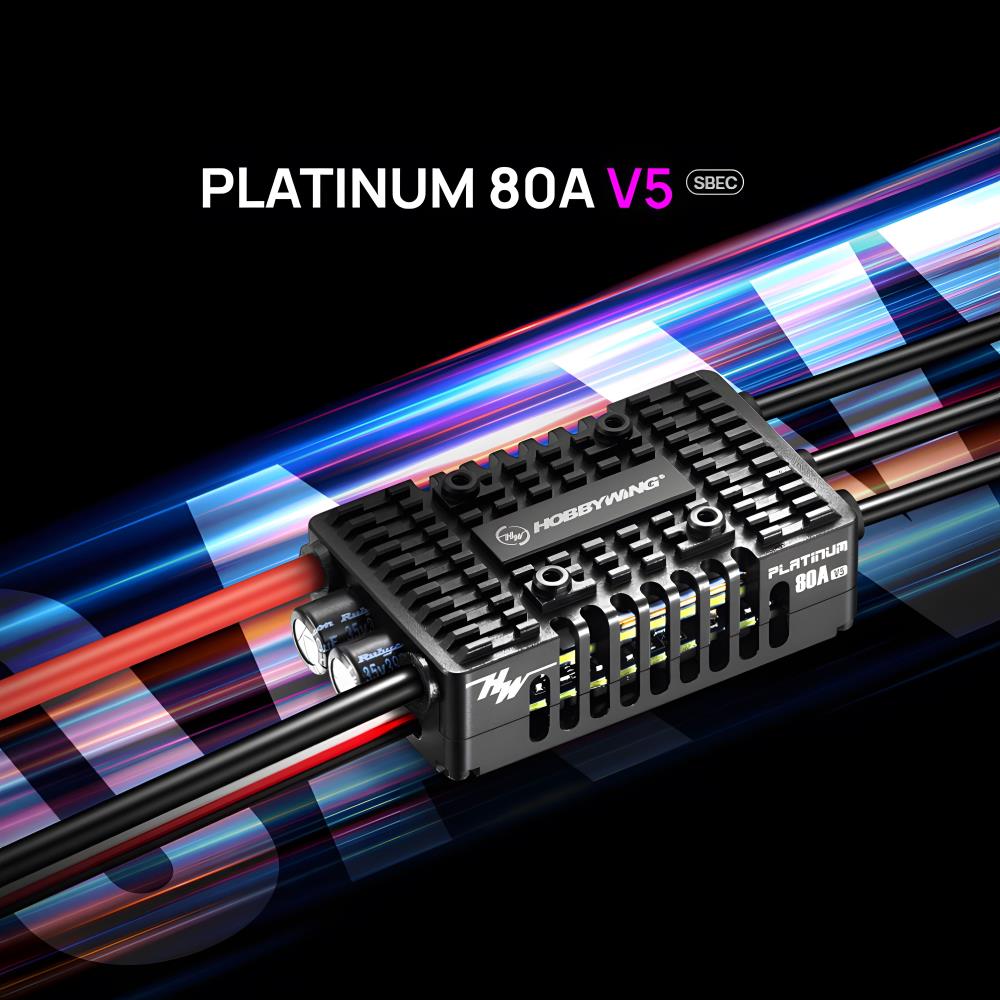

80A V5 Specifications:
Brushed/Brushless: Brushless
Cont Current: 80A
Peak Current: 120A
Input: 3-8S Lipo
BEC Output: 5-12V Adjustable, Cont./Peak :8A/20A
Input Wires: Red-12AWG-100mm*1/Black-12AWG-100mm*1
Output Connecotors: 3.5mm Gold Connectors (Female)
Size: 60.5*33*17.6mm (without fan)
Weight: 77.5g (with wires, no fan)
Application: 325-420 class electric helicopter (main blade length325-420mm),or fixed-wing

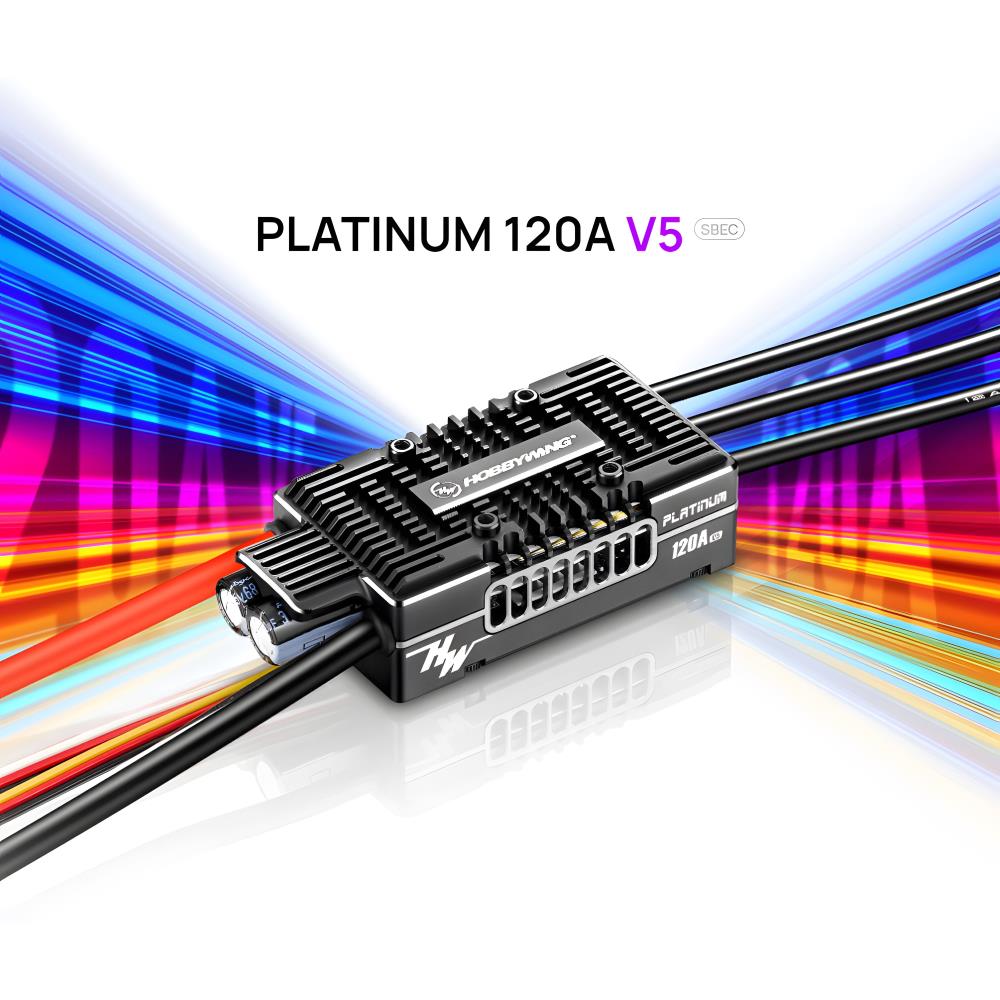

120A V5 Specifications:
Brushed/Brushless: Brushless
Cont Current: 120A
Peak Current: 150A
Input: 3-8S Lipo
BEC Output: Switch Mode:5-12V&Cont.10A，Peak30A
Telemetry Function: Mikado VBar : Futabas.Bus2 :etc
Input Wires: Red-10AWG-150mm*1/Black-10AWG-150mm*1
Output Wires: Black-12AWG-100mm*3
Output Connecotors: 4.0mm Gold Connectors (Female)
Size: 83.2*37.1*22.5mm(without fan)
Weight:150.4g(with wires, no fan)
Application scope: 420-520 class electric helicopter (main blade length420-520mm),or fixed-wing

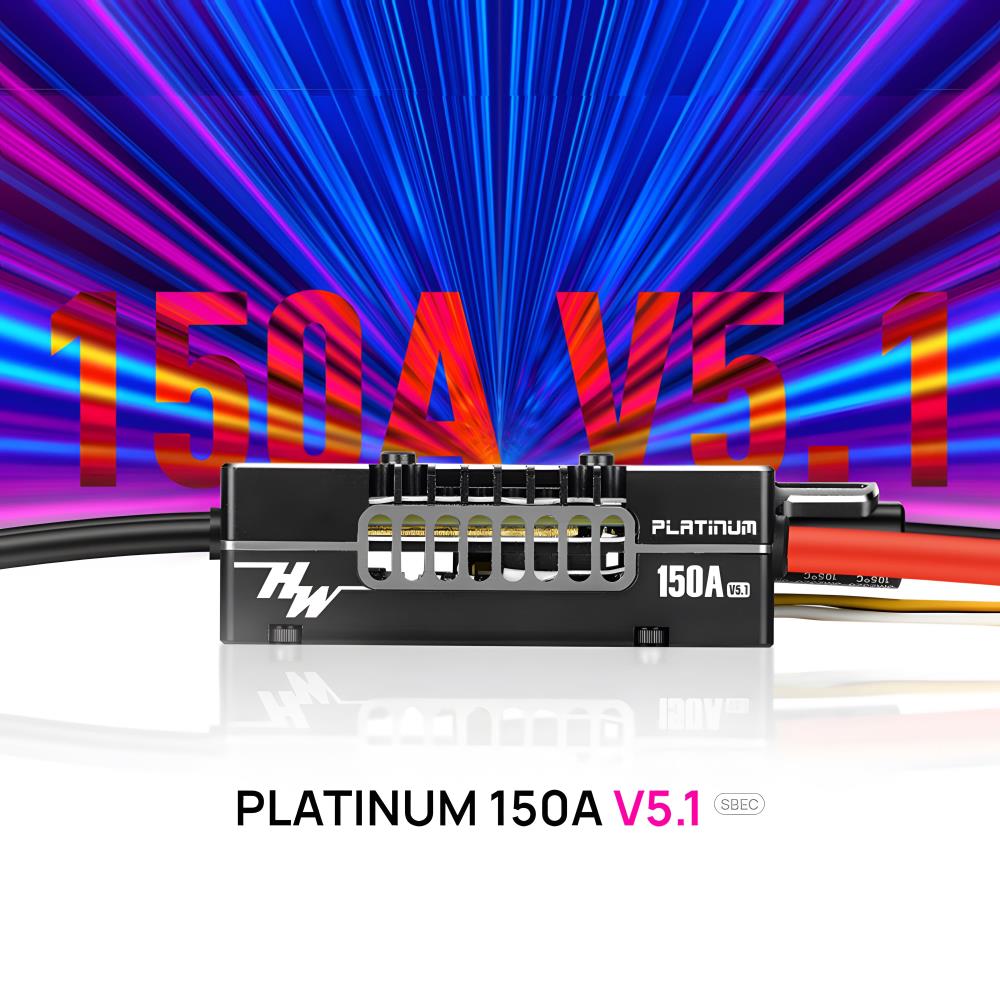

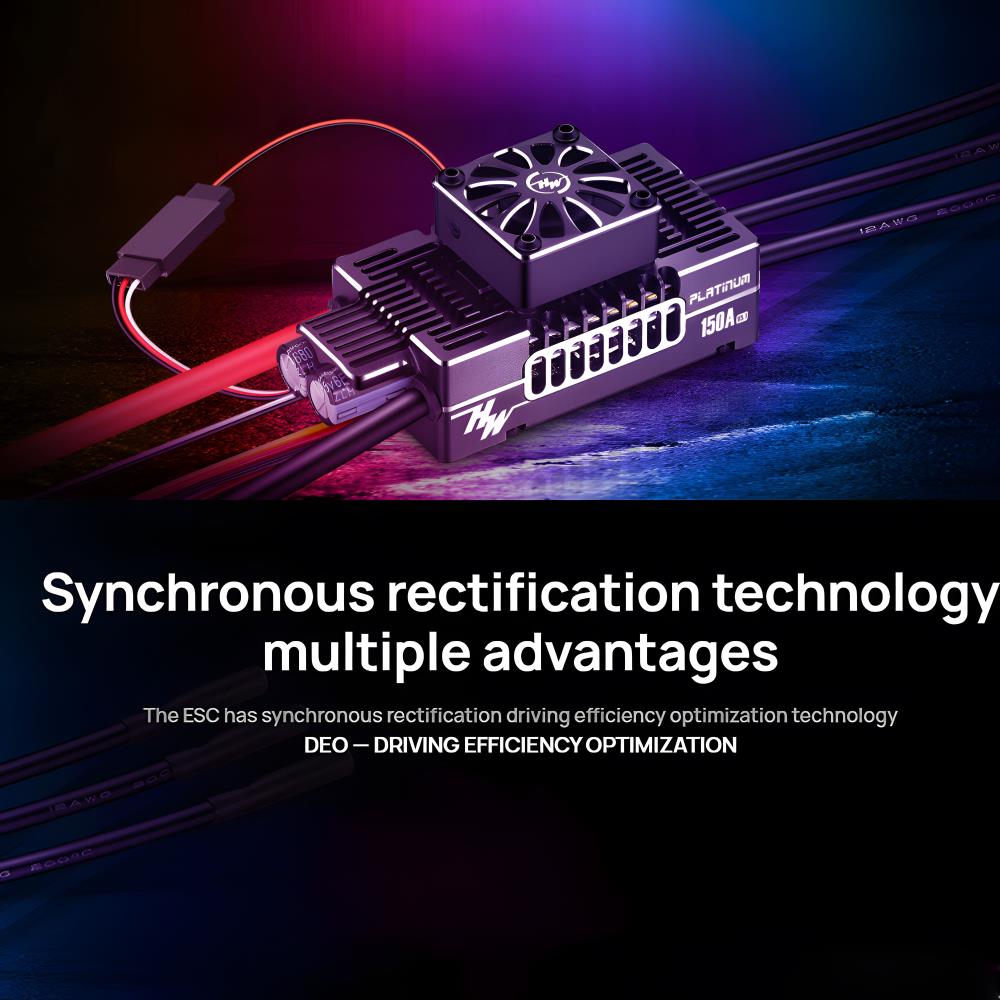

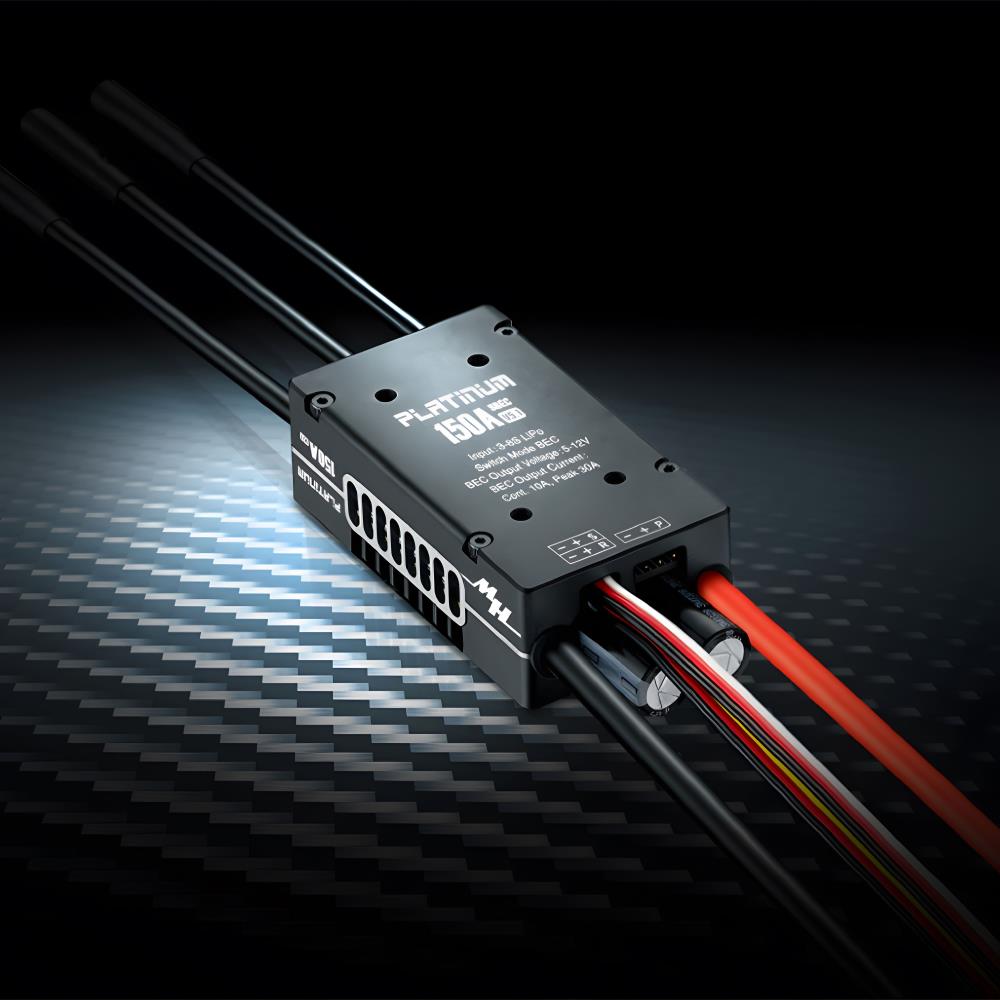

150A-V5.1 Specifications:
Brushed/Brushless: Brushless
Cont Current: 150A
Peak Current: 180A
Input: 3-8S Lipo
BEC Output: Switch Mode:5-12V& Cont.10A ,Peak30A
Input Wires: Red-10AWG-150mm*1/Black-10AWG-150mm*1
Output Connecotors: 4.0mm Gold Connectors (Female)
Size: 83.2*37.1*22.5mm (without fan)
Weight: 150.4g (with wires, no fan)
Application: 520-580 class electric helicopter (main blade length520-580mm).or fixed-wing

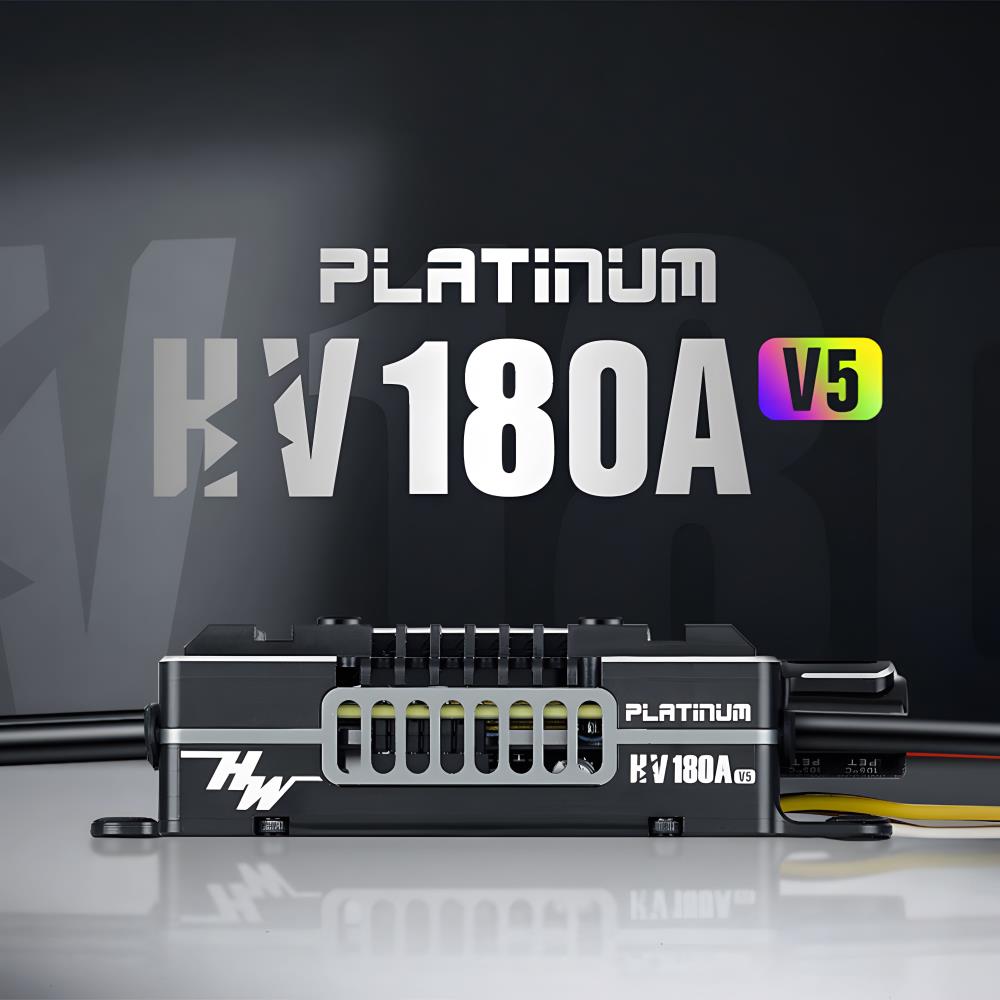

180A SBEC V5 Specifications:
Brushed/Brushless: Brushless
Cont Current: 180A
Peak Current: 260A
Input: 6-14S Lipo
BEC Output: Switch Mode : 5-12V& Cont.10A , Peak 30A
Input Wires: Red-10AWG-255mm*1/Black-10AWG-255mm*1
Size: 100.6*45.5*261mm (without fan)
Weight: 250.6g (without fan)
Application: 550-700 class electric helicopter (main rotor length 550-700mm),or fixed-wing

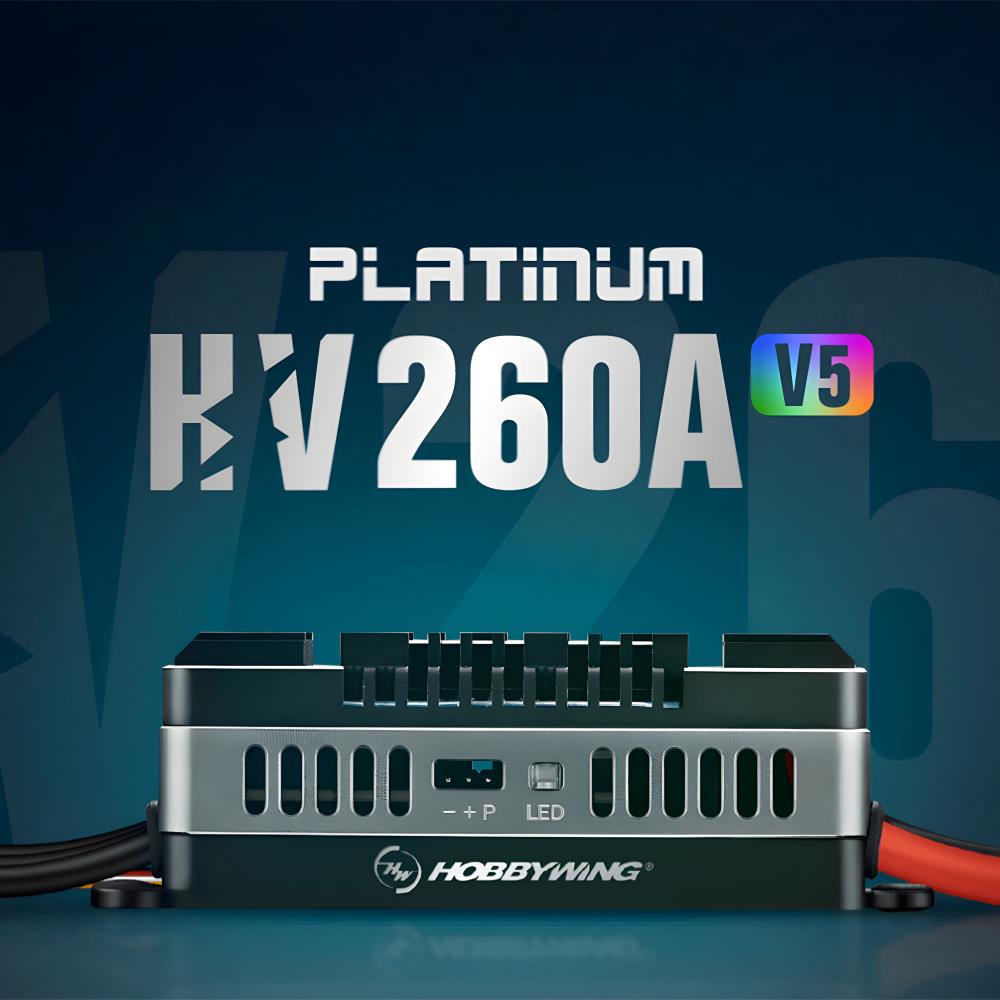

260A V5 Specifications:
Brushed/Brushless: Brushless
Cont Current: 260A
Peak Current: 400A
Input: 6-14S Lipo
260A SBEC V5 BEC Output: 5-12V adjustable (adjusted 0.1V); output current cont. 10A, Peak 30A
260A OPTO V5: NO BEC
Input Wires: 1 x black and 1x red 8AWG silicone wires
Mounting holes: M3, 39 x 98mm
Application scope: 700-800 class electric helicopter(main rotor length 690-880mm),or fixed-wing
1* Platinum brushless ESC
Note:
Only the above package content, other products are not included.
1.Due to the difference between different monitors,the picture may not reflect the actual color of the item. Weguarantee the style is the same as shown in the pictures.
2.Due to the manual measurement and different measurement methods, please allow 1-3mm deviation.Thanks!
Before purchase:
1.All the goods are ready stock, we will arrange the shipment at once if we receive the order.
2.Please read the item description, if you have any question, do not hesitate to contact us.
3.No warranty,if you receive a defect item,please contact us at once with item picture.
4.Use the vouchers for more saving.
After purchase:
1.If you are satisfied,please express your use feeling.
2.Please contact us before you are going to give us bad review. We are helpful and will solve the problems. If you receive a defect item,please contact us at once with item picture or video.
