CMSAS

Coilover Shock Suspension Lowering Kit for Chevrolet Impala 2000 - 2011

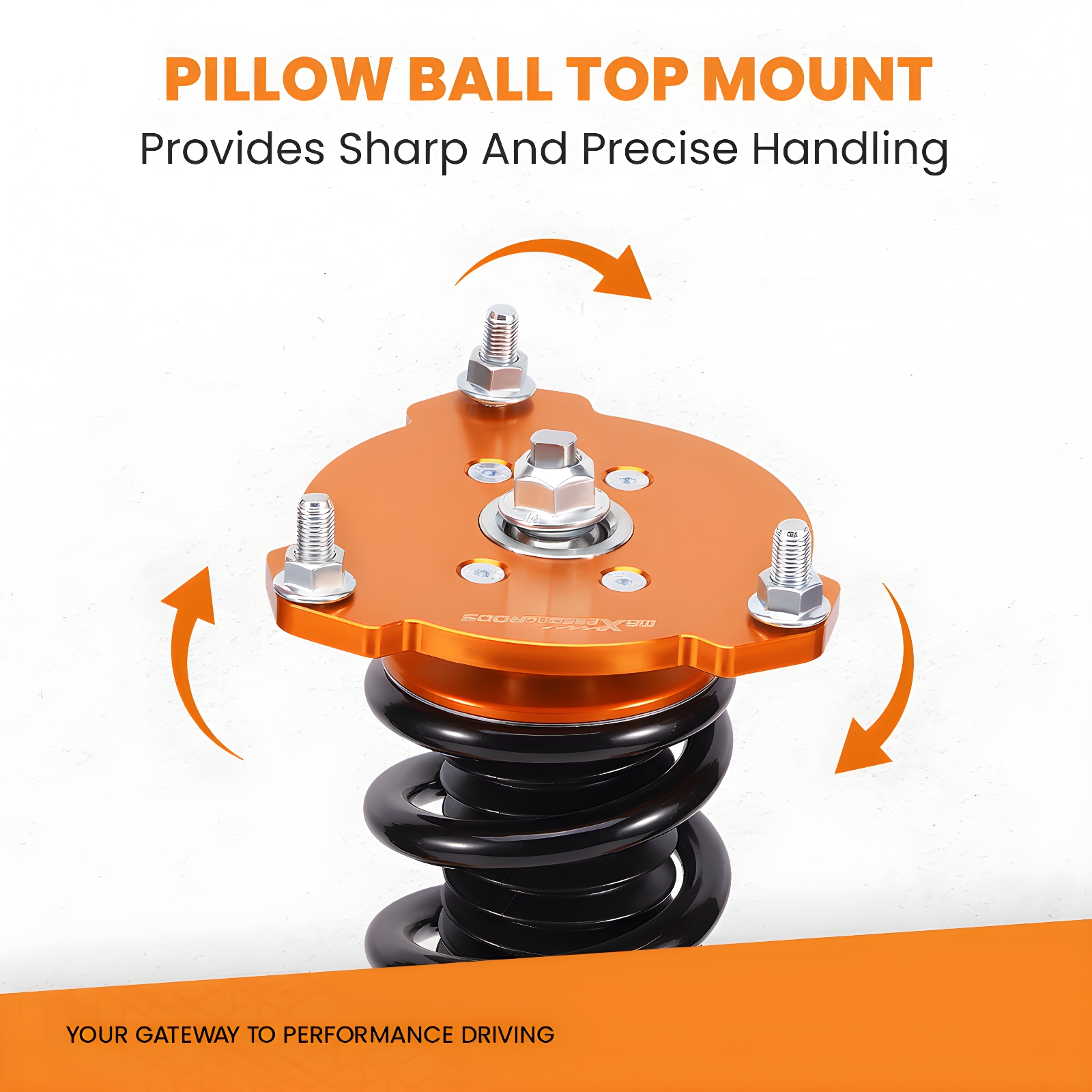

Aluminum Top Mount with Pillow Ball

Aluminum Top Mount with Pillow Ball Provides More Precise Feel From Suspension And Steering.

Anodized Shock Body With Anti-Corrosion Coating

Manufactured From High Quality T-6061 Billet Aluminum With Anodized Finish For Superior Strength And Corrosion Protection.

Drops From 1 to 3 Inch From Factory Ride Height

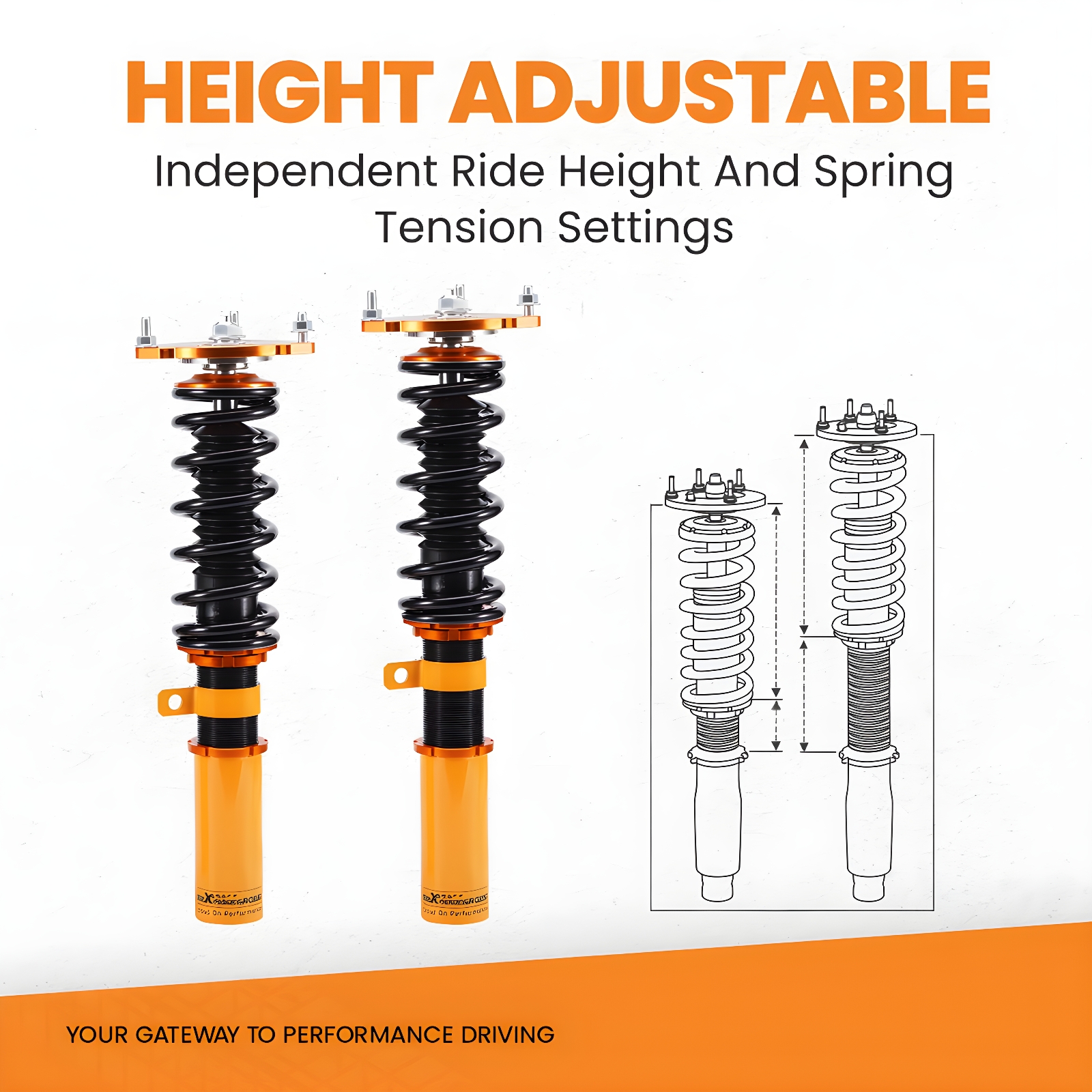

Full Threaded Absorber Tube Casing For Independent Height Adjustment.

Durable Cold Wound Steel & Heat Treated Coils

High Rigidity 55CrSi Steel Cold-bent Coil Springs - Over 600k Continuously Stress Test With 0.04% Distortion Rate.

Specifications


Top Mount Material Aluminum
Height adjustable Yes, Lowering 1-3 inch
Front Spring length 200 mm
Rear Spring length 230 mm
Front spring length 10 kg/mm (560 lbs/in)
Rear spring length 6 kg/mm(336lbs/in)
Front spring inner diameter 70.5 mm
Rear spring inner diameter 70.5 mm
Package Including 2 Front + 2 Rear
Warranty 1 Year

Features


1. Full length height adjustable---lower your car 1-3 incheds to get performance ride
2. Adjustable camber ( for some models)
3. Independent Ride Height and Spring Pre-load Adjustments
4. Twin-Tube System for Comfortable Ride on Streets
5. Coated finish to avoid rust

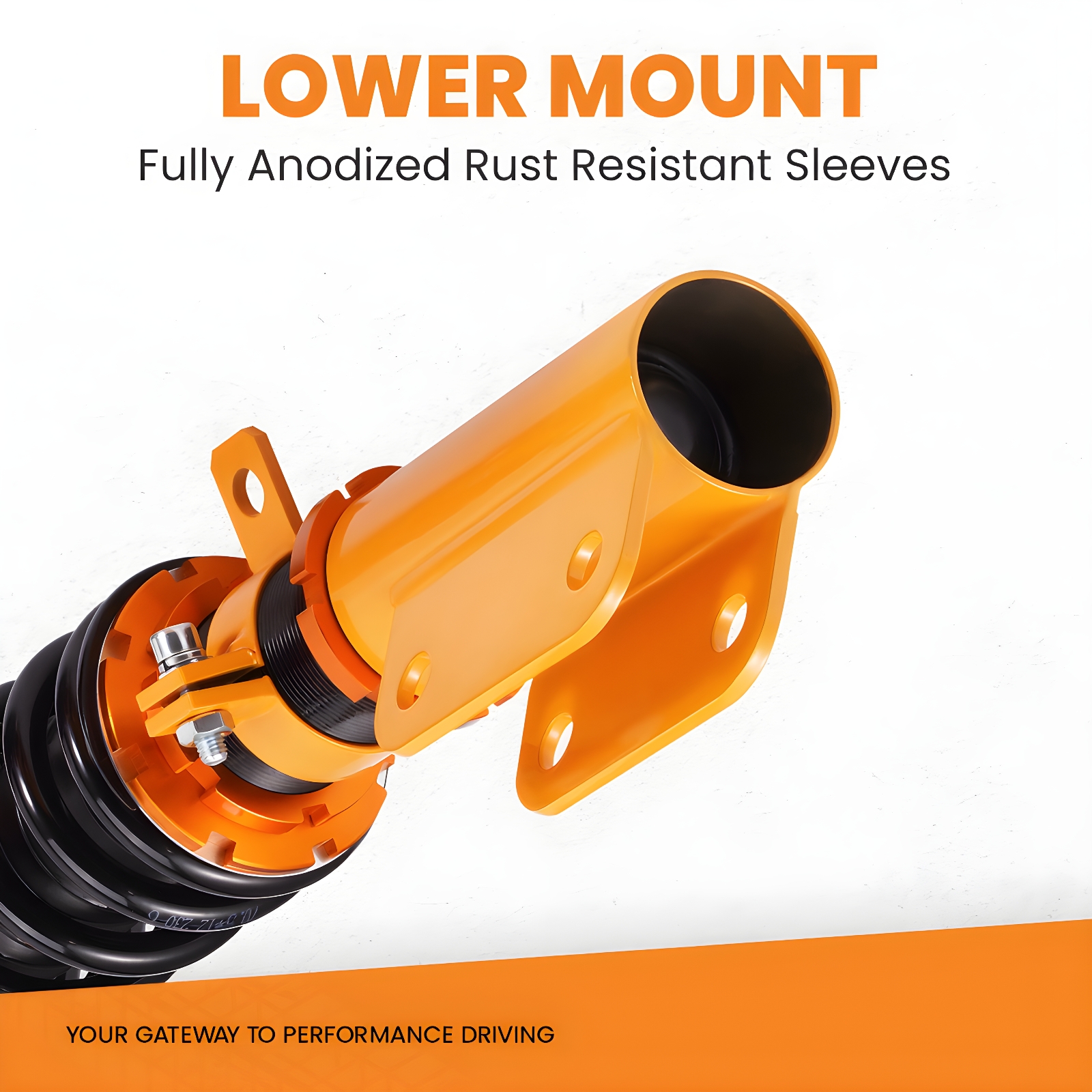

6. Weight Saving Aluminum Components And heavy duty Steel Lower Mount Brackets
7. Simple install,  Easy to adjust.


Applications


For Buick Century 1997 - 2005 excludes 18" wheels
For Buick Regal 1997 - 2004 Excludes models with 18" wheels
For Buick Allure 2005 - 2009 exclude models with 17" & 18" wheels
For Buick Lacrosse 2005 - 2009 Excludes models with 17" & 18" wheels Does not fit Super Models
For Chevrolet Impala 2000 - 2011 Excludes models with 17" & 18" wheels Does not fit Taxi Package


Specifications


- Top mounts: Front and rear Pillow ball top mounts
- Damping adjustable: Not available
- Camber adjustable: Not available
- Height adjustable: Yes, lowering 25-75mm depending on the vehicle models
- Spring rate Front: 10 kg/mm (560 lbs/in)
- Spring rate Rear: 6 kg/mm (336 lbs/in)
- Front spring inner diameter: 70.5 mm
- Rear spring inner diameter: 70.5 mm

- Spring length Front: 200 mm
- Spring length Rear: 230 mm
- Shock type: Twin tube
- Spring Preload: 7-10 mm
- Color: Golden body with black spring


Package included


2x Front coil-overs
2x Rear coil-overs
2x C spanners


★ 30-day Money Back & 1-Year Replacement Guarantee. Please feel free to contact us if there is any question.

Twin-Cylinder Design - Allows Sufficient Stroke Within The Shock Absorber. Independent ride height and spring preload adjustments; Lightweight aluminum shock body and 6061-T6 forged aluminum / carbon steel brackets; 1 Year Warranty from Date of Purchase.
