Product View
Product Details
Features
1.Ultra-wide bandwidth coverage: support 100kHz-6GHz full band, applicable to a variety of wireless communication and signal enhancement scenarios.
2. Excellent noise performance: the noise figure is only 0.4dB at 1.95GHz, ensuring high sensitivity signal reception.
3. High gain and linearity: Provides 20dB gain and output IP3 up to +35dBm to ensure signal quality and strength.
4. Low power consumption design: only 5V 70mA power supply, suitable for all kinds of RF experiments, teaching and research projects in the signal testing and analysis.
5. Compact and durable structure: small size, 50 ohm matching impedance, SMA female interface, easy to integrate and use.
1.Ultra-wide bandwidth coverage: support 100kHz-6GHz full band, applicable to a variety of wireless communication and signal enhancement scenarios.
2. Excellent noise performance: the noise figure is only 0.4dB at 1.95GHz, ensuring high sensitivity signal reception.
3. High gain and linearity: Provides 20dB gain and output IP3 up to +35dBm to ensure signal quality and strength.
4. Low power consumption design: only 5V 70mA power supply, suitable for all kinds of RF experiments, teaching and research projects in the signal testing and analysis.
5. Compact and durable structure: small size, 50 ohm matching impedance, SMA female interface, easy to integrate and use.
Specification

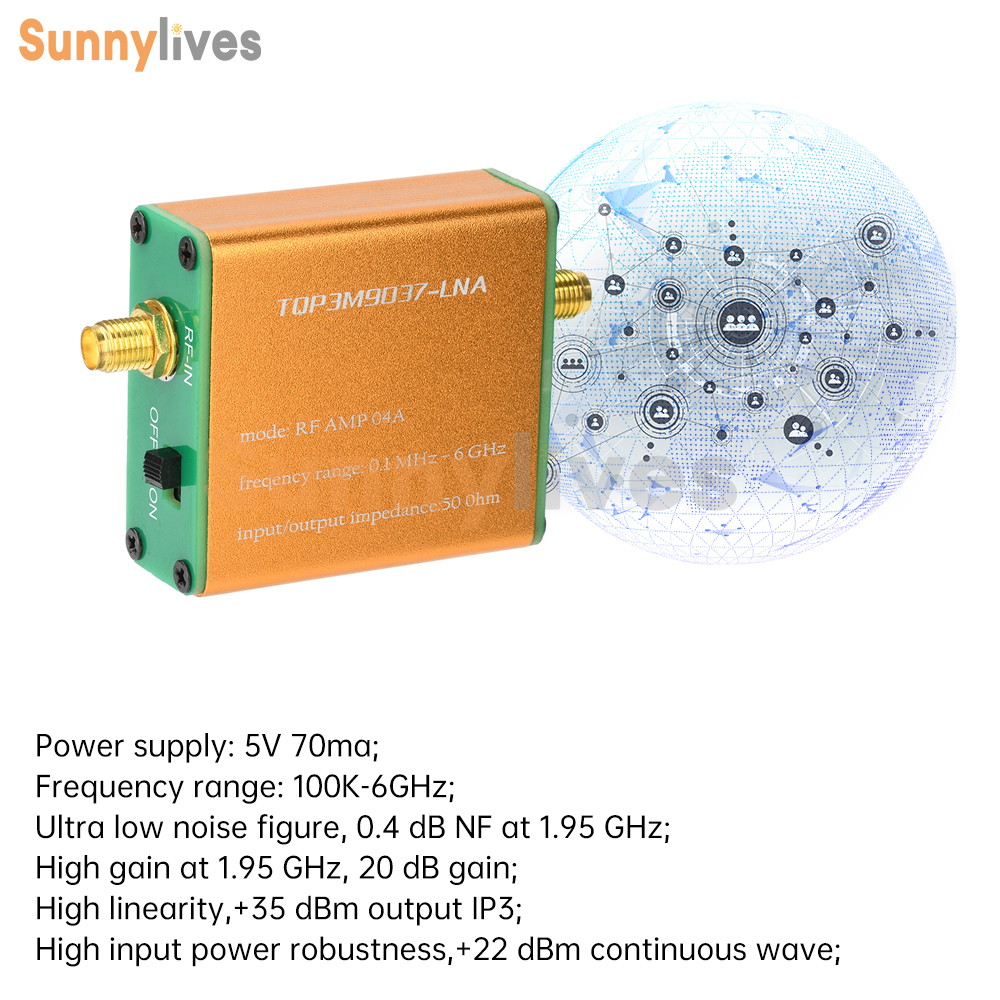

Power supply: 5V 70ma.
Frequency range: 100K-6GHz.
Ultra-low noise figure, 0.4 dB NF at 1.95 GHz.
High gain at 1.95 GHz, 20 dB gain.
High linearity, +35 dBm output IP3.
High input power ruggedness, +22 dBm continuous wave.
Stabilized performance.
50 ohm input/output.

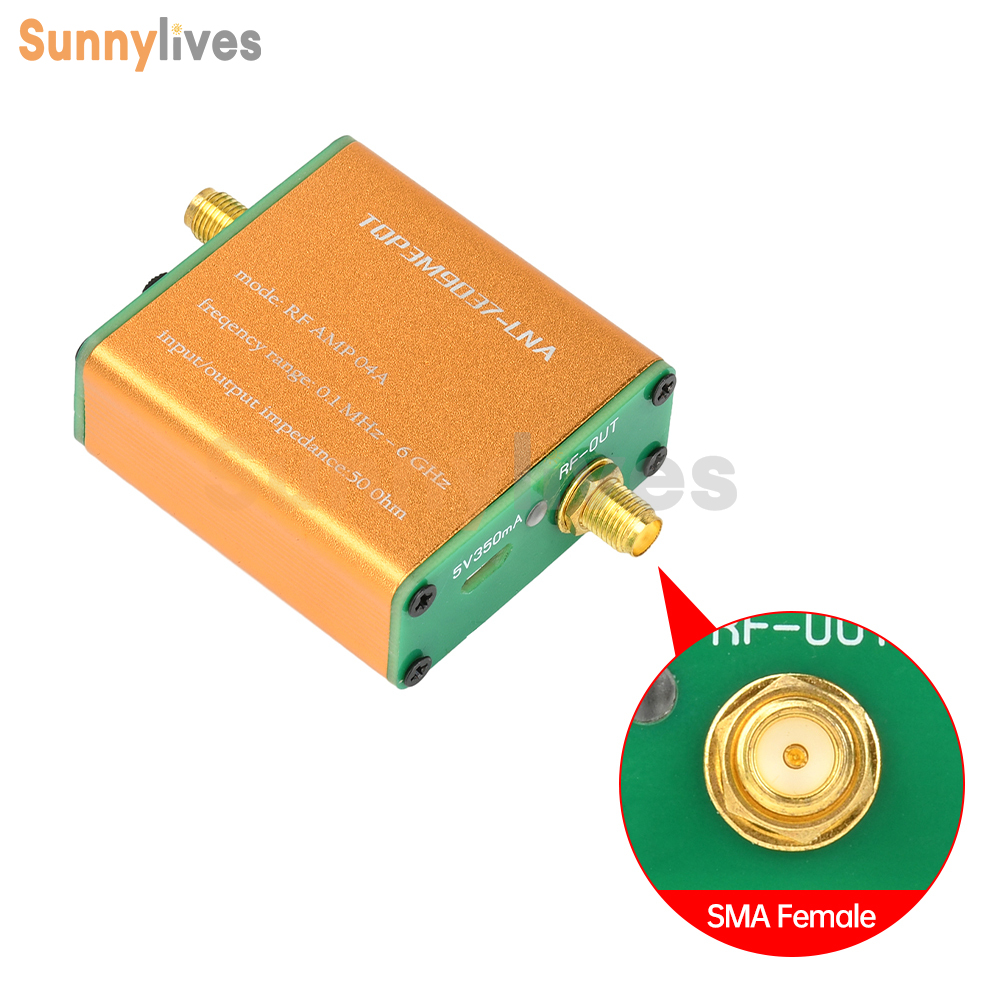

Connector:SMA female.

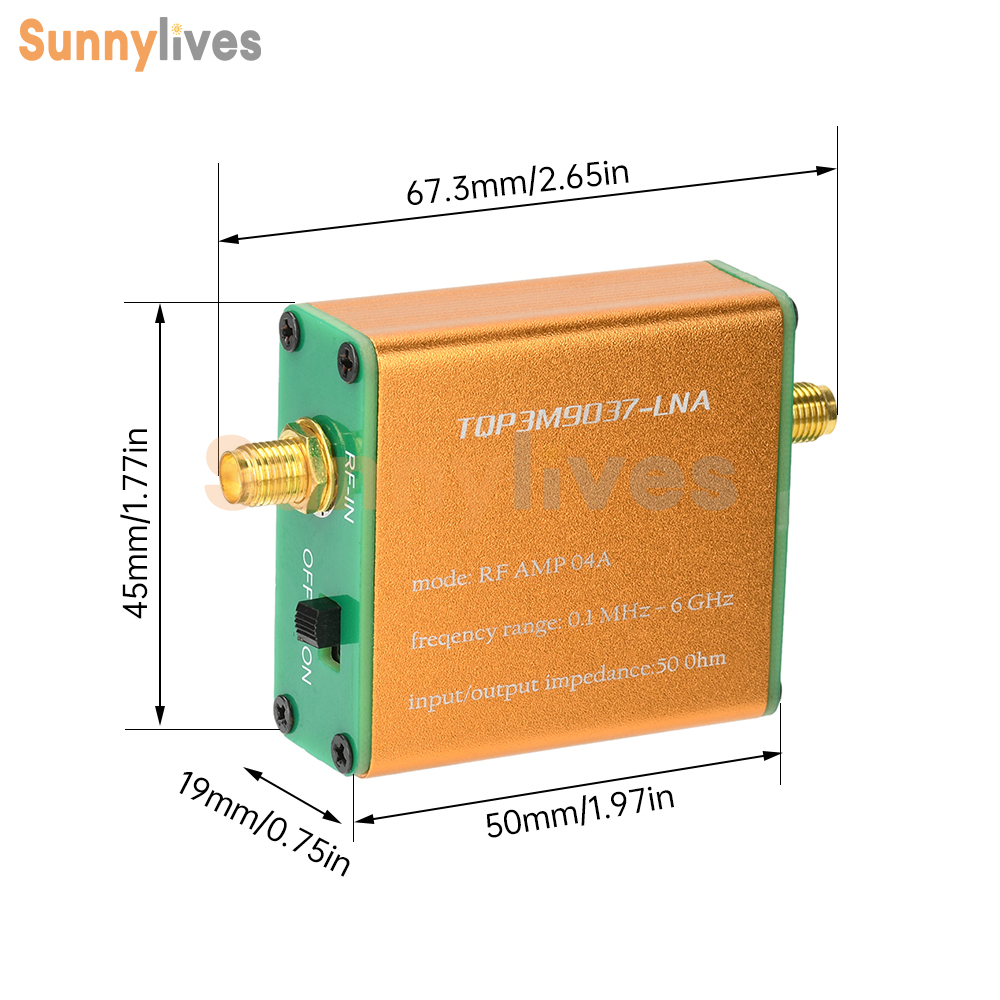

Dimension:48*43*18.5mm(not including connector).

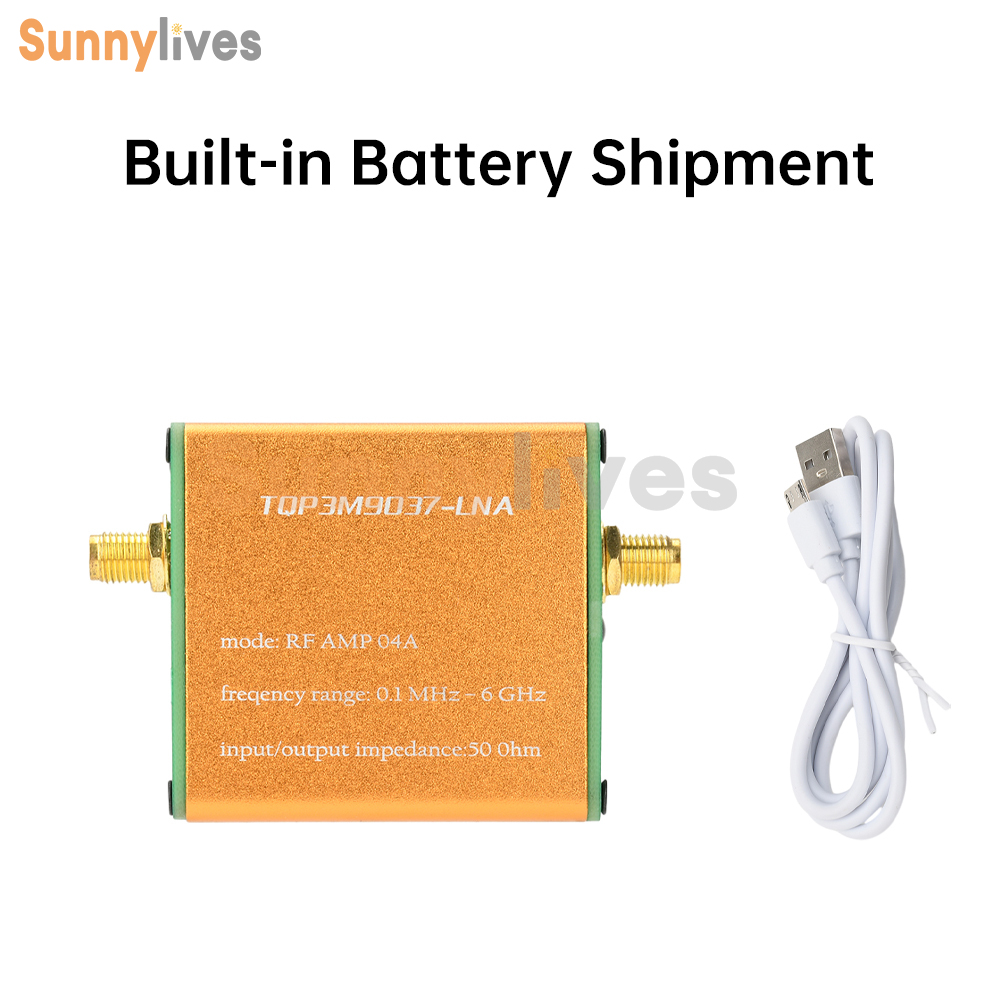

Battery-less version can be added with 3.7V 200mAh battery.

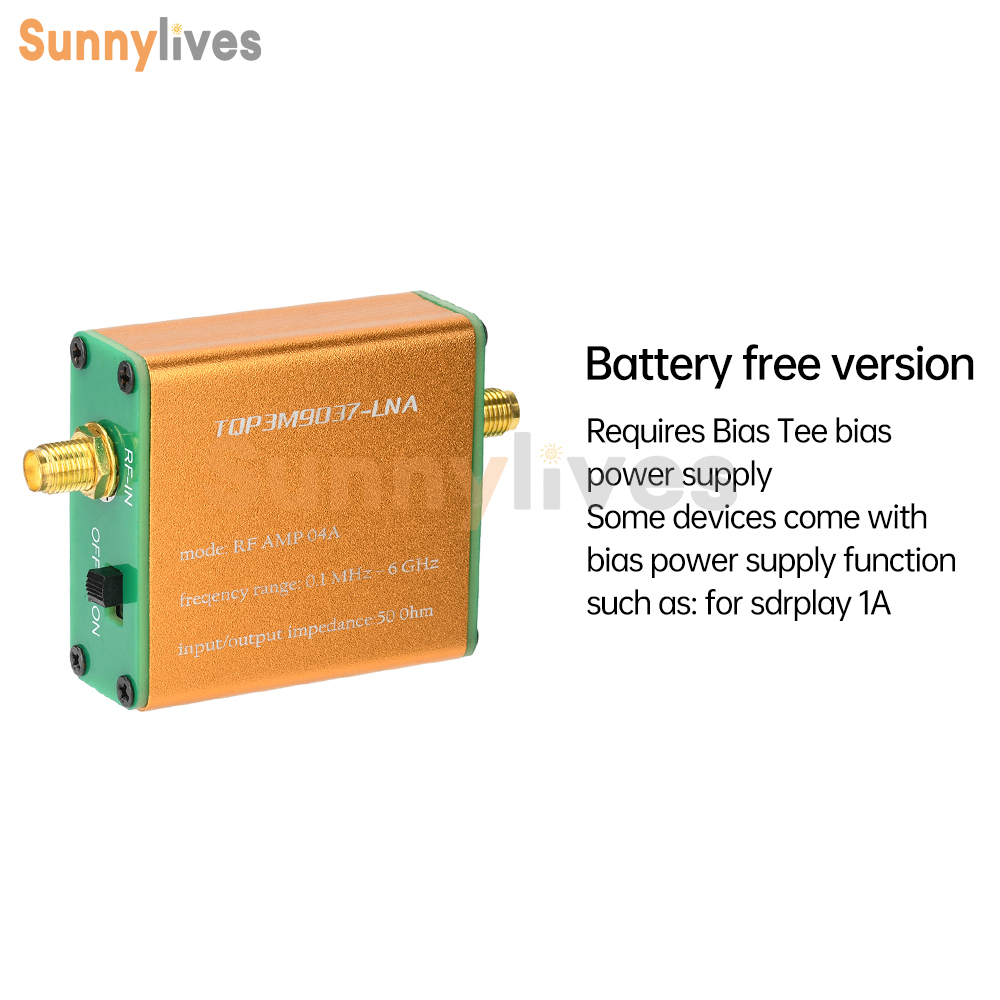

Note: The battery-free version needs to be powered by Bias-Tee bias power supply, some devices come with bias power supply function such as: sdrplay 1A, HACKRF ONE and so on.
Power supply: 5V 70ma.
Frequency range: 100K-6GHz.
Ultra-low noise figure, 0.4 dB NF at 1.95 GHz.
High gain at 1.95 GHz, 20 dB gain.
High linearity, +35 dBm output IP3.
High input power ruggedness, +22 dBm continuous wave.
Stabilized performance.
50 ohm input/output.
Connector:SMA female.
Dimension:48*43*18.5mm(not including connector).
Battery-less version can be added with 3.7V 200mAh battery.
Note: The battery-free version needs to be powered by Bias-Tee bias power supply, some devices come with bias power supply function such as: sdrplay 1A, HACKRF ONE and so on.
Package Includes

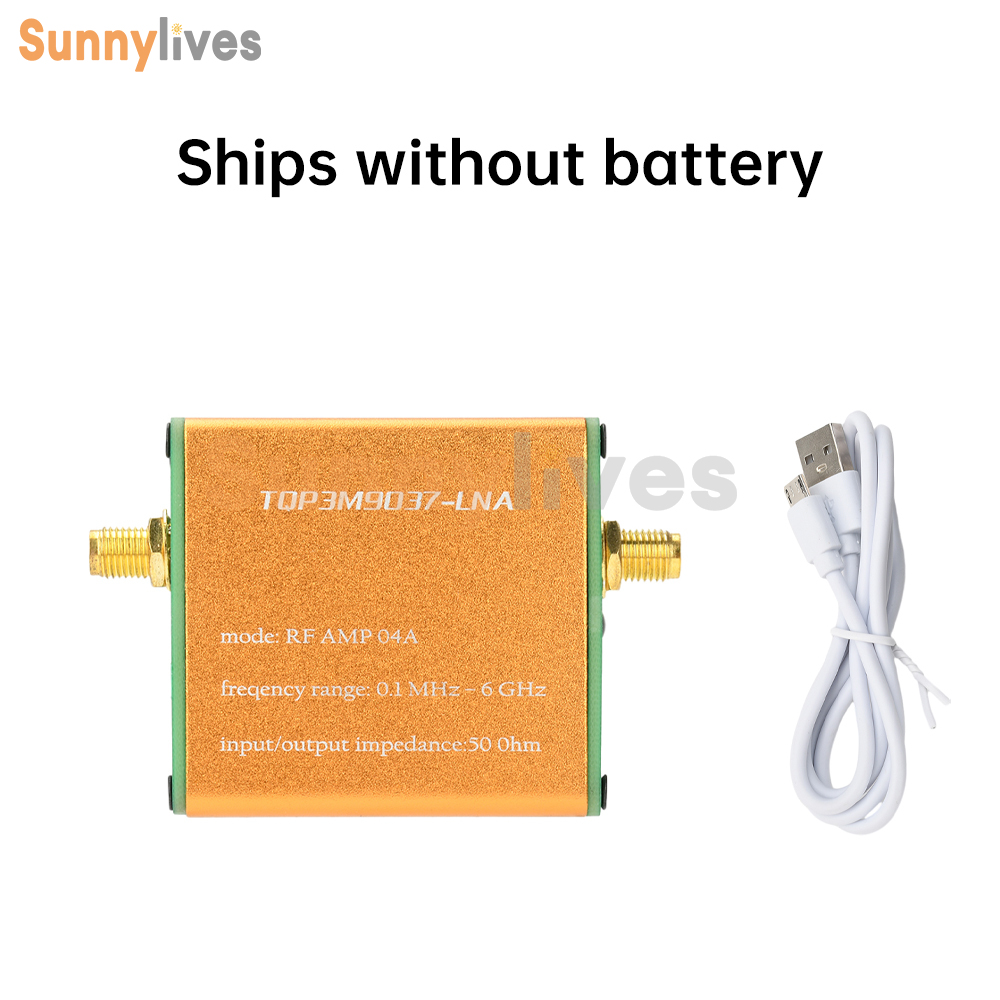

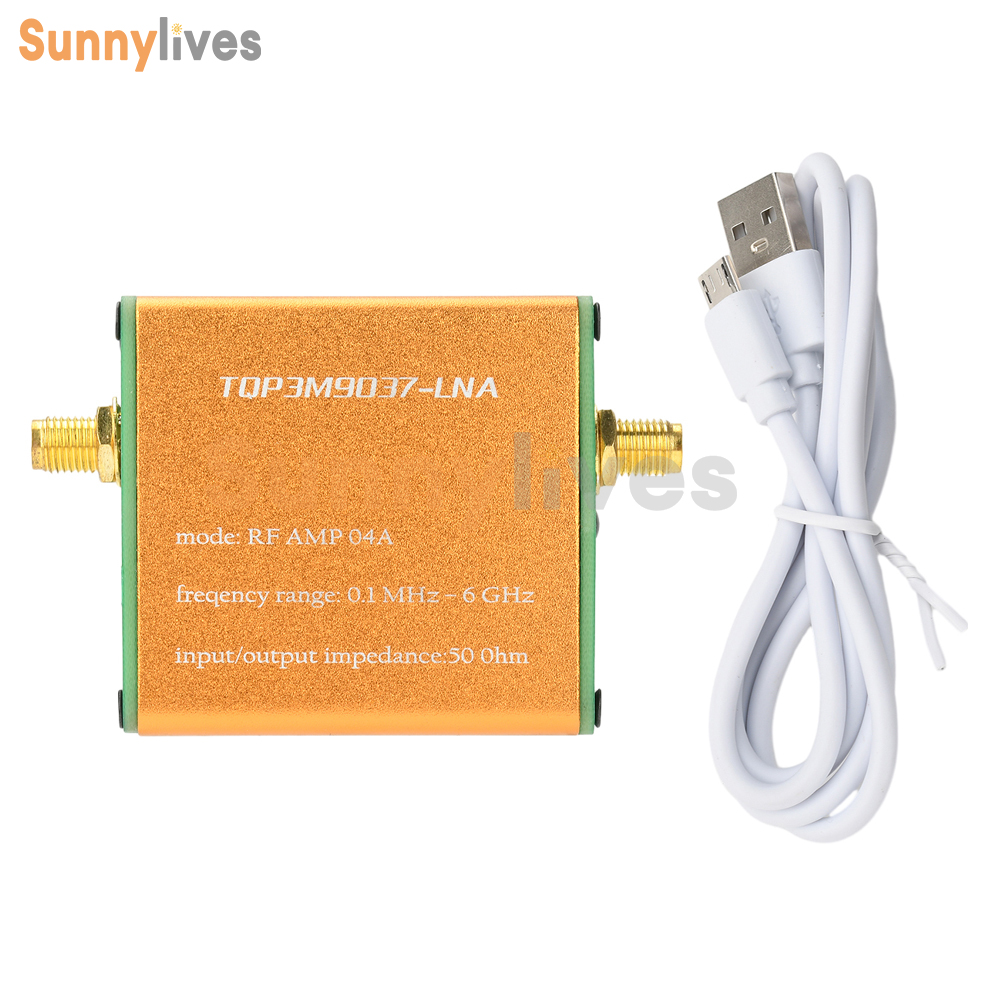

1 x Amplifier
1 x Power Cord
1 x Amplifier
1 x Power Cord
