Product Description

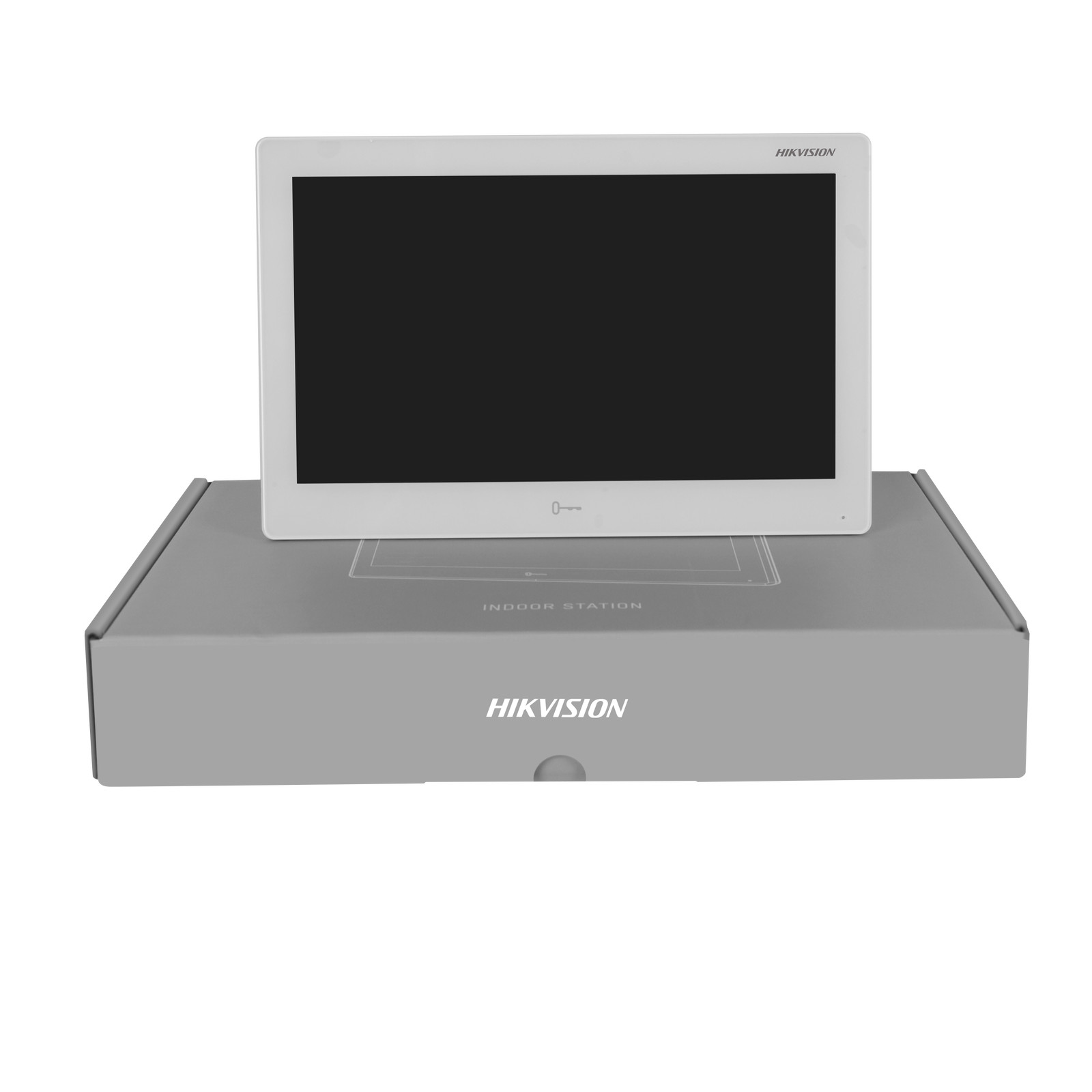

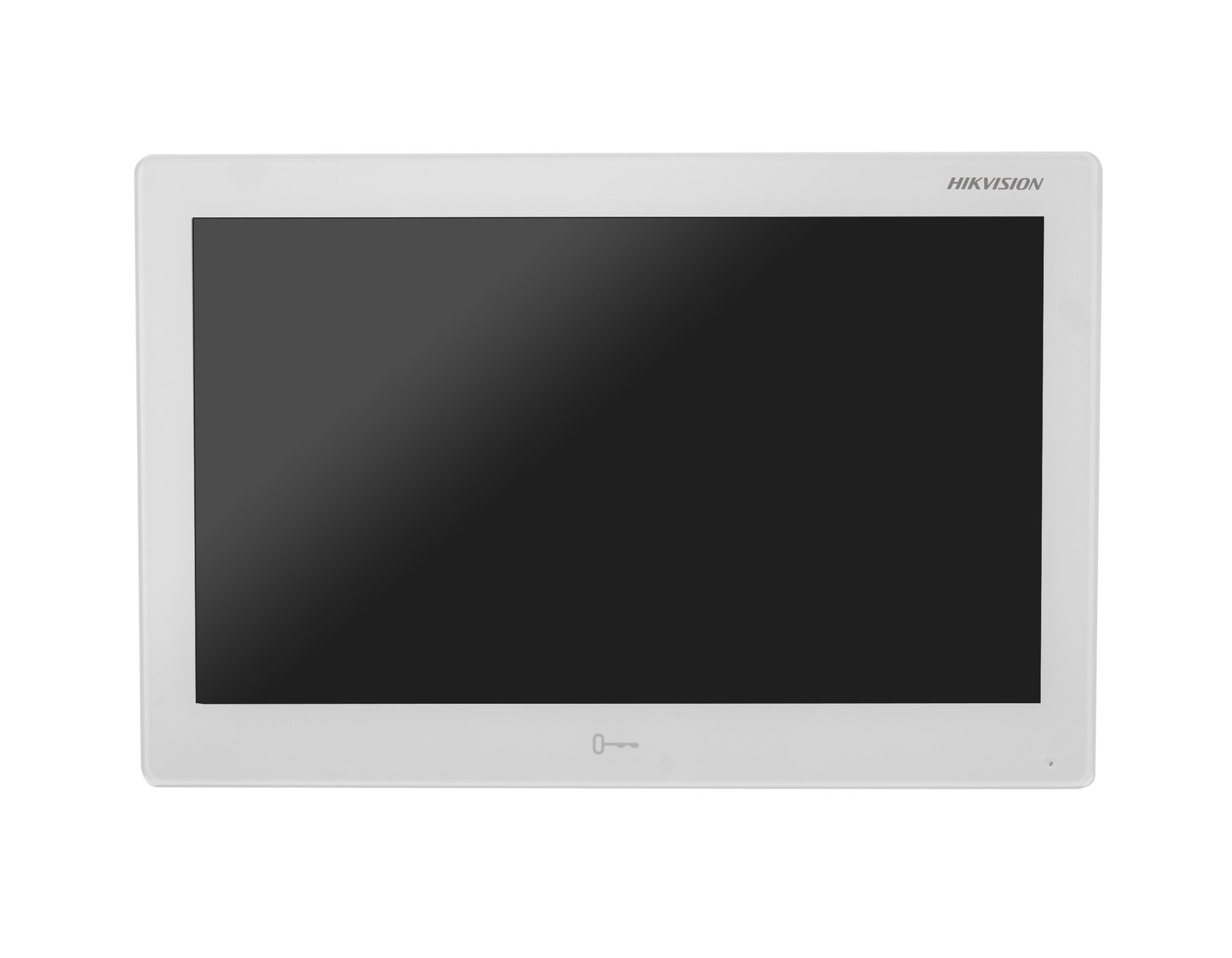

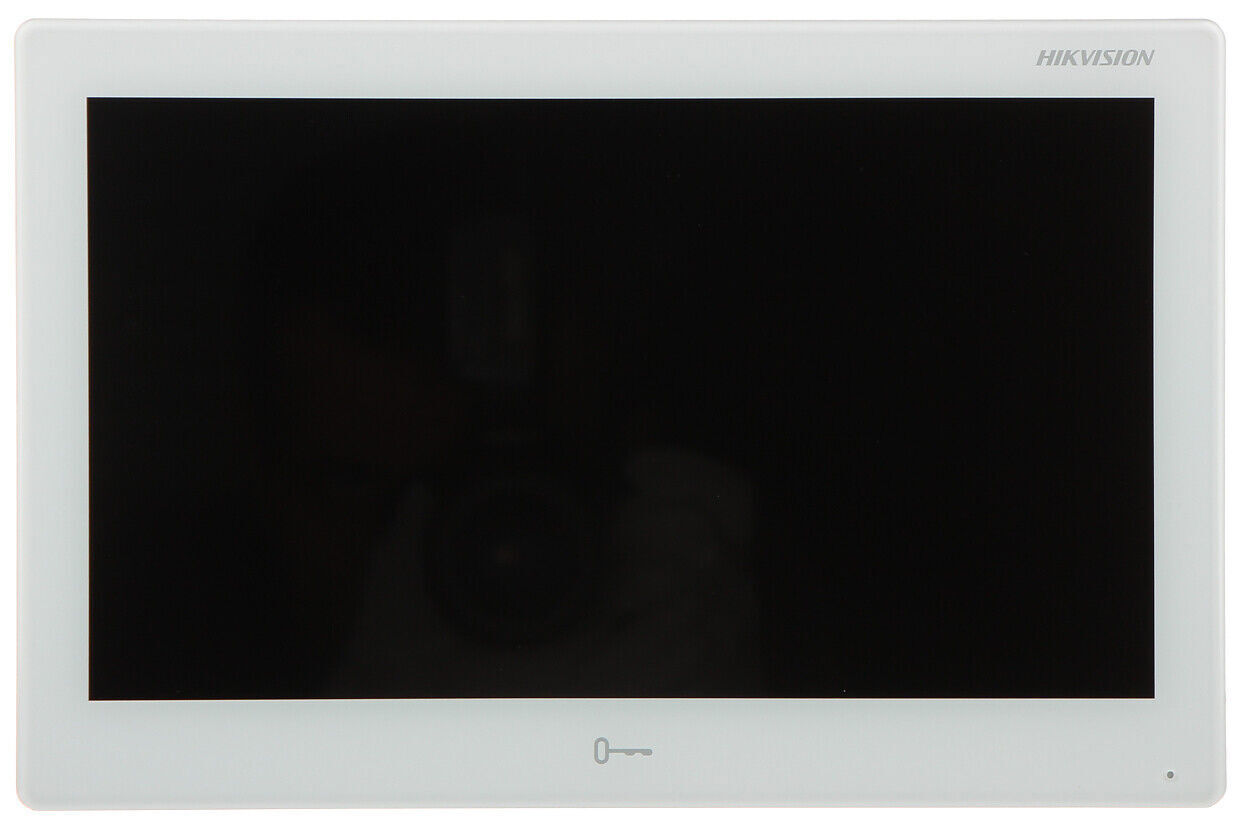

Hikvision DS-KH9510-WTE1 10.1-inch Android Video Intercom Indoor Station WiFi TF
>>> The  Intercom is 100% Hikvision Original, support firmware upgrade!!!
>>> All the items are with 3 years warranty, if there is any problem after purchased, please contact us for help
> Phone APP: Hik-connect, Guard viewer
> PC Client: iVMS-4200
> Search Tool：SADP
Key Features：

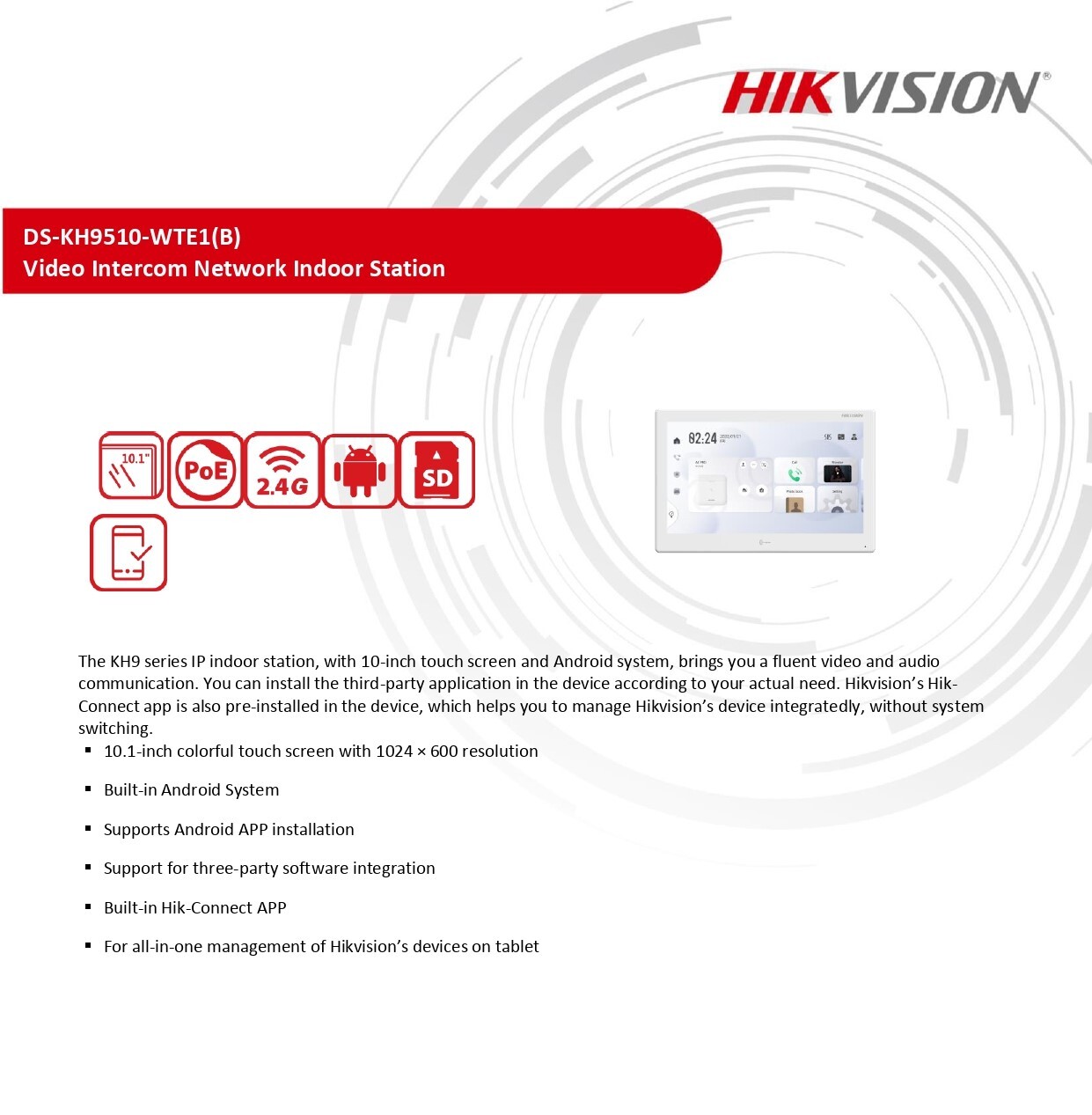

Hikvision All-in-one Indoor Station DS-KH9510-WTE1
> 10.1-inch colorful touch screen with 1024 × 600 resolution
> Built-in Android System
> Supports Android APP installation
> Support for three-party software integration
> Built-in Hik-Connect APP
> For all-in-one management of Hikvision’s devices on tablet
> Wi-Fi
> Two-way Talk（1 built-in omnidirectional microphone and 1 built-in loudspeaker）
> Volume Adjustable
> Support TF card, up to 128G

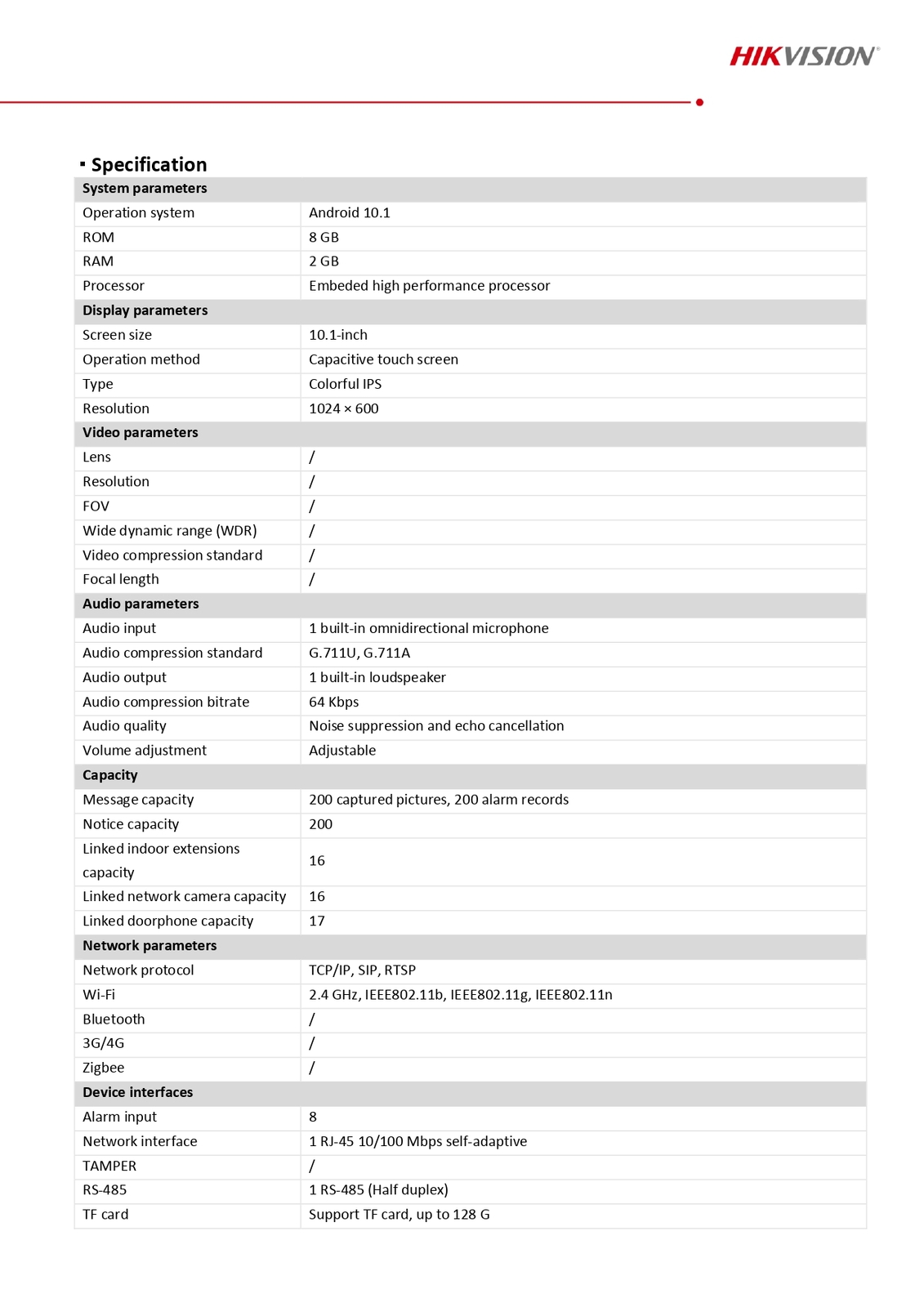

  • Product Specification：
  • System Parameters
  • Operation SystemAndroid 10.1
  • ROM8 GB
  • RAM2 GB
  • ProcessorEmbeded high performance processor
  • Display Parameters
  • Screen Size10.1-inch
  • Operation MethodCapacitive touch screen
  • TypeColorful IPS
  • Resolution1024 × 600
  • Video Parameters
  • Lens/
  • Resolution/
  • FOV/
  • Wide Dynamic Range (WDR)/
  • Video Compression Standard/
  • Focal Length/
  • Audio Parameters
  • Audio Input1 built-in omnidirectional microphone
  • Audio Compression StandardG.711U, G.711A
  • Audio Output1 built-in loudspeaker
  • Audio Compression Bitrate64 Kbps
  • Audio QualityNoise suppression and echo cancellation
  • Volume AdjustmentAdjustable
  • Capacity
  • Message Capacity200 captured pictures, 200 alarm records
  • Notice Capacity16
  • Linked Indoor Extensions Capacity16
  • Network Parameters
  • Network ProtocolTCP/IP, SIP, RTSP
  • Wi-Fi2.4 GHz, IEEE802.11b, IEEE802.11g, IEEE802.11n
  • Bluetooth/
  • 3G/4G/
  • Zigbee/
  • Device Interfaces
  • Alarm Input8
  • Network Interface1 RJ-45 10/100 Mbps self-adaptive
  • TAMPER/
  • RS-4851 RS-485 (Half duplex)
  • TF CardSupport TF card, up to 128 G
  • Alarm Output1
  • Lock Control1 relay, Max. 30 VDC 0.3 A, and 1 high/low level relay (3.3 V/0V)

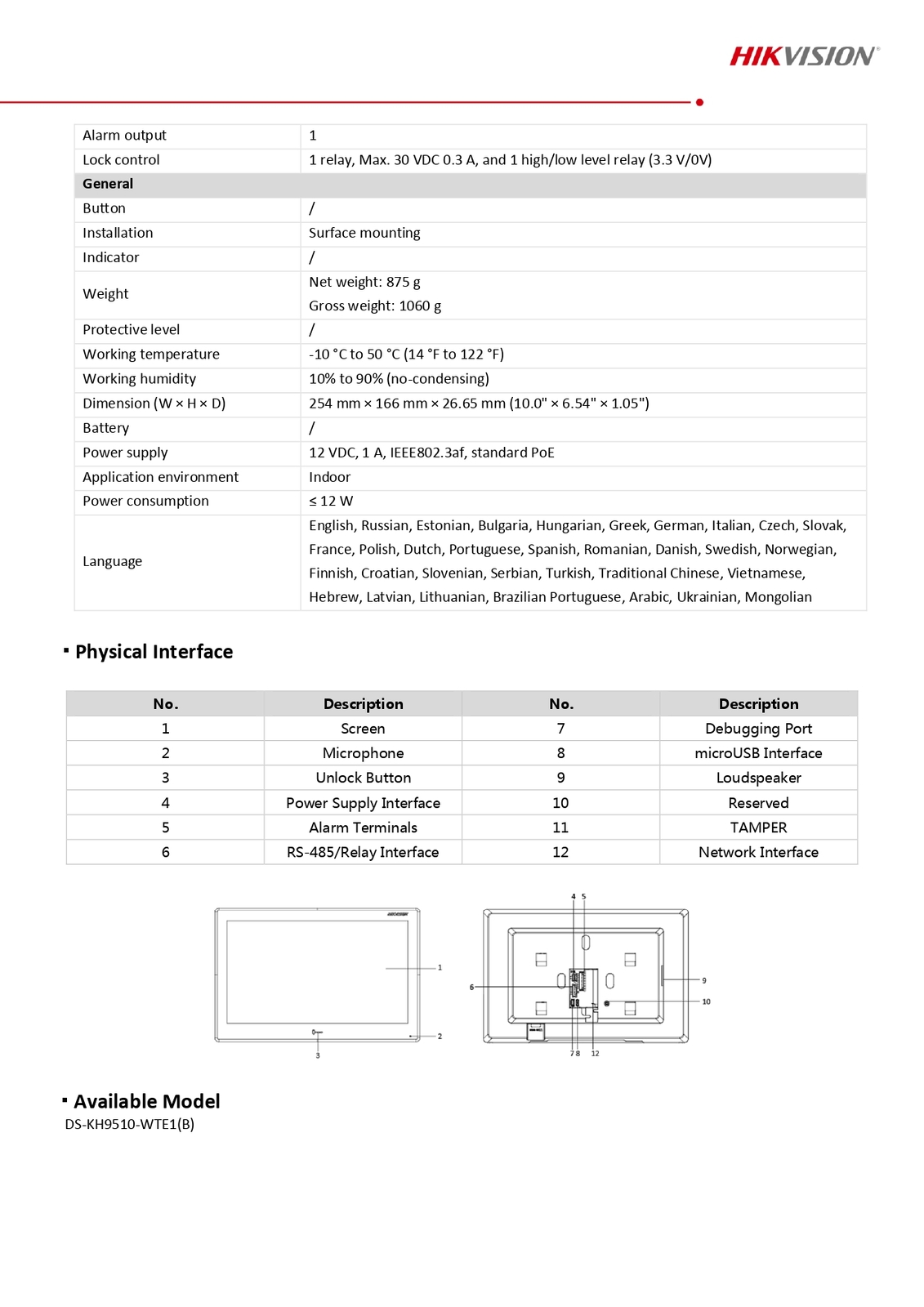

  • General
  • Button/
  • InstallationSurface mounting
  • Indicator/
  • Weight

    Net weight: 875 g

    Gross weight: 1060 g

  • Protective Level/
  • Working Temperature-10 °C to 50 °C (14 °F to 122 °F)
  • Working Humidity10% to 90% (no-condensing)

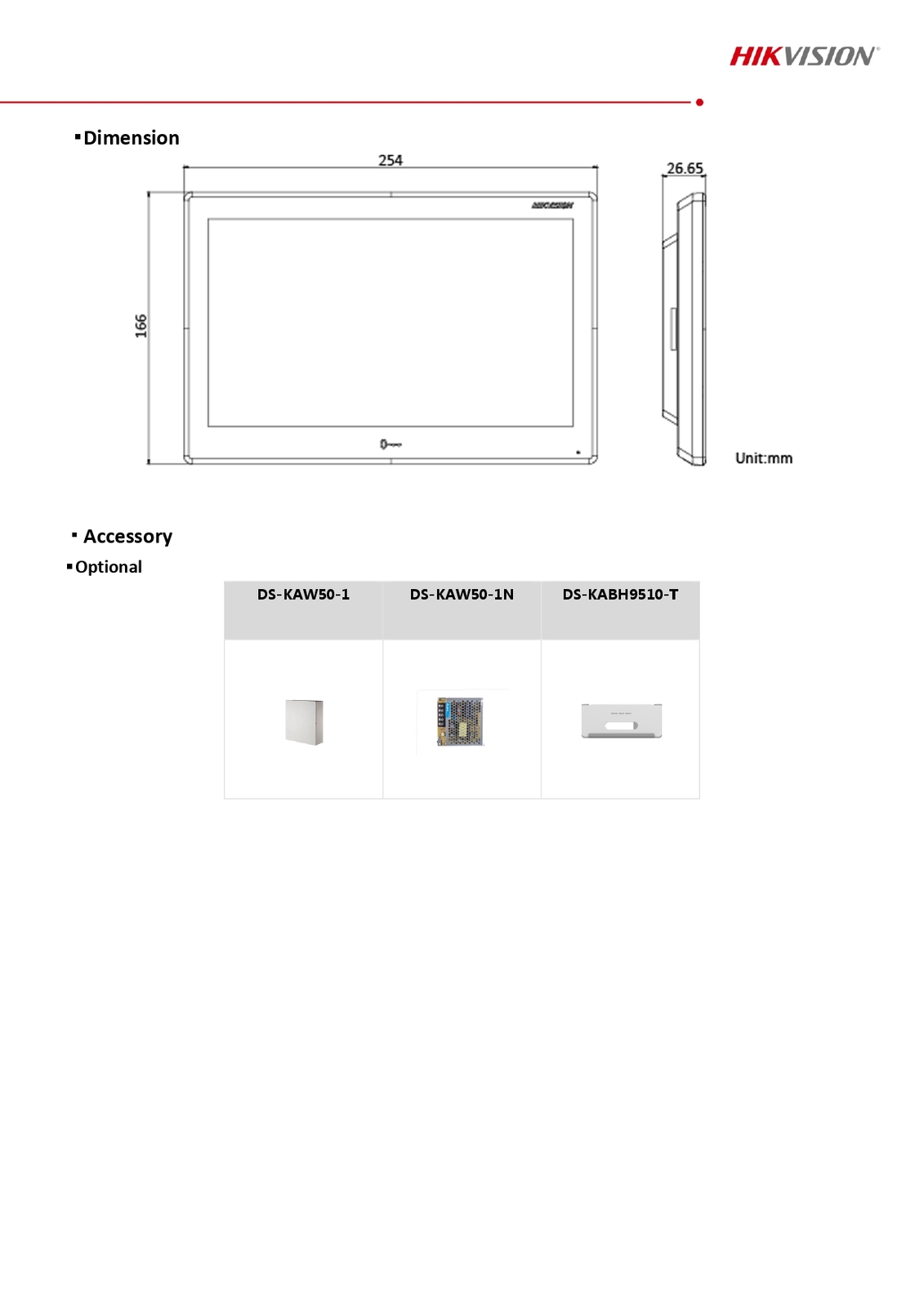

  • Dimension (W × H × D)254 mm × 166 mm × 26.65 mm (10.0" × 6.54" × 1.05")
  • Battery/
  • Power Supply12 VDC, 1 A, IEEE802.3af, standard PoE
  • Application EnvironmentIndoor
  • Power Consumption≤ 8 W
  • LanguageEnglish, Russian, Estonian, Bulgaria, Hungarian, Greek, German, Italian, Czech, Slovak, France, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Traditional Chinese, Vietnamese, Hebrew, Latvian, Lithuanian, Brazilian Portuguese, Arabic, Ukrainian, Mongolian
