Product Description
Hikvision IP Video Intercom Kit DS-KV8113-WME1(C) DS-KH6320-WTE PoE WiFi App

IP video intercom kit

  • Network video intercom bundle for villa or house
  • One call button for easier calls
  • Convenient Hik-Connect App mobile control
  • Stores messages and captured pictures in the TF card

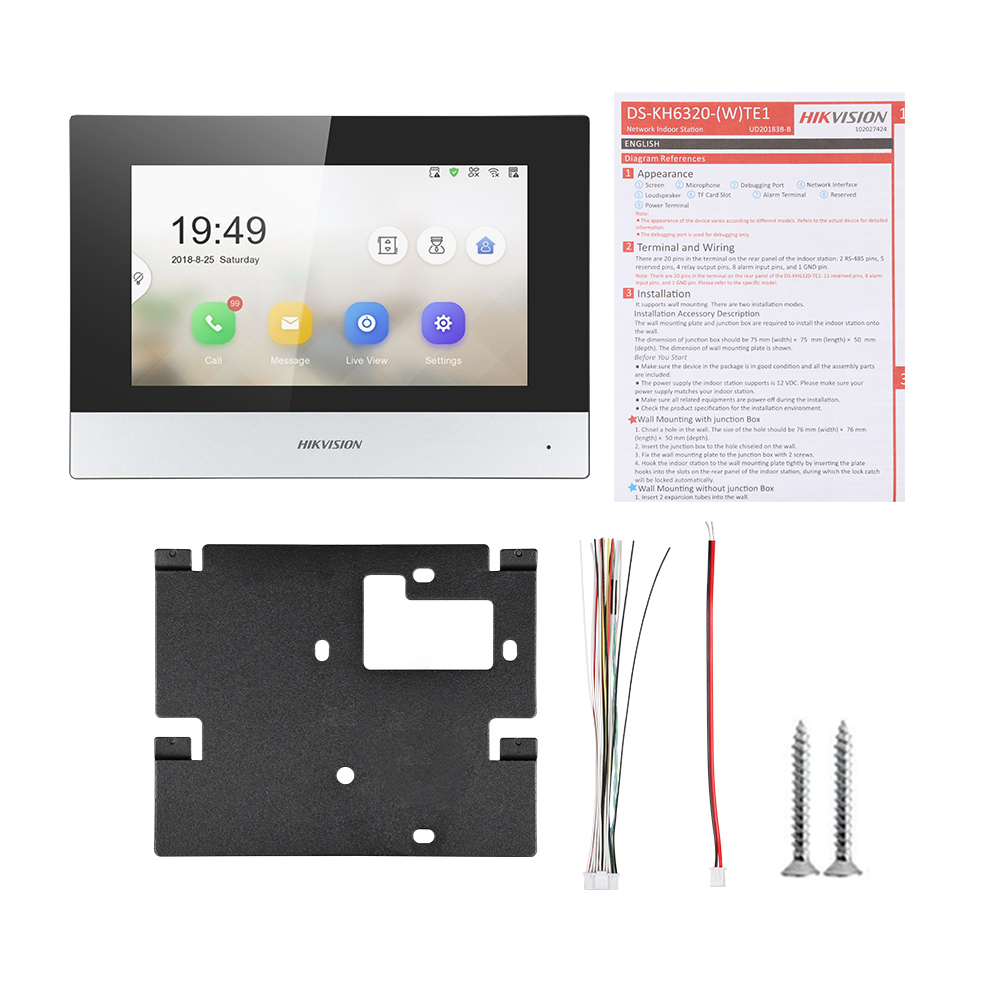

  • Including: DS-KV8113-WME1(C) × 1, DS-KH6320-WTE1 × 1, 4-port standard PoE switch × 1, 16 GB TF card × 1
  • Power adapter included in the package
  • Door Station/System Parameters
  • Operation SystemEmbedded Linux operation system
  • Flash

    32 M



  • RAM

    256 M



  • Door Station/Video Parameters
  • Supplement LightIR supplement
  • Resolution

    Main stream : 1920 × 1080

    Sub stream : 640 × 480

  • Lens1
  • WDRSupport
  • FOVHorizontal: 124° Vertical: 75°
  • Video Compression StandardH.264
  • Door Station/Audio Parameters
  • Audio InputBuilt-in omnidirectional microphone
  • Audio OutputBuilt-in loudspeaker (more than 80 dB within 30 cm)
  • Audio QualityNoise suppression and echo cancellation
  • Volume AdjustmentAdjustable
  • Audio Compression StandardG.711 U, G.711 A
  • Audio Compression Rate64 Kbps
  • Audio Intercom

    Two-way audio communication



  • Door Station/Capacity Parameters
  • User Capacity2000
  • Door Station/Network Parameters
  • Network ProtocolTCP/IP, RTSP
  • Wi-FiWi-Fi 802.11 b/g/n
  • Wired Network10/100 Mbps self-adaptive Ethernet
  • 3G/4G/
  • Bluetooth/
  • Door Station/Device Interfaces
  • Network Interface1
  • RS-485

    1



  • Wiegand0
  • Alarm Input4
  • Lock Control2
  • Exit Button2 Max.
  • Door Contact2
  • Alarm Output0
  • Power Interface1
  • TAMPER1
  • USB Interface0
  • TF Card1 (reserved)
  • Door Station/General
  • Button1
  • Indicator3
  • Power Consumption

    ＜ 10 W

    ;＜ 10 W

  • Power Supply

    Standard PoE/12 VDC;IEEE802.3af, standard PoE

    12 VDC

  • Working Temperature-40° C to 53° C(-40° F to 127.4° F)
  • Working Humidity10% to 95%
  • Dimension174 mm × 91 mm × 29 mm
  • Application EnvironmentOutdoor
  • Protection Level

    IP65, IK08



  • Weight380 g
  • InstallationSurface Mounting
  • Indoor Station/System Parameters
  • Operation SystemEmbedded Linux operation system
  • Memory128 MB
  • Flash32 MB

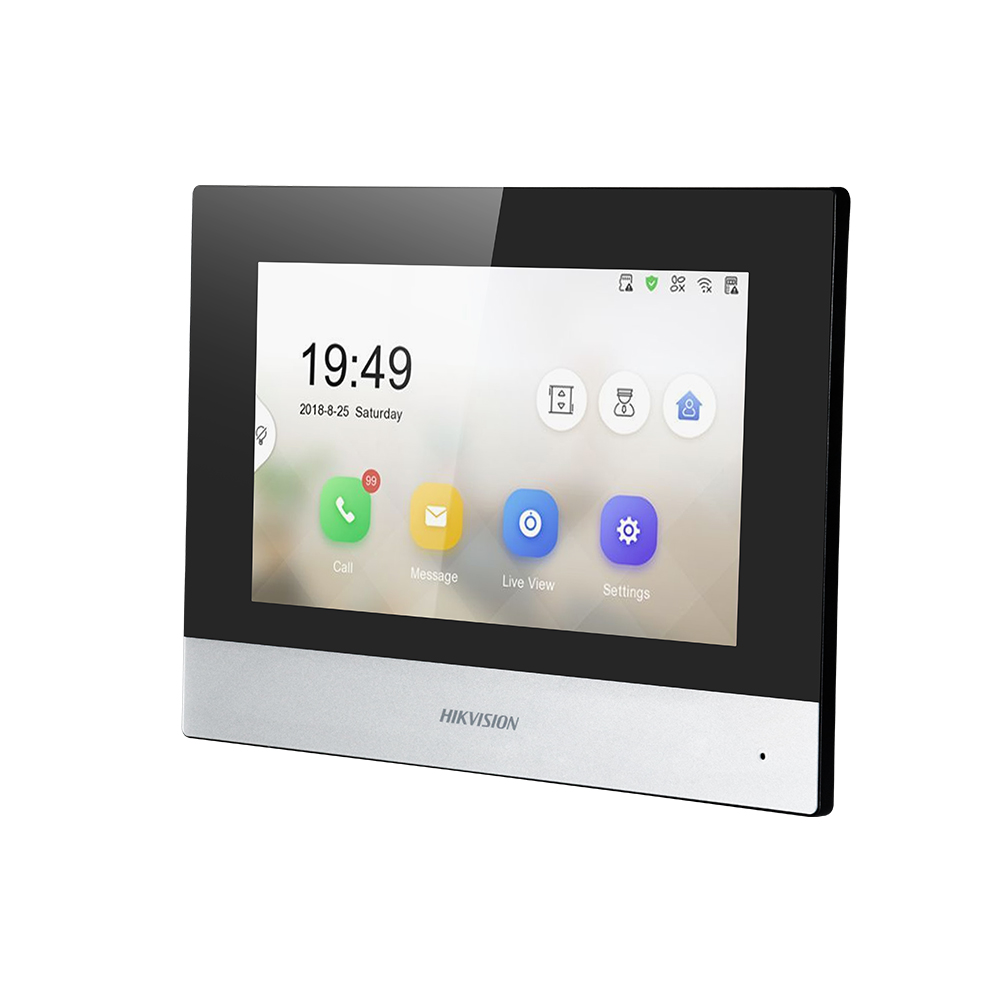

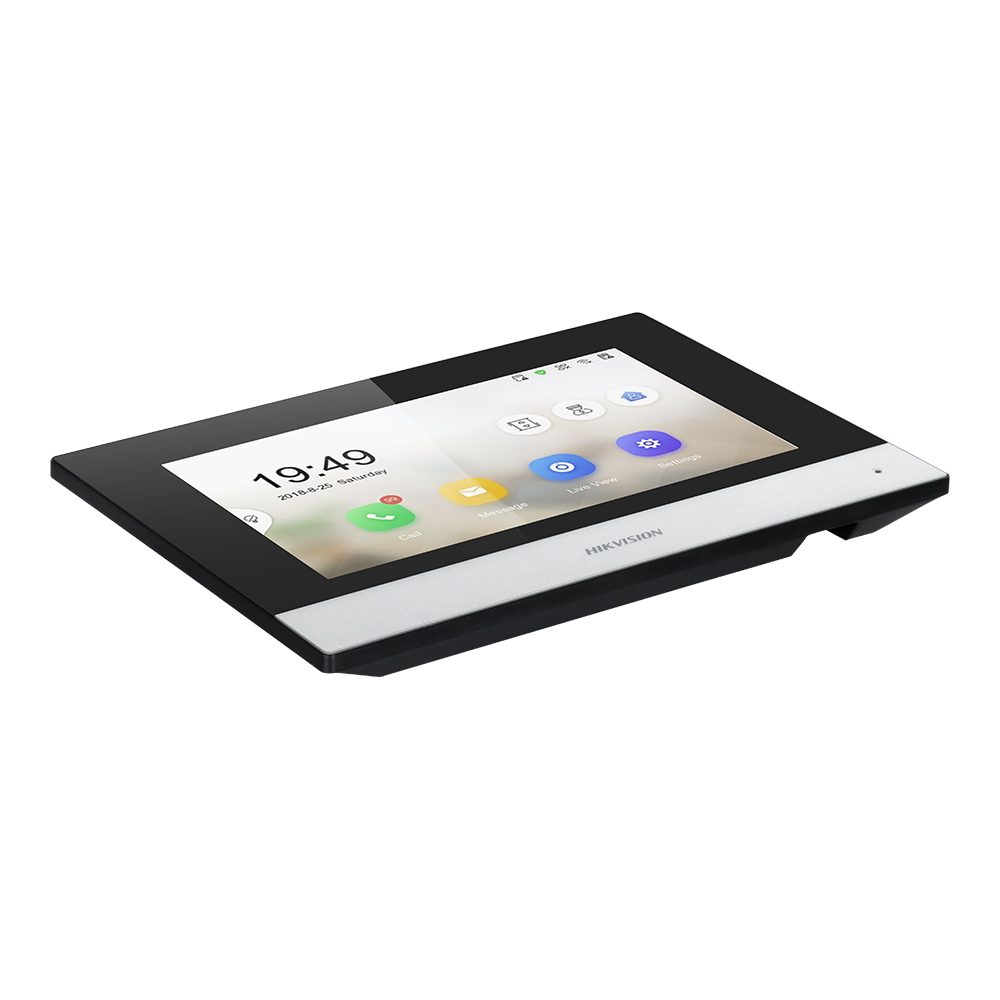

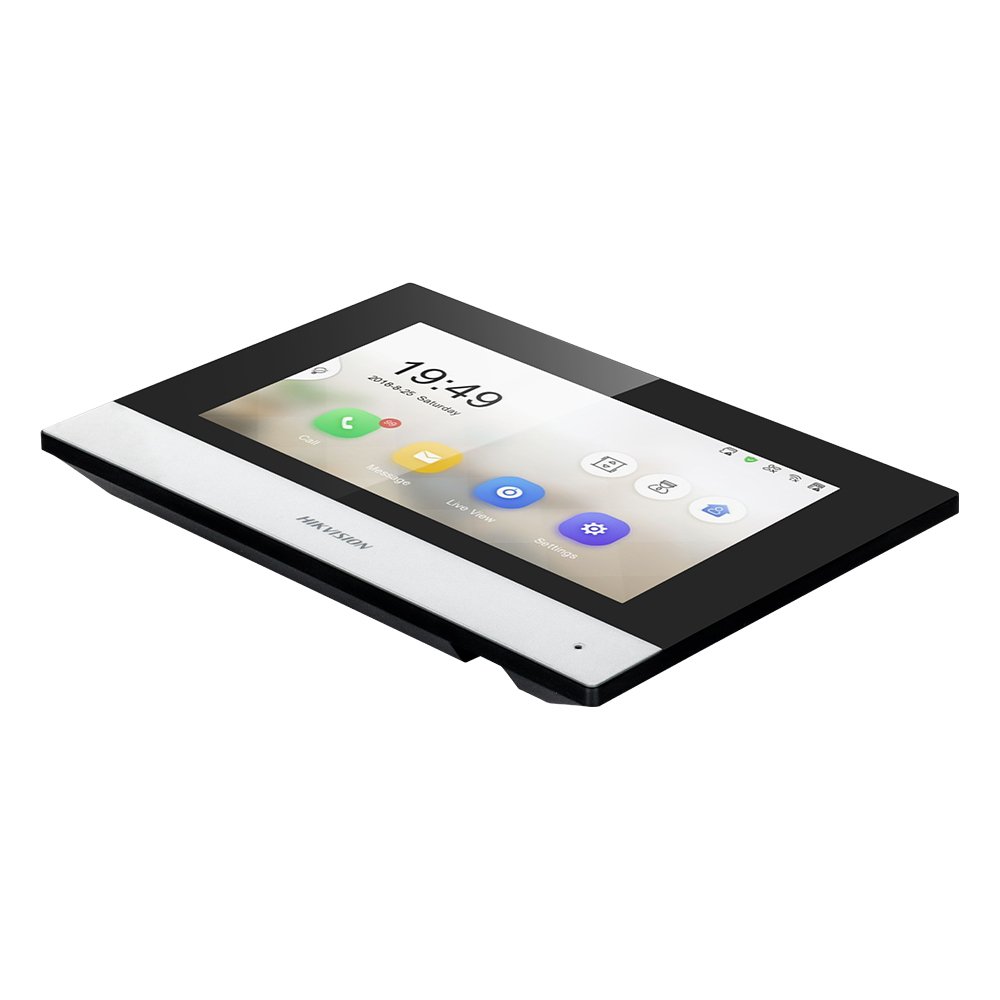

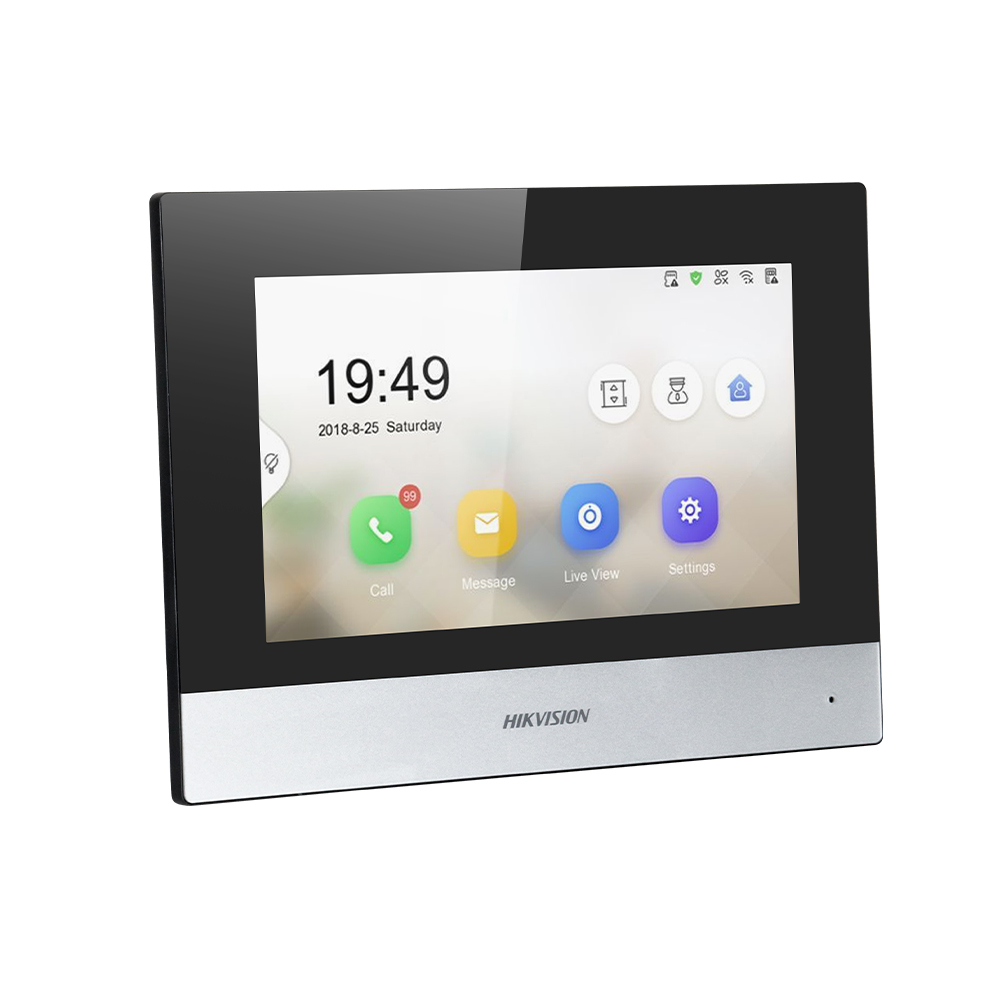

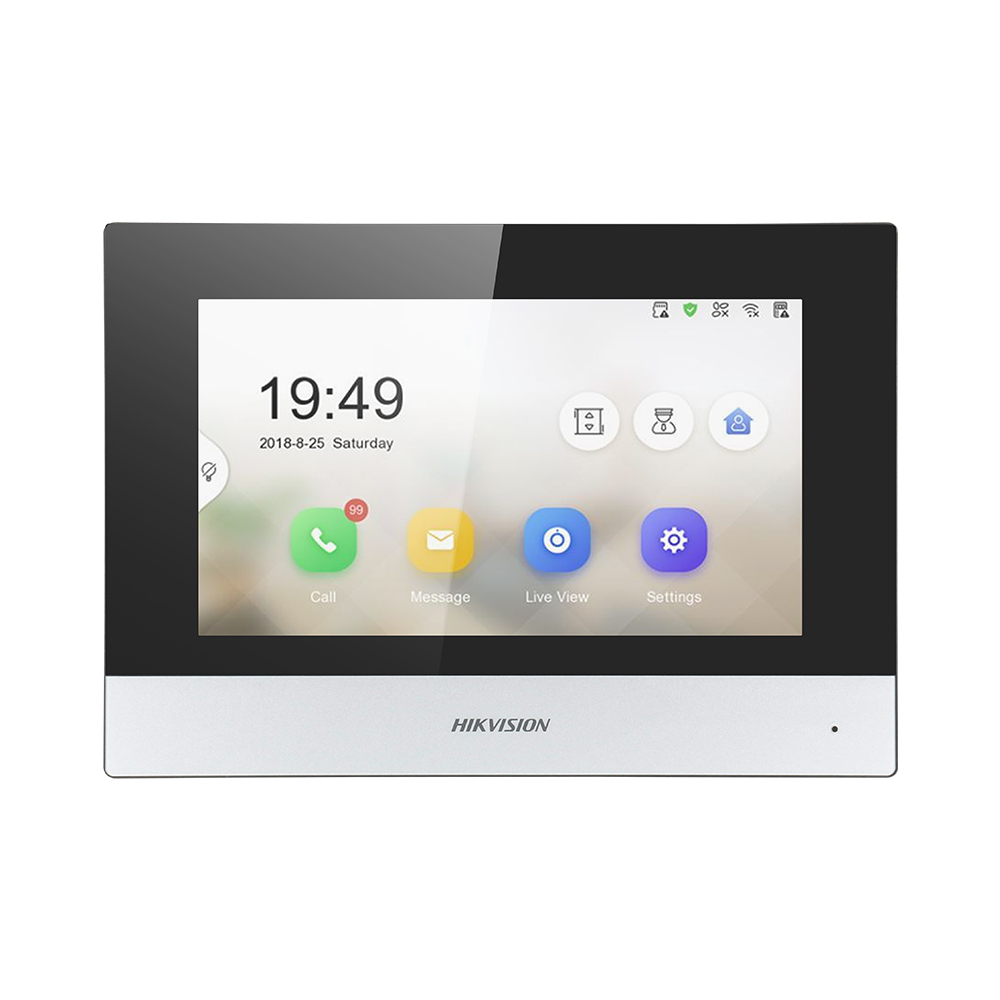

  • Indoor Station/Display Parameters
  • Display Screen7-inch colorful TFT screen
  • Display Resolution1024 × 600
  • Operation MethodCapacitive touch screen
  • Indoor Station/Audio Parameters
  • Audio InputBuilt-in omnidirectional microphone
  • Audio OutputBuilt-in loudspeaker
  • Audio Quality

    Noise suppression and echo cancellation



  • Audio Compression Standard

    G.711 U



  • Audio Compression Rate

    64 Kbps



  • Indoor Station/Network Parameters
  • Network Interface1 RJ-45 10/100 Mbps self-adaptive
  • Wired Network

    10/100 Mbps self-adaptive



  • Wireless Network

    Wi-Fi 802.11 b/g/n



  • Protocol

    TCP/IP, SIP, RTSP

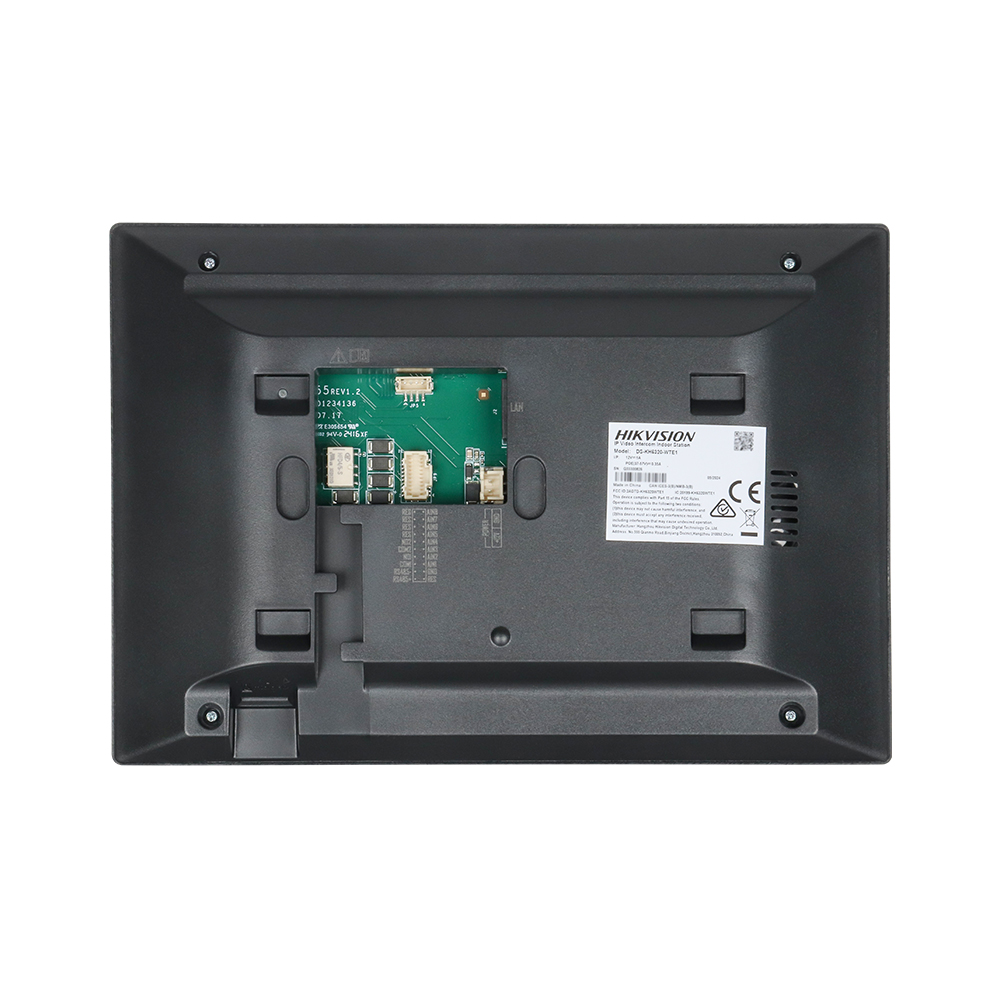

  • Indoor Station/Device Interfaces
  • RS-4851
  • Alarm Input8-ch alarm inputs
  • Relay Output2
  • TF CardMax to 32 G, SD 2.0 or lower version
  • Indoor Station/General
  • Power Consumption

    ≤ 6 W



  • Power SupplyStandard PoE,12VDC
  • Working Temperature

    -10 °C to 55 °C (14 °F to 131 °F)



  • Working Humidity10% to 90%

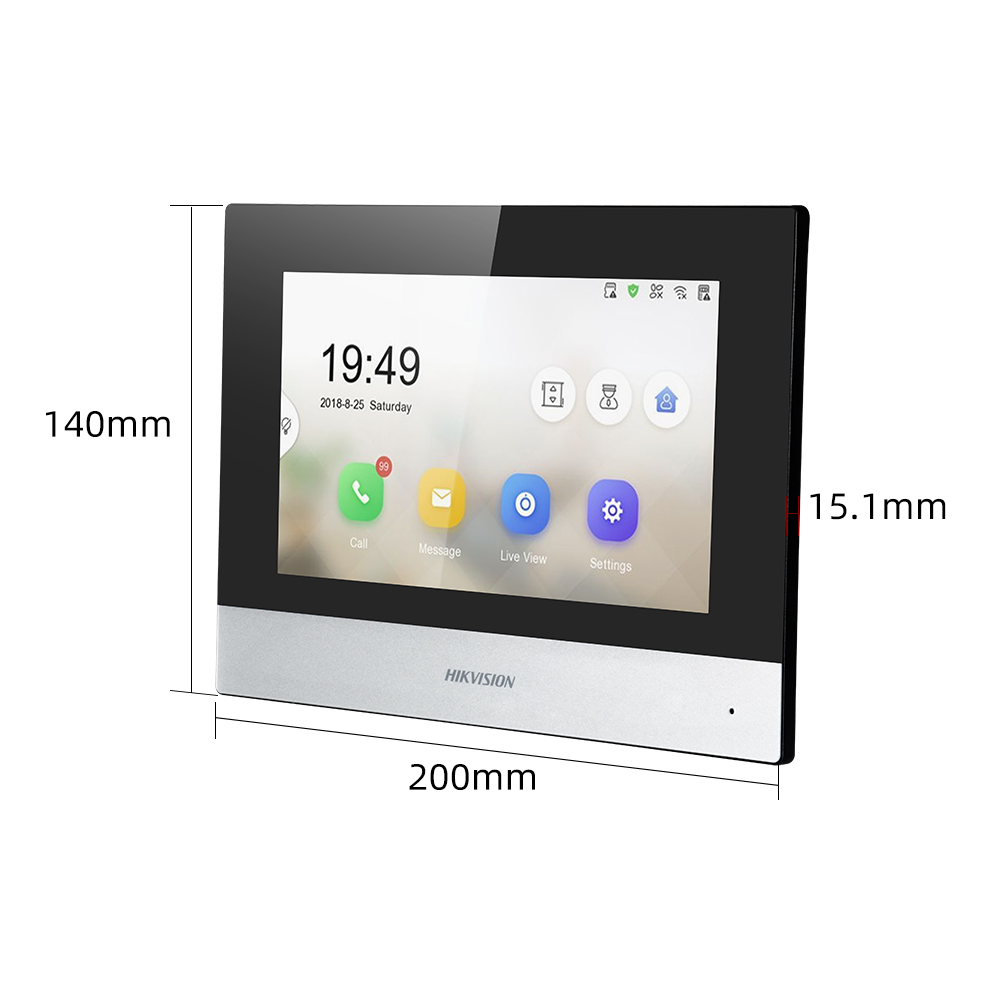

  • Dimension (L X W X H)

    200 mm × 140 mm × 15.1 mm (7.9" ×

    5.5 × 0.6\")"
