TESY Hot Water Cylinder Horizontal Electric 50L / 80L / 100L / 120L

TESY BiLight Horizontal Unvented Electric Hot Water Cylinders (50L – 120L)

Optimise space in lofts, eaves, and tight enclosures with European-manufactured TESY BiLight Horizontal Unvented Electric Water Cylinders. Designed to connect directly to your mains cold water supply, these high-output 3000W horizontal units deliver rapid, pressurised hot water with up to 16% higher thermal efficiency than standard water heaters.

Key Technical Features

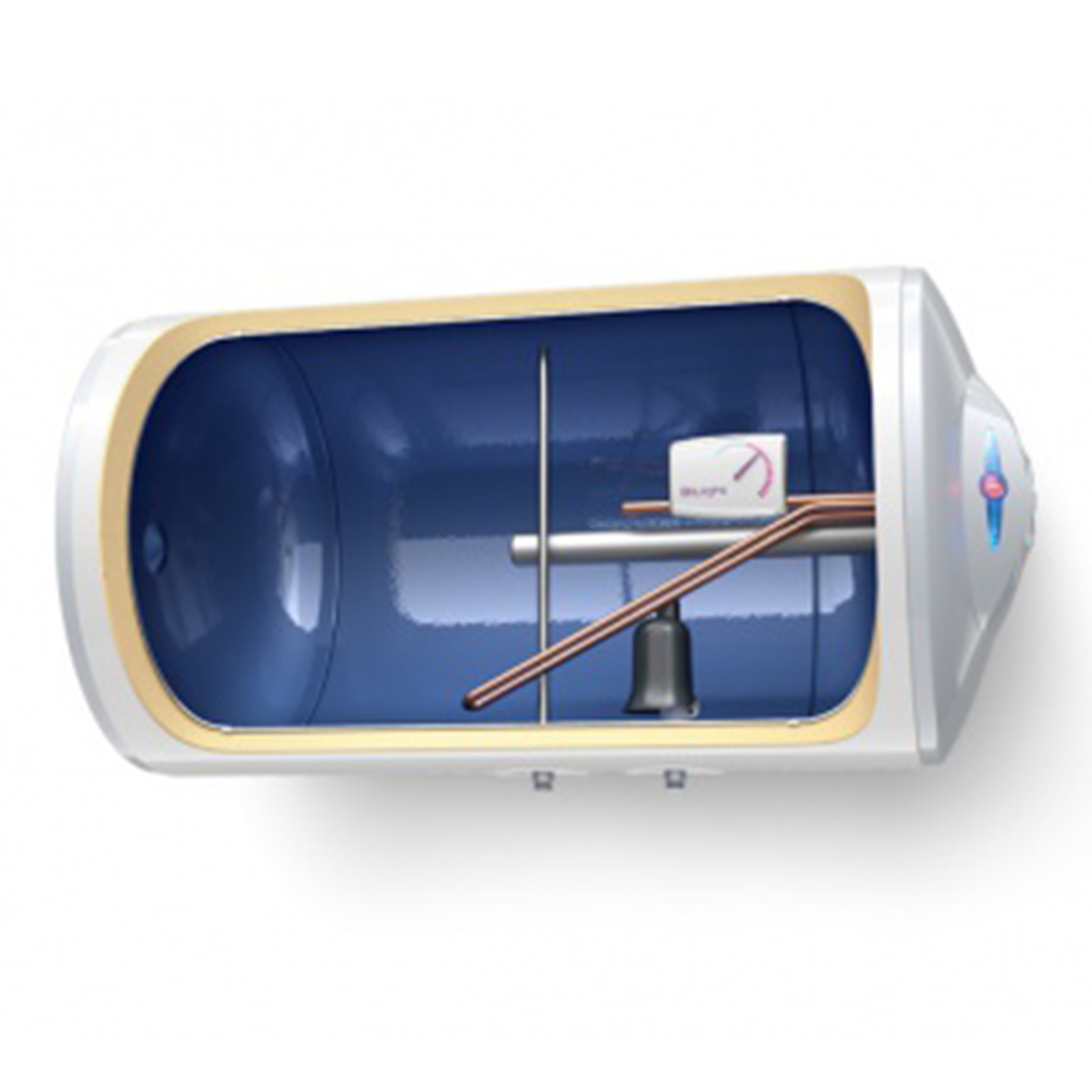

• Glass-Ceramic Tank Coating: Advanced interior lining ensuring high corrosion resistance and hygienic water storage.

• INSUTECH Thermal Insulation: Specialised TESY insulation that eliminates thermal bridges between the tank and wall bracket to minimise heat loss.

• Piston Effect Technology: Controls incoming cold water velocity to maximise continuous hot water delivery.

• BiLight LED Display: Dual-colour visual indicator provides instant status feedback when water reaches target temperature.

• Built-in Safety System: Includes adjustable thermostat, anti-freeze protection, thermal cut-off switch, and ON/OFF control.

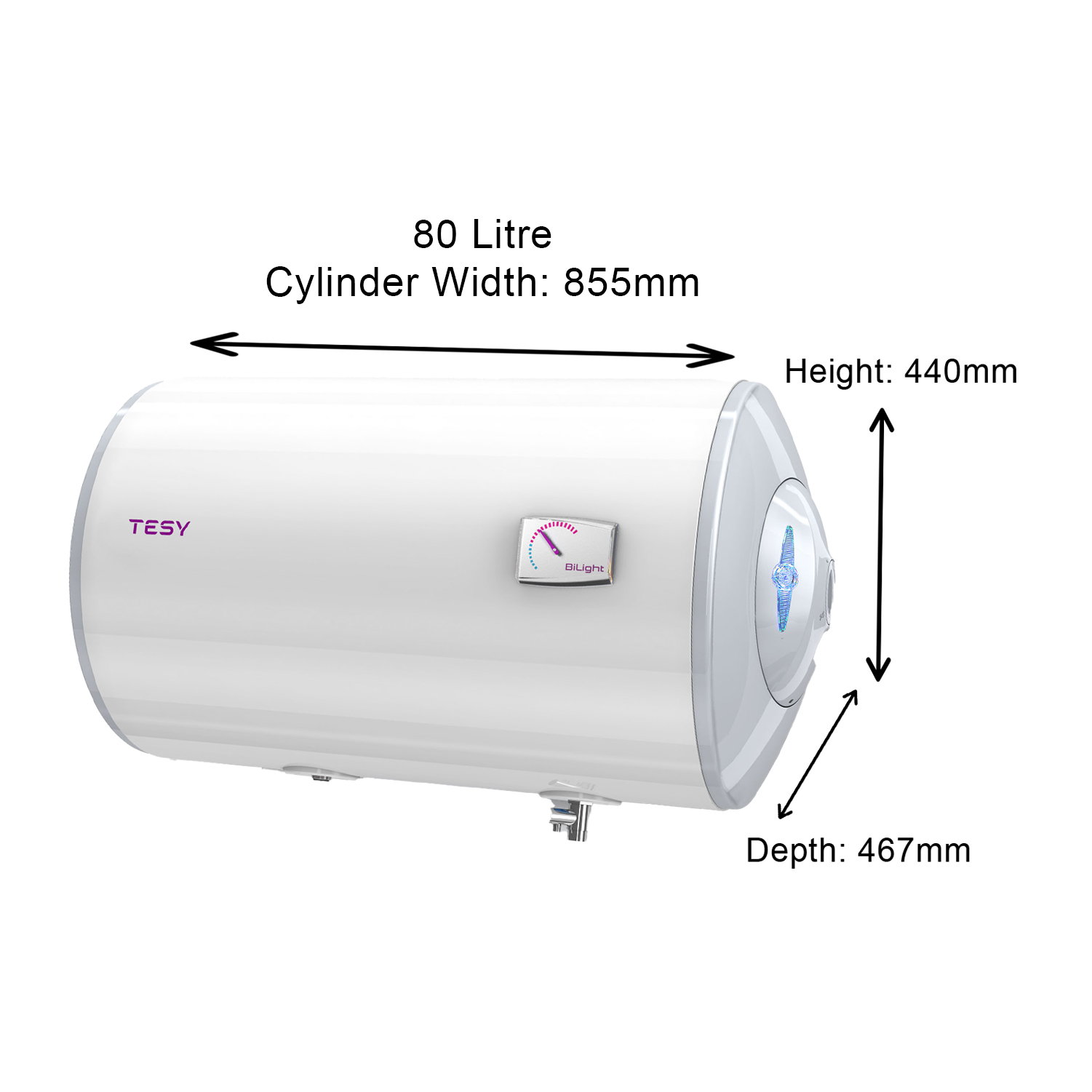

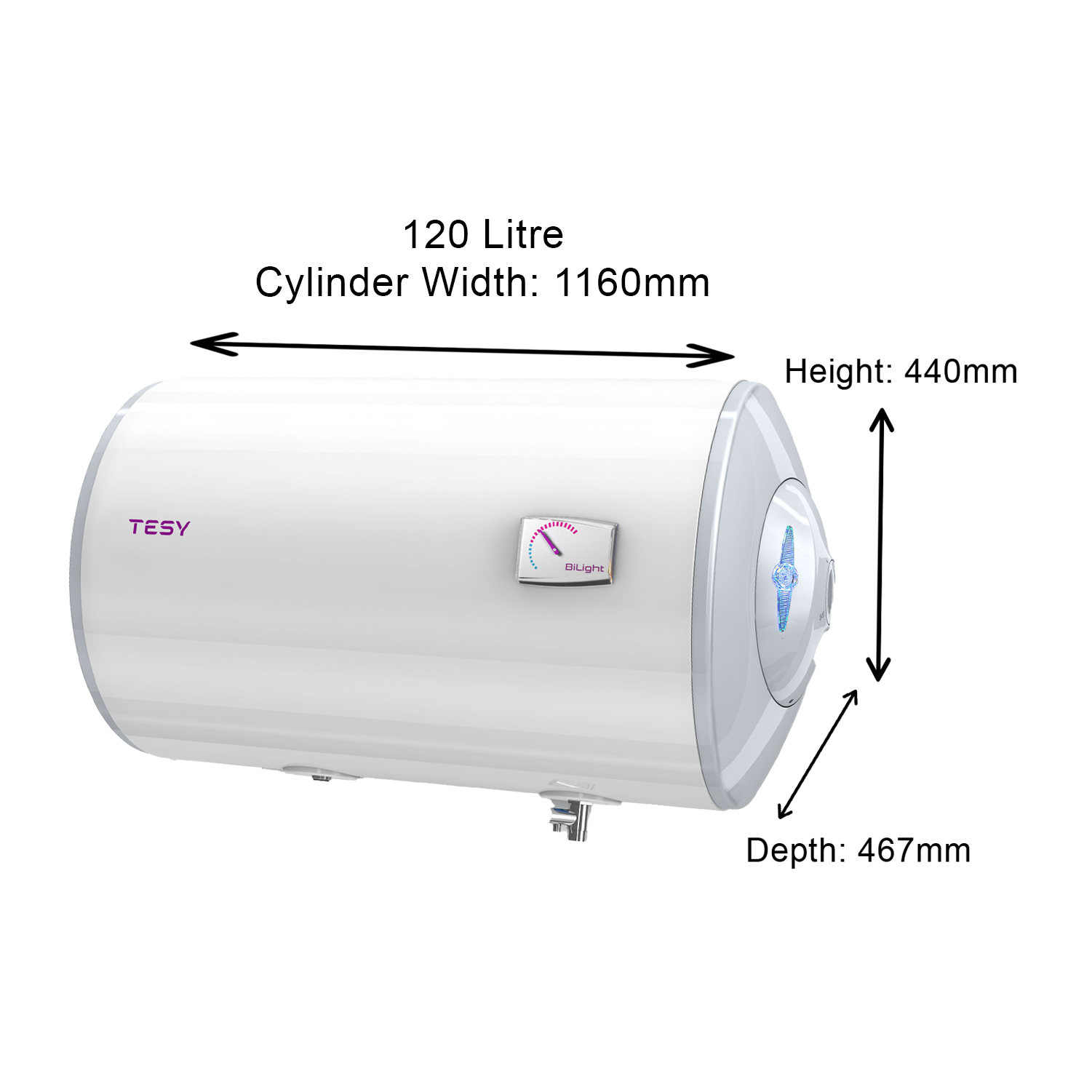

Technical Specifications & Sizing Guide

Important Installation & Regulatory Notice

UK Building Control Regulations Compliance: Unvented hot water cylinders require installation by a qualified technician. Pipework requires a safety expansion vessel (5–7L) and a pressure relief valve in accordance with UK regulations. Units must be hardwired into a fused spur or circuit breaker and are not suitable for standard 13A plug sockets.

Delivery & Support

• Wall Mounting: Heavy-duty attached wall brackets included (fixing screws not included).

• Highlands & Islands Delivery: A £40.00 delivery surcharge applies to postcodes starting with BT, IM, TR, GY, JE, HS, and ZE.

• Technical Advice: Call our UK support team on 0161 439 1400 for sizing or technical guidance
