Product View
Product Details
Features:
1. Strong power output, easy to drive large car and boat models, full explosive force
2. Support forward and reverse rotation and electronic brakes, more accurate control, faster response

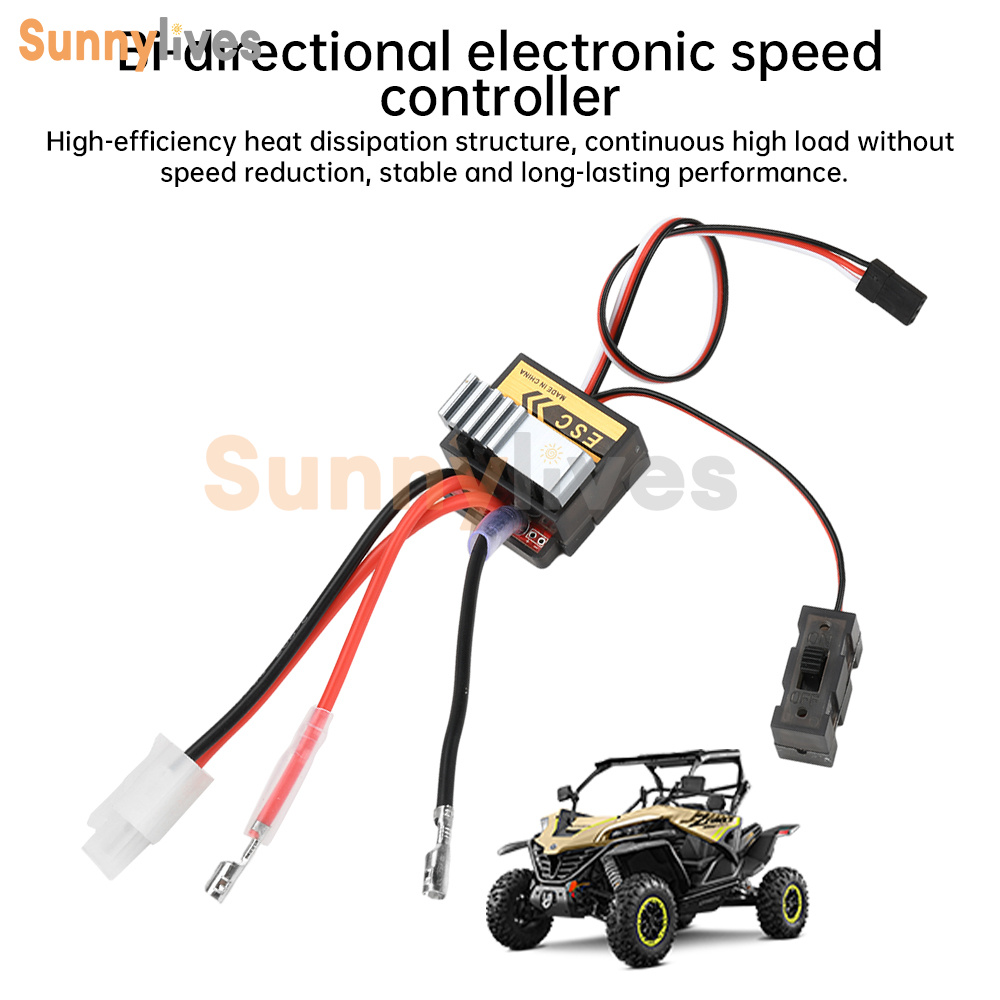

3. Efficient heat dissipation structure, sustained high loads do not slow down, stable and long-lasting performance
4. Adapted to the 2S lithium batteries, widely used in various types of large-scale car and boat models. scale car and boat models
5. Industrial grade protection design, fearless of harsh outdoor environment, excellent durability

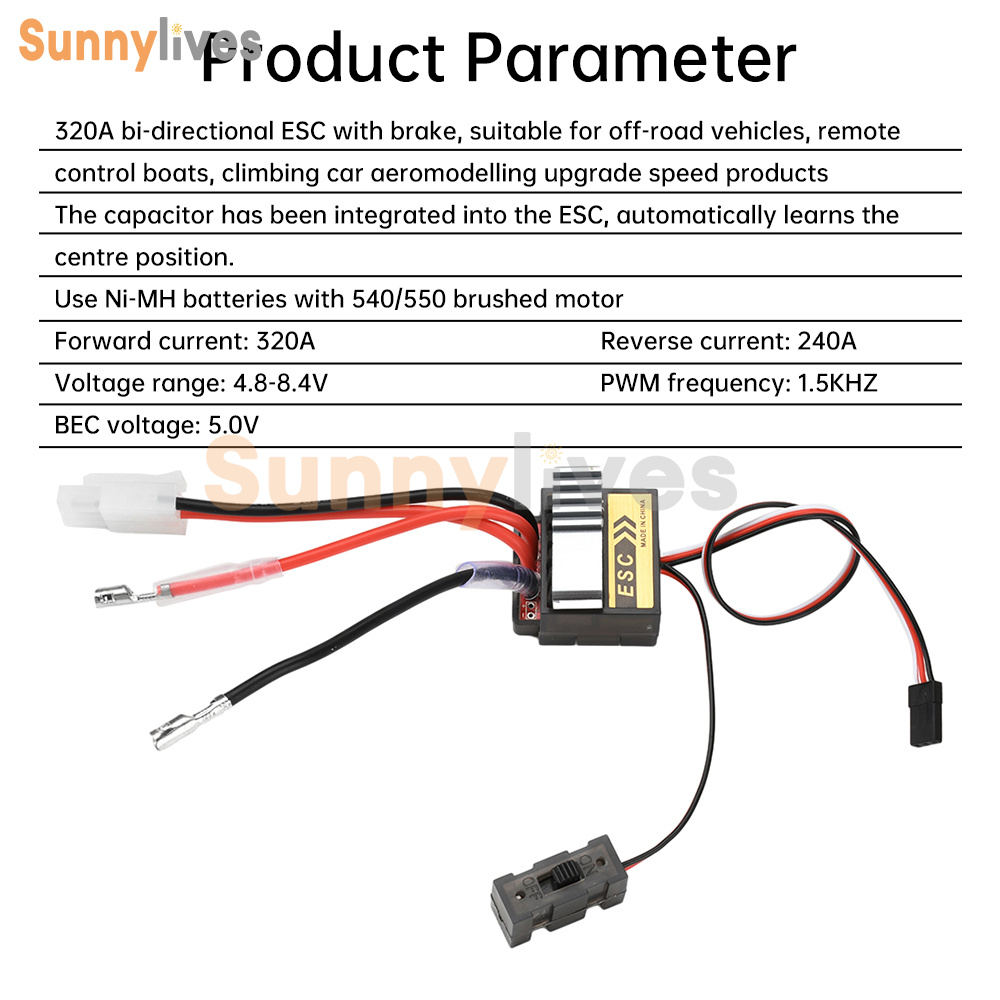

Parameter:

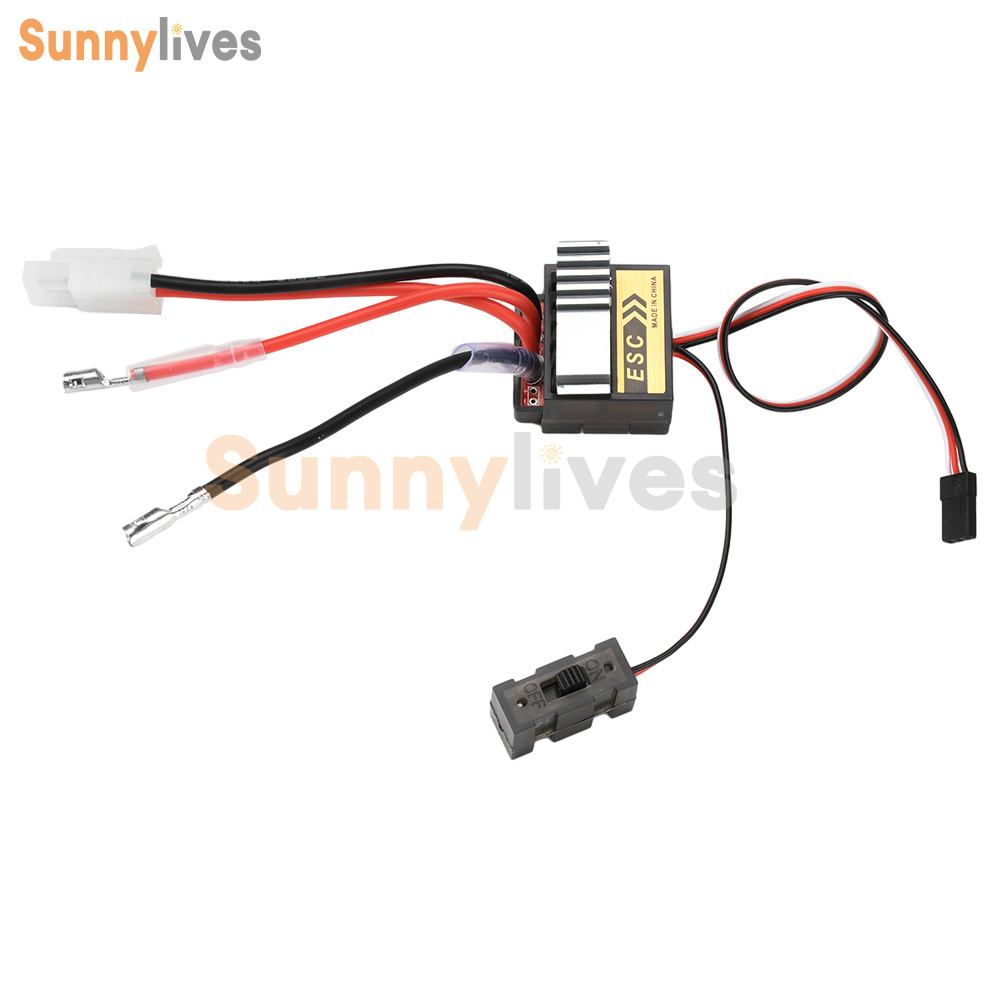

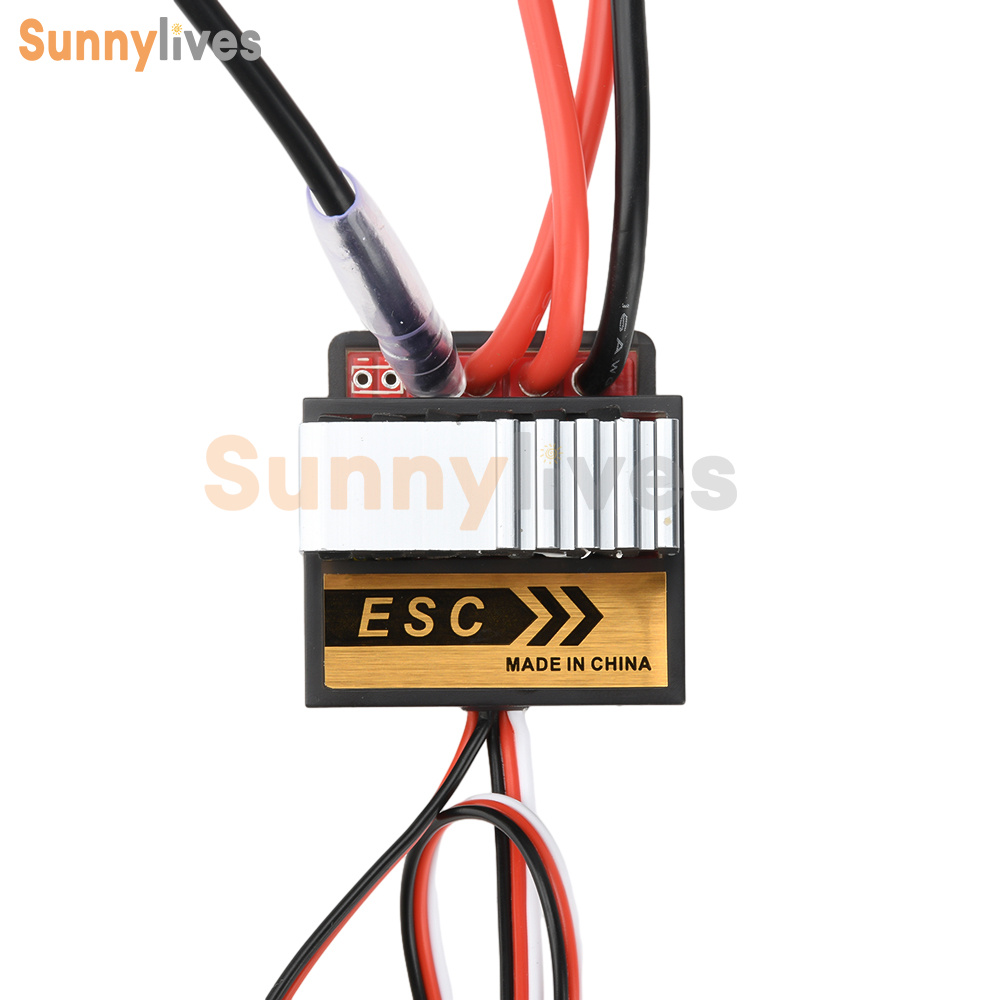

320A bi-directional ESC with brake, suitable for off-road vehicles, RC boats, climbing car aeromodels to upgrade the speed of the product
has integrated capacitors into the ESC, automatically learn the neutral position
using NiMH batteries can be matched with 540/550 brushed motors
Forward current: 320A
Backward current: 240A
Voltage range: 4.8-8.4V
PWM Frequency: 1.5KHZ
BEC Voltage: 5.0V

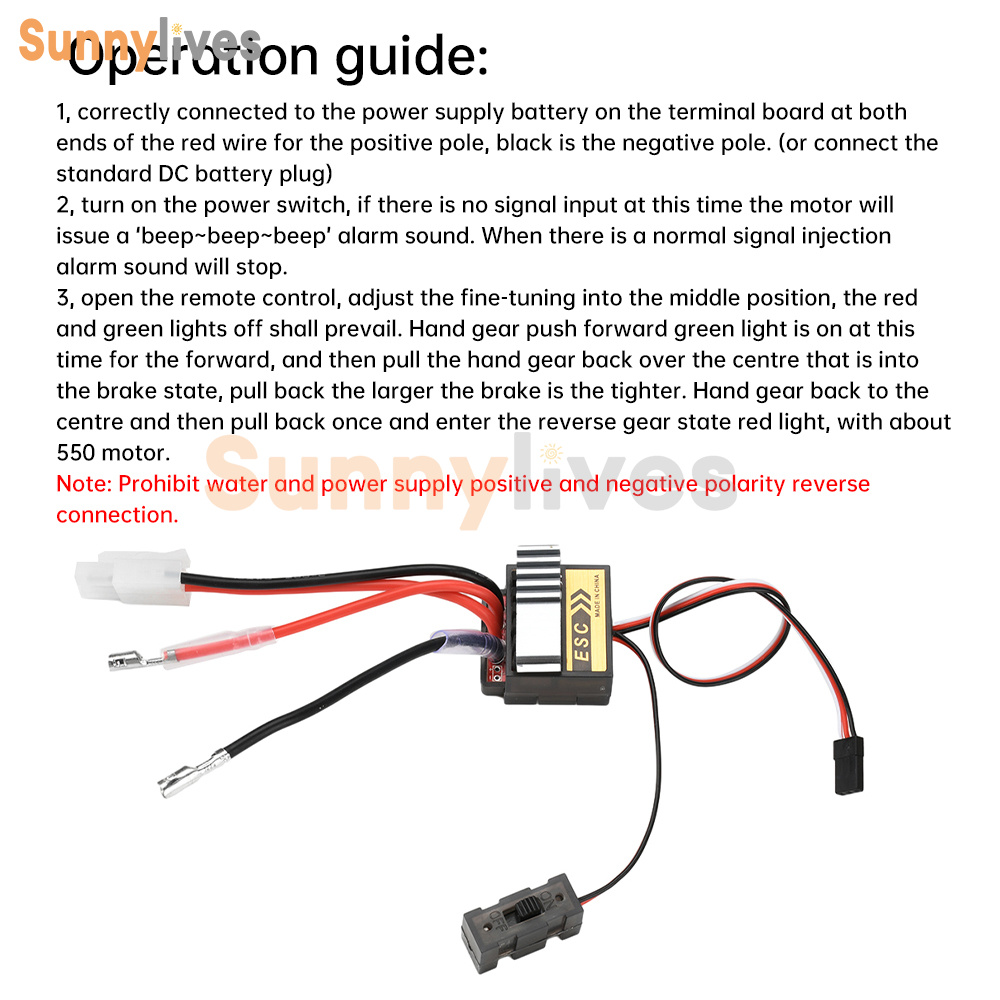

Operation Guidelines:
1. Correctly connect to the power supply battery, the red wire at both ends of the terminal block is positive, black is negative. (or connect the standard DC battery plug)

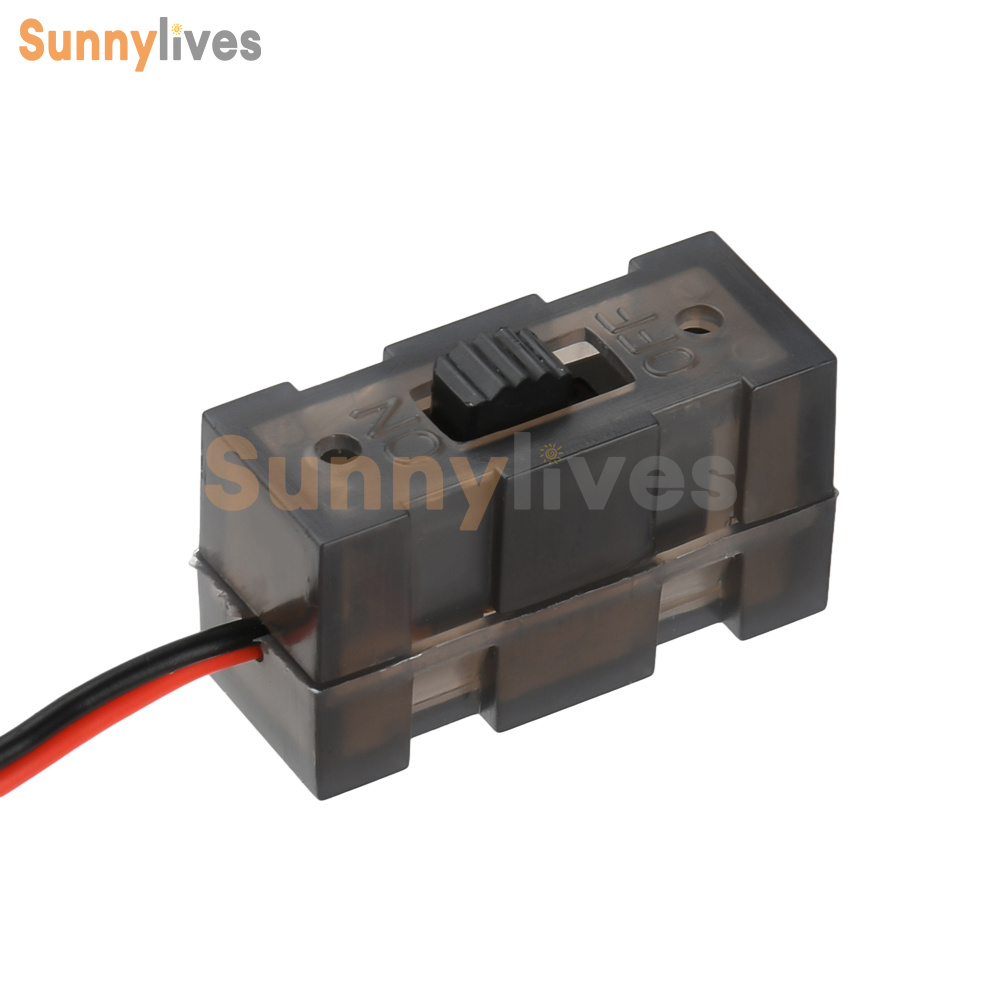

2, open the power switch, if there is no signal input at this time the motor will issue a “beep~beep~beep” alarm sound. When there is a normal signal injection alarm sound will stop.
3, open the remote control, adjust the fine-tuning into the center position, the red and green lights off shall prevail. Hand gear push forward green light is on at this time for the forward, and then pull the hand gear back over the center that is into the brake state, pull back the amplitude of the larger the brake is the tighter. Hand gear back to the center and then pull back once and enter the reverse gear state red light, with about 550 motor.
Attention: prohibit water and power supply positive and negative reverse connection
Package include:
ESC *1
