RF Touch Panel RGB LED Remote Controller fr 5V/12V/24V 4-pin RGB LED Light Strip

Product Description


RGB LED Strips Wireless RF Iron Shell 86 Full Touch Controller

RGB LED Wireless RF iron shell 86 full touch controller is a LED controller with advanced point-control touch technology. Dynamic lighting effects such as gradient, jump, gradual light and dark, flicker, and flash can be selected according to different needs of customers, as well as a variety of static colors to choose from. It can be widely used in boat, camper van, kitchen (under Cabinet) , truck, marine,led puck lights, RV, living room, bedroom, bathroom, dinette lights and more.Such as LED strips LED rope light, LED module, LED bulb, LED tube, LED panel light ,etc. It has the advantages of flexible wiring, convenient wiring and simple use.

Technical Parameter:

1. Working voltage: DC 5-24V

2. Working temperature: -20-60℃

3. Output current/power: 10A*3CH, 5V<150W, 12V<360W, 24V<720W

4. Weight: 170 grams

5. Product size: L85*W62*H22mm

6. Packing size: L110*W94*H42mm

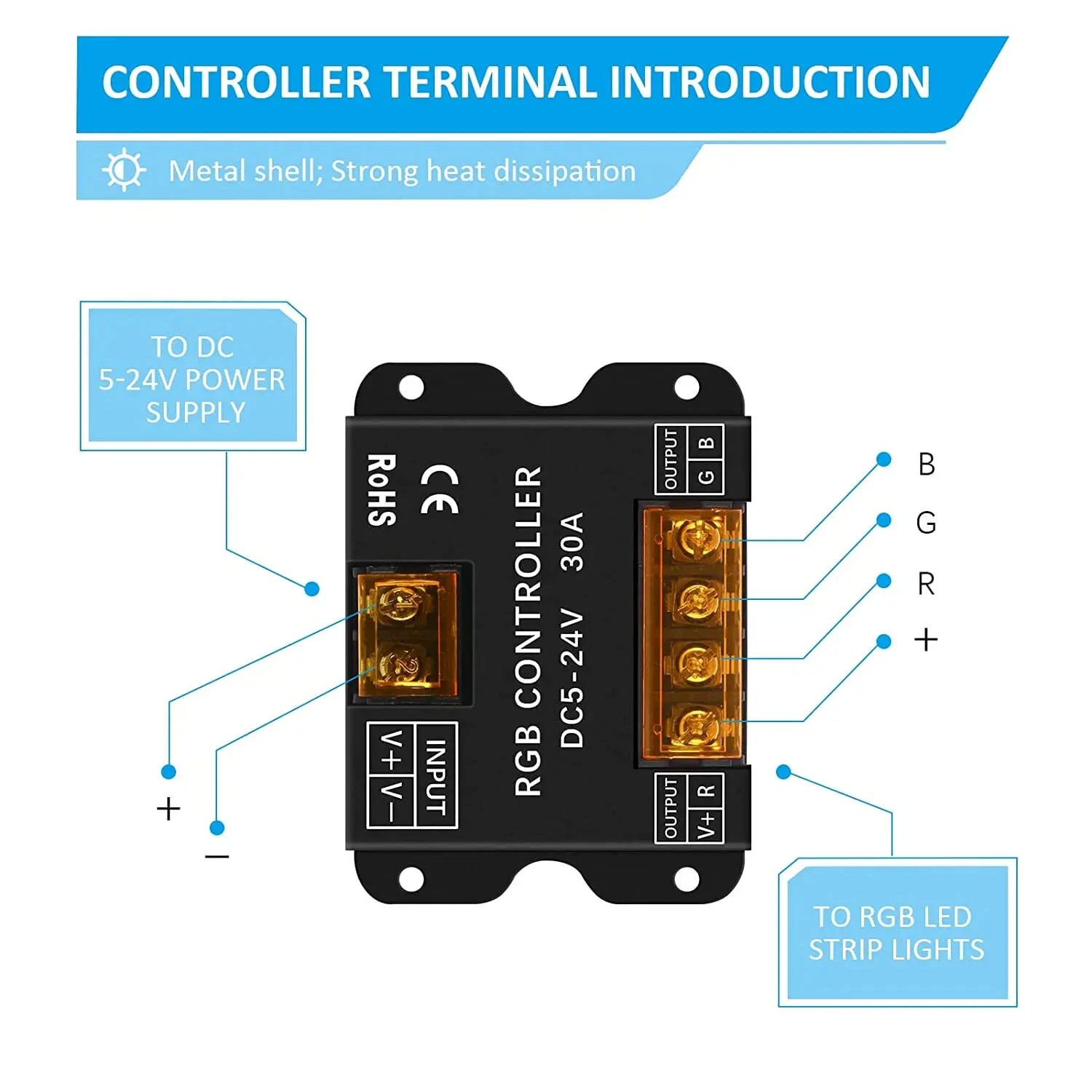

7, INPUT: input power positive / negative

8. OUTPUT: output light with positive pole/R/G/B

Note: Brightness and speed can be adjusted in each mode

Static colors: red, green, blue, yellow, purple, cyan, white. (loop switch)

BRIGHT brightness plus or minus: 10 levels (can be fired in burst)

SPEED speed addition and subtraction: 10 levels (can be fired in burst)

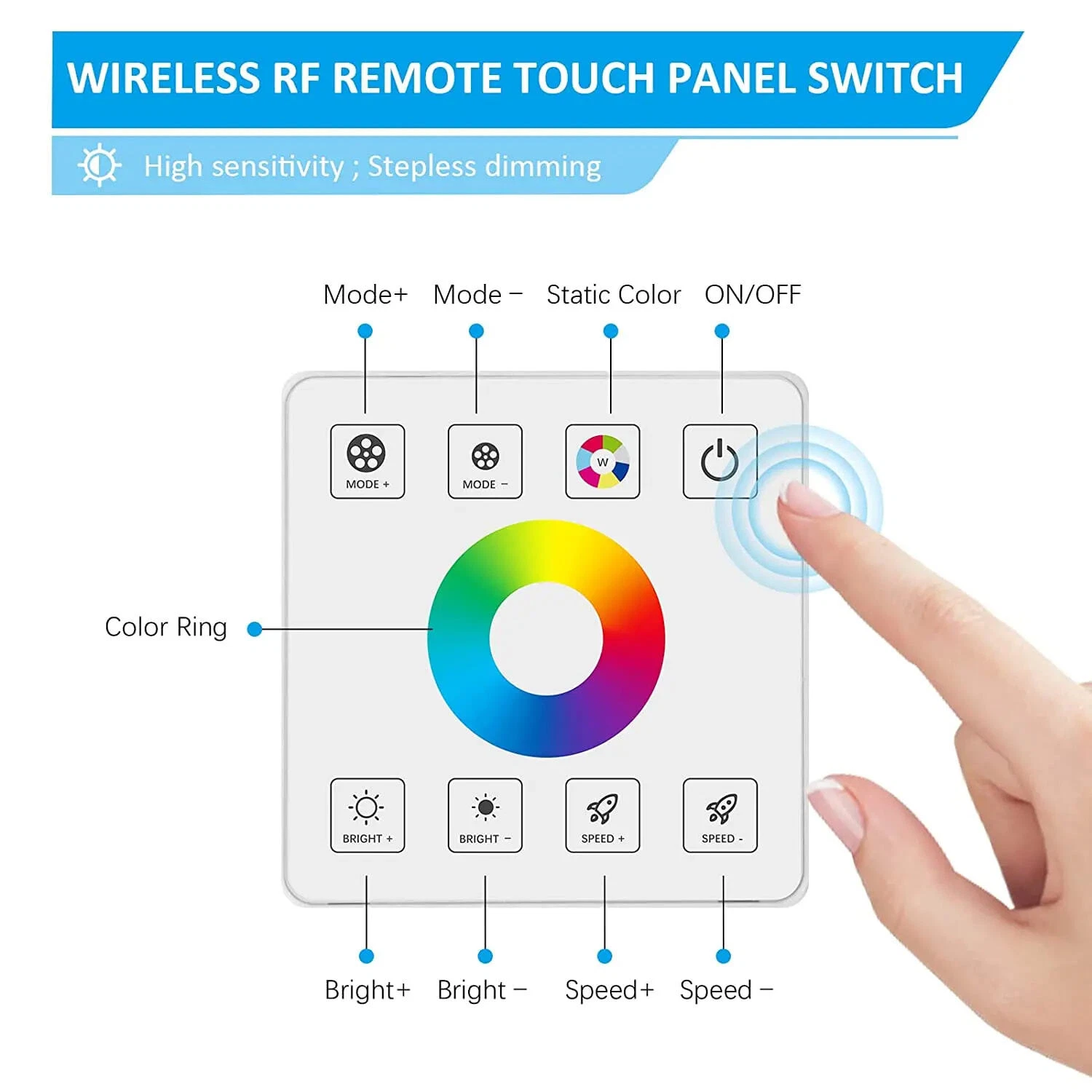

Touch panel remote controller function:


Code matching & Code clearing(Method of connection and disconnection):

Code matching : keep press MODE+ button within 5 seconds after the controller is powered on, and the light bar flashes slowly for 3 times.

Code clearing : keep press  MOED- button within 5 seconds after the controller is powered on, and the light bar flashes quickly for 3 times.
