Specifications:
Working pressure:0.6-0.8 MPa
Nail width:110 mm
Nail thickness:115 mm
Available V nail size:7/10/12/15 mm
Color:blue
Package size:53*43*46cm
Weight:35KG
Simple operation, high efficiency, no need to use electricity, fast nail.

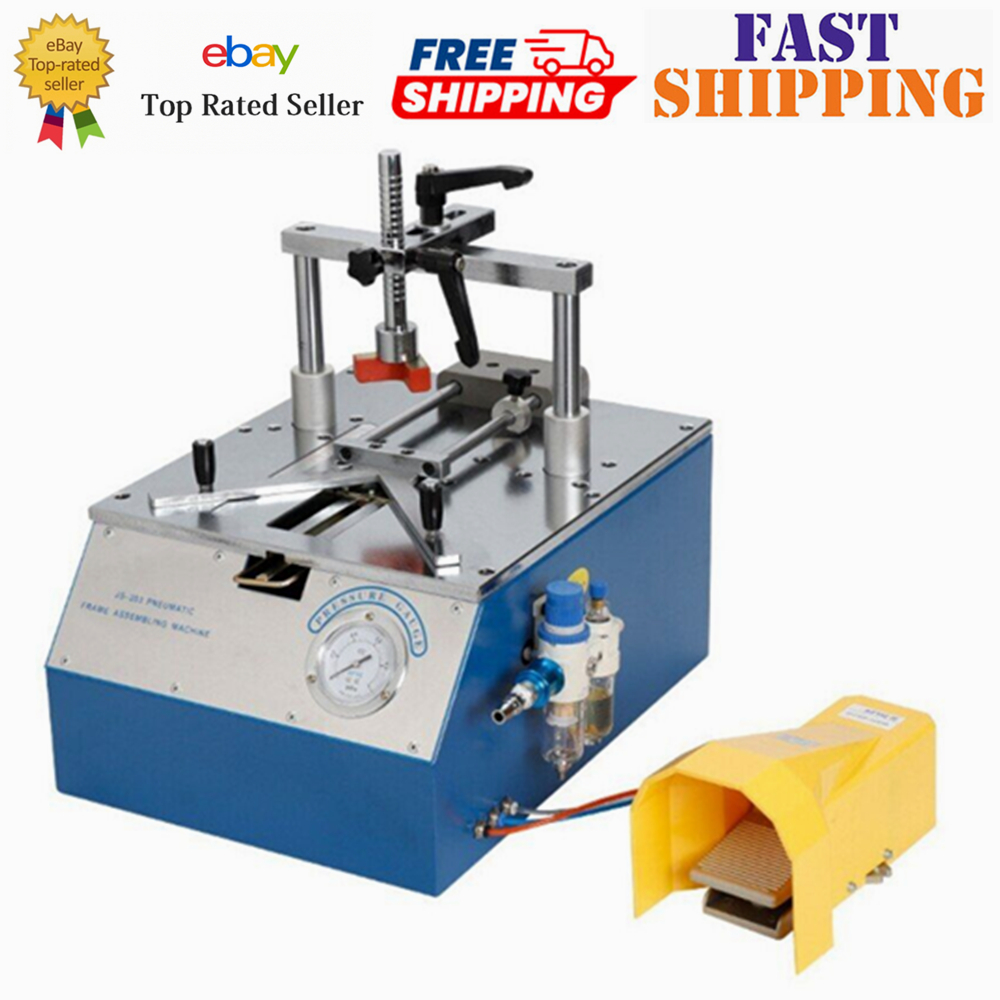

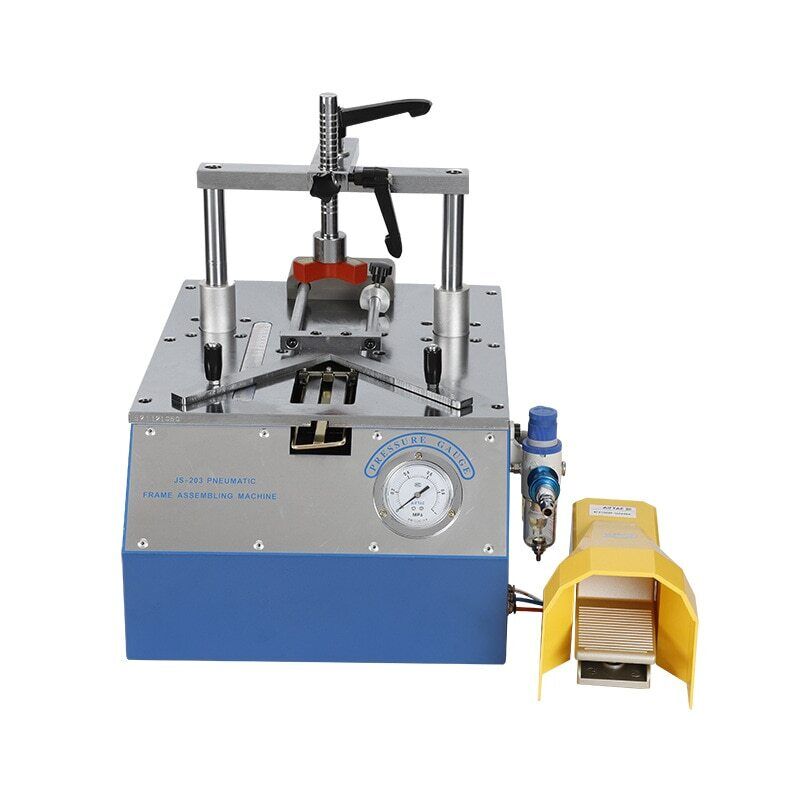

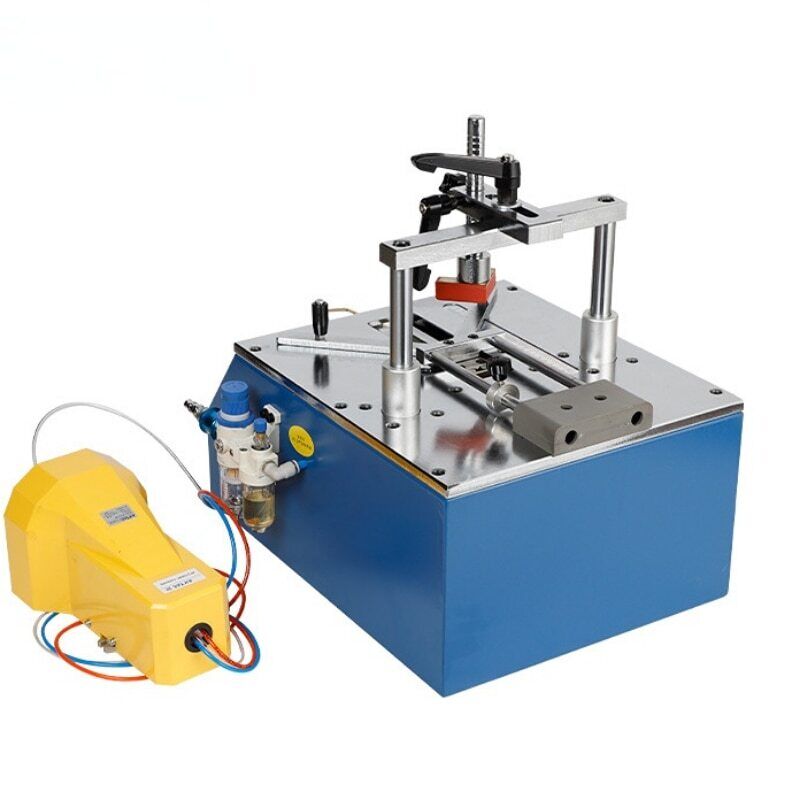

About the pneumatic nail Angle machine
This machine does not need power to work with air pressure as the power, fast nail shooting speed, the use of two combined pressure regulating, water filtration, oil supply device, automatic oil mist, lubrication, maintenance of pneumatic components. Therefore, it is widely used in the mass production workplace in the wood product production industry, such as photo frame, picture frame, mirror frame and gift box.
Working pressure:0.6-0.8 MPa
Nail width:110 mm
Nail thickness:115 mm
Available V nail size:7/10/12/15 mm
Color:blue
Package size:53*43*46cm
Weight:35KG
Simple operation, high efficiency, no need to use electricity, fast nail.
About the pneumatic nail Angle machine
This machine does not need power to work with air pressure as the power, fast nail shooting speed, the use of two combined pressure regulating, water filtration, oil supply device, automatic oil mist, lubrication, maintenance of pneumatic components. Therefore, it is widely used in the mass production workplace in the wood product production industry, such as photo frame, picture frame, mirror frame and gift box.
Product features:
Pneumatic nail feeding, can accommodate a whole nail, with 7, 10, 12, 15 nail mold, can nail 7, 10, 12, 15 horn nails, general industry internal corner nail model. The machine has stable pressure, high pressure, fast working speed, high labor efficiency and product quality guarantee. Scientific configuration of numerical control to increase the frame, widen the table, increase the double pressing device, the size of the frame easy clamping clamping more firmly, no gap. Equipped with Taiwan AIRTAC pneumatic components, reliable quality, long service time, stable work.
Pneumatic nail feeding, can accommodate a whole nail, with 7, 10, 12, 15 nail mold, can nail 7, 10, 12, 15 horn nails, general industry internal corner nail model. The machine has stable pressure, high pressure, fast working speed, high labor efficiency and product quality guarantee. Scientific configuration of numerical control to increase the frame, widen the table, increase the double pressing device, the size of the frame easy clamping clamping more firmly, no gap. Equipped with Taiwan AIRTAC pneumatic components, reliable quality, long service time, stable work.
Equipped with 90 degree right Angle mold, make small frame more rapid Angle. With the left and right sides of the support line tray, the big frame can be easily nailed frame. Equipped with 90 degrees automatic clamping, compression and contraction of seamless pressure foot, Angle more convenient, seamless. Upgrade simple procedure operation.
Convenient and quick start, simple operation, table thickened 1.6cm, long service time, durable and wear-resistant. Gear clamping line, adjustable Angle clamping 90 degrees, 120 degrees,135 degrees function.
Product parameters
Scope of application:
solid wood, PS foam, density board, plastic strip, decorative lines, PVC.
