Features:

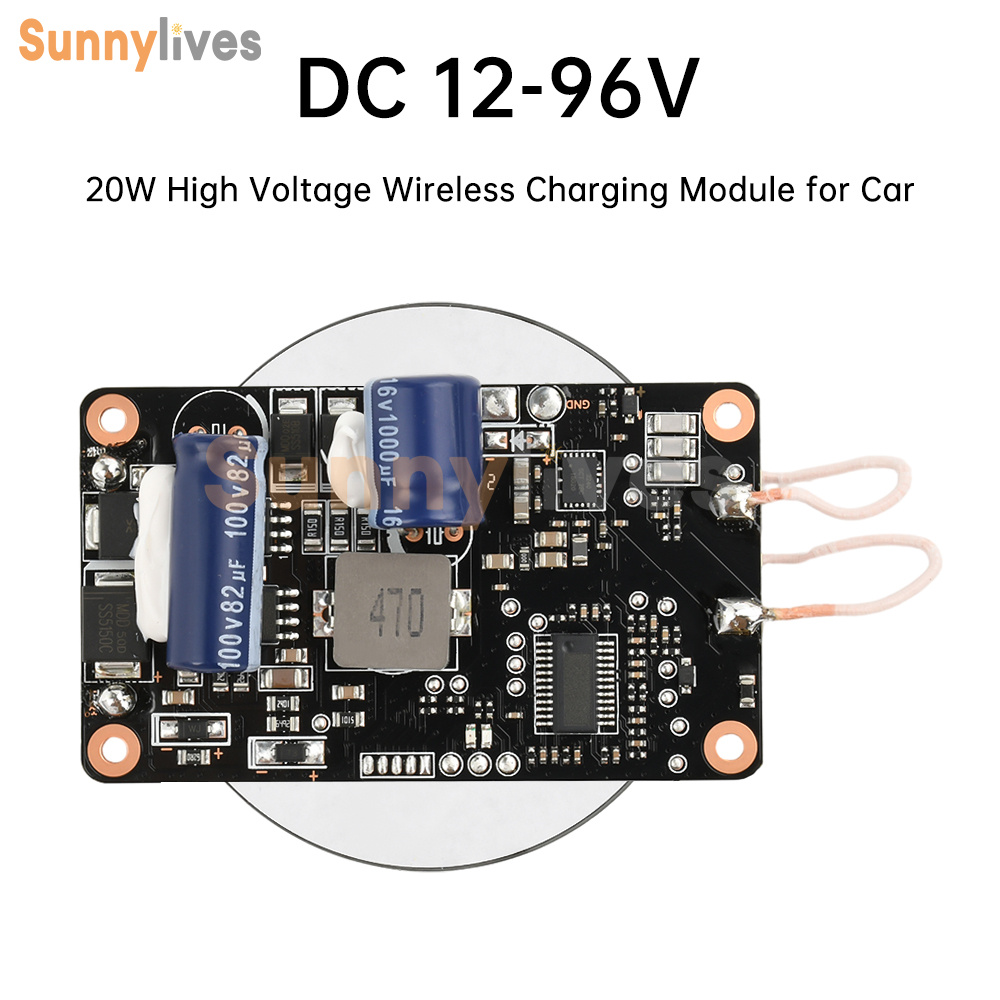

1.Support DC12-96V input, suitable for 12V/24V/72V/96V multiple vehicle system
2.Provide maximum 20W wireless charging power to meet the rapid charging needs of cell phones.
3. Suitable for cars, battery cars and other outdoor scenes, easy and practical modification
4. Built-in over-voltage, over-temperature, anti-short-circuit and anti-reverse connection protection ensures safe and reliable charging.
5. Adopt high voltage design, adapt to complex environment, stable charging without dropping the line
Parameter:
Charging distance: 0-10MM; 0-8MM.

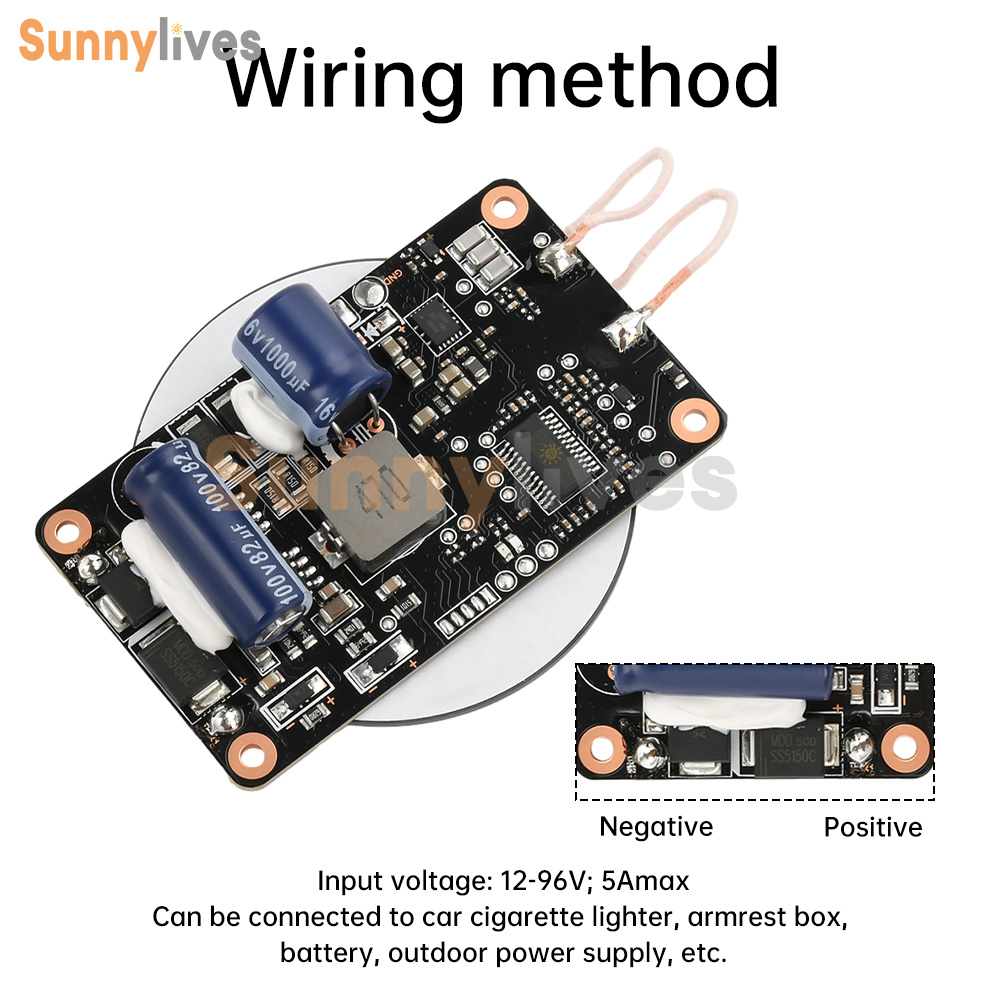

Input power supply: positive and negative welding support 12V-96V, 5A MAX (can be connected to the car's power supply, do not need voltage regulator)
Output power supply: input 12V; output 20W-5W automatic identification

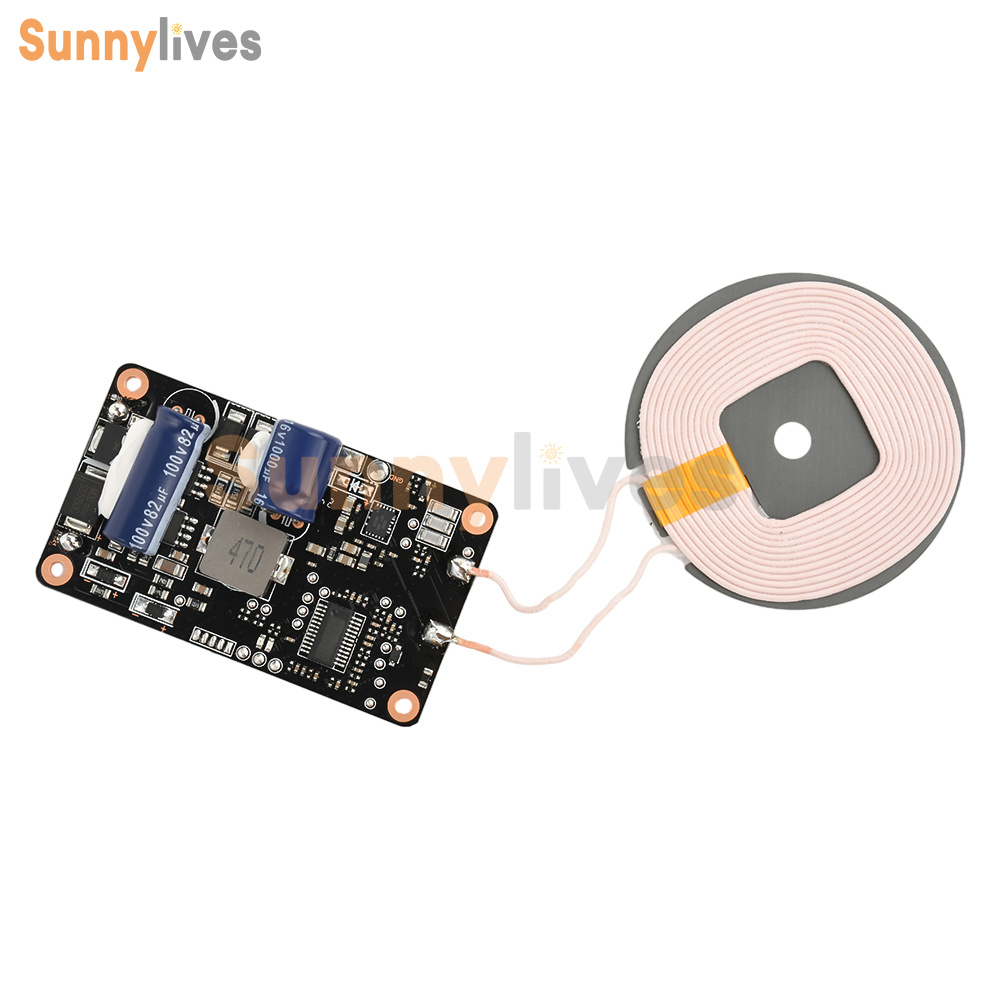

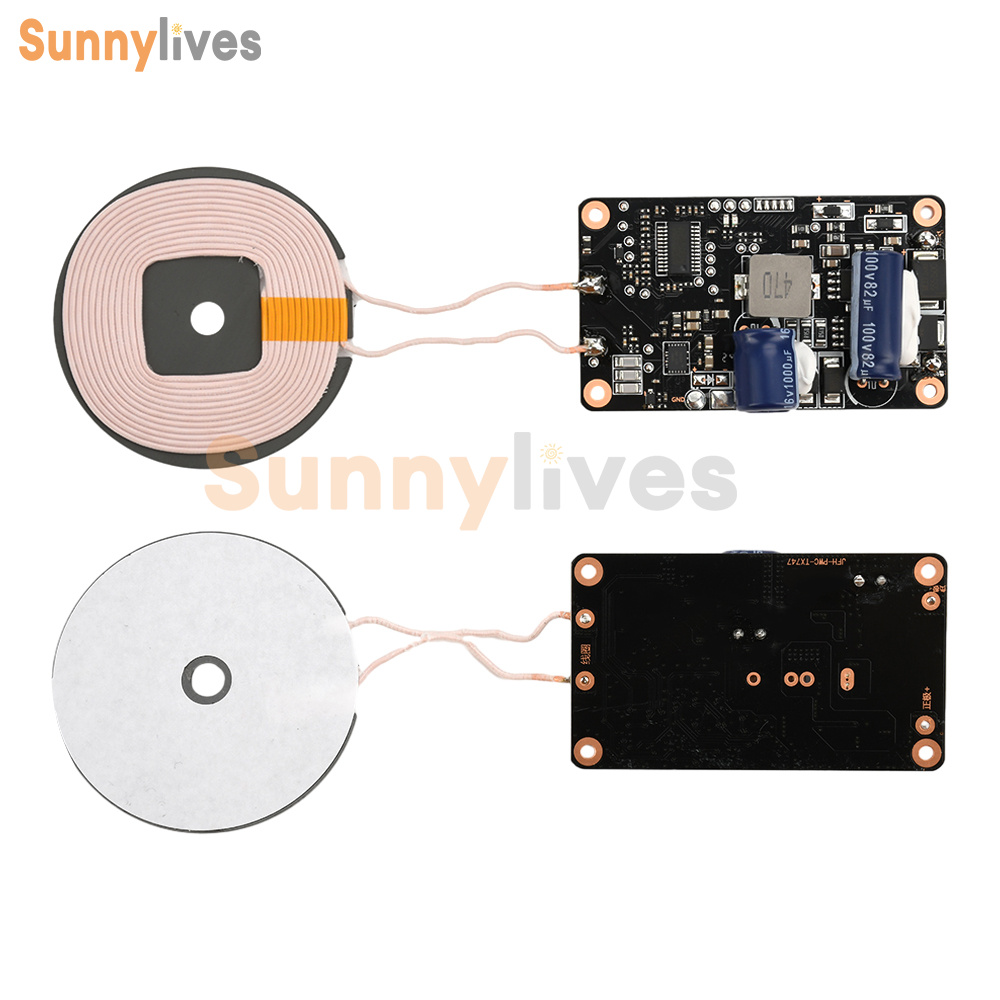

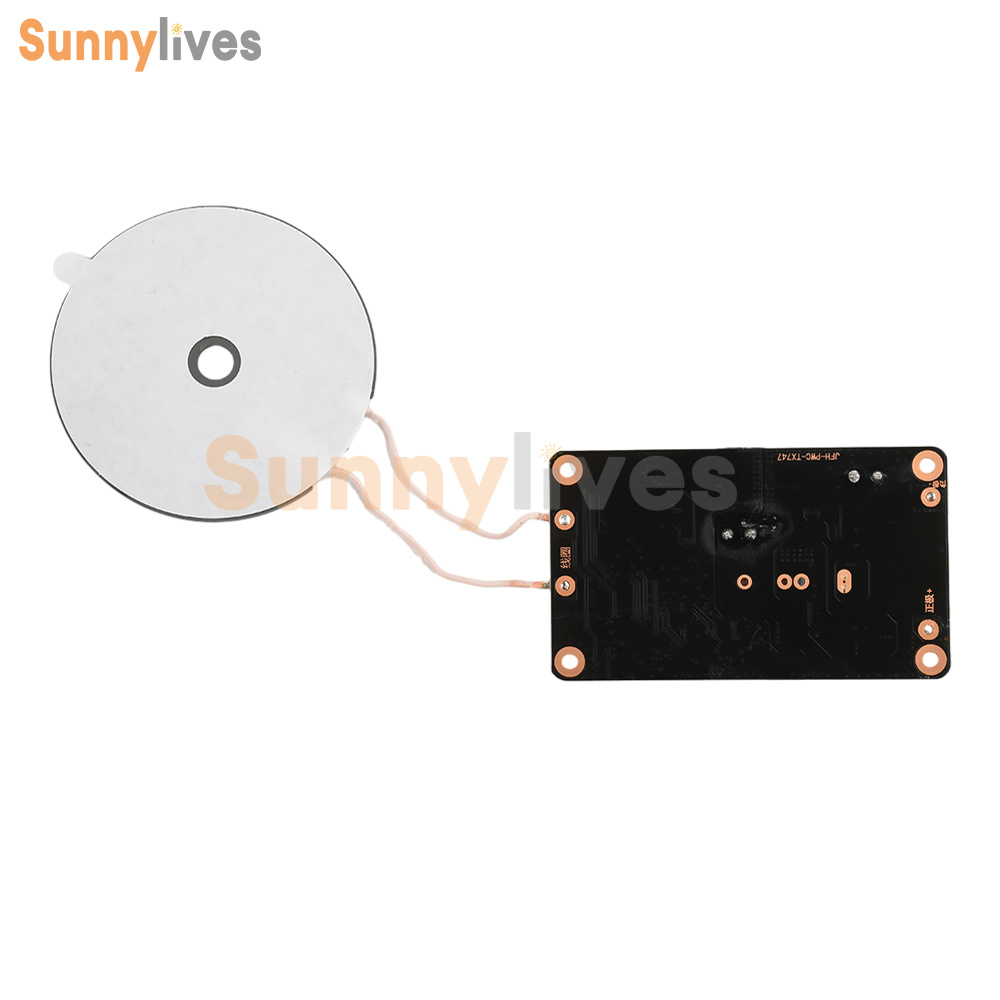

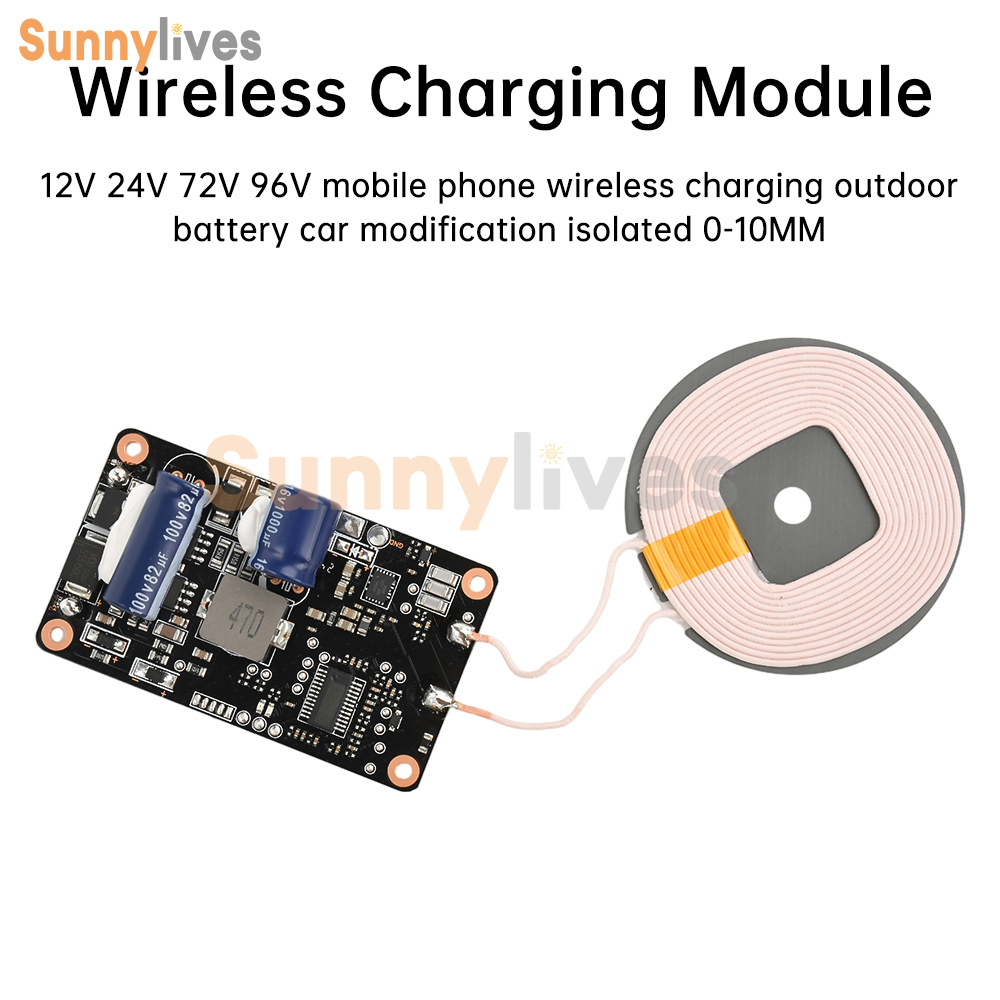

Size parameters: PCBA size: 65 * 35 * thickness 13MM; coil size: diameter 50 * thickness 2.5MM
Standby power consumption: <0.4W
Efficiency: 80% MAX

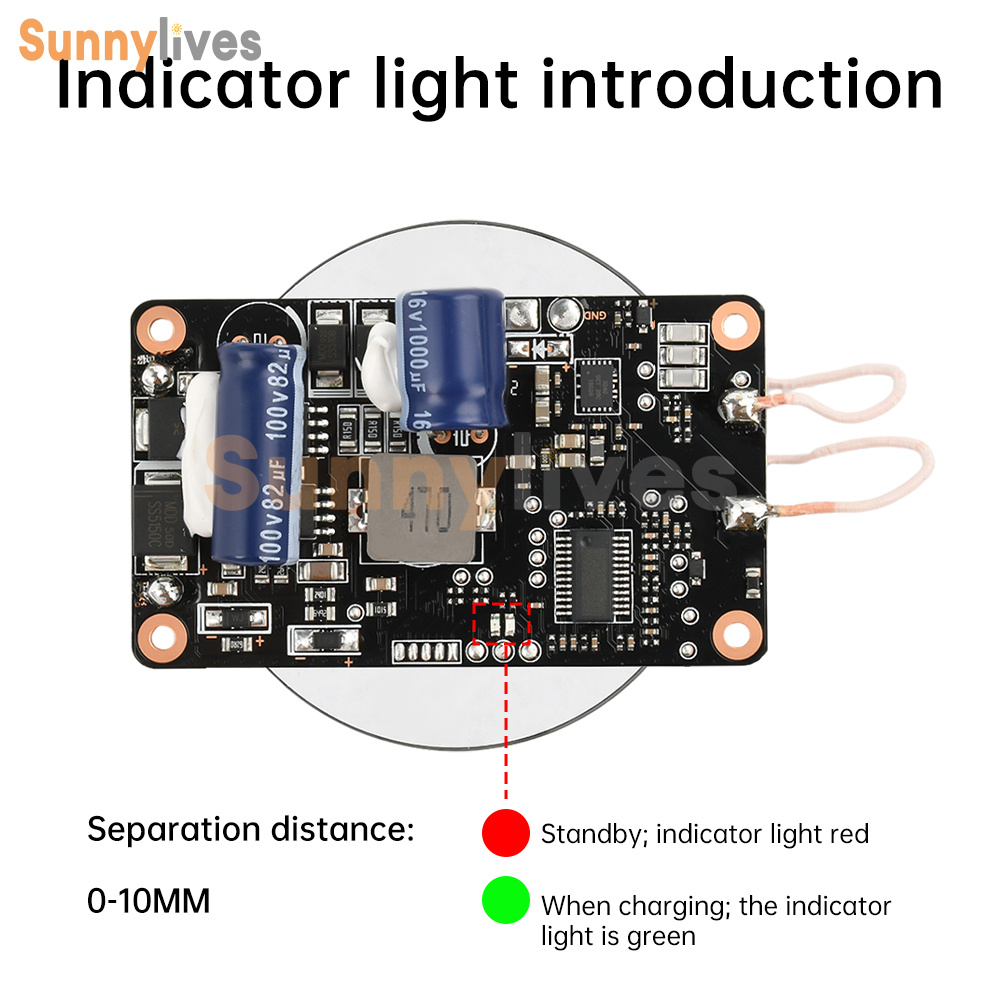

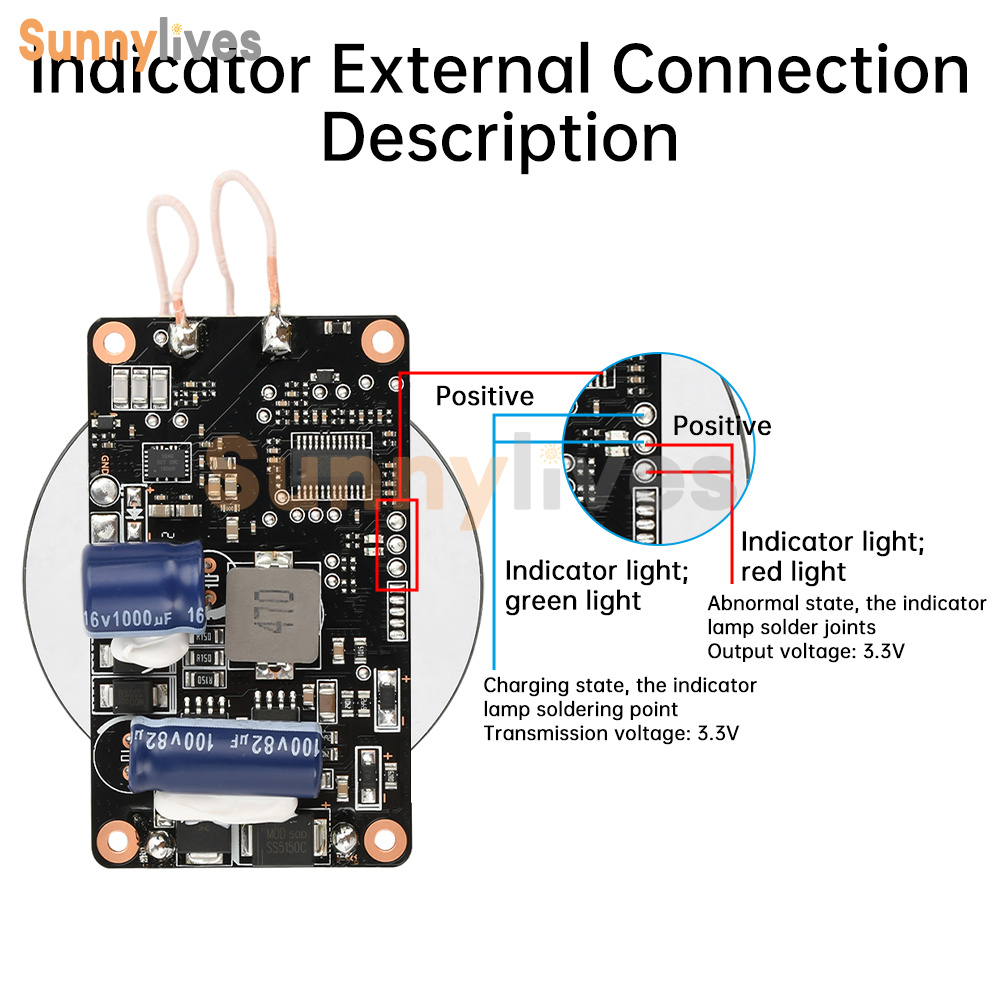

Standby: Indicator light red
When charging: indicator light green
Package include:

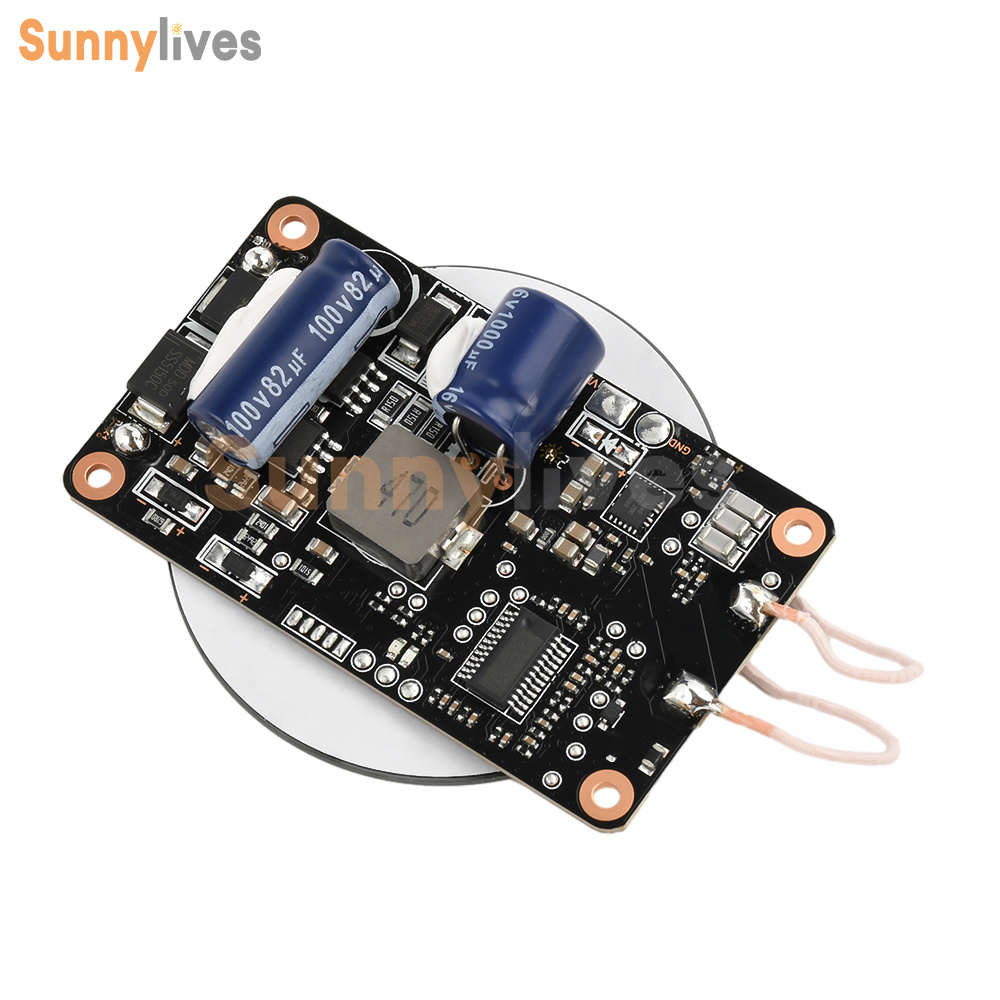

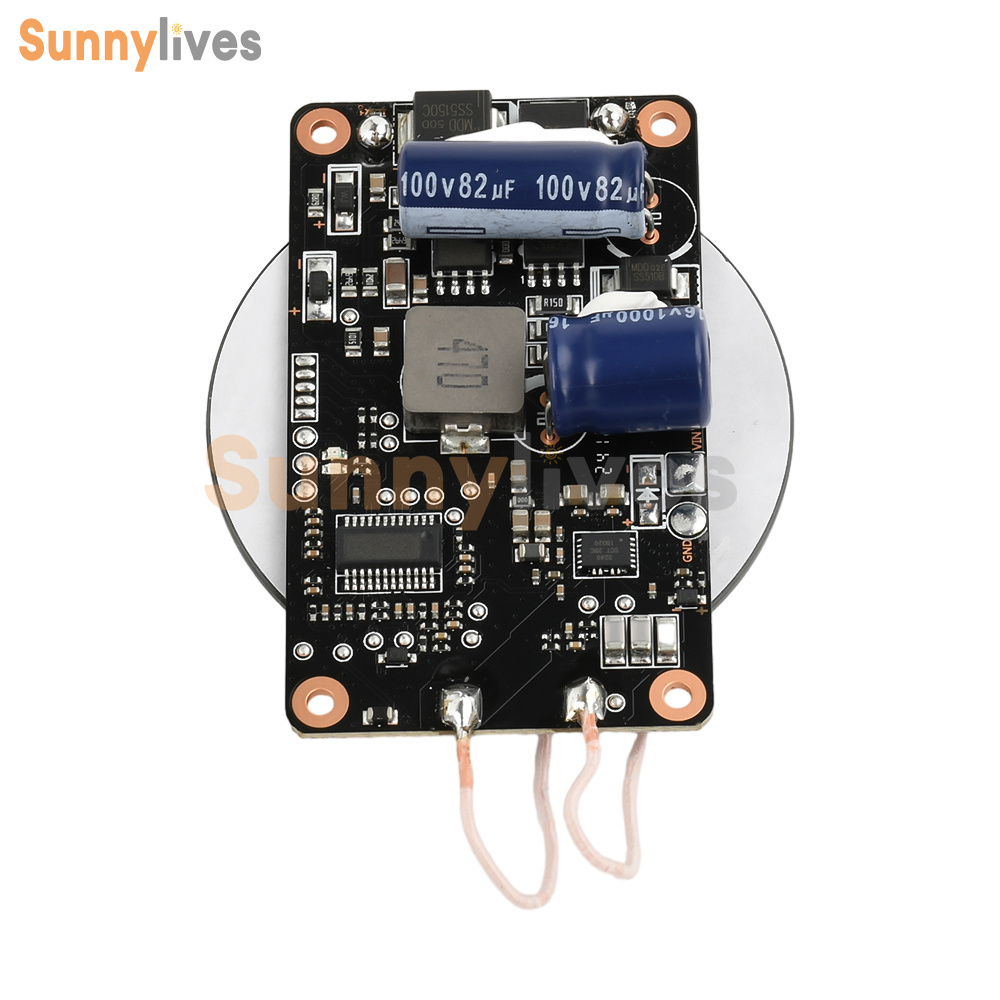

Wireless charging module *1
