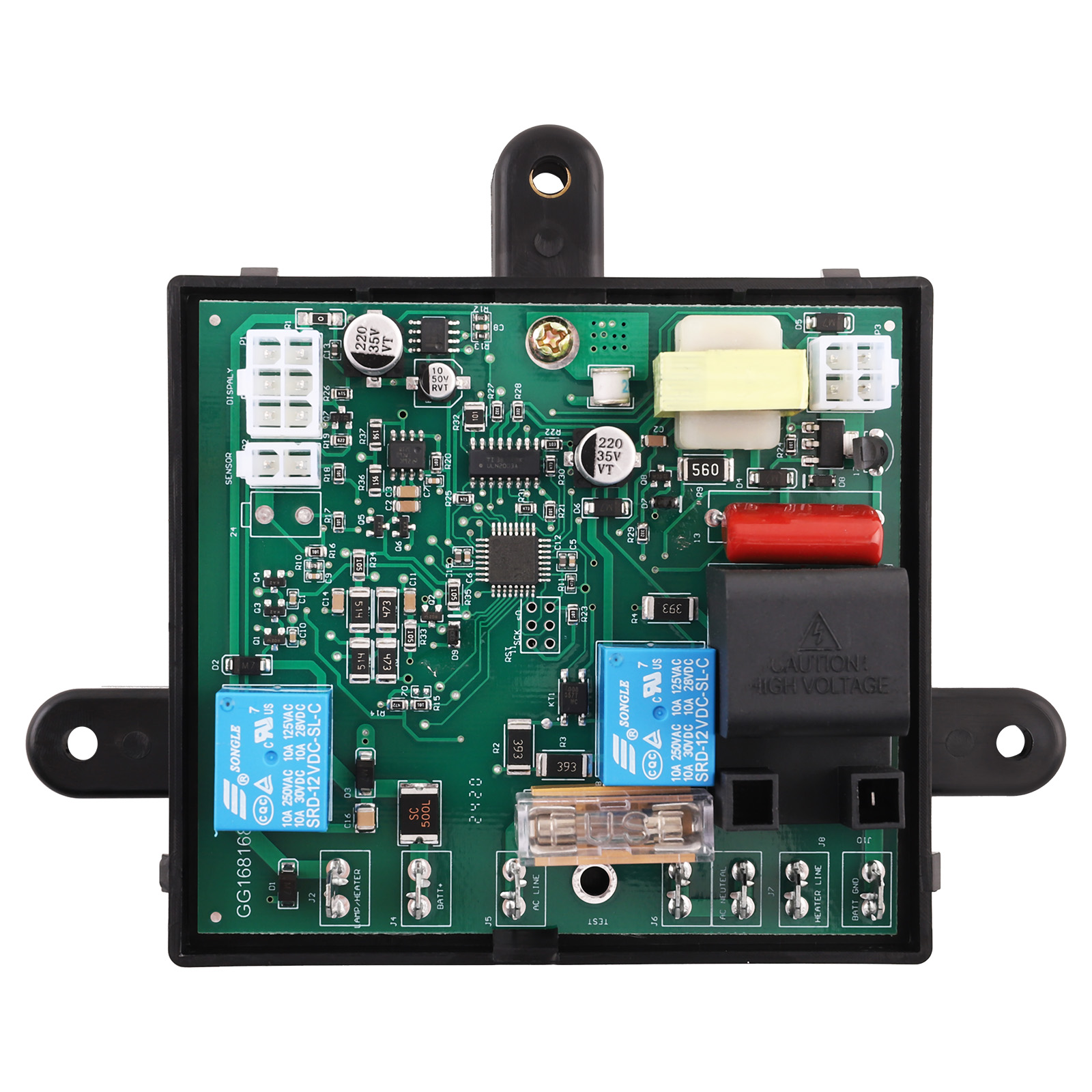

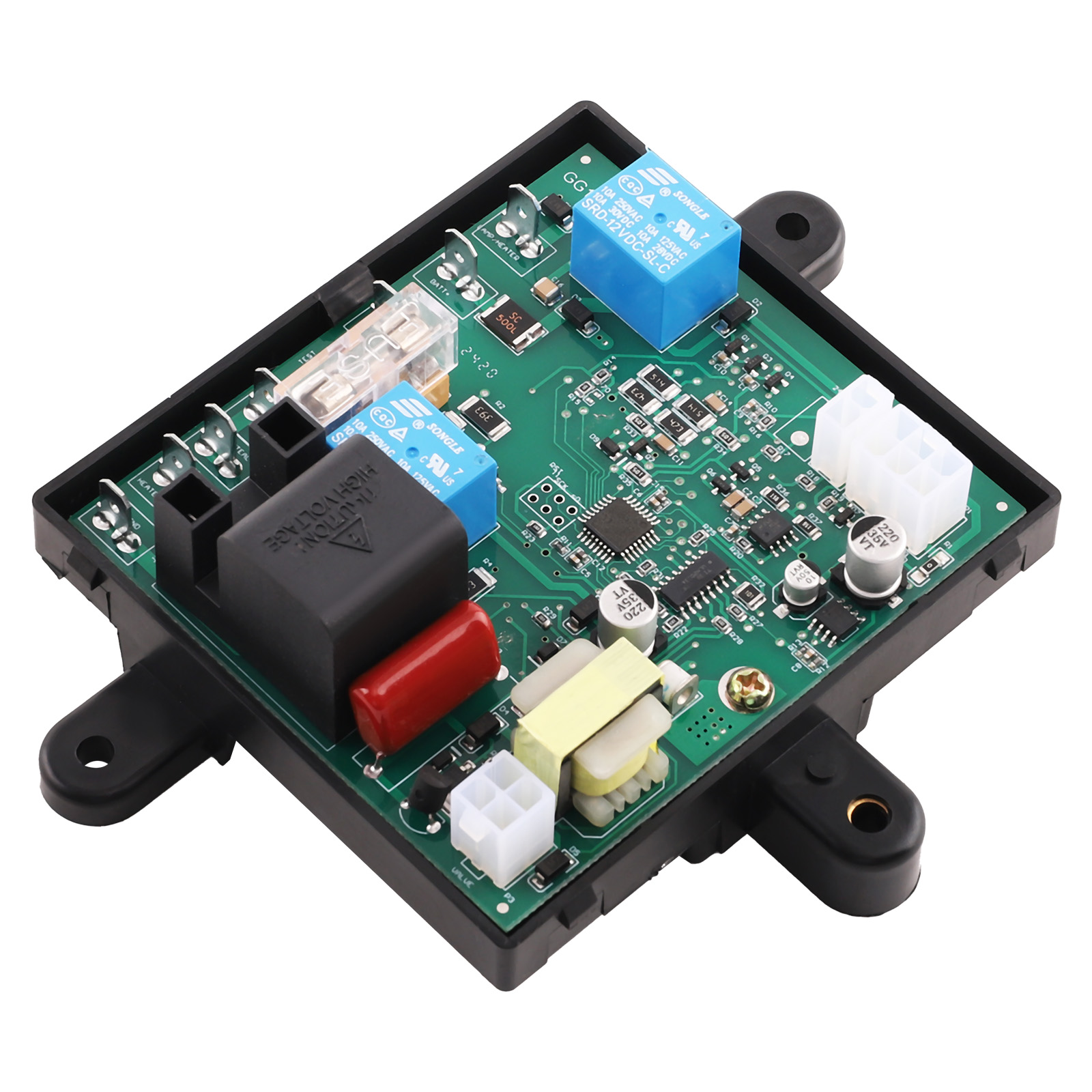

Power Module Board For Dometic RV Fridge RM2351 RM2354 RM2451 RM2454 3316348.900



Fitments:
For most Dometic RV Refrigerator/ Fridge models:
For DM Series: DM2652; DM2662; DM2663; DM2852; DM2862; DM3862.
For RM Series: RM2351; RM2354; RM2451; RM2454; RM2551; RM2554; RM2620; RM2652; RM2662; RM2820; RM2852; RM2862.
For NDM Series:NDM1062; NDR1062.


Item Type: Power Module Board
Detailsz: Power:120V, 3.5A,60Hz and 12VDC, 1.9A.

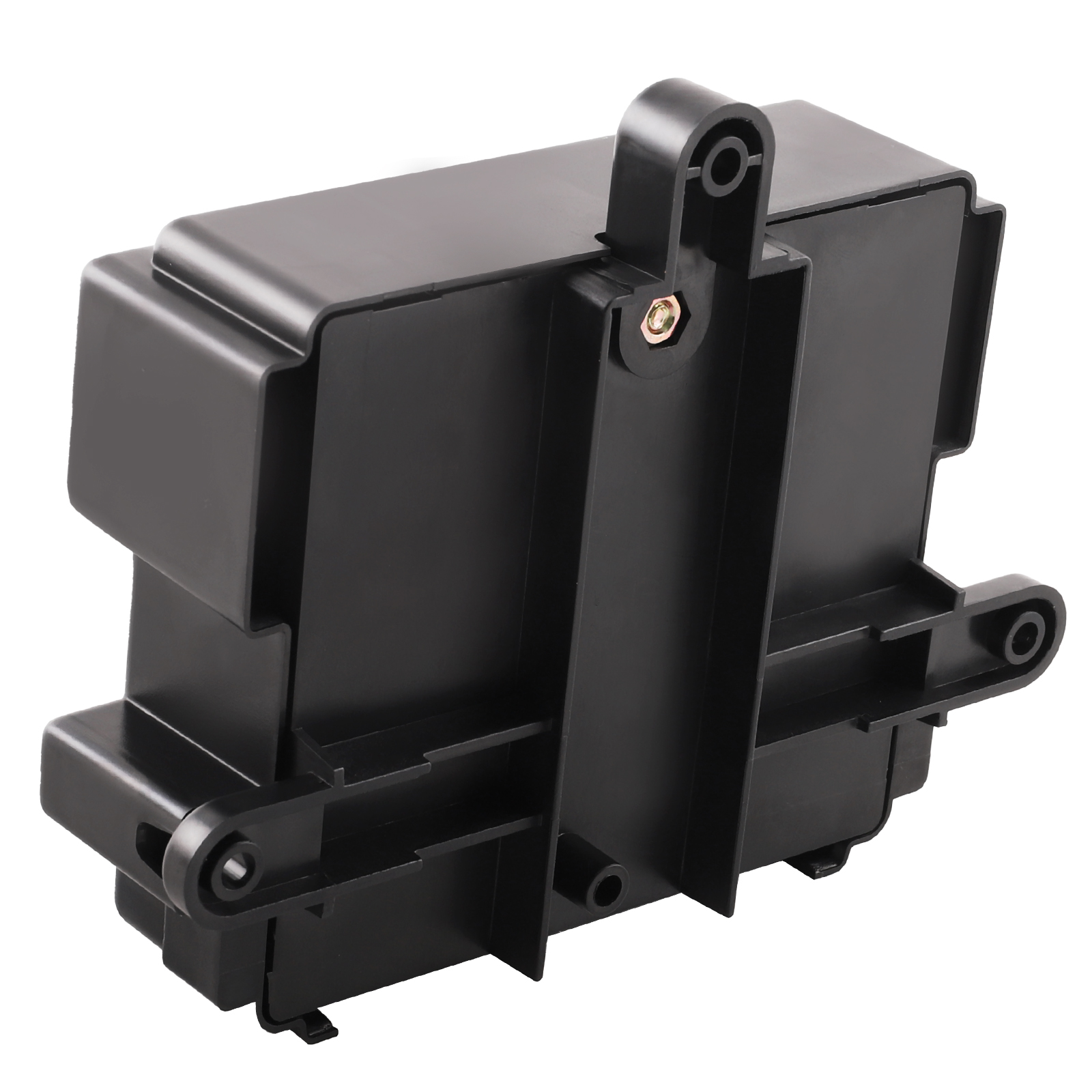

Material: ABS+Metal
OE Number: 3316348.900, 3316348.000, 3850712.013
Fitment: for DM2652; DM2662; DM2663; DM2852; DM2862; DM3862; NDM1062; NDR1062; RM2351; RM2354; RM2451; RM2454; RM2551; RM2554; RM2620; RM2652; RM2662; RM2820; RM2852; RM2862
120V, 3.5A, 60Hz and 12VDC, 1.9A.
Package includes:
1x Power Module Board.
1x Installation instruction.



Description:

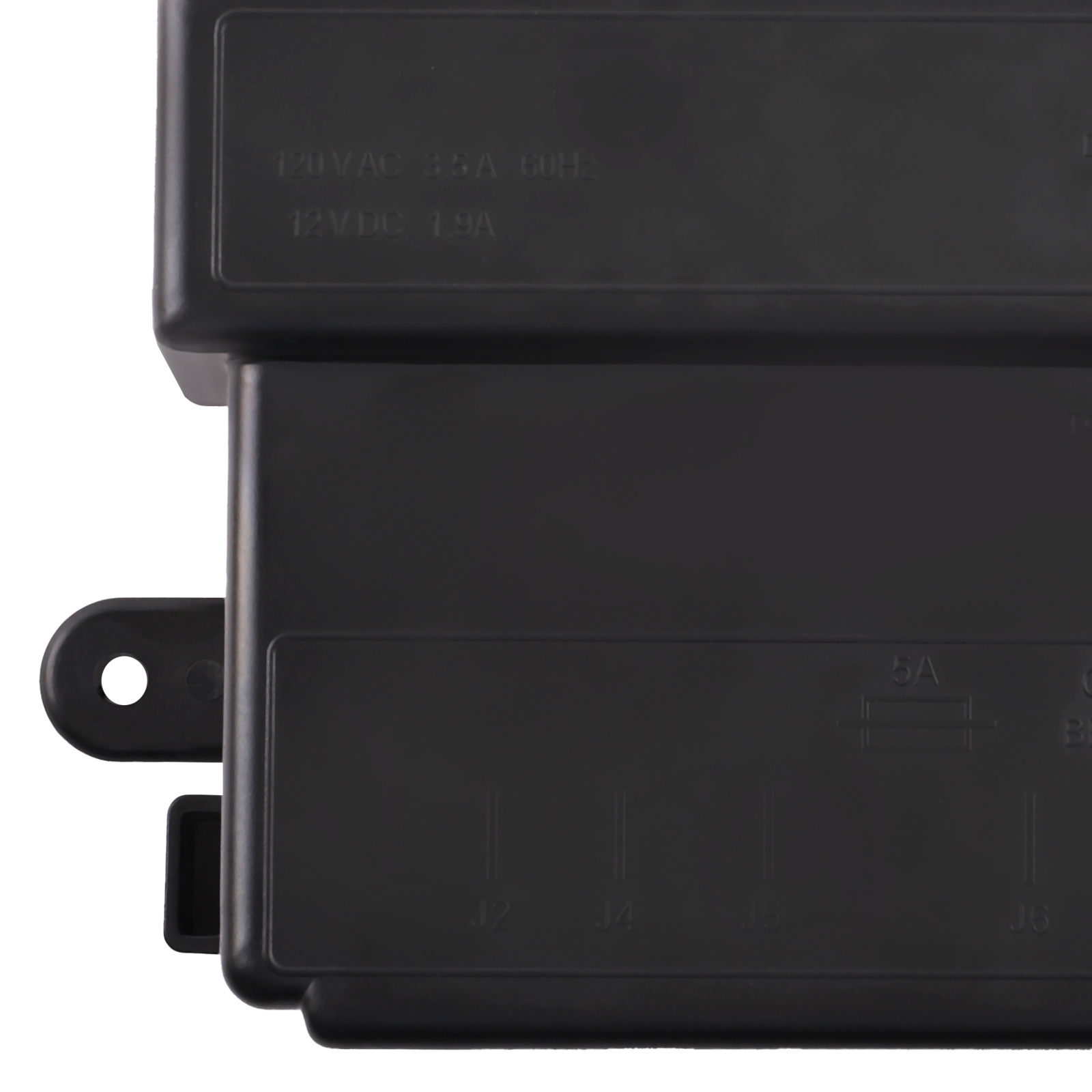

Fuse back cover description:

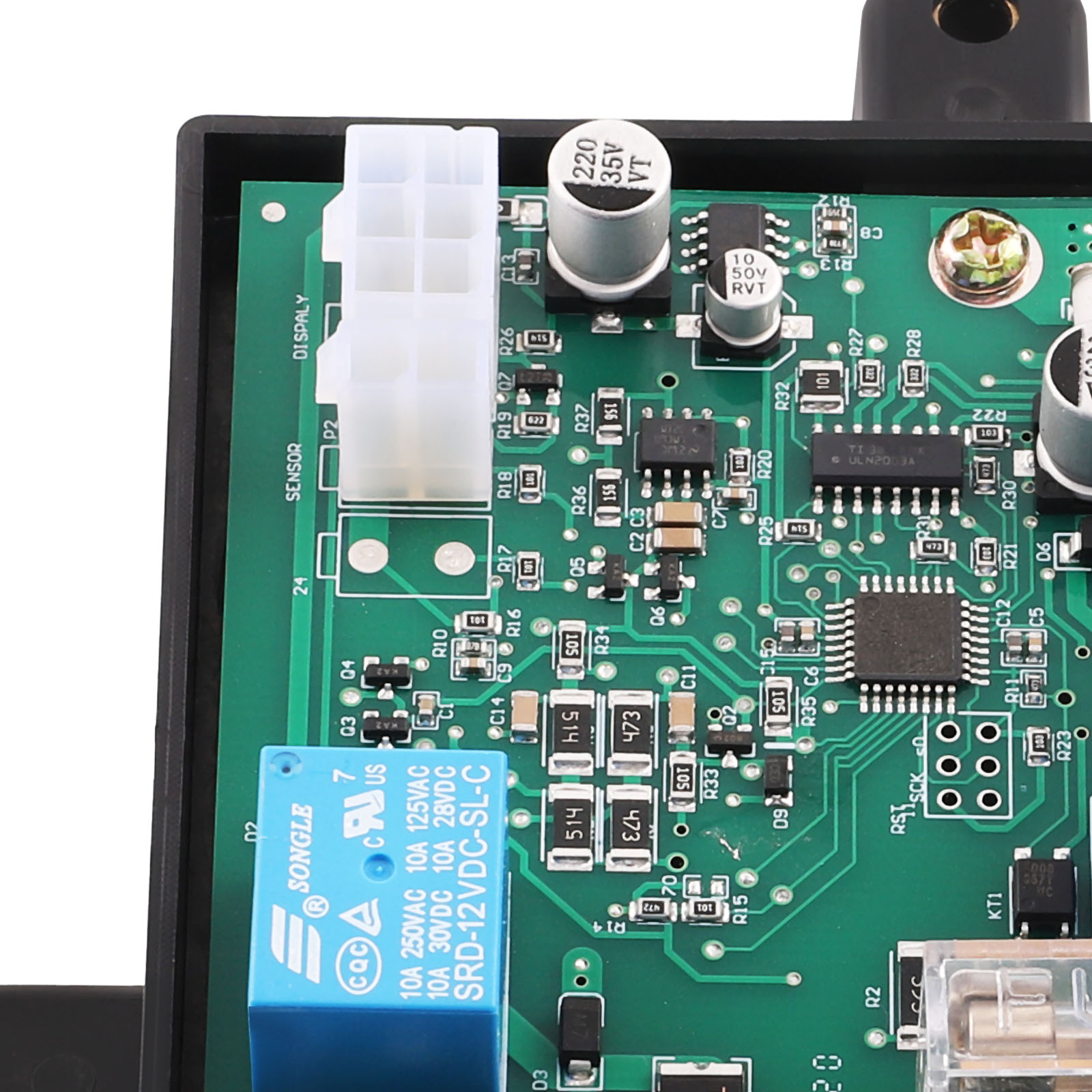

P1: connected to upper control board
P2: thermistor, P3: connected to gas valve

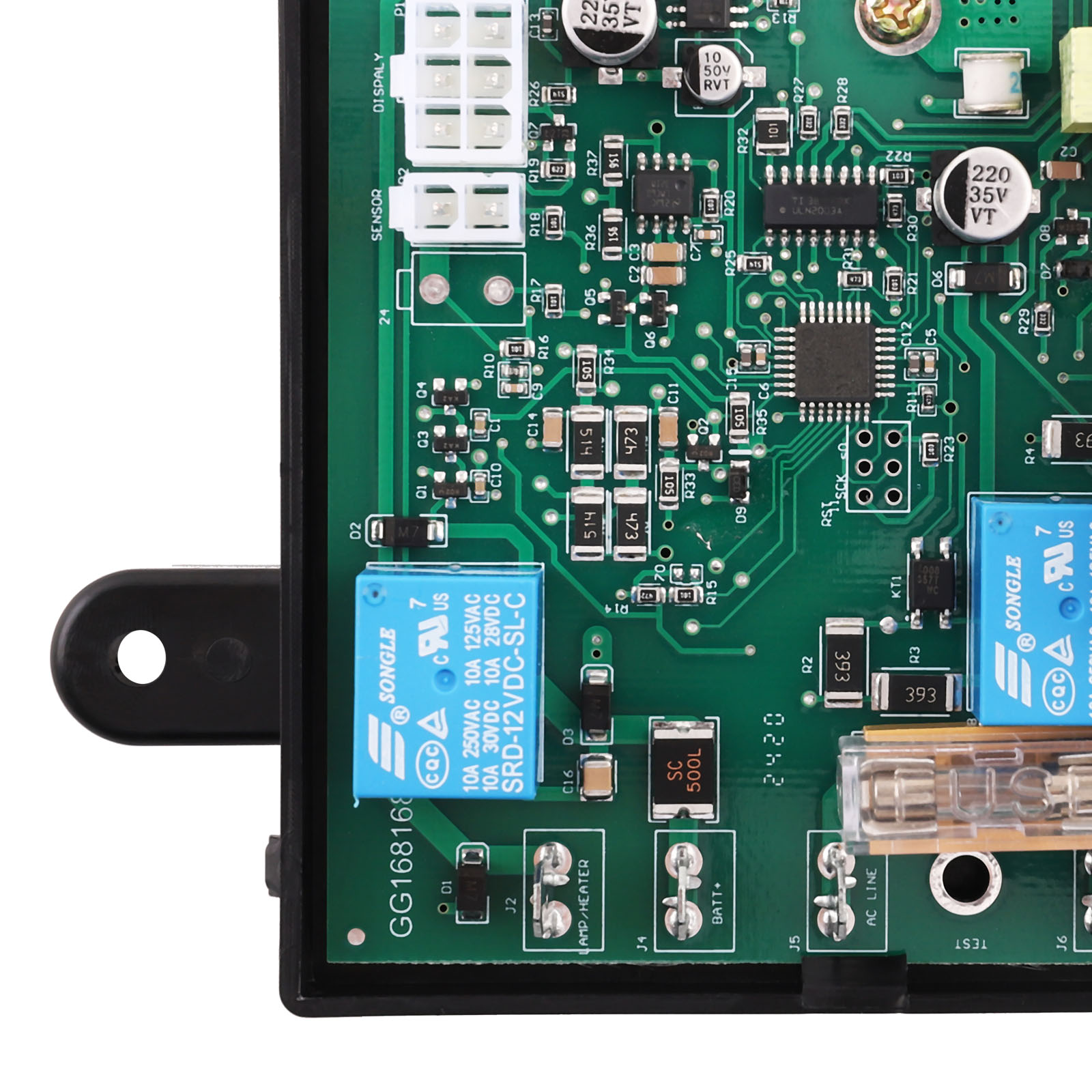

J2: connected to indoor lighting/climate control
J4: positive 12V DC from terminal block
J5: AC line voltage (black), J6: AC neutral (white)
J7: AC neutral output to AC heater
J8: AC line output to AC heater switch side
J10: negative to chassis ground

Easy Installation:
During the installation process, we recommend taking photos of the old control board before disassembly to clarify the position of the wires.
If the interfaces match perfectly, please reconnect them accurately according to the original wiring layout to ensure a smooth upgrade process.
