Introduction:

A carburetor is a device to mix air and fuel for internal combustion engines in the proper ratio for combustion. The fuel and air mixture is too rich if it has an excess of fuel, while too lean if there is not enough. Therefore, our high quality carburetor is the perfect solution for the appropriate ratio of air and fuel mixture and finally provides a good engine performance

Application:

For VolksWagen Bug Beetle
For Fiat
For Porsche carburetor With Air Horn

Carburetor for modification with Any application that utilizes the IDF carburetor.

Manufacturer Part Number:

for 40 IDF

Specification:

For Dual Application, 2 Barrel Carb Carburetor
Bolt Hole Spacing Length & Width :134.5(max) mm×64(max) mm ( center to center )
Throttle Bore Throat Size Measures: 40 mm
Choke Air Horn Inner  Diameter: 46 mm
Choke Air Horn Outer Diameter: 65 mm
Material: Heavy Duty Zinc Alloy Construction
Main Jets: 115
Emulsion Tubes: F11, F-11
Air Corrector Jets: 200
Idle Jets: 52
Needle & For Seat: 200
Accelerator Pump For Jet: .50
Pump Exhaust For Jet: 550
Venturis:28mm
Aux Venturis: 4.50mm
Needle Valve: 1.75mm
Placement On Vehicle: Front
Weight: 2.2 kg
Package Size:23*21*15 cm
Note:
*Please allow 1-2mm error due to manual measurement.
* Please check the measurement information of the carburetor to ensure you are ordering the correct part.

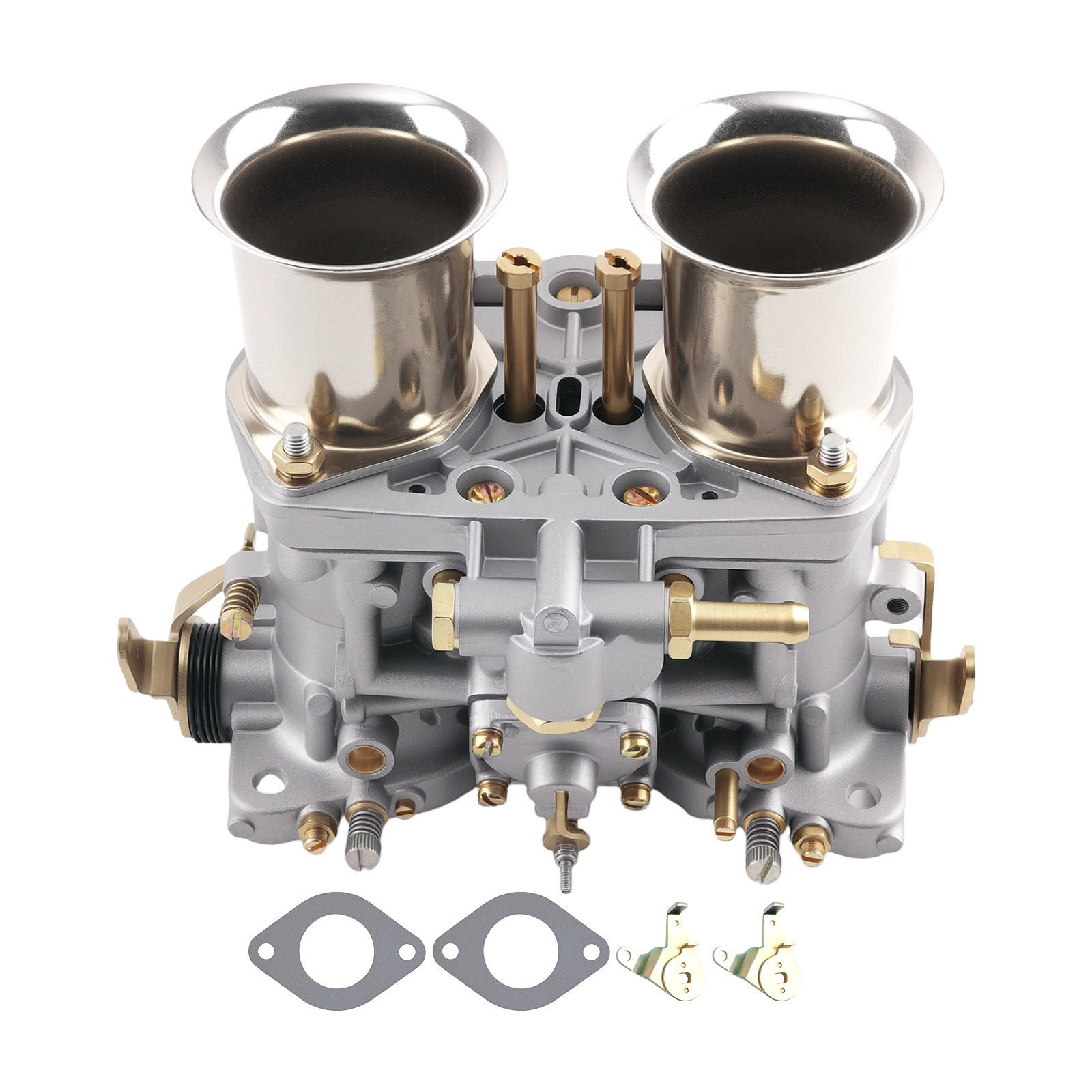

Package Included:

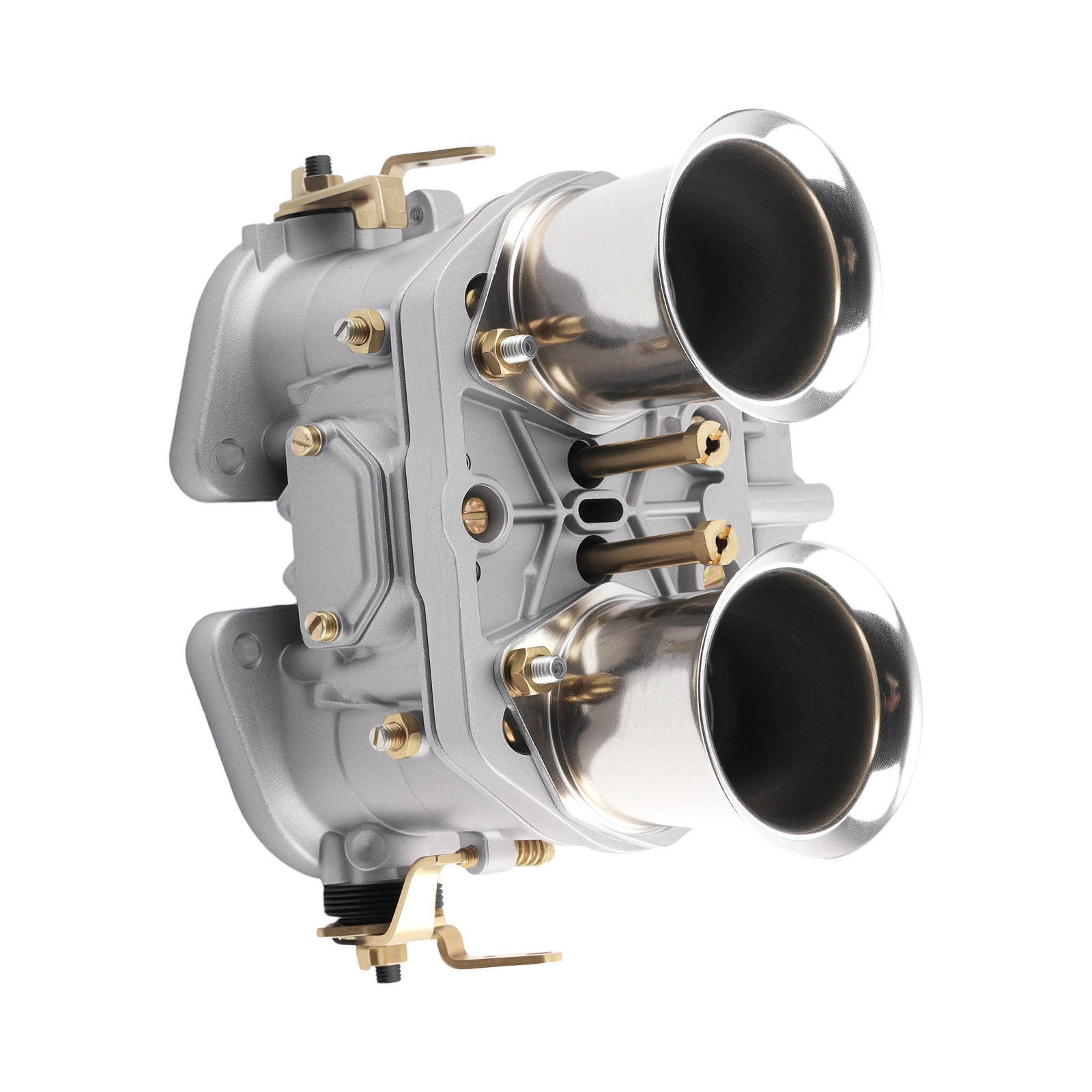

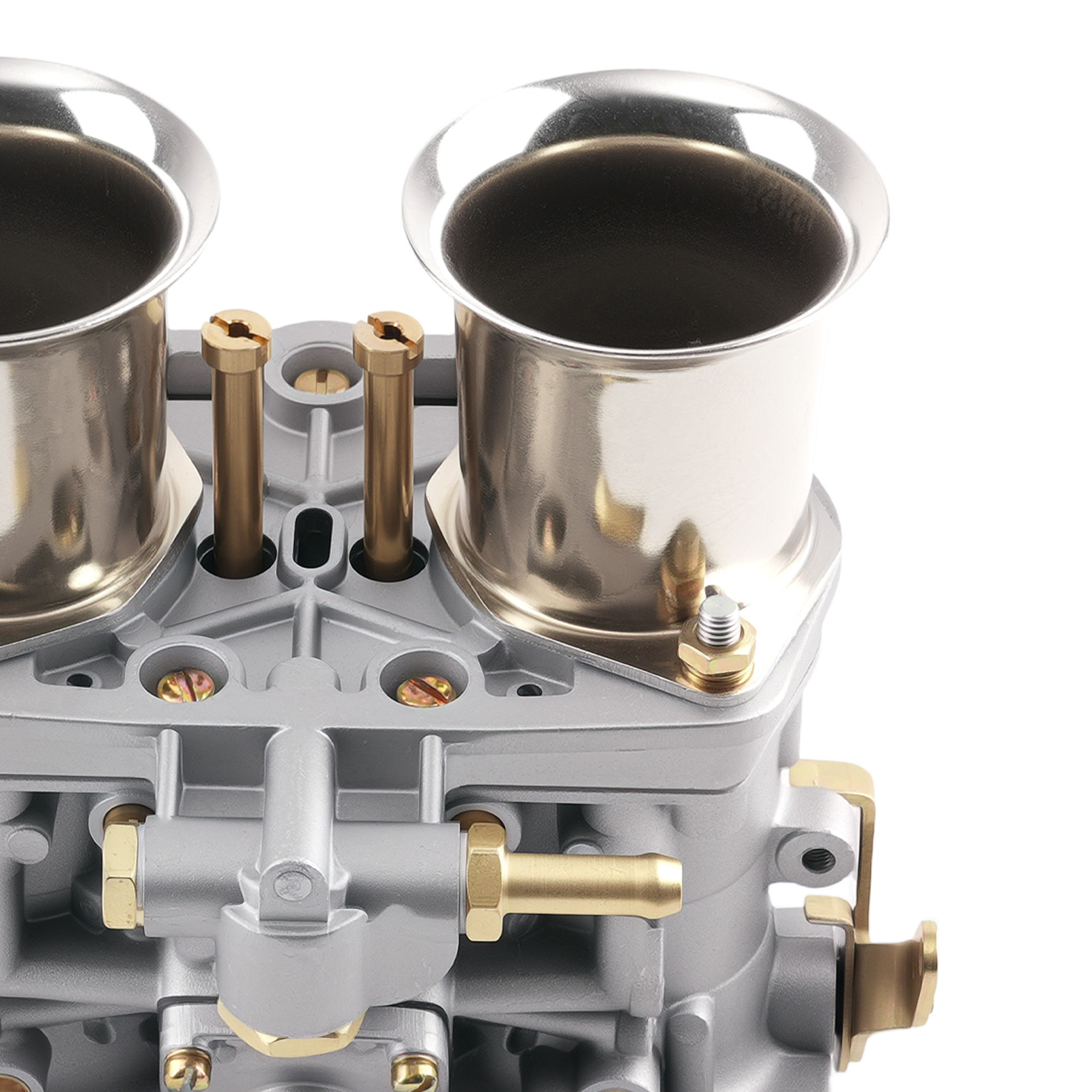

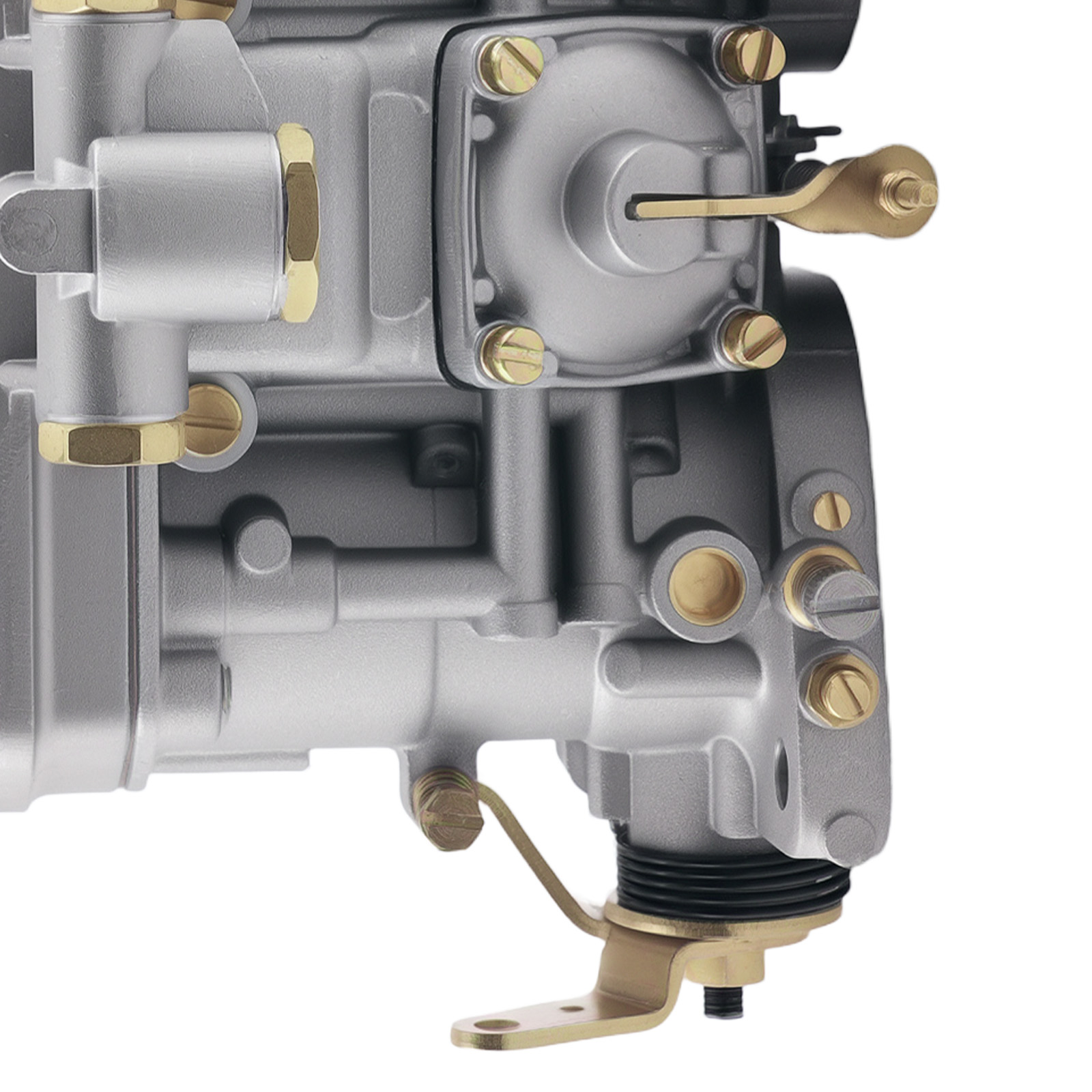

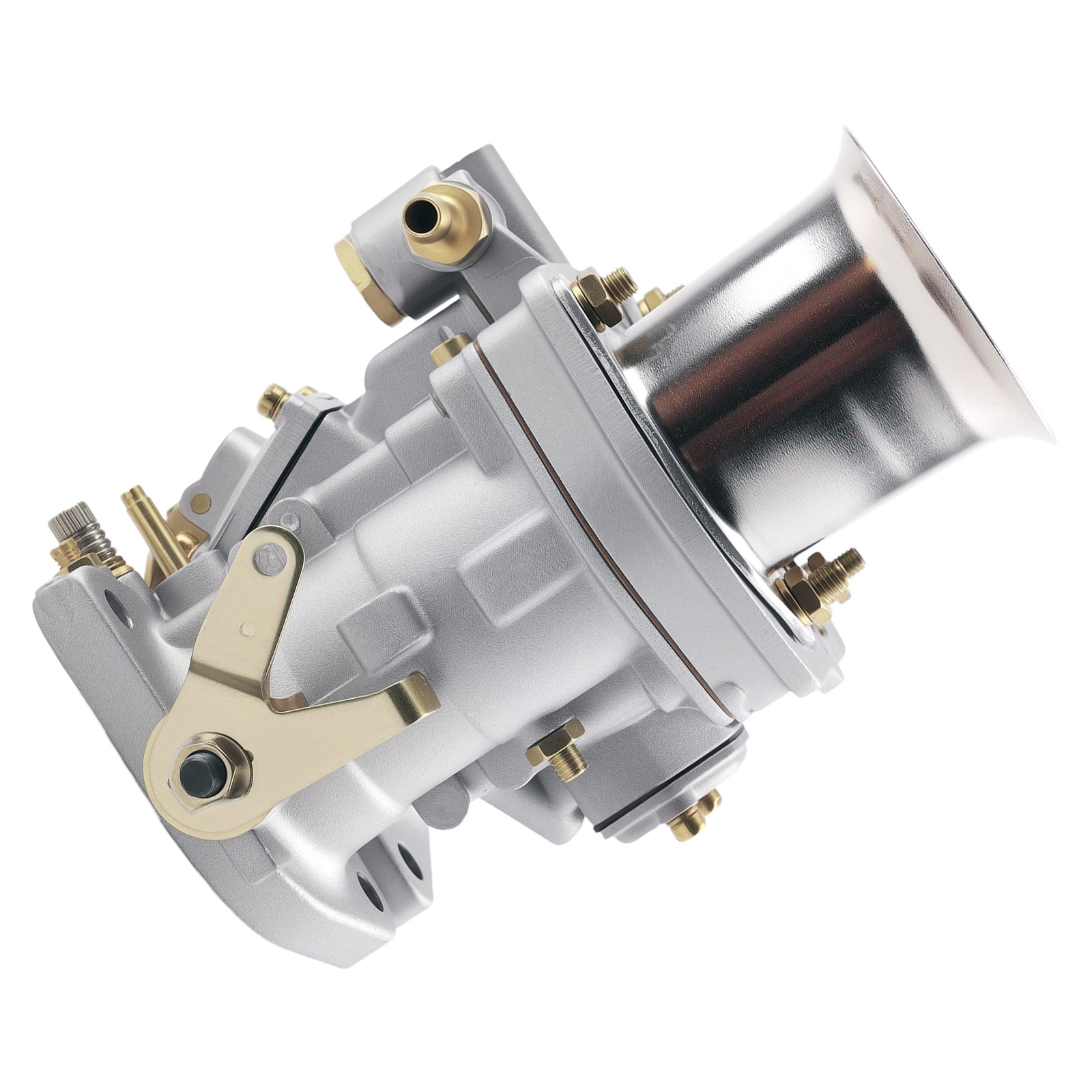

1x Carburetor with Air Horn

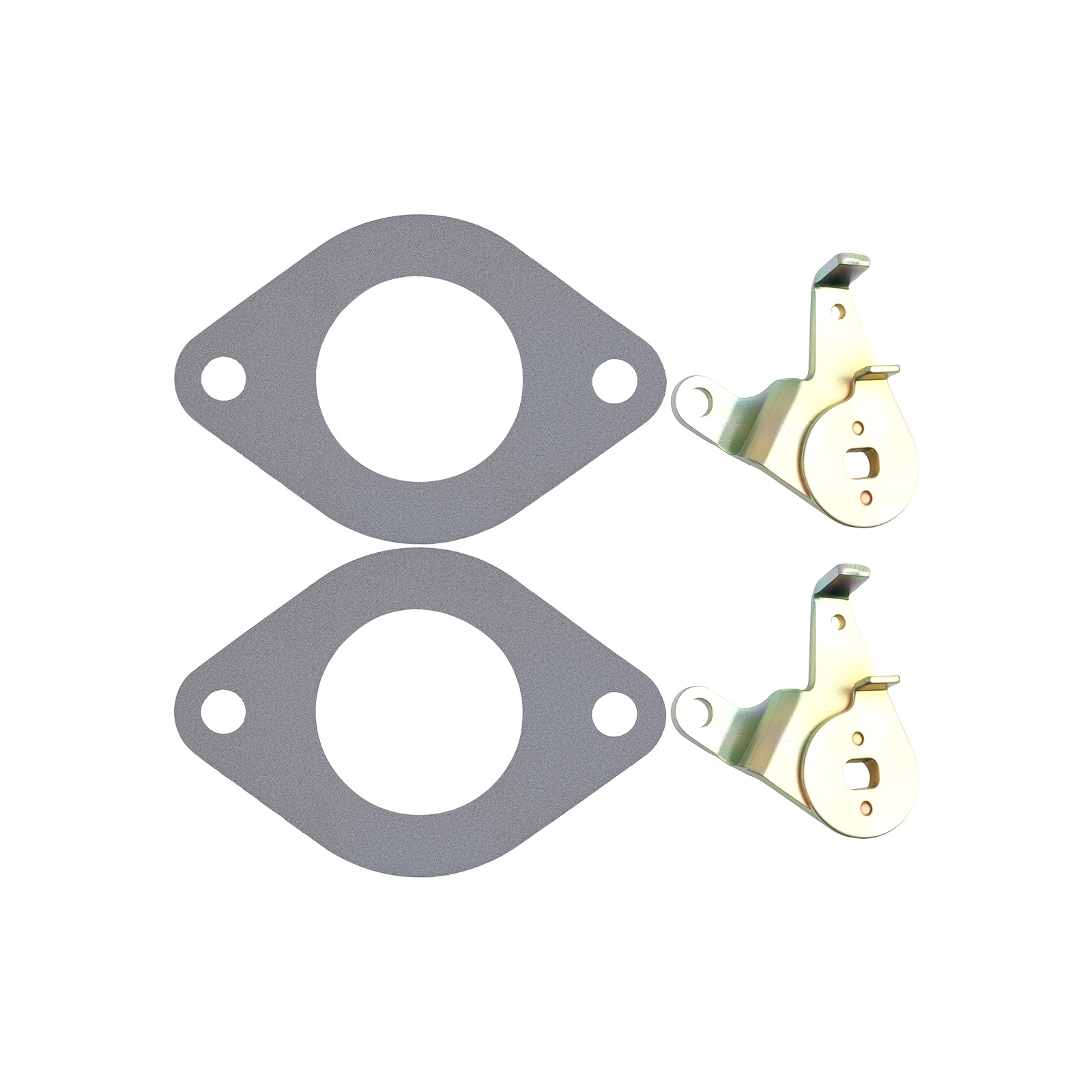

with Mounting gaskets

Features:

1.To mix air and gasoline in a correct ratio to ensure proper engine function，Give your machine the new power it deserves.
2.Get better driving experience and handling with high performance  carburetor that will keep you in control on road
3.Brand new and high quality carburetor replacement part. Helpful for avoiding waste of oil to some extent.
4.Low fuel consumption, Start fast stable idle speed, Heavy Duty Metal Construction
5.Nickel plating surface to keep the carb last much longer
6.100% tested For reliability and performance,simple installation .

Carburetor cleaning process:
(1) First remove the carburetor from the car.
Turn off the oil and unplug the oil pipe. Twist out the nut connecting the carburetor and the engine with a quincunx or quincunx (depending on the size of the nut), and then twist out the screw that connects the carburetor to the filter. Finally, remove the throttle cable. Turn off. Oil, unplug the oil pipe.
(2) Remove the carburetor float chamber.
Use a cross knife to twist out the three screws of the carburetor float chamber cover
(3) Understand the carburetor.
After disassembling the carburetor, let’s get to know the names of its parts
(4) Decompose the various parts of the carburetor.
Remove the main fuel injection hole, idle fuel injection hole and float of the carburetor
(5) Start cleaning the carburetor.
Use the carburetor cleaning agent to aim at each measuring hole and spray (note that the eyes should not be aimed at the carburetor, so as not to spray the cleaning agent into the eyes)
(6) Install carburetor.
After cleaning, the carburetor can be installed. Then you can load him into the car.
