| Input Voltage | 12 VDC |
| Stroke | 2.0" to 40.0" |
| Feedback | Hall Effect Feedback |
| Duty Cycle | 25% (5 mins on, 15 mins off) |
| Weather Protection | IP66 |
| Operational Temperature | -25°C to 65°C (-13°F to 149°F) |
| Operating Noise | <45 dBA |
| Limit Switch | Built-In (Non-Adjustable) |
| Cable Length | 40" |
| Connector | Molex Mini-Fit Jr 6-Pin |
| Front Mounting Hole Size | 0.32" |
| Rear Mounting Hole Size | 0.32" |

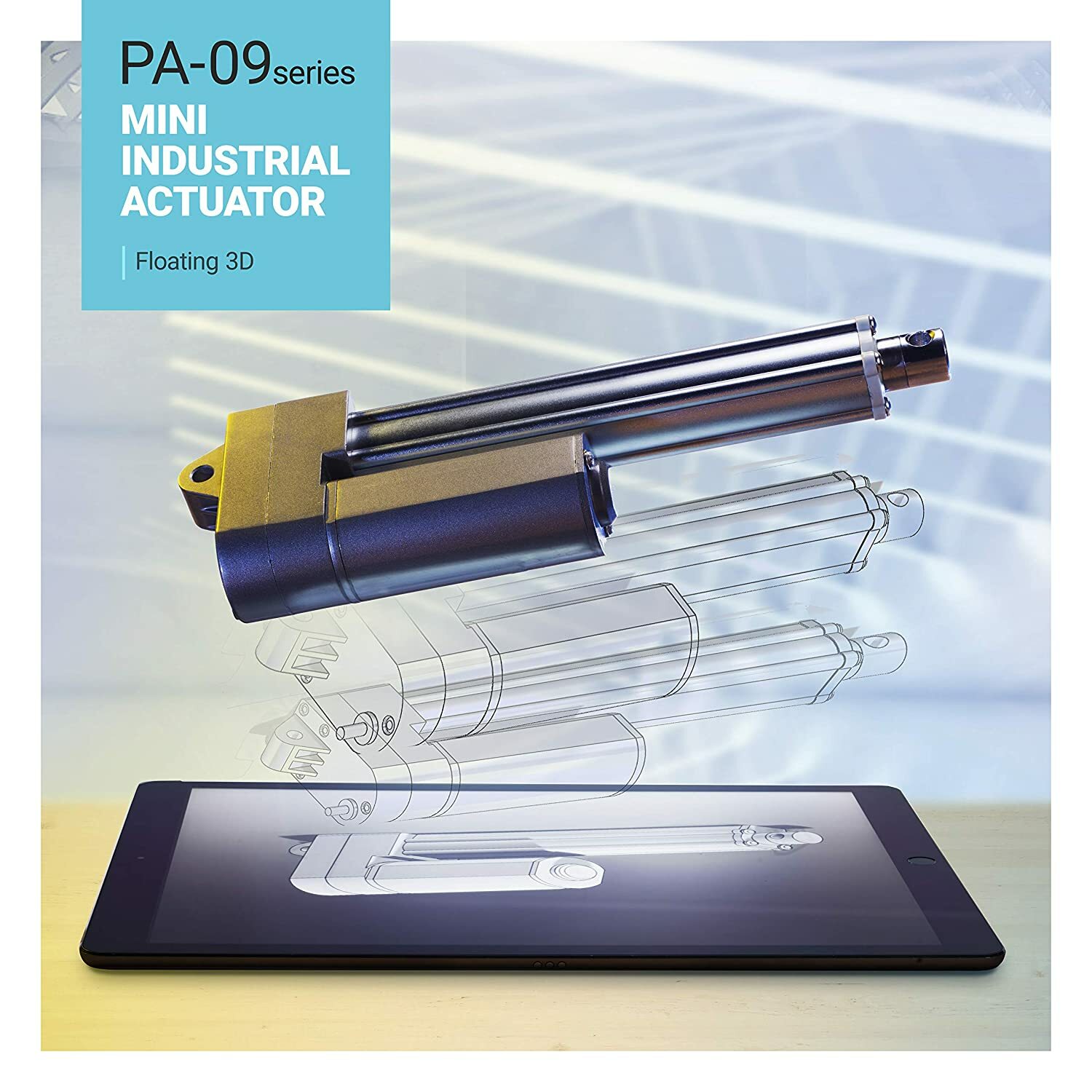

| Actuator Type | Mini, Industrial |
| Motor Type | Brushed DC Motor |
| Screw Type | ACME |
| Stroke Rod Material | Stainless Steel |
| Housing Material | Aluminum Alloy 6062 |
| Gear Material | Polyformaldehyde |
| Certifications | CE, RoHS |
| Compatible Mounting Brackets | BRK-09, BRK-10 |
