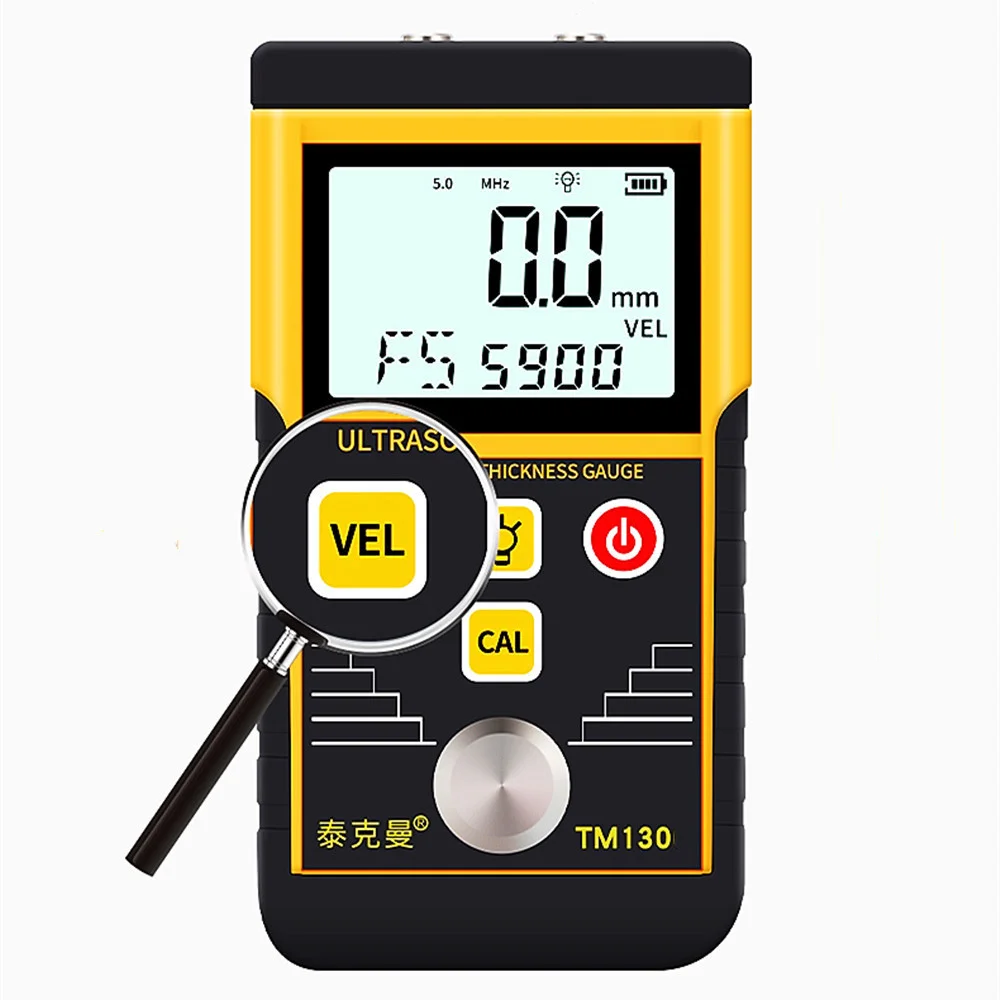

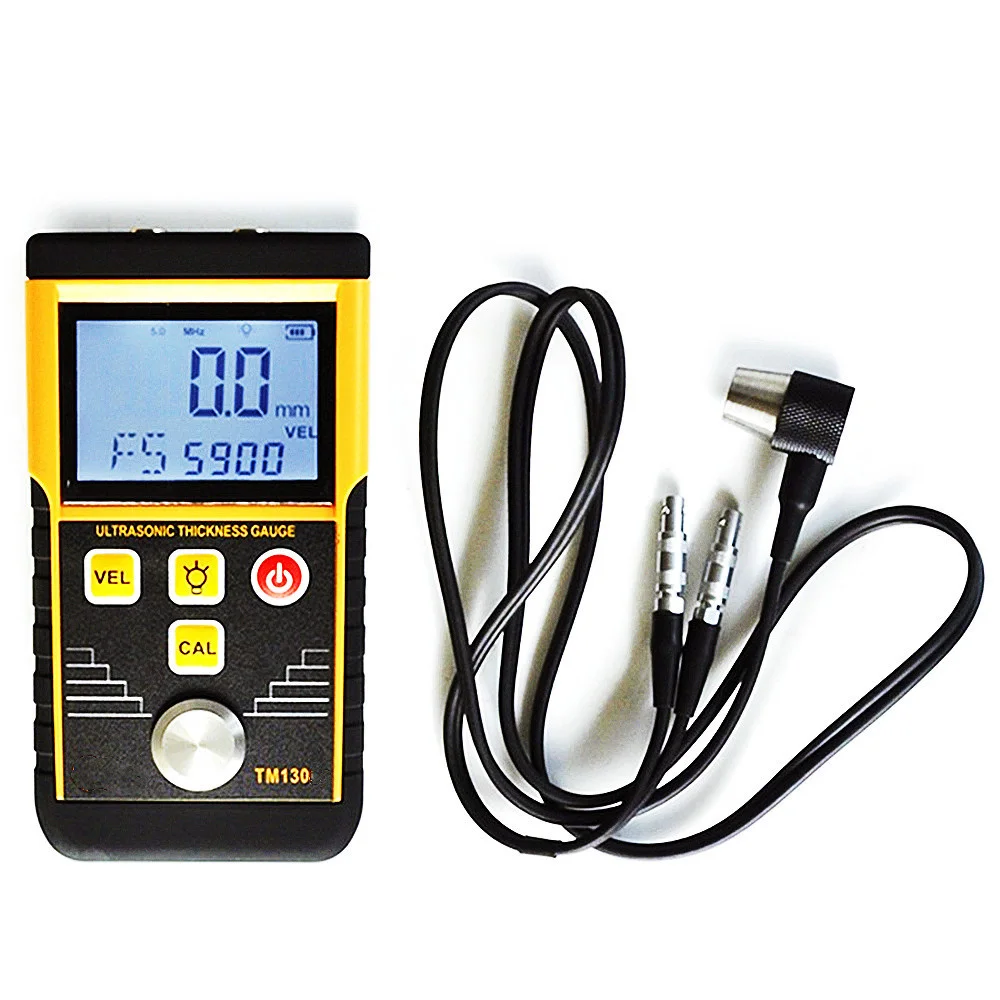

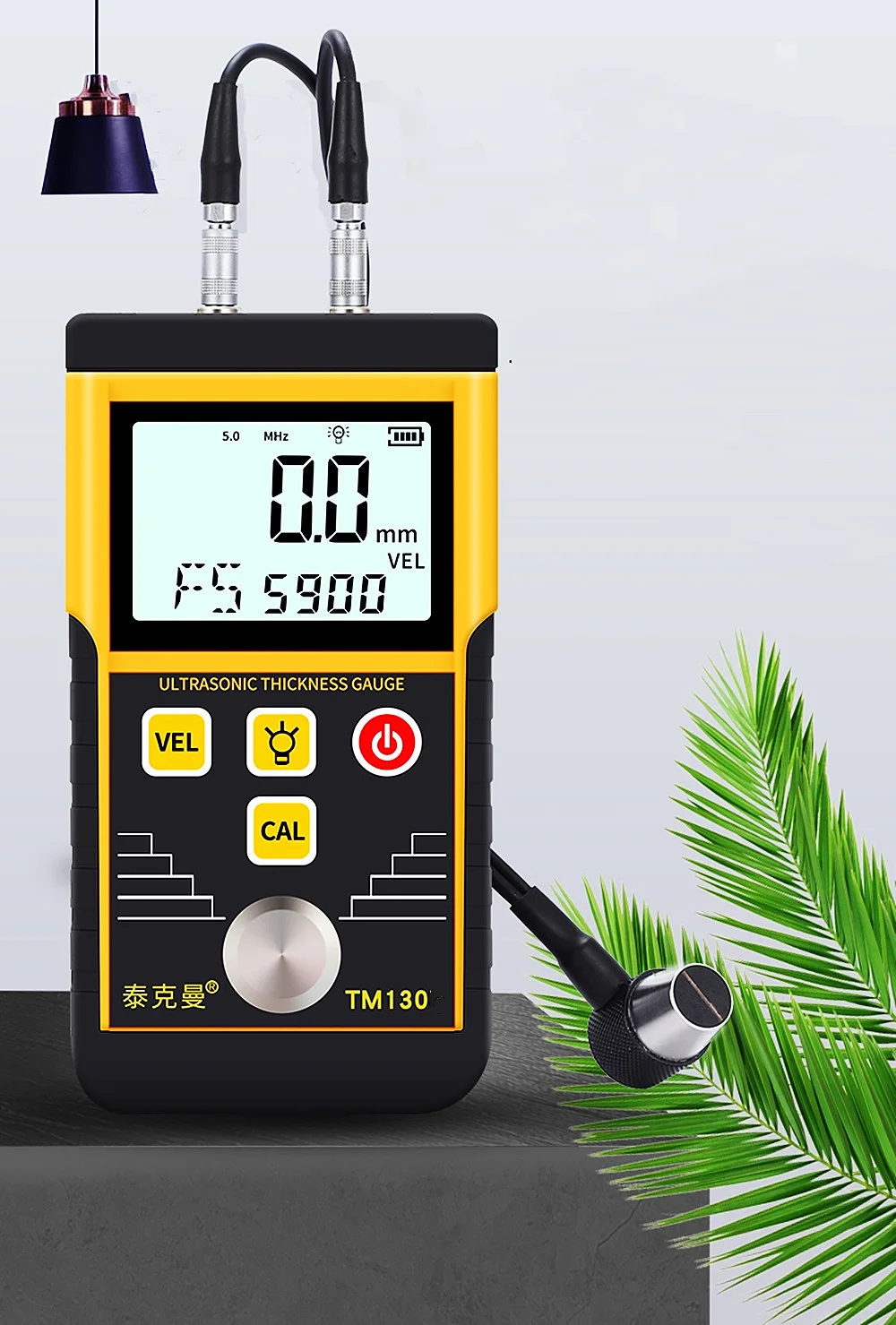

TM130 Upgraded 1.2-220mm Handheld Digital Ultrasonic Metal Thickness Tester Steel Glass Plastic Pipe Wall Thickness Gauge


dianxiaoba

Introduction:

The TM130 Ultrasonic Thickness Gage is used for measuring the thickness of materials where access to only one side of the test piece is available. It is suitable for many different materials including steel, cast iron, aluminum, red copper, brass, zinc, quartz glass, polyethylene PVC, gray cast iron, nodular cast iron and other materials.Dual probe extended your measure range to every possible need in your area

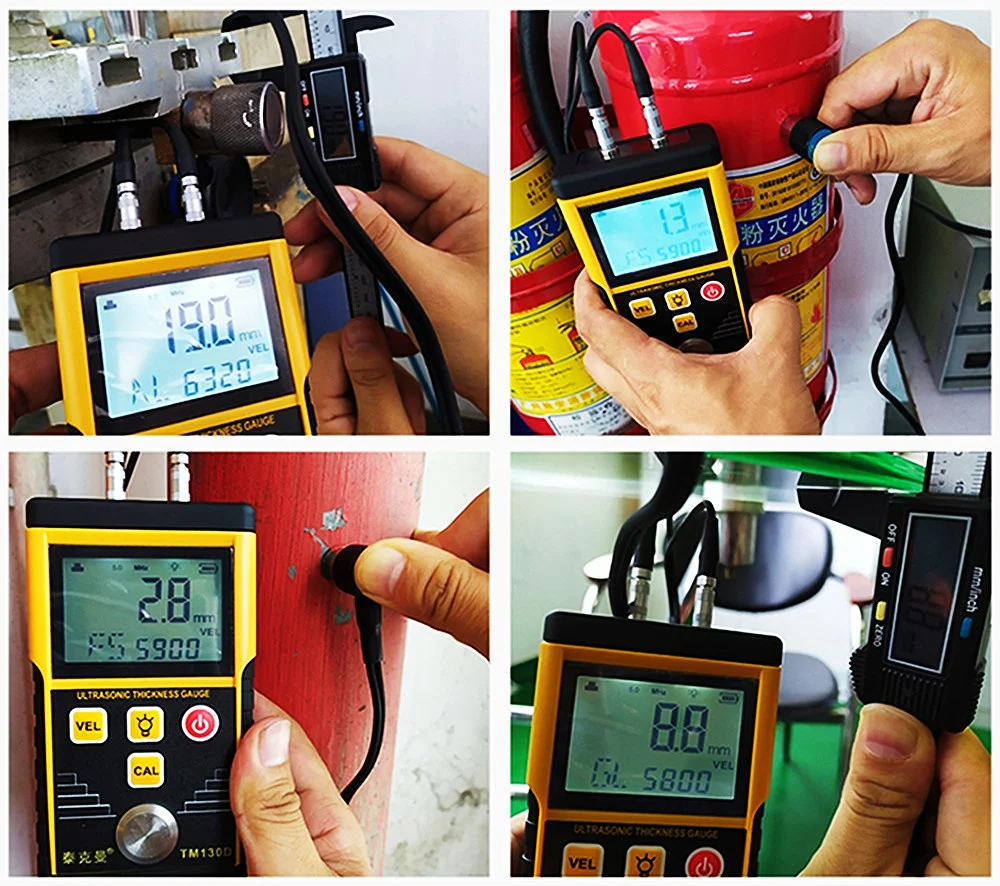

Used for measuring thickness and corrosion of pressure vessels, chemical equipment, boilers, oil storage tanks, etc.  Widely used in industries of petroleum, shipbuilding, and machine manufacturing.


Features:

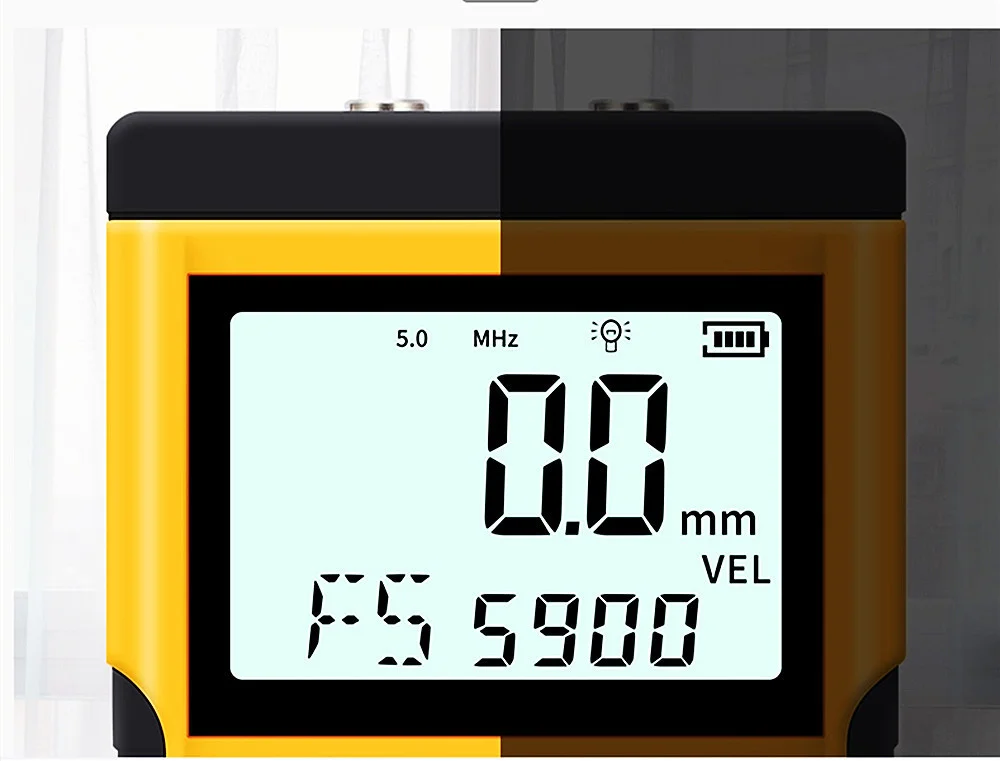

  • Large LCD for easy reading

  • Suitable for all metallic and non-metallic materials

  • Easy to operate

  • Wide measuring range from 1.2mm to 220.0mm(Steel)

  • Sound Velocity Range up to 9999m/s

  • Display resolution 0.1mm

  • Hand held and robust

  • Applicable to measure the thickness of any hard materials, e. g. Steel, Cast iron, Aluminum, Red copper, Brass, Zinc, Quartz glass, Polyethylene, PVC, Gray cast iron, Nodular cast iron.

  • 10 groups of data memory

  • Automatic Zero Adjustment

  • Auto Power Shut Off

  • Linear compensation circuit for high accuracy ( 1%H+0.1).

  • Speed of sound testing (m/s) with 10 storage memory

  • Press the up or down arrow to switch between the mm or m/s reading

  • 5MHz for rough surface measurment



Specifications:

  • Measuring Range : 1.2-220.0mm(Steel)

  • Accuracy : +/-(1%+/-0.1)mm

  • Pipe Measuring Lower Limit : Dia 20*3mm(Steel)

  • Sound Velocity Range : 1000-9999m/s

  • Working Frequency : 5MHz

  • Working Temperature Range : 0~45℃

  • Automatic Zero Adjustment

  • Auto Power Shut Off

  • Power by: 3X1.5V AA Batteries

  • Item Size: 138mm * 70mm * 31mm

  • Net weight: 180g
