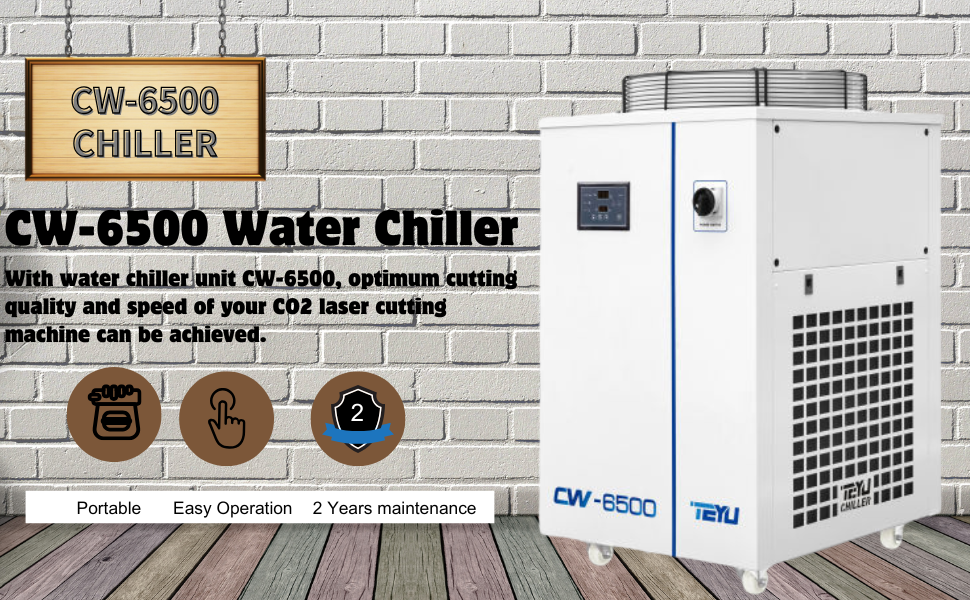

Industrial Water Chiller Unit CW-6500 for CO2 Laser System Laser Engraver Cutter



S&A industrial water chiller unit CW-6500 is the result of many years of research and expertise and is highly recommended for cooling 500W RF CO2 laser. Up to 15.8kW large cooling capacity, it can provide consistent cooling while at the same time offering a high degree of energy efficiency. With water chiller unit CW-6500, optimum cutting quality and speed of your CO2 laser cutting machine can be achieved.



The core components like the evaporator, condenser and outer casings are manufactured independently by S&A Chiller Manufacturer to ensure high quality standards. The thoughtful details like visual water level check, RS-485 Modbus communication function and intelligent temperature controller integrated with alarm functions are all the result of our close cooperation with users. Available in 380V and with 2 years warranty.





Product Parameters
Model CW-6500EN CW-6500FN
Voltage AC 3P 380V AC 3P 380V
Frequency 50Hz 60Hz
Current 1.4~11.4A 2.1~12.44A

Max. power consumption

 5.48kW 7kW


Compressor power

 4.6kW 5.45kW
6.16HP 7.31HP



Nominal cooling capacity

 44594Btu/h 53910Btu/h
13.07kW 15.8kW
11237Kcal/h 13585Kcal/h
Pump power 0.55kW 1kW

Max. pump pressure

 44M 59M

Max. pump flow

 75L/min 130L/min
Refrigerant R-410a
Precision ±1℃
Reducer Capillary
Tank capacity 40L 70L
Inlet and outlet Rp1"
N.W 124Kg 160Kg
G.W 146Kg 182Kg
Dimension 83X65X117cm (LX W X H) 105X71X133cm (L X W X H)
Package dimension 95X77X135cm (LX W X H) 112X82X150cm (LX W X H)

The working current can be different under different working conditions. The above information is for reference only. Please subject to the actual delivered product.

Product Features

* Cooling Capacity: 15000W

* Active cooling

* Temperature stability: ±1°C

* Temperature control range: 5°C ~35°C

* Refrigerant: R-410a

* Intelligent temperature controller

* Multiple alarm functions

* Ready for immediate use

* Easy maintenance and mobility

* RS-485 Modbus communication function

* Available in 380V

Product Details
Industrial Water Chiller Unit CW-6500 Intelligent Temperature Controller


Intelligent temperature controller



The temperature controller offers high precision temperature control of ±1°C and two user-adjustable temperature control modes - constant temperature mode and intelligent control mode.

TEYU Laser Chiller Unit CW-6500 Water Level Indicator


Easy-to-read water level indicator



The water level indicator has 3 color areas - yellow, green and red.



Yellow area - high water level.

Green area - normal water level.

Red area - low water level.

TEYU CO2 Laser Chiller CW-6500 Caster Wheels


Caster wheels for easy mobility



Four caster wheels offer easy mobility and unmatched flexibility.
