【Buyer’s Guide (Note)】
■ EU/UK/RU/US/AU/CA : NO TAX
Other countries: You can indicate the tax requirements on the order or leave me a message.
【About transportation】
■ Our motor kits are mainly transported by China-Europe Railway + UPS special line, and some countries/regions use online transport;
■ If you want to receive the goods faster, we can choose air transportation for you, but you need to pay additional freight;
■ If your area is remote, we will charge you a certain amount of remote service fee.
■ If your address is on an island, please contact us before ordering so that we can check if we can arrange delivery for you.
Our default shipping method is rail/sea + UPS, if you want to receive the goods faster, we can send you air transportation, the time is 15-20 days, the following is the air freight difference link：

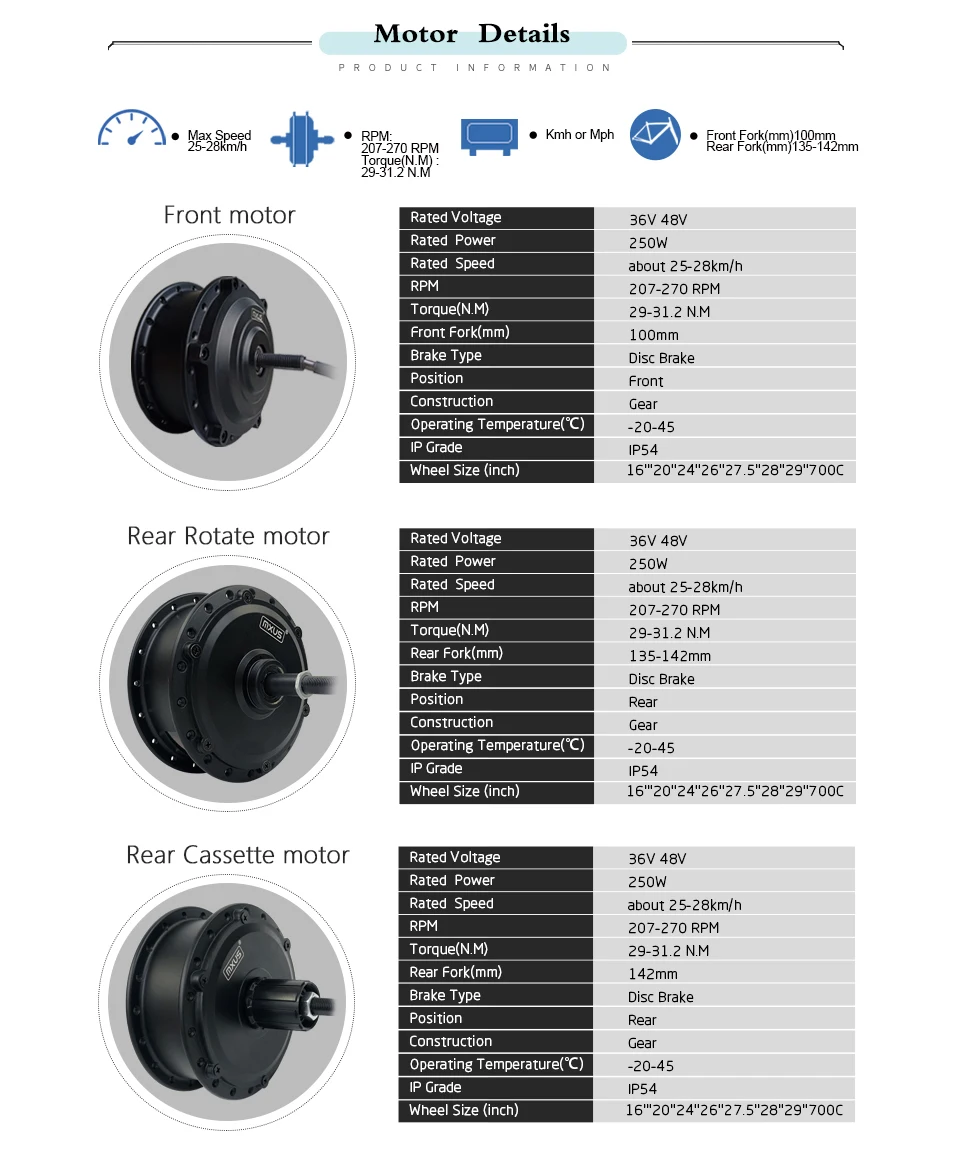

【36V48V 250W Front Motor】
●Rated Voltage：36V48V
●Rated Power：250W
●Rated Speed：about 25-28km/h
●RPM：207-270 RPM

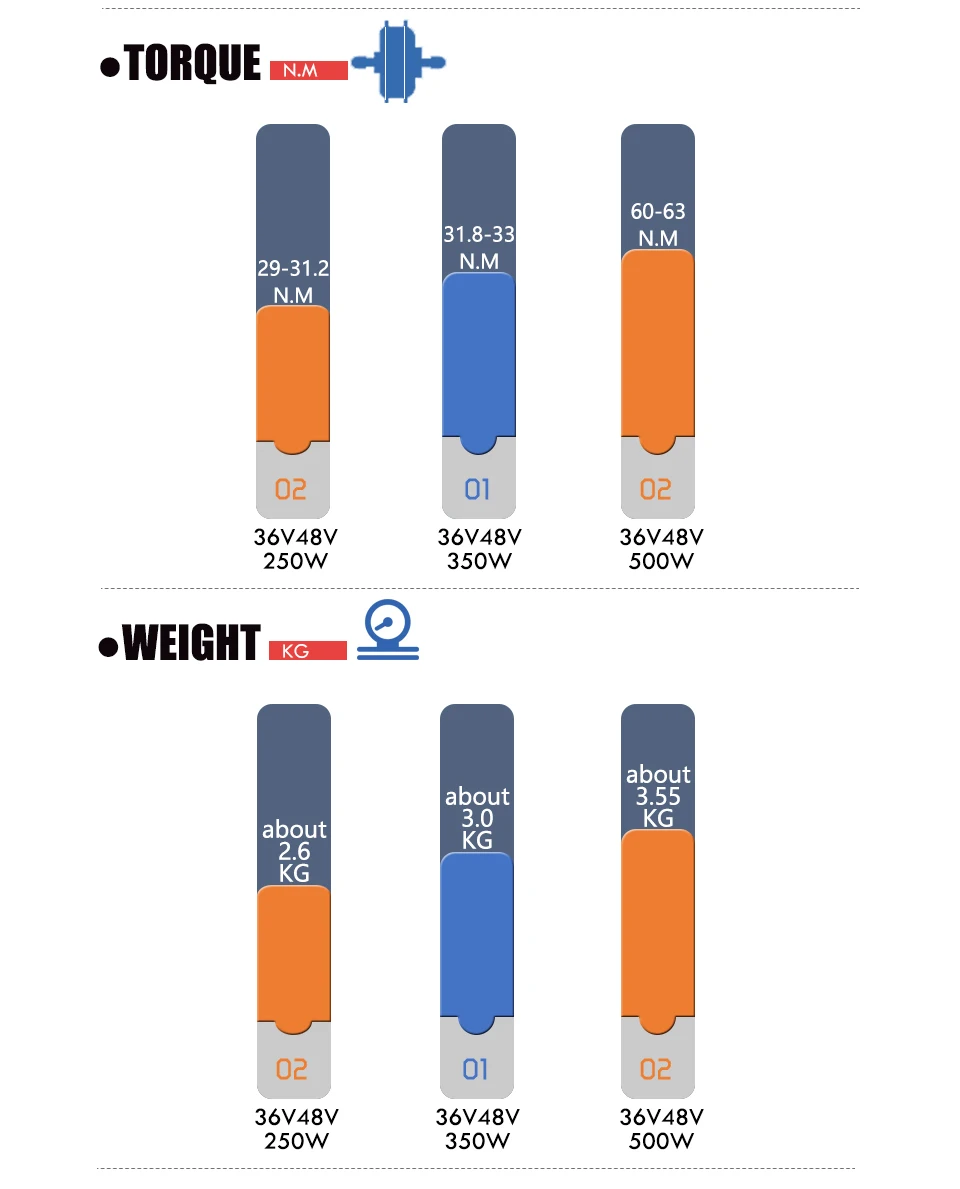

●Torque(N.M)：29-31.2 N.M

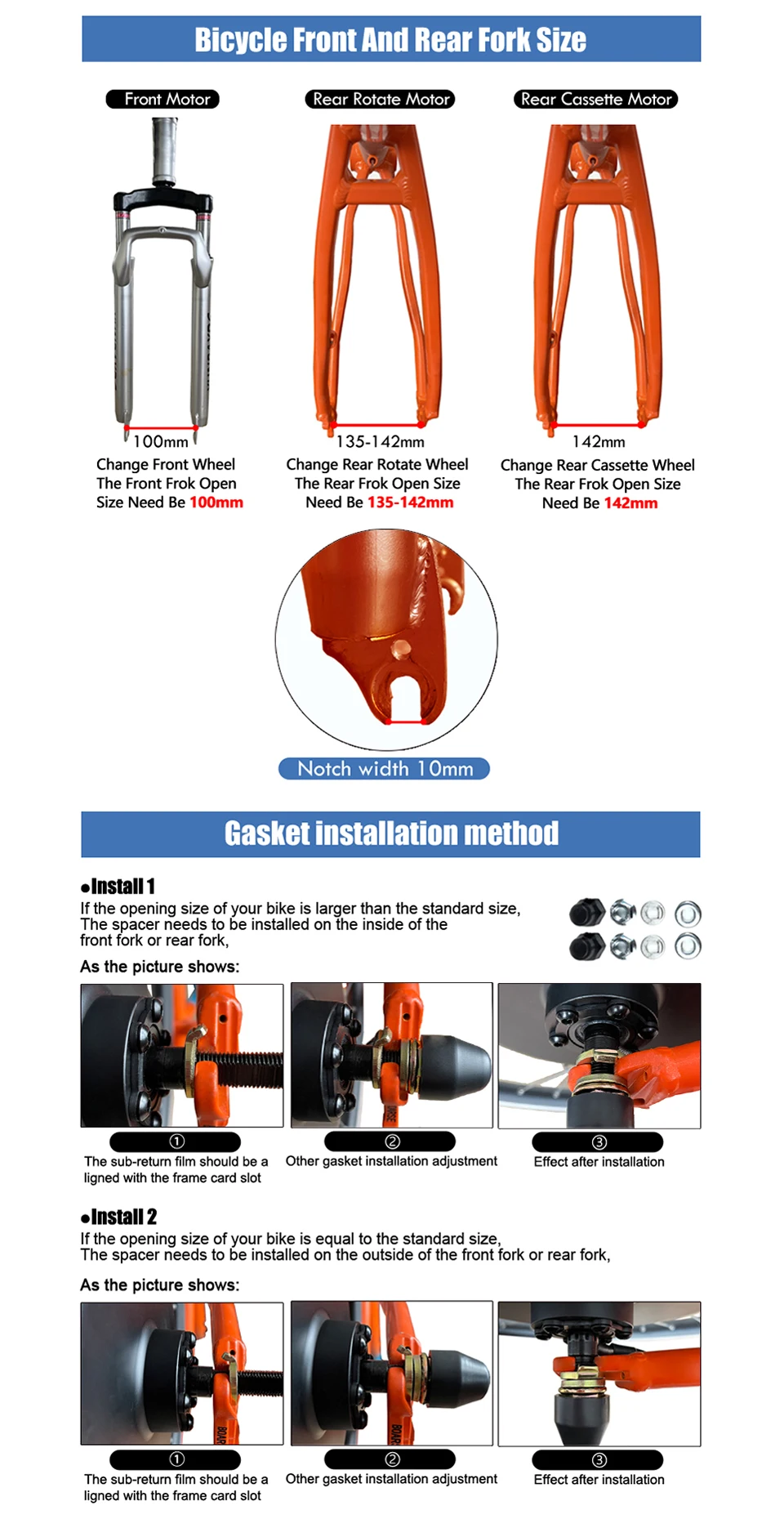

●Front Fork(mm)：100mm
●Brake Type：V/Disc Brake
●Type：Brushless gear hub motor
●Installation location:Front wheel
●Spokedwith double-wall Aluminum alloy rim with 36 eyelets,stainless steel spokes
●Load≤200KG
●Motor cable length：200mm
●Wheel size：16inch 20inch 24inch 26 inch 27.5inch 28inch 29inch 700C wheel
【36V48V 250W Rotate Motor】
●Rated Voltage：36V48V
●Rated Power：250W
●Rated Speed：about 25-28km/h
●RPM：207-270 RPM
●Torque(N.M)：29-31.2 N.M
●Rear Fork(mm)：135-142mm
●Brake Type：V/Disc Brake
●Type：Brushless gear hub motor
●Installation location:Rear wheel
●Spokedwith double-wall Aluminum alloy rim with 36 eyelets,stainless steel spokes
●Load≤200KG
●Motor cable length：200mm
●Wheel size：16inch 20inch 24inch 26 inch 27.5inch 28inch 29inch 700C wheel
【36V48V 250W Cassette Motor】
●Rated Voltage：36V48V
●Rated Power：250W
●Rated Speed：about 25-28km/h
●RPM：207-270 RPM
●Torque(N.M)：29-31.2 N.M
●Rear Fork(mm)：142mm
●Brake Type：V/Disc Brake
●Type：Brushless gear hub motor
●Installation location:Rear wheel
●Spokedwith double-wall Aluminum alloy rim with 36 eyelets,stainless steel spokes
●Load≤200KG
●Motor cable length：200mm
●Wheel size：16inch 20inch 24inch 26 inch 27.5inch 28inch 29inch 700C wheel

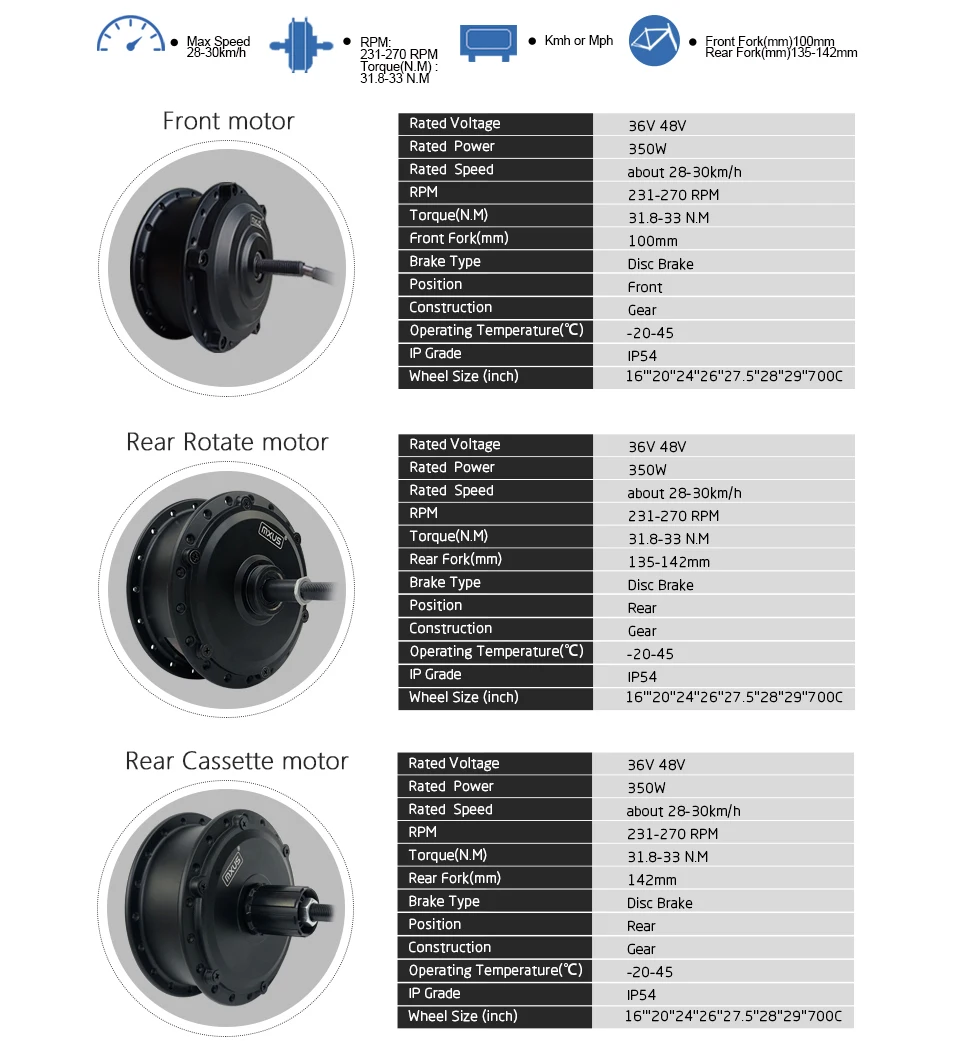

【36V48V 350W Front Motor】
●Rated Voltage：36V48V
●Rated Power：350W
●Rated Speed：about 28-30km/h
●RPM：231-270 RPM
●Torque(N.M)：31.8-33 N.M
●Front Fork(mm)：100mm
●Brake Type：V/Disc Brake
●Type：Brushless gear hub motor
●Installation location:Front wheel
●Spokedwith double-wall Aluminum alloy rim with 36 eyelets,stainless steel spokes
●Load≤200KG
●Motor cable length：200mm
●Wheel size：16inch 20inch 24inch 26 inch 27.5inch 28inch 29inch 700C wheel
【36V48V 350W Rotate Motor】
●Rated Voltage：36V48V
●Rated Power：350W
●Rated Speed：about 28-30km/h
●RPM：231-270 RPM
●Torque(N.M)：31.8-33 N.M
●Rear Fork(mm)：135-142mm
●Brake Type：V/Disc Brake
●Type：Brushless gear hub motor
●Installation location:Rear wheel
●Spokedwith double-wall Aluminum alloy rim with 36 eyelets,stainless steel spokes
●Load≤200KG
●Motor cable length：200mm
●Wheel size：16inch 20inch 24inch 26 inch 27.5inch 28inch 29inch 700C wheel
【36V48V 350W Cassette Motor】
●Rated Voltage：36V48V
●Rated Power：350W
●Rated Speed：about 28-30km/h
●RPM：231-270 RPM
●Torque(N.M)：31.8-33 N.M
●Rear Fork(mm)：142mm
●Brake Type：V/Disc Brake
●Type：Brushless gear hub motor
●Installation location:Rear wheel
●Spokedwith double-wall Aluminum alloy rim with 36 eyelets,stainless steel spokes
●Load≤200KG
●Motor cable length：200mm
●Wheel size：16inch 20inch 24inch 26 inch 27.5inch 28inch 29inch 700C wheel

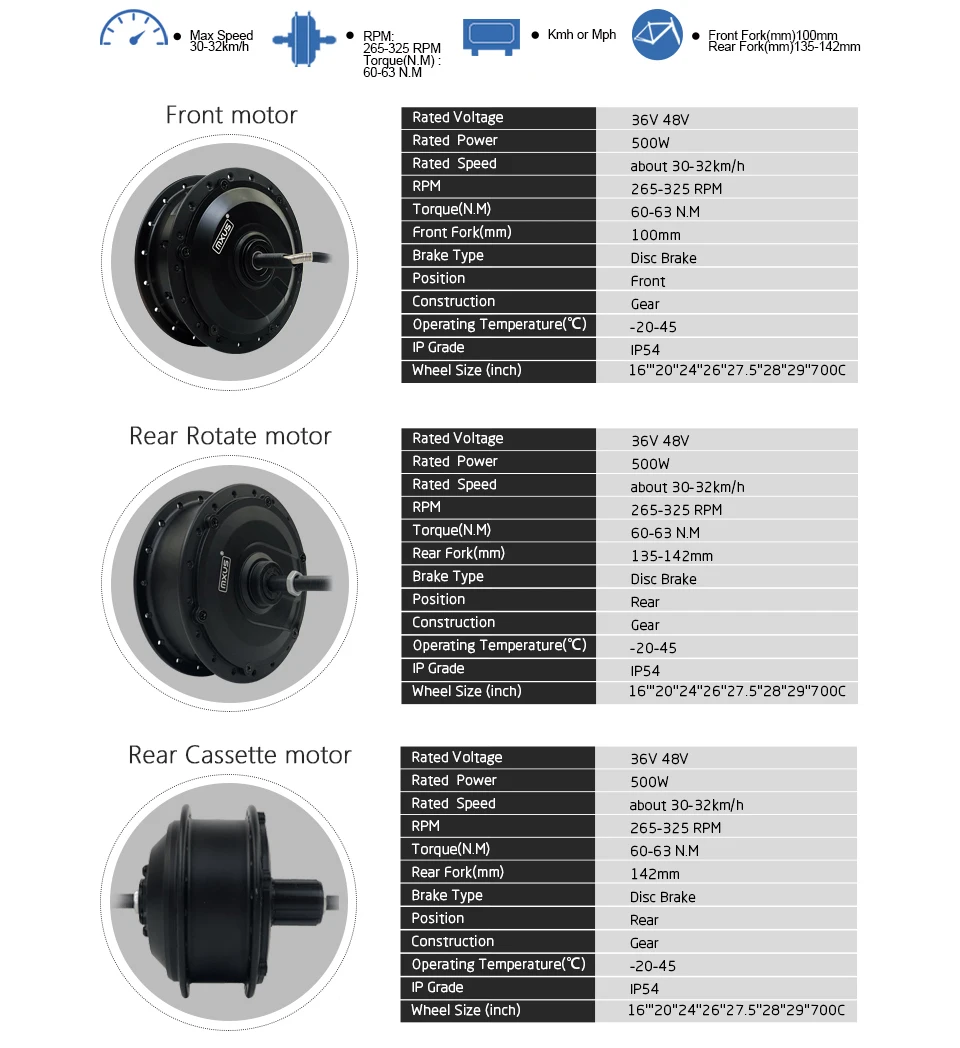

【36V48V 500W Front Motor】
●Rated Voltage：36V48V
●Rated Power：500W
●Rated Speed：about 30-32km/h
●RPM：265-325 RPM
●Torque(N.M)：60-63 N.M
●Front Fork(mm)：100mm
●Brake Type：V/Disc Brake
●Type：Brushless gear hub motor
●Installation location:Front wheel
●Spokedwith double-wall Aluminum alloy rim with 36 eyelets,stainless steel spokes
●Load≤200KG
●Motor cable length：200mm
●Wheel size：16inch 20inch 24inch 26 inch 27.5inch 28inch 29inch 700C wheel
【36V48V 500W Rotate Motor】
●Rated Voltage：36V48V
●Rated Power：500W
●Rated Speed：about 30-32km/h
●RPM：265-325 RPM
●Torque(N.M)：60-63 N.M
●Rear Fork(mm)：135-142mm
●Brake Type：V/Disc Brake
●Type：Brushless gear hub motor
●Installation location:Rear wheel
●Spokedwith double-wall Aluminum alloy rim with 36 eyelets,stainless steel spokes
●Load≤200KG
●Motor cable length：200mm
●Wheel size：16inch 20inch 24inch 26 inch 27.5inch 28inch 29inch 700C wheel
【36V48V 500W Cassette Motor】
●Rated Voltage：36V48V
●Rated Power：500W
●Rated Speed：about 30-32km/h
●RPM：265-325 RPM
●Torque(N.M)：60-63 N.M
●Rear Fork(mm)：142mm
●Brake Type：V/Disc Brake
●Type：Brushless gear hub motor
●Installation location:Rear wheel
●Spokedwith double-wall Aluminum alloy rim with 36 eyelets,stainless steel spokes
●Load≤200KG
●Motor cable length：200mm
●Wheel size：16inch 20inch 24inch 26 inch 27.5inch 28inch 29inch 700C wheel
