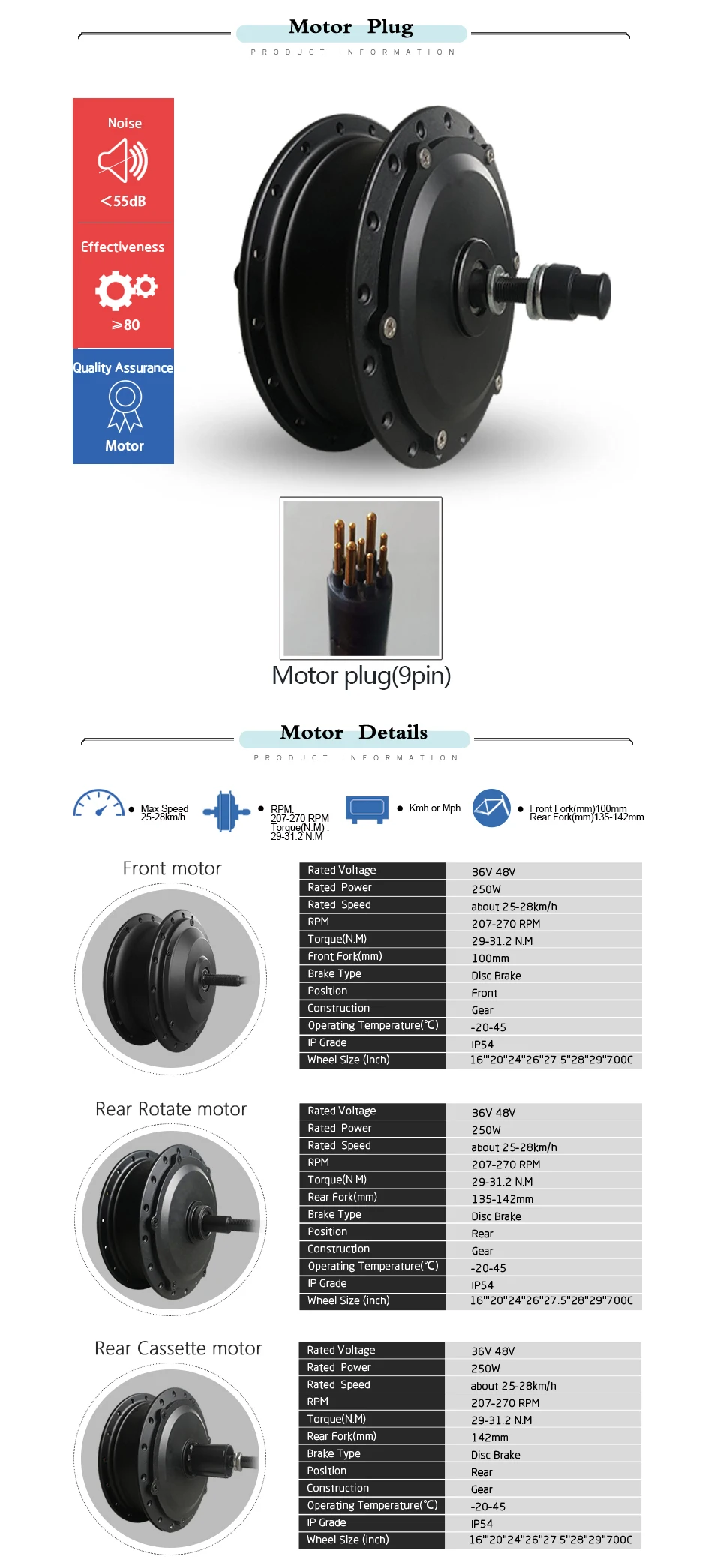

36V 48V 250W
Rated Voltage(V):36/48
Rated Power(W):250W
Wheel Size (inch):16''20''24''26''27.5''28''29''700C
RPM:207-270
Rated Speed(km/h):25-28
Rated Efficiency(%):>=80
Reduction Ratio:1:4.5
Weight(KG):2.6

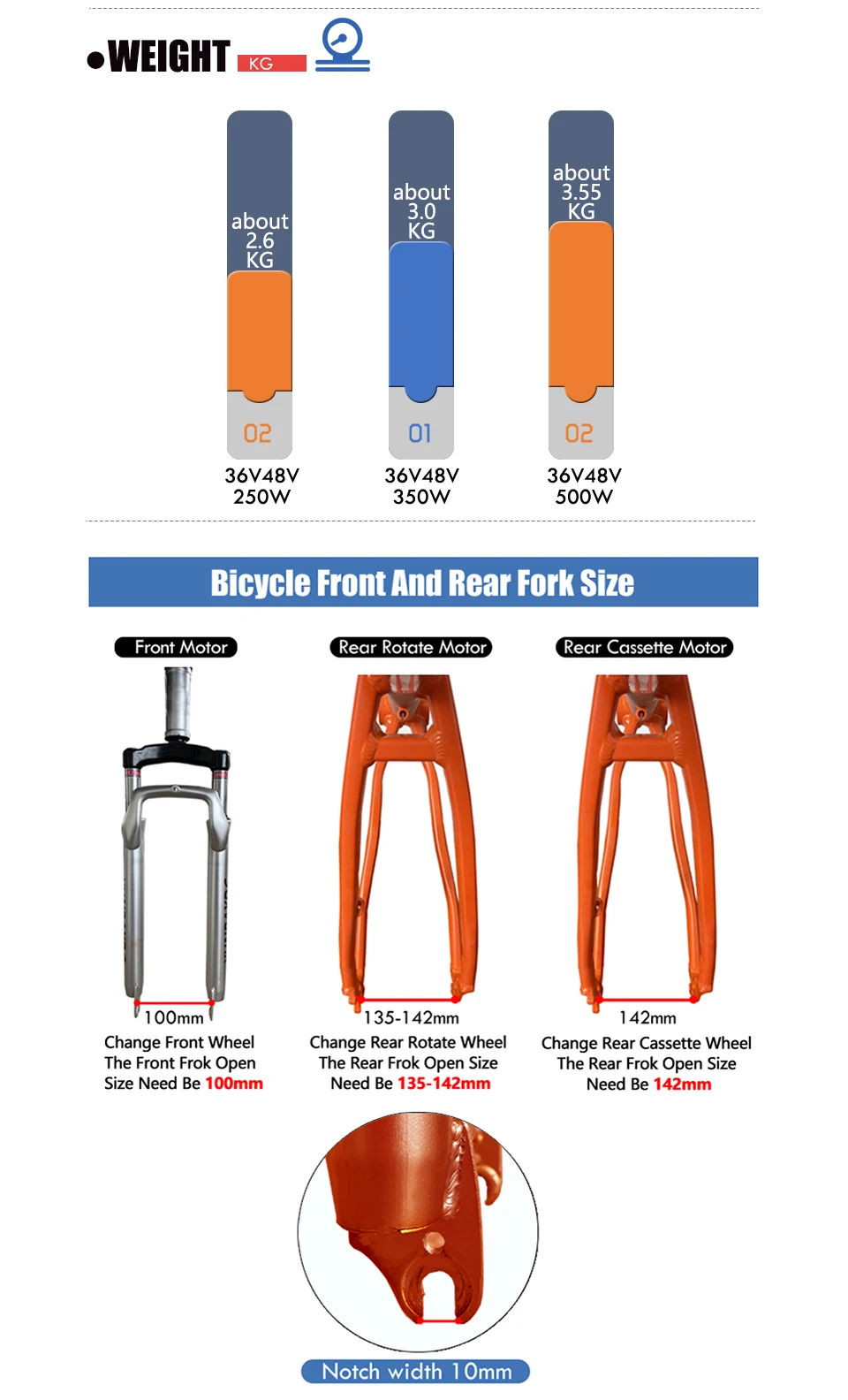

Open Size(mm):100/135-142/142
Drive and Freewheel:N/6-9S/7S-11S
Spokes Specification:12G/13G

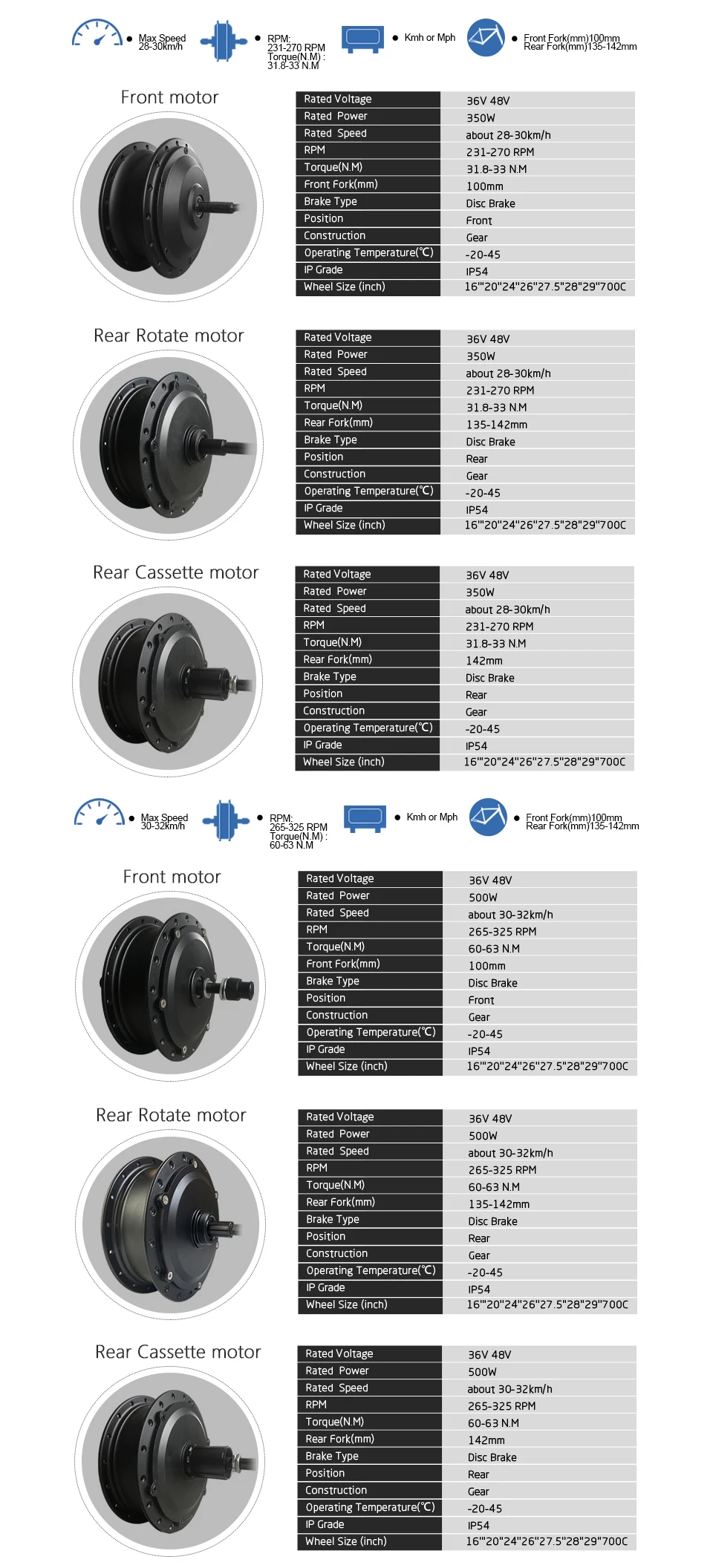

36V 48V 350W
Rated Voltage(V):36/48
Rated Power(W):350W
Wheel Size (inch):16''20''24''26''27.5''28''29''700C
RPM:231-270-325
Rated Speed(km/h):28-30
Rated Efficiency(%):>=80
Reduction Ratio:1:4.5
Weight(KG):2.6
Open Size(mm):100/135-142/142
Drive and Freewheel:N/6-9S/7S-11S
Cable Location:shaft center right
Spokes Specification:12G/13G
36V 48V 500W
Rated Voltage(V):36/48
Rated Power(W):500W
Wheel Size (inch):16''20''24''26''27.5''28''29''700C
RPM:265-325
Rated Speed(km/h):30-32
Rated Efficiency(%):>=80
Reduction Ratio:1:4.5
Weight(KG):3.0
Open Size(mm):100/135-142/142
Drive and Freewheel:N/6-9S/7S-11S
Cable Location:shaft center right
Spokes Specification:12G/13G
