| Model |

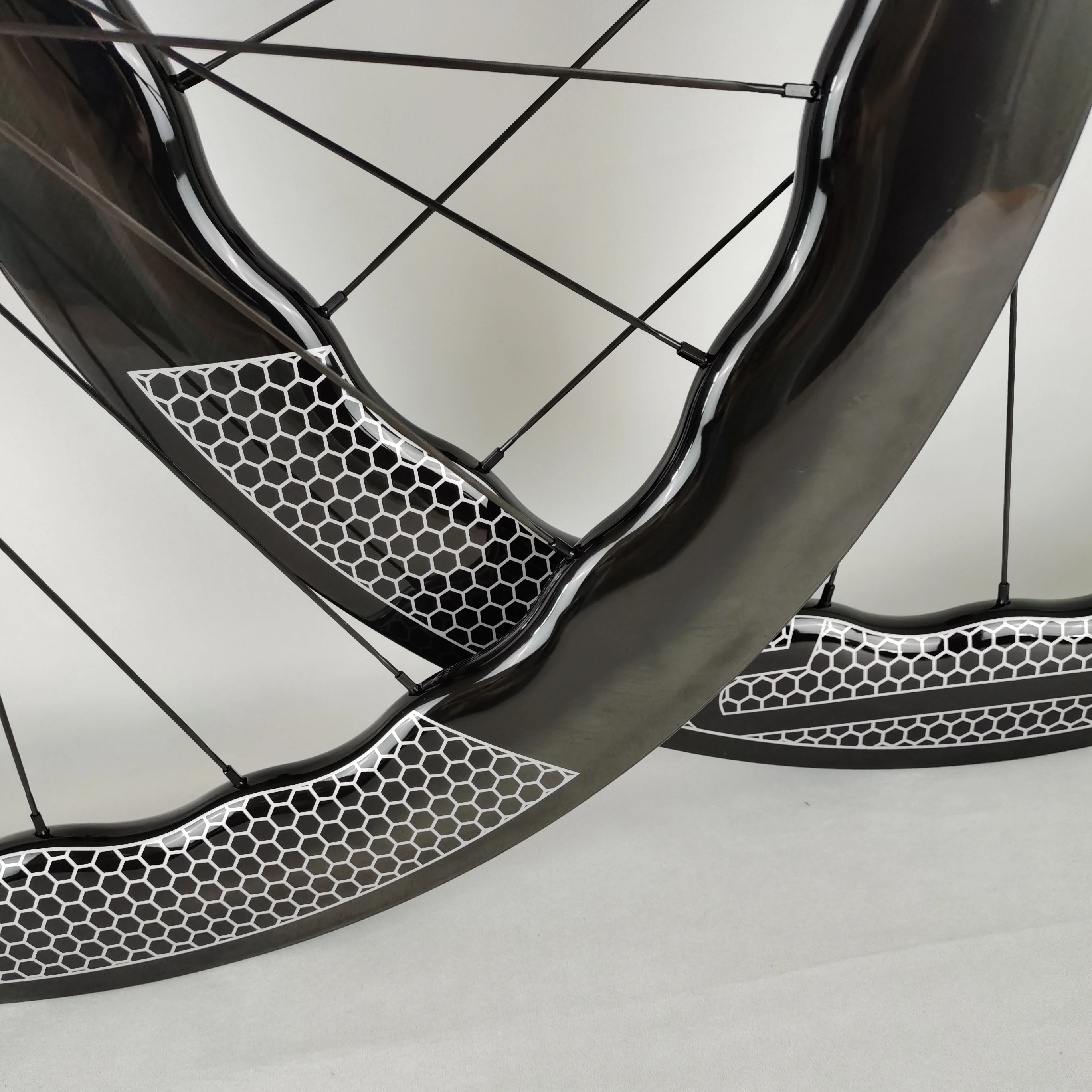

Carbon Road Bike Wheelset 700C Princeton Disc Brake 65mm Depth Clincher Wheels UD Glossy |
| Material |
100% Full Carbon Fibre Toray T700 |
| Size |
700C |
| Appearance |
UD |
| Finish |
Glossy |
| Rim depth |
65mm |
| Rim width |
25mm |
| Brake Line Width |
no braking surface |
| Rim type |
Clincher/Tubeless/Tubular |
| Wheel Out Diameter |
633mm |
| Assembly Hole Dia |
7.5mm |
| Spoke Hole Dia |
4.5mm |
| Valve Hole Dia |
6.5mm |
| Flatness |
<0.2mm |
| Roundness |
<0.5mm |
| Maximum Tire Pressure |
220psi |
| Spoke Tension Front |
100-130kg |
| Spoke Tension Rear |
100-130kg (Non-Drive Side) 150-180kg(Drive Side) |
| Yaw |
0.2mm |
| Maximum Weight |
135kg |

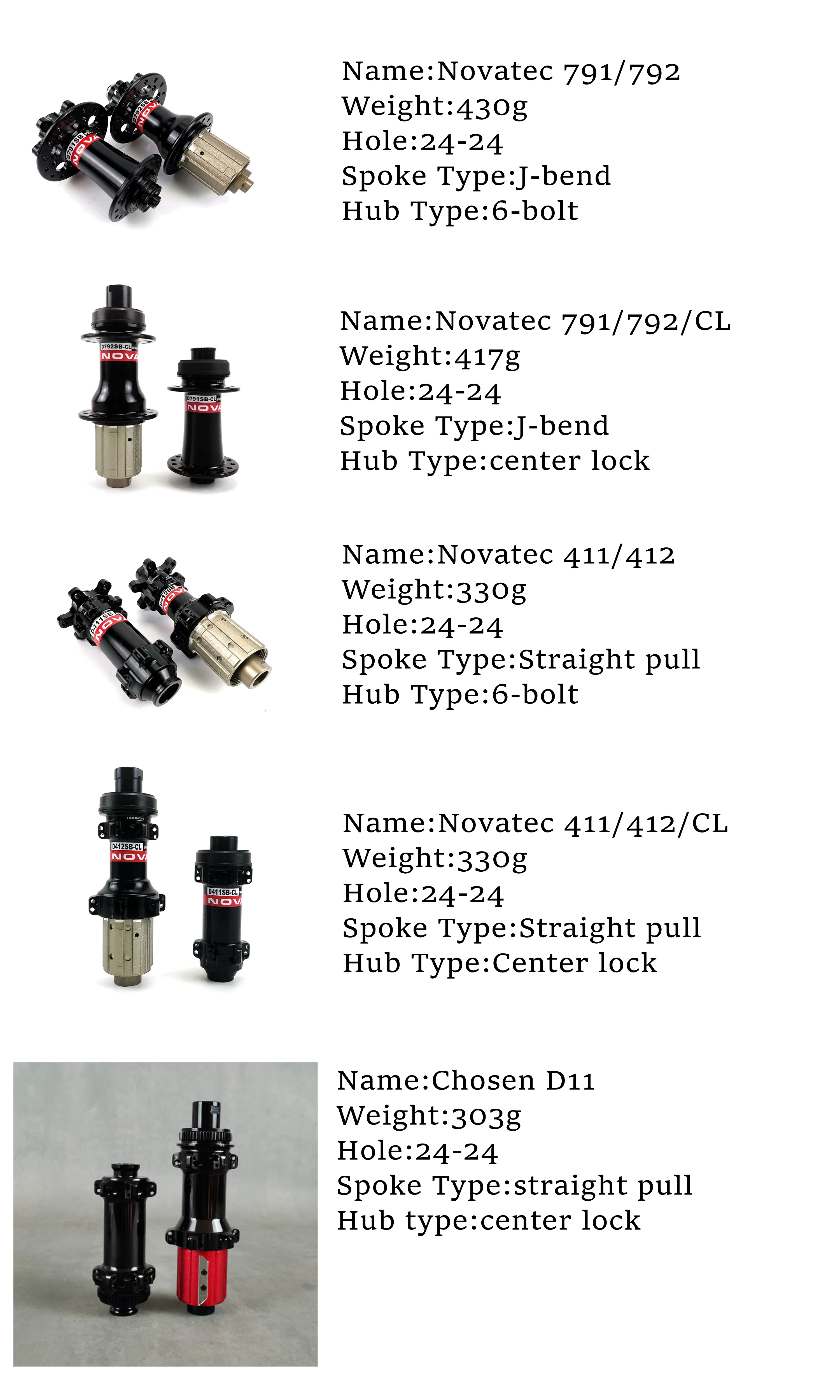

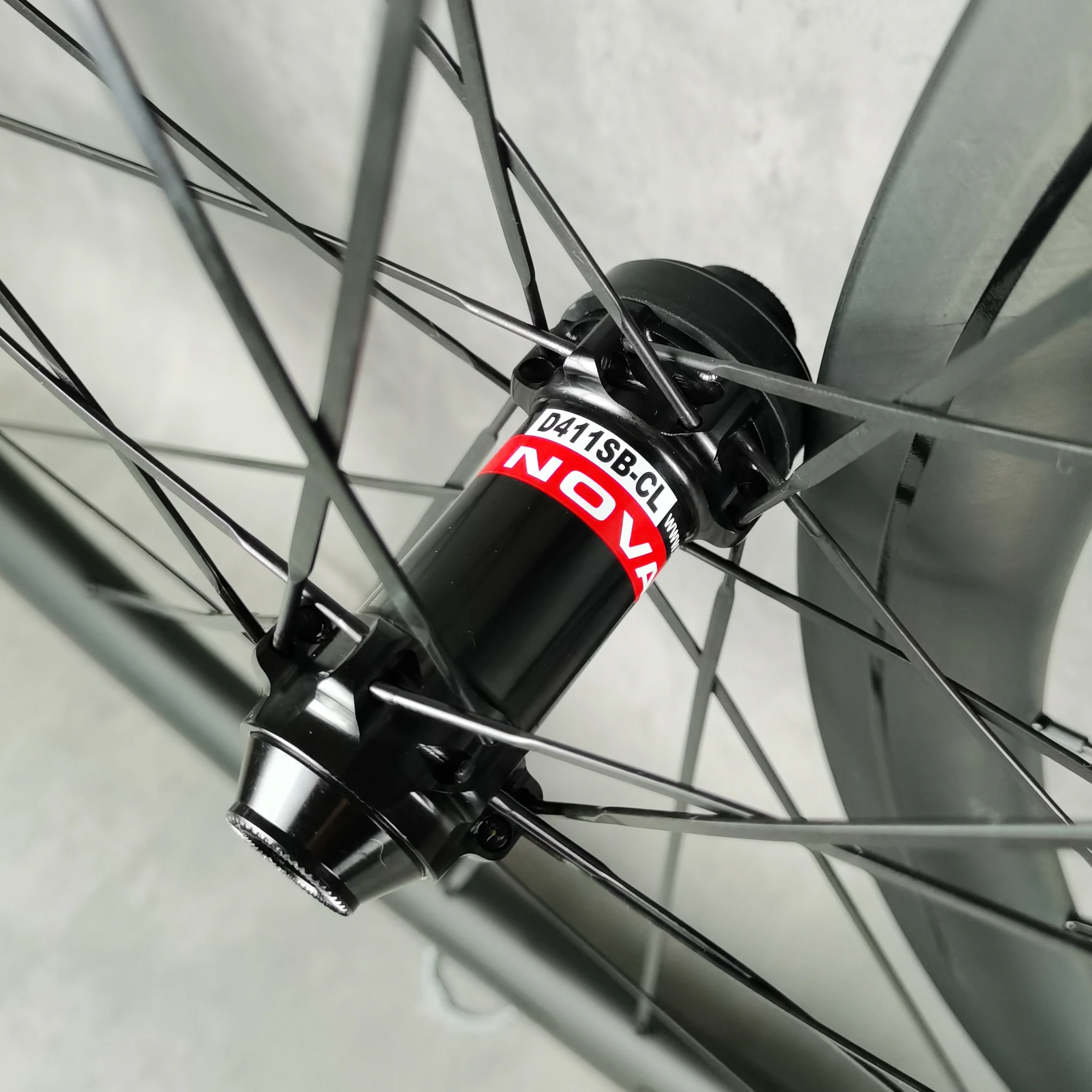

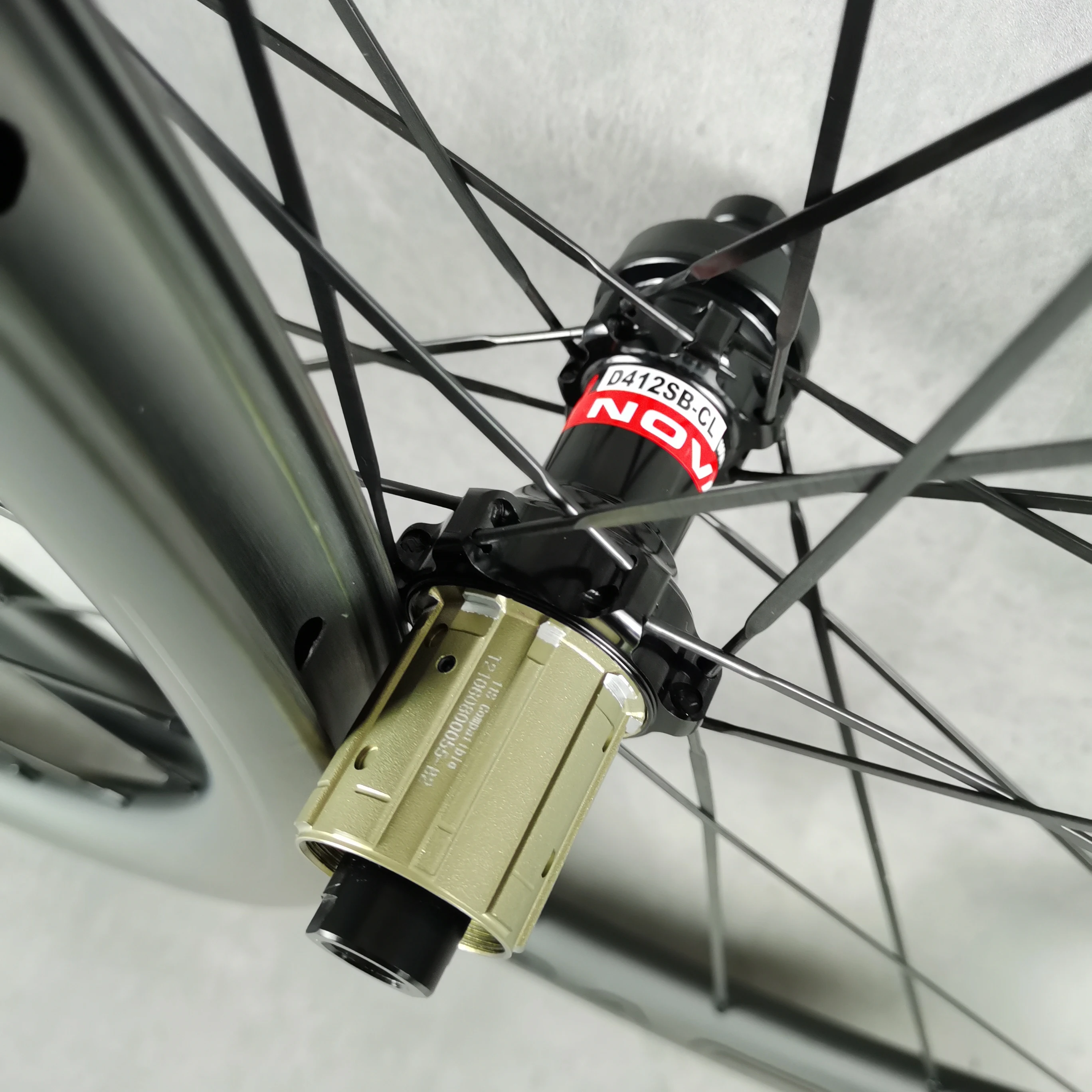

| Hub |
NOVATEC 791-792 /NOVATEC 411-412 /DT350 /DT240-EXP
center lock
quick release 9*100mm 10*135mm
thru axle 12*100mm,12*142mm
|
| Spoke holes |
24-24H |
| spoke color |
Taiwan Aero Black Spoke |
| pple color |
Alloy CN nipples (Black) |
| |
|
| Fit frame |
For road bike |
| Casette body |
Shimano (fit for 8/9/10/11 speed) |
| Warranty |
12 months |
| Quality control |
All pass EN standard test |
After placing the order, we will confirm the configuration with you. If you do not have any special instructions, the default is the following specifications:

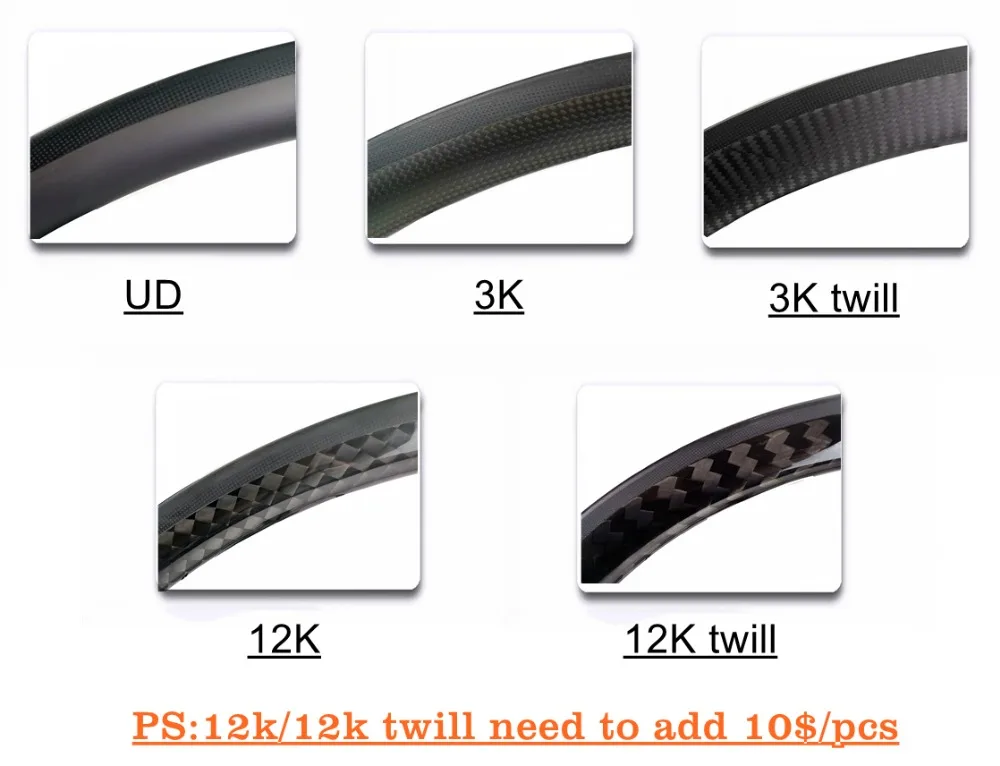

Rim weave: UD
Finishing:Glossy
Hub color: black
Hole counts: 24-24
Hub compatibility: Shiman0 11 Speed

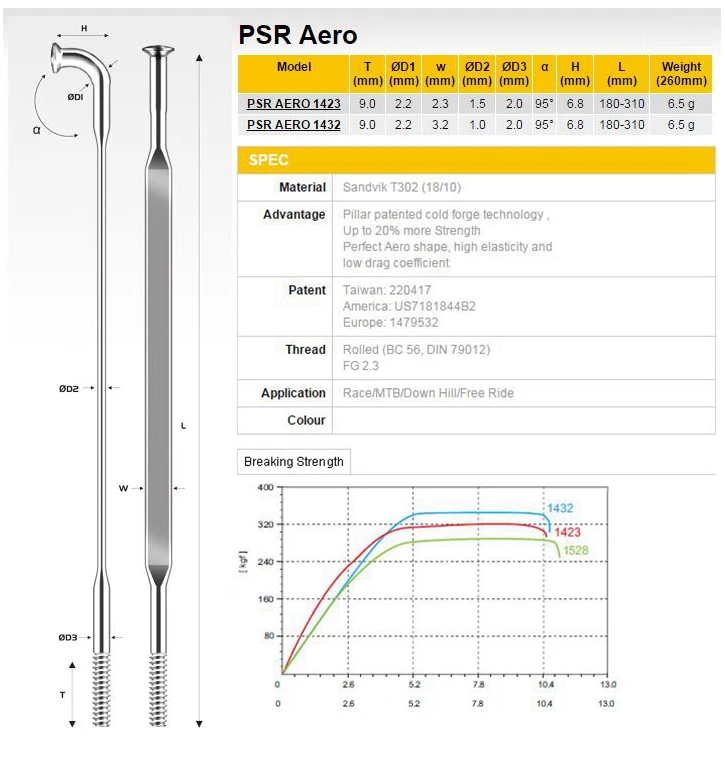

Spokes : Pillar 1432/1423 Black
Nipples color: Black
Hub thru axle options:
Front:12mm x 142 (Thru axle)
Rear:12mm x 142 (Thru axle)
Note1: If you are from Spain, France, Italy or Belgium, Germay, and you need us to help to solve customs problem, please contact us for pay extra $70 for ship by" seller's shipping method" for avoid any problem there!!!
Rim Weave:
