Product View
Product Details
Features

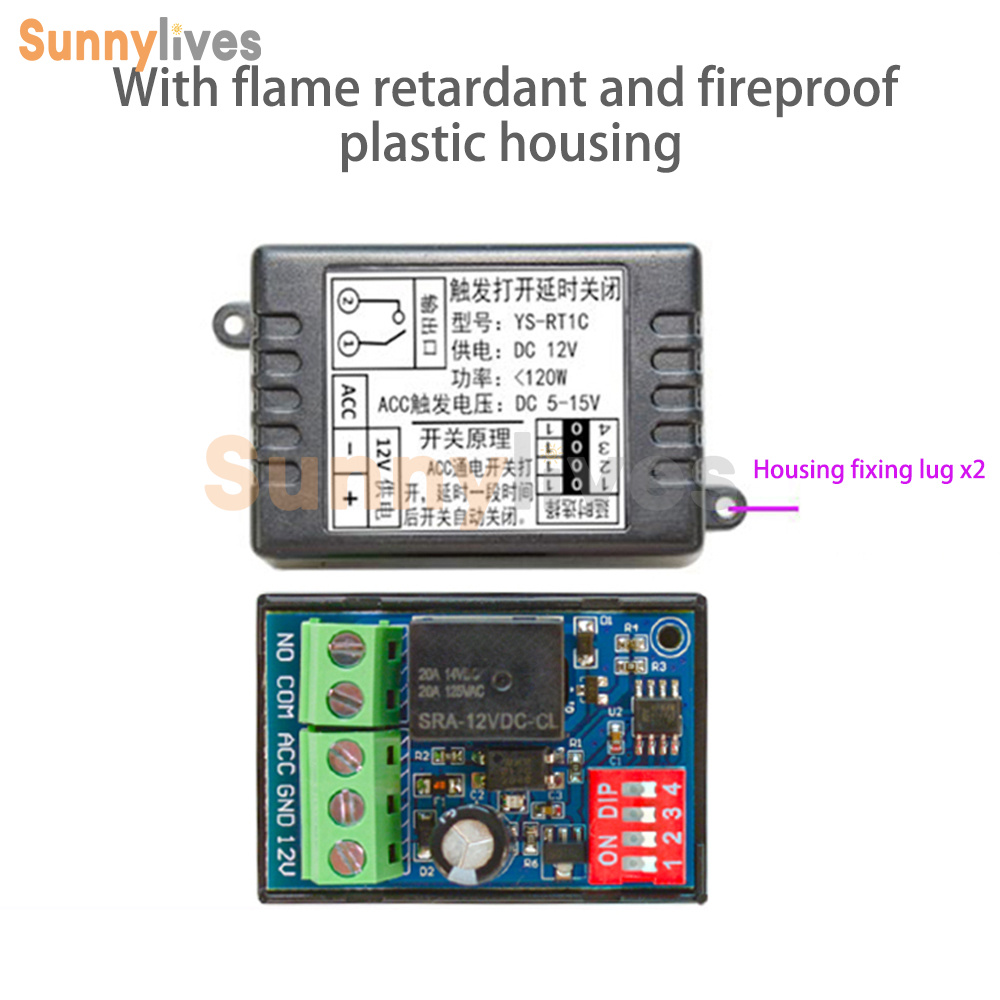

1.High quality shell, dustproof and flame retardant.
2.Car modification parts

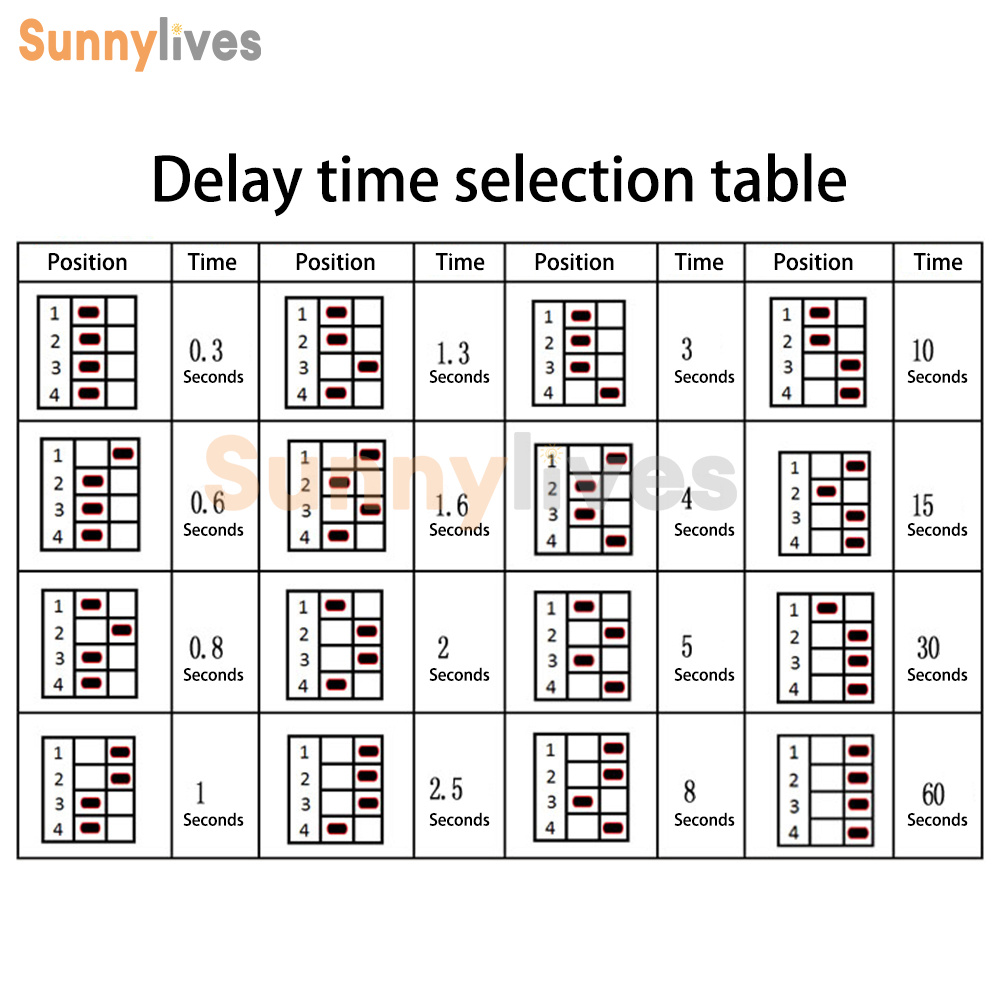

3.Time optional, you can choose according to your needs.
4. Simple operation, can be timed to close automatically
5. Wide range of uses, such as exhaust fan, engine, cooling fan, lighting, navigation, media sound, door and window delay lifting and other automotive circuits power failure delay control
2.Car modification parts
3.Time optional, you can choose according to your needs.
4. Simple operation, can be timed to close automatically
5. Wide range of uses, such as exhaust fan, engine, cooling fan, lighting, navigation, media sound, door and window delay lifting and other automotive circuits power failure delay control

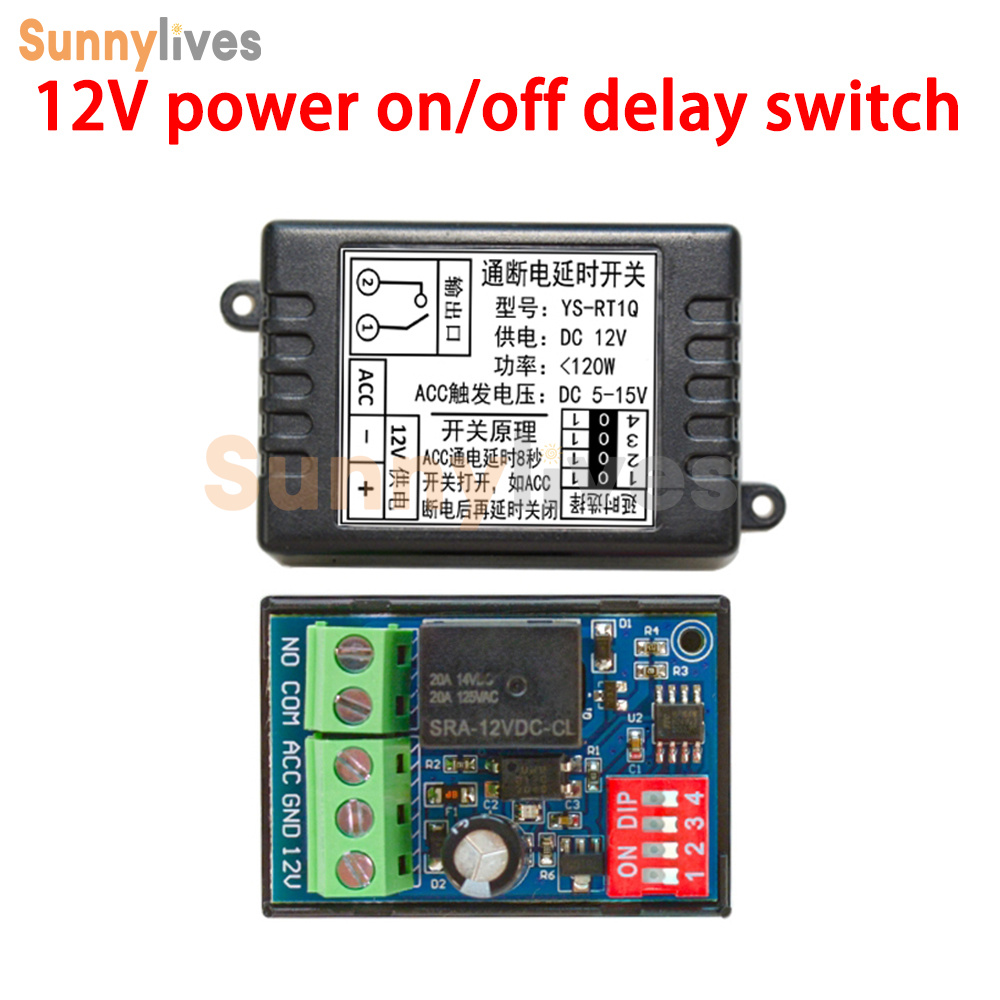

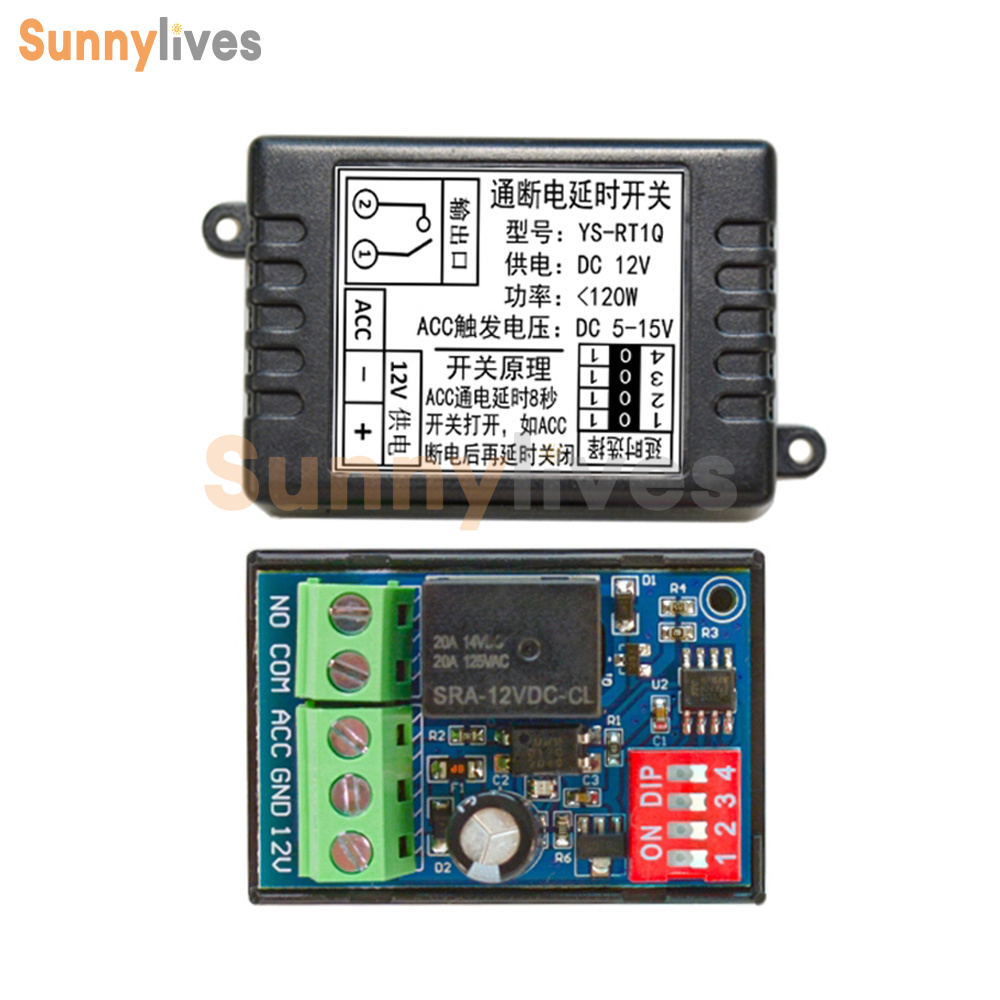

Model: YS-RT1Q
Specification of shell with hole: 63*35*22mm
Bare board specification: 45*29*18mm
Supply voltage: DC 12V
Standby current: ≤10ma
Working current: 68ma (current after the trigger switch is turned on)
Control voltage at output: DC 0-14V , AC 0-125V
Output control current: <11A
Working temperature and humidity: -20℃ to 70℃, RH≤80%.
Switch workflow: After energizing the switch, when ACC detects power, it starts to delay for 8 seconds and then the switch stays closed, so when ACC detects no power, it starts to delay for X, and then the switch disconnects when the time is up. (which 8 seconds for the fixed time users can not be modified, can be customized)
Specification of shell with hole: 63*35*22mm
Bare board specification: 45*29*18mm
Supply voltage: DC 12V
Standby current: ≤10ma
Working current: 68ma (current after the trigger switch is turned on)
Control voltage at output: DC 0-14V , AC 0-125V
Output control current: <11A
Working temperature and humidity: -20℃ to 70℃, RH≤80%.
Switch workflow: After energizing the switch, when ACC detects power, it starts to delay for 8 seconds and then the switch stays closed, so when ACC detects no power, it starts to delay for X, and then the switch disconnects when the time is up. (which 8 seconds for the fixed time users can not be modified, can be customized)

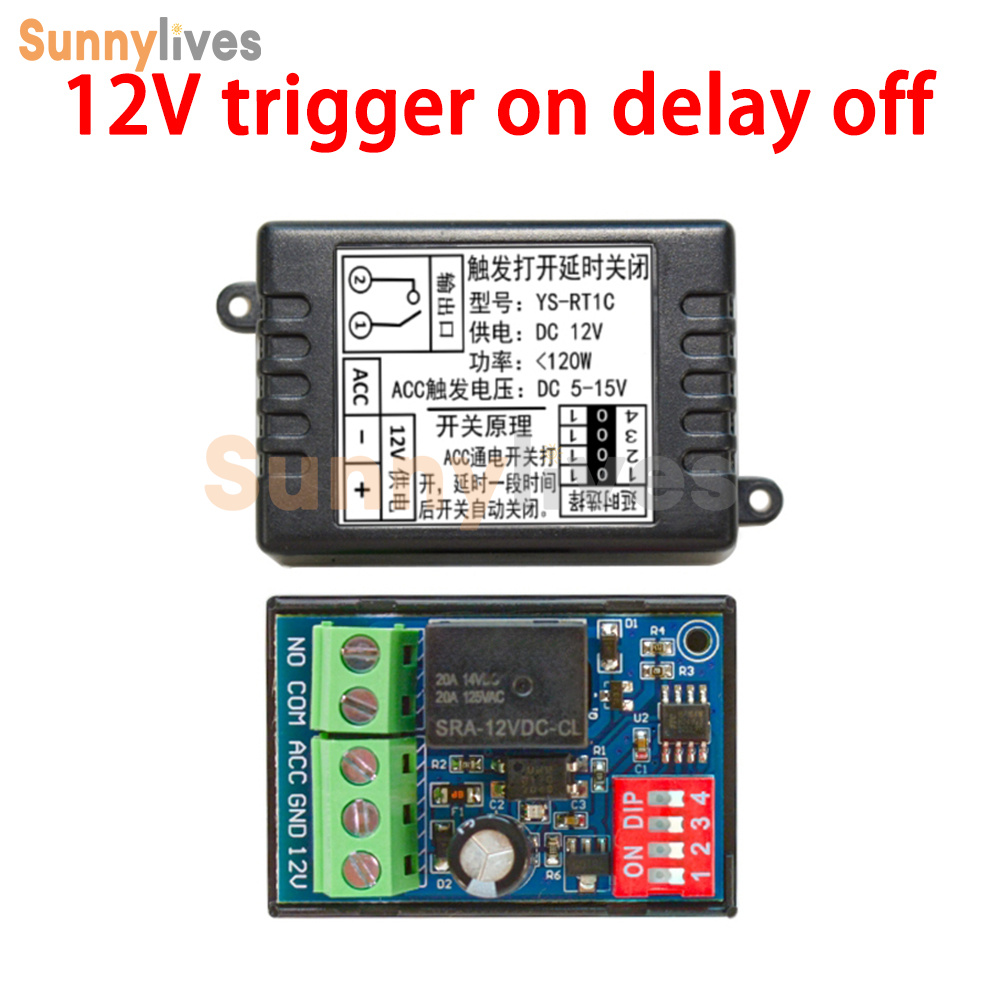

Model: YS-RT1C
Specification: 50x35x22mm
Supply voltage: DC 12V
Working current: 68ma (current after trigger switch on)
Standby current: 10ma
Control voltage at output: DC 0-14V , AC 0-125V
Output control current: <11A
Operating temperature: -20℃ to 70℃

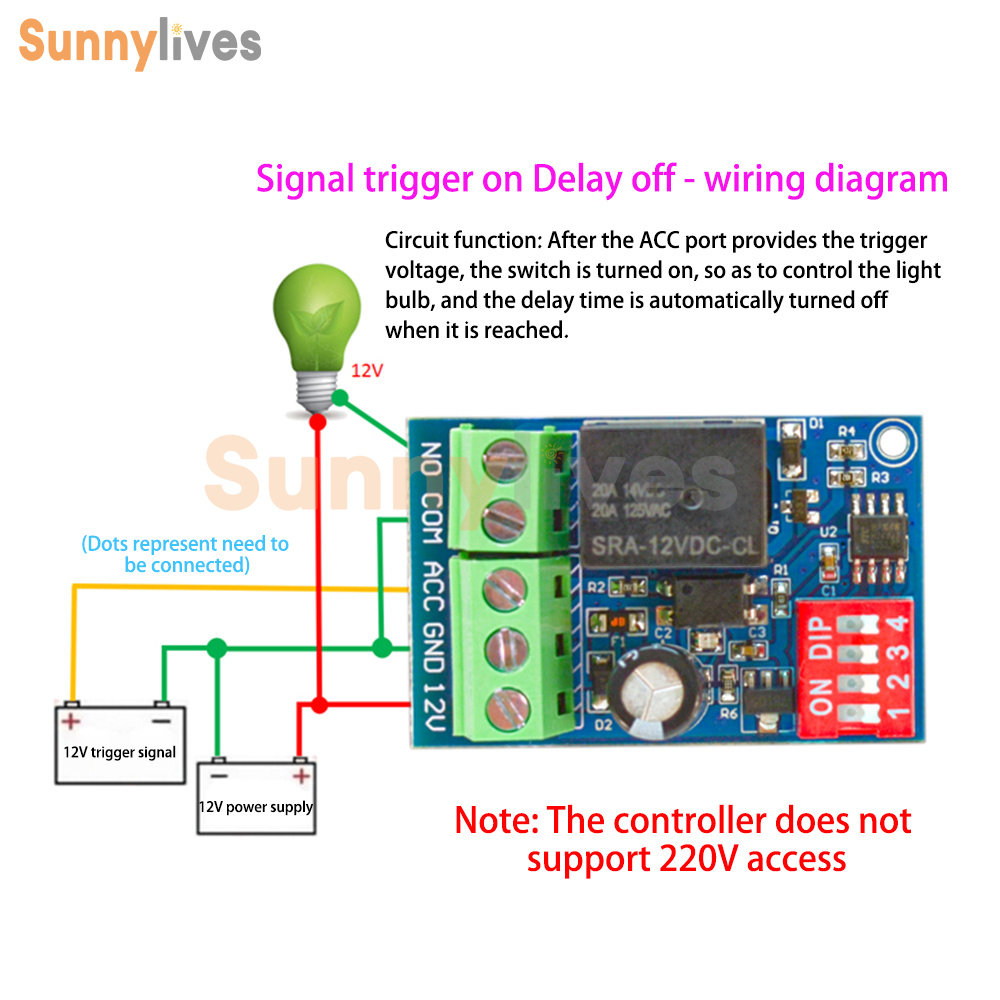

Working Principle: After connecting the power to the device, the trigger port will provide voltage trigger, and the switch will be opened and closed automatically after a delay time.
Specification: 50x35x22mm
Supply voltage: DC 12V
Working current: 68ma (current after trigger switch on)
Standby current: 10ma
Control voltage at output: DC 0-14V , AC 0-125V
Output control current: <11A
Operating temperature: -20℃ to 70℃
Working Principle: After connecting the power to the device, the trigger port will provide voltage trigger, and the switch will be opened and closed automatically after a delay time.

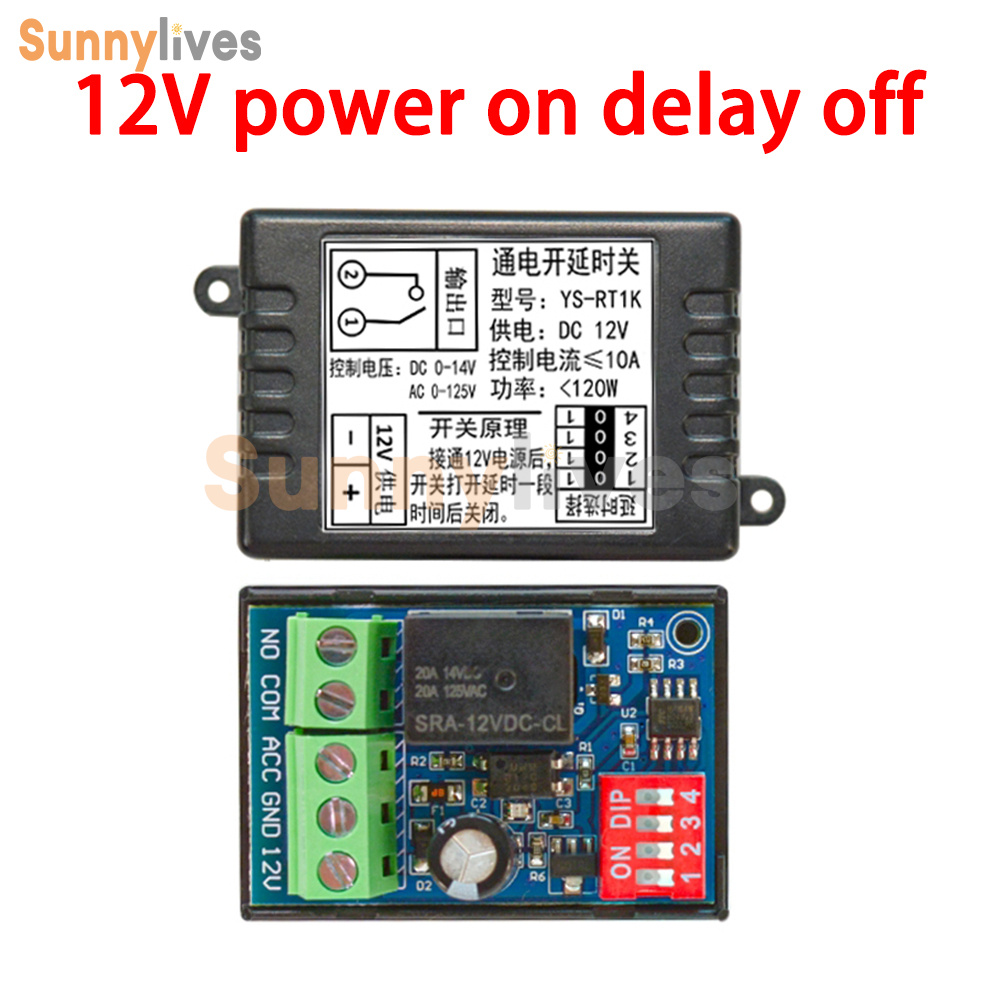

Model: YS-RT1K
Shell with hole specifications: 63 * 35 * 22mm
Bare board specification: 45*29*18mm
Supply voltage: DC 12V
Standby current: <3MA
Operating current: 68ma (current after trigger switch on)
Control voltage at output: DC 0-14V , AC 0-125V
Output control current: <11A
Operating temperature: -20℃ to 70℃
Working Principle: After powering on the device, the switch will turn on and after a delay time, the switch will turn off.
Commonly used function: check whether the external power supply has power, as a trigger signal to control the lower level equipment.
Shell with hole specifications: 63 * 35 * 22mm
Bare board specification: 45*29*18mm
Supply voltage: DC 12V
Standby current: <3MA
Operating current: 68ma (current after trigger switch on)
Control voltage at output: DC 0-14V , AC 0-125V
Output control current: <11A
Operating temperature: -20℃ to 70℃
Working Principle: After powering on the device, the switch will turn on and after a delay time, the switch will turn off.
Commonly used function: check whether the external power supply has power, as a trigger signal to control the lower level equipment.

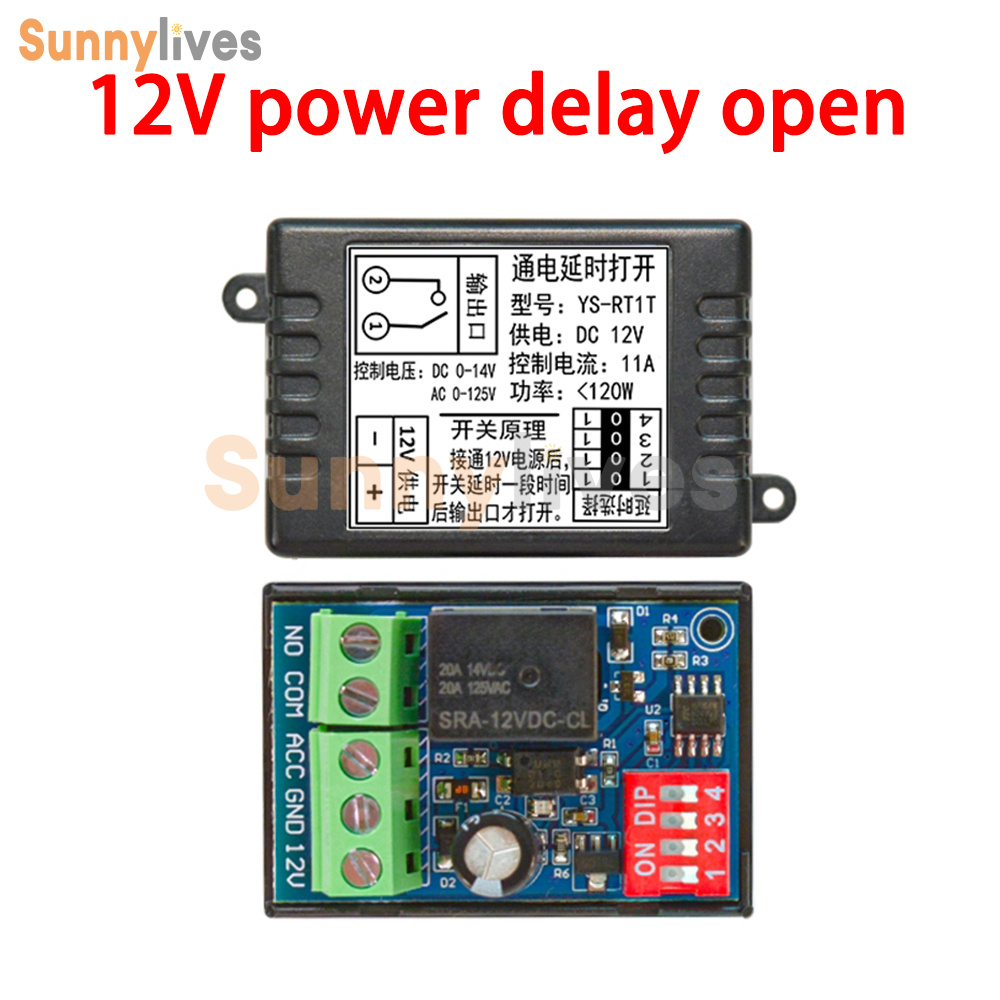

Model: YS-RT1T
Specification: 50x35x22mm
Supply voltage: DC 12V
Working current: 68ma (current after the trigger switch is turned on)
Control voltage at output: DC 0-14V , AC 0-125V
Control current at output: <11A
Operating temperature: -20℃ to 70℃
Working Principle: After connecting power to this device, the device will delay for a period of time and then turn on the output.
Specification: 50x35x22mm
Supply voltage: DC 12V
Working current: 68ma (current after the trigger switch is turned on)
Control voltage at output: DC 0-14V , AC 0-125V
Control current at output: <11A
Operating temperature: -20℃ to 70℃
Working Principle: After connecting power to this device, the device will delay for a period of time and then turn on the output.

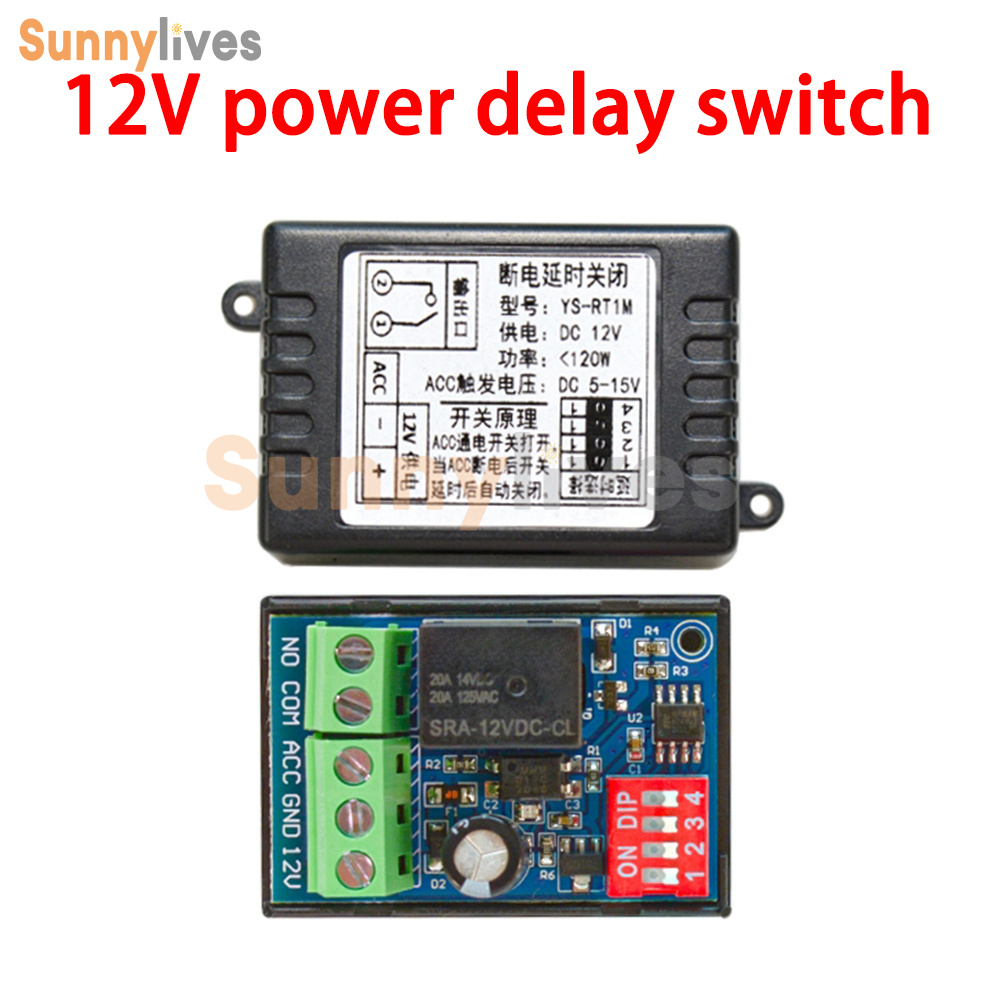

Model: YS-RT1M
Shell with hole specification: 63*35*22mm
Bare board specification: 45*29*18mm
Supply voltage: DC 12V
Standby current: ≤10ma
Working current: 68ma (current after the trigger switch is turned on)
Control voltage at output: DC 0-14V , AC 0-125V
Output control current: <11A
Operating temperature: -20℃ to 70℃
Shell with hole specification: 63*35*22mm
Bare board specification: 45*29*18mm
Supply voltage: DC 12V
Standby current: ≤10ma
Working current: 68ma (current after the trigger switch is turned on)
Control voltage at output: DC 0-14V , AC 0-125V
Output control current: <11A
Operating temperature: -20℃ to 70℃
List
1 x Car Power Relay Module
1 x Car Power Relay Module
