Features:
1. Unique frame shock absorption design, less vibration, safe and stable electronic system operating environment.
2. Wide top and bottom plate design, suitable for carrying larger capacity batteries and loads.
3. True X frame design, stable and flexible flight attitude. Perfect balance between performance and durability.
4. Compact design,Made of high-quality 3K Carbon Fiber,lightweight.
5. Easy to assemble, suitable for both beginners and experienced players.
Descriptions:
9IMOD MAK4 V2 7/8/9/10/13/15 inch FPV Racing Drone Frame,13/15 inch with Print Parts,Compact design,Full 3K carbon fiber material,Easy to assemble, suitable for long range flight.
Specifications:

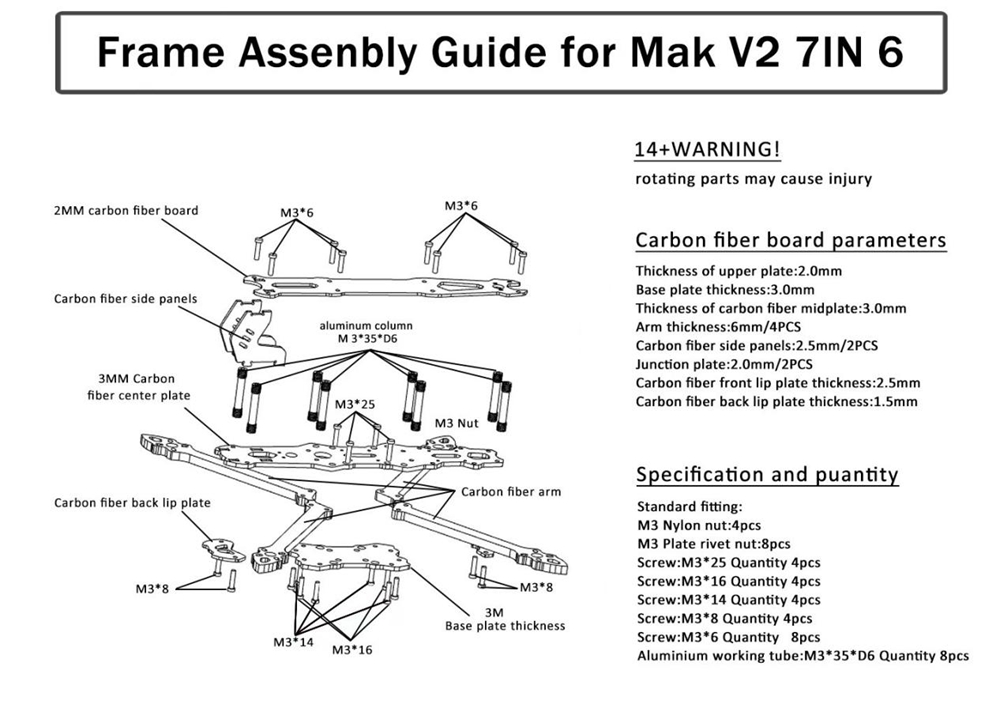

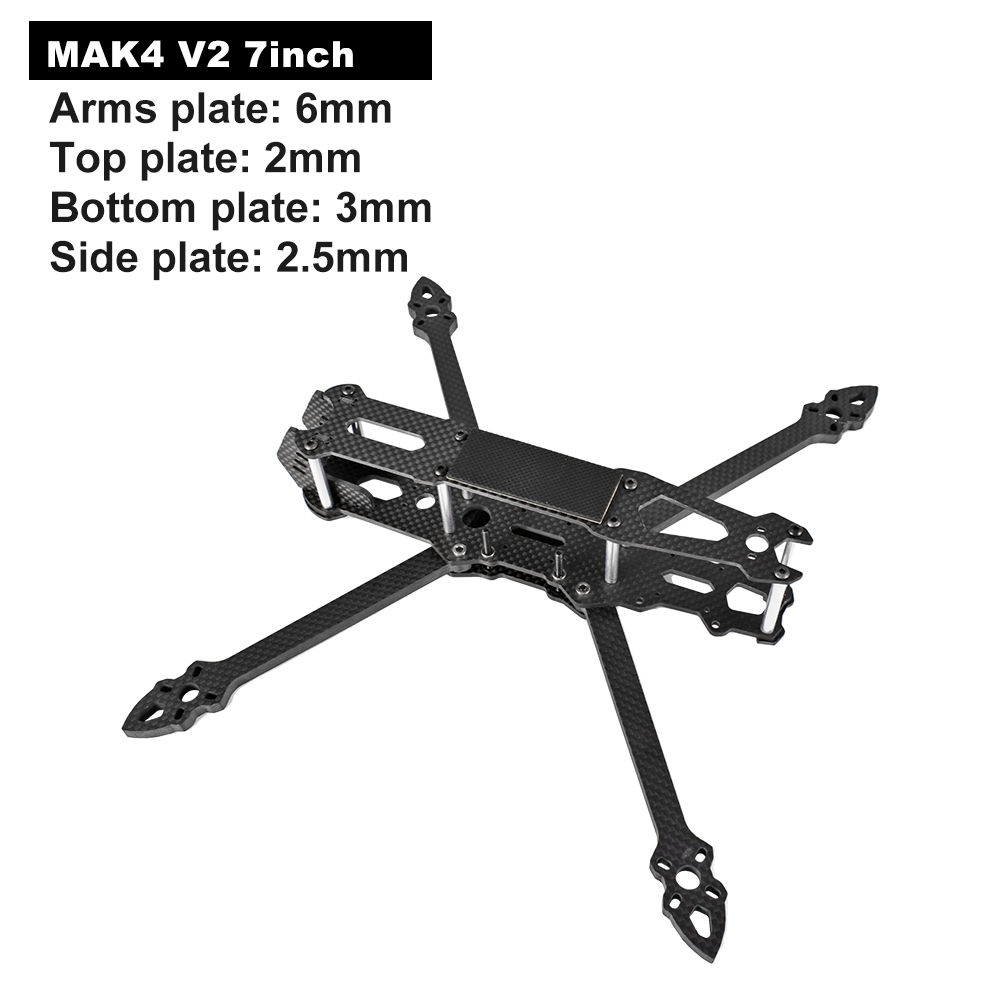

Model: MAK4 V2 7inch
Frame structure: X-Type
Wheelbase: 295mm
Weight: 185g
packing: electrostatic bag
Size: 230.35mm * 278.52mm
Bottom plate thickness: 3.0mm
Medium plate thickness: 3.0mm
Upper plate thickness: 2.0mm
Arm thickness: 6.0mm
Connecting plate: 2.0mm
Camera side plate thickness: 2.5mm
Camera installation hole spacing: 19mm
Image transmission installation hole spacing: 20*20mm & 30.5*30.5mm
Flight control installation hole spacing: 20*20mm & 30.5*30.5mm
Inner space height: 35mm
Motor installation hole position: 16*16mm & 19*19mm
Recommended configuration (not included) ：
Propeller: 7-inch
motor: 2806.5/2807/2810/2812
flight control: F4/F405/F7/F722
electric: 45A-65A ESC
Camera: 19 * 19MM
Battery: 6S-3000MAH-6500Mah

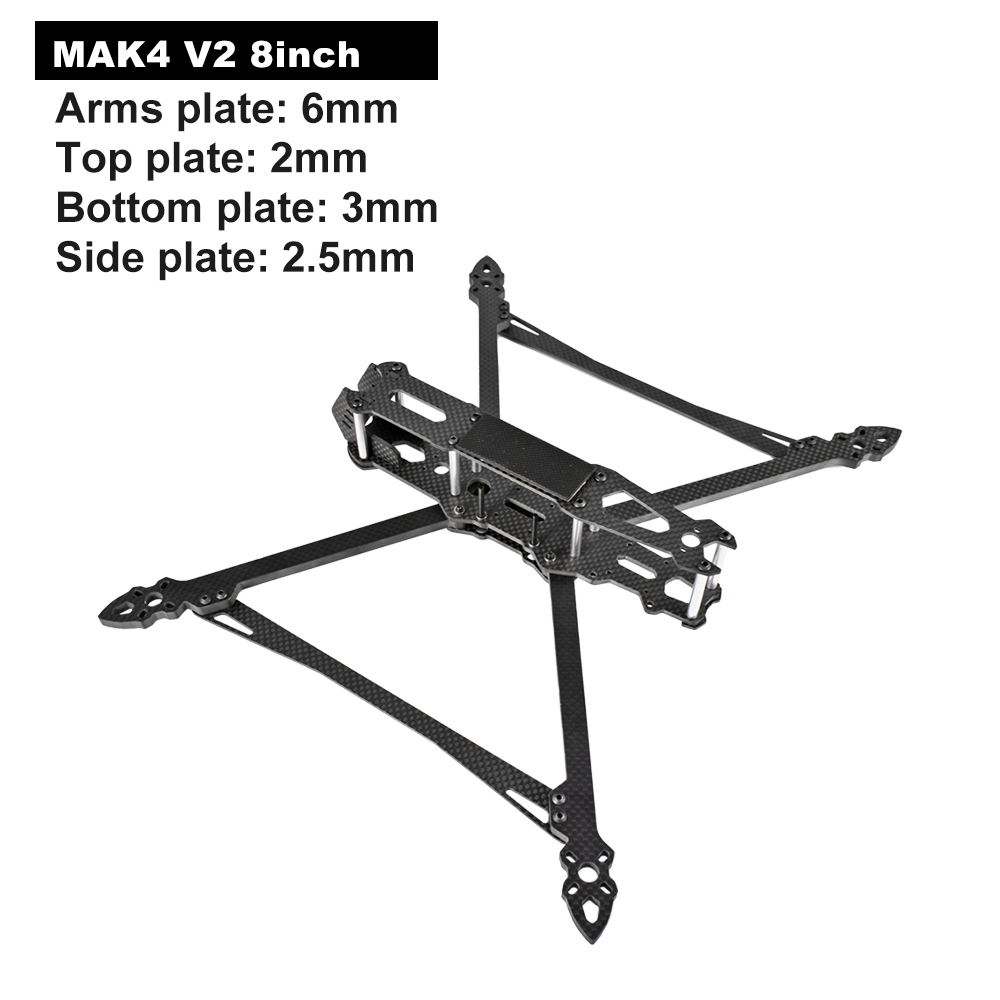

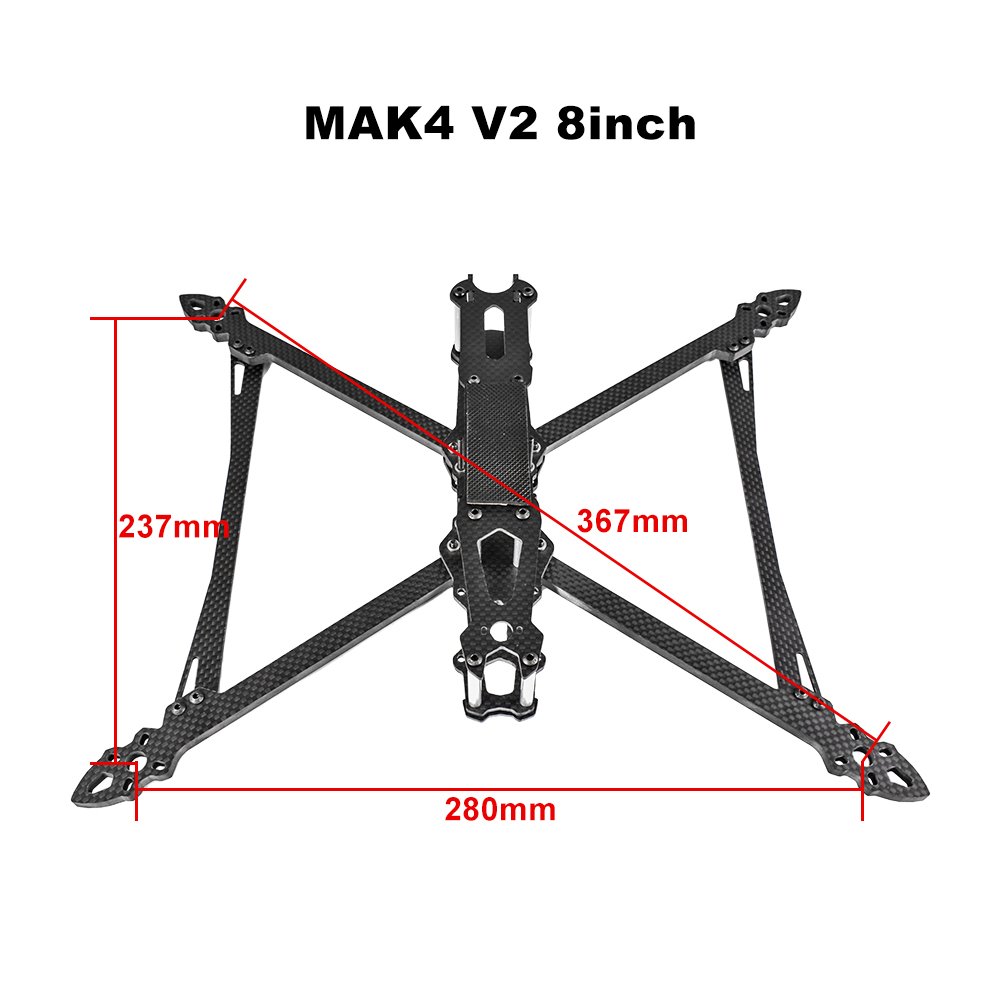

Model: MAK4 V2 8inch
Wheelbase: 367mm
Weight: about 214g
Thickness of bottom plate: 3mm
Thickness of top plate: 2mm
Thickness of camera arm: 6mm
Camera side panel thickness: 2.5mm
Camera mounting hole spacing: 19 mm
Mapping mounting hole spacing 20*20mm & 30.5*30.5mm
Flight Control Mounting Pitch: 30.5*30.5mm
Inner space height: 35mm
Motor mounting hole pitch: 16*16mm & 19*19mm

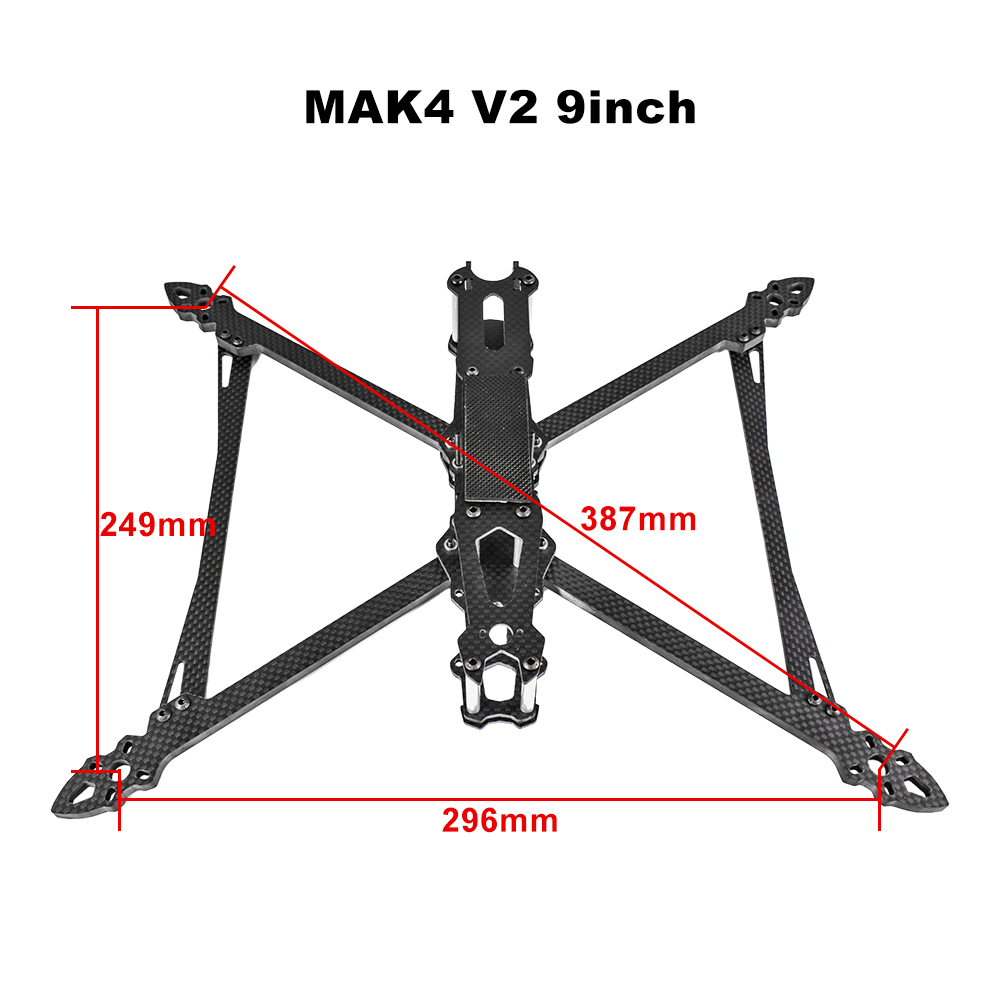

Model: MAK4 V2 9inch
Wheelbase: 387mm
Weight: about 220g
Thickness of bottom plate: 3mm
Thickness of top plate: 2mm
Thickness of camera arm: 6mm
Camera side panel thickness: 2.5mm
Camera mounting hole spacing: 19 mm
Mapping mounting hole spacing 20*20mm & 30.5*30.5mm
Flight Control Mounting Pitch: 30.5*30.5mm
Inner space height: 35mm
Motor mounting hole pitch: 16*16mm & 19*19mm

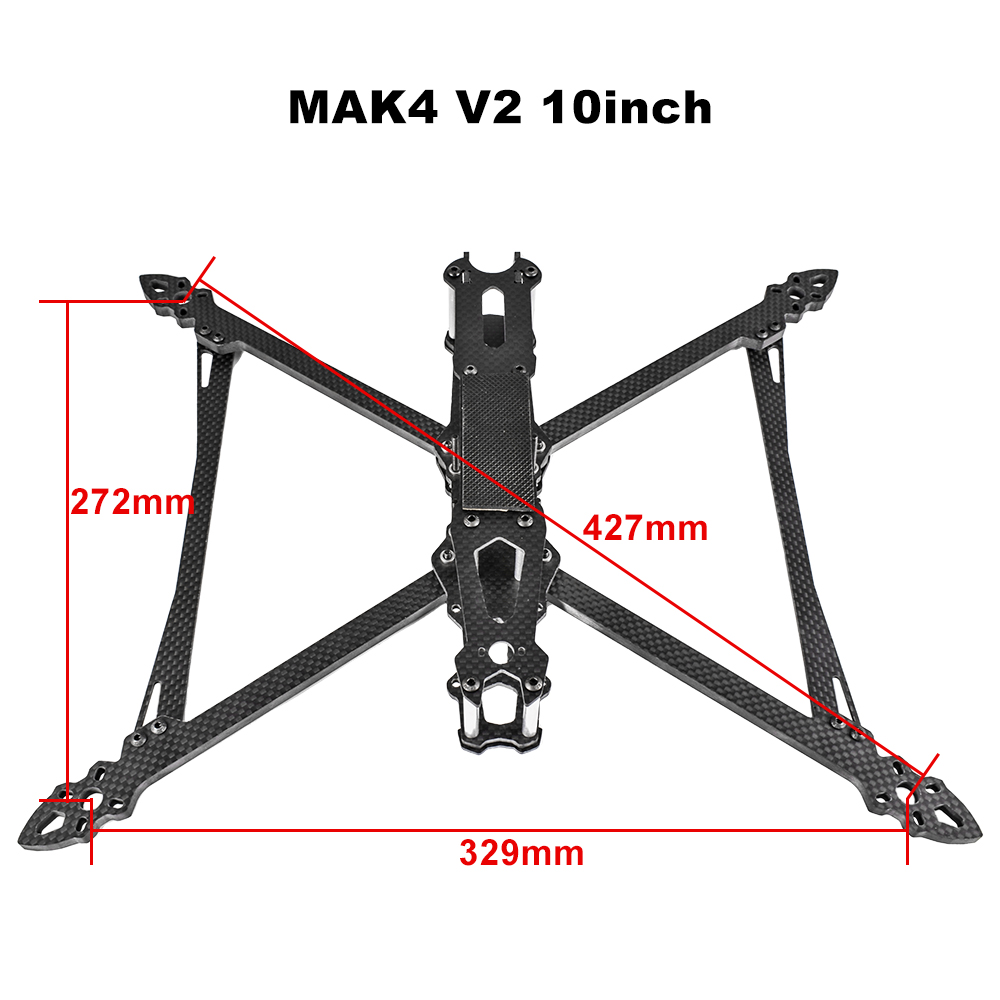

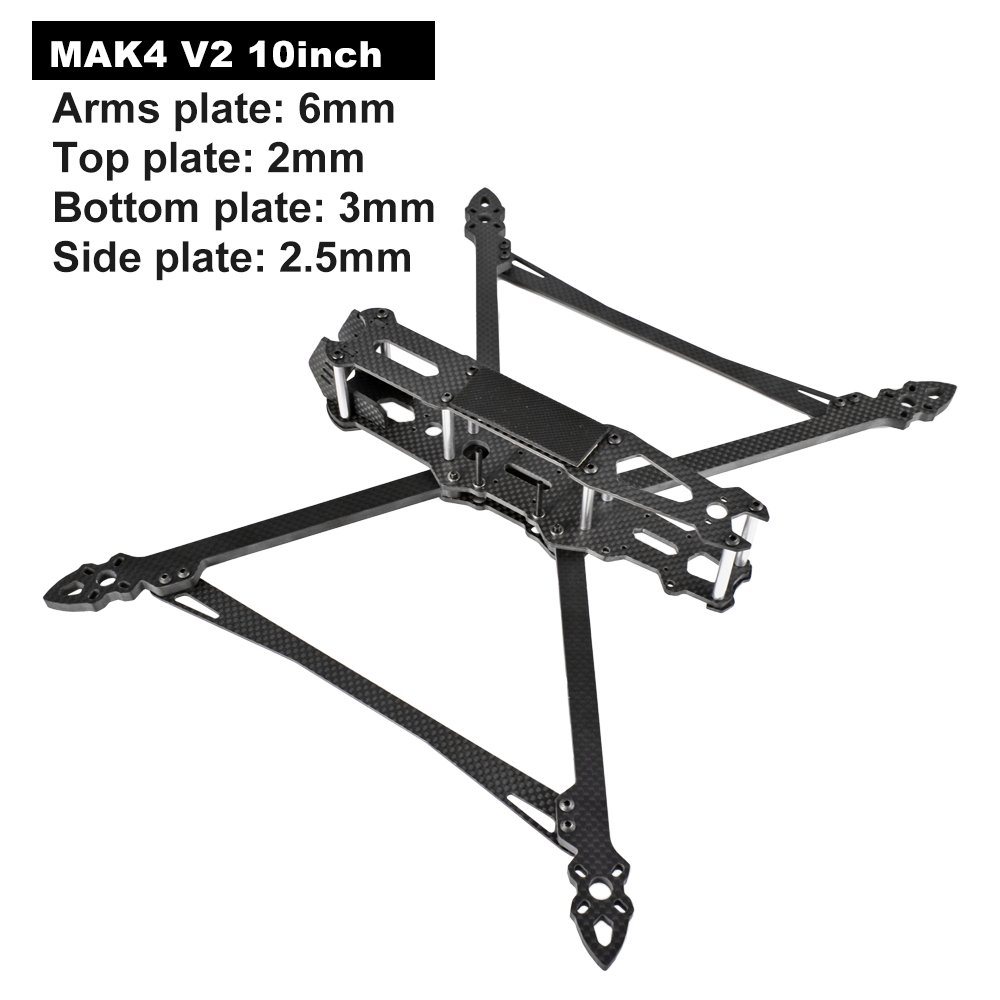

Model: MAK4 V2 10inch
Wheelbase: 427mm
Weight: about 227g
Thickness of bottom plate: 3mm
Thickness of top plate: 2mm
Thickness of camera arm: 6mm
Camera side panel thickness: 2.5mm
Camera mounting hole spacing: 19 mm
Mapping mounting hole spacing 20*20mm & 30.5*30.5mm
Flight Control Mounting Pitch: 30.5*30.5mm
Inner space height: 35mm
Motor mounting hole pitch: 16*16mm & 19*19mm

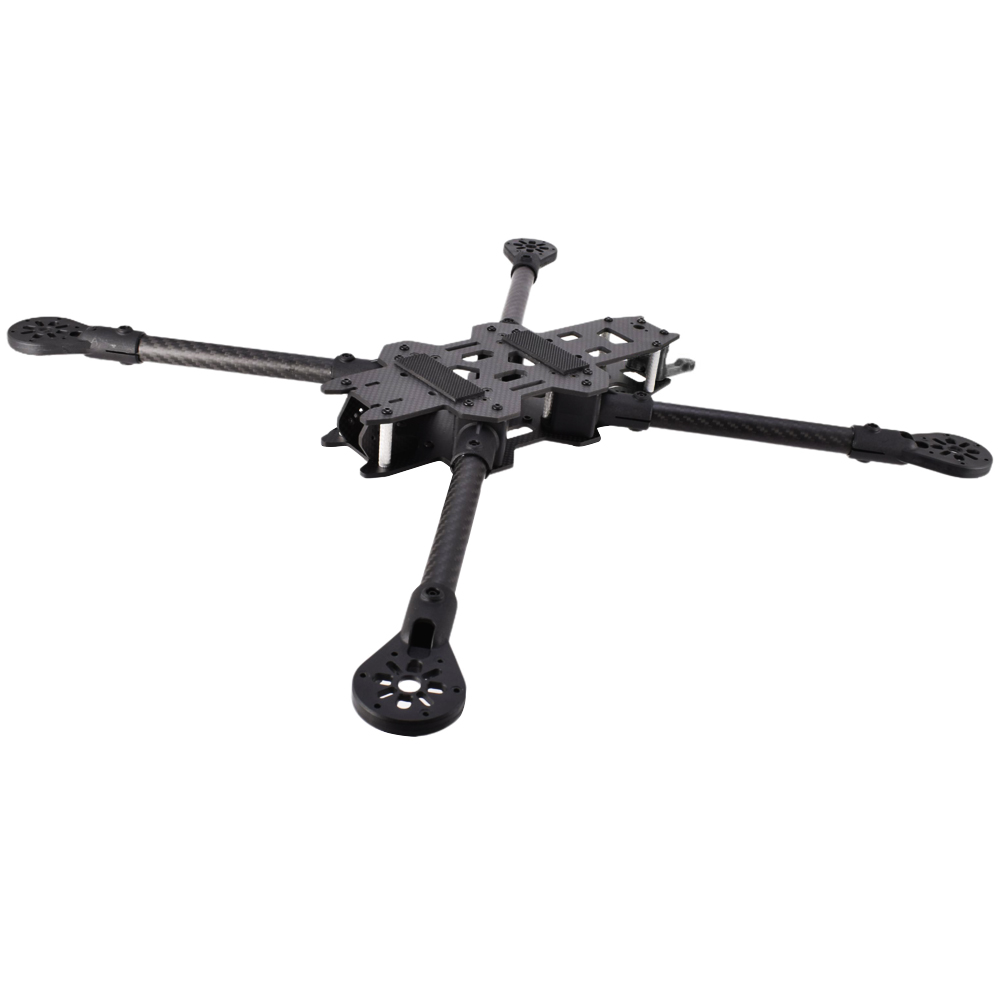

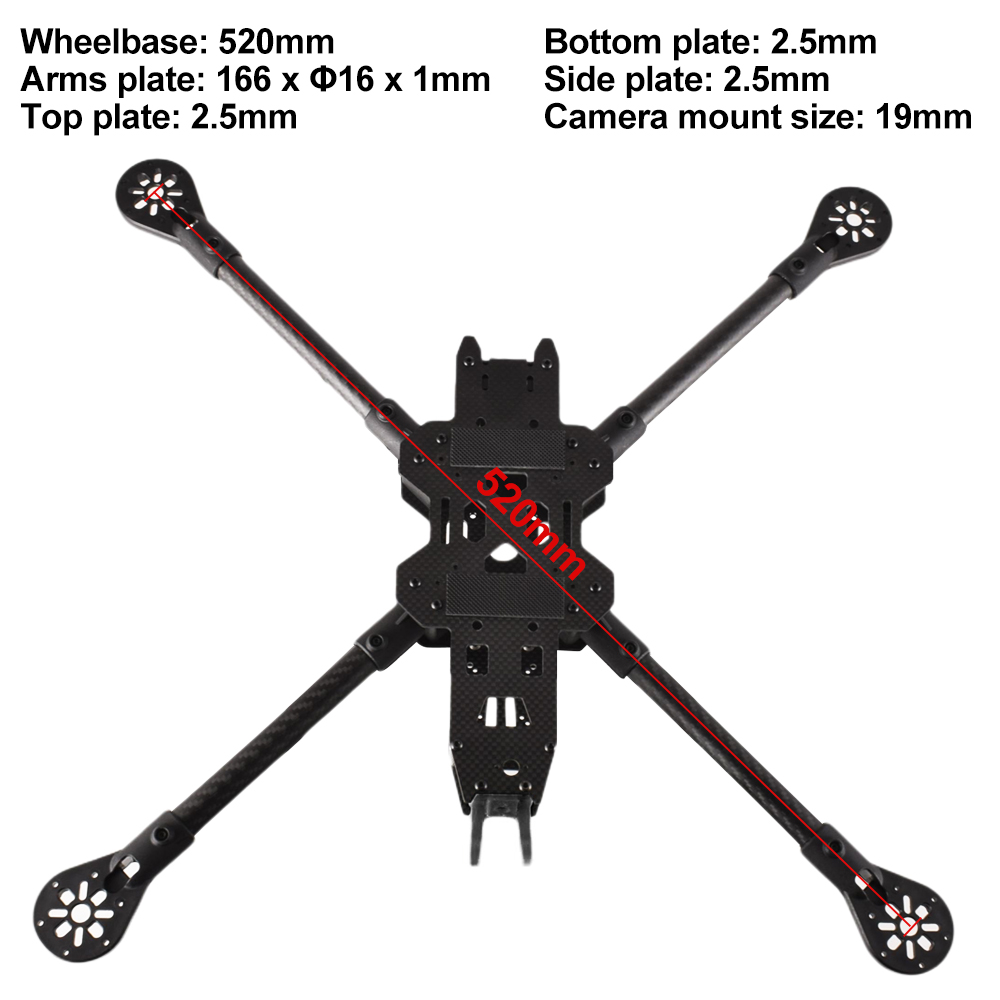

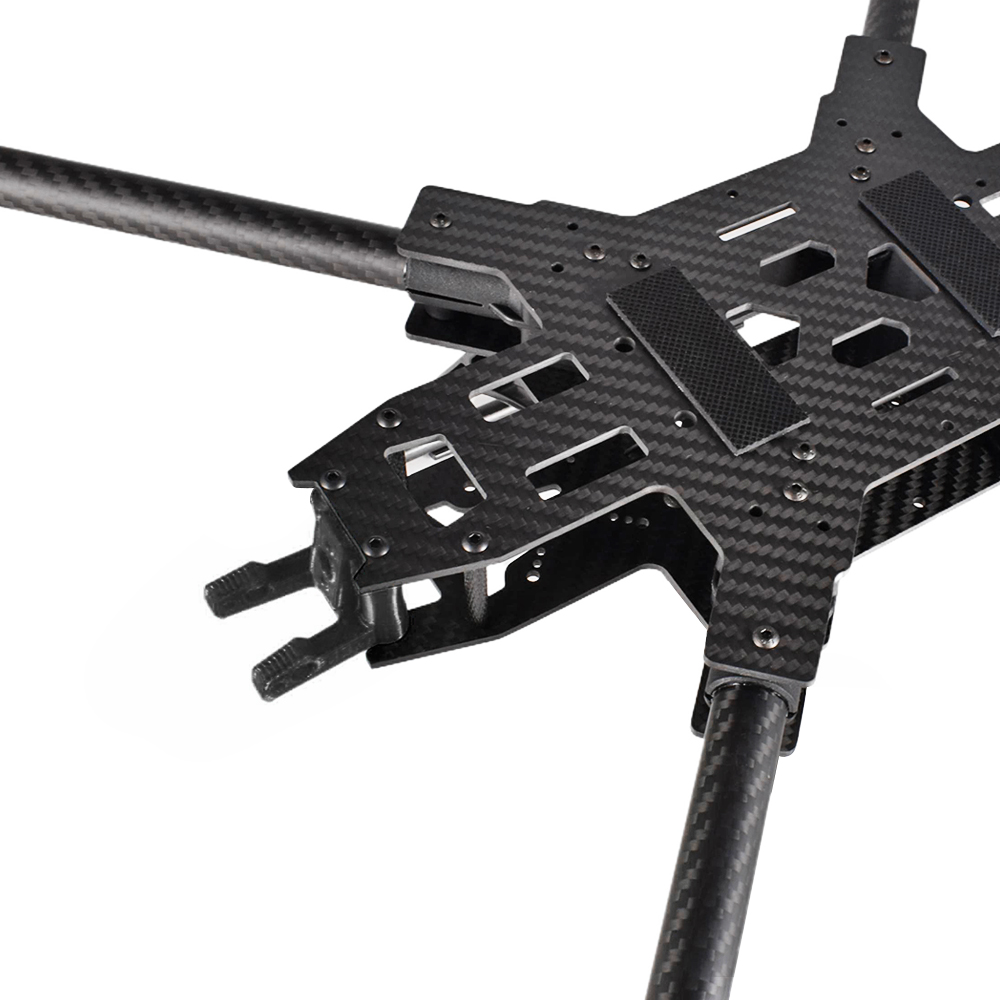

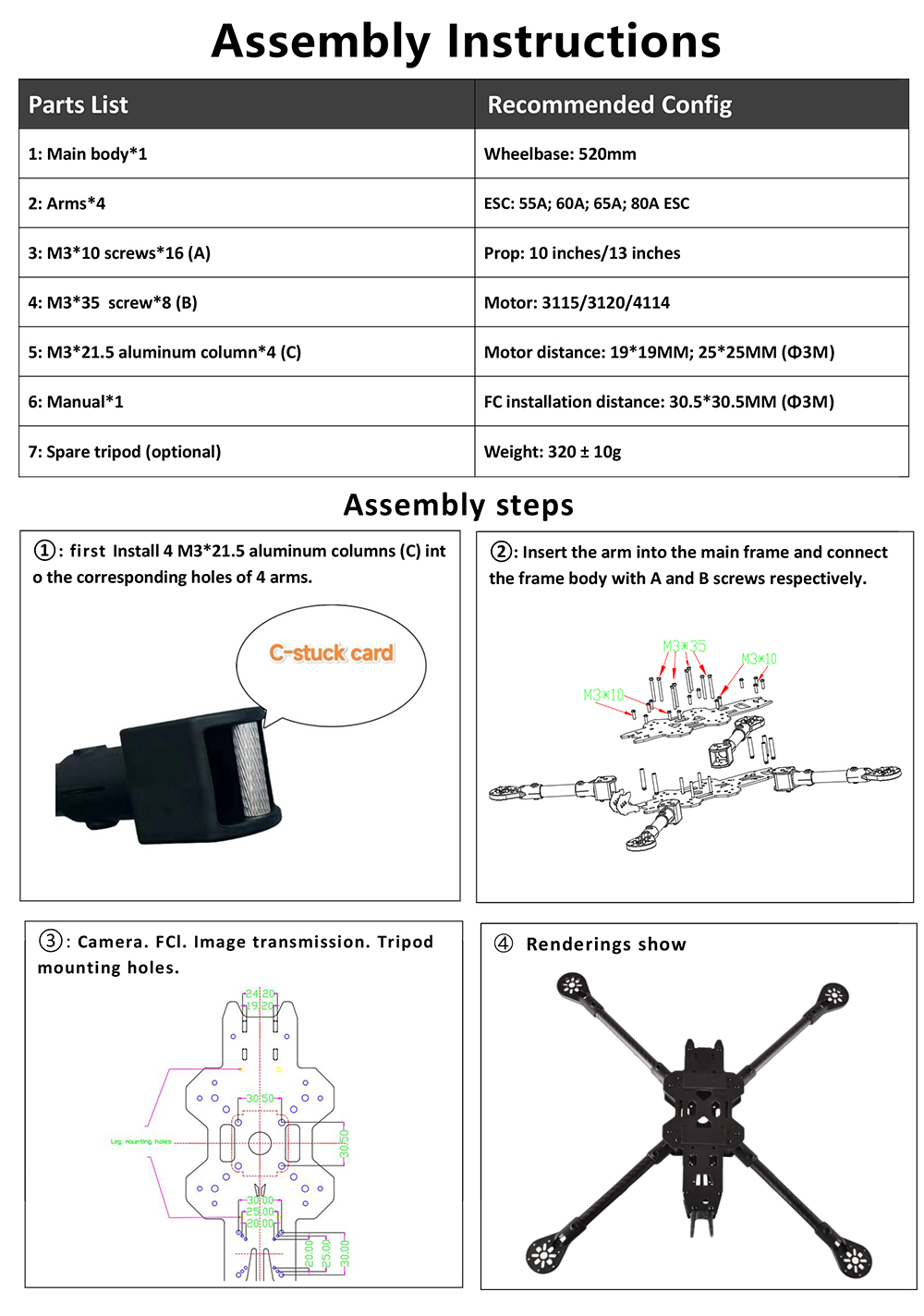

Propeller: 13 inch
Motor to motor: 520mm
Arms plate: 166 x Φ16 x 1mm
Top plate: 2.5mm
Bottom plate: 2.5mm
Side plate: 2.5mm
Camera mount size: 19mm

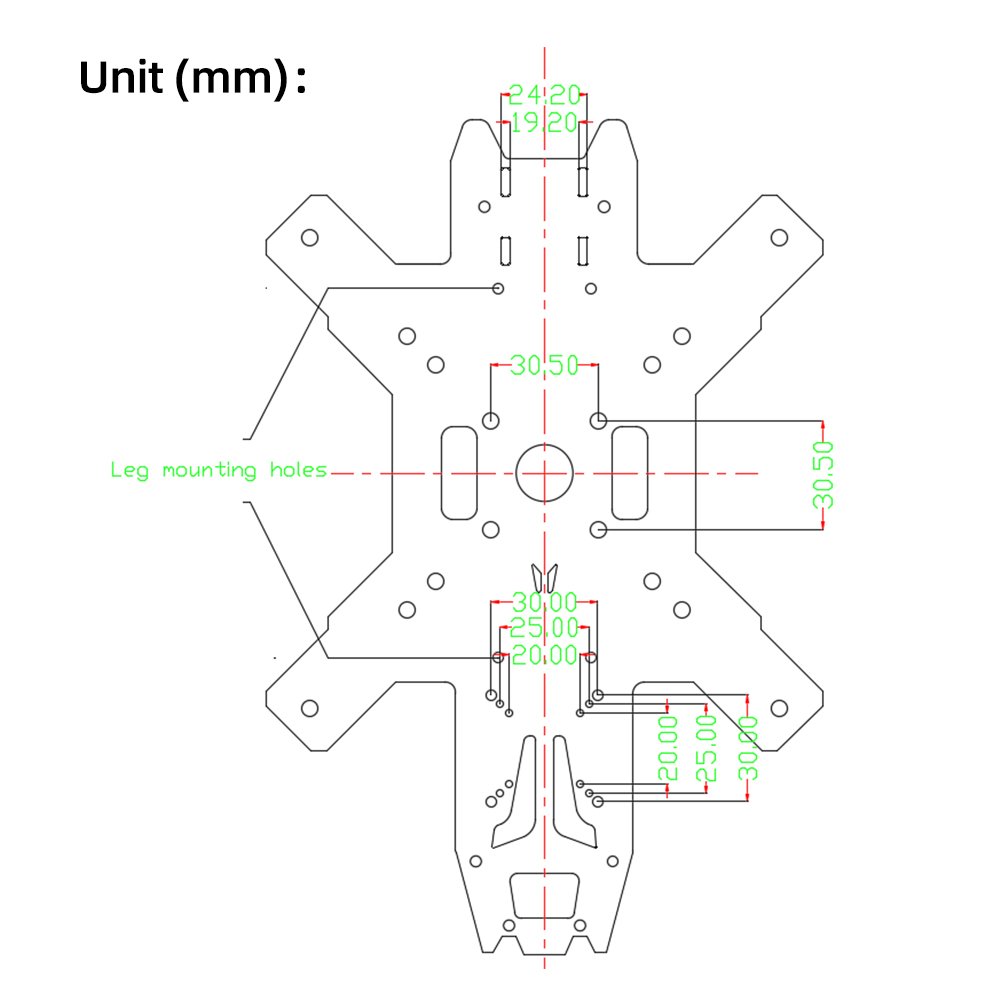

Motor distance: 19 x 19MM; 25 x 25MM (Φ3M)
FC installation distance: 30.5 x 30.5MM (Φ3M)
Recommended configuration: (not included)
Flight Controller: F4/F7/F405
ESC: 55A; 60A; 65A; 80A ESC
Prop: 10 inches/13 inches
Motors: 3115/3120/4114

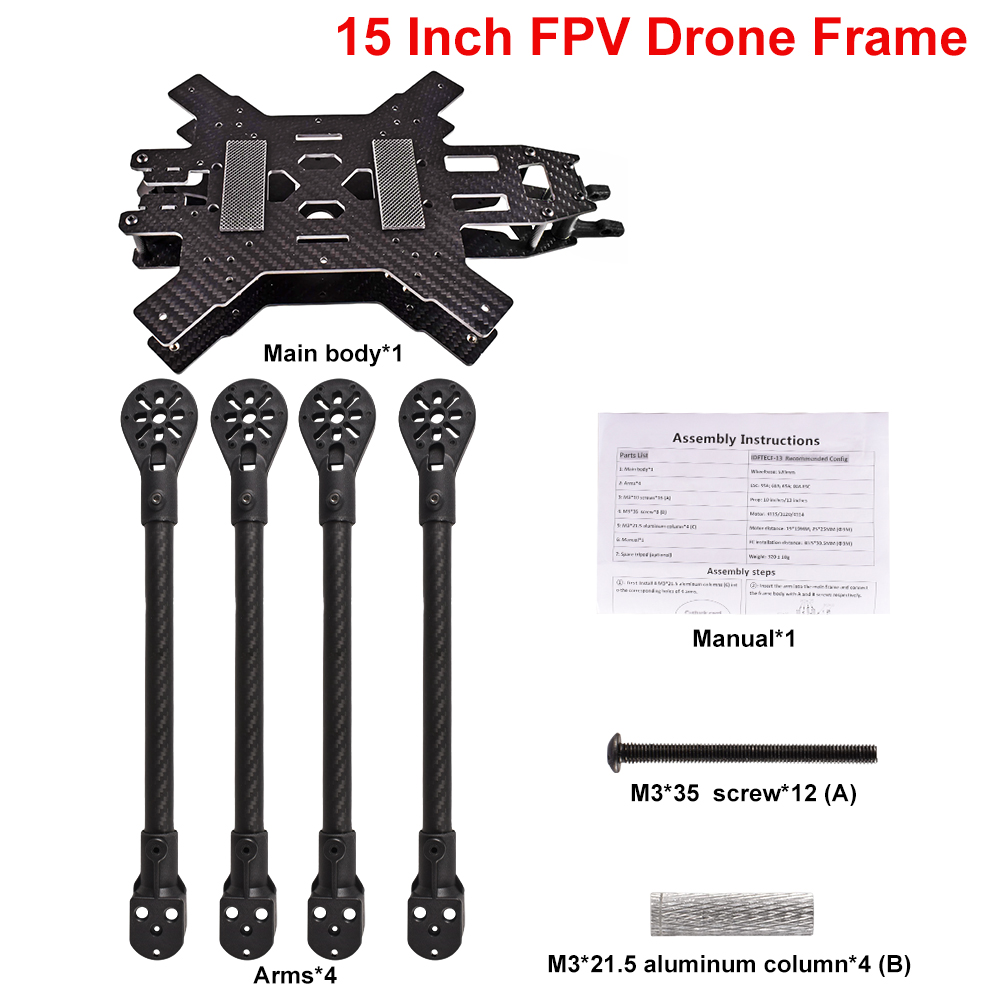

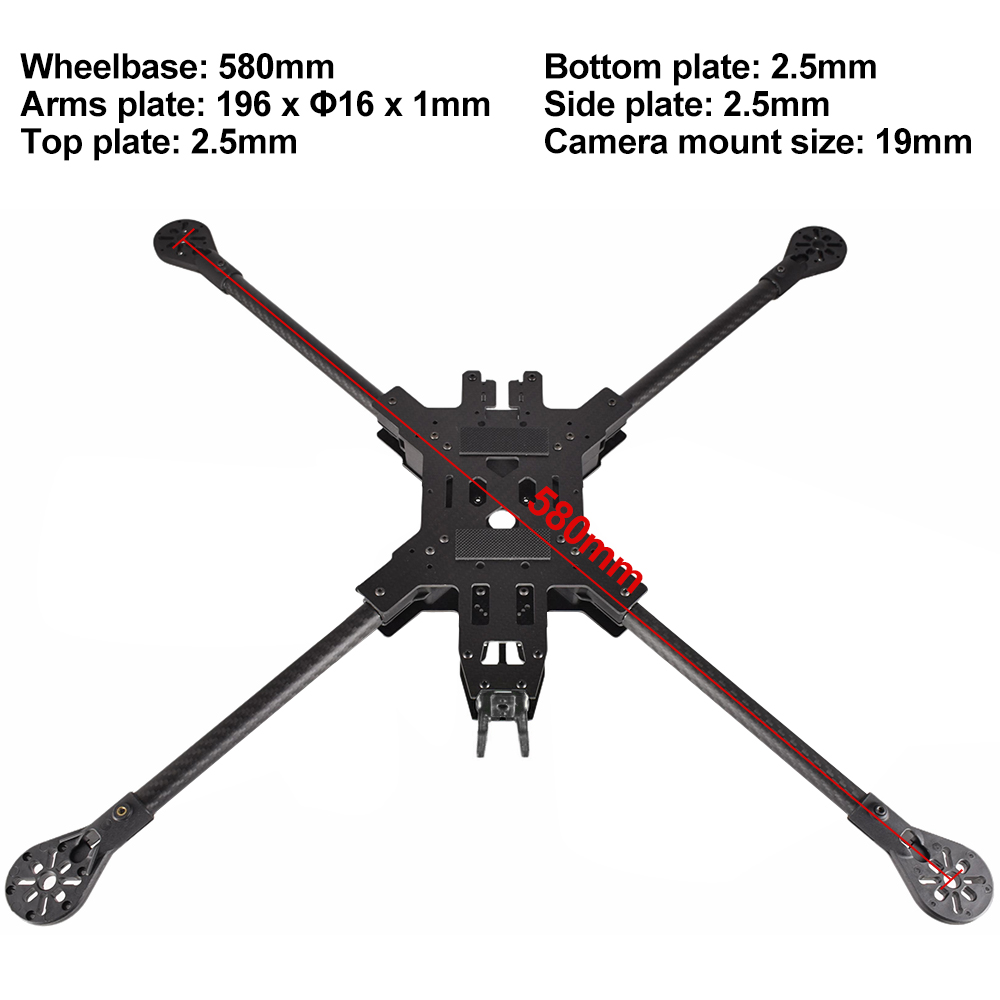

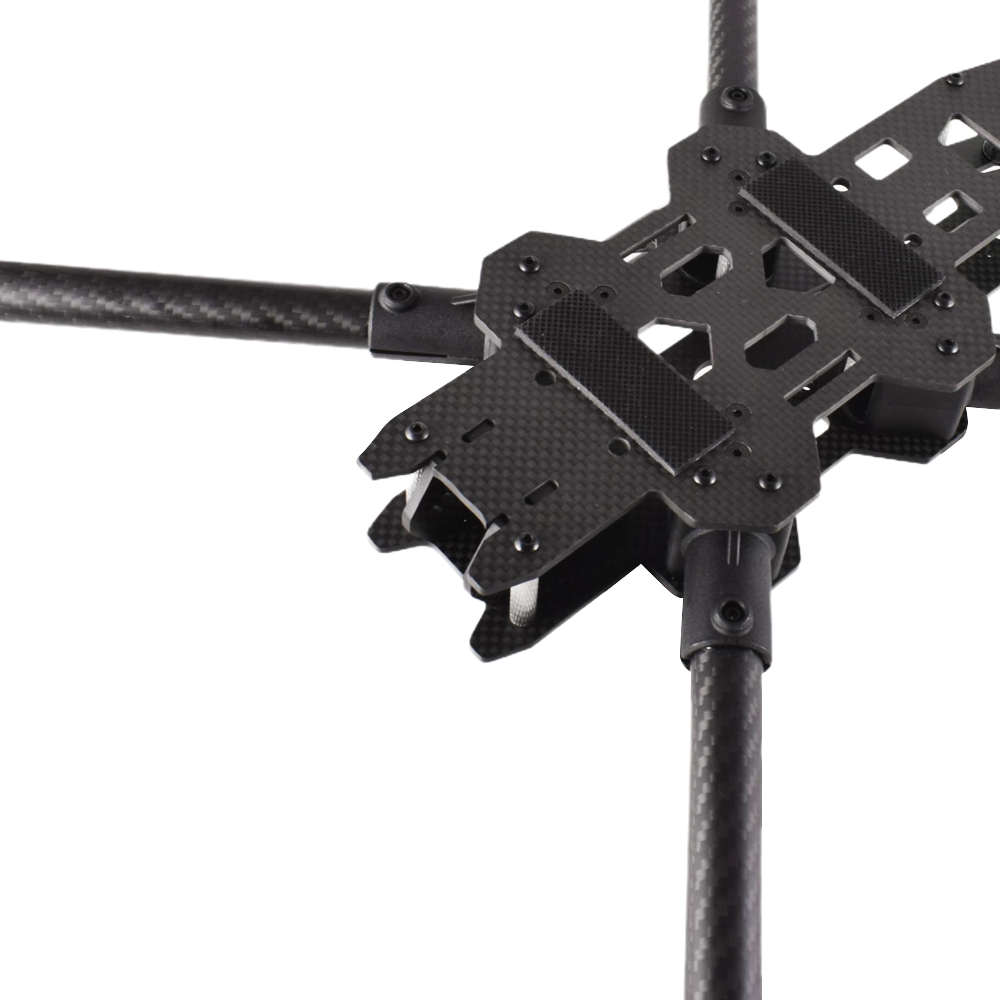

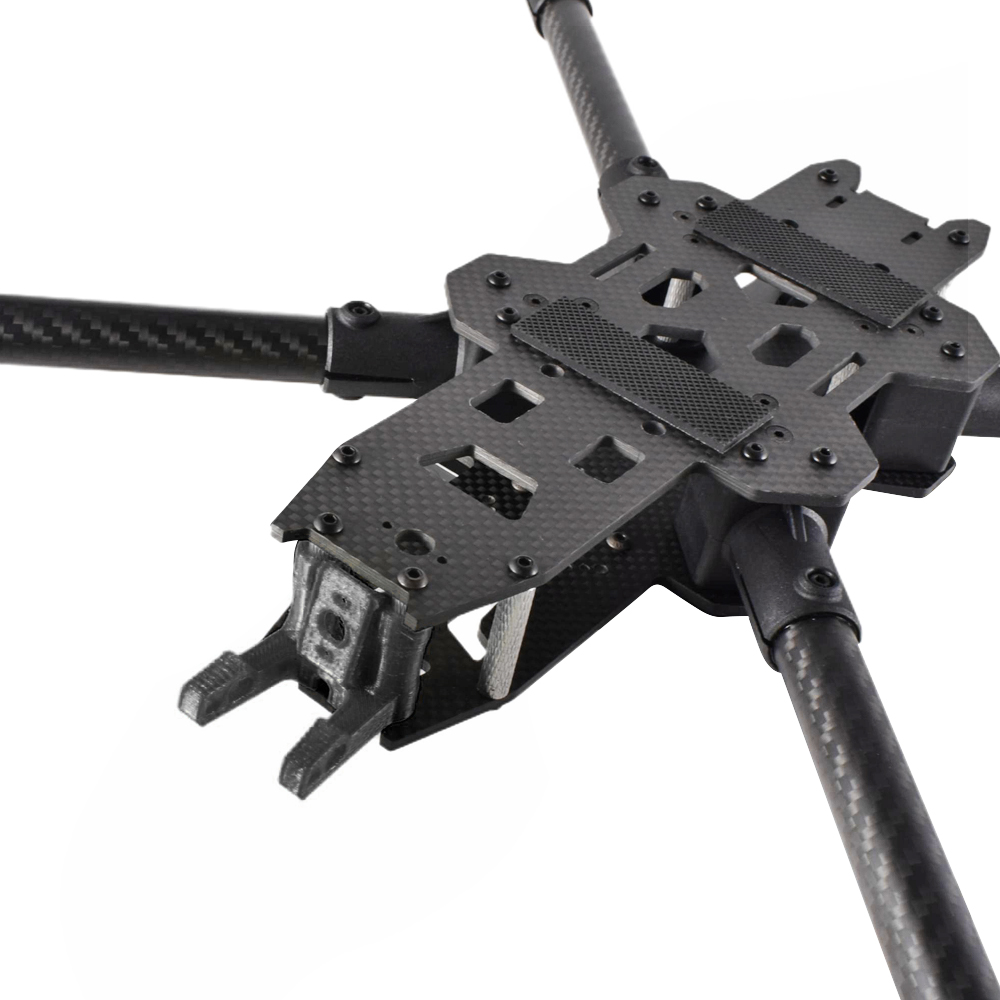

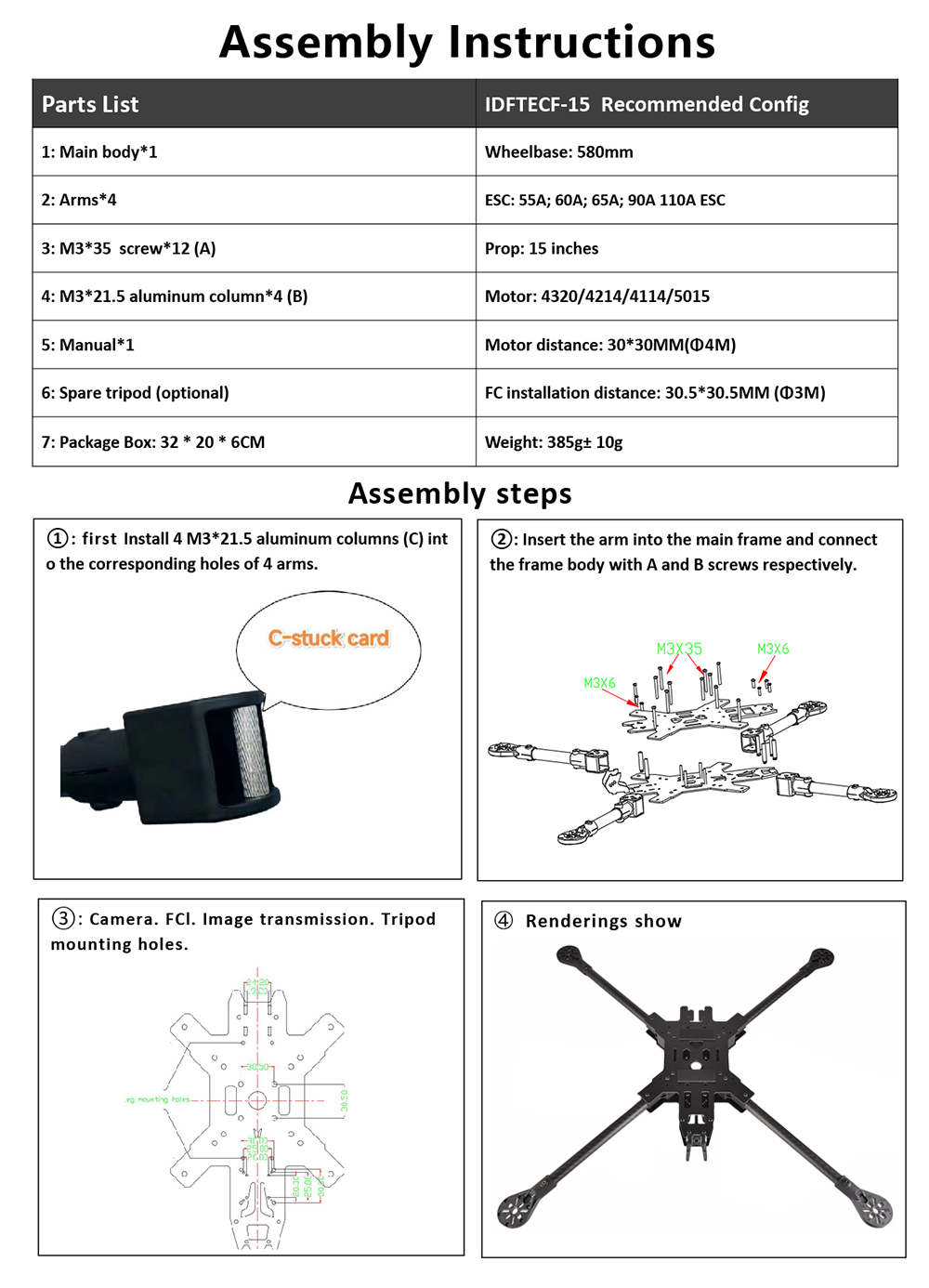

Propeller: 15 inch
Motor to motor: 580mm
Arms plate: 196*Φ16*1mm
Top plate: 2.5mm
Bottom plate: 2.5mm
Side plate: 2.5mm
Camera mount size: 19mm
Motor distance: 30 x 30MM(Φ4M)
FC installation distance: 30.5 x 30.5MM (Φ3M)
Weight: 385g± 10g
Recommended configuration: (not included)
ESC: 55A; 60A; 65A; 90A 110A ESC
Prop: 15 inches
Motor: 4320/4214/4114/5015
Package contents:
As you choose.
Note:
Only the above package content, other products are not included.
1.Due to the difference between different monitors,the picture may not reflect the actual color of the item. We guarantee the style is the same as shown in the pictures.
2.Due to the manual measurement and different measurement methods, please allow 1-3mm deviation.Thanks!
