Product View
Product Details
Overview

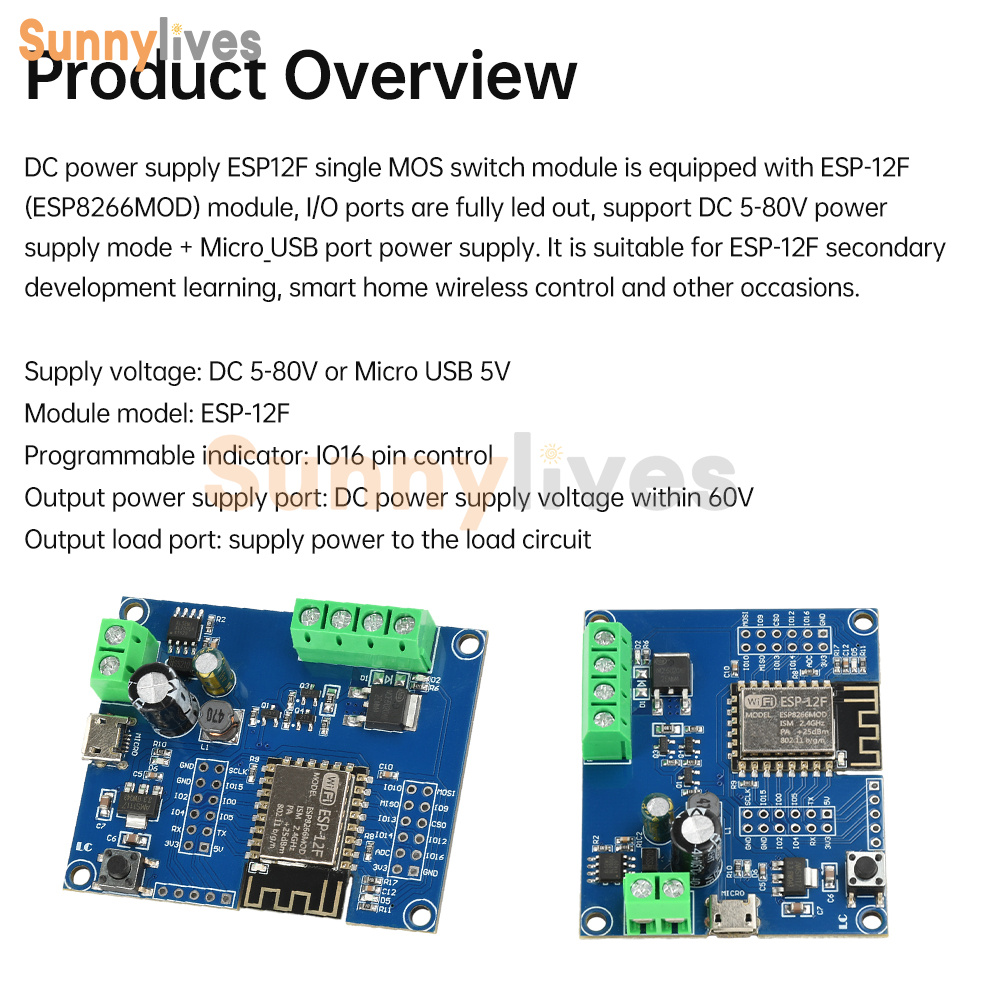

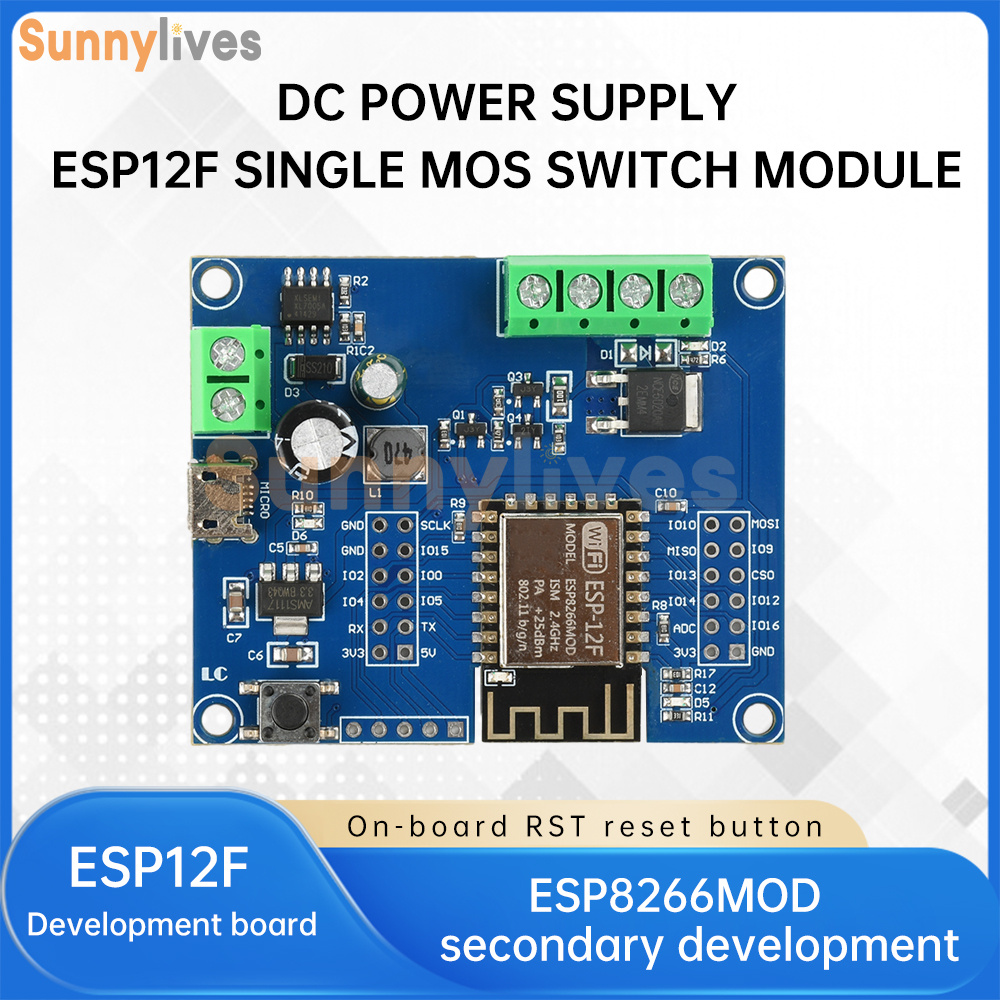

DC-powered ESP12F single MOS switch module equipped with ESP-12F (ESP8266MOD) module, I/O ports all lead, support DC 5-80V power supply + Micro_USB port power supply. It is suitable for ESP-12F secondary development and learning, smart home wireless control and other occasions.
DC-powered ESP12F single MOS switch module equipped with ESP-12F (ESP8266MOD) module, I/O ports all lead, support DC 5-80V power supply + Micro_USB port power supply. It is suitable for ESP-12F secondary development and learning, smart home wireless control and other occasions.
Features
1. Onboard mature and stable ESP-12F (ESP8266MOD) module, large-capacity 32Mbit SPI Flash
2.ESP-12F module I / O port and UART program download port all lead out, convenient for secondary development
3. On-board RST reset button; on-board Micro USB port + DC 5-80V to 5V power supply circuit (recommended power supply DC 12V)

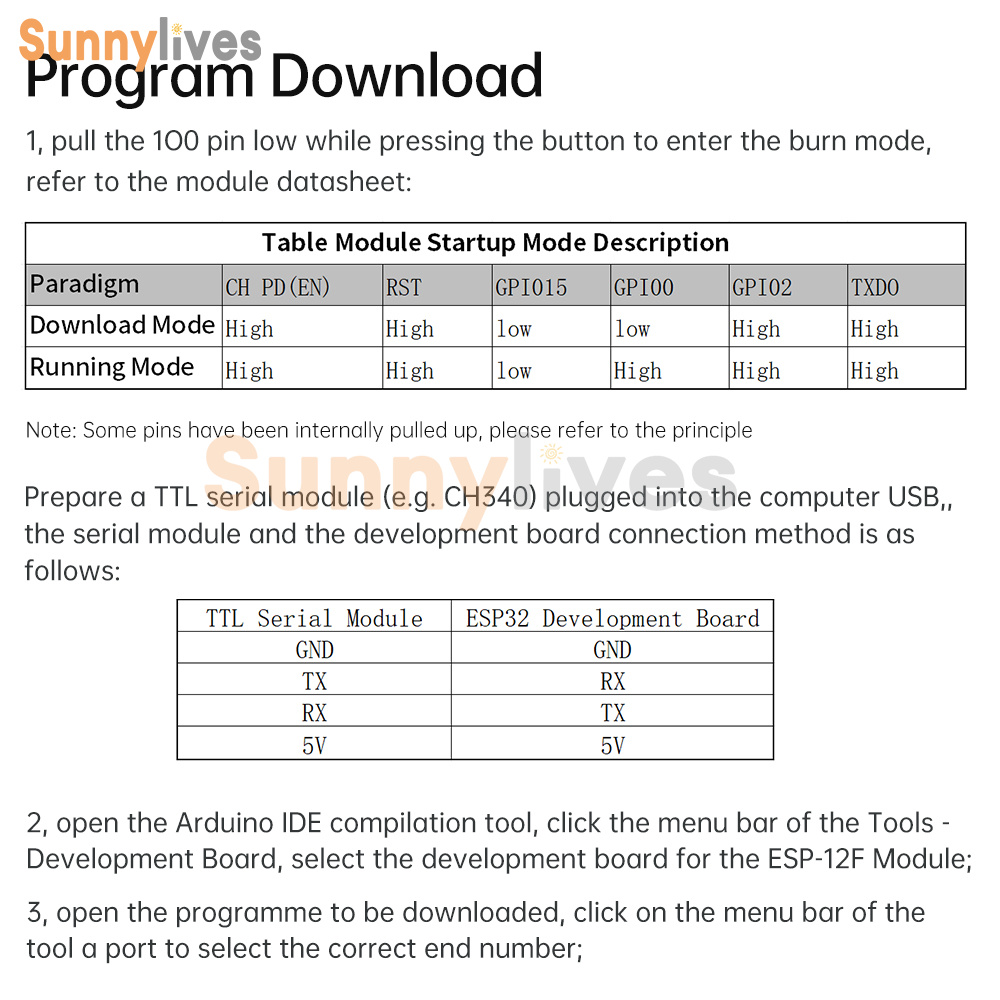

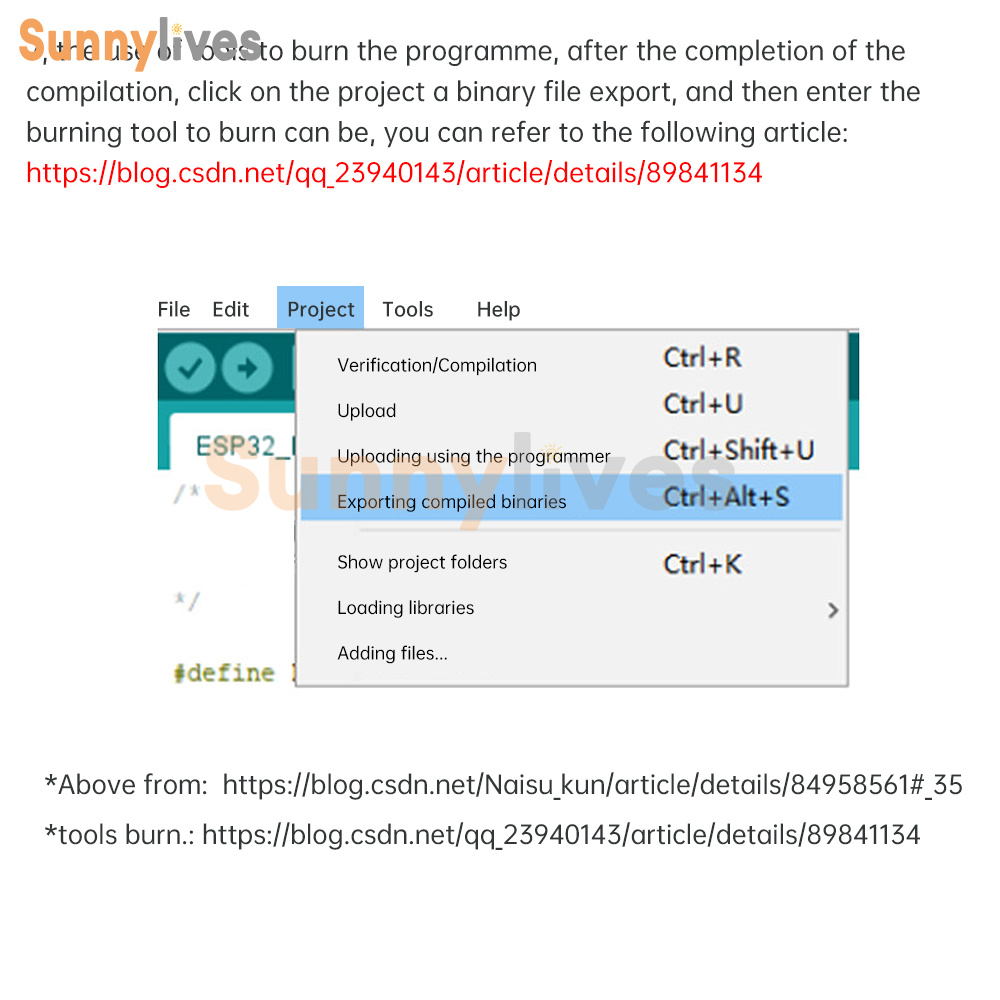

4.ESP-12F supports Arduino IDE compilation tool, providing reference programs under Arduino development environment.
5. On-board leakage voltage of 60V N-channel MOS tube, suitable for controlling the “control voltage” for the load within DC60V
1. Onboard mature and stable ESP-12F (ESP8266MOD) module, large-capacity 32Mbit SPI Flash
2.ESP-12F module I / O port and UART program download port all lead out, convenient for secondary development
3. On-board RST reset button; on-board Micro USB port + DC 5-80V to 5V power supply circuit (recommended power supply DC 12V)
4.ESP-12F supports Arduino IDE compilation tool, providing reference programs under Arduino development environment.
5. On-board leakage voltage of 60V N-channel MOS tube, suitable for controlling the “control voltage” for the load within DC60V

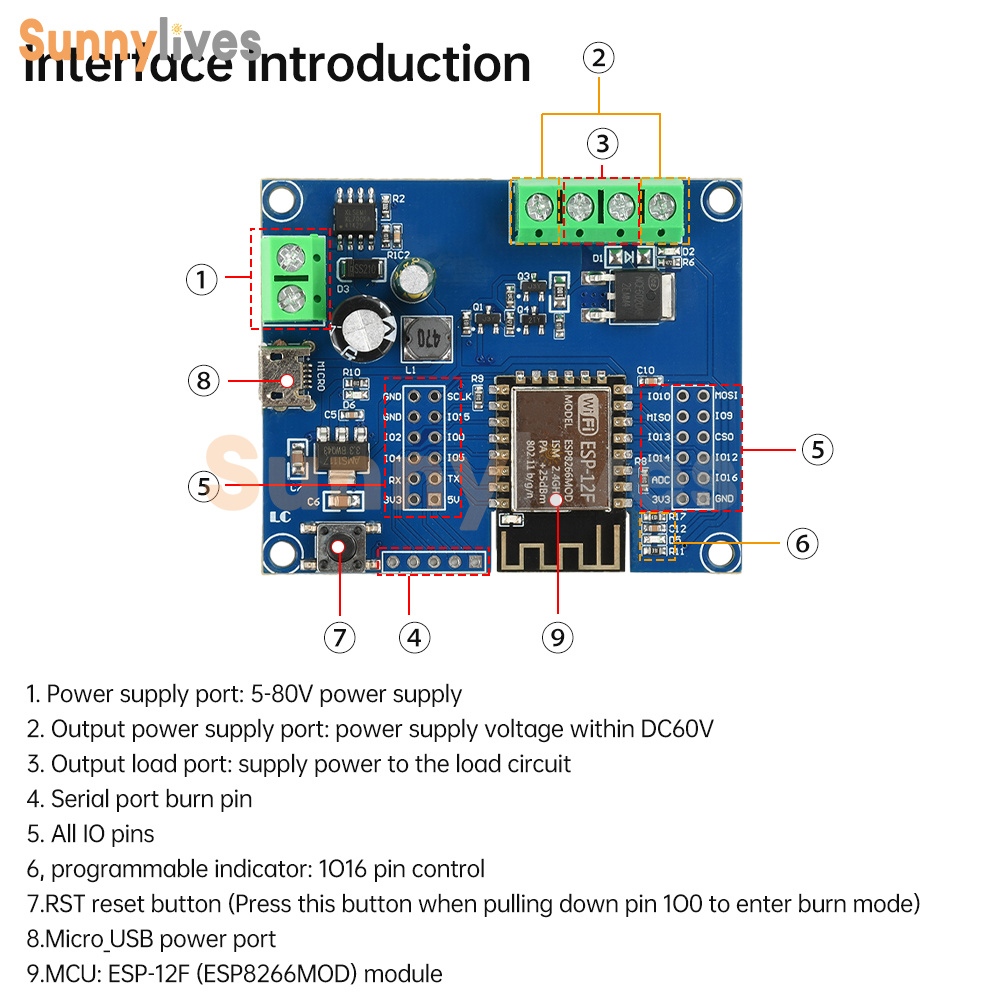

Specification
Power supply voltage: DC 5-80V or Micro USB 5V
Module Model: ESP-12F
Programmable indicator: IO16 pin control
Output power supply port: DC 60V or less power supply voltage.
Output load port: power supply for load circuit

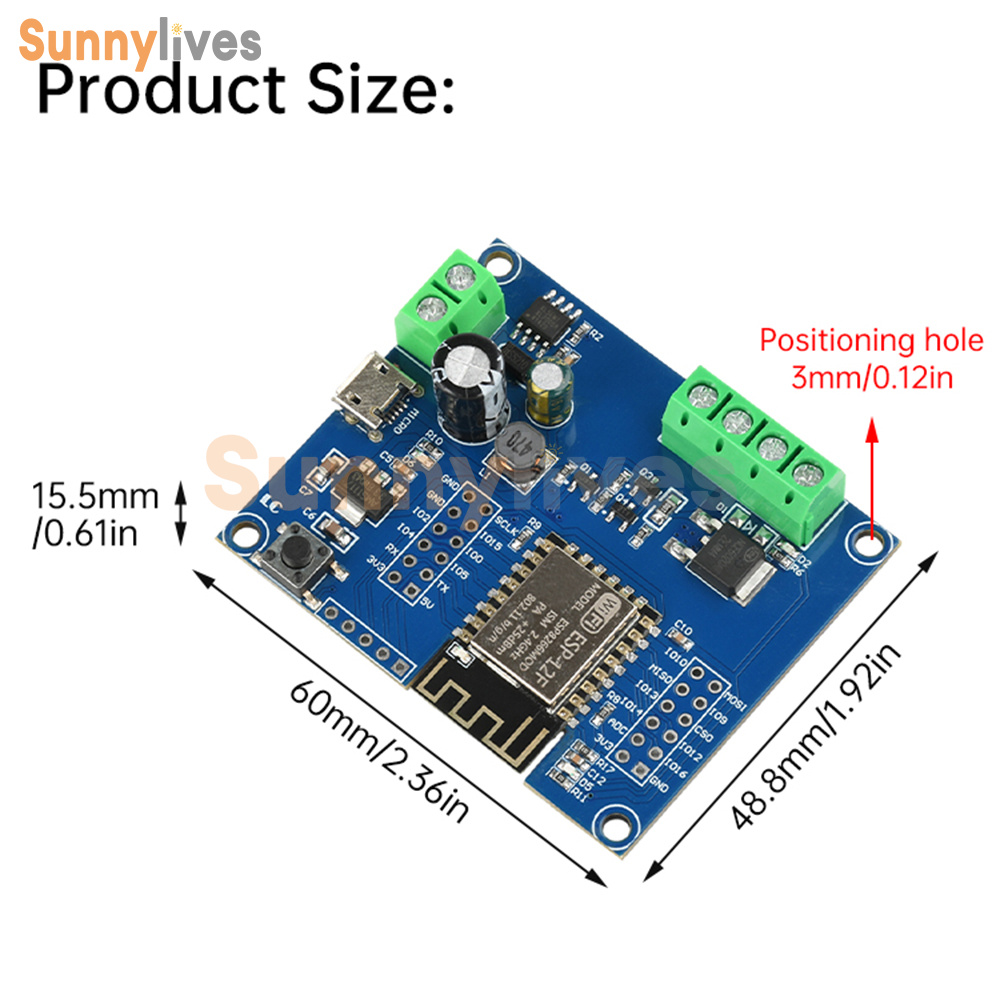

Product size: 59*48mm (positioning hole: 3mm)
Power supply voltage: DC 5-80V or Micro USB 5V
Module Model: ESP-12F
Programmable indicator: IO16 pin control
Output power supply port: DC 60V or less power supply voltage.
Output load port: power supply for load circuit
Product size: 59*48mm (positioning hole: 3mm)

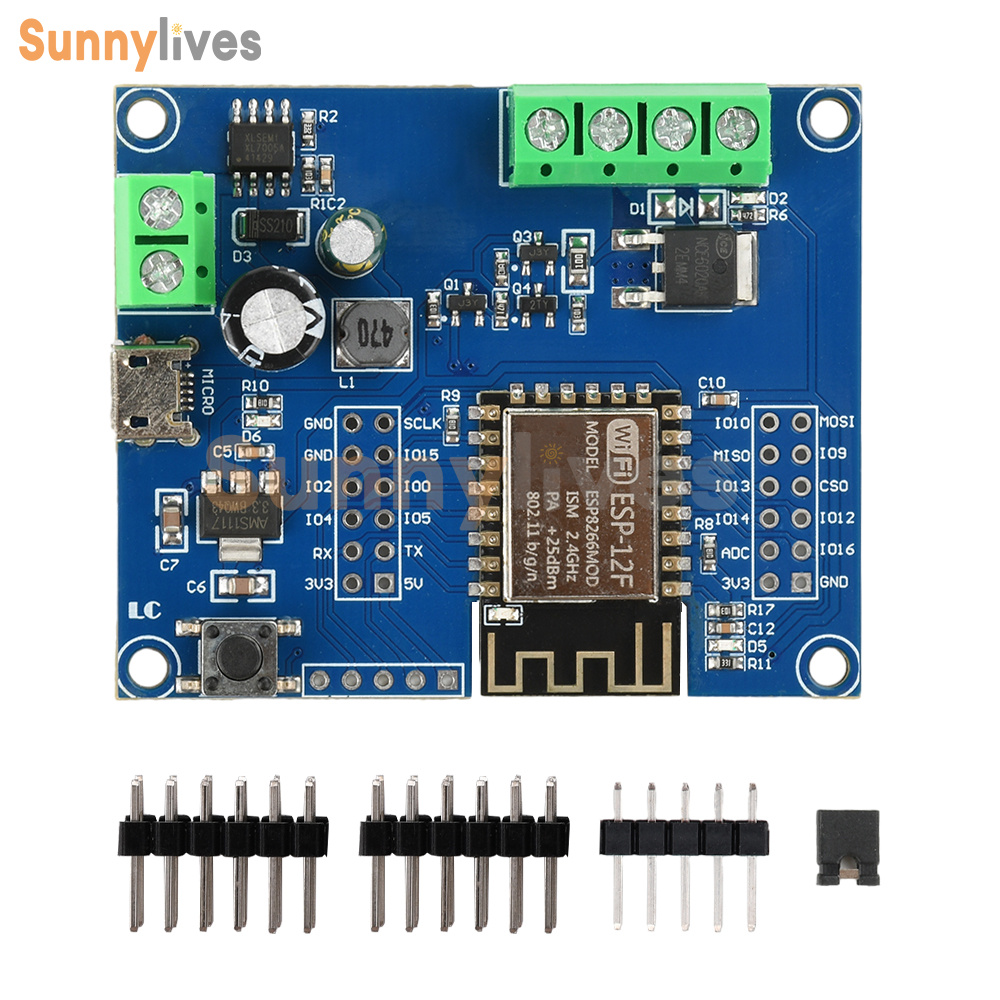

Package Includes
1 x Module
2 x 6P double rows of pins
1 x 5P single row pin
1 x Shorting Cap
1 x Module
2 x 6P double rows of pins
1 x 5P single row pin
1 x Shorting Cap
