Hydraulic Single Acting Plough Overturning Valve 3/8", VRA 40/50 SE VRA 60/80 SE

FREE UK SHIPPING

100% SATISFACTION GUARANTEED

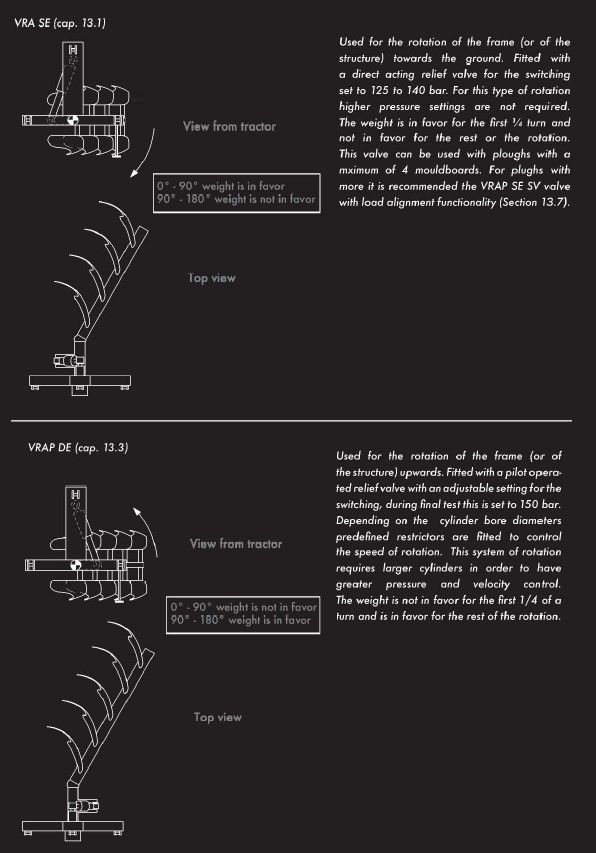

USE AND OPERATION: This valve has been designed for use on cylinders for reversible ploughs to obtain the automatic oil flow reversal, and therefore the reversal of the hydraulic cylinder which rotates the plough. It is provided with a single pilot operated check valve which provides leakage control on the cylinder head side only, whilst the rod side must be secured on the plough's mechanical stops. This valve is not recommended for ploughs which rotate the frame upwards. MATERIALS AND FEATURES: Body: zinc-plated steel. Internal parts: hardened and ground steel. Seals: BUNA N standard. Loading holding: guided poppet, negligible leakage. These valves are supplied with exchange pressure of 125-140 bar. CONNECTIONS: Connect C1 to the cylinder's rod side, C2 to the head side, P and

USE AND OPERATION:

This valve has been designed for use on cylinders for reversible ploughs to obtain the automatic oil flow reversal, and therefore the reversal of the hydraulic cylinder which rotates the plough. It is provided with a single pilot operated check valve which provides leakage control on the cylinder head side only, whilst the rod side must be secured on the plough's mechanical stops. This valve is not recommended for ploughs which rotate the frame upwards.

Hydraulic Single Acting Plough Overturning Valve 3/8, VRA 40/50 SE

MATERIALS AND FEATURES:

Body: zinc-plated steel.

Internal parts: hardened and ground steel.

Seals: BUNA N standard.

Loading holding: guided poppet, negligible leakage. These valves are supplied with exchange pressure of 125-140 bar.

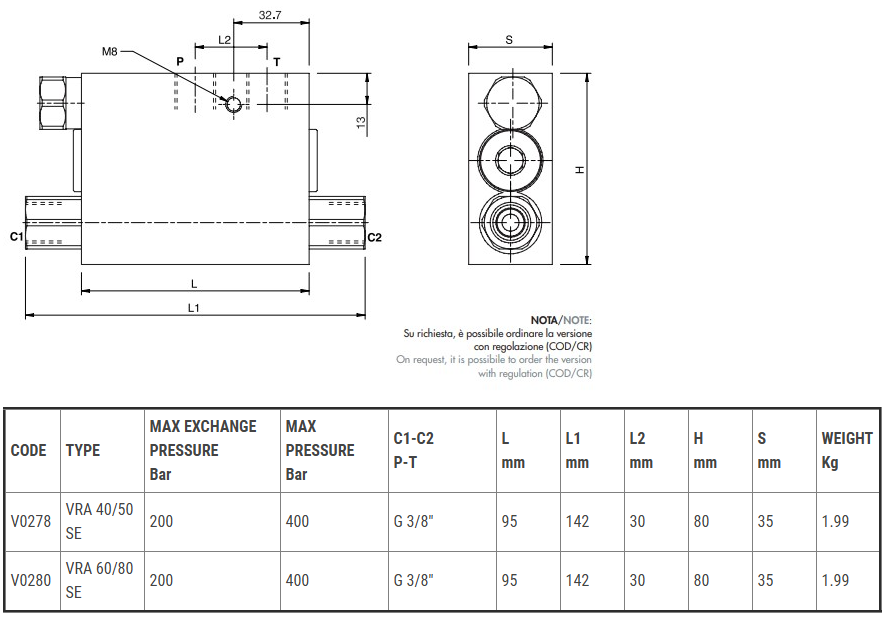

CONNECTIONS:

Connect C1 to the cylinder's rod side, C2 to the head side, P and T to the machine's supply. Thanks to its shape, it can be assembled in-line on the hydraulic cylinder or directly fixed onto the plough by the threaded hole in the valve body.

Payments

We accept the following payment methods:

visamcmaestropaypal



Delivery Information

All orders placed before 4pm Monday to Thursday and 3pm on a Friday, are processed and despatched on the same business day.

If we are experiencing a high volume of orders, shipments may be delayed by 1-2 Days.

Please allow additional days in transit for delivery. If there will be a significant delay in shipment of your order, we will contact you via email or telephone.

Customs and Import Taxes

Duties and Taxes:

Import duties, taxes, and brokerage fees are not included in the product price or shipping and handling cost.  These charges are the buyer’s responsibility as we are only charging the transportation fee for your order.  You may check with your country’s customs office to determine if there will be additional costs.

Regulations and Restrictions:

The buyer is responsible for obtaining information regarding their country’s laws, regulations, and restrictions that may apply when purchasing our products.  By placing an international order (shipping outside of the United Kingdom) the buyer is responsible for abiding by their country’s laws, regulations, and restrictions. If product is seized and destroyed by customs, we will NOT be responsible for the losses, product, or shipping refunds.

Harrier Fluid Power Ltd T/A Flowfit cannot be held responsible for the delays due to customs.




Price: 201.71-211.42
