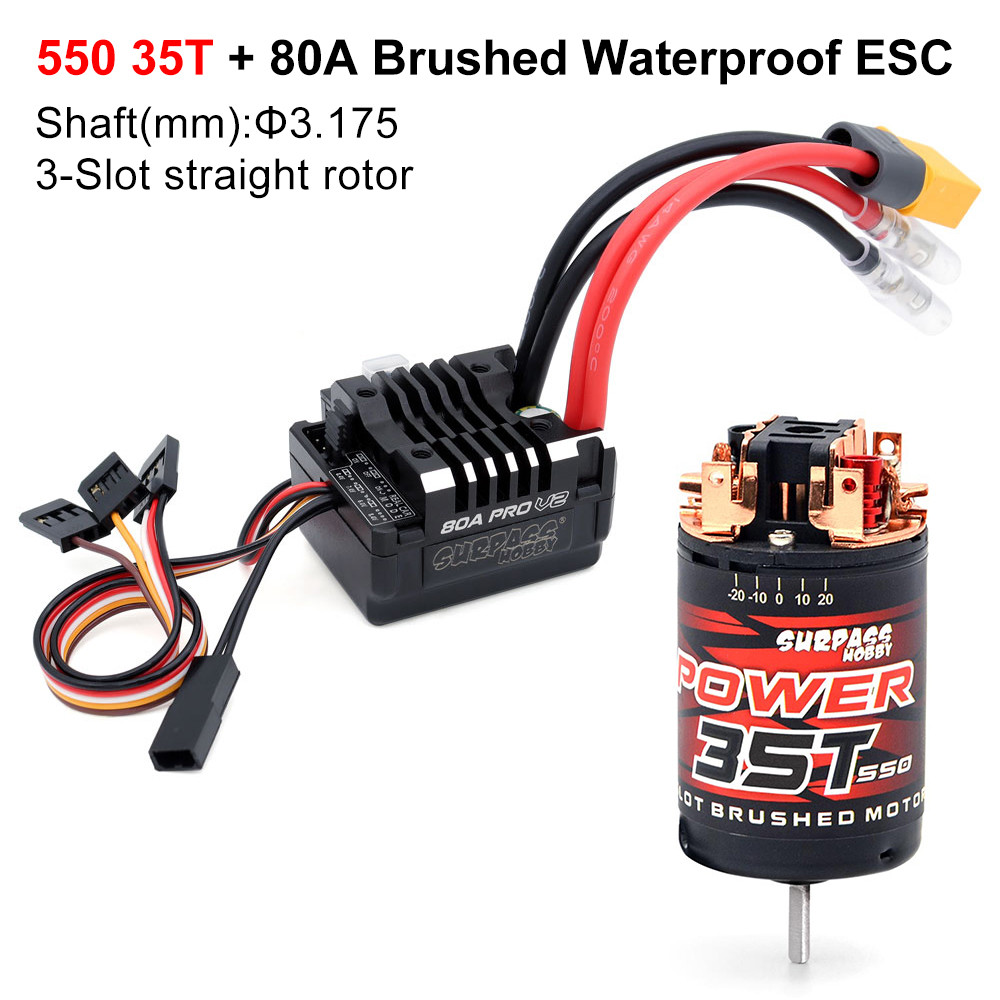

SURPASS HOBBY 80A ESC And 550 (3-Slot)Motor Combo 12T 14T 20T 25T 30T 35T Speed Controller For 1/10 Crawler Car 6.0V/7.4V/8.4V BEC

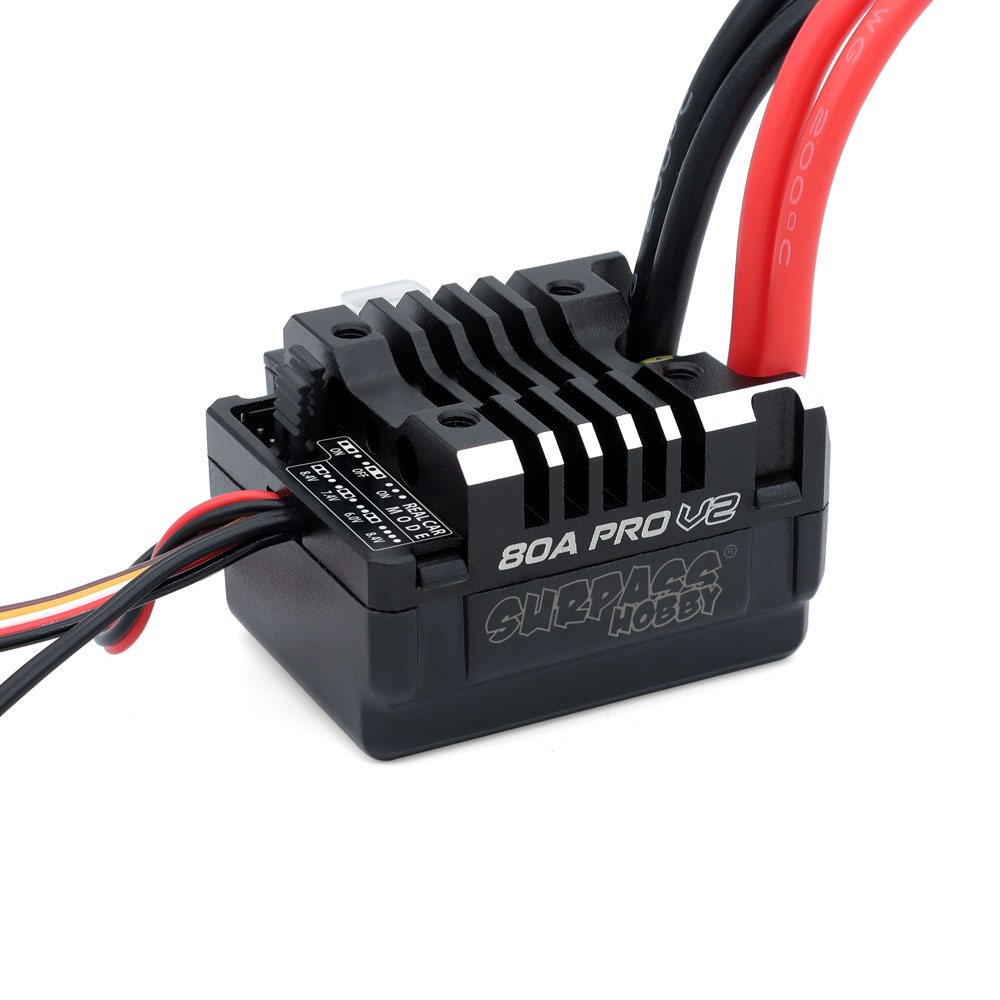

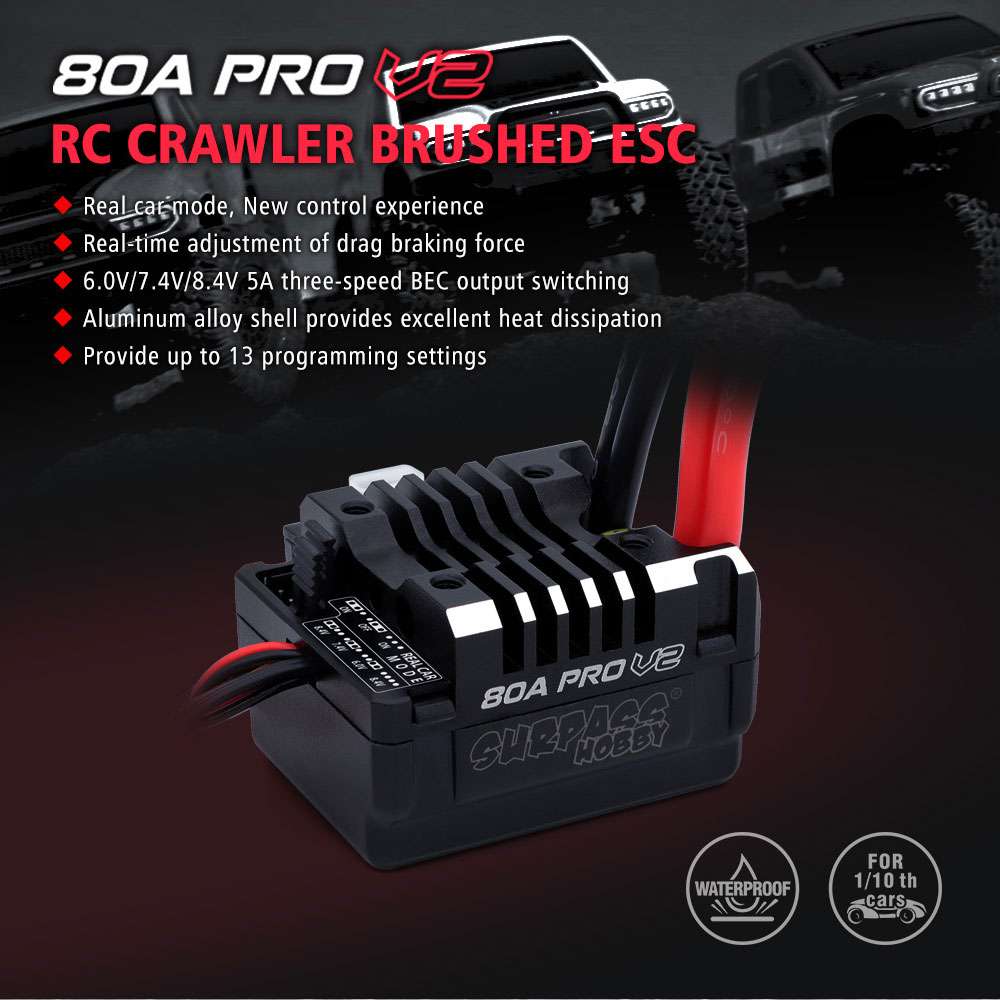

ESC Features:

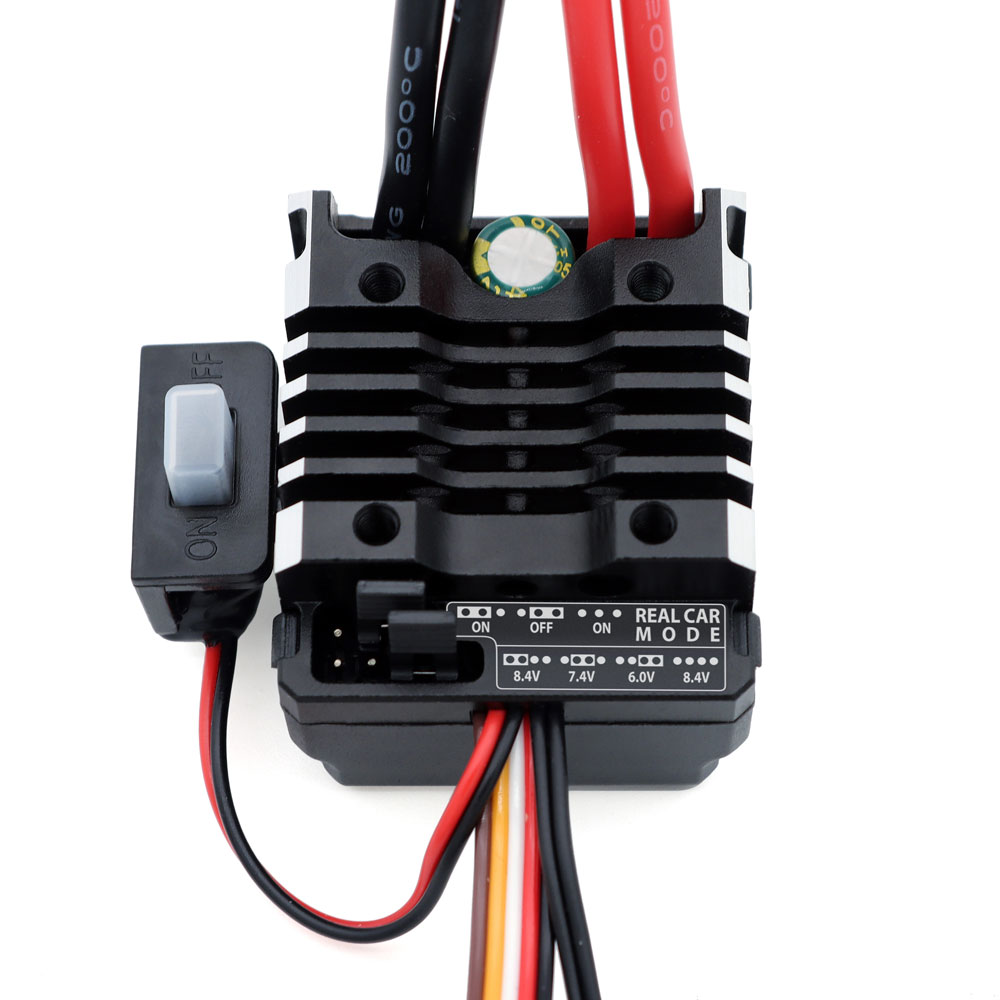

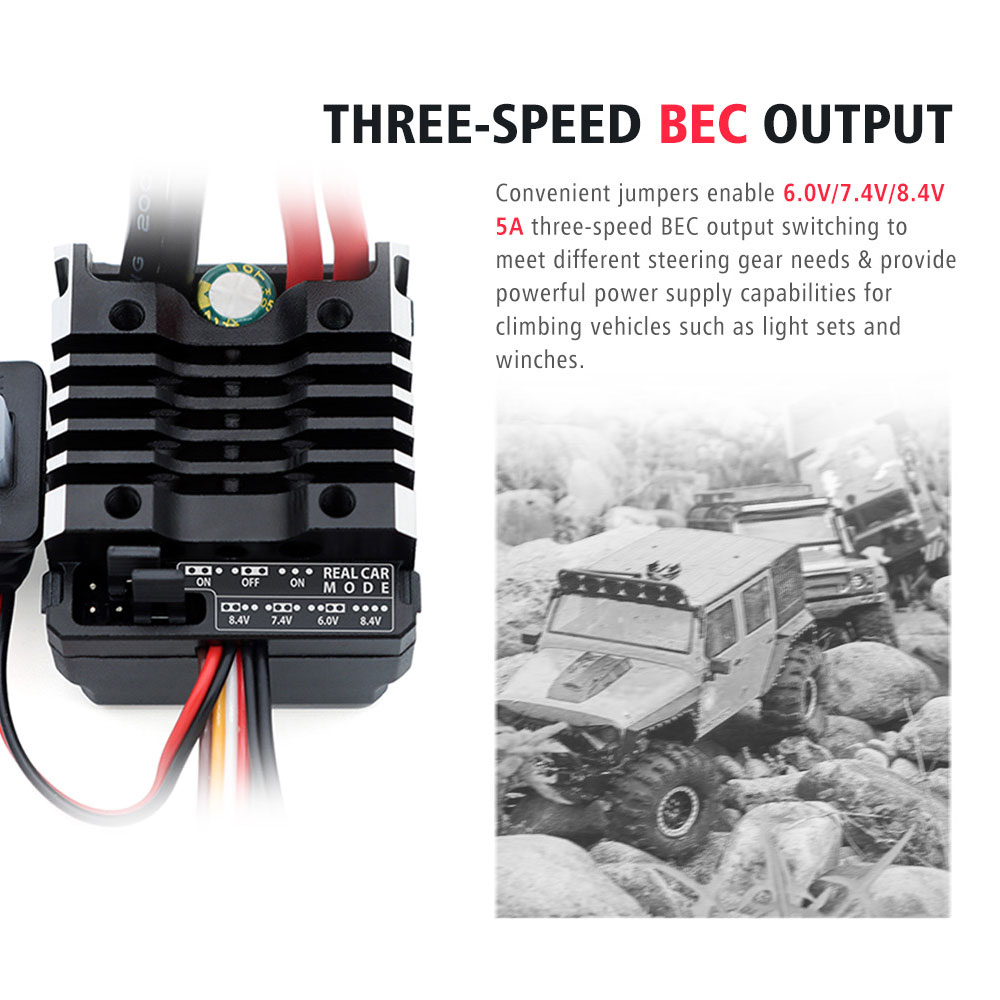

1. Buit-in BEC: 6.0V/7.4V/8.4V 5A three-speed BEC output switching to meet different steering gear needs.

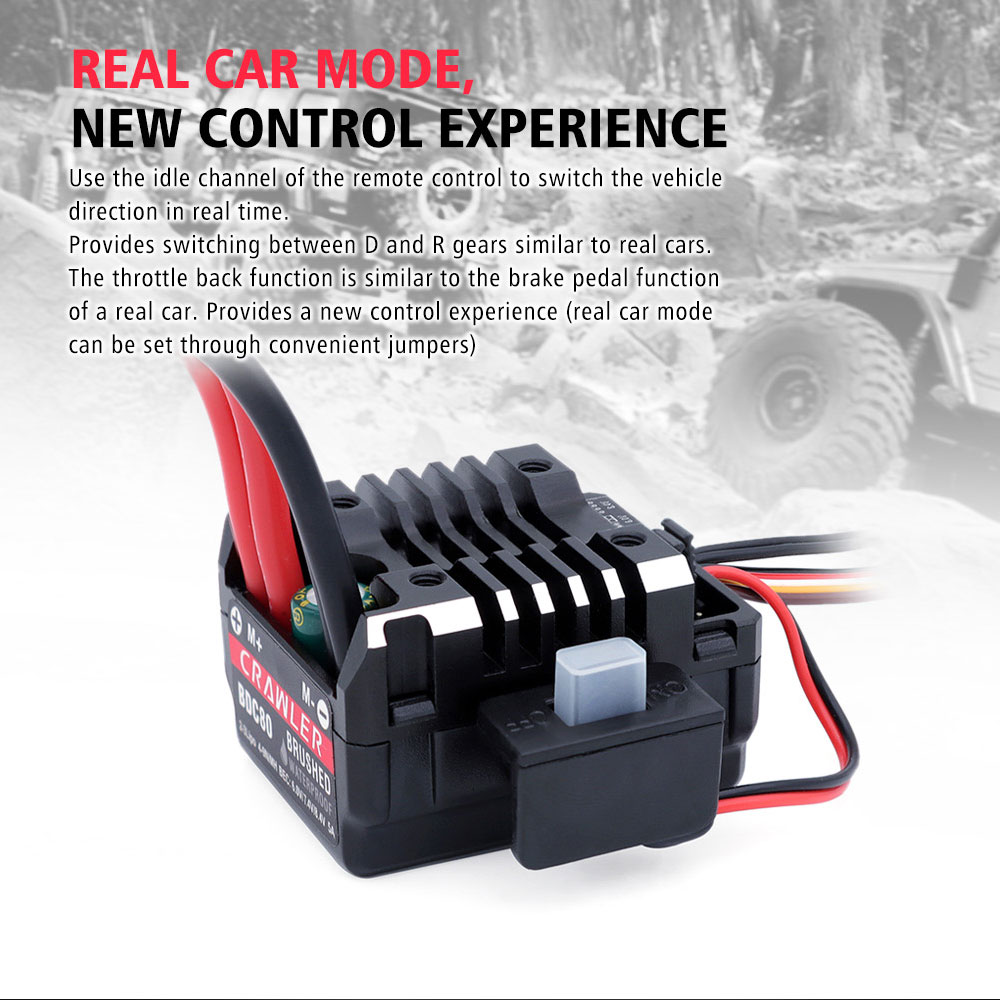

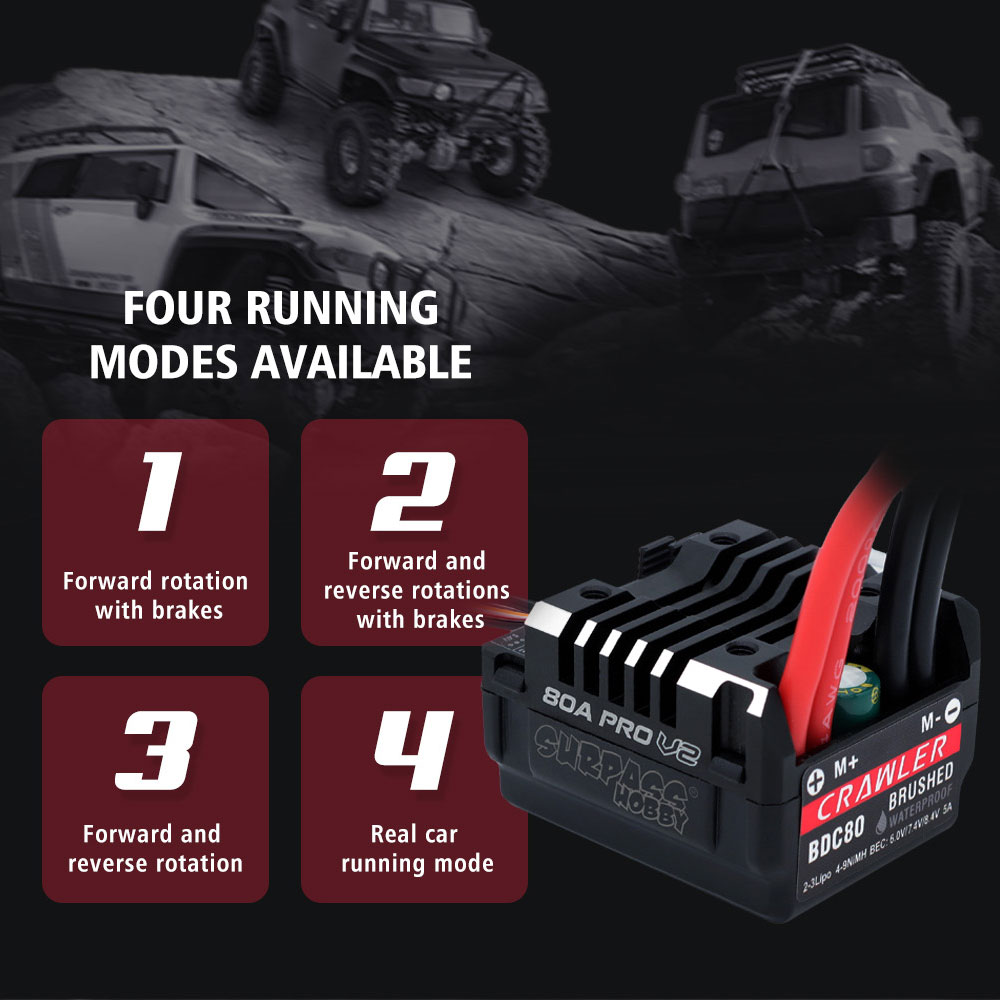

2. Four running modes available: Forward rotationwith brakes;Forward andreverse rotations with brakes;Forward and reverse rotation;Real car running mode.

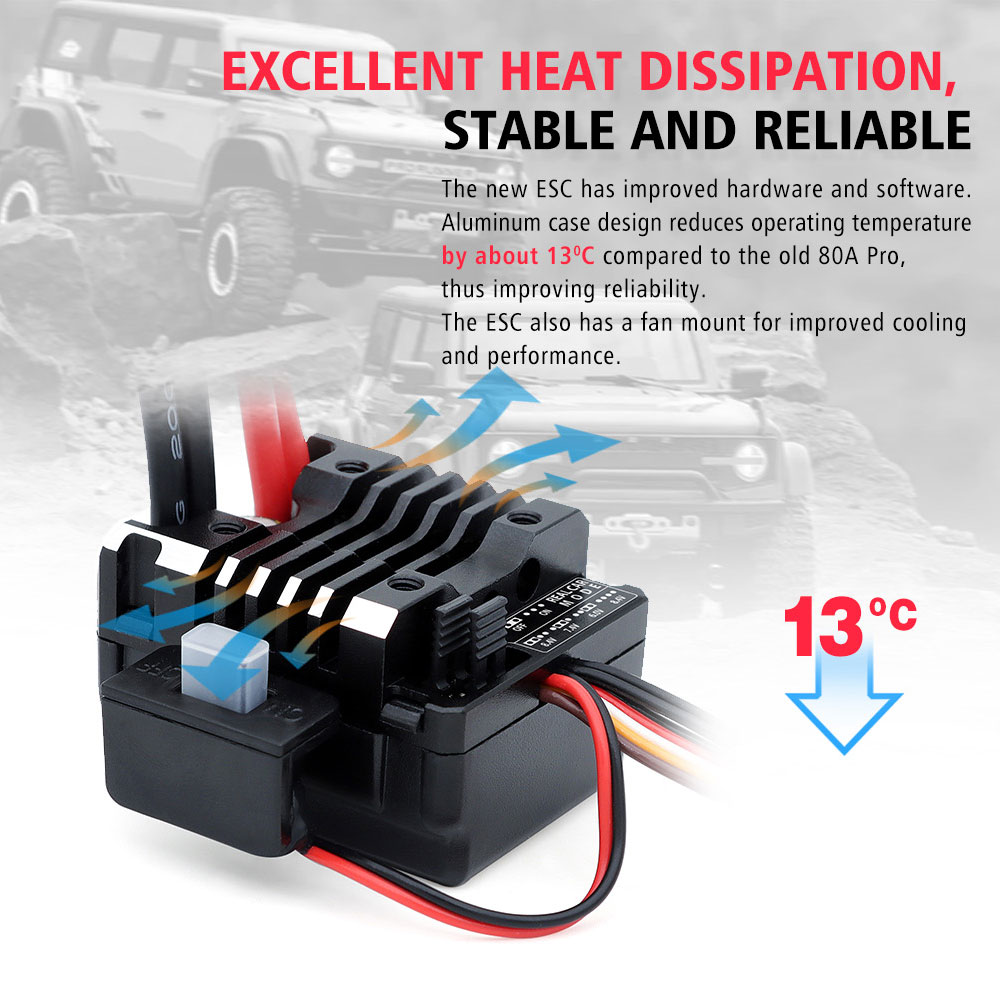

3. Case upgrade:Reduces operating temperatureby about 13°C compared to the old 80A Pro,thus improving reliability improved cooling and performance.
4. Provide up to 13 programming settings.
5. Suit for 540/550 three-slot/five-slot carbon brush and brushed motor.

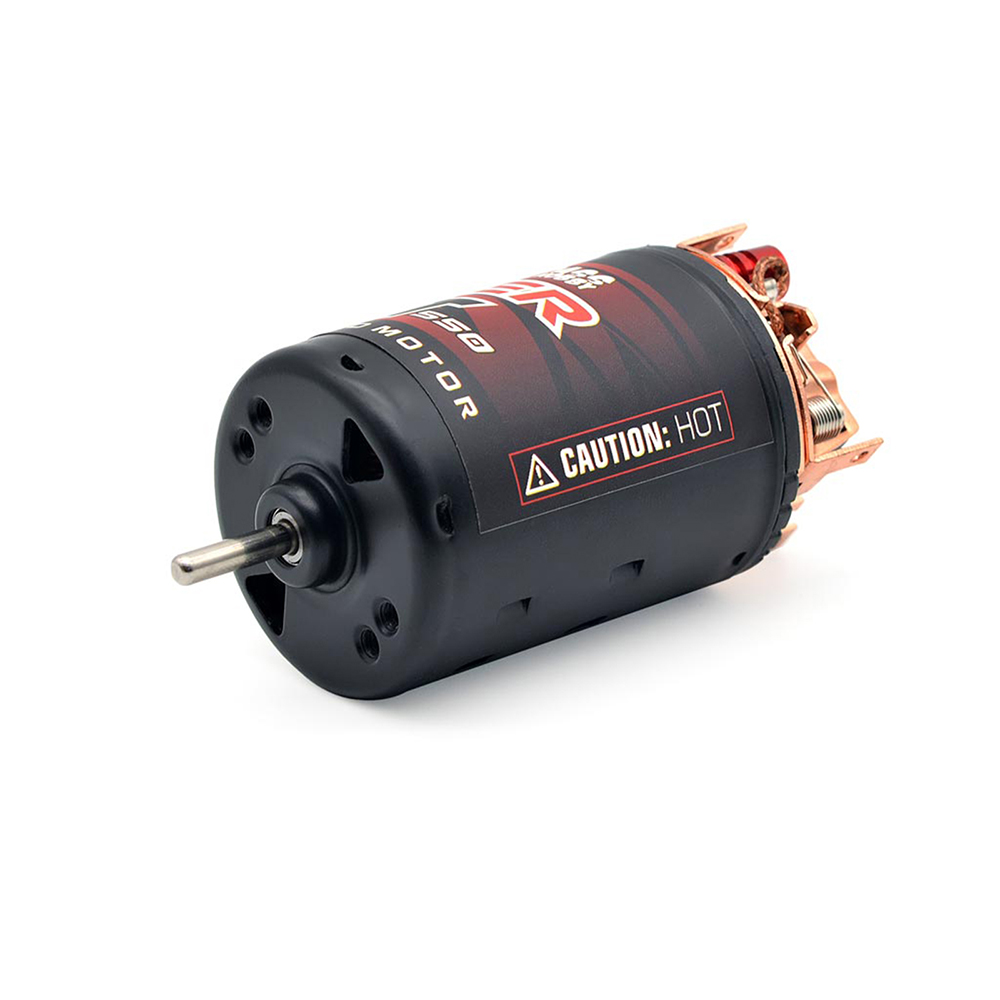

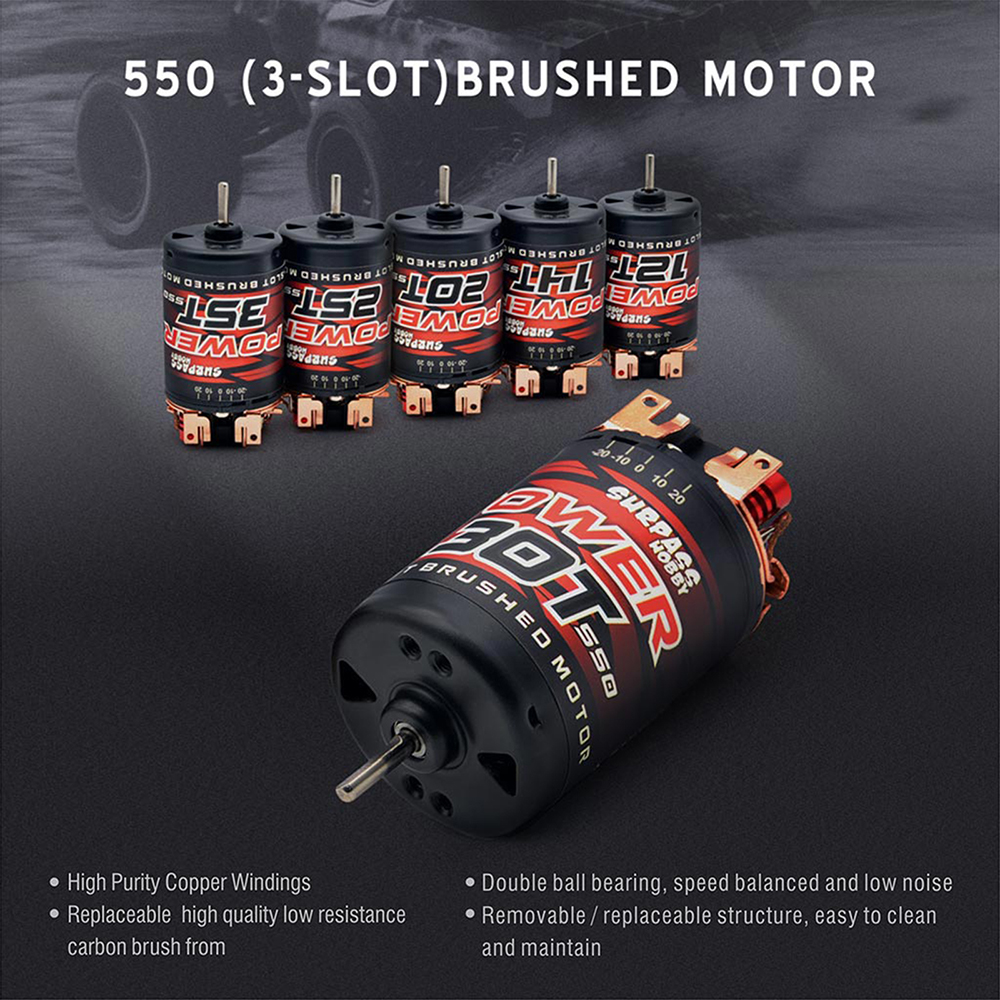

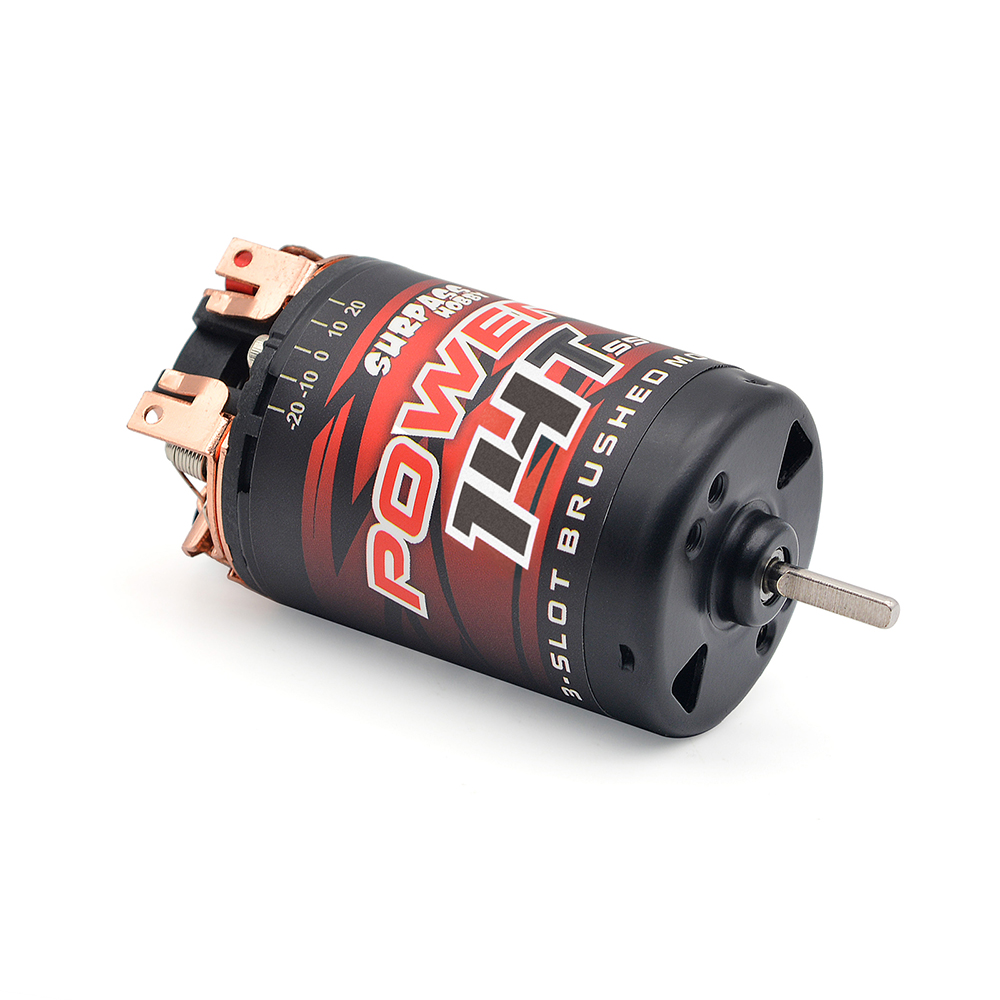

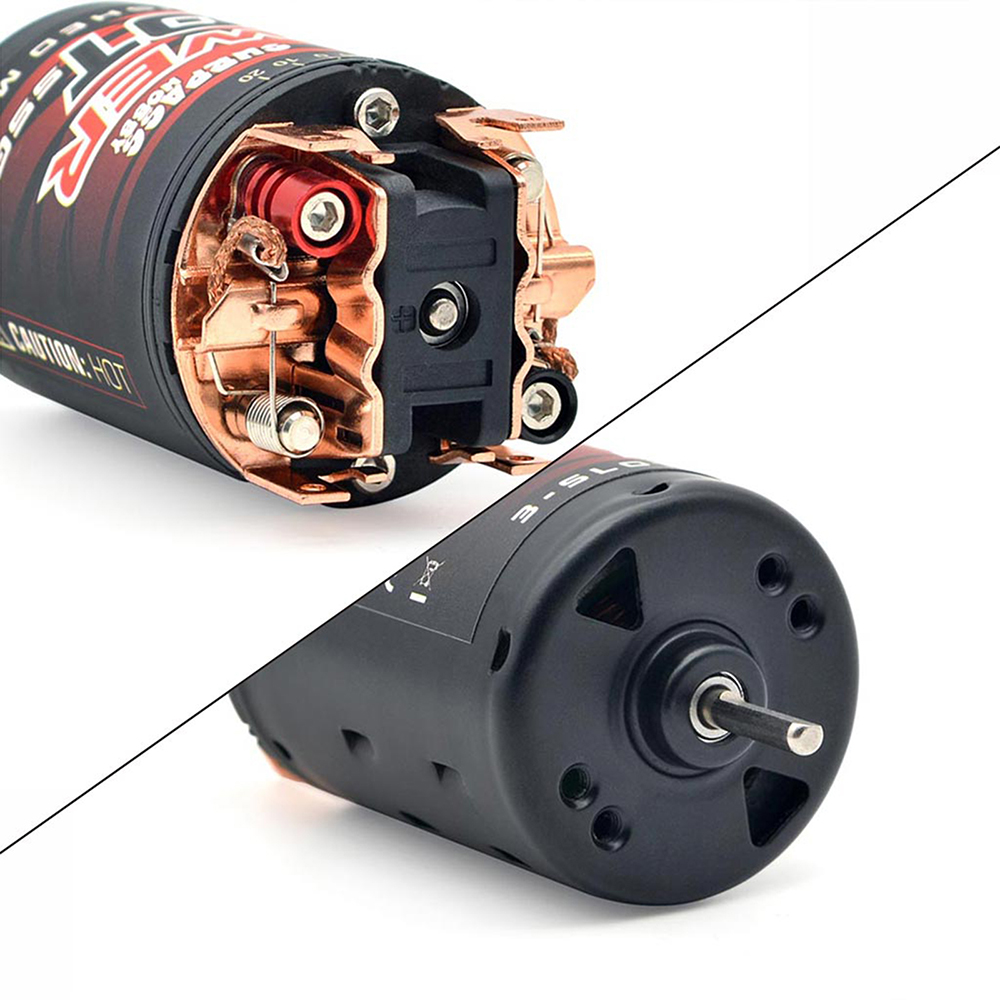

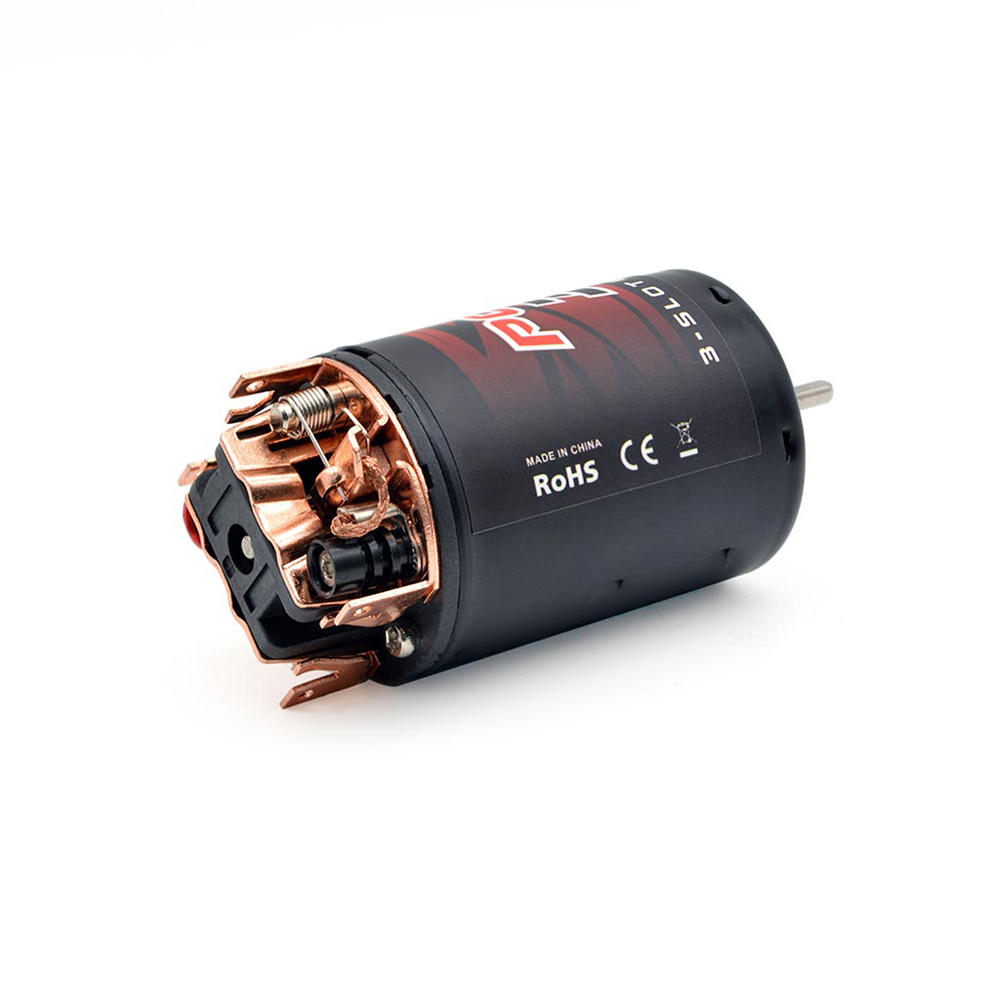

Motor Features:
1. High Purity Copper Windings.
2. Double ball bearing, speed balanced and low noise.
3. Replaceable high quality low resistance，carbon brush from.

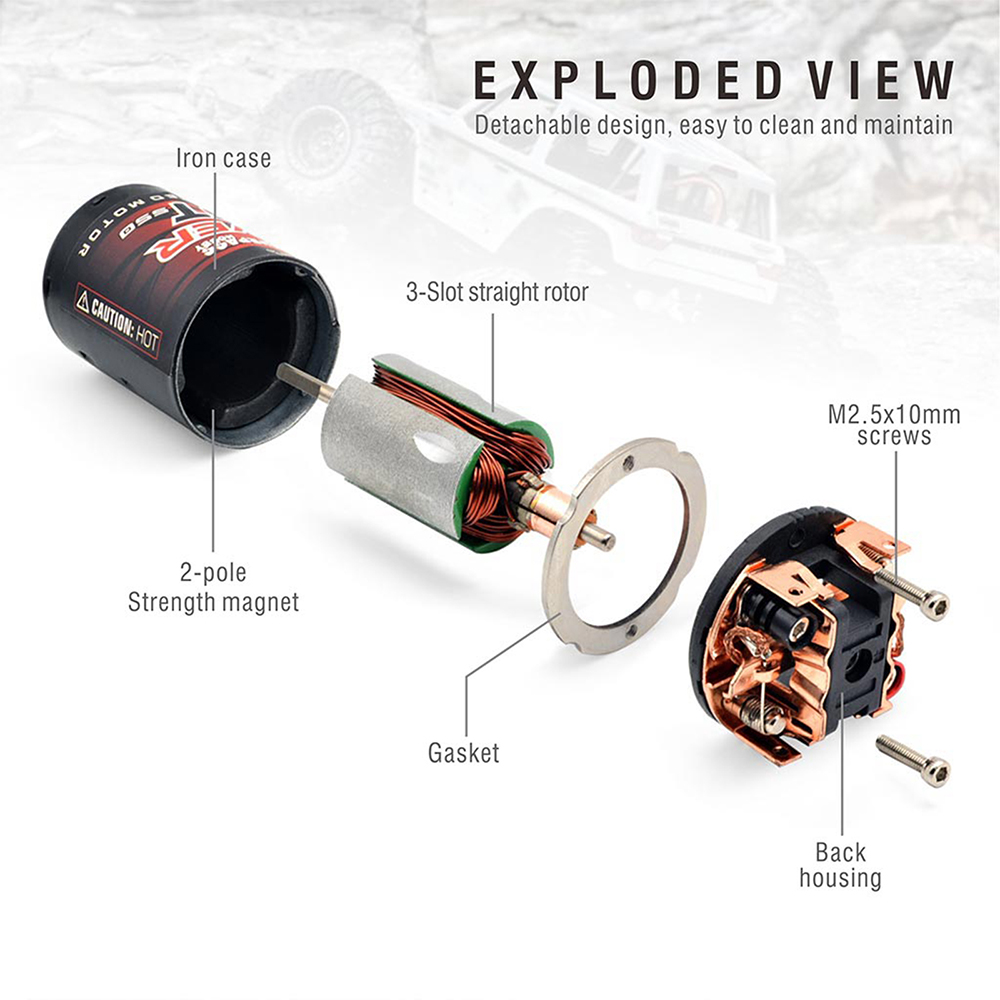

4. Remowable / replaceable structure, easy to clean and maintain.
5. Precision engineered for maximum energy conversion.

Description:
SURPASS HOBBY 80A Brushed ESC And 550 (3-Slot)Motor Combo,Powerful And Excellent Heat Dissipation,Suitable For 1/10 Crawler Brushed Car or 1/10 Brushed Car.

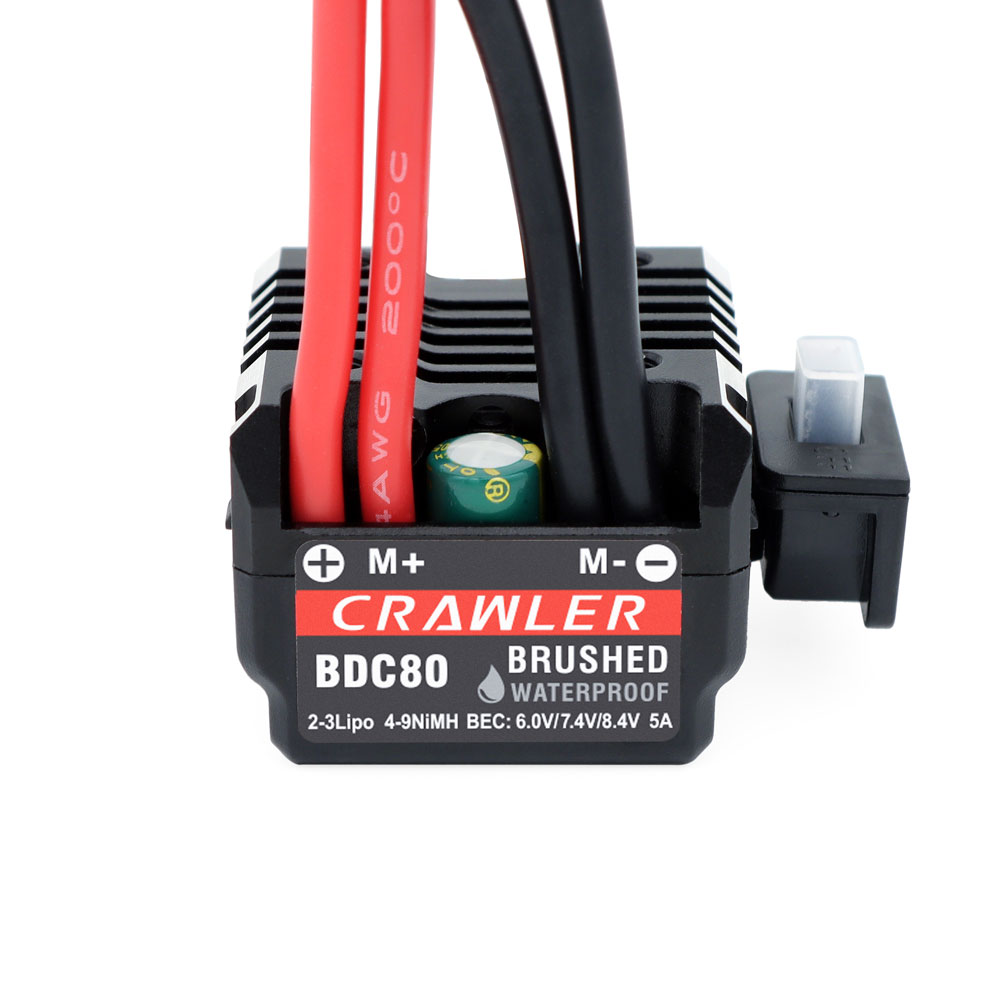

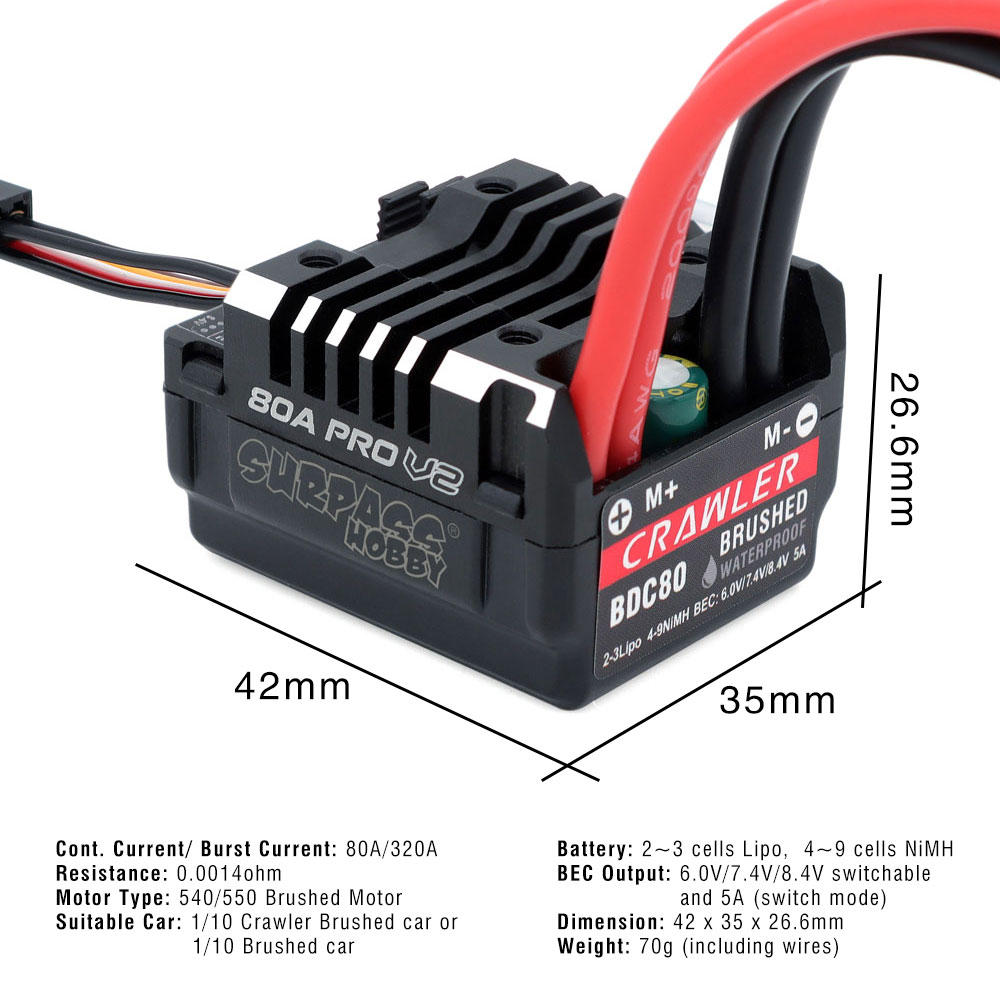

ESC Specifications:
Cont.Current: 80A
Burst Current: 320A
Resistance: 0.0014ohm
Motor Type: 540/550 Brushed Motor
Suitable Car: 1/10 Crawler Brushed car or1/10 Brushed car
Battery: 2~3 cells Lipo, 4~9 cells NiMH
BEC Output: 6.0V/7.4V/8.4V switch able and 5A(switch mode)
Dimension: 42x35x26.6mm
Weight: 70g(including wires)

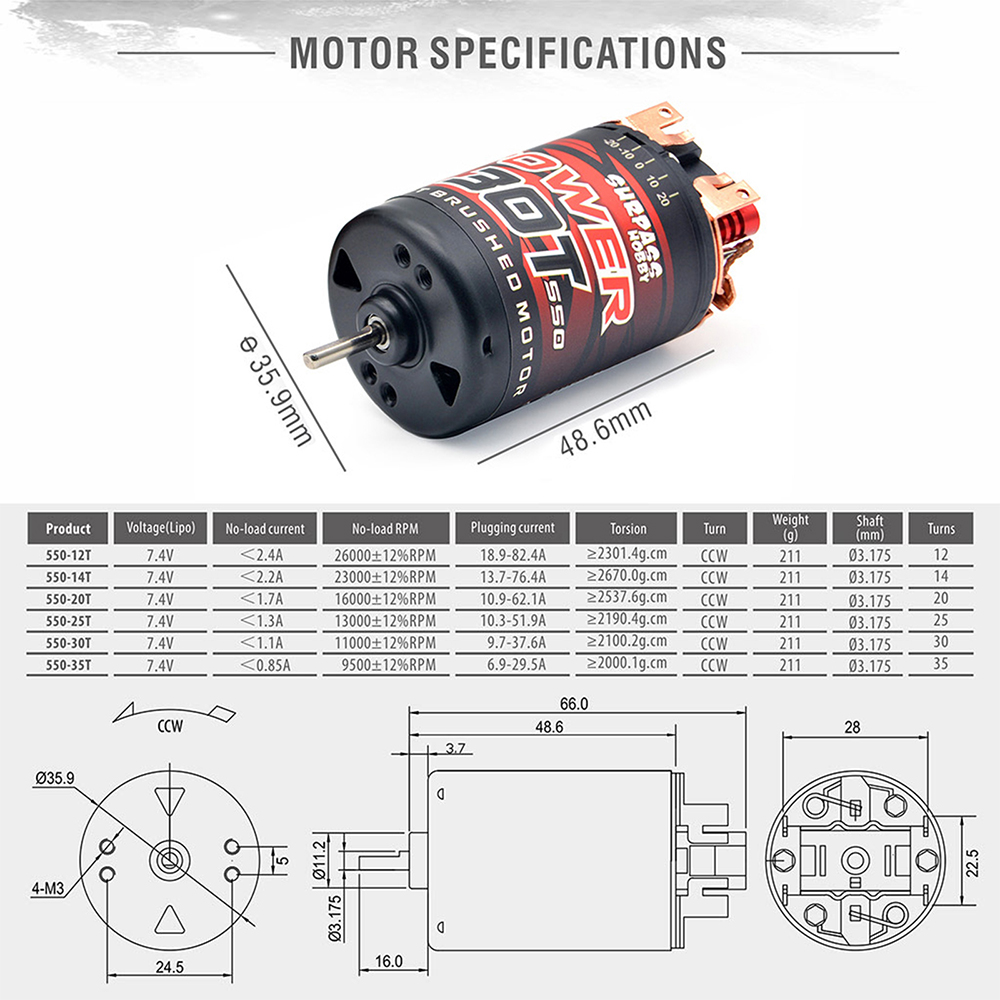

Motor Specifications:

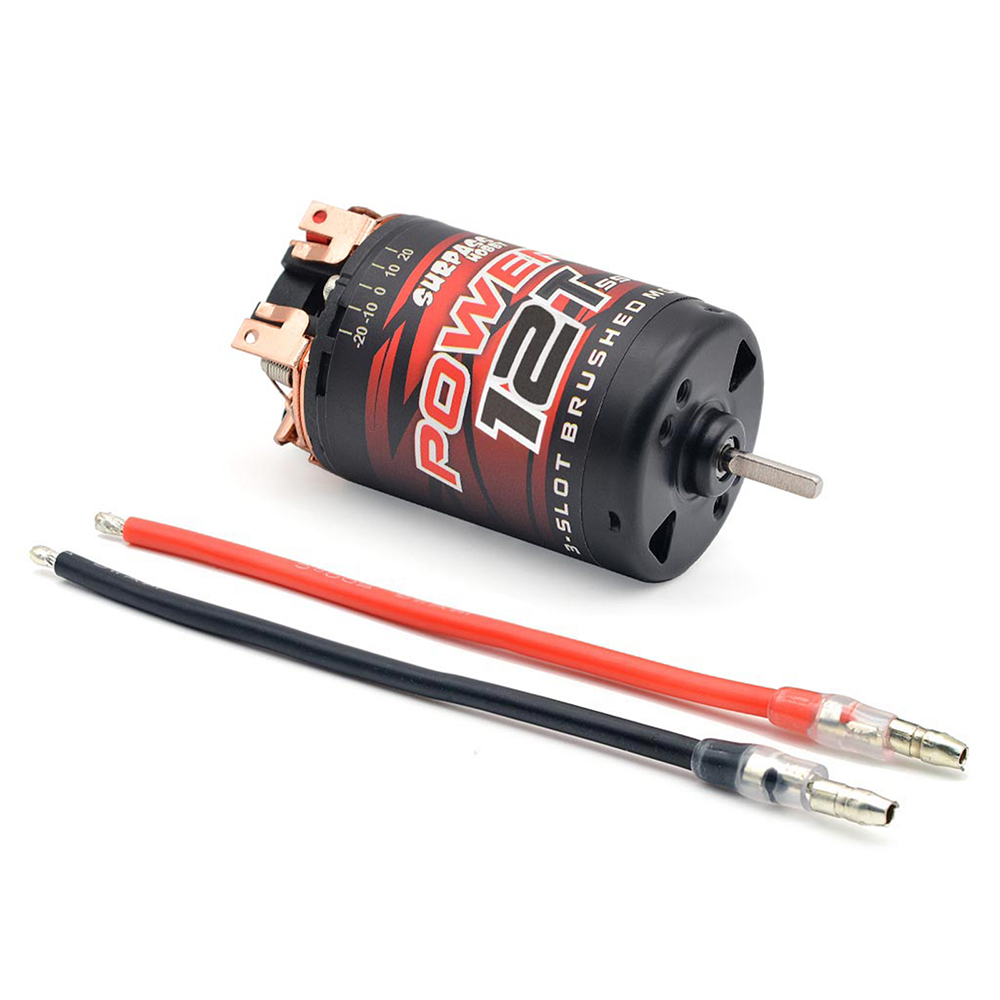

550-12T
Turns:12T
Voltage(Lipo):7.4V
Turn:CCW
Weight(g):211
Shaft(mm):Φ3.175
No-load current:<2.4A
No-load RPM:26000±12%RPM
Plugging current:18.9-82.4A
Torsion:≥2301.4g.cm

550-14T
Turns:14T
Voltage(Lipo):7.4V
Turn:CCW
Weight(g):211
Shaft(mm):Φ3.175
No-load current:<2.2A
No-load RPM:23000±12%RPM
Plugging current:13.7-76.4A
Torsion:≥2670.0g.cm

550-20T
Turns:20T
Voltage(Lipo):7.4V
Turn:CCW
Weight(g):211
Shaft(mm):Φ3.175
No-load current:<1.7A
No-load RPM:16000±12%RPM
Plugging current:10.9-62.1A
Torsion:≥2537.6g.cm

550-25T
Turns:25T
Voltage(Lipo):7.4V
Turn:CCW
Weight(g):211
Shaft(mm):Φ3.175
No-load current:<1.3A
No-load RPM:13000±12%RPM
Plugging current:10.3-51.9A
Torsion:≥2190.4g.cm

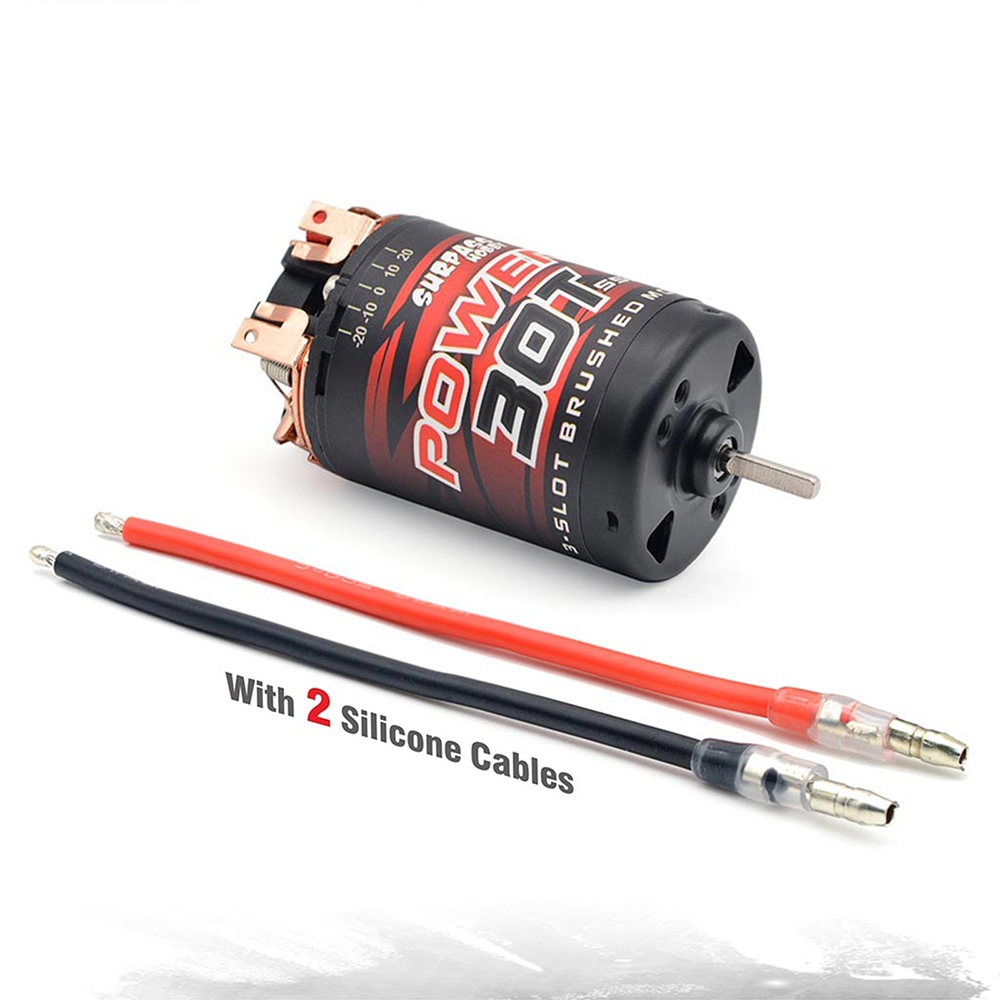

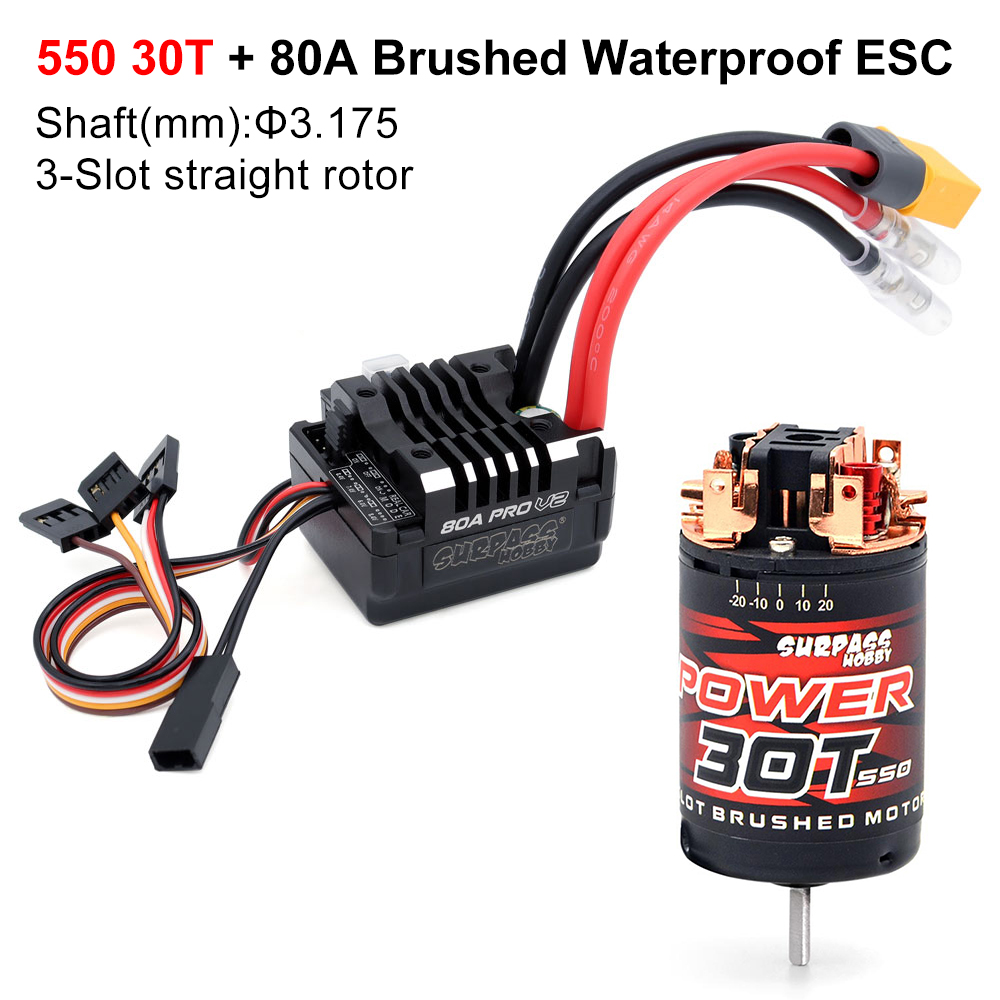

550-30T
Turns:30T
Voltage(Lipo):7.4V
Turn:CCW
Weight(g):211
Shaft(mm):Φ3.175
No-load current:<1.1A
No-load RPM:11000±12%RPM
Plugging current:9.7-37.6A
Torsion:≥2100.2g.cm

550-35T
Turns:35T
Voltage(Lipo):7.4V
Turn:CCW
Weight(g):211
Shaft(mm):Φ3.175
No-load current:<0.85A
No-load RPM:9500±12%RPM
Plugging current:6.9-29.5A
Torsion:≥2000.1g.cm

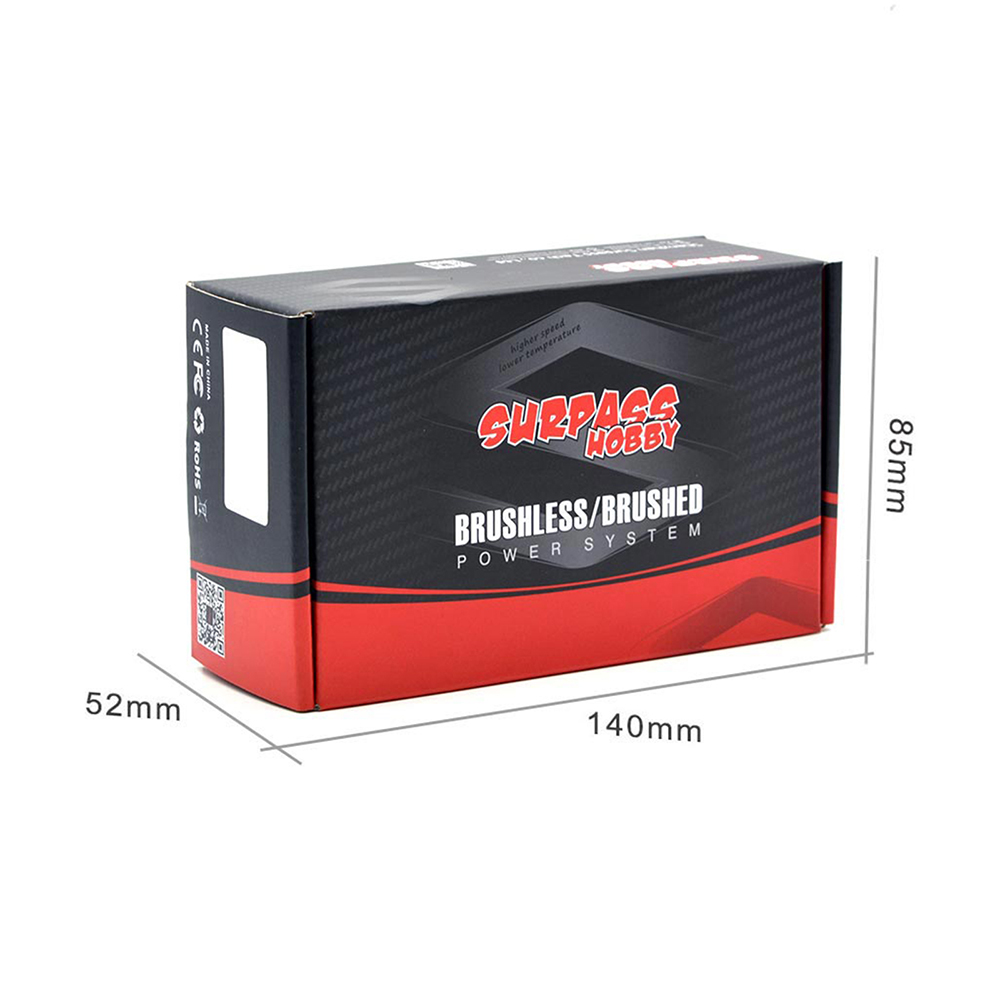

Package contents:
1*550 Motor+1*80A ESC

Note:
Only the above package content, other products are not included.
1.Due to the difference between different monitors,the picture may not reflect the actual color of the item. We guarantee the style is the same as shown in the pictures.
2.Due to the manual measurement and different measurement methods, please allow 1-3mm deviation.Thanks!
