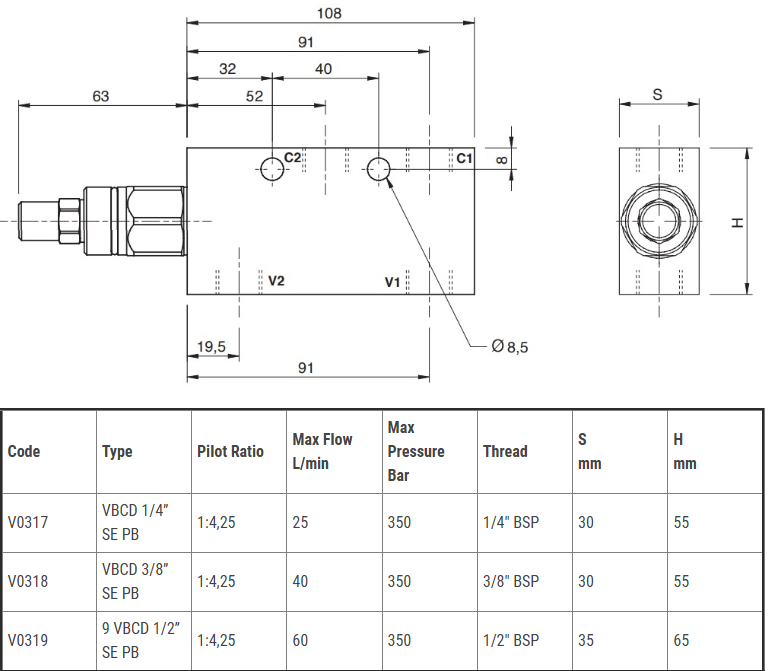

Hydraulic Single Overcentre Valve, Partially Balanced, VBCD 1/4”, 3/8", 1/2"

FREE UK SHIPPING

100% SATISFACTION GUARANTEED

USE AND OPERATION

These valves are used to control the actuator movements and block it in one direction. In order to have the descent of a load under control and avoid the load’s weight being carried away the valve will prevent any cavitation of the actuator. The valve setting and pilot pressure is insensitive to back pressure. The valve is used in combination with a closed centre control valve.

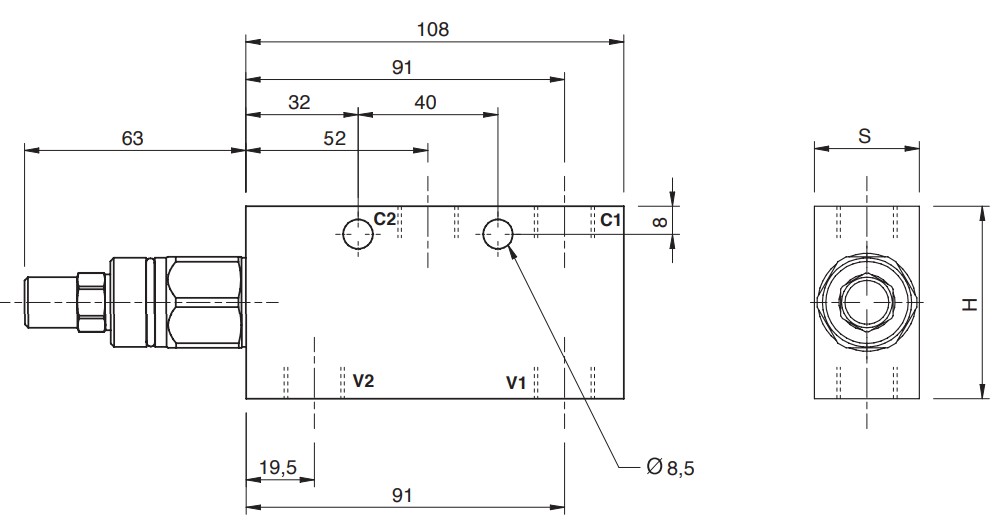

Hydraulic Single Overcentre Valve, Partially Balanced, VBCD 1/4” SE PB

MATERIALS AND FEATURES

Body: zinc-plated steel. Internal parts: hardened and ground steel. Seals: BUNA N standard. Leakage: negligible leakage. Standard setting: 320 Bar. Valve setting must be at least 1.3 times more than load pressure in order to enable the valve to close even when subjected to the maximum load pressure.

CONNECTIONS

Connect V1 and V2 to the supply, C1 to the free flow side of the actuator and C2 to the actuator’s side you want the flow to be blocked. In-line mounting.
