Features:
1.Load the default human body sensing configuration, plug and play
2.Provide visualization tools that support configuring detection distance intervals, setting sensitivity between partitions, and reporting time of results
3.Support induction range division and completely shield any interference outside the range
4.Sensing at a close range of 0.2m, without detection blind spots
5.The farthest sensing distance of the human body during exercise is 8m
6.Independent configuration for triggering and maintaining status, with strong anti-interference ability

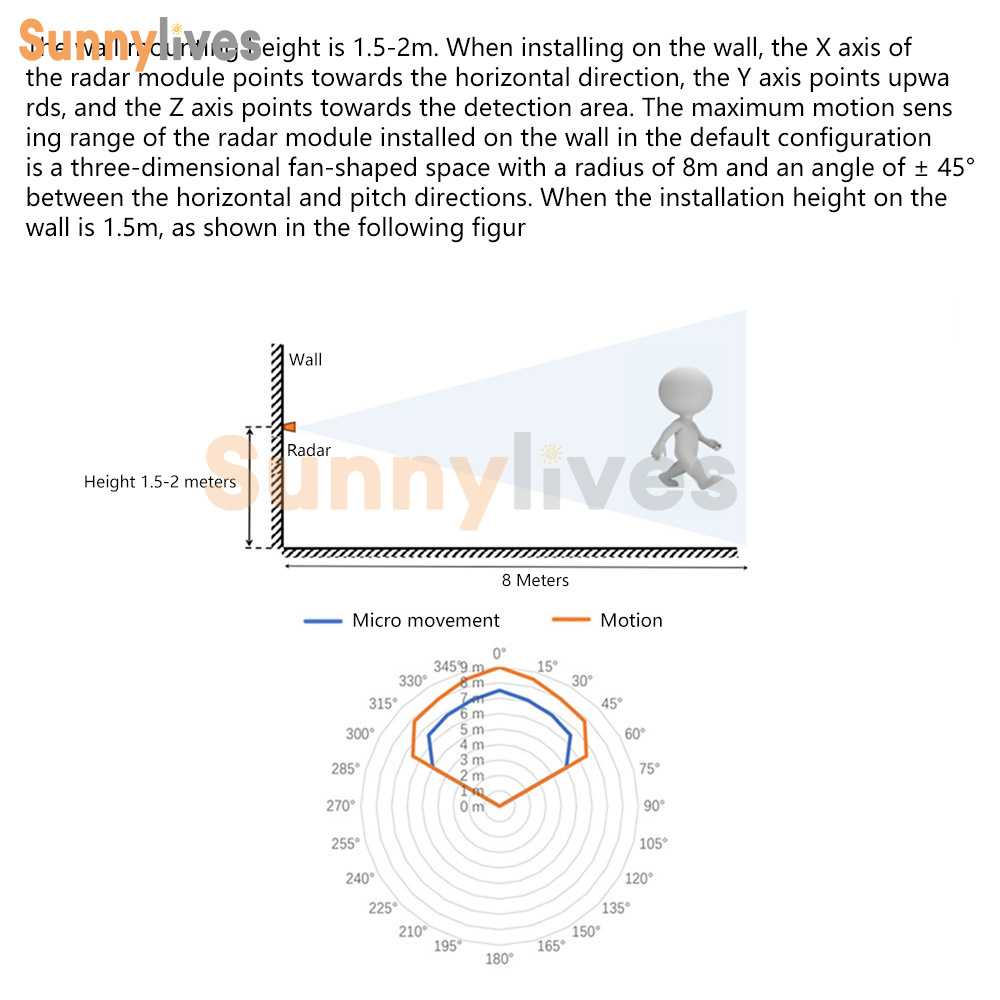

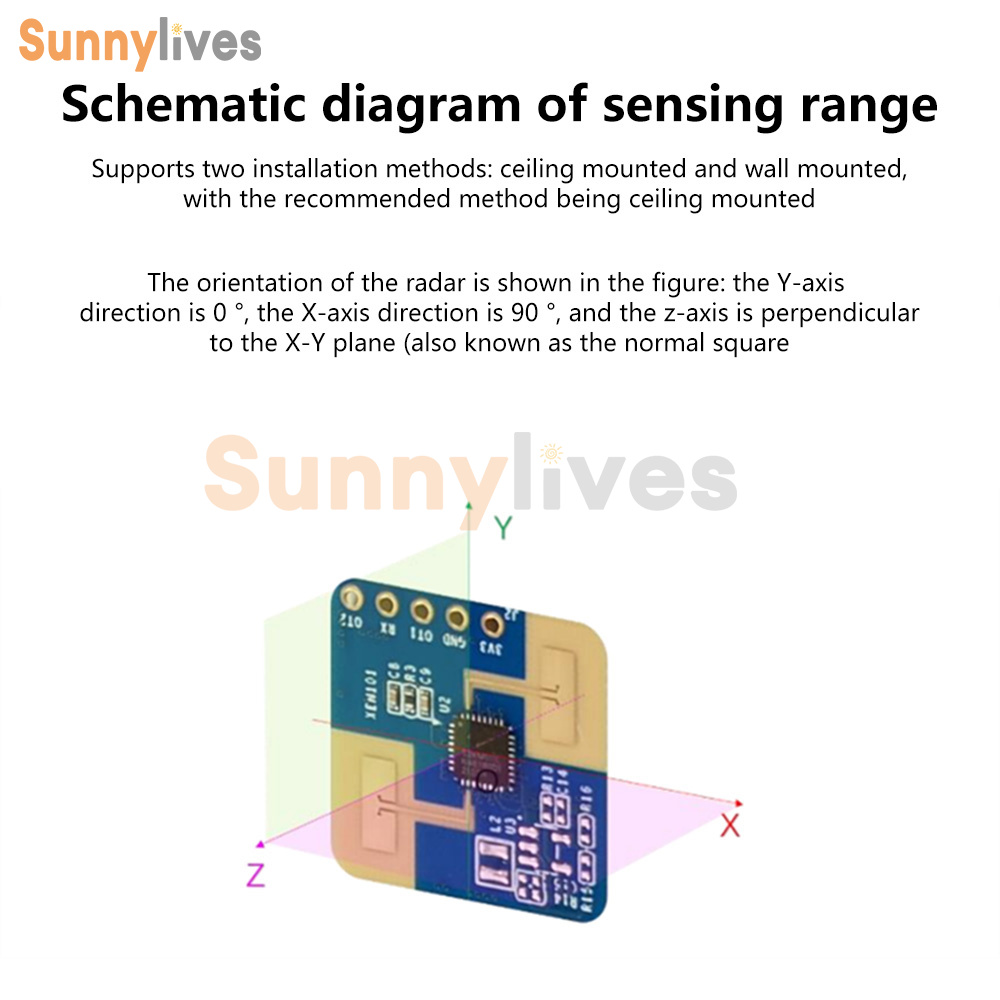

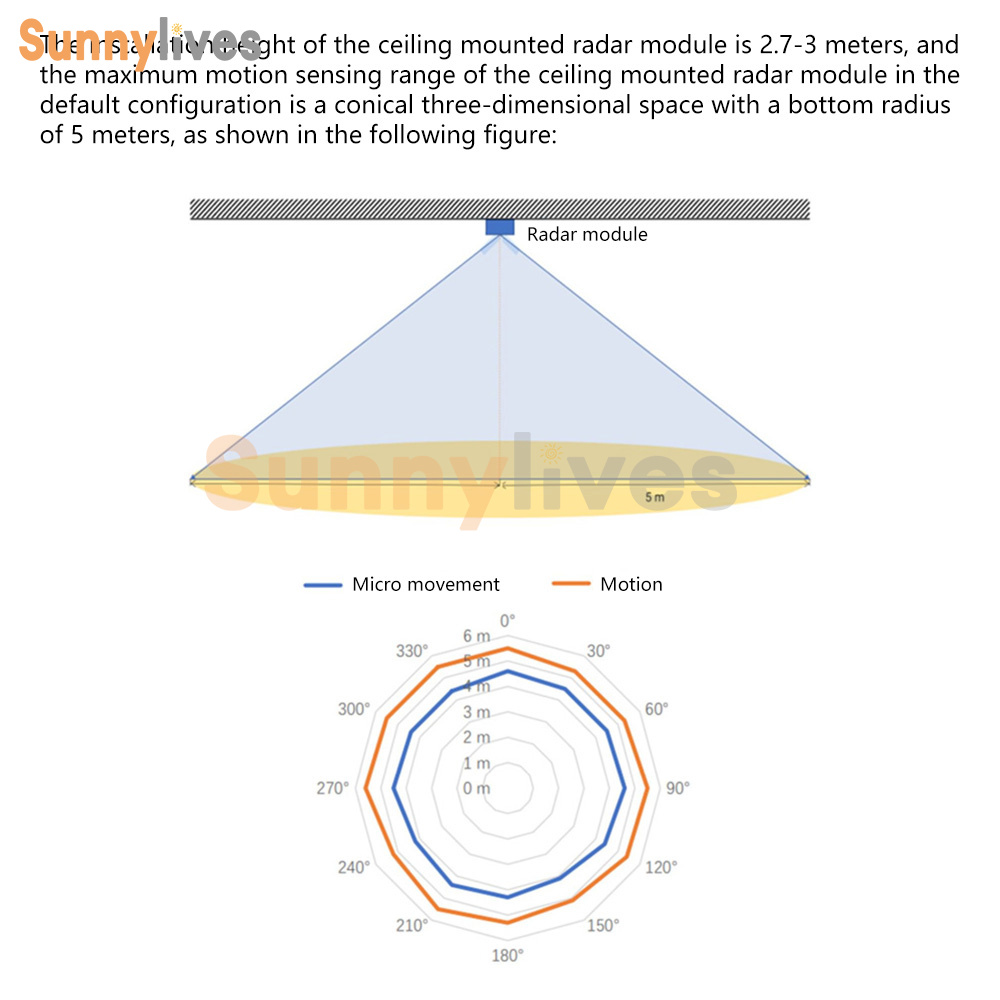

7.Support multiple installation methods such as ceiling and wall mounting
8.Equipped with single chip intelligent millimeter wave sensor SoC and intelligent algorithm firmware
Product Introduction

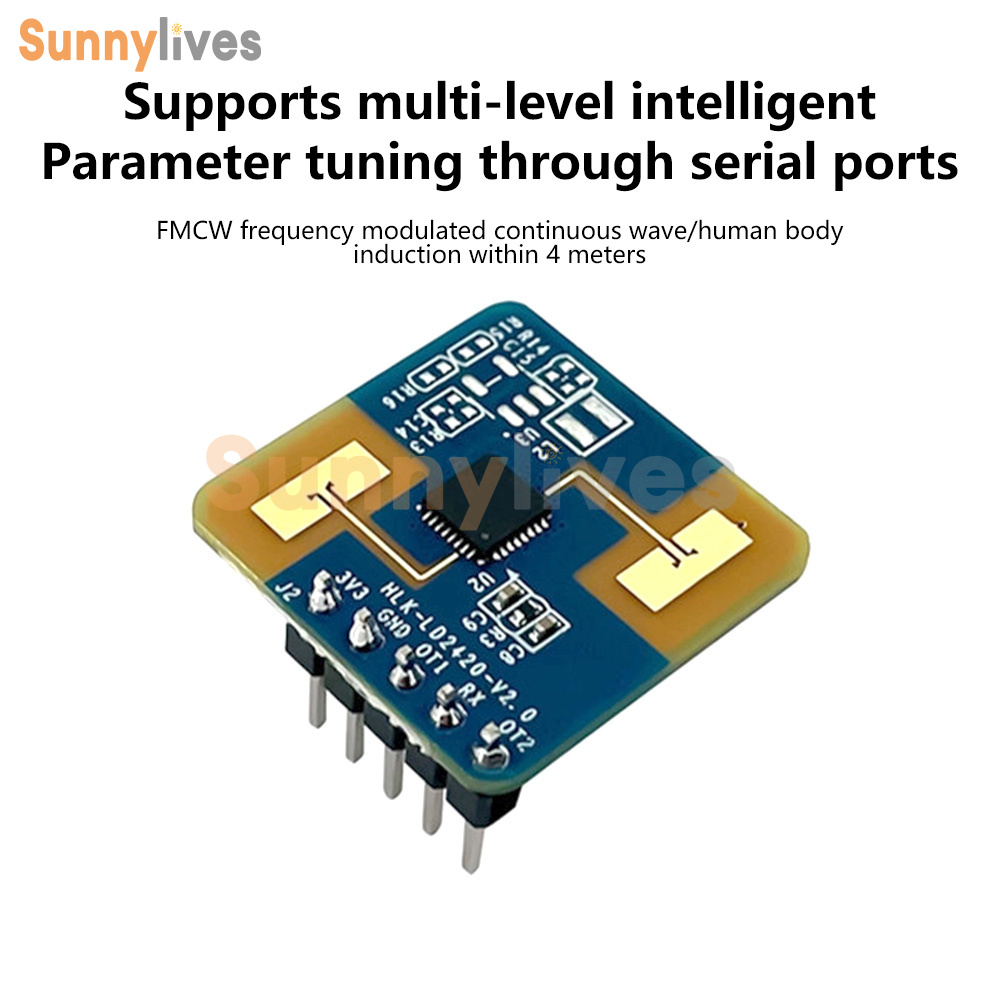

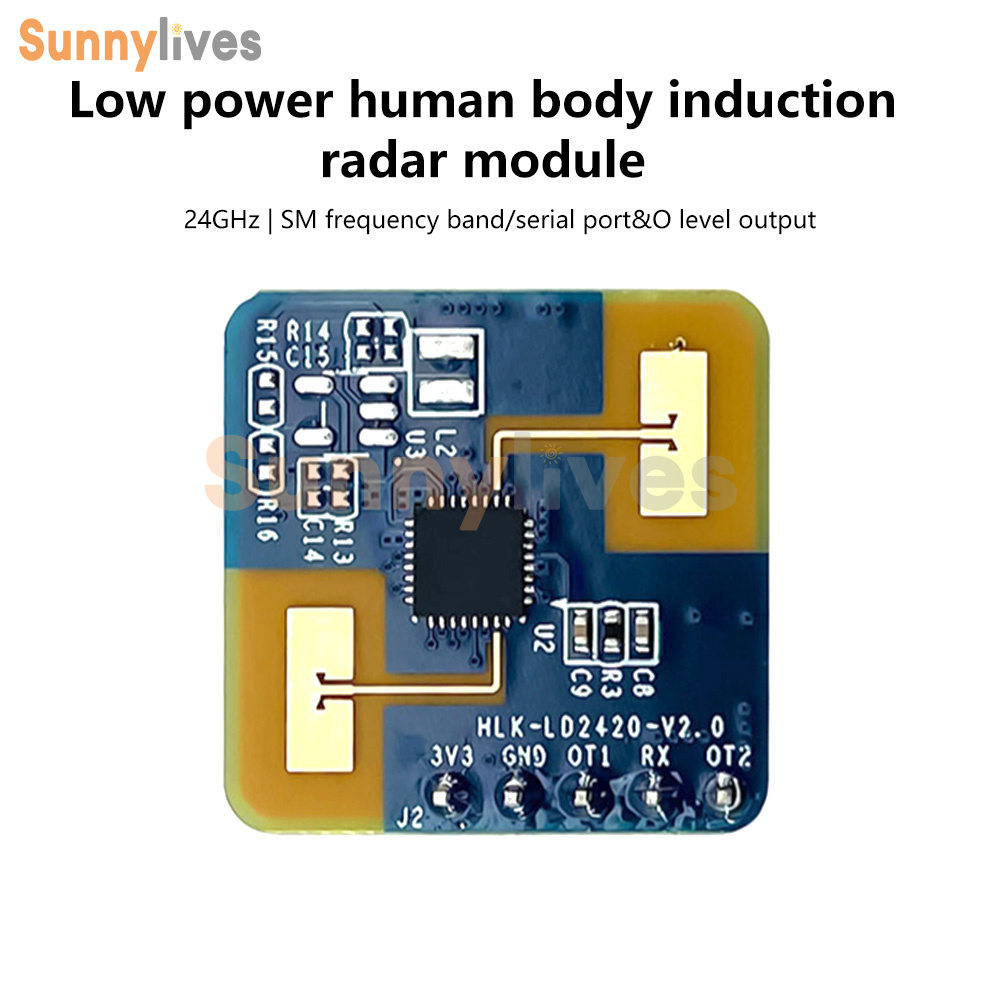

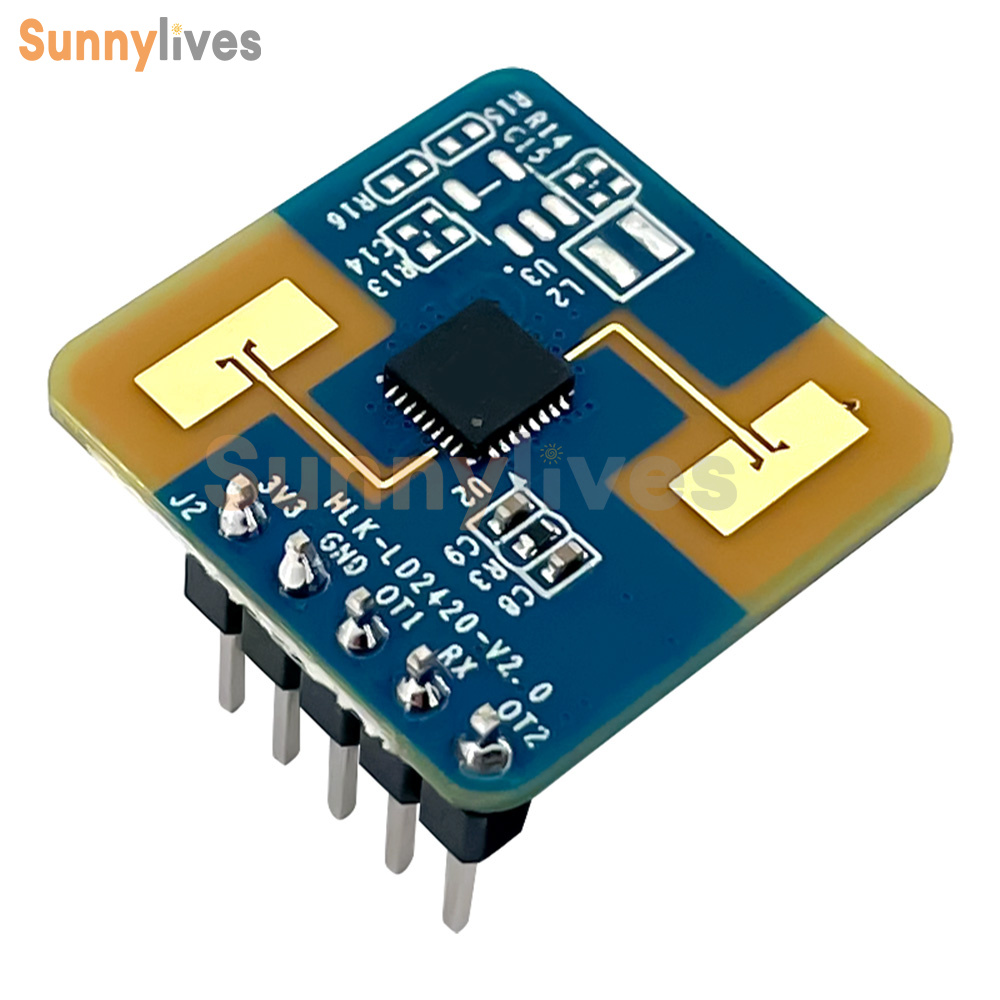

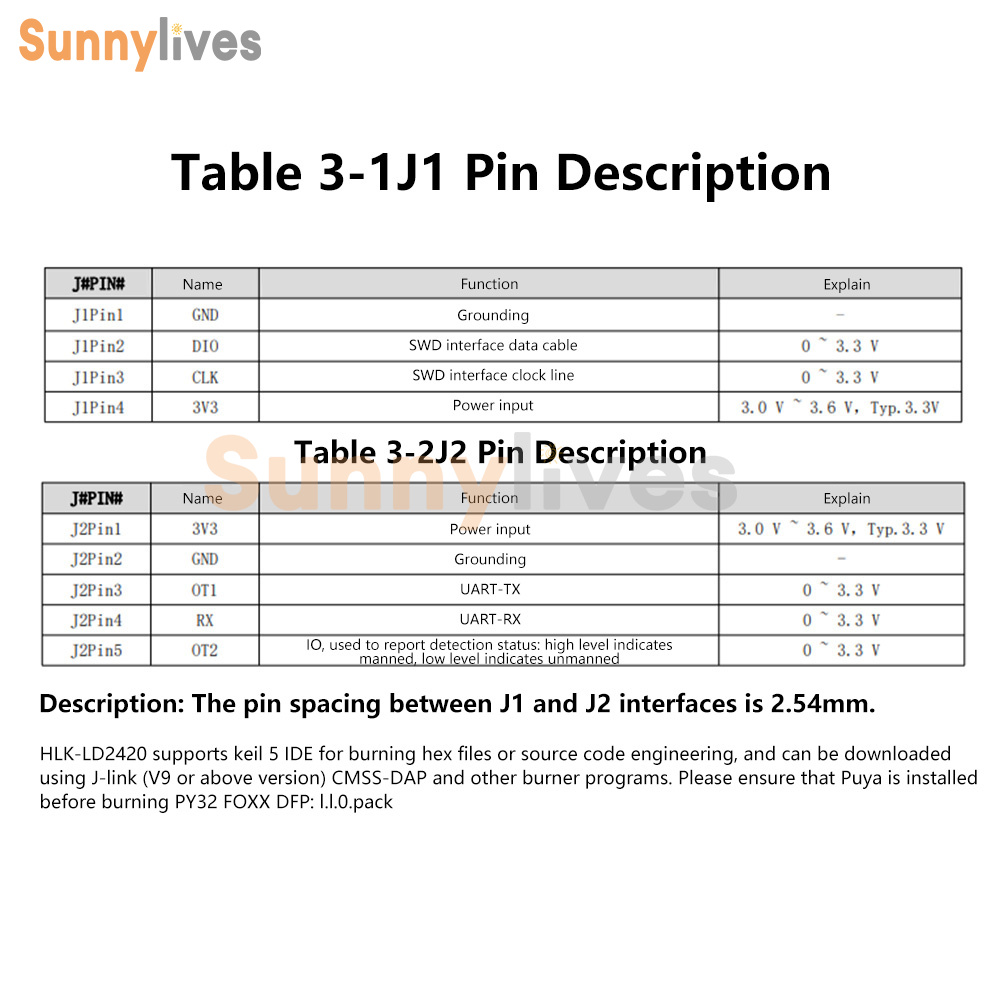

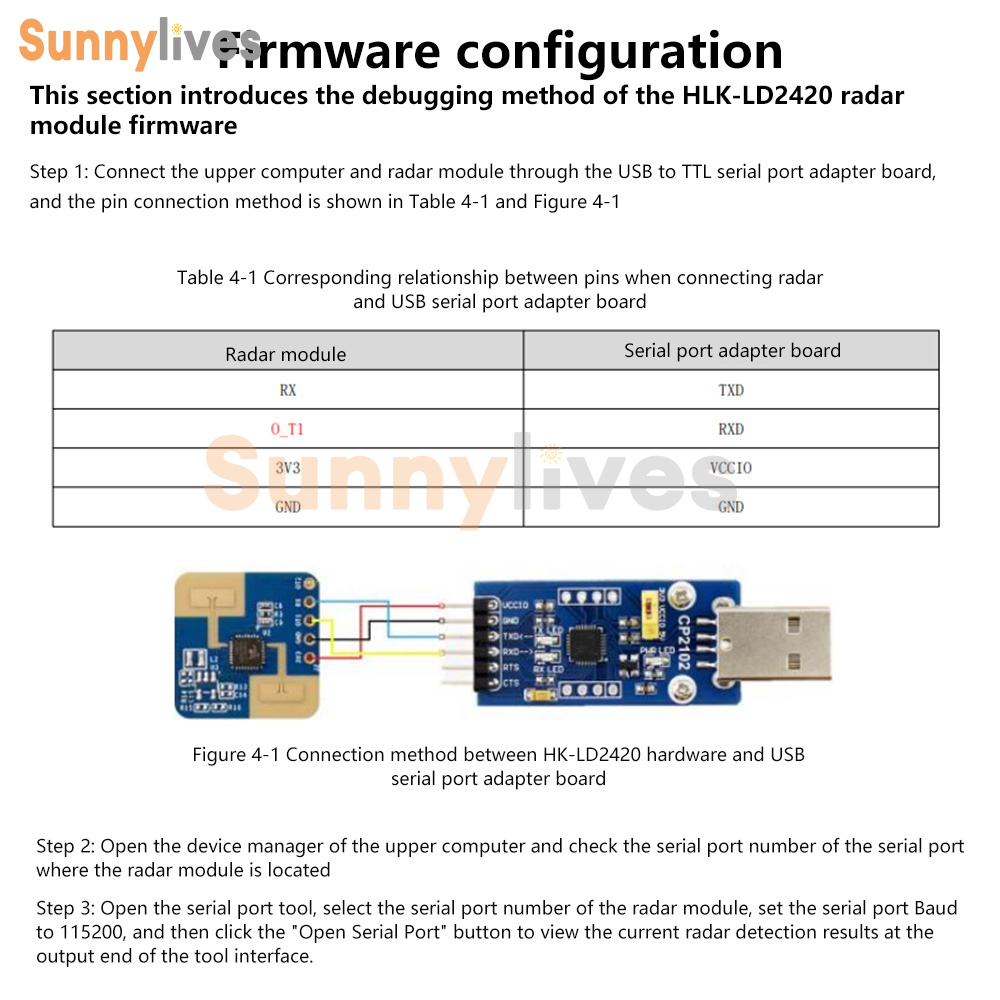

HLK-LD2420 is a high-performance 24 GHz one transmitter, one receiver radar module from Hailingke. Its human body sensing algorithm adopts millimeter wave radar distance measurement technology and advanced proprietary signal processing technology of the S3 series chip, achieving precise perception of motion, micro motion, and standing human bodies. HLK-LD2420 is mainly used to perceive whether there is movement or micro movement of the human body in the indoor scene perception area, and to refresh the detection results in real-time. It has a maximum sensing distance of 8m for the moving human body, and can easily configure the sensing distance range, sensing sensitivity and refresh time for different intervals. It supports GPIO and UART interfaces, plug and play, and is flexibly applied to different intelligent scenarios and terminal products.
Parameters:
Model: HLK-2410S

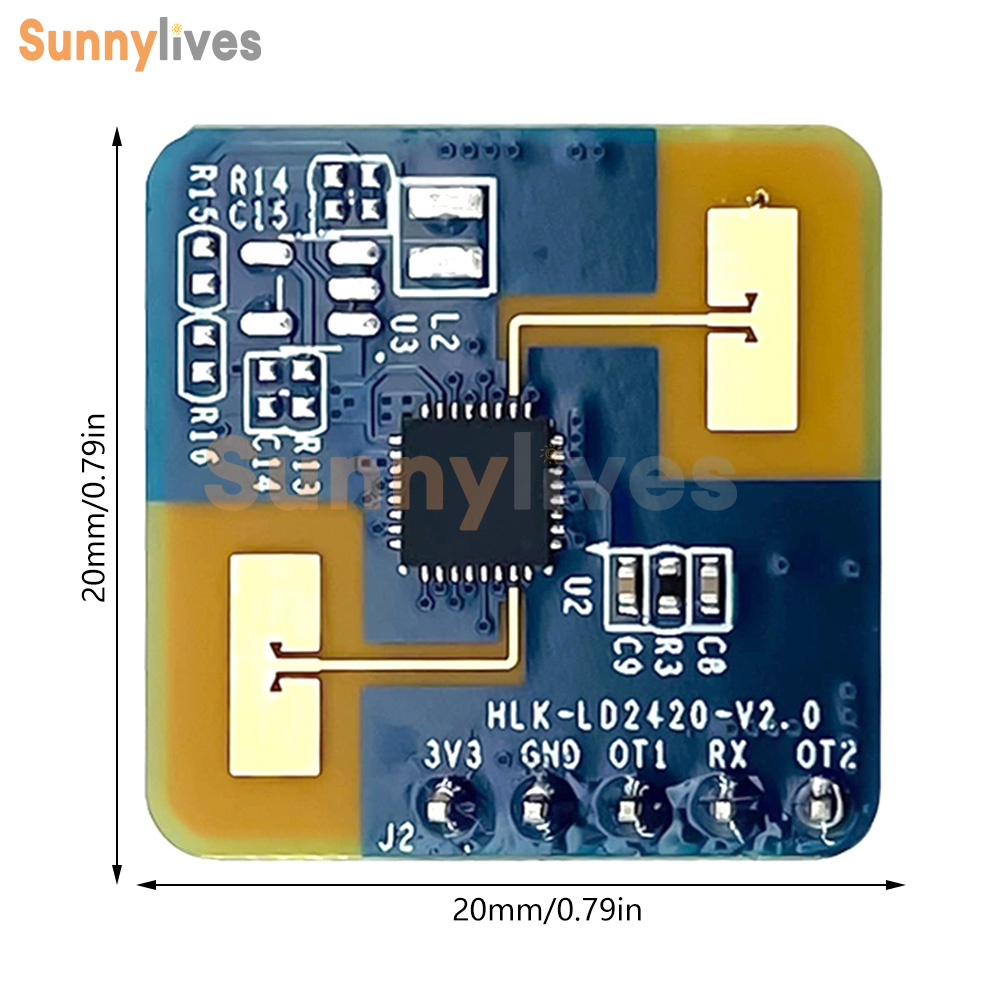

Size: 20x20mm
Output model category: Digital sensor
Working principle: magnetic sensor
Frequency: 24G-24.25GHz
Modulation method: FMCW
Detection distance: 0.75-6m adjustable
Detection angle: ± 60 °
Power supply: 3.3V (Typ.)
Current:~50mA
Output serial port level: 3.3V
Sweep bandwidth: 250MHz
Environmental temperature: -40 ° C~+85 ° C
Data format: serial port ASCIl output/high and low level 3.3V&0V
Packaging form: with pins
Applicable scenario: Intelligent light control/advertising screen sensing
Matters needing attention
If a radar needs to be equipped with a casing, the casing must have good wave transmission characteristics in the 24GHz frequency band and must not contain metals or materials that have a shielding effect on electromagnetic waves;
2.This product needs to be installed in a suitable environment. If used in the following environments, the detection effect will be affected:
2.1 There are continuously moving non-human objects in the sensing area, such as animals, continuously swinging curtains, and large green plants facing the air vent.
2.2 There is a large area of strong reflection plane in the sensing area, and the strong reflection object directly facing the radar antenna can cause interference.
2.3 When installing on the wall, it is necessary to consider external Confounding such as air conditioners and electric fans on the top of the room.
3. Precautions during installation
3.1 Try to ensure that the radar antenna is directly facing the area to be detected, and that the surrounding area of the antenna is open and unobstructed.
3.2 To ensure that the installation position of the sensor is firm and stable, the shaking of the radar itself will affect the detection effect.
3.3 Ensure that there is no object movement or vibration on the back of the radar. Due to the penetrability of radar waves, the antenna back lobe may detect moving objects on the back of the radar. Metal shielding covers or metal backplates can be used to shield the radar back lobe and reduce the impact of objects on the back of the radar.
When there are multiple 24GHz frequency band radars, please do not align the beams and try to install them as far away as possible to avoid possible mutual interference.
4.Power precautions: The input voltage of the power supply is 3.0V~3.6V, and there is no obvious spectral peak within 100 kHz of the power supply ripple. This plan is for reference
For design purposes, users need to consider corresponding electromagnetic compatibility designs such as ESD and lightning surges.

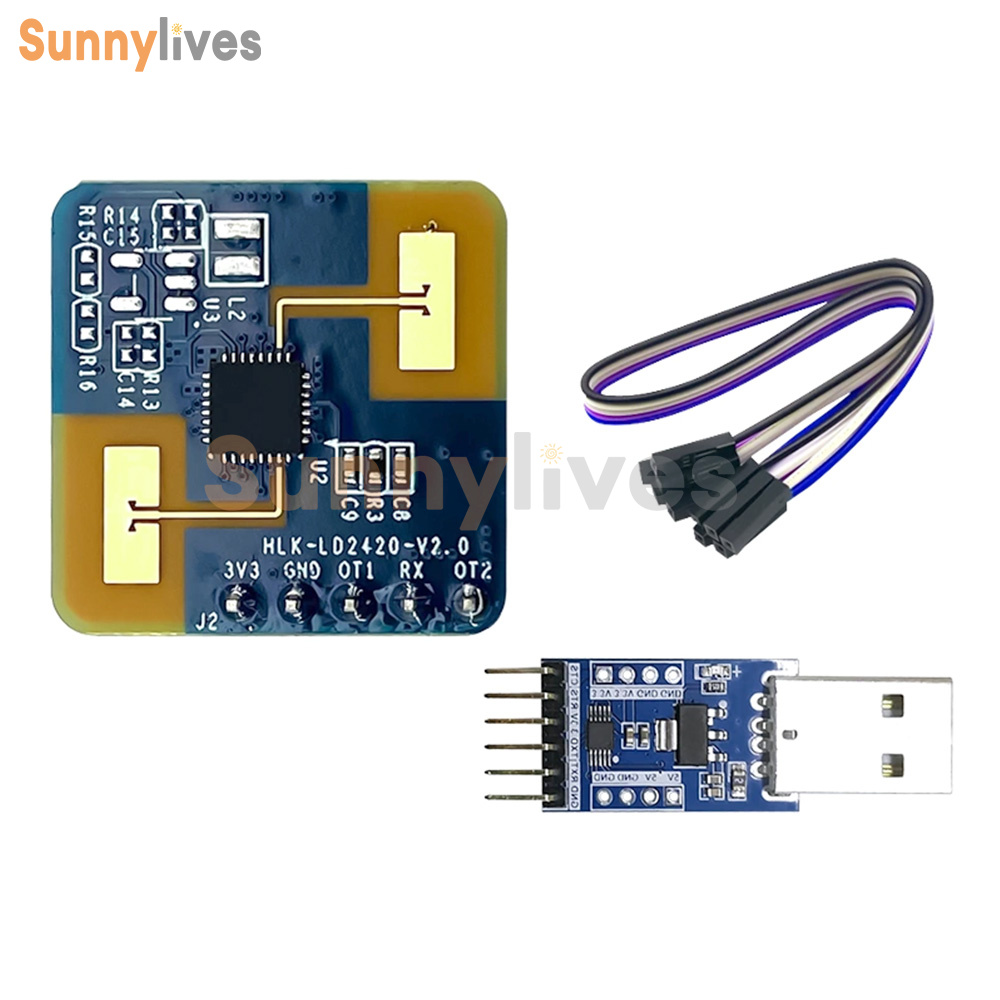

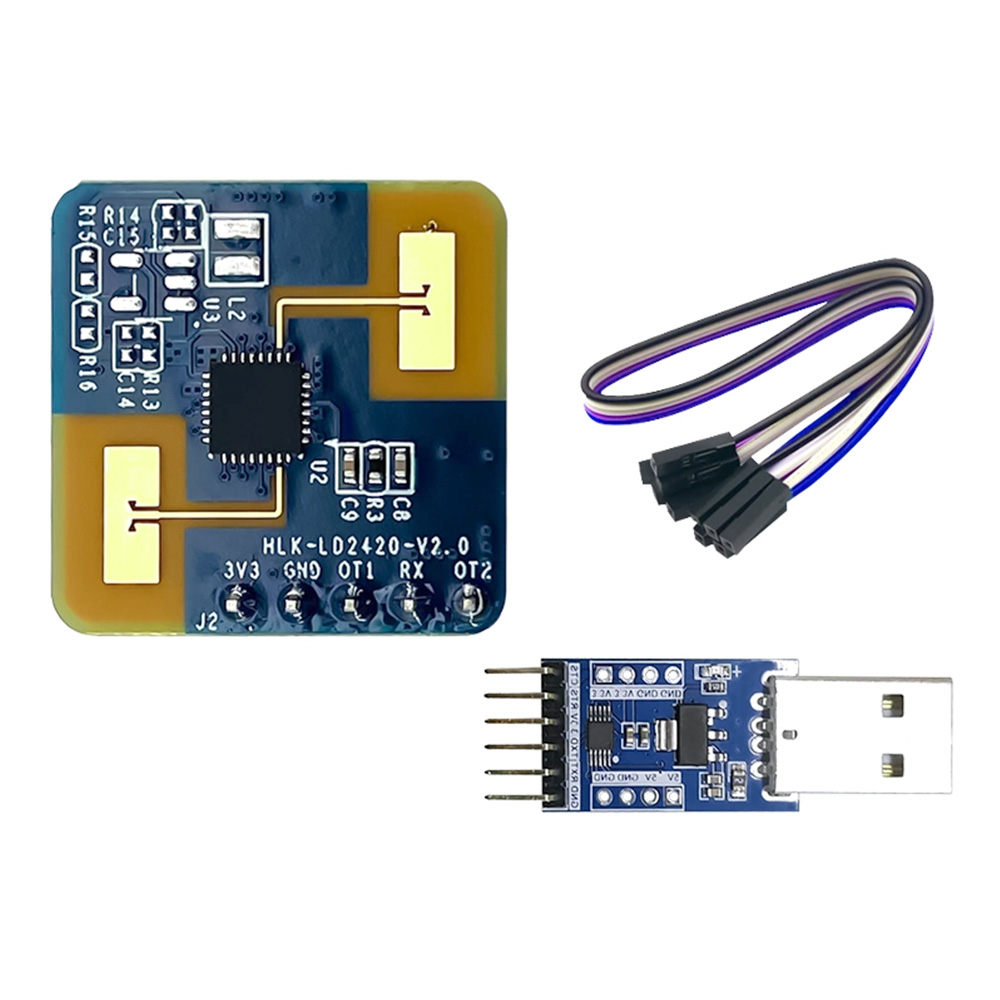

Package include:
Package 1:
Sensor module * 1
Connection line * 1
Serial port board
Package 2:
Sensor module * 1

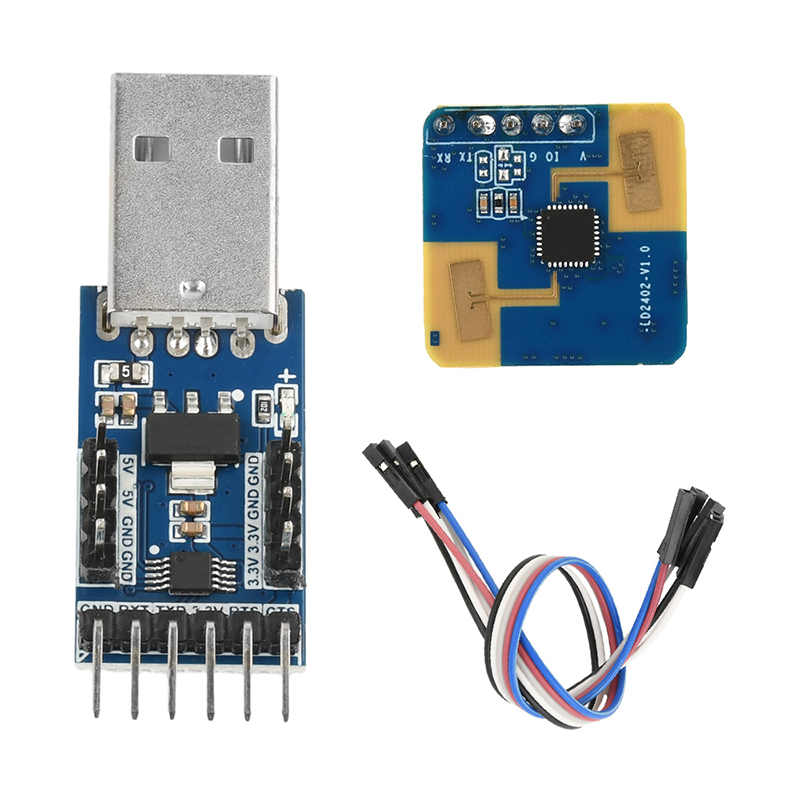

HLK-LD2402
Features:
1.24G millimeter wave radar technology: accurately perceive static and moving human body, high sensitivity
2.Static human presence detection: recognizing static lying and micro-motion, applicable to smart home appliances and security
3. Long detection distance: up to 7 meters, meet the needs of a variety of scenes
4. Low power consumption design: average current is only 50mA, energy saving and high efficiency
5.Multi-mounting mode: ceiling-mounted, wall-mounted flexible options to adapt to different spaces
Parameter:
Product name: HLK-LD2402 human presence sensor
Sensing scene: stationary human life presence sensing module static lying, micro-motion, motion human life presence recognition
Supply voltage: 3.3V
Average operating current: 50mA
Detection distance: 0.8~8m, presence & micro-motion 5m/motion 7m(Typ.)
Detection Angle: ±60°
Frequency: 24G-24.25GHZ
Sweep bandwidth: 250MH
Modulation mode: FMCW
Distance Resolution: 0.15m(Typ.)
Overall Dimension: 20x20mm
Ambient Temperature：-40℃~+85℃
Data format: Serial ASCII output
Interface: default 2.54mmx5Pin
With or without Bluetooth: Without Bluetooth
Bright function: support
OTA upgrade: Yes
Installation: support ceiling, wall, etc.
Description:
LD2402 24G millimeter wave radar set for human body state sensing, its working principle is to use FMCW FM continuous wave, the detection of human body targets in the set space, combined with radar signal processing, accurate human body sensing algorithms, to achieve high sensitivity human presence state sensing, which can be recognized in the movement and stationary state of the human body.

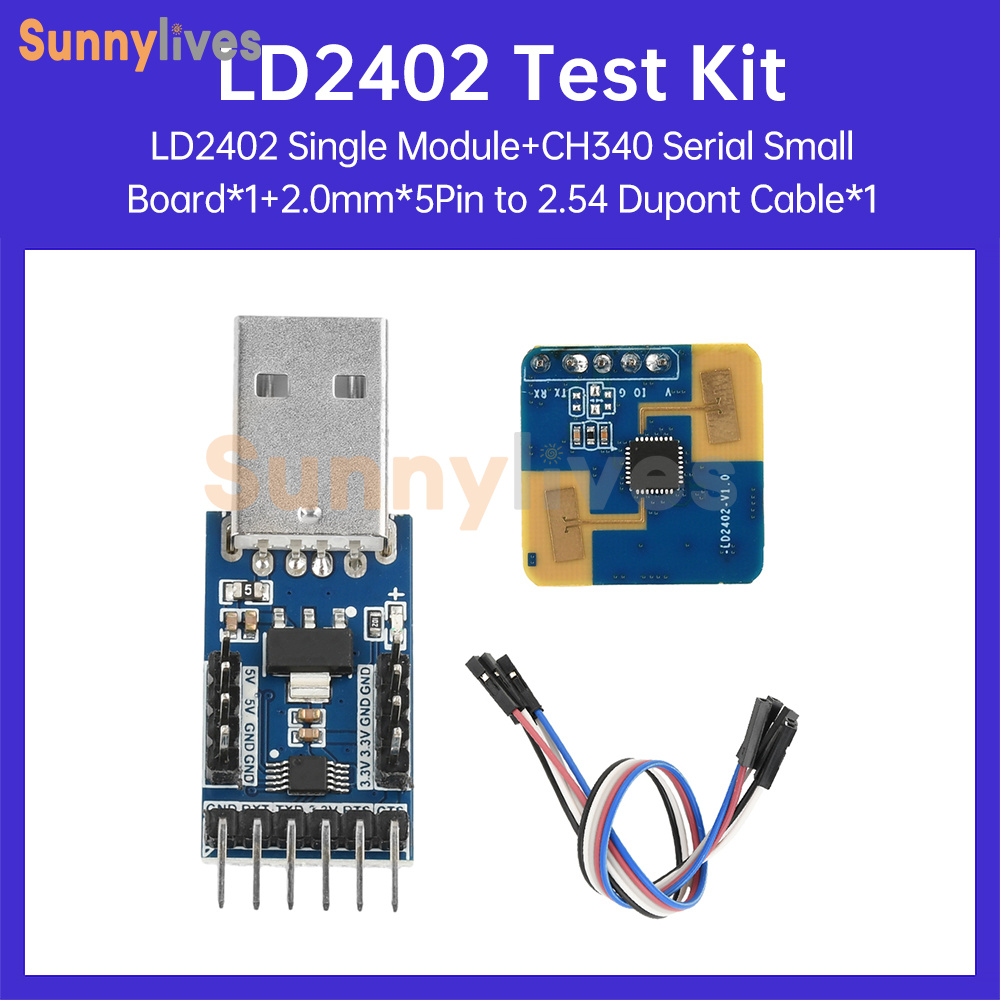

Package include:
Package 1: Sensor module x1
Package 2: Sensor module x1+connection cable x1+serial board x1

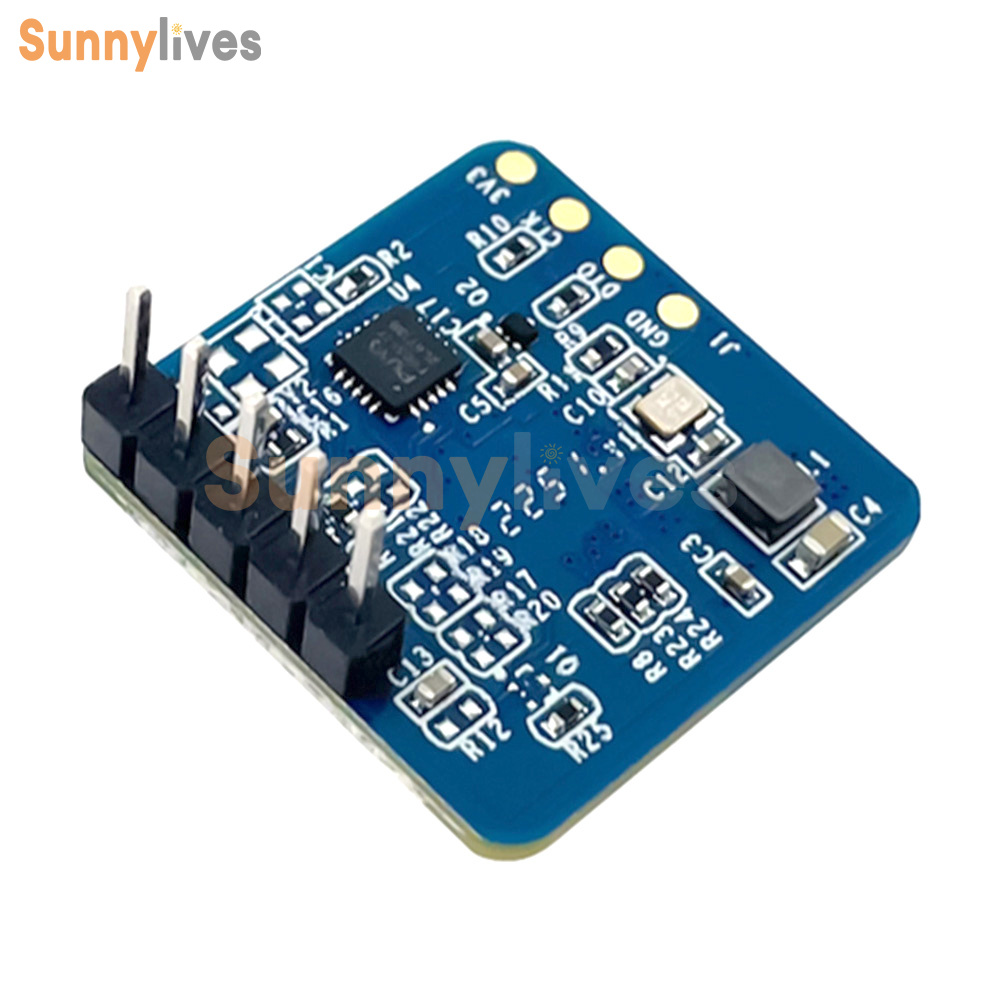

HLK-LD2411S
Features:
1.24 GHz ISM radio band
2.Integrate intelligent millimeter wave radar single chip and intelligent algorithm firmware
3.Accurate indoor/outdoor human motion/micro motion sensing and distance detection
4.Continuous working average current 48mA@20 HZ reporting frequency
5.Provide visualization tools that support configuring detection distance intervals and setting sensitivity based on distance gates
6.The maximum distance for human body sensing is 6m, and the maximum distance for micro motion human body sensing is 3.5m
7.High precision ranging: 30~350cm ± 5cm, 350~600cm ± 5%
Product Description
LD2411S is a 24GHz ranging radar induction module that works by utilizing FMCW frequency modulated continuous wave to set the
Target detection, combined with radar signal processing and precise sensing algorithms, accurately senses the distance and status information of micro moving/moving objects.
Support micro motion sensing within 0.2-3 meters and movement sensing within 3-6 meters, and output TTL serial port data in real-time. Provide configuration tools to modify sensing distance range, sensing sensitivity, and delay time.
Parameters:
Model: HLK-LD2411S
Working principle: magnetic sensor
Output model category: Digital sensor
Sensor category: magnetic sensor
Size: 27x27mm
Frequency: 24G-24.25GHz
Modulation method: FMCW
Detection distance: 0.3~3.5m micro motion/0.3~6m motion (adjustable)
Detection angle: soil 45 ° (horizontal plane)/soil 20 ° (vertical plane)
Power supply: 5V
Current:~50mA
Maximum Equivalent isotropically radiated power: 16 dBm (Typ.)
Sweep bandwidth:~250MHz
Environmental temperature: -40 ° C~+85 ° C
Data format: ttl serial port
Packaging form: default 1.27mm * 5Pin female seat
Interface type: (1.27mm X 5PIN pin)
1: VCC, 5V power input
2: GND, power ground
3: OUT, no function
4: TXD, serial transmission/I0
5: RXD, serial port reception/I0
Matters needing attention:
If a radar needs to be equipped with a casing, the casing must have good wave transmission characteristics in the 24GHz frequency band and must not contain metals or materials that have a shielding effect on electromagnetic waves
2. This product needs to be installed in a suitable environment. If used in the following environments, the detection effect will be affected
2.1 There are continuously moving non-human objects in the sensing area, such as animals, continuously swinging curtains, and large green plants facing the air vent.
2.2 There is a large area of strong reflection plane in the sensing area, and the strong reflection object directly facing the radar antenna can cause interference. When installing on the wall, external Confounding such as air conditioners and electric fans on the top of the room need to be considered.
3. Precautions during installation
3.1 Try to ensure that the radar antenna is directly facing the area to be detected, and that the surrounding area of the antenna is open and unobstructed.
3.2 To ensure that the installation position of the sensor is firm and stable, the shaking of the radar itself will affect the detection effect.
3.3 Ensure that there is no object movement or vibration on the back of the radar. Due to the penetrability of radar waves, the antenna back lobe may detect moving objects on the back of the radar. Metal shielding covers or metal backplates can be used to shield the radar backplate and reduce the impact of objects on the back of the radar.
When there are multiple 24GHz frequency band radars, please do not align the beams and try to install them as far away as possible to avoid possible mutual interference.
3.5 Power precautions: The input voltage of the power supply is 5VDC, and there is no obvious spectral peak within 100 kHz of the power supply ripple. This plan is a reference design, and users need to consider corresponding electromagnetic compatibility designs such as ESD and lightning surge.
Package include:
Package 1:
Sensor module * 1
Terminal wire * 1
Package 2:
Sensor module * 1
