Features:
1. High protection level: IP68 dustproof standard, to ensure stable operation in harsh environments, long service life
2. Sensitive and convenient touch: touch-sensitive switch design, dimming and color adjustment of one-key operation, simple and intuitive to use
3. Efficient electrical performance: contact resistance as low as ≤ 150mΩ, insulation resistance ≥ 200MΩ, to ensure safe and reliable operation
4. Diversified package options: provide a single control board, with a touch head and with a DC head of different combinations to meet different needs
5. Long life design: electrical life of 20,000 times, mechanical life of up to 50,000 times, durable and high reliability
Parameter:

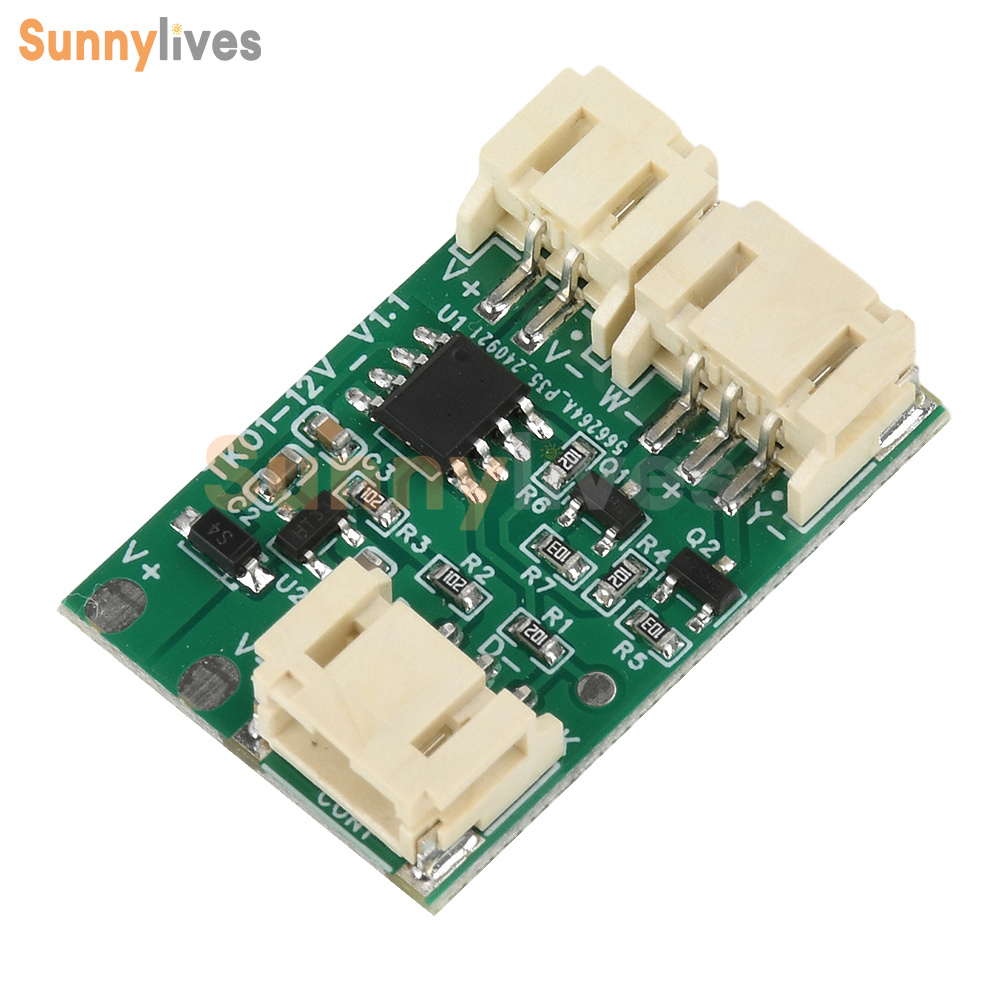

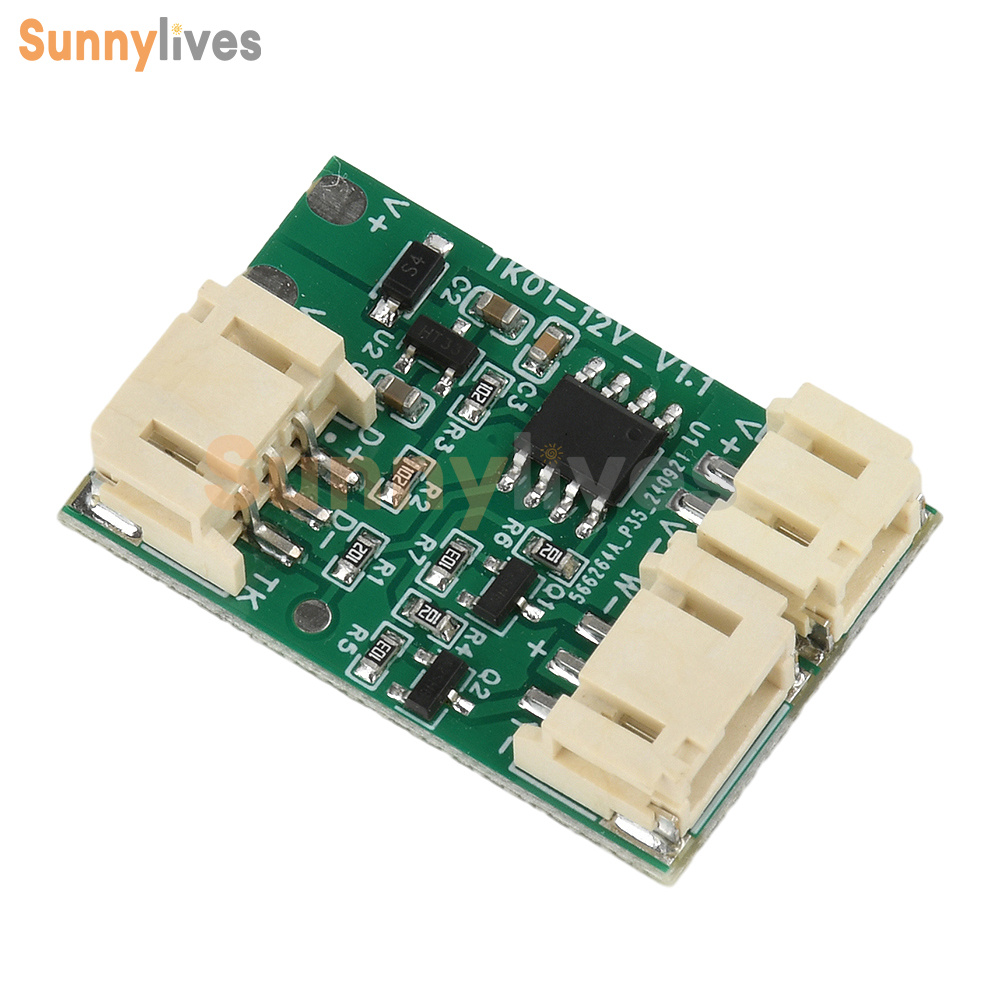

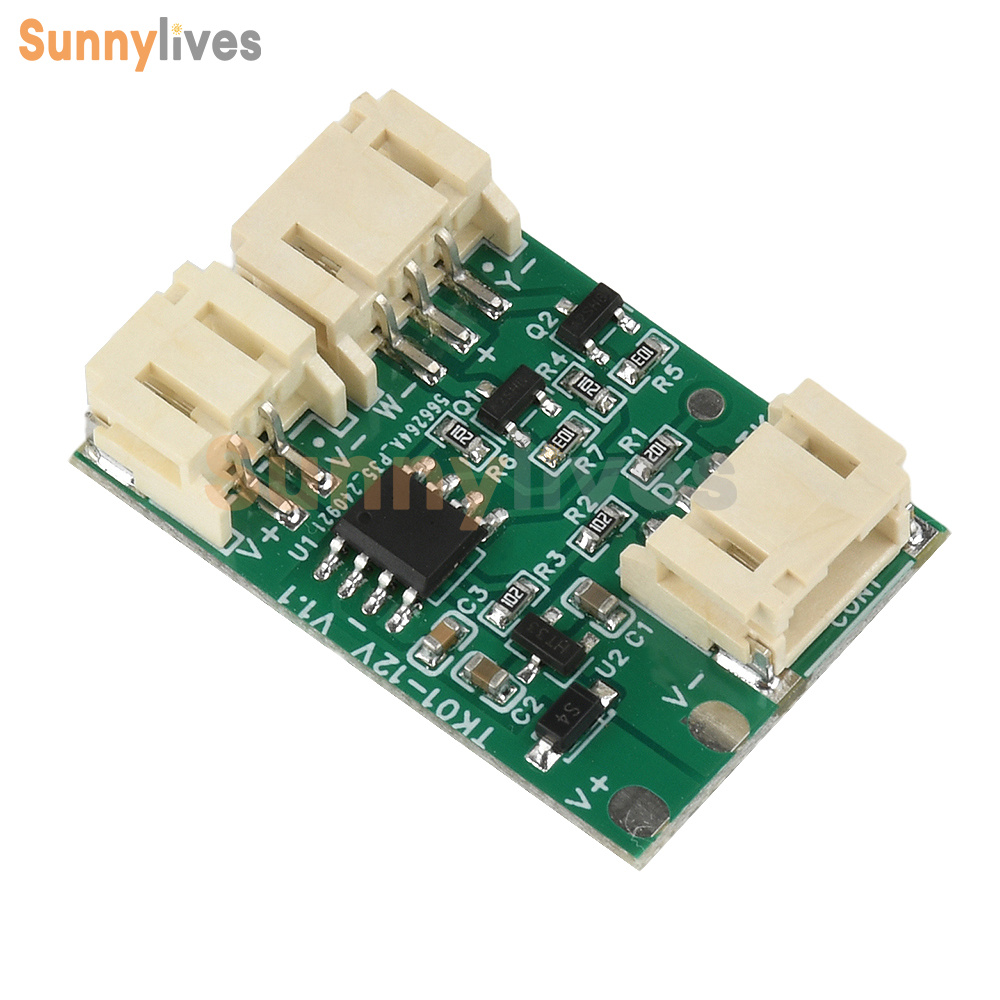

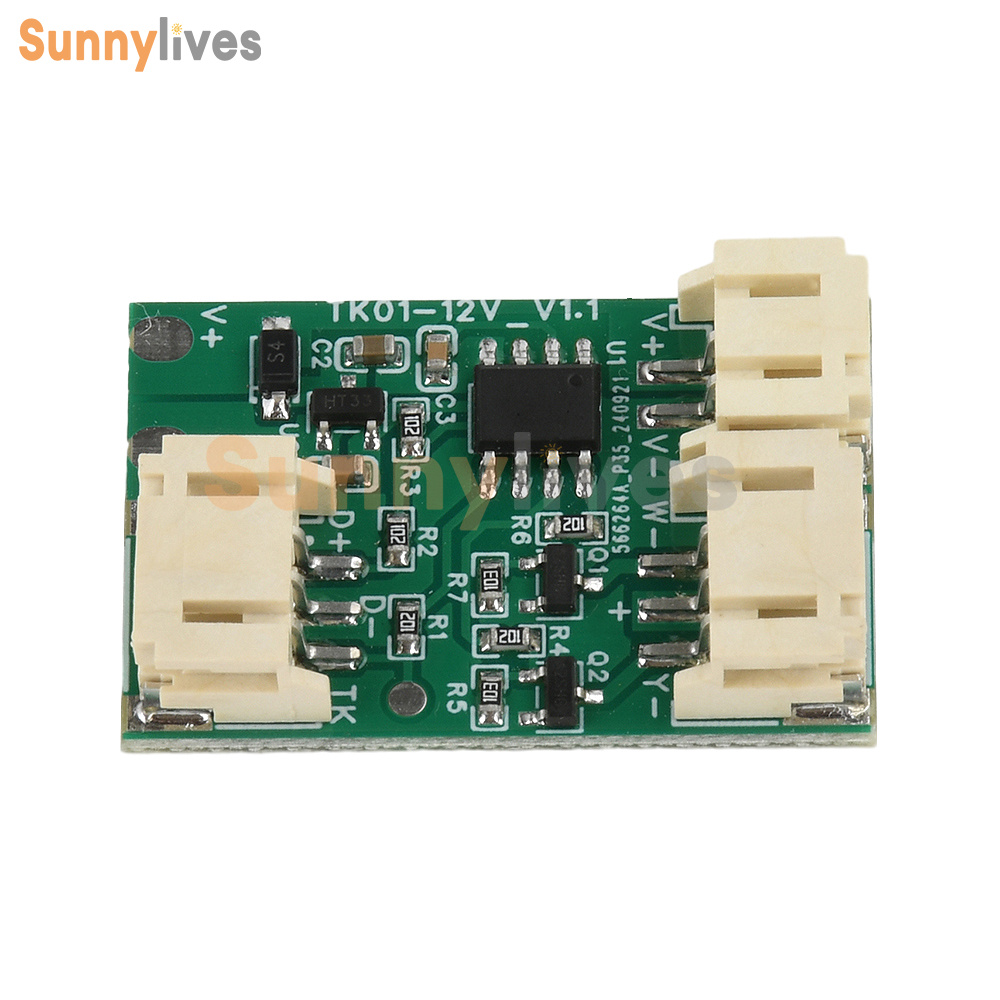

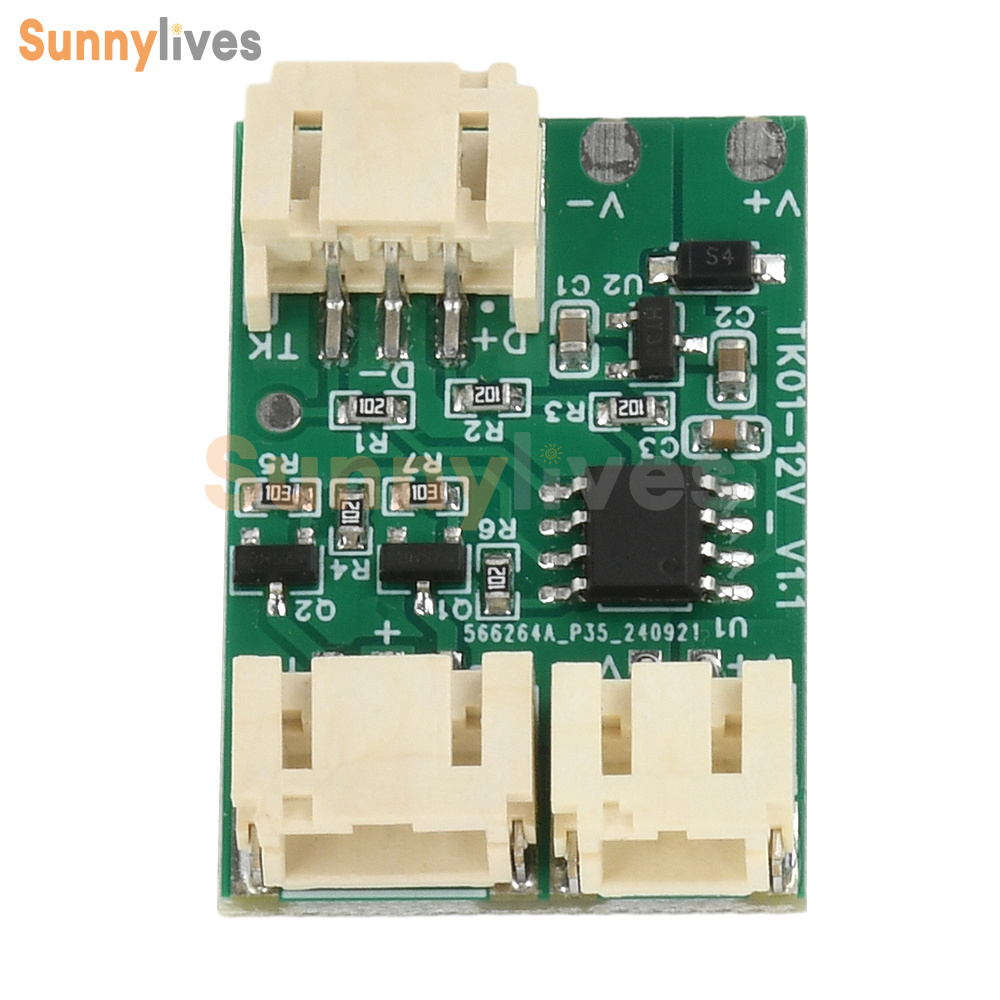

Product name: LED light dimming control board
DC female connector: 5.5x2.1mm, blue light
Control board parameters:
1.Support DC 8V-12V power supply (power supply voltage should be matched with the corresponding lamp board)
2.Support touch induction dimming
3.Support dual-color lamp beads three-color temperature control, voltage 12V, the lamp beads are the brightest
Contact resistance: ≤ 150mΩ
Insulation resistance: ≥200MΩ
Stroke: 1.0±0.15mm
Operating Temperature: -25~75°C
Wiring: plug-in type
Protection grade: IP68
Protection function: dustproof not waterproof
Electrical life: 20,000 times
Mechanical life: 50,000 times
Function:
1. Touch sensor switch the first time, warm light
2. Touch sensor switch under the second, white light
3. Touch sensor switch under the third, white and warm dual-color light
4. Touch sensor switch fourth, off
Package include:
Package 1:Touch control board x1

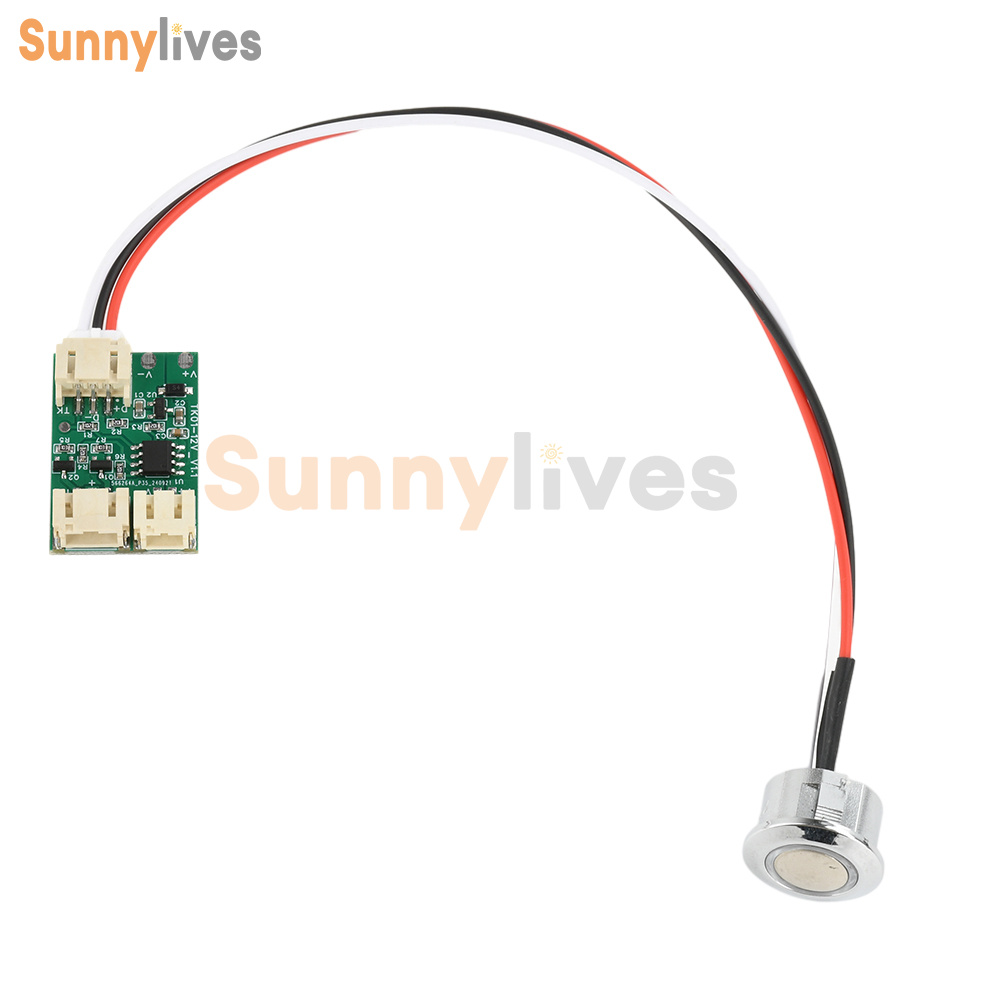

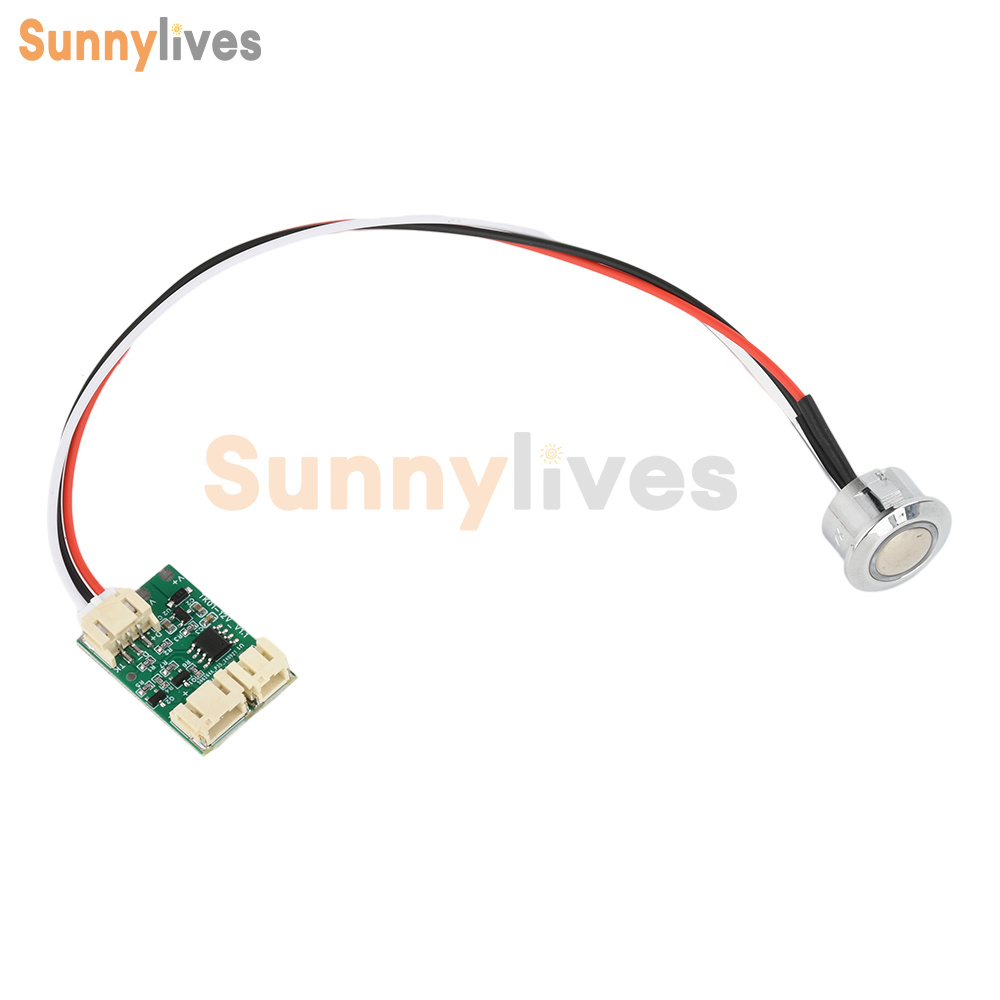

Package 2: Touch control board x1 + touch head x1

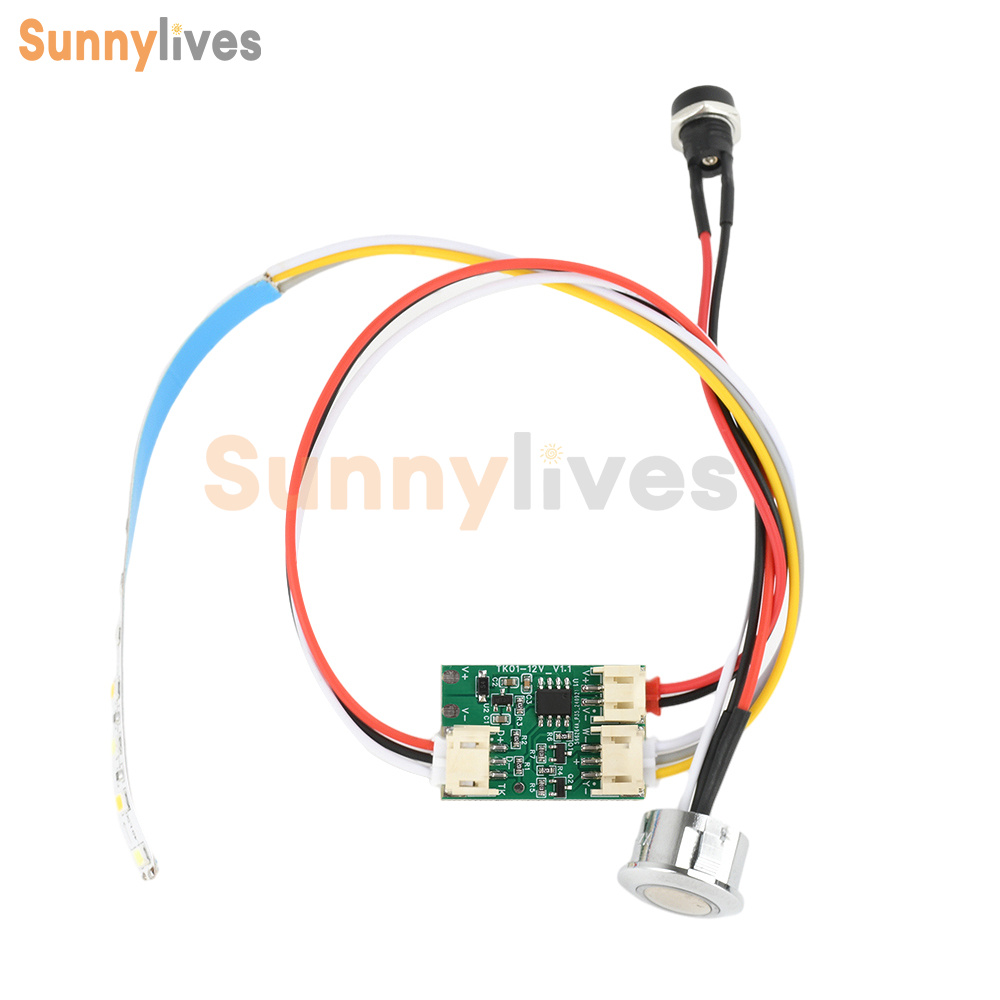

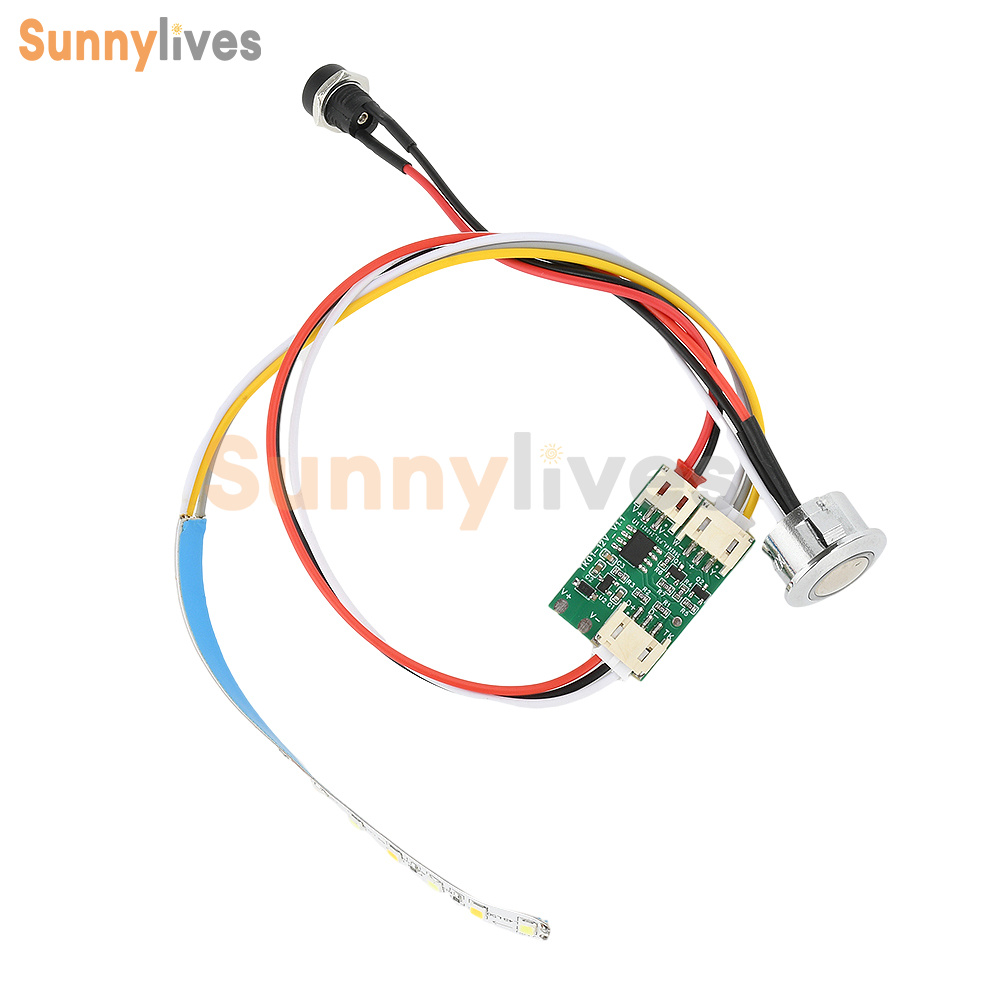

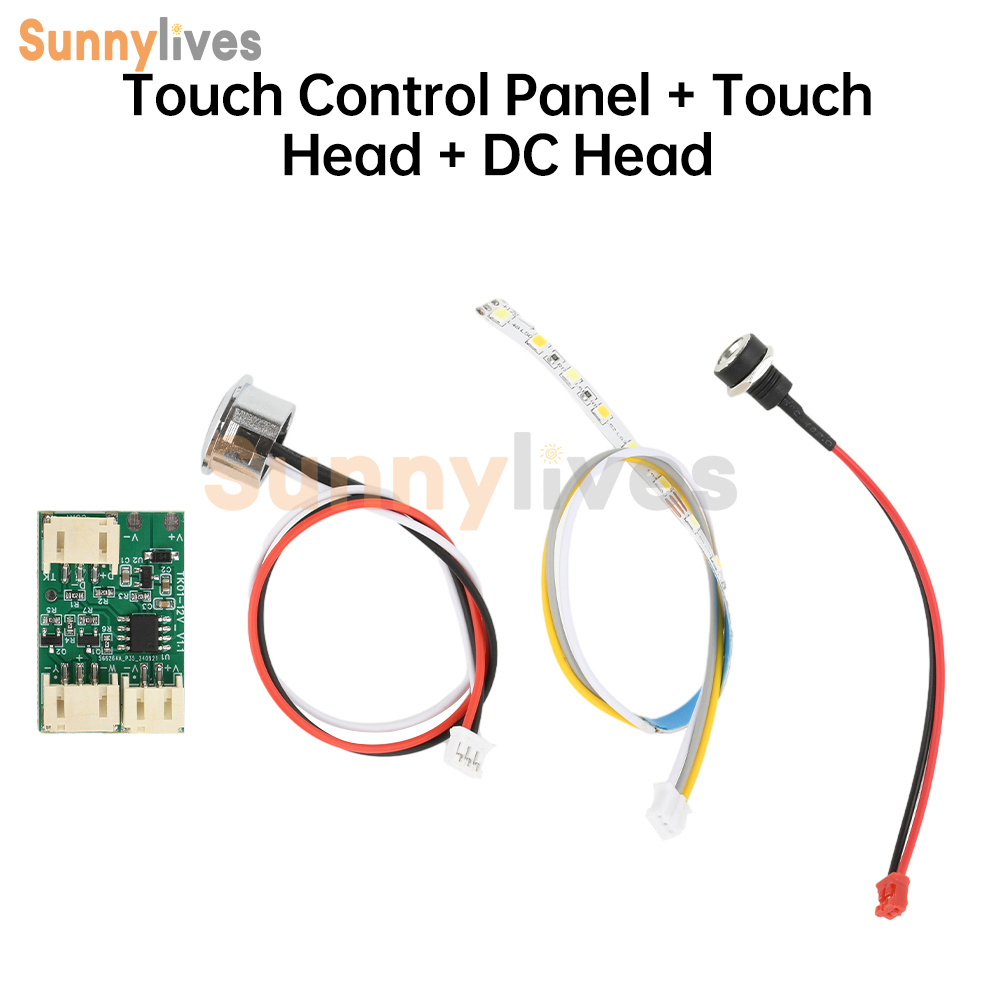

Package 3: Touch control board x1 + touch head x1 + DC head x1
