Product View
Product Details
Overview
This development board is based on the CH552 chip production development board, support up to 24MHz system frequency, built-in 16K program memory ROM and 256Byte internal iRAM and 1KB on-chip xRAM, xRAM support DMA direct memory access. CH552 built-in ADC analog-to-digital converter, touch button capacitance detection, 3 groups of timers and signal capture and PWM, dual-asynchronous serial interface, SPI, USB device controller and full-speed transceiver, type-C, USB and other functional modules. Asynchronous serial port, SPI, USB device controller and full-speed transceiver, type-C, USB and other function modules.
Enhanced 8051 core: Compatible with MCS51 instruction set, enhanced E8051 core microcontroller, 79% of the instructions are single-byte single-cycle instructions, the average instruction speed is 8~15 times faster than the standard MCS51, unique XRAM data fast copy instructions, support up to 24MHz system main frequency.
Built-in Flash/RAM: Built-in 16K program memory ROM and 256 bytes of internal iRAM and 1K bytes of on-chip XRAM, XRAM supports DMA direct memory access peripheral rich.
USB: Embedded USB controller and USB transceiver, supports USB2.0 full-speed and low-speed host or device mode. Supports up to 64 byte packets, built-in FIFO, supports DMA.
UART: 2 full-duplex asynchronous serial ports, all support high baud rate communication, UARTO is a standard MCS51 serial port.
Timer: 3 sets of timer/counter, support 2-way signal capture and 2-way PWM output.
SPI: 1 SPI communication interface, built-in FIFO, support Master/Slave master-slave mode.
ADC: 4-channel 8-bit A/D analog-to-digital converter, support voltage comparison
Touch: 6-channel capacitance detection, support up to 15 touch keys, support independent timing interrupt.
This development board is based on the CH552 chip production development board, support up to 24MHz system frequency, built-in 16K program memory ROM and 256Byte internal iRAM and 1KB on-chip xRAM, xRAM support DMA direct memory access. CH552 built-in ADC analog-to-digital converter, touch button capacitance detection, 3 groups of timers and signal capture and PWM, dual-asynchronous serial interface, SPI, USB device controller and full-speed transceiver, type-C, USB and other functional modules. Asynchronous serial port, SPI, USB device controller and full-speed transceiver, type-C, USB and other function modules.
Enhanced 8051 core: Compatible with MCS51 instruction set, enhanced E8051 core microcontroller, 79% of the instructions are single-byte single-cycle instructions, the average instruction speed is 8~15 times faster than the standard MCS51, unique XRAM data fast copy instructions, support up to 24MHz system main frequency.
Built-in Flash/RAM: Built-in 16K program memory ROM and 256 bytes of internal iRAM and 1K bytes of on-chip XRAM, XRAM supports DMA direct memory access peripheral rich.
USB: Embedded USB controller and USB transceiver, supports USB2.0 full-speed and low-speed host or device mode. Supports up to 64 byte packets, built-in FIFO, supports DMA.
UART: 2 full-duplex asynchronous serial ports, all support high baud rate communication, UARTO is a standard MCS51 serial port.
Timer: 3 sets of timer/counter, support 2-way signal capture and 2-way PWM output.
SPI: 1 SPI communication interface, built-in FIFO, support Master/Slave master-slave mode.
ADC: 4-channel 8-bit A/D analog-to-digital converter, support voltage comparison
Touch: 6-channel capacitance detection, support up to 15 touch keys, support independent timing interrupt.
Features
1. High-efficiency kernel: Enhanced kernel with up to 24MHz main frequency and faster instruction speed than standard.
2. Rich peripheral interfaces: Built-in a variety of interfaces to meet the needs of a variety of applications. 3.
3. large-capacity memory: built-in 16K ROM, support DMA direct memory access, to enhance the efficiency of data processing. 4. multiple USB interface support: provides a maximum of 24MHz main frequency, instruction speed is faster than standard.
4. Multi-USB interface support: Micro USB, Type-C interface options, strong compatibility. 5. Compact design and size: Compact and easy to use.
5. Compact design size: compact and portable, easy to integrate into various projects and devices.
1. High-efficiency kernel: Enhanced kernel with up to 24MHz main frequency and faster instruction speed than standard.
2. Rich peripheral interfaces: Built-in a variety of interfaces to meet the needs of a variety of applications. 3.
3. large-capacity memory: built-in 16K ROM, support DMA direct memory access, to enhance the efficiency of data processing. 4. multiple USB interface support: provides a maximum of 24MHz main frequency, instruction speed is faster than standard.
4. Multi-USB interface support: Micro USB, Type-C interface options, strong compatibility. 5. Compact design and size: Compact and easy to use.
5. Compact design size: compact and portable, easy to integrate into various projects and devices.

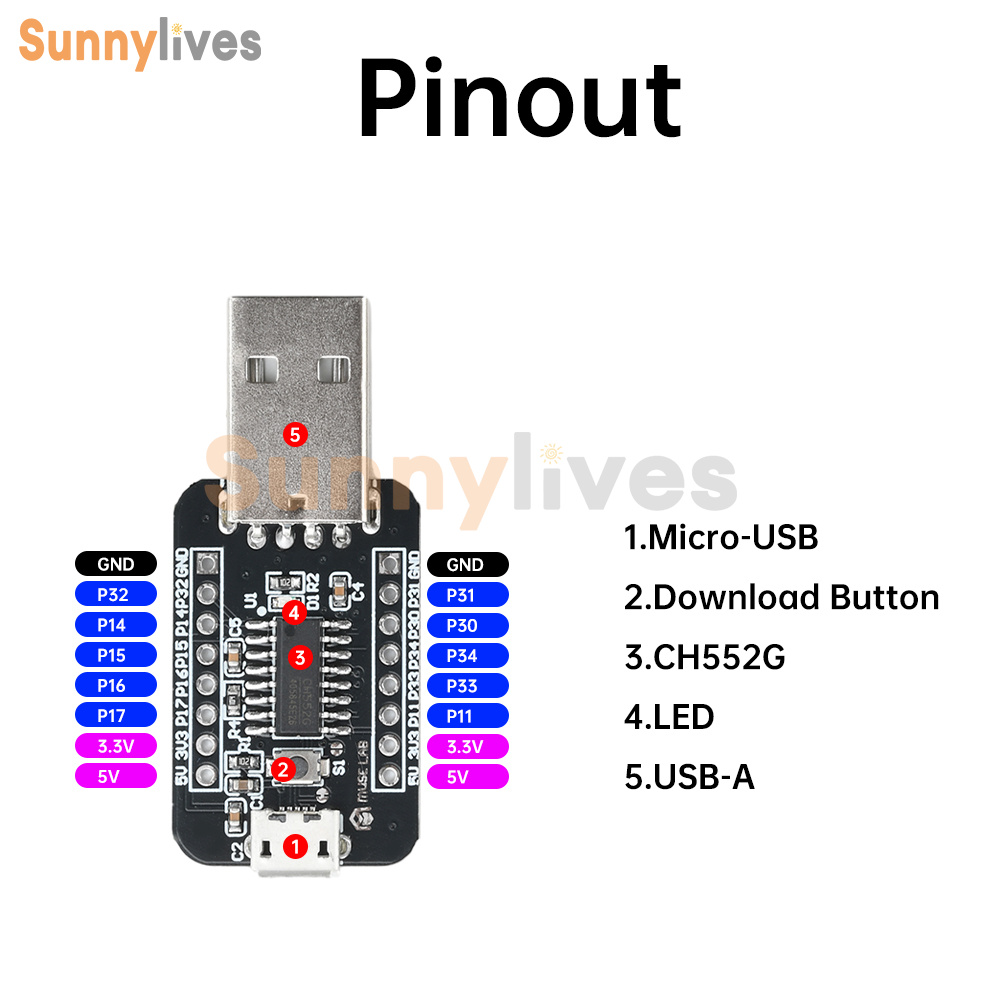

Specification

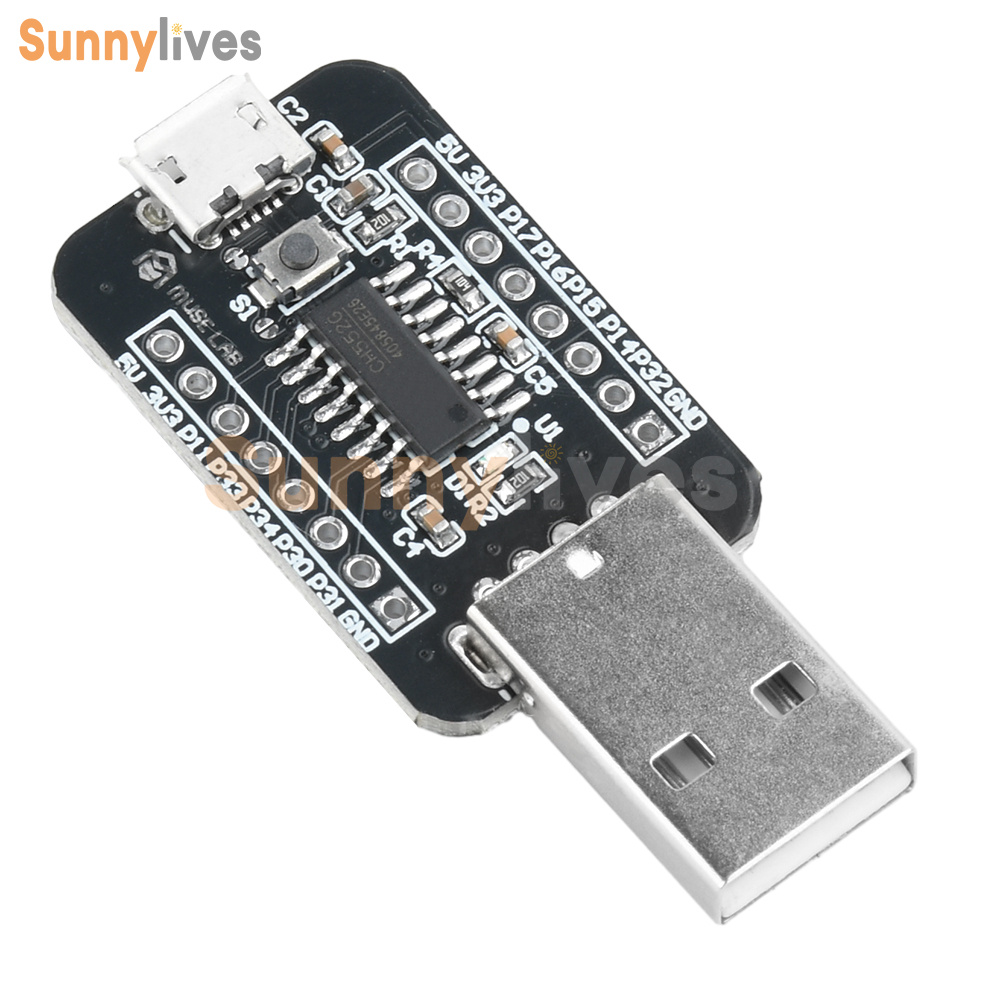

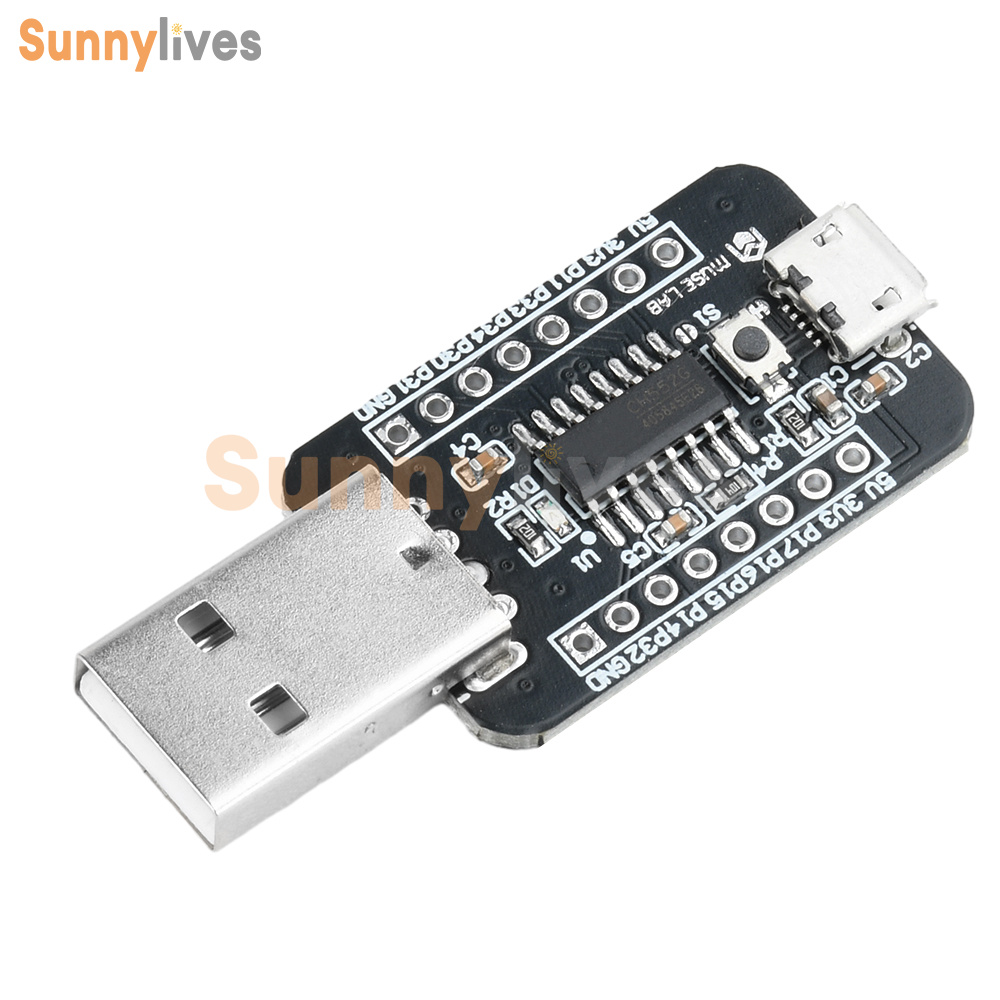

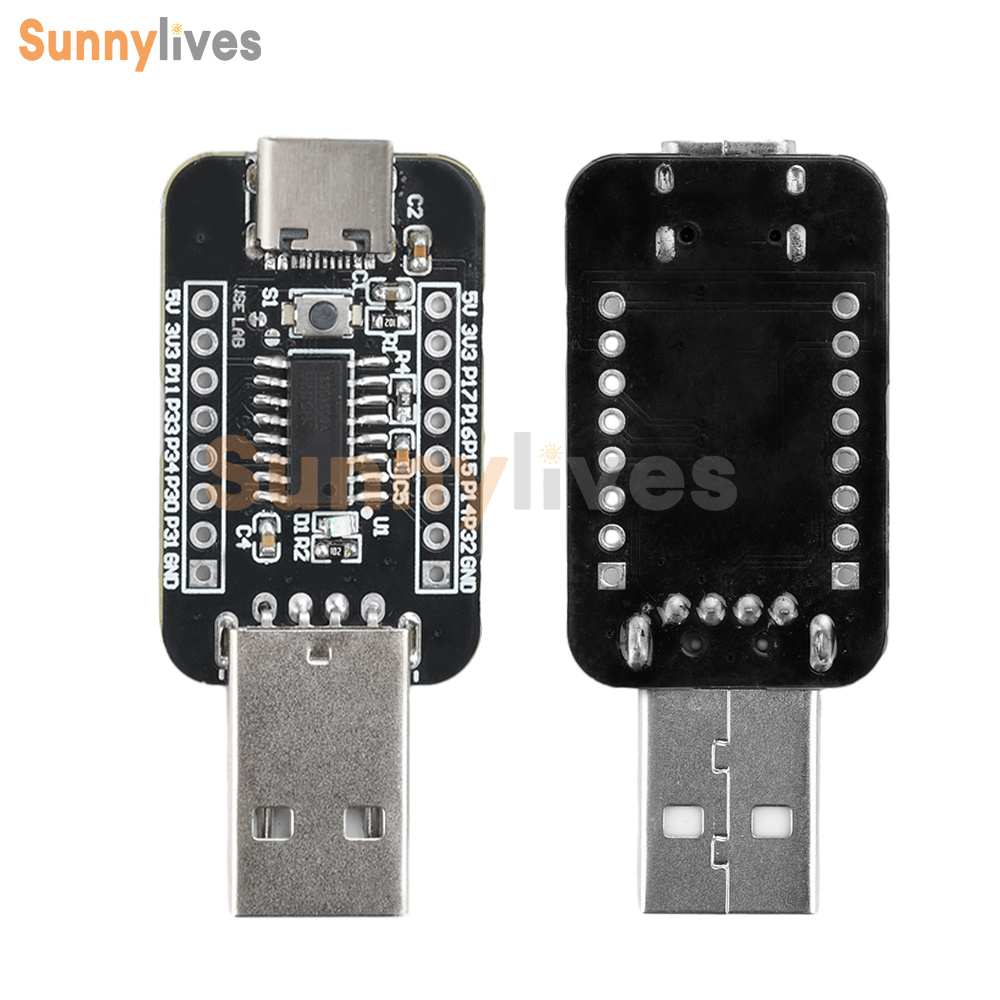

Product name: CH552 development board
Main control chip: CH552G

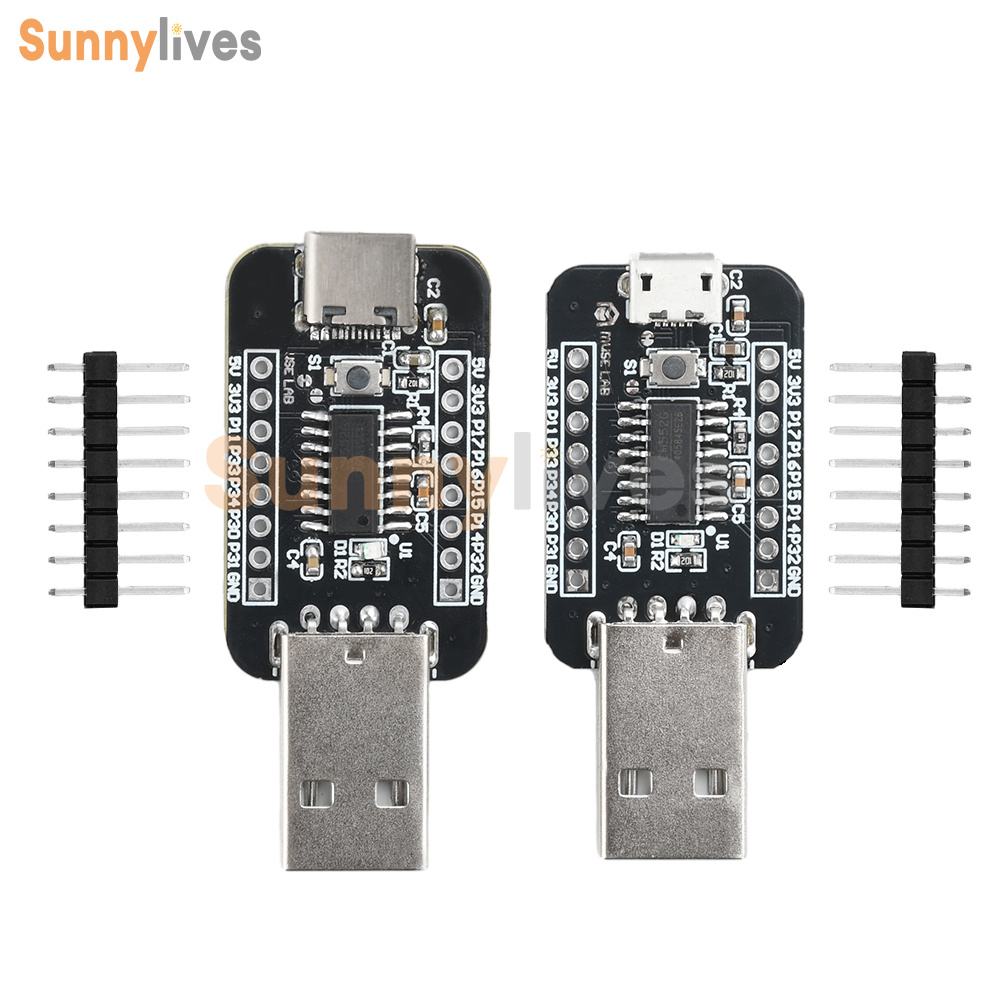

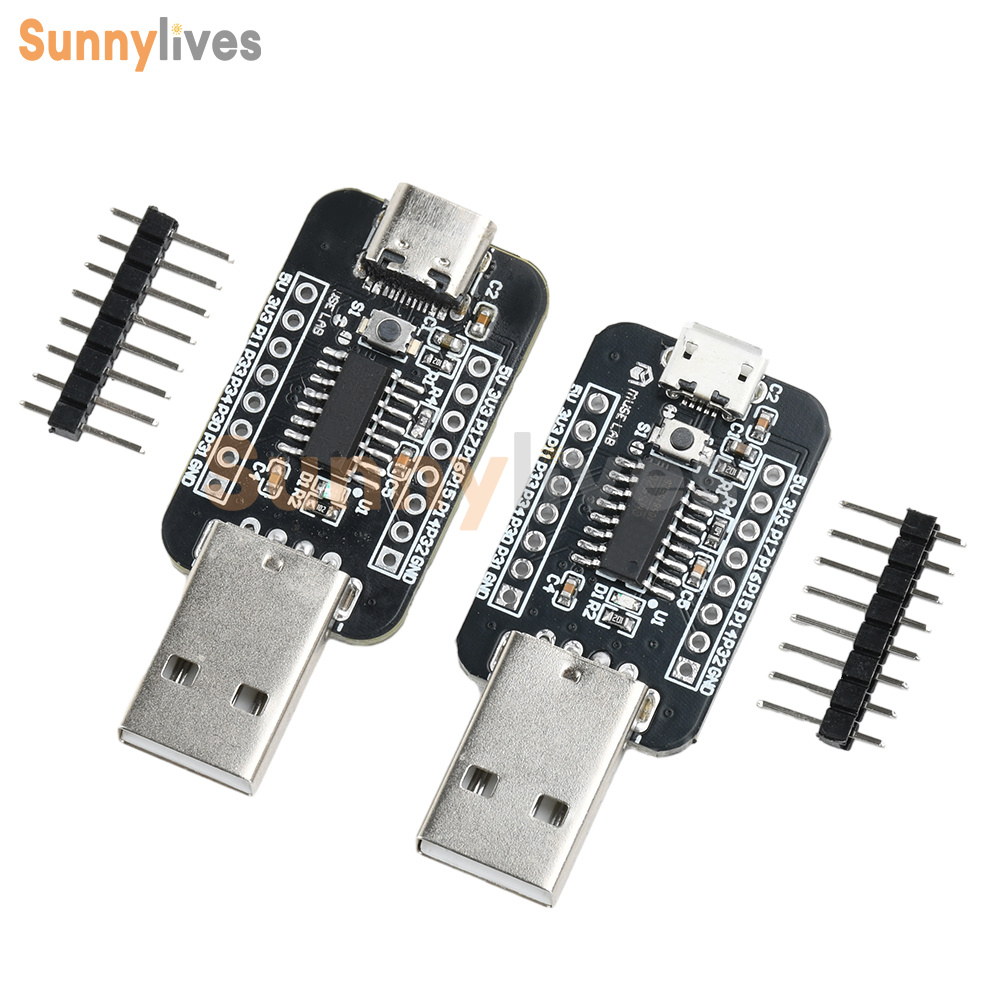

Download Interface: Micro USB, Type-C, USB-A
Development Environment: Keil/MDK, SDCC
Operating System For : Windows, Linux

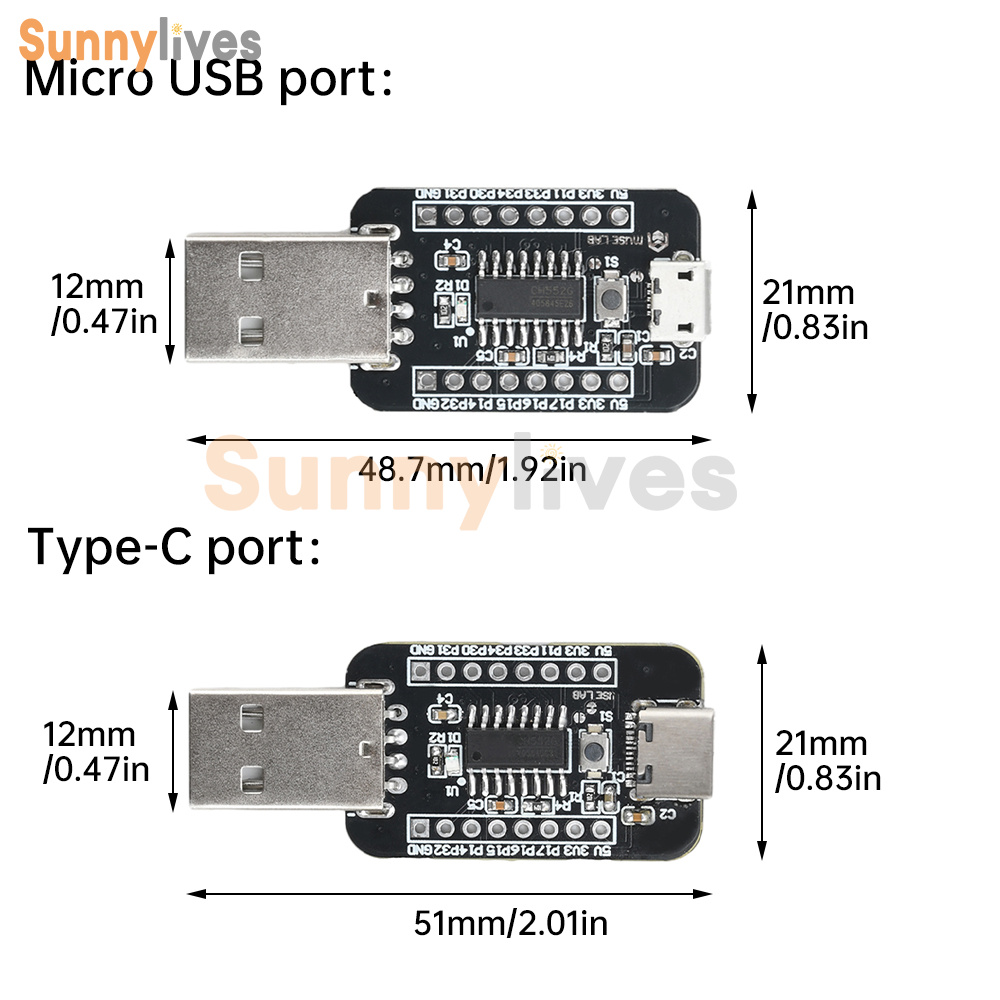

Product Size: 48.5mm*21mm
Product name: CH552 development board
Main control chip: CH552G
Download Interface: Micro USB, Type-C, USB-A
Development Environment: Keil/MDK, SDCC
Operating System For : Windows, Linux
Product Size: 48.5mm*21mm

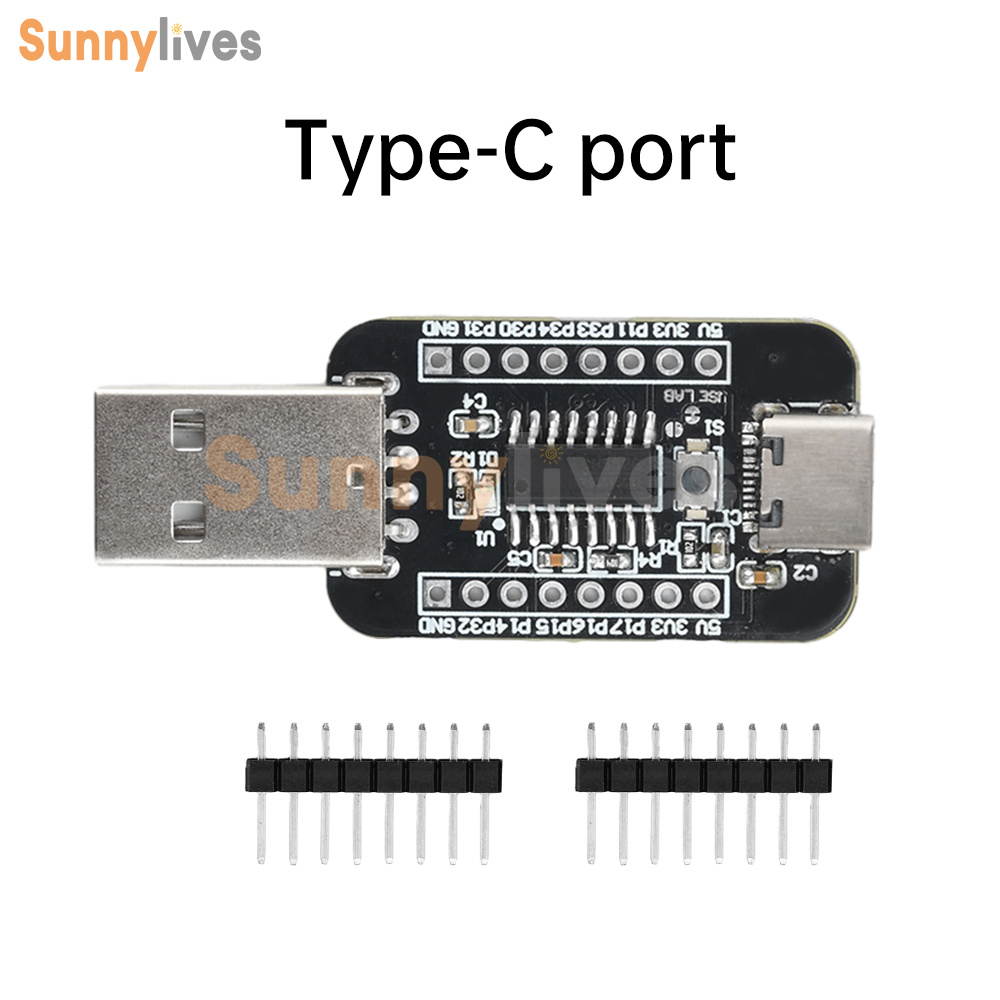

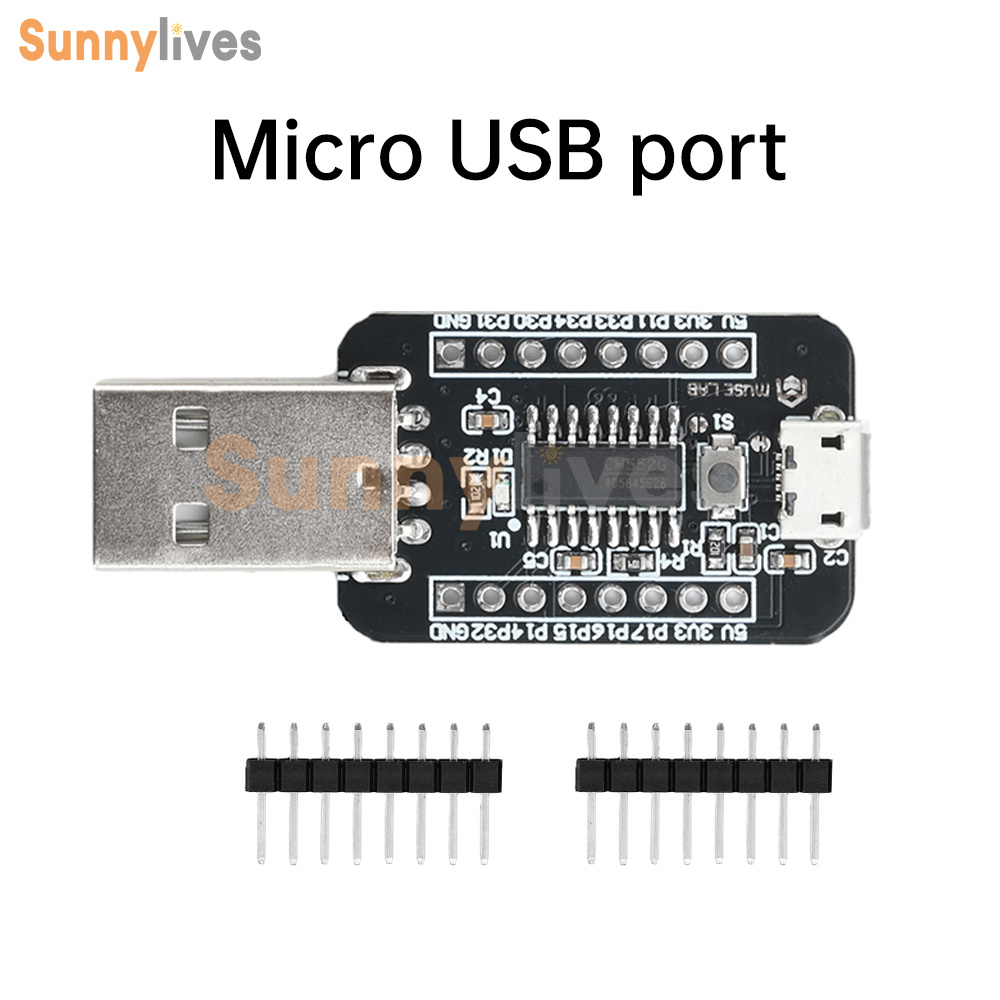

Package Includes
1 x Development Board
2 x Pin
1 x Development Board
2 x Pin
