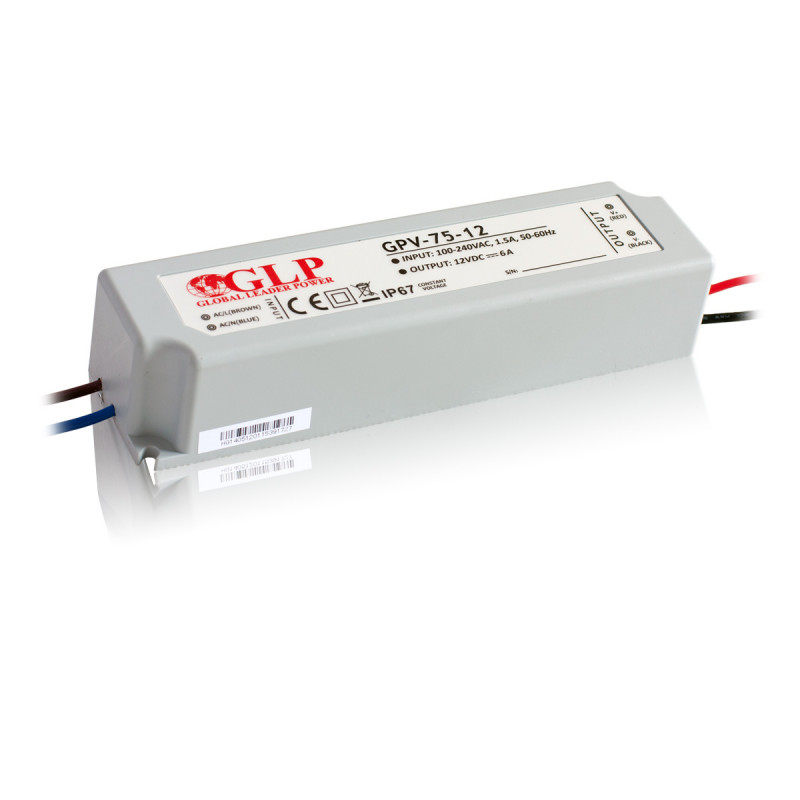

Model: GPV-75-12

Output:

LED driver mode: constant voltage
Output Voltage: 12Vdc
No of outputs: 1

Rated current: 6A

Current range: 0-6A
Rated power: 72W
Line regulation: ± 1%
Load regulation: ± 2%
Voltage tolerance: ± 5%
Ripple & noise (max.): 300mVP-P
Setup, rise time: 500ms, 250ms at full load
Hold up time (typ.): 24ms / 115VAC, 50ms / 230VAC at full load

Input:
Input Voltage: 90-264Vac
Frequency range: 47 ÷ 63Hz
Efficiency: 84%
AC current (typ.): 1.6A/115VAC, 0.8A / 230VAC

Inrush current (typ.): 70A / 230VAC, 35A / 115VAC
Leakage current(max.): 0.25mA / 240VAC

Protections:
Overcurrent:
- range:  150 ÷ 180%
- type: hiccup mode, auto-recovery

Short circuit:

- type: hiccup mode, auto-recovery
Over voltage:

- 13.5 ÷ 16.5V

- type: hiccup mode, auto-recovery

Environment:

Working temperature: -30°C ÷ 70°C (Refer to Derating Curve)
Working humidity: 20 ÷ 90% RH non-condensing
Storage temperature and humidity: -40°C ÷ 80°C, 10 ÷ 95% RH non-condensing
Temperature coefficient: ± 0.03% / °C (0°C ÷ 50°C)
Vibration: 10 ÷ 500Hz, 2G, 10min / cycle, period for 60min. each along X, Y, Z axes

Safety and EMC regulations:
Safety standards: compliance to EN61347-1, EN61347-2-13, IP67
Withstand voltage: I-P/O-P: 3kVAC
Isolation resistance: I-P/O-P; O-P/FG; I-P/FG: 100MΩ/500VDC/25°C/70%
EMC emission: compliance to EN55015
EMC immunity: compliance to EN61547; EN55024; EN61000-4-2, -3, -4, -5, -6, -8, -11
Harmonic current: compliance to EN61000-3-3; EN61000-3-2

Other:

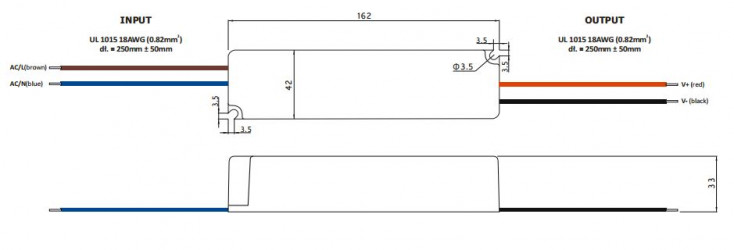

Dimensions: 162 x 42 x 33mm
Weight: 0.38kg
Termination style: flying leads, approx. 250mm ± 50mm (UL 1015 18AWG (0.82mm ))
IP67
