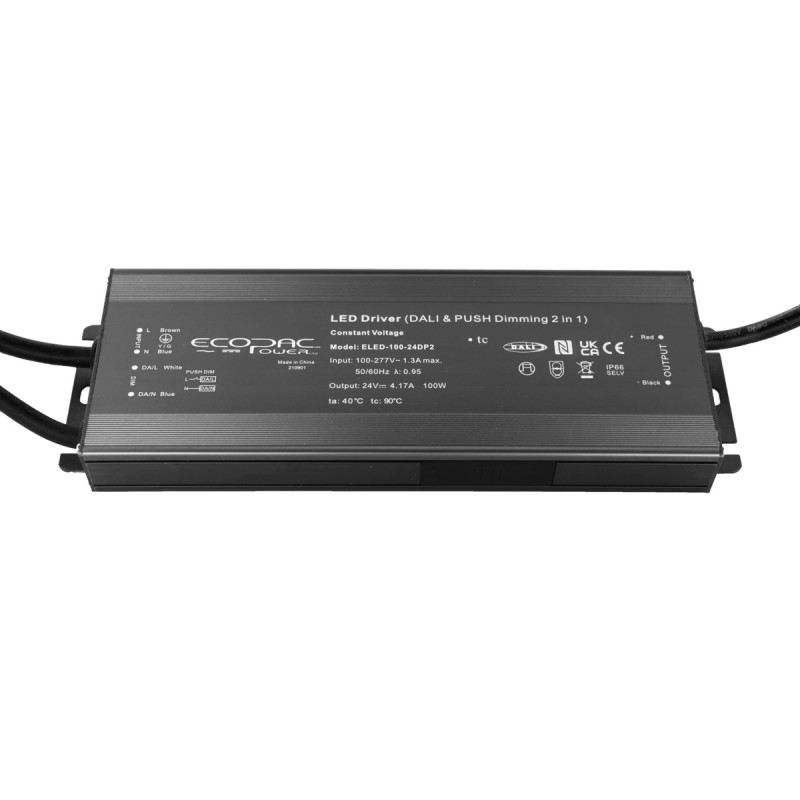

100W DALI 2 & Push Dimmable DT8 LED Driver

Model: ELED-100-24DP2 DT8
Output DC voltage: 24V (24-26V adjust by NFC)
Voltage Tolerance: ± 0.5%
Output Current: 4.17A
Rated power: 100W
Load Regulation: ± 2%
Input Voltage Range: 100-277VAC
Frequency Range: 47-63HZ
Inrush Current: 59A  (Twidth=210μs 230VAC)
Power Factor ( Typ.): PF≥0.98@120VAC PF≥0.96@230VAC PF≥0.95@277VAC (Full loading)
Full Load Efficiency(Typ.): 87%
AC Current(Typ.): 0.8A
Leakage current: <0.5mA
Protections: Short Circuit (Constant current mode, recovers automatically after fault condition is removed)
Over Loading ≤120%  constant current limiting, recovers automatically after fault condition is removed
Over Temp. 100°C± 10°C
Protection Class: I
Built-in active PFC function
Cooling by free air convection
Working TEMP.: -40~+60°C (Refer to derating curve)
Working Humidity: 20 -95% RH, non-condensing
Storage TEMP.-40～+80℃，10～95%RH
Temperature Coefficient: ±0.03%/℃（0～50℃）
Vibration: 10～500Hz, 2G 10min./1 cycle, period for 60min.each along X,Y,Z axes
Safety standards: EN61347-1, EN61347-2-13, EN62493, IP66
Withstand voltage: I/P-O/P:3.75KVAC   I/P-FG:1.88KVAC   O/P-FG:0.5KVAC
Isolation resistance: I/P-O/P I/P-FG O/P-FG: 100MΩ/500VDC/25°C/70%RH
EMC Emission: Compliance to EN55015, EN61000-3-2, EN61000-3-3 (≥60% load)
EMC Immunity: Compliance to EN61000-4-2,3,4,5,6,11, EN61547
Weight: 0.83 Kg
Dimensions: 231x 78 x 25.1 mm
