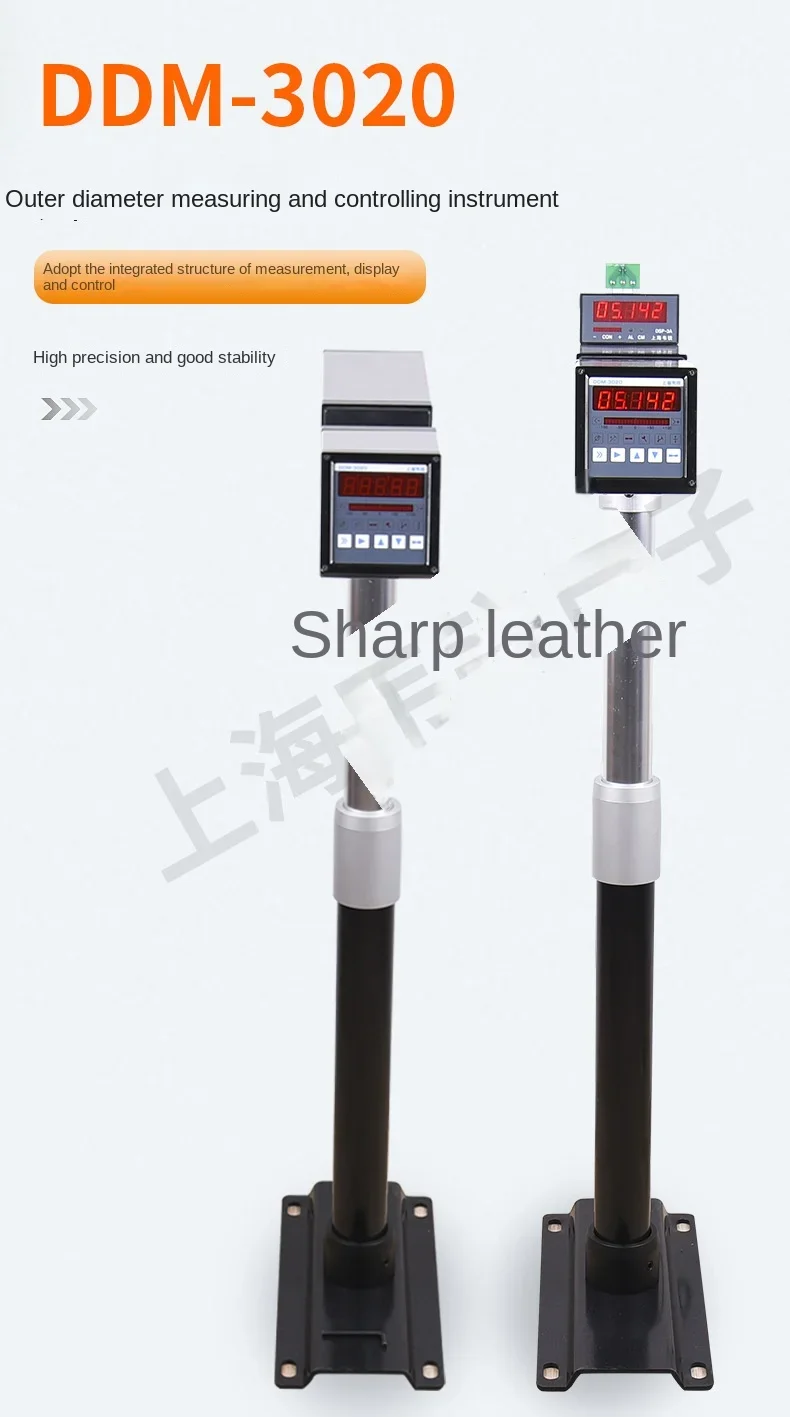

Model 3020 Infrared Diameter Measuring Instrument 0.2～16 mm

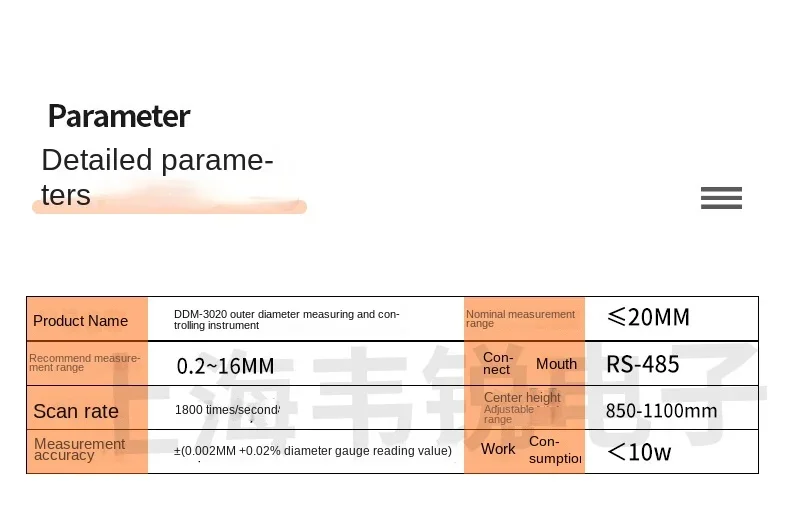

Product Name

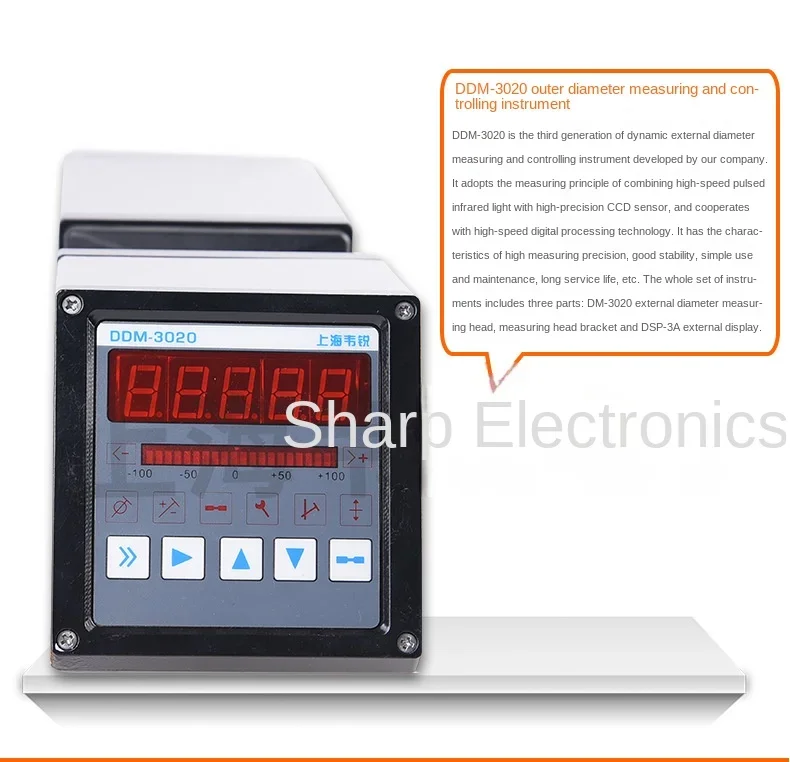

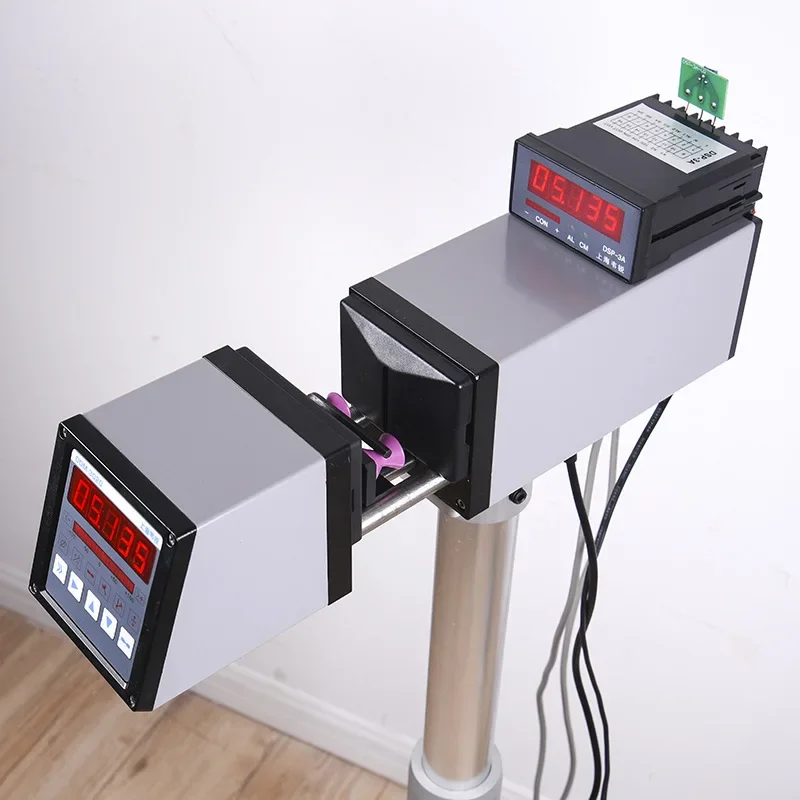

DDM-3020 Outside Diameter Measuring Instrument
Nominal measuring range≤20MM
Recommended measuring range 0.2~16MM
Connect RS-485
Scanning rate 1800 times / sec

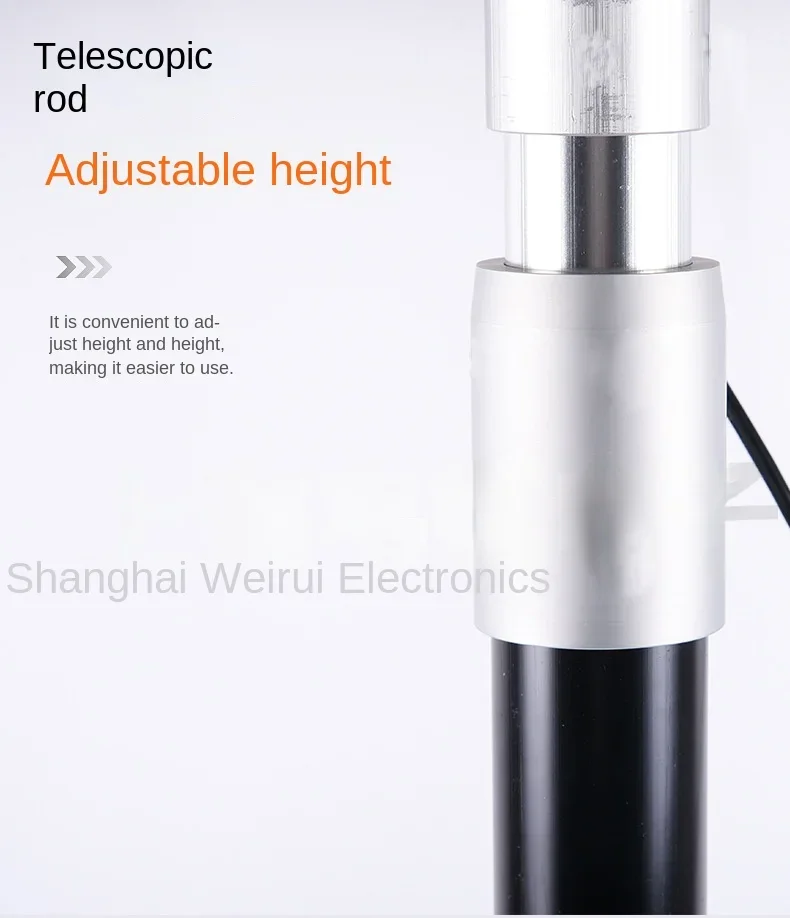

Centre height adjustable range 850-1100mm
Measurement accuracy ± (0.002MM + 0.02% of the reading value of the calibrator)
Power consumption <10w
